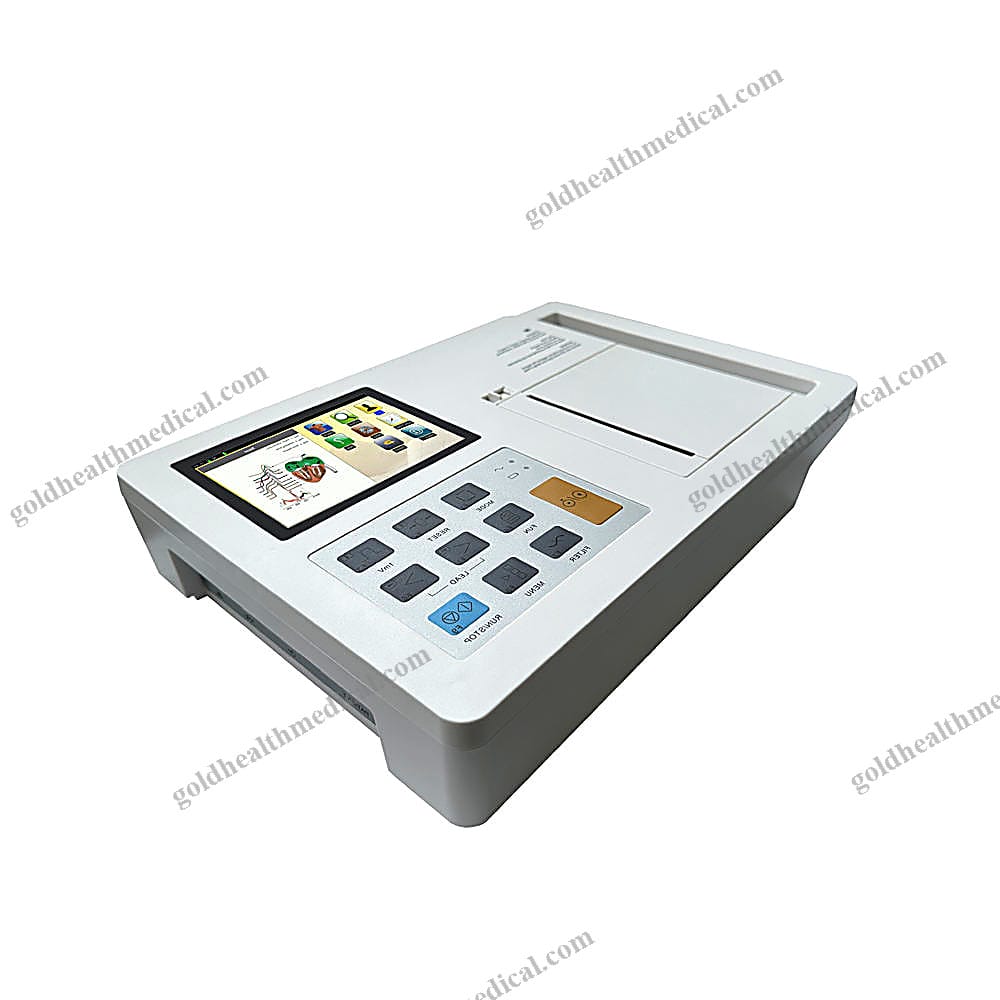

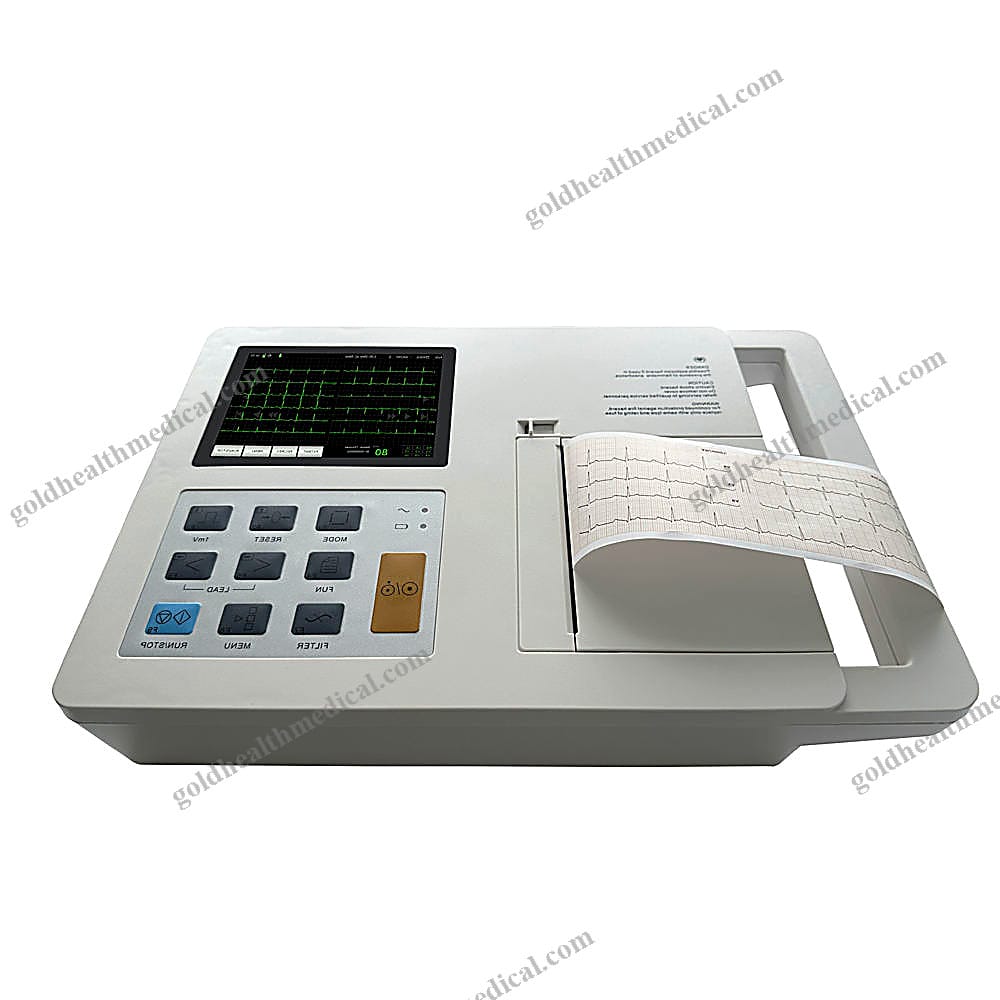

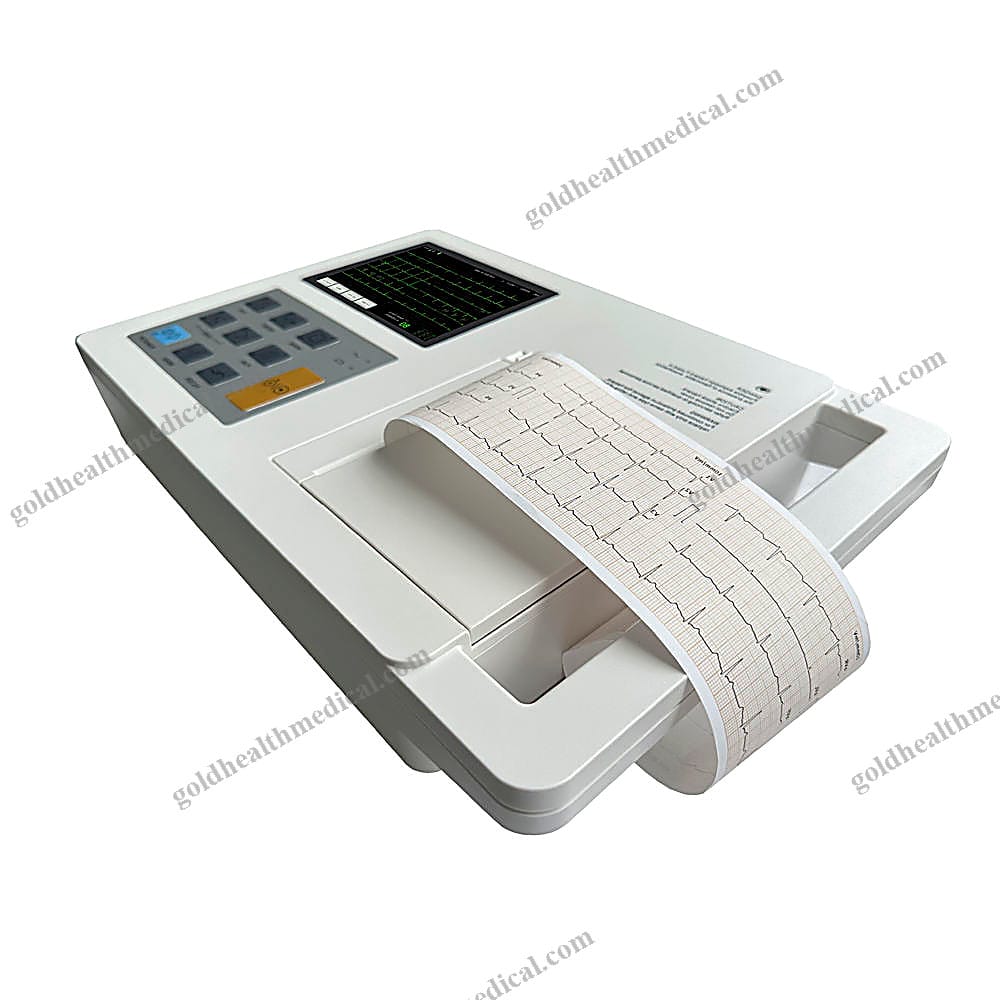

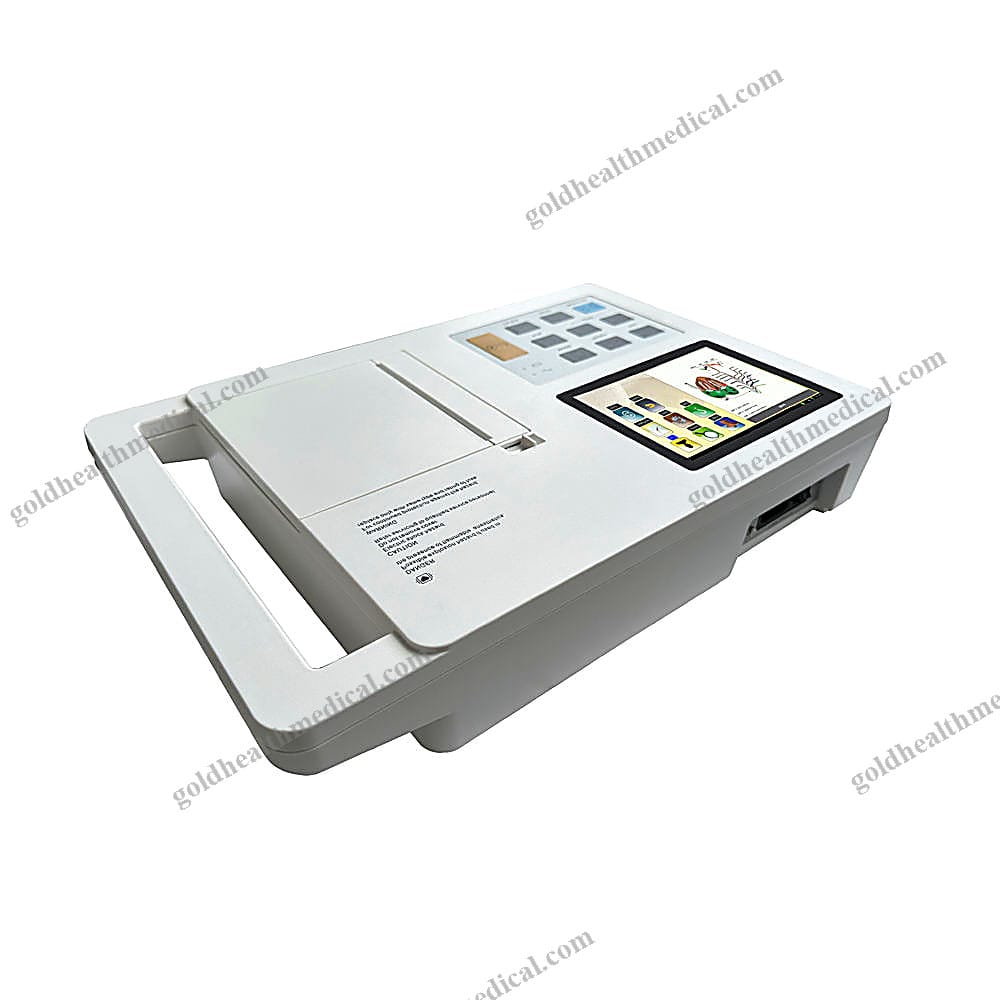

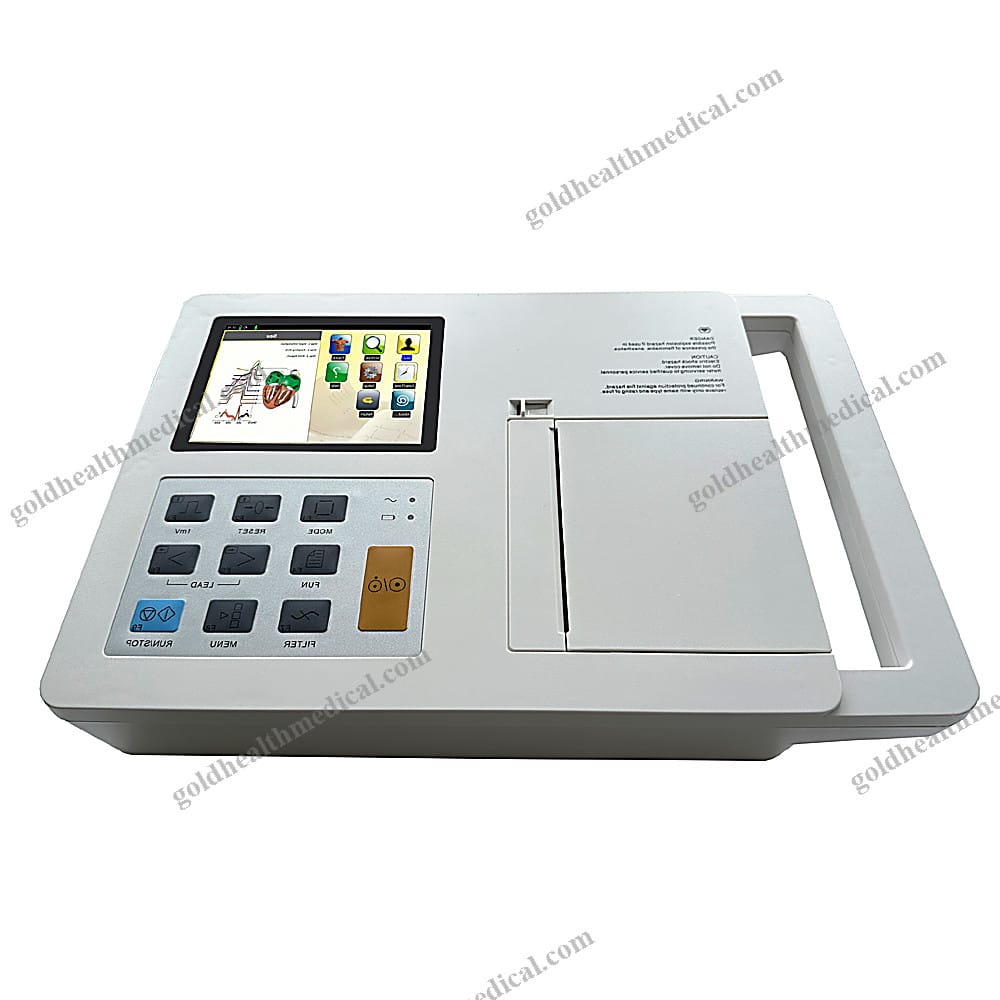

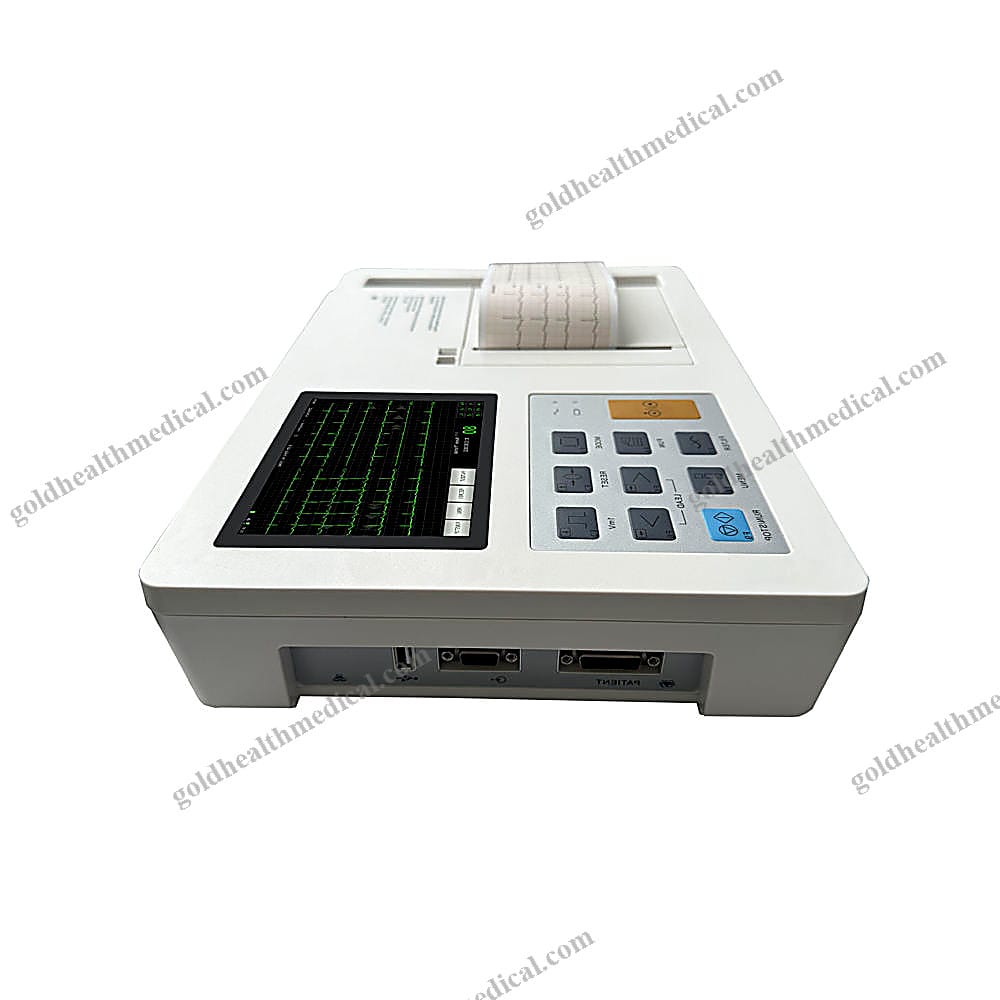

VSE001 Portable 12Lead ECG Machine
Reference: 1601259525593
Medical Optical Instruments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical ECG Device
Product Highlights: - A sleek, modern design that is lightweight and compact, making it ideal for both clinical and mobile use. - Simultaneous acquisition and full-screen display of 12-lead ECG waveforms for comprehensive cardiac analysis. - Equipped with a vibrant 5.6" color touch screen, offering both touch and push-button operation for ease of use. Optional 4.3" touch screen available. - Advanced filters including ADS, HUM, and EMG ensure precise signal clarity. - Automatic measurement, calculation, and analysis features reduce physician workload and enhance efficiency. Includes auto waveform freezing and diagnostic capabilities. - Intelligent baseline adjustment ensures optimal recording quality. - Integrated thermal printer with 80mm paper width for synchronized, high-quality printouts. - Smart detection for lead disconnection and paper shortages to prevent interruptions during use. - Powered by a built-in rechargeable lithium-ion battery (11.1V/4000mAh) with AC/DC power conversion, ensuring reliable performance. - Adaptable to a wide range of power supplies (100-240V, 50/60Hz) for global compatibility. - Review and print historical data and patient information effortlessly. - Supports USB flash drives and SD memory for data transfer. ECG reports can be analyzed on a PC using dedicated playback software. - Stores over 400 ECG reports in its internal memory for convenient access. - Standard RS232 and USB communication interfaces for seamless connectivity. - Compatible with PC-based ECG workstation software for advanced functionality. - Energy-saving sleep mode extends LCD lifespan and reduces power consumption. - Records real-time, continuous 12-channel ECG waveforms with detailed annotations, including lead markers, sensitivity, paper speed, and filter status.
Technical Specifications: - Common Mode Rejection Ratio (CMRR): β₯ 100dB - Calibrating Voltage: 1mV Β± 3% - Input Circuit: Floating design - Voltage Tolerance: Β± 500mV - Input Circuit Current: β€ 0.1Β΅A - Time Constant: > 3.2s - Frequency Response: 0.05Hz ~ 150Hz - Operation Modes: Manual/Auto - Noise Level: β€ 15Β΅Vp-p - Input Impedance: > 50MΞ© - Paper Speed Options: 12.5, 25, 50mm/s (Β± 3%) - Resolution: 12bit/1000Hz - Threshold: β€ 20Β΅V - Sensitivity Settings: 5, 10, 20mm/mV - Battery: Built-in rechargeable Li-ion battery, 11.1V (4000mAh) - Package Dimensions: 360mm x 250mm x 68mm
GoldHealth Medicalβs ECG device combines cutting-edge technology with user-centric design, delivering unparalleled precision and reliability for healthcare professionals and institutions worldwide.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical presents an advanced medical instrument designed to deliver precision, reliability, and ease of use in a variety of healthcare settings. Engineered with a blend of high-quality materials and cutting-edge technology, this Class II medical device is ideal for hospitals, clinics, research institutions, and home care environments. Backed by a 2-year warranty and comprehensive after-sales support, it ensures long-term performance and peace of mind.
Key Features and Specifications
- Material Composition: Crafted from durable plastic and premium metal, ensuring robustness and longevity.
- Power Source: Fully electric operation for consistent and reliable performance.
- Instrument Classification: Class II medical device, designed to meet the demands of professional healthcare applications.
- Place of Origin: Proudly manufactured in Hubei, China, adhering to stringent quality standards.
- Shelf Life: 2-year shelf life, maintaining optimal functionality when stored under recommended conditions.
- Quality Certification: CE-certified, guaranteeing compliance with international safety and performance benchmarks.
After-Sales Support
- Warranty: Comprehensive 2-year warranty covering manufacturing defects and operational issues.
- Technical Assistance: Access to online technical support for seamless troubleshooting and maintenance guidance.
Why Choose GoldHealth Medical?
Our commitment to innovation and excellence ensures that every product is designed with the end-user in mind. This instrument combines ergonomic design, advanced functionality, and meticulous craftsmanship to deliver unparalleled value. Whether for clinical diagnostics, laboratory research, or home healthcare, this device is engineered to exceed expectations and empower healthcare professionals worldwide.
