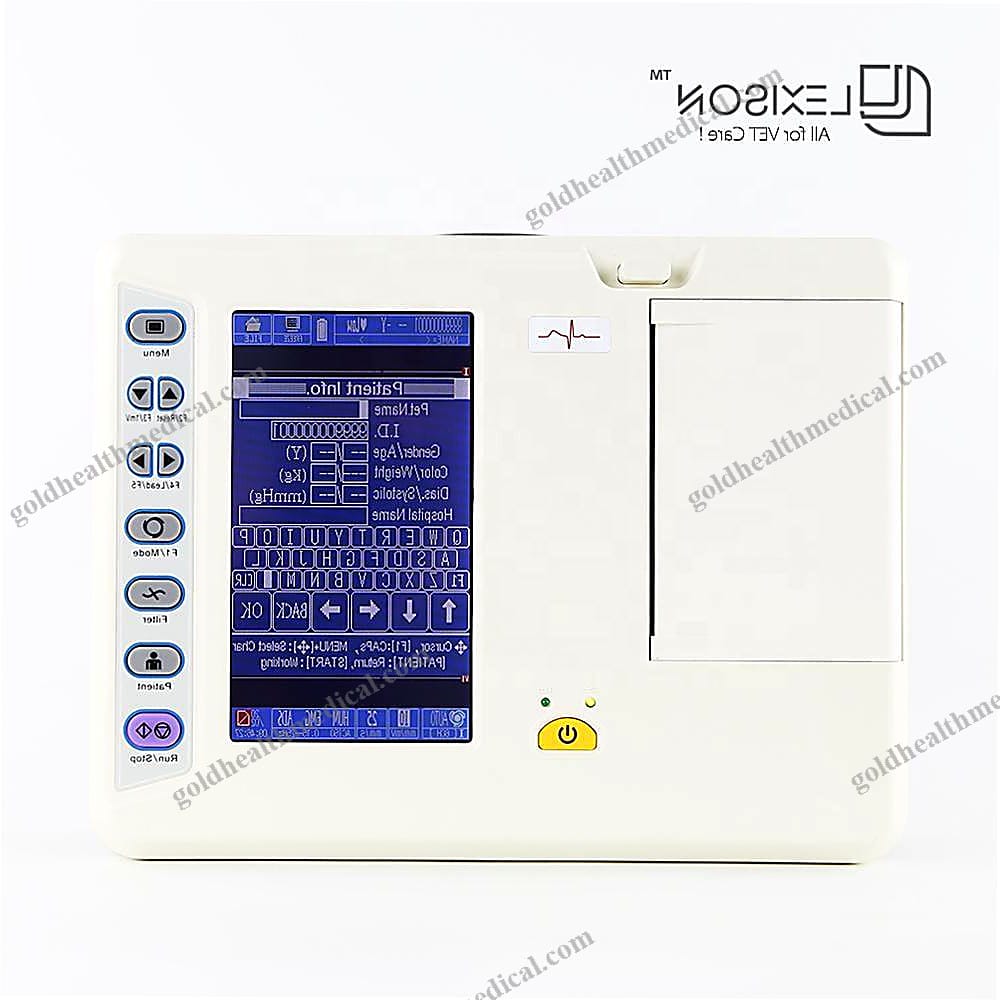

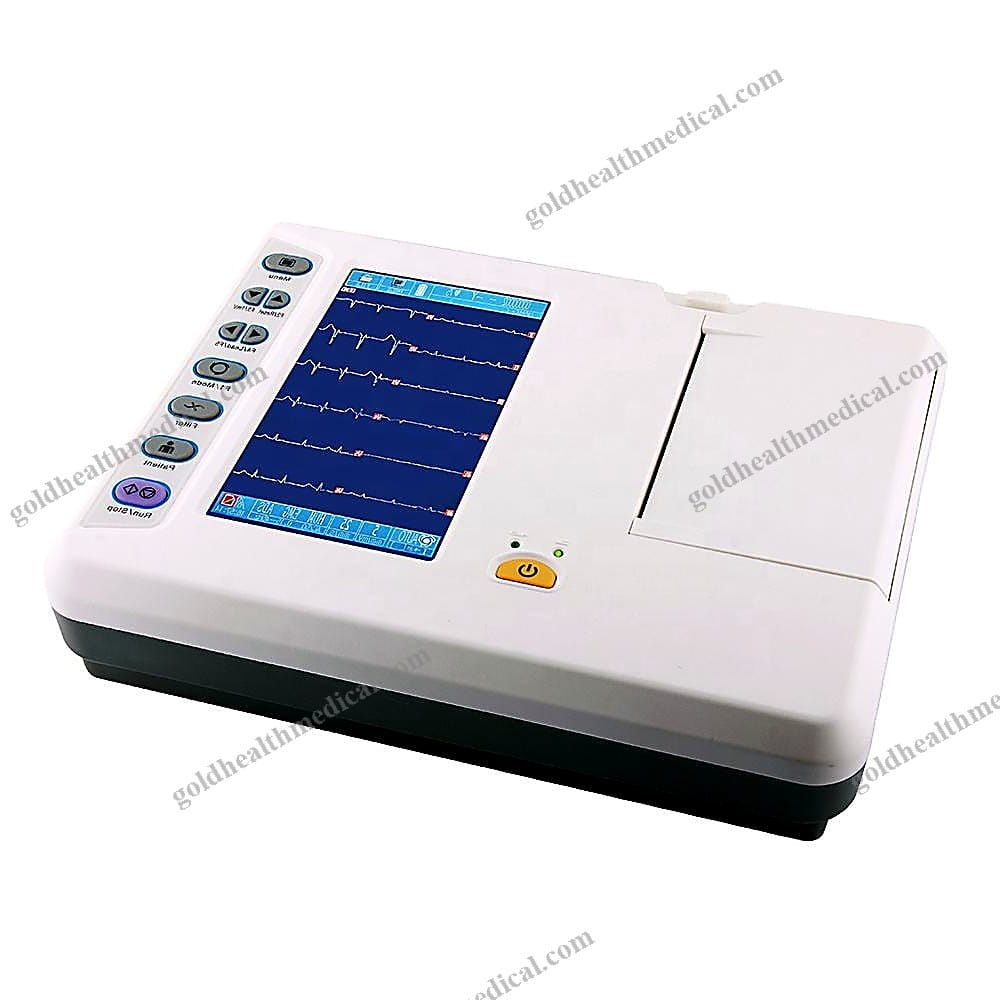

VECGR3306G Portable Veterinary ECG Machine with USB
Reference: 60271823815
Veterinary Instrument
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Revolutionizing Veterinary Care with Advanced ECG Technology
GoldHealth Medical presents a state-of-the-art portable electrocardiograph (ECG) machine designed specifically for veterinary use. This compact and elegantly designed device is engineered to deliver exceptional performance with intuitive operation, making it an indispensable tool for veterinary professionals.
Key Features:
- Compact Design: Lightweight and portable, ensuring ease of use in any veterinary setting.
- Advanced Recording: 112mm, 6-channel format recording with comprehensive interpretation capabilities.
- Flexible Operation Modes: Offers Auto, Manual, and Arrhythmia Analysis modes to suit diverse diagnostic needs.
- Enhanced Display: Equipped with a 7-inch color touch screen LCD (800×480 resolution) for clear and precise visualization.
- Extended Storage: Stores up to 250 patient cases for convenient access and review.
- Long Battery Life: Built-in rechargeable Li-ion battery supports up to 4 hours of continuous operation.

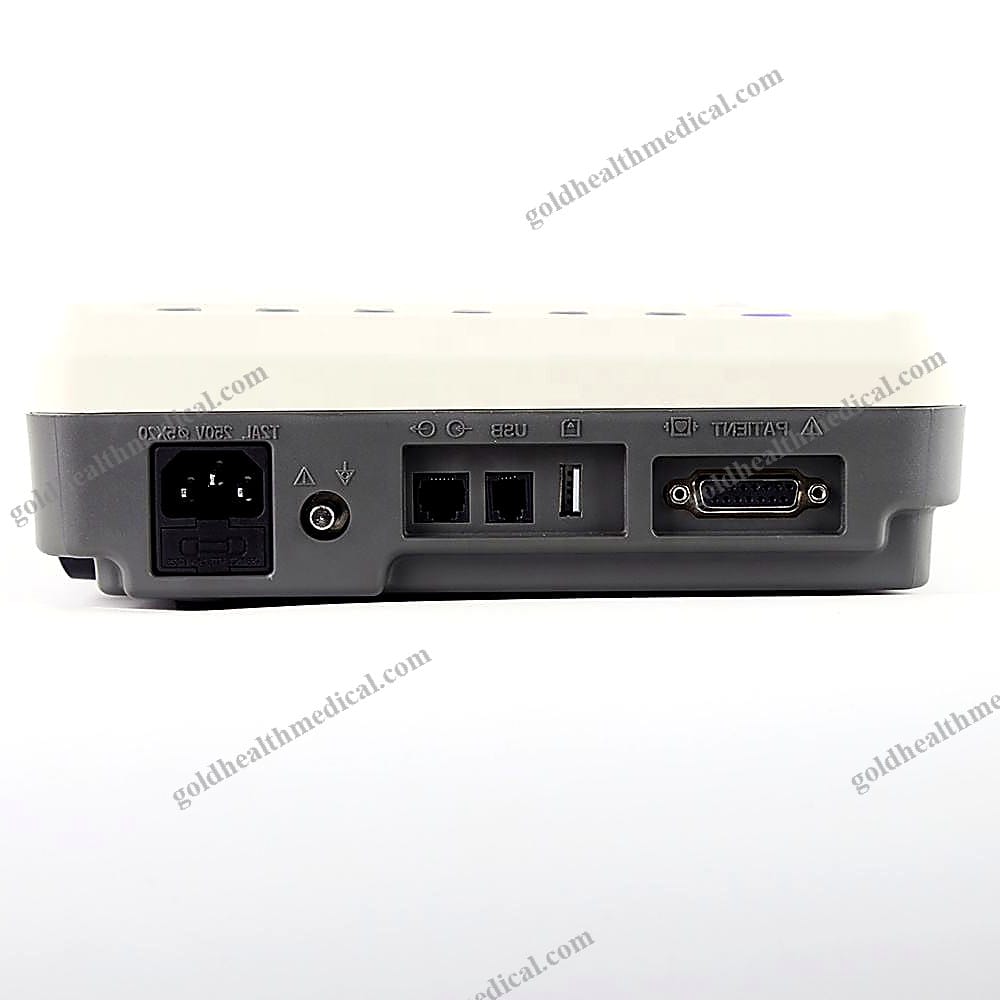

- Versatile Connectivity: Includes RS232 and USB communication interfaces for seamless data transfer.
- Optional ECG Software: Enhances functionality with advanced analysis tools.
Technical Specifications:
- Leads: Standard 7 leads with 12-bit/1000Hz synchronous acquisition.
- Operating Modes: Auto, Auto 2, Manual, and Analysis modes.
- Filters:
- AC Filter: 50Hz/60Hz
- EMG Filter: 25Hz/45Hz
- Anti-Drift Filter: 0.15Hz (Adaptive)
- Common Mode Rejection Ratio (CMRR): ≥ 100dB (with AC filter).
- Input Circuit: Floating design with defibrillator protection.
- Input Impedance: ≥ 50MΩ.
- Patient Safety: Input circuit current ≤ 0.05μA; Patient current leakage < 10μA.
- Calibration Voltage: 1mV ± 2%.
- Voltage Tolerance: ≤ ±500mV.
- Time Constant: ≤ 3.2s.
- Frequency Response: 0.05 ~ 160Hz (-3dB).
- Noise Level: < 15μVp-p.
- Inter-Channel Interference: ≤ 0.5mm.
- Sensitivity: Auto, 2.5, 5, 10, 20, 40mm/mV (±3%).
- Recording Modes: 3ch+, 3ch+++, 6ch.
- Paper Speed: 6.25, 12.5, 25, 50mm/s (±3%).
- Paper Type: 112mm x 20m roll paper.
- Environmental Conditions: Operates in temperatures from 5°C to 40°C and humidity levels of 25% to 95%.
- Power Supply:
- AC: 110 ~ 230V (±10%), 50/60Hz (±1Hz), 40VA.
- DC: Built-in rechargeable battery, 12V (1500mAh).
- Dimensions: 300mm x 230mm x 75mm.
- Weight: 2.8Kg.
GoldHealth Medical is committed to delivering high-quality medical devices that enhance veterinary care. Our dedication to innovation and excellence ensures that our products meet the highest standards of performance and reliability.
Why Choose GoldHealth Medical?
- Uncompromising Quality: Our motto, "Quality is our Culture," reflects our commitment to excellence.
- Trusted Partner: With years of experience, we have earned the trust and support of numerous customers worldwide.
- Comprehensive Support: Offering a 24-month warranty and lifetime technical support, we ensure your investment is protected.
GoldHealth Medical continues to lead the way in veterinary medical technology, providing innovative solutions that empower healthcare professionals to deliver superior care. Explore our range of advanced veterinary equipment and experience the difference today.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical presents the Veterinary ECG Machine – a cutting-edge solution designed for precision, reliability, and ease of use in veterinary cardiology.
- Product Type: Advanced Veterinary ECG Machine
- Lead Configuration: Standard 7-Lead System for comprehensive heart monitoring
- Work Modes: Auto, Manual, and Arrhythmia Analysis to suit diverse diagnostic needs
- Channel Output: 6-Channel format for detailed and accurate readings
- Display: 7-inch Touch Screen LCD Display, offering intuitive navigation and crystal-clear visualization
- Memory Storage: Capable of saving up to 250 ECG cases for efficient record-keeping and analysis
- Printer: Integrated 112mm thermal printer with 6-channel format recording and interpretation for professional documentation
- Battery Life: Rechargeable Li-ion Battery supporting up to 4 hours of continuous operation, ensuring portability and convenience
- ECG Software: Optional advanced software for enhanced data management and reporting
- Interfaces: RS232 and USB communication interfaces for seamless connectivity and data transfer
Key Features and Benefits:
- Precision Diagnostics: Delivers accurate and reliable ECG readings tailored for veterinary use.
- User-Friendly Design: Intuitive touch screen and multiple work modes simplify operation for medical professionals.
- Portability and Durability: Lightweight design with long-lasting battery life, ideal for clinics, mobile practices, and fieldwork.
- Comprehensive Reporting: High-quality printing and extensive memory storage ensure detailed case documentation.
Applications:
Perfectly suited for hospitals, clinics, research institutions, rehabilitation centers, and home care environments, this Veterinary ECG Machine is an indispensable tool for modern veterinary practices.
Place of Origin: Jiangsu, China
Supply Capacity: Up to 100 units per month, ensuring timely delivery to meet your needs.
GoldHealth Medical – Elevating Veterinary Care Through Innovation.
