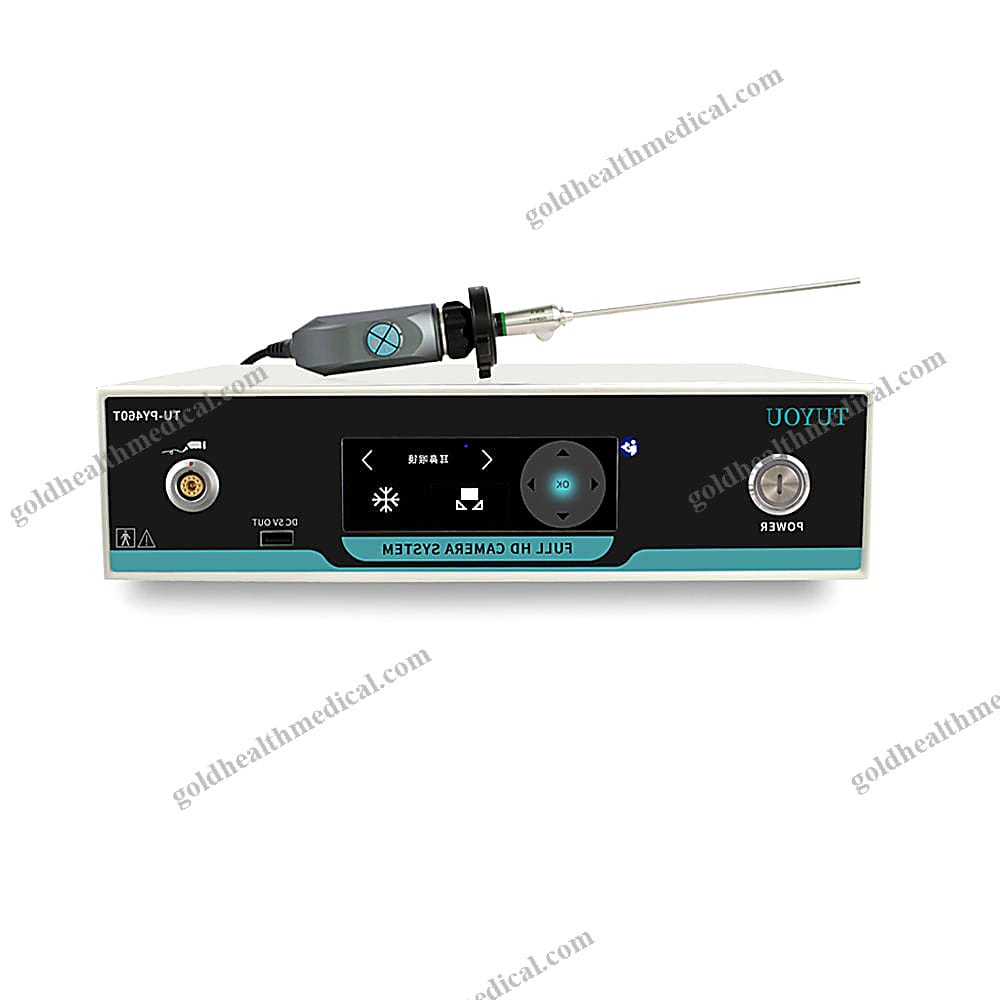

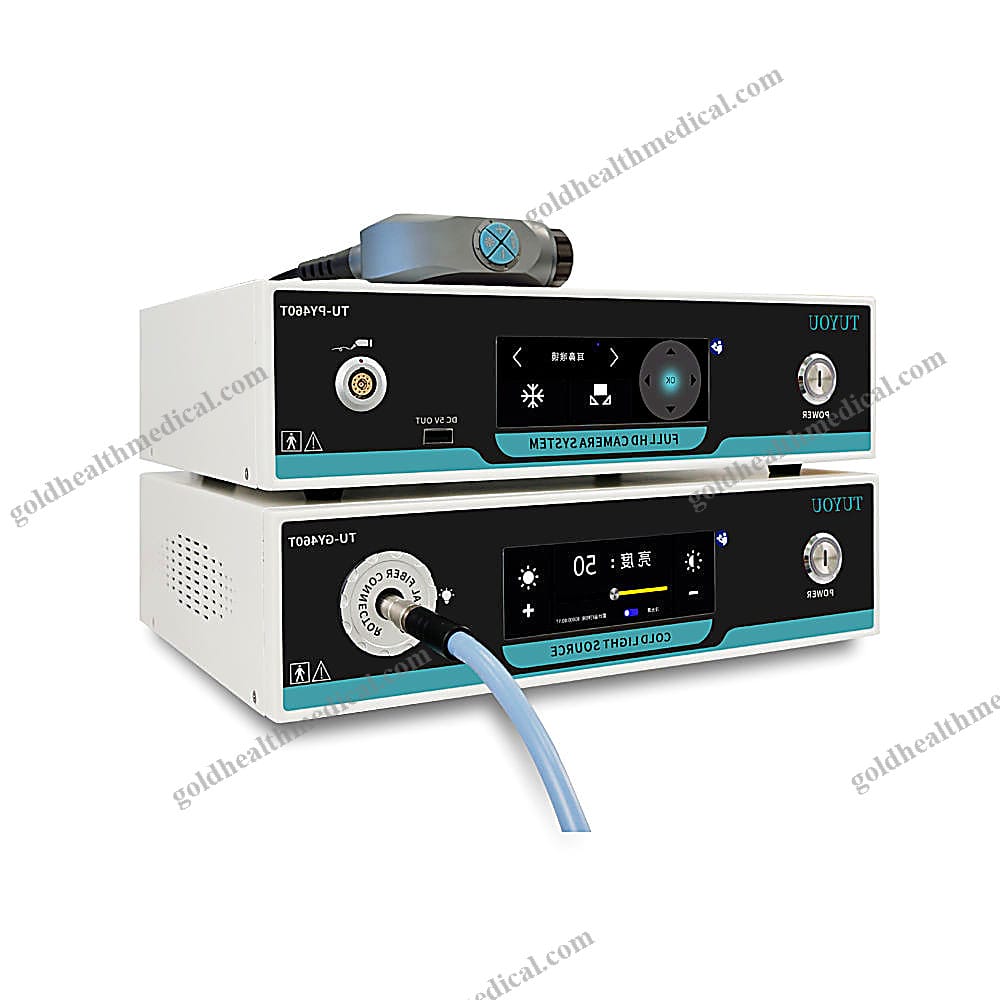

TUYOU FHD ENT Endoscope Camera System with Touch Screen Light
Reference: 1601115421147
Veterinary Instrument
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical Full HD Medical Endoscopic Camera System with LED Light Source
Product Overview
GoldHealth Medical introduces a cutting-edge Full HD Medical Endoscopic Camera System, designed for unparalleled precision in medical imaging. This system is engineered to meet the demands of modern healthcare facilities, research labs, and veterinary practices. Compatible with a wide range of rigid endoscopes, it delivers exceptional clarity and versatility for ENT, laparoscopic, urology, and gynecological procedures.
Key Features
- 4.6-inch Touchscreen Interface: Intuitive control with a responsive touch display.
- 1/2.8" CMOS Sensor: Captures Full HD 1080p resolution for crystal-clear imaging.
- Advanced Image Adjustments:
- Brightness: Adjustable in 20 steps.
- Sharpness: Adjustable in 20 steps.
- Digital Zoom: 10x image magnification.
- Dynamic Imaging Modes: Includes Freeze, AWB (Auto White Balance), and Backlight Compensation (OFF/BLC/HLC/WDR).
- Multi-Language Support: Adaptable for global use.
- Versatile Applications: Suitable for Arthroscopy, ENT, PTED, Cystoscopy, Laparoscopy, Hysteroscopy, and Fiber-based procedures.
Technical Specifications
- Resolution: SDI: 1080P@30fps, 1080P@60fps.
- Output Options: DVI, HDMI, SDI, CVBS.
- Effective Pixels: 1845(H) × 1097(V), approximately 2.13M pixels.
- SDI Mode: HD-SDI/EX-SDI switchable.
- Operating Temperature: -10°C to +75°C.
- Power Supply: DC12V ±10%, <1.7W.
- Power Consumption: 1.2W (≤100mA).
- Processor Dimensions: 2000x1700x170mm.
Integrated LED Light Source
- Light Type: High-performance LED.
- Rated Power: 100W.
- Illuminance: 400W LUX.
- Color Temperature: 5800-6500K.
- Brightness Control: Adjustable from 0-100%.
- Light Emitting Area: 7.7m².
- Color Rendering Index (CRI): 80/92 for true-to-life color reproduction.
- Maximum Current: 13A.
- System Power: 220V.
- Operating Temperature: -10°C to 60°C.
- Lifetime: 30,000 hours.
- Dimensions: L336xW330xH116mm.
Applications
The GoldHealth Medical Endoscopic Camera System is widely utilized in: - Hospital medical systems. - College teaching demonstrations. - Clinical diagnostic analysis. - Veterinary medical diagnosis.
Why Choose GoldHealth Medical?
- Innovative Design: Combines advanced imaging technology with user-friendly features.
- Reliability: Built to withstand demanding medical environments with a robust design.
- Global Compatibility: Works seamlessly with leading endoscope brands.
- Commitment to Excellence: GoldHealth Medical is dedicated to delivering high-quality, cost-effective solutions for healthcare professionals worldwide.
Additional Notes
For optimal performance, the system is recommended for use with optical endoscopes. The integrated LED light source ensures consistent illumination, enhancing procedural accuracy and efficiency.
Customer-Centric Solutions
GoldHealth Medical is committed to providing advanced, high-quality, and cost-effective endoscopic solutions. With over two decades of expertise in medical imaging, we deliver innovative products that prioritize patient safety and procedural precision.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: FHD Endoscope Camera System by GoldHealth Medical
Key Features:
- Sensor: Equipped with a premium 1/2.8" SONY CMOS sensor for exceptional clarity and precision.
- Effective Pixels: Delivers an impressive resolution of 1945(H) x 1109(V), approximately 2.16 million pixels, ensuring sharp and detailed imaging.
- Resolution: Full HD 1080P at 60fps for smooth, lifelike visuals in real-time diagnostics and procedures.
- Applications: Versatile use across Laparoscope, ENT, and Arthroscope procedures, making it a reliable choice for diverse medical specialties.
- Light Source: Powered by a high-efficiency 100W LED light source, providing consistent and bright illumination without excessive heat.
- Signal-to-Noise Ratio (SNR): Exceeds 42 dB, ensuring minimal noise interference and superior image quality.
- Auto White Balance (AWB): One-touch auto white balance adjustment for accurate and consistent color reproduction.
- Multi-Language Support: Designed for global usability with intuitive multi-language functionality.
Technical Specifications:
- Working Current: Energy-efficient operation at 1.2W (≤100mA).
- Packaging Details:
- Single package size: 41 x 31 x 45 cm
- Single gross weight: 7.500 kg
Why Choose GoldHealth Medical's FHD Endoscope Camera System?
GoldHealth Medical’s FHD Endoscope Camera System redefines precision and reliability in medical imaging. Engineered with cutting-edge technology, this system ensures unparalleled clarity, seamless operation, and adaptability to various medical applications. Whether in a hospital, clinic, or research facility, its advanced features and user-friendly design make it an indispensable tool for modern healthcare professionals.
Applications:
- Hospitals and surgical centers
- ENT and orthopedic specialties
- Research laboratories
- Rehabilitation and long-term care facilities
Experience the next generation of endoscopic imaging with GoldHealth Medical – where innovation meets precision.
