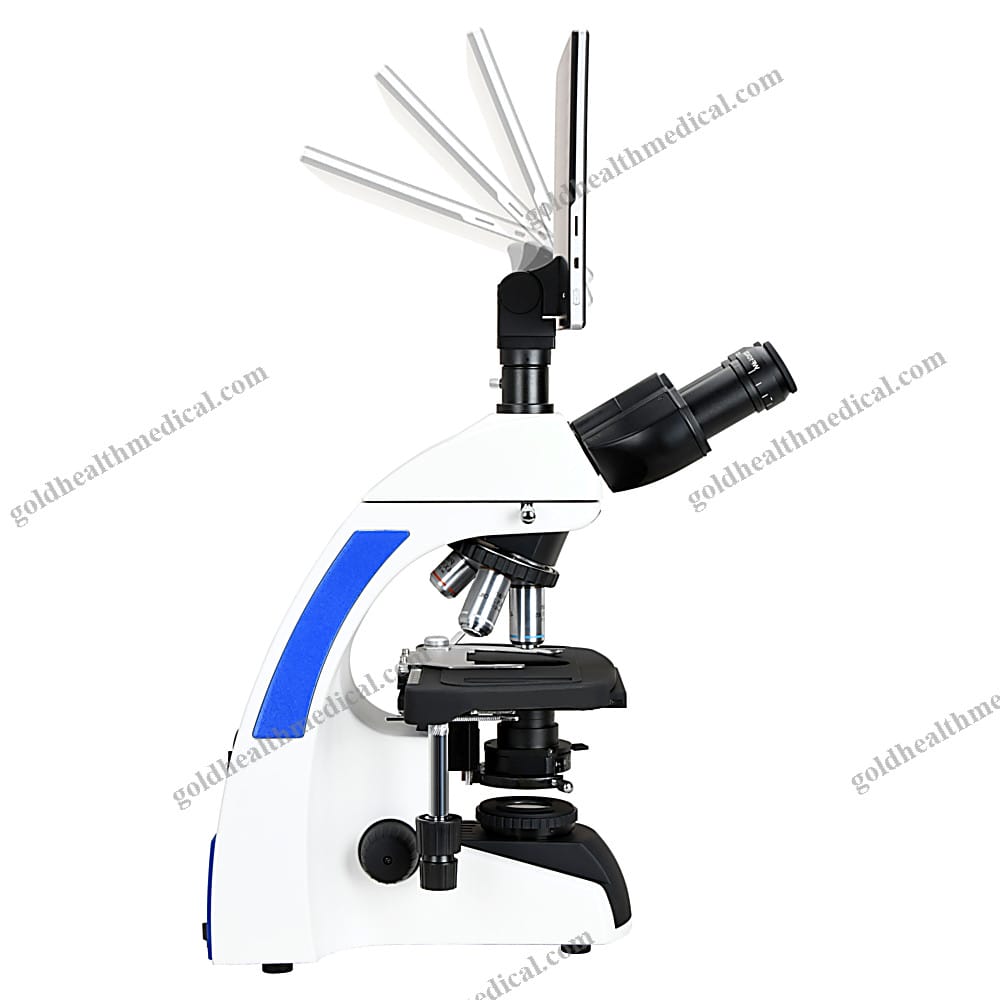

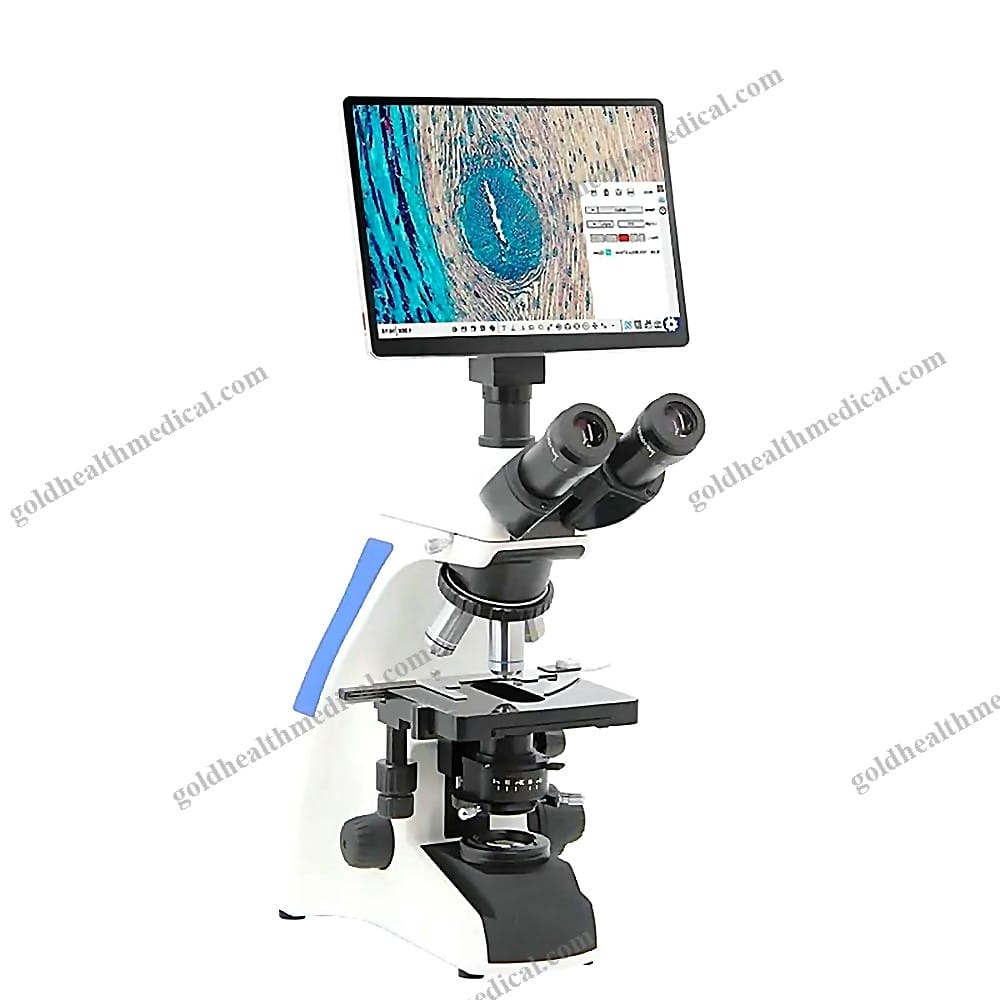

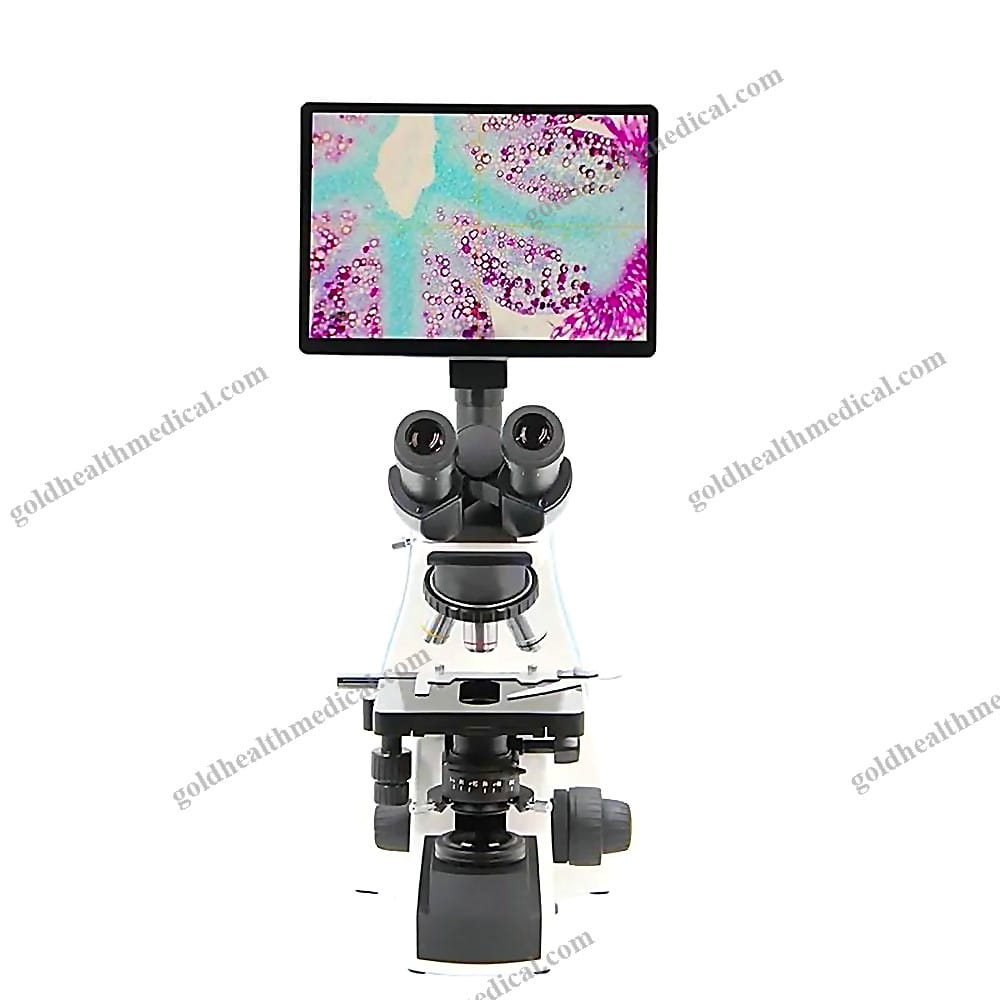

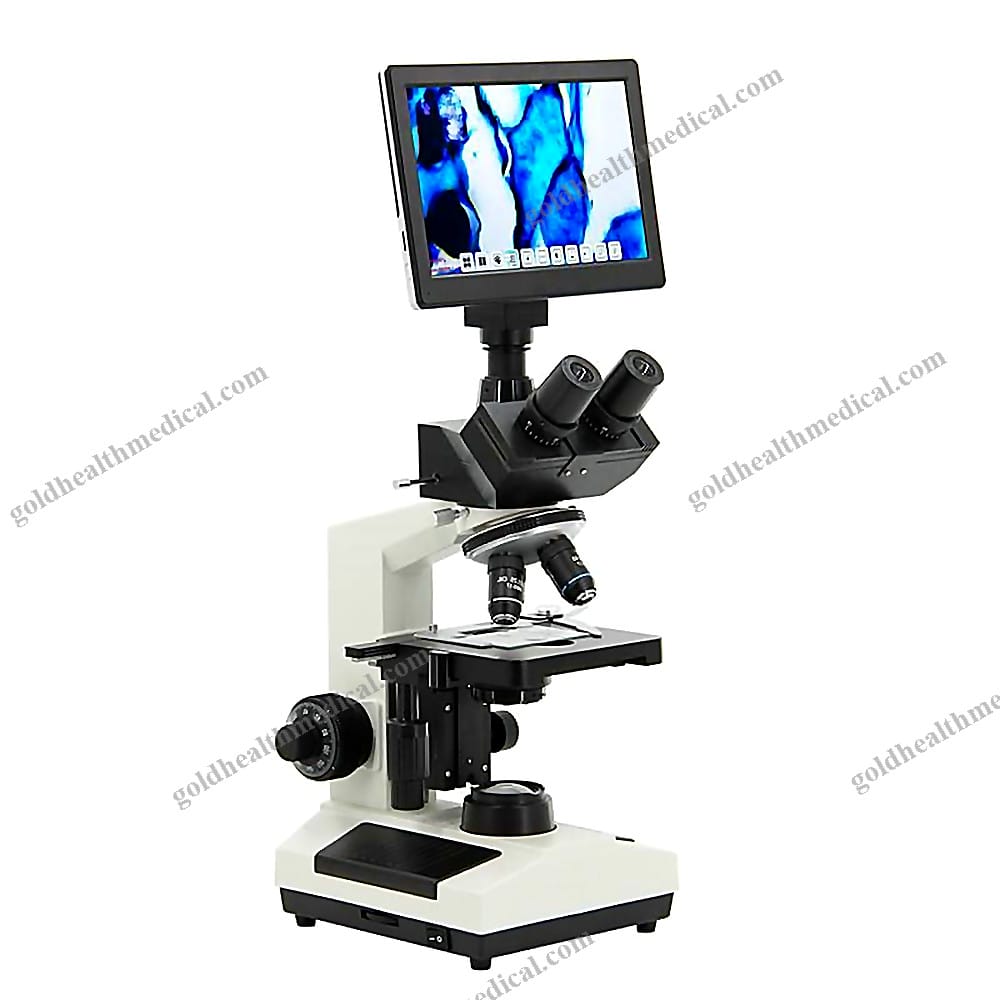

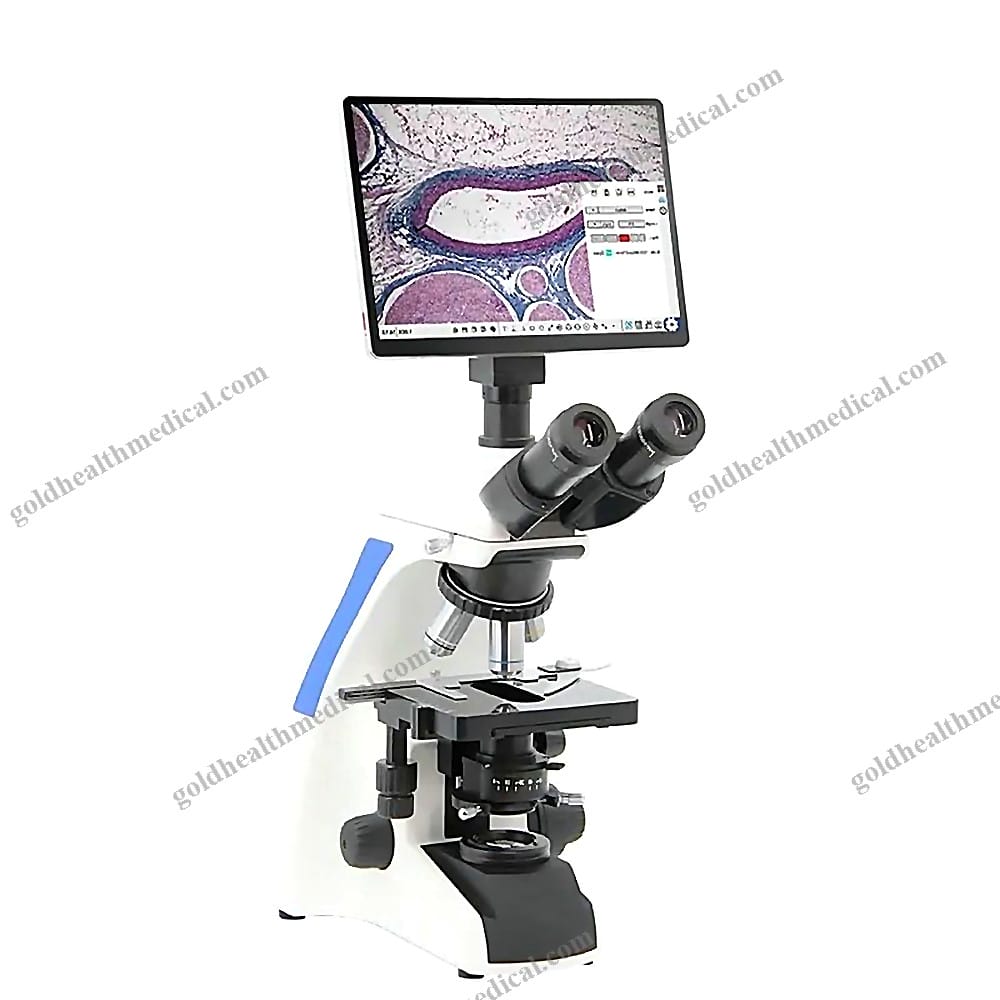

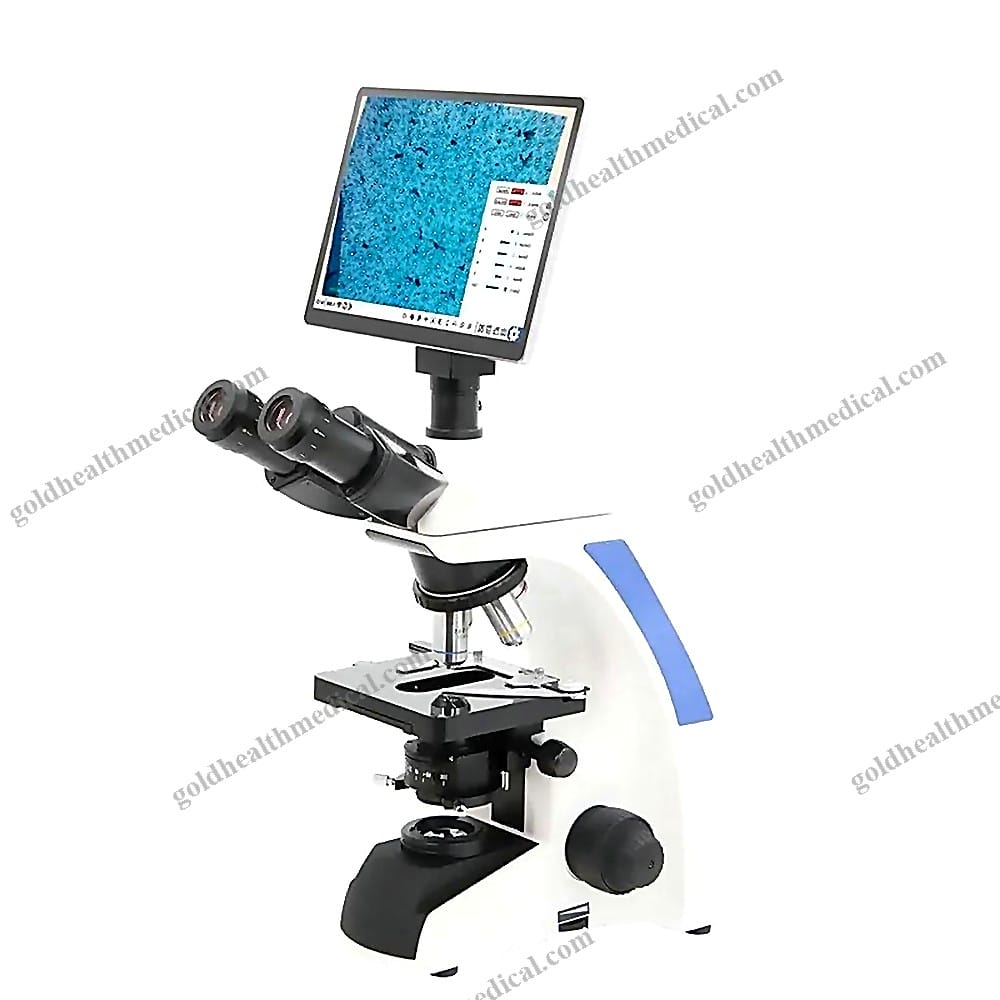

Trinocular Fiber Microscope with Camera
Reference: 1600923195690
Medical Optical Instruments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical presents the Digital Biological Microscope with LCD Screen
Experience precision and clarity with our state-of-the-art digital biological microscope, designed for hospitals, laboratories, schools, and research institutions. This advanced microscope combines cutting-edge technology with user-friendly features to deliver exceptional performance for medical, scientific, and educational applications.
Key Features and Specifications
- Head Design
- Trinocular head with a 30° incline for ergonomic viewing
- Interpupillary distance adjustable between 48-75mm
-
Diopter adjustment on both eyepiece tubes for personalized focus
-
Eyepiece
- Wide-field WF10x/20mm eyepiece with diopter adjustment
-
Diameter: 30mm for enhanced visibility
-
Objectives
-
High-contrast, chromatic-free lenses: 4x, 10x, 40x (spring-loaded), and 100x (oil immersion, spring-loaded)
-
Focusing System
- Coaxial coarse and fine focusing mechanism
- Fine division: 0.002mm for ultra-precise adjustments
- Coarse stroke: 37.7mm per rotation
-
Focusing range: 24mm
-
Nosepiece
-
Quadruple nosepiece with backward orientation and click stops for stability
-
Stage
- Double-layer mechanical stage measuring 142x132mm
- Graphite surface for durability and smooth operation
-
Moving range: 75x50mm
-
Condenser
- Abbe condenser with a numerical aperture (N.A.) of 1.25
-
Center-adjustable for optimal light alignment
-
Light Source
-
3W LED illumination with adjustable brightness for consistent and energy-efficient lighting
-
Adapter
-
C-Mount 1.0x adapter for seamless integration with microscope cameras
-
Display
- 9.7-inch LCD touch screen for real-time imaging and intuitive control
Packaging and Logistics
- Dimensions: 53x32.5x53.5cm
- Weight: 11.5kg per set
- Packaged securely in a single carton per unit
Why Choose GoldHealth Medical?
GoldHealth Medical is a trusted name in the medical equipment industry, offering innovative solutions tailored to meet the needs of healthcare professionals and researchers. Our microscopes are engineered for precision, durability, and ease of use, ensuring reliable performance in any setting.
With a commitment to quality and customer satisfaction, GoldHealth Medical delivers products that empower advancements in science, medicine, and education. Explore the possibilities with our digital biological microscope and elevate your research and diagnostic capabilities today.
Minimum Order Quantity (MOQ): 1 set
Payment Options: TT, Western Union, Credit Card
Shipping Methods: Express, sea, air freight
GoldHealth Medical – Precision Redefined.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Product Name: Digital Biological Microscope
Key Features
- Unmatched Precision: Achieve magnification levels ranging from 40x to 1600x, offering unparalleled clarity for detailed analysis in clinics and laboratories.
- Advanced Optical System:
- Eyepiece Lens: WF10x/20mm with a Dia. 30mm diopter adjustment for precise focusing.
- Objective Lenses: 4x, 10x, 40x(S), and 100x(Oil, S) for versatile applications.
- Durable Construction:
- Nosepiece: Steel with a chrome-plated surface for enhanced durability and smooth operation.
- Material: High-quality metal, plastic, and steel components ensure long-lasting performance.
- Effortless Focusing: Equipped with coarse-adjustment and fine-adjustment knobs for seamless precision.
Applications
- Designed for use in clinics, laboratories, research institutions, and educational settings.
Technical Specifications
- Instrument Classification: Class II
- Safety Standard Compliance: MFDS, CE
- Power Source: Electric
- Shelf Life: 1 year
Packaging and Delivery
- Packaging: Supplied in a high-grade portable metal case for secure transportation and storage.
- Delivery Time: Within 7 days after payment confirmation.
After-Sales Support
- Warranty: 1-year comprehensive warranty for peace of mind.
- Service: Access to online technical support for troubleshooting and guidance.
Why Choose GoldHealth Medical?
GoldHealth Medical’s Digital Biological Microscope combines cutting-edge technology with robust design, ensuring reliable performance for medical professionals, researchers, and educators. Its versatility and precision make it an indispensable tool for modern laboratories and healthcare facilities.
Supply Capacity
- Monthly Supply Ability: 1000 units per month, ensuring timely availability for bulk orders.
