SYH018 Mini Portable ECG Machine Handheld 1
Reference: 1600949617415
Veterinary Monitoring Devices
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

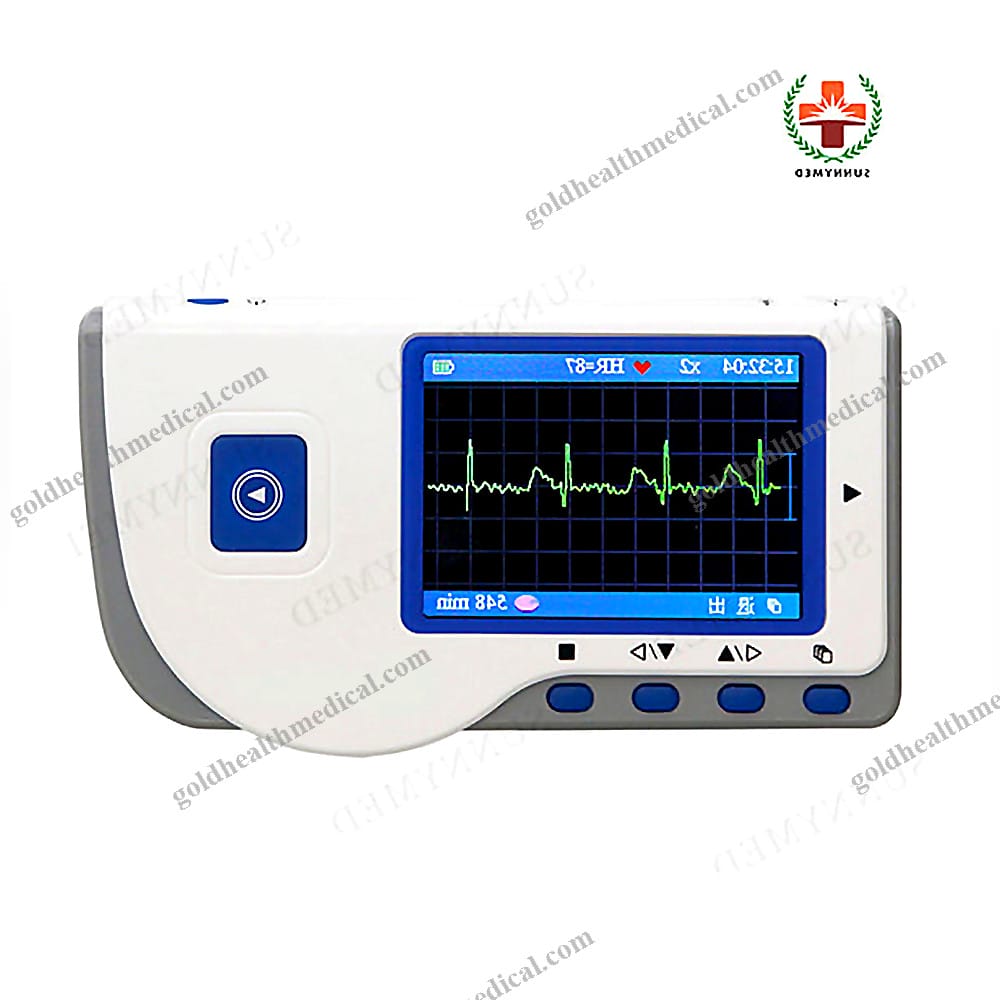

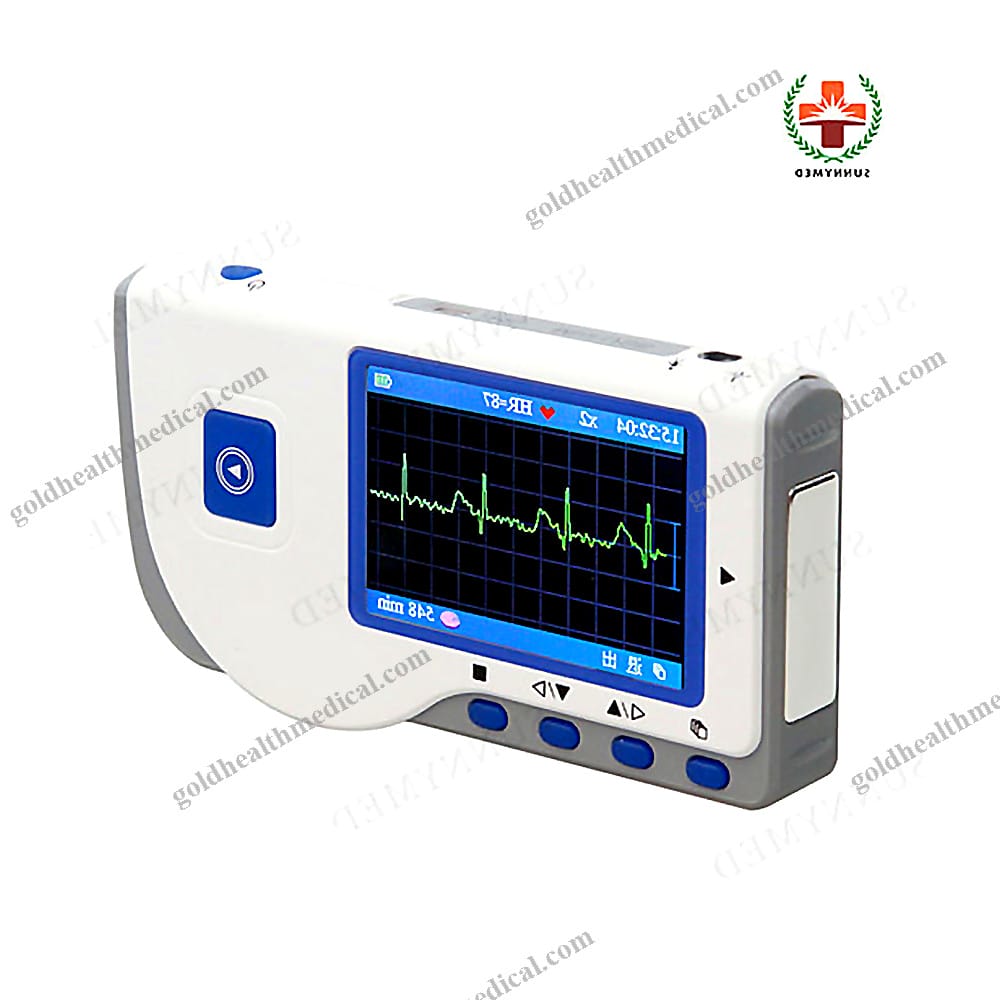

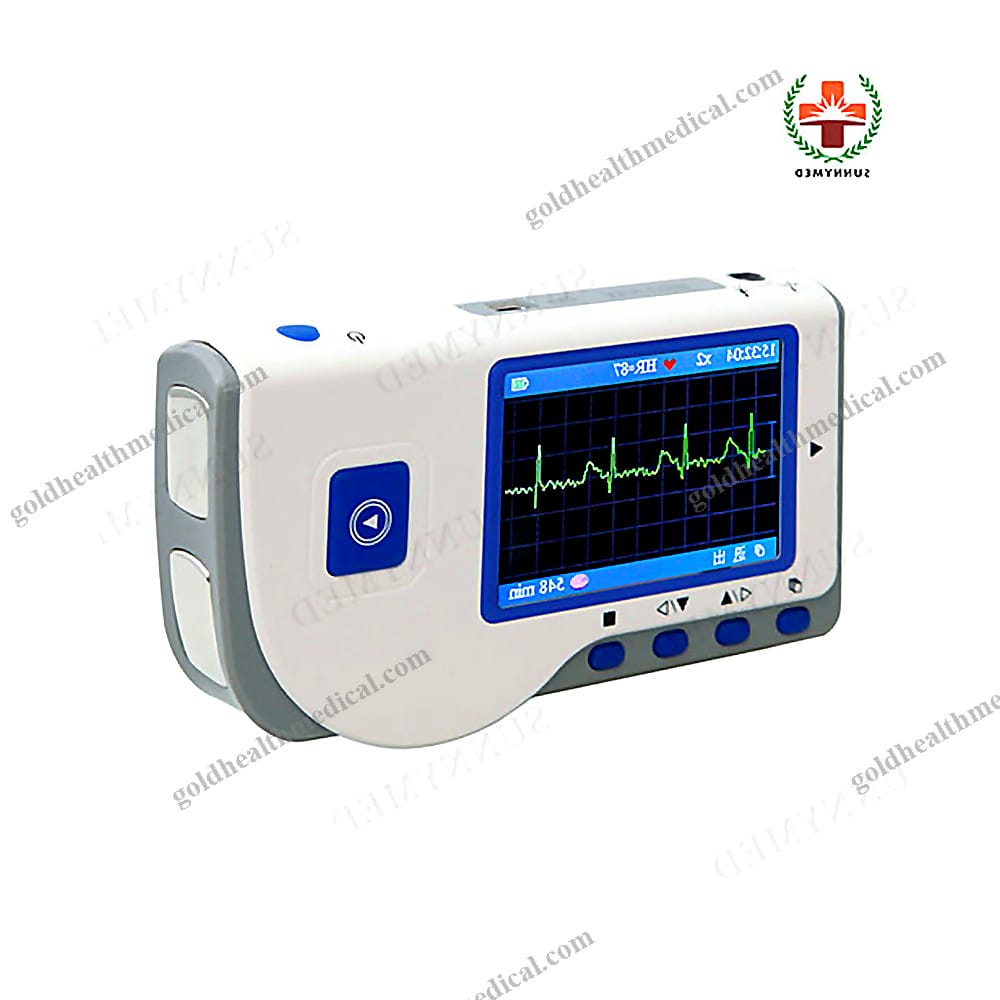

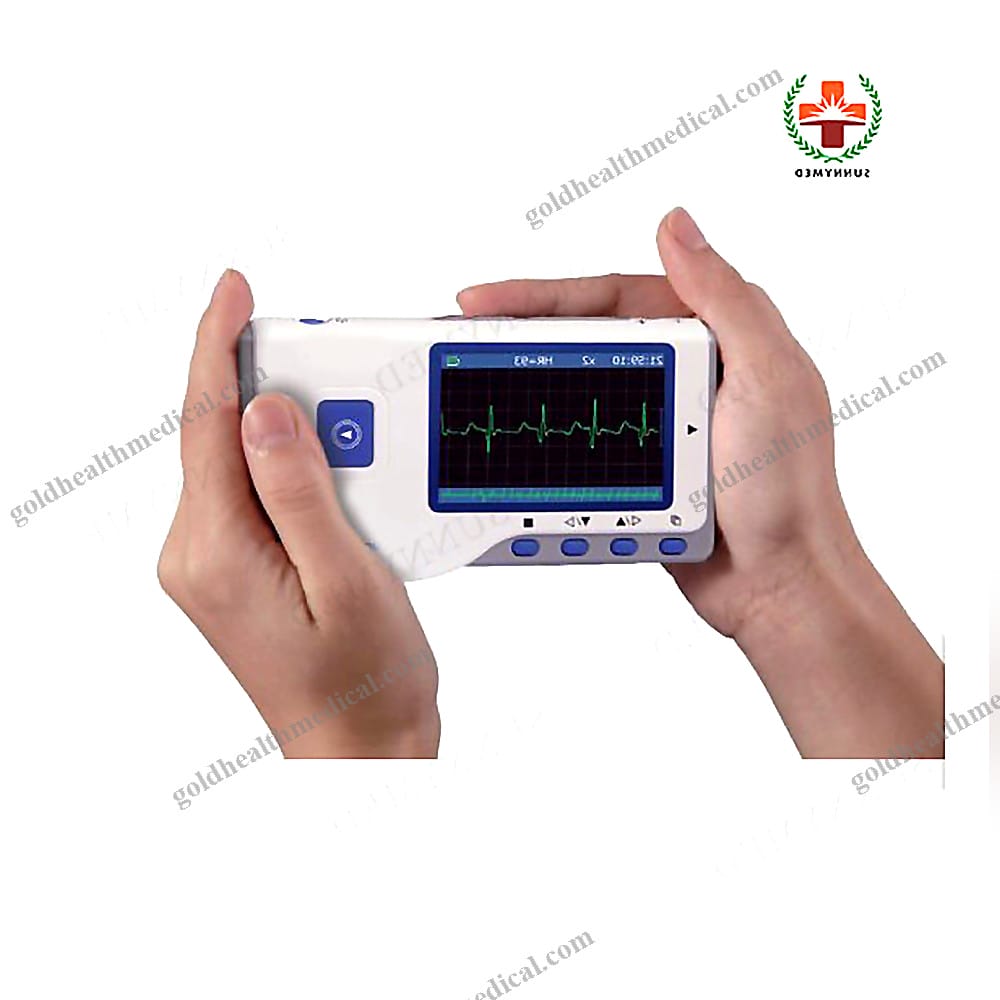

GoldHealth Medical Rapid Electrocardiograph
Product Overview
GoldHealth Medical presents a cutting-edge rapid electrocardiograph designed for effortless operation and exceptional portability. This device is engineered to deliver precise ECG readings with advanced features tailored for healthcare professionals and home users alike.
Key Features
- Compact and Lightweight: Designed for effortless portability, making it ideal for on-the-go use.
- One-Touch Measurement: Simplifies operation with a single button for quick ECG readings.
- High-Resolution Color LCD Display: Features a 240 x 160 pixel screen for clear visualization of results.
- Comprehensive Arrhythmia Analysis: Provides 17 types of arrhythmia analysis for detailed diagnostics.
- Extensive Data Storage: Stores up to 300 records with playback functionality for convenient review.
- Expandable Storage: Supports an 8 GB SD card to enhance data retention capabilities.
- Advanced Data Management: Enables copying, uploading, and deleting of stored data.
- Customizable Settings: Includes time setup and display functions for personalized use.
- Adjustable Brightness: Ensures optimal visibility in both day and night conditions.
- User-Friendly Guidance: Offers prompt assistance to help users quickly understand product usage.
- External ECG Sensor Compatibility: Allows for expanded functionality with external sensors.
- Energy-Efficient Design: Automatically powers off after one minute of inactivity to conserve battery life.
- Long Battery Life: Powered by two AA alkaline batteries, capable of performing 1000 measurements.
Technical Specifications
- ECG Channel Detection: Single-channel differential input.
- Measuring Electrodes: Integrated three metal electrodes or compatible with three ECG electrode pads via lead wire.
- Measurement Leads: Supports standard lead I (right and left hand), chest lead (right hand and chest near the heart), and lead II (right and left leg).
- Frequency Response: 1 Hz to 40 Hz.
- Internal Noise: ≤ 30 μVp-p.
- Heart Rate Measurement: Range of 30 BPM to 240 BPM with ±1 BPM accuracy.
- Waveform Sensitivity: 5.0 mm/mV with ±10% error tolerance.
- Common Mode Rejection Ratio: > 60 dB.
- Scanning Speed: 20 mm/s with ±10% error tolerance.
- Input Loop Current: ≤ 0.1 μA.
- Input Impedance: ≥ 5 MΩ.

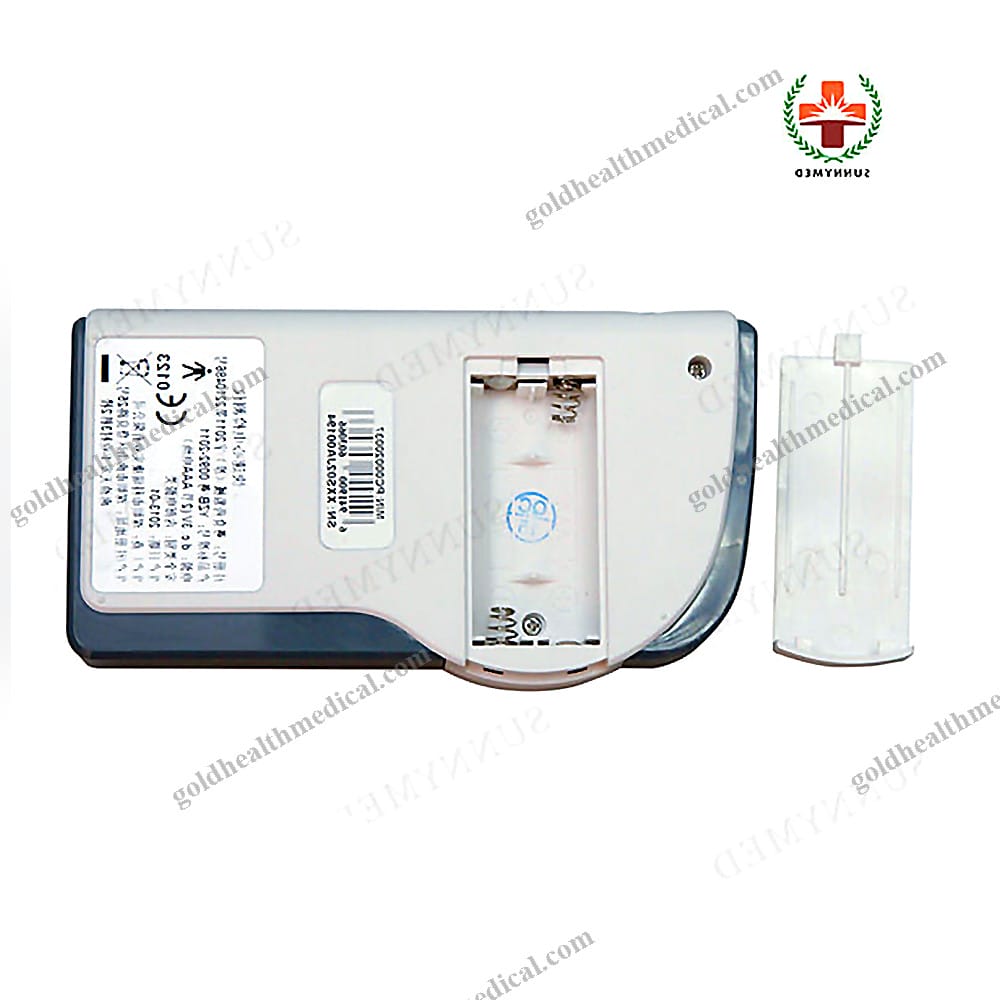

- Power Supply: Operates on two AAA alkaline batteries with a working voltage of 2.7 V to 3.3 V DC.
- Average Working Current: ≤ 50 mA (without backlight).
- Automatic Shutdown: Activates within 35 seconds ±5 seconds of inactivity.
- Low Voltage Alert: Notifies at 2.5 V ±0.2 V DC.
- Display: Color LCD with a visible area of 57.6 mm x 40 mm.
- Data Storage: Expandable via optional SD card; data transfer to a computer via dedicated cable.
- Dimensions: 125 mm x 70 mm x 21.5 mm.
- Weight: 106 g (including battery).
- Operating Environment: Humidity range of 30% to 80%; atmospheric pressure range of 70 kPa to 106 kPa.
Why Choose GoldHealth Medical?
- Unmatched Quality: Rigorous quality control ensures reliability and performance.
- Exceptional Service: Dedicated support team committed to building long-term relationships.
- Customization Options: Tailor the device with your logo for brand alignment.
- Competitive Pricing: High performance-to-cost ratio for maximum value.
- Swift Delivery: Orders are promptly shipped upon completion.
GoldHealth Medical is committed to delivering innovative solutions that empower healthcare providers and enhance patient care. Experience precision, portability, and performance with our rapid electrocardiograph.
