SYG055 Bone Conduction Audiometer AB with Software for
Reference: 1600963027682
Reflector Apparatus
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

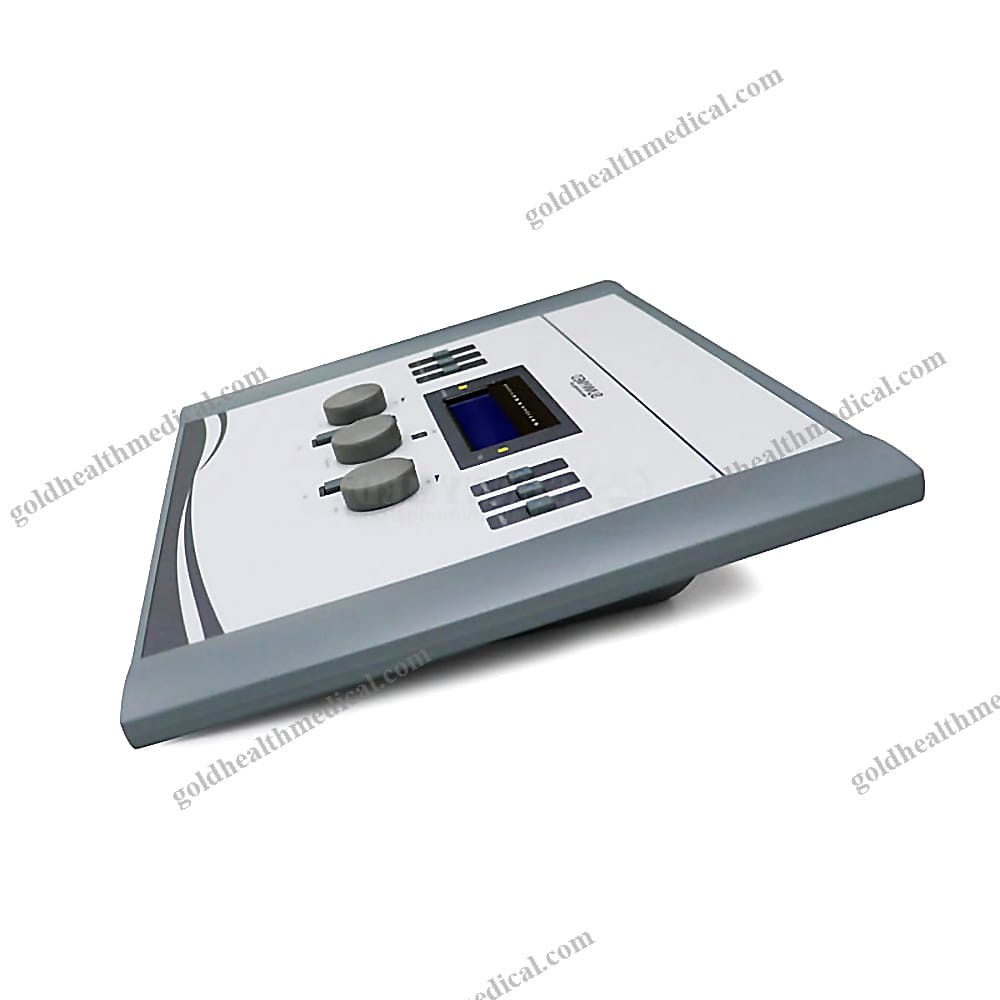

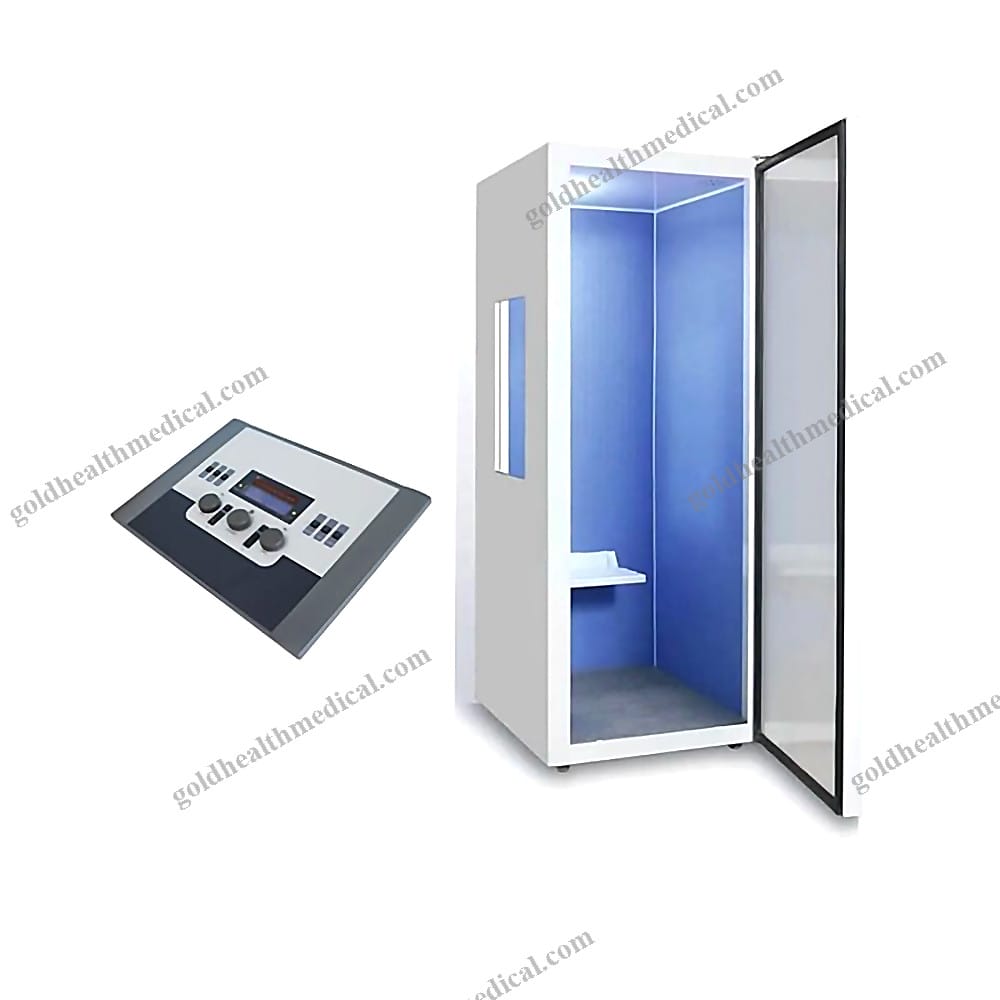

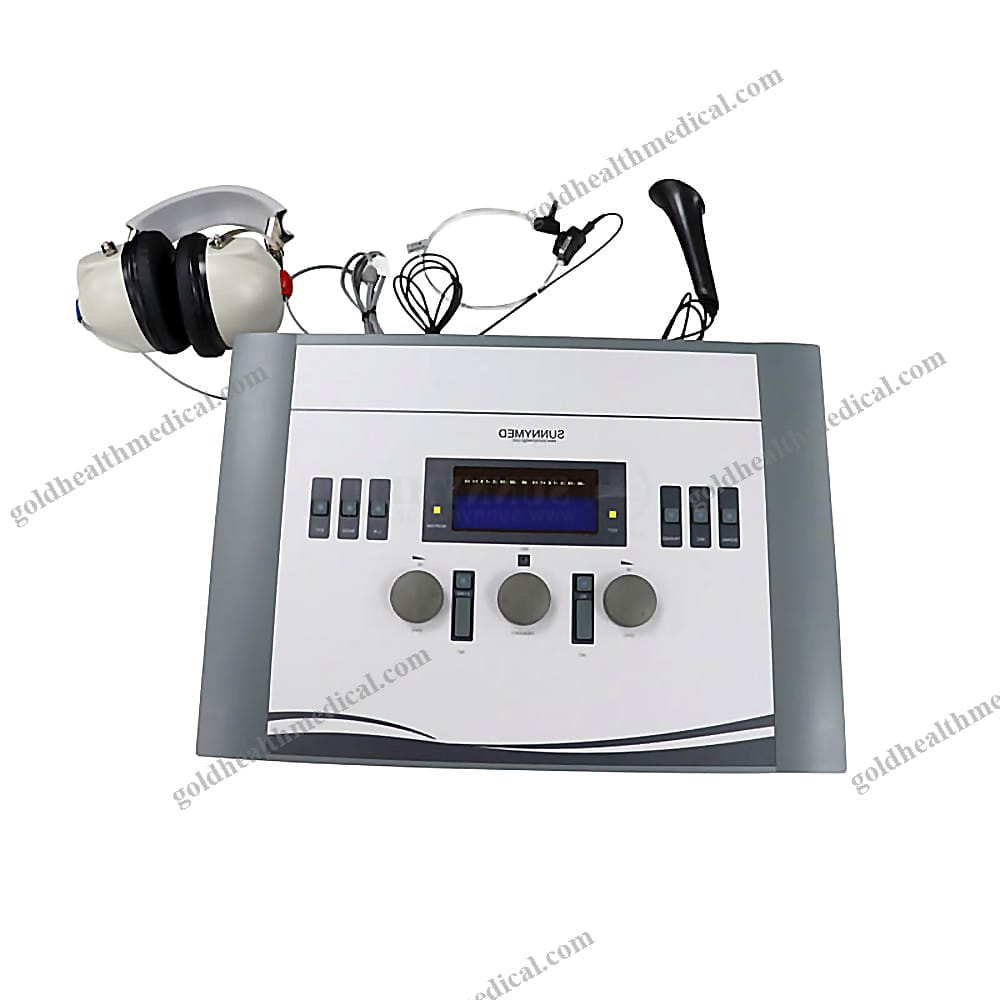

GoldHealth Medical: Revolutionizing Hearing Assessment with Advanced Audiometry
Experience the pinnacle of precision and practicality with our Bone Conduction Audiometer, designed for both professional and personal use. This audiometer is a high-precision, economical, and versatile solution for conducting comprehensive hearing tests. Whether fitting high-end hearing aids, performing school screenings, or assessing industrial hearing conditions, this device delivers unparalleled accuracy and reliability.
Why Choose Our Audiometer?
- Versatile Applications: Ideal for hearing tests in clinics, schools, industrial settings, rehabilitation centers, and more.
- Advanced Signal Processing: Built on a 24-pixel digital signal processing platform, ensuring pristine audio quality and exceptional clarity.
- User-Friendly Interface: Intuitive controls with low-noise buttons and selectors, providing clear visual feedback on voice levels, frequency, and other critical data.
- Comprehensive Testing Options: Conduct standard hearing aid tests, language hearing tests, and specialized assessments with ease.
- Simultaneous Signal Delivery: Unique capability to provide masking and language signals to both ears during testing, enabling noise language testing.
Key Features
- Multiple Output Options: Standard earphones (AC), bone conduction (BC), and compatibility with external megaphones or inserted earphones.
- Multi-Calibration Capability: Calibrate various types of earphones simultaneously.
- Flexible Usage: Functions as both a mobile and desktop device, with straightforward keyboard operation for seamless handling.
Technical Specifications
- Channels: Two independent channels
- Frequencies:
- Air Conduction: 125-8000Hz
- Bone Conduction: 250-6000Hz
- Error: Less than 1%
- Masking: Pure tone test; ipsilateral white noise
- Output Interfaces: TDH39 or plug-in air conduction earphone, B71 bone conduction earphone, free sound field
- Standard Functions: Pure tone test with continuous, pulse voice, and warble tone options
- Sound Stimulation:
- Normal: Press INT to start
- Inversion: Press INT to stop
- 5dB step attenuation with 1dB error
- Microphone: Integrated for internal or external language input signals
- Safety Standards: Compliant with EN 60601-1, level 1 class B EN 60601-1-2; EN 60601-1-4
- Distortion:
- Air Conduction: <2.5%
- Bone Conduction: <5%
- Operating Environment:
- Temperature: +10°C to +35°C
- Humidity: 30%-90%
- Air Pressure: 860hPa - 1060hPa
- Preheating Time: Less than 10 minutes
- Dimensions: 45cm x 30cm
- Weight: 1775g
- Power Source: 230VAC, 50Hz
- Maximum Power: 60VA
Display Features
- Dual-output LED indicators on either side of the display show selected detection signals for each ear.
- During audio testing, the display's upper line indicates dBHL strength for the left or right ear.
- The test ear is marked with "L" or "R," with the test frequency displayed centrally. Opposite ear coverage is indicated on the opposite side.

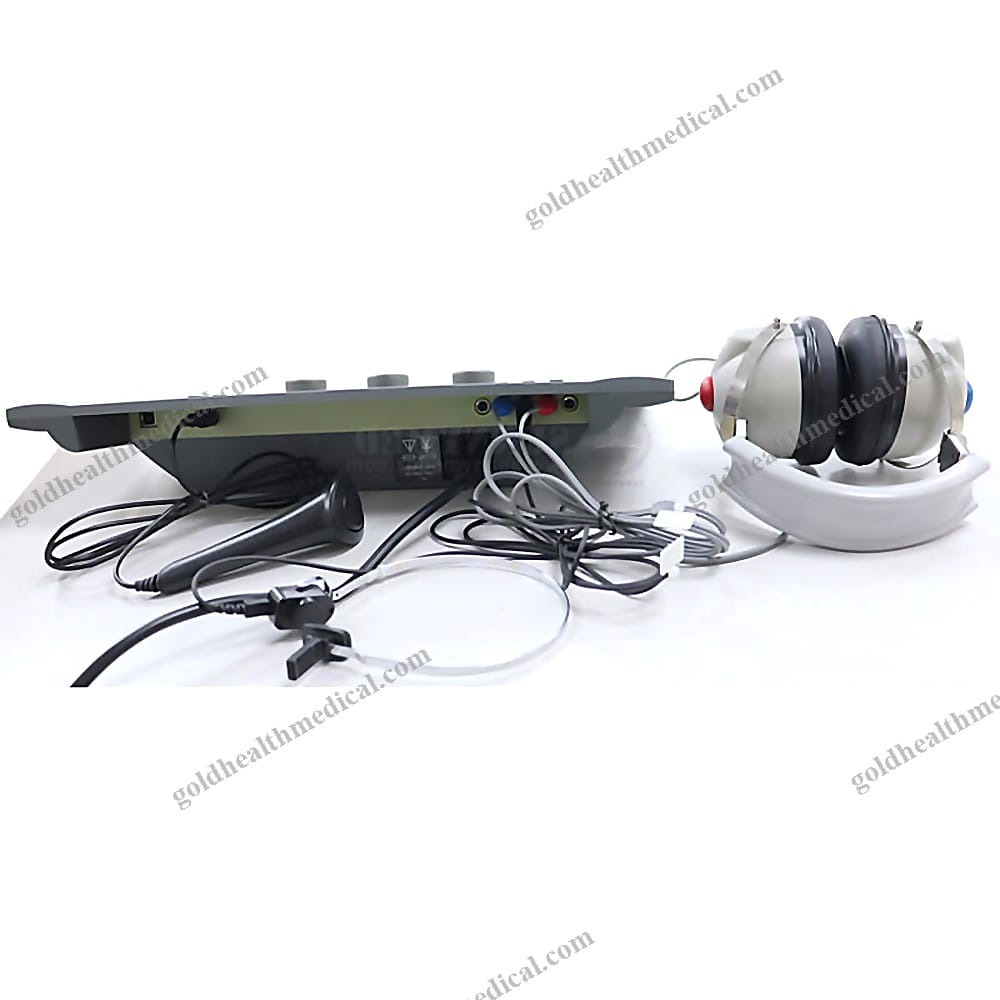

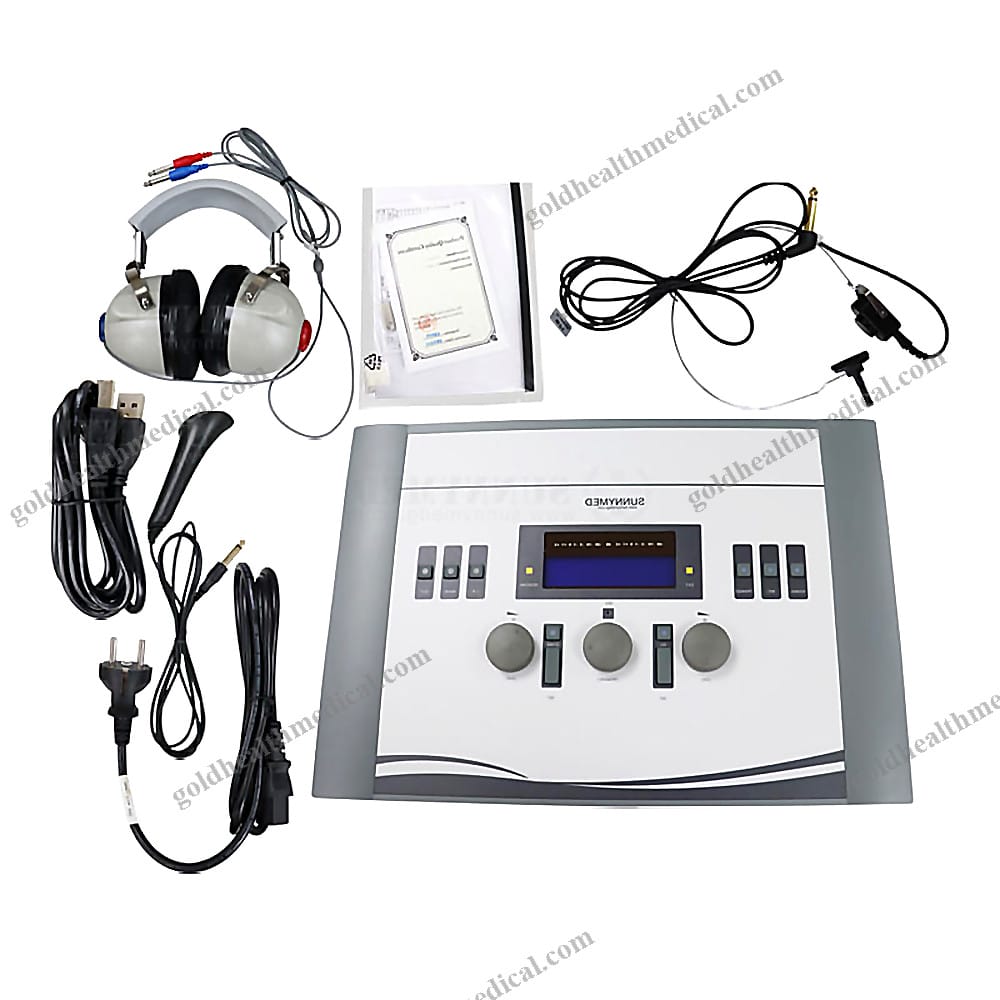

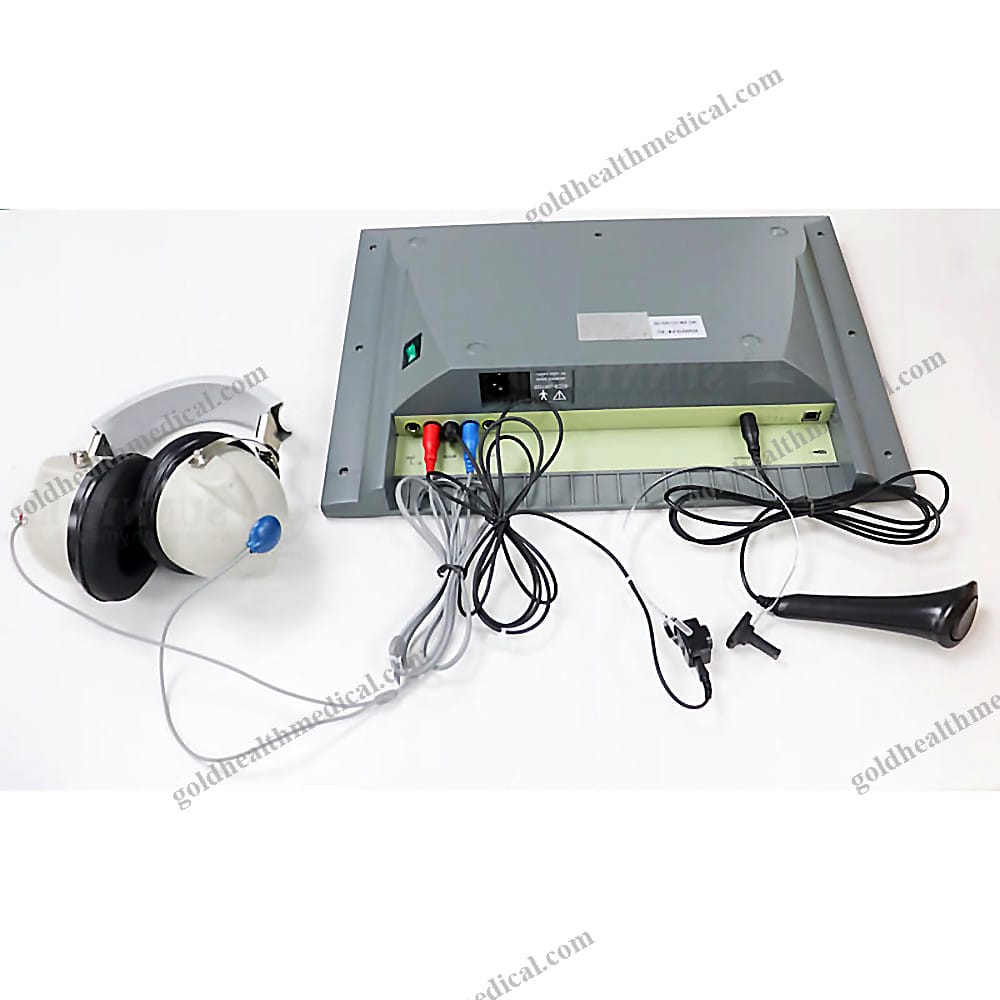

Standard Accessories
- TDH39 Air Conduction Earphone
- B71 Bone Conduction Earphone (reprovision)
- Responder
- Power Line
Executive Standards
- Audiometer production standards: EN60645-1, EN60645-2, EN60645-4, and ANSI S3.6-1996
GoldHealth Medical stands at the forefront of innovative medical solutions, delivering products that meet the highest standards of quality and performance. Our audiometer is designed to empower healthcare professionals and enhance patient care worldwide.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical Audiometer
Experience precision and reliability with the GoldHealth Medical Audiometer, designed to meet the highest standards of audiological testing. Engineered for professionals in hospitals, clinics, research labs, and rehabilitation centers, this device delivers exceptional performance with advanced features tailored to ensure accurate diagnostics.
Product Highlights
- Dual Independent Channels: Perform simultaneous testing with two fully independent channels, offering flexibility and enhanced efficiency during evaluations.
- Wide Frequency Range: Air conduction testing spans 125Hz to 8000Hz, while bone conduction covers 250Hz to 6000Hz, ensuring comprehensive auditory assessments.
- Exceptional Accuracy: With an error margin of less than 1%, trust in precise and consistent results every time.
- Fast Preheating: Ready to use in under 10 minutes, minimizing downtime and maximizing productivity.
- Universal Power Compatibility: Operates on 230VAC, 50Hz, making it suitable for a variety of settings worldwide.
Technical Specifications
- Instrument Classification: Class II medical device, ensuring safety and reliability.
- Power Source: Electric, with stable performance under varied conditions.
- Air Pressure Range: Optimized for operation between 860hPa and 1060hPa.
- Shelf Life: 1 year from the date of manufacture.
- Quality Certification: CE-certified, guaranteeing compliance with international standards.
Warranty & Support
- Warranty: 1-year comprehensive warranty for peace of mind.
- After-Sale Service: Access to online technical support, ensuring uninterrupted performance and assistance whenever needed.
Elevate your audiological testing capabilities with the GoldHealth Medical Audiometer – where precision meets innovation.
