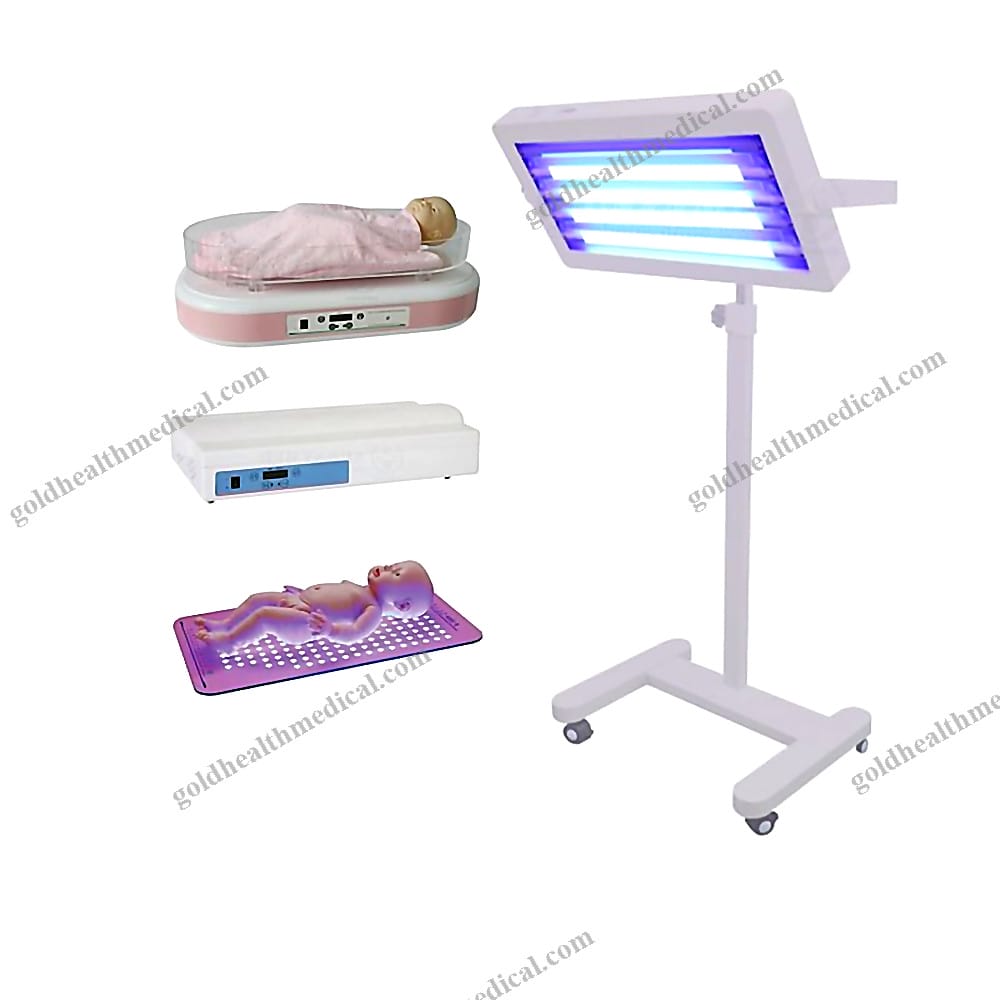

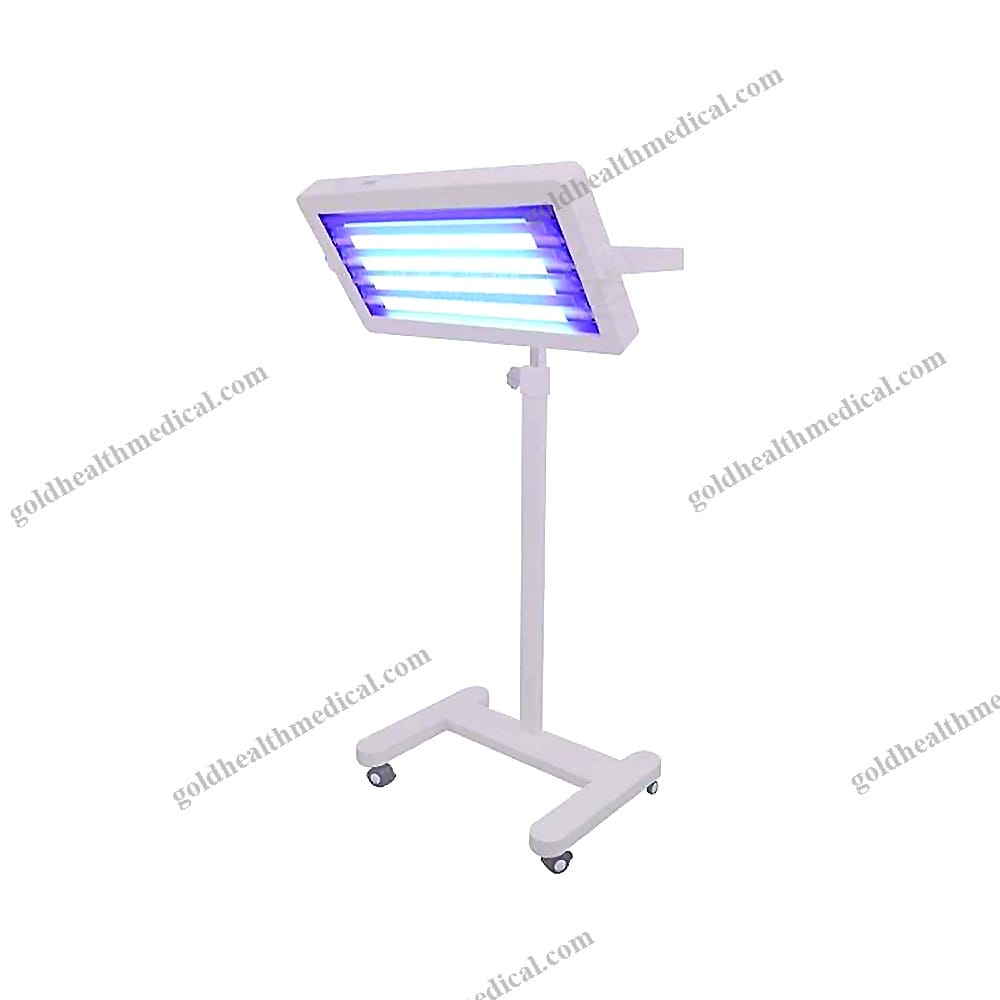

SyF013N Portable LED Phototherapy Unit for Newborns
Reference: 1600964041439
Reflector Apparatus
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Revolutionizing Infant Phototherapy with Advanced LED Technology
Why Choose Our Infant Phototherapy Unit?
GoldHealth Medical presents a cutting-edge phototherapy solution designed specifically for the treatment of newborn jaundice. Combining precision engineering with user-focused design, this unit ensures optimal therapeutic outcomes while prioritizing safety and ease of use.
Key Features and Technical Specifications
- Light Source: Advanced LED technology with a spectral range of 425nm~475nm, ensuring targeted and effective phototherapy.
- Light Source Lifetime: Exceptional durability with a lifespan of 5000 hours, reducing maintenance needs and operational costs.
- Treatment Distance: Adjustable treatment distances of 40cm and 46cm to accommodate varying clinical requirements.
- Irradiance Levels:
- Highest total irradiance for bilirubin on the effective surface area: 4.0mW/cm² ±10% (mobile) and 2.6mW/cm² ±10% (incubator-mounted).
- Total spectral irradiance on the effective surface area: ≥1.6mW/cm² (mobile) and ≥1.0mW/cm² (incubator-mounted).
- Uniformity of total irradiance for bilirubin: >0.4, ensuring consistent treatment across the surface area.
- Radiation Safety:
- Infrared radiation on the effective surface area: ≤1mW/cm².
- Ultraviolet radiation on the effective surface area: ≤1.0*10⁻⁵mW/cm² (180nm<λ≤400nm).
- Adjustability:
- Lamp module height adjustable between 1350mm~1650mm.

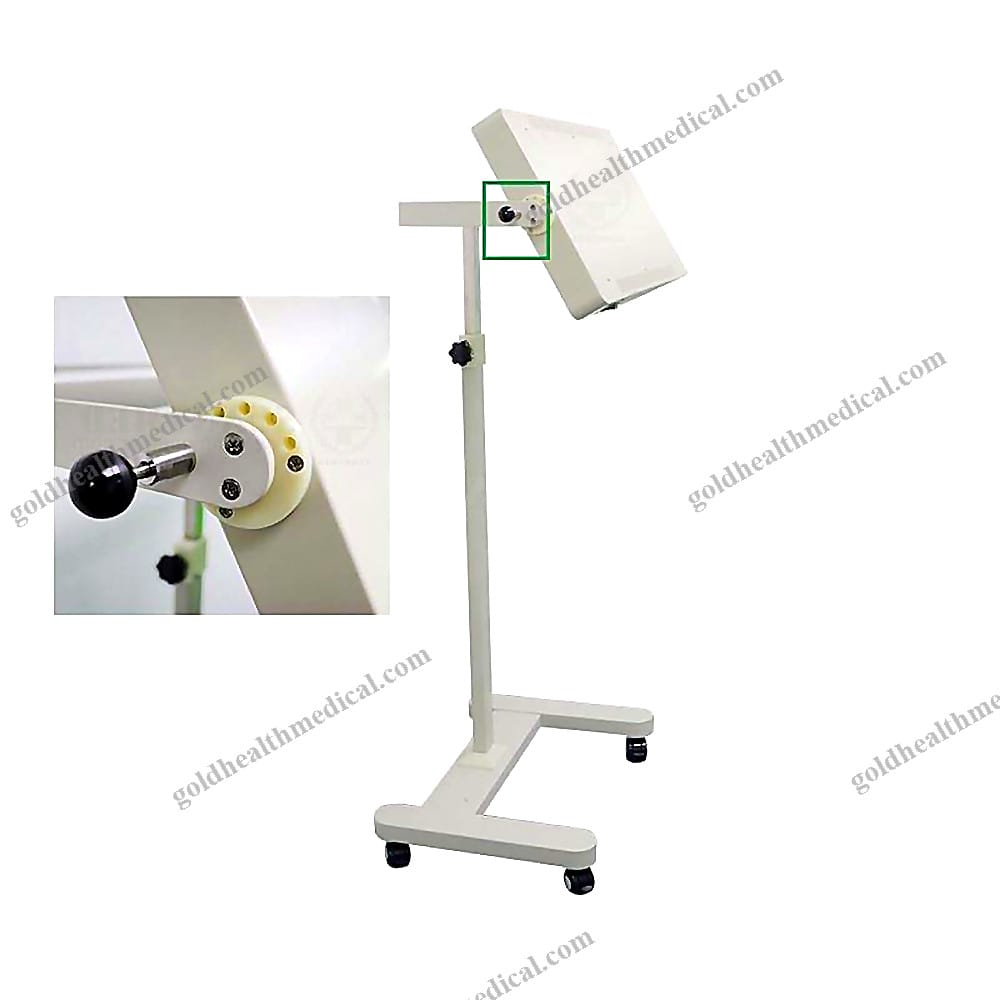

- Radiation angle adjustable up to 60° from horizontal.
- Built-in Timer: Digital timer with a range of 0~9999 hours and 59 minutes for precise therapy duration tracking.
- Environmental Parameters:
- Operating temperature range: 28°C~34°C.
- Storage and transport temperature range: -40°C~+55°C.
- Operating humidity range: 30%~75%.
- Atmospheric pressure range: 800hPa~1060hPa during operation and 500hPa~1060hPa during storage/transport.
- Noise Level: Ultra-quiet operation with a working noise level of ≤45dB(A).
- Dimensions and Weight:
- Mobile unit: 705mm (L) x 620mm (W) x 1350mm (H), weighing 18kg.
- Incubator-mounted unit: 1000mm (L) x 420mm (W) x 810mm (H), weighing 10kg.
- Durability: Designed for long-term reliability with a product lifetime of 6 years.
Unique Selling Points
- Advanced LED Technology: Delivers precise and safe phototherapy with minimal heat emission, ensuring comfort for newborns.
- Adjustable Design: Offers flexibility in height and angle adjustments, catering to diverse clinical setups.
- User-Friendly Features: Equipped with an intuitive digital timer and smooth mobility for seamless operation.
- Global Standards Compliance: Engineered to meet stringent safety and performance benchmarks, making it suitable for hospitals, clinics, and home care environments worldwide.
Applications
Ideal for hospitals, neonatal care units, clinics, research institutions, and home healthcare settings, this phototherapy unit is a reliable choice for treating neonatal jaundice with confidence and precision.
GoldHealth Medical is committed to delivering innovative, high-quality medical solutions that empower healthcare providers and improve patient outcomes. Explore the future of infant phototherapy with us.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Neonatal Phototherapy Unit by GoldHealth Medical
Key Features and Benefits:
- Advanced Phototherapy Technology: Designed specifically for neonatal care, this unit delivers precise phototherapy with a wavelength range of 400~500nm, ensuring effective treatment for newborns.
- Adjustable Design for Optimal Comfort: Features adjustable height (1100mm~1500mm) and angle settings (30°/60°/90°), allowing healthcare providers to customize positioning for each patient’s needs.
- Accurate Time Display and Control: Equipped with a time display range of 9999h 59min and a time accuracy of 2h±1min, ensuring reliable and consistent treatment sessions.
- Durable and High-Quality Materials: Constructed with premium acrylic and metal components, ensuring long-lasting performance and hygiene compliance.
Technical Specifications:
- Instrument Classification: Class II medical device
- Safety Standard Compliance: Meets GB15979-2002 standards
- Working Temperature Range: +10℃ to +30℃
- Power Source: Electric
- Shelf Life: 1 year
Quality Assurance:
- Backed by GoldHealth Medical’s commitment to excellence, this unit is CE-certified, guaranteeing safety and reliability for medical environments.
Warranty and Support:
- 1-Year Warranty: Ensures peace of mind with comprehensive coverage for your investment.
- Online Technical Support: Access expert assistance whenever you need it, ensuring uninterrupted operation and minimal downtime.
Applications:
Ideal for hospitals, clinics, neonatal care units, research institutions, and home healthcare settings, this phototherapy unit combines cutting-edge technology with user-friendly design to deliver exceptional care for newborns.
Why Choose GoldHealth Medical?
GoldHealth Medical is dedicated to advancing healthcare solutions with innovative, reliable, and high-performance medical devices. Our neonatal phototherapy unit exemplifies our commitment to quality and patient-centered design.
