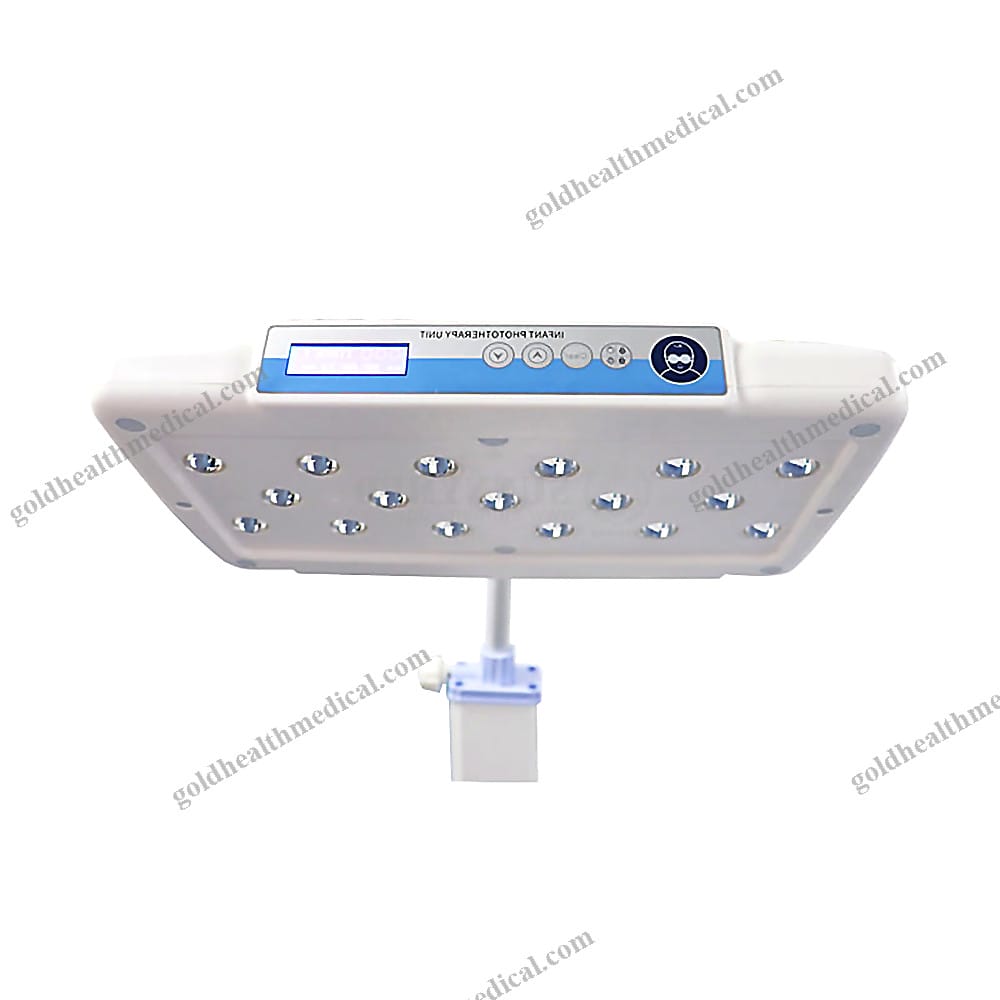

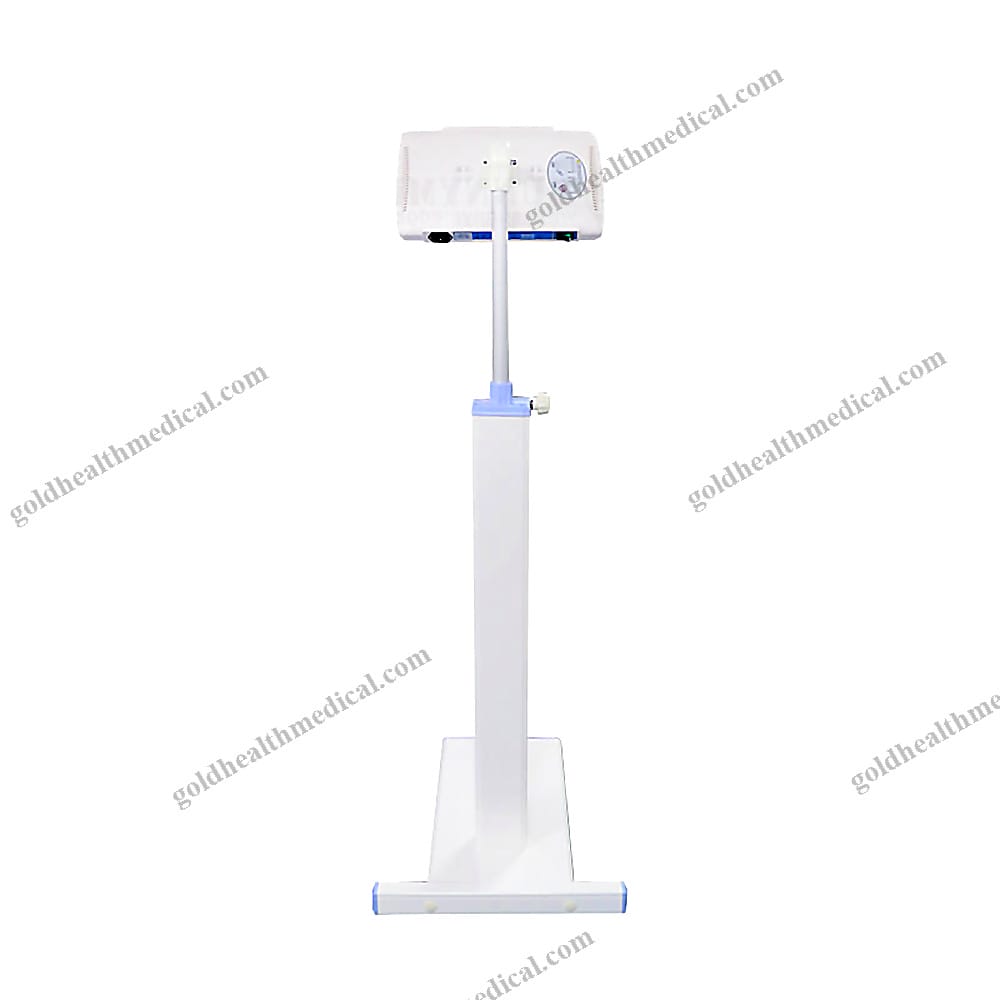

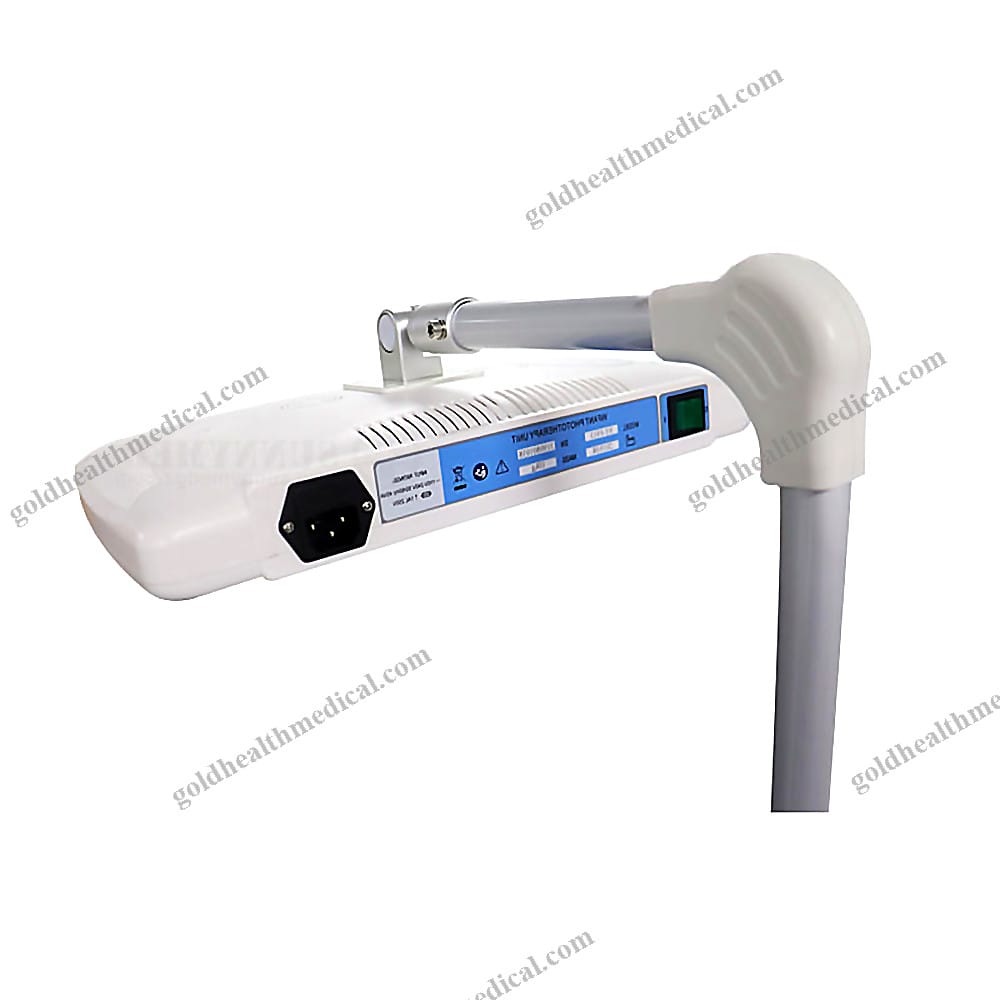

SYF0131 Portable LED Phototherapy Lamp for Neonatal
Reference: 1600964041886
Infant Care Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Revolutionizing Infant Phototherapy with Advanced LED Technology
Why Choose Our Infant Phototherapy Solution?
GoldHealth Medical presents a cutting-edge phototherapy system designed for the effective treatment of neonatal jaundice. Engineered with precision and reliability, this system is tailored for hospitals, clinics, and home care environments, ensuring optimal outcomes for newborns.
Key Features and Benefits:
- Advanced LED Light Source: Utilizes a spectral range of 425nm to 475nm, offering a long-lasting light source with a lifetime of 5000 hours.
- Superior Irradiance: Achieves a maximum total irradiance for bilirubin (Ebi max) of 4.0mW/cm² ±10% on the effective surface area, ensuring efficient treatment.
- Uniform Treatment: Uniformity (G2) of the total irradiance for bilirubin exceeds 0.4, providing consistent therapy across the treatment area.
- Safe Operation: Minimal infrared and ultraviolet radiation, ensuring the safety of delicate infant skin.
- Quiet Performance: Operates with a noise level of ≤45dB(A), maintaining a peaceful environment for both infants and caregivers.
- Flexible Adjustments: Lamp module adjusts from 0-60° upwards from horizontal and offers a height range of 1350mm to 1650mm, allowing precise positioning.
- Built-in Timer: Features a timer range of 0 to 9999 hours and 59 minutes, enabling accurate monitoring of therapy sessions.
- Durable Design: Constructed for longevity with a product lifetime of 6 years, ensuring sustained performance and reliability.
Technical Specifications:
- Power Supply: AC 220V, 50Hz, 75VA
- Treatment Distance: 40cm to 46cm
- Total Spectral Irradiance: ≥1.6mW/cm² on the effective surface area
- Total Irradiance for Bilirubin: ≥2.5mW/cm² between all points on the effective surface area
- Infrared Radiation: ≤1mW/cm² on the effective surface area
- Ultraviolet Radiation: ≤1.0*10⁻⁵mW/cm² (180nm < λ ≤ 400nm)
- Environmental Conditions:
- Operating Temperature: 28°C to 34°C
- Storage and Transport Temperature: -40°C to +55°C
- Operating Humidity: 30% to 75%
- Storage and Transport Humidity: ≤93%
- Atmospheric Pressure: 800 hPa to 1060 hPa during operation
- Air Flow Rate: <0.3m/s ambient air movement rate
- Dimensions and Weight:
- Phototherapy Unit Measurement: 7056201350 mm (Mobile), 1000420810 mm (Incubator Mounted)
- Phototherapy Unit Weight: 18 kg (Mobile), 10 kg (Incubator Mounted)
Additional Features:
- LED Digital Timer: Displays therapy time and total operational time, ensuring precise monitoring.

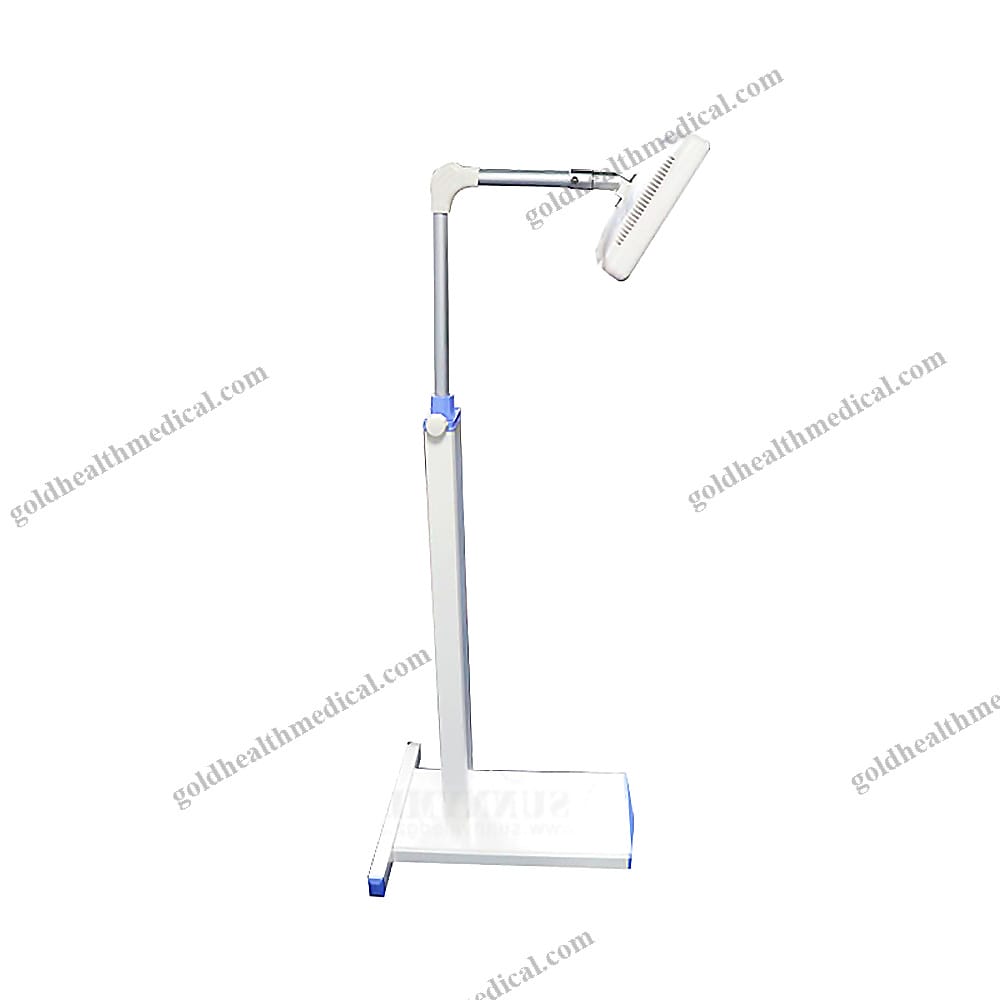

- Adjustable Radiant Head: Rotates by angles of 30°, 60°, or 90°, providing flexibility in treatment positioning.

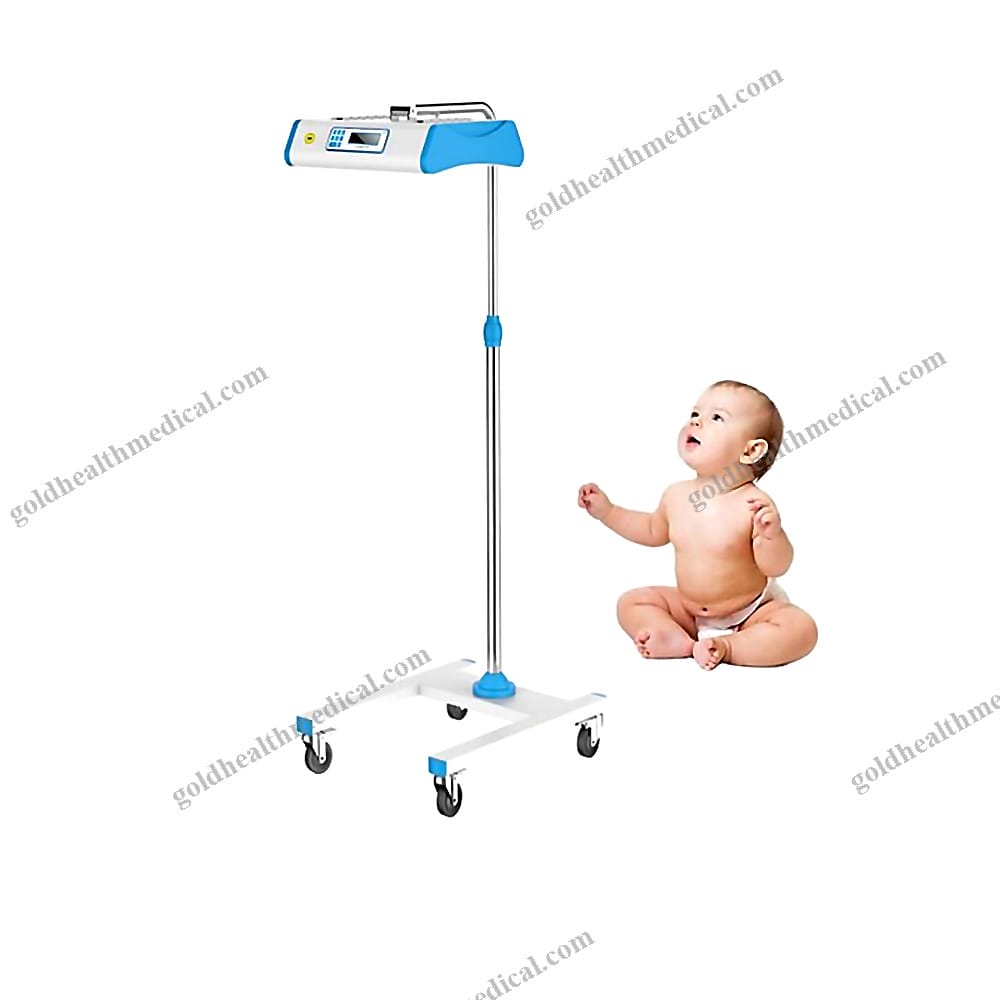

- Lifting and Mobile Stand: Facilitates easy mobility and height adjustments, enhancing usability in various settings.
Operational Excellence:
- Input Power: <150VA
- Light Source Options: Blue tube or LED tube with effective lifetimes of 2000 or 50000 hours respectively
- Wavelength: 400-550nm
- Irradiance Treatment Distance: 35cm
- Effective Area: 45cm x 24cm
- Bilirubin Total Irradiance Maximum (Ebi max): 2000uW/cm² to 2500uW/cm²
- Time Display Accuracy: ±1 minute over 2 hours
- Operational Noise: ≤55dB(A), with ambient noise lower than 40dB(A)
Commitment to Quality and Service:
GoldHealth Medical is dedicated to delivering innovative and reliable medical solutions. Our products are trusted globally, serving healthcare providers in South America, Southeast Asia, North America, Africa, and beyond. With a focus on excellence, we ensure comprehensive support from pre-sales to after-sales service, including video tutorials and real-time
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Product Name: Neonatal Jaundice Phototherapy Lamp
Product Overview
The Neonatal Jaundice Phototherapy Lamp by GoldHealth Medical is a cutting-edge solution designed to provide safe and effective treatment for neonatal jaundice. Engineered with precision and care, this device combines advanced technology with user-friendly features to ensure optimal therapeutic outcomes in clinical and home environments.
Key Features
- High-Performance Light Therapy: Delivers consistent irradiance strength of 63+/-25% μW/cm²/nm at a 35cm distance, ensuring reliable treatment for newborns.
- Adjustable Intensity Levels: Offers 5 levels of irradiance adjustment (20%, 40%, 60%, 80%, 100%) to customize treatment intensity based on individual patient needs.
- Intuitive Display: Equipped with a 4.3" TFT touch screen with a resolution of 480*272 for clear, real-time monitoring and effortless operation.
- Durable Construction: Crafted from high-quality materials, including acrylic and metal, ensuring long-lasting performance and reliability.
Technical Specifications
- Instrument Classification: Class II medical device
- Power Source: Electric
- Shelf Life: 1 year
- Safety Standard Compliance: GB15979-2002
- Quality Certifications: CE
Additional Information
- Place of Origin: Guangdong, China
- Warranty: 1 year, providing peace of mind and assurance of quality
- After-Sale Service: Comprehensive online technical support to assist with any operational or technical queries
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative, reliable, and safe medical solutions. Our Neonatal Jaundice Phototherapy Lamp is meticulously designed to meet the needs of healthcare professionals and caregivers, ensuring the highest standards of care for newborns. With its advanced features, robust build, and user-centric design, this device stands out as a trusted choice for hospitals, clinics, and home care settings.
Experience the GoldHealth Medical difference today and elevate your neonatal care capabilities.
