Sonostar Portable BW Ultrasound MSLPU33A
Reference: 1600648309257
Medical Imaging Equipment
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

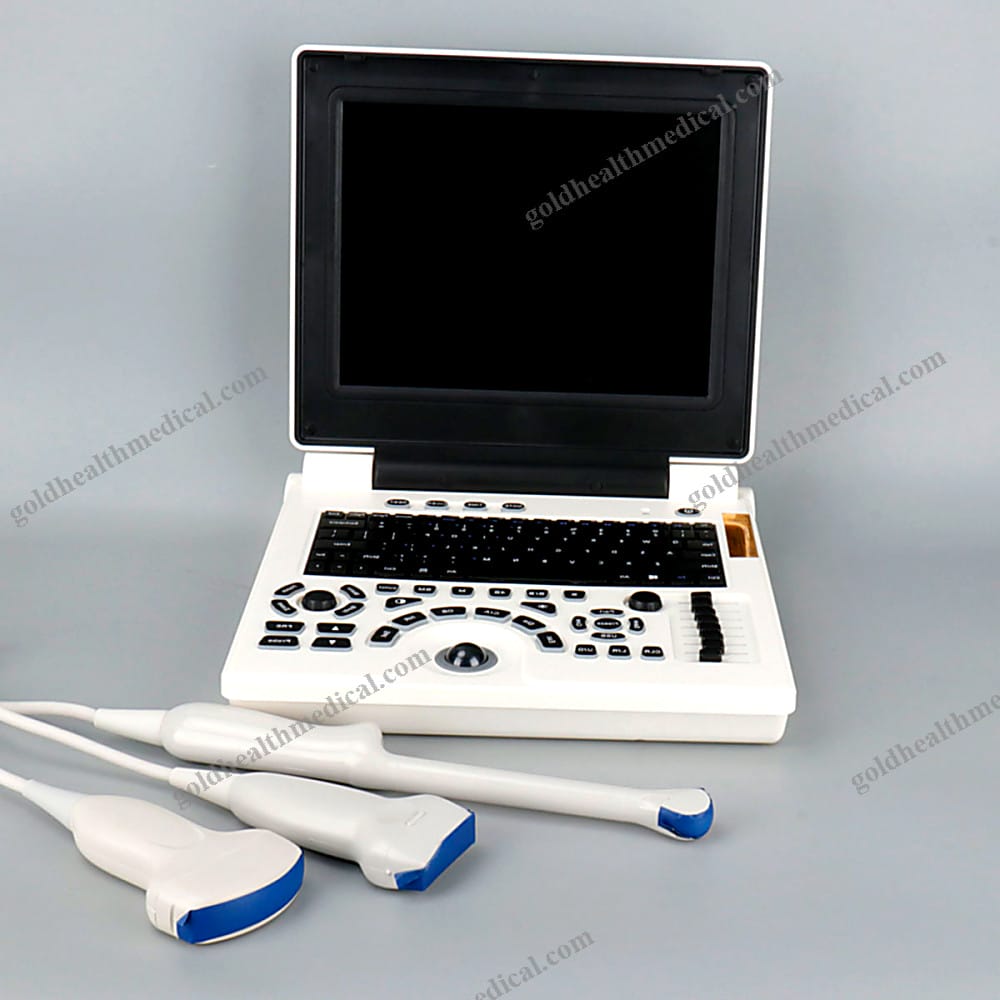

GoldHealth Medical Portable B/W Ultrasound System
Product Overview
GoldHealth Medical introduces a state-of-the-art portable black and white ultrasound system designed for exceptional imaging performance. This device is engineered to deliver remarkable ultrasound images through cutting-edge digital imaging technology, making it an indispensable tool for a wide range of clinical applications.
Standard Configuration
- High-resolution 15” LCD monitor with 1024x768 resolution
- Two USB ports for versatile connectivity
- Composite video signal output for external display
- Networking port for seamless data transfer
- Power inlet and equipotential terminal for safety
- Two transducer connectors for multiple probe options
- Comprehensive measurement and calculation software packages
Warranty
- 18 months warranty for the main unit from the ex-factory date
- 12 months warranty for probes from the ex-factory date
Optional Probes
- 3.5 MHz convex probe
- 7.5 MHz linear probe
- 6.5 MHz trans-vaginal probe
- 5.0 MHz micro-convex probe
Technical Specifications
- Imaging Technology: Advanced digital imaging for superior ultrasound images
- Optional Accessories: Ultrasound trolley for enhanced mobility
- Clinical Applications: Abdomen, Obstetrics, Gynecology, Urology, Cardiology, Small Parts, Vascular
- Imaging Modes: B, 2B, B/M, M, 4B
- Gray Scale: 256 levels
- Probe Types: Convex array, Transvaginal array, Linear array, Micro-convex array
- Display: 15” LCD monitor
- Digital Enhancements: Wide-angle imaging, Panoramic focusing technology, Rolling M technology
- Scanning Depth: Up to 300mm
- Transducer Frequency: 2-11 MHz
- Software Packages: Comprehensive solutions for Abdomen, OB, Gynecology, Small Parts
- Transducer Connectors: 3 active ports

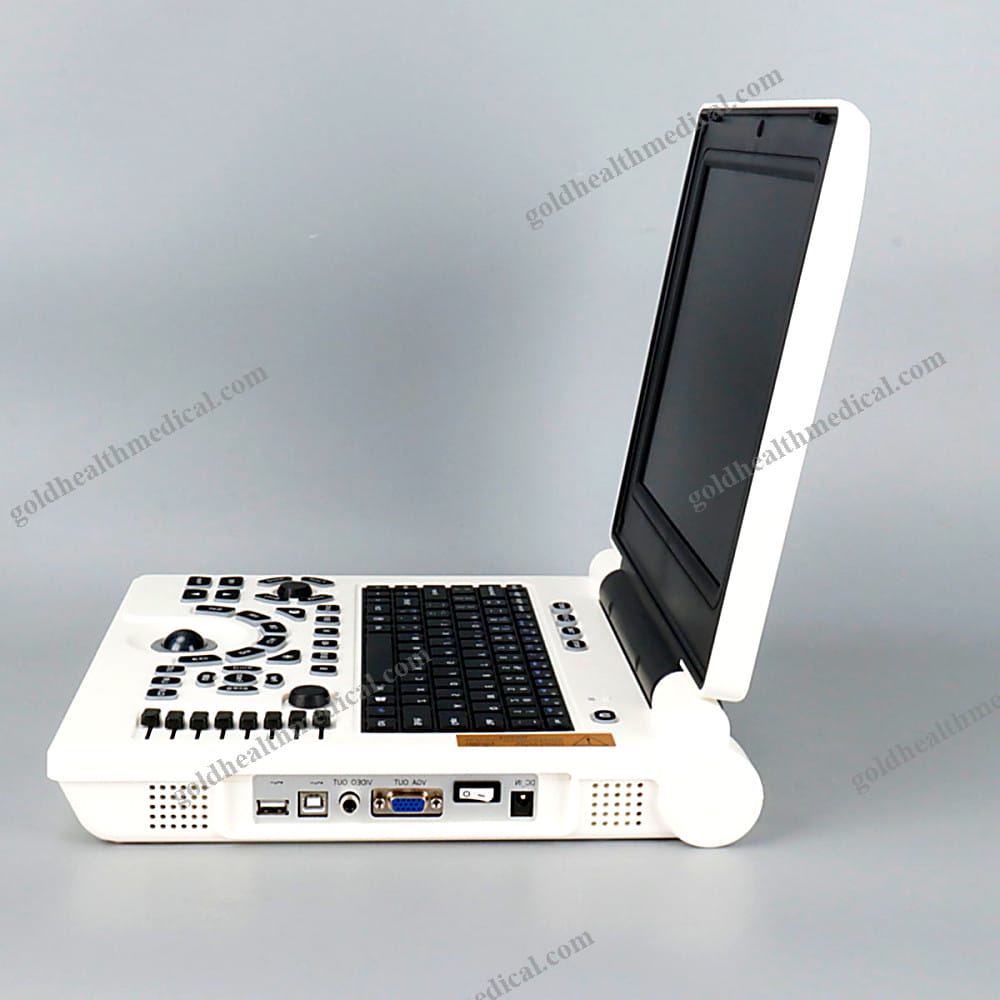

- Peripheral Ports: Video, 2 USB ports, 1 networking port, 1 power inlet, 1 equipotential terminal
Package Dimensions
- Dimensions: 460mm x 370mm x 565mm
- Weight: 11.5kg
Probe Port & Holder
- Probe Ports: 2 activated ports
- Probe Holders: 2 holders for secure storage
Key Features
- Superior Imaging: Achieve unparalleled clarity with advanced digital imaging technology.
- Versatile Applications: Suitable for a wide range of medical fields including abdomen, obstetrics, gynecology, urology, cardiology, small parts, and vascular.
- Enhanced Mobility: Optional ultrasound trolley for easy transport and positioning.
- Comprehensive Software: Extensive measurement and calculation packages tailored for various clinical needs.
- Reliable Performance: Backed by a robust warranty ensuring peace of mind for medical professionals.
GoldHealth Medical's portable B/W ultrasound system is meticulously designed to meet the rigorous demands of modern healthcare environments, offering precision, reliability, and ease of use.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical: Elevating Diagnostic Precision with Advanced Ultrasound Technology
- Product Name: B/W Ultrasound Scanner
- Imaging Modes: B, 2B, B/M, M, 4B – delivering versatile diagnostic capabilities for comprehensive analysis.
- Applications:
- Abdomen
- Obstetrics & Gynecology
- Urology
- Cardiology
- Small Parts
-
Vascular
Designed to meet the diverse needs of medical professionals across multiple specialties. -
Display: A crisp 10-inch high-resolution medical-grade LED monitor ensures exceptional clarity and precision in imaging.
- Data Ports: Equipped with multiple connectivity options:
- USB 2.0
- Video
- S-Video
- RS-232
-
VGA
Seamlessly integrate with existing systems for enhanced workflow efficiency. -
Languages Supported: Multilingual interface including Chinese, English, and Spanish, catering to a global user base.
- Weight: Lightweight at just 7 kg, ensuring portability and ease of use in various clinical settings.
- Packaging Size: Compact dimensions of 485x400x415mm for efficient storage and transport.
-
Optional Accessories: Includes the option of a trolley/cart for added mobility and convenience.
-
Instrument Classification: Class I – engineered to meet the highest standards of safety and reliability.
-
Place of Origin: Proudly crafted in Guangdong, China, combining cutting-edge innovation with meticulous craftsmanship.
-
Warranty: Backed by a robust 3-year warranty, reflecting our confidence in product durability and performance.
- After-Sale Service: Complimentary spare parts provided to ensure uninterrupted operation and long-term value.
GoldHealth Medical is committed to empowering healthcare providers with advanced diagnostic tools that redefine precision, reliability, and versatility. Our B/W Ultrasound Scanner is more than a device – it’s a gateway to better patient outcomes.
