PRSPH4000V Veterinary Infusion Pump
Reference: 60363703730
Veterinary Syringe
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

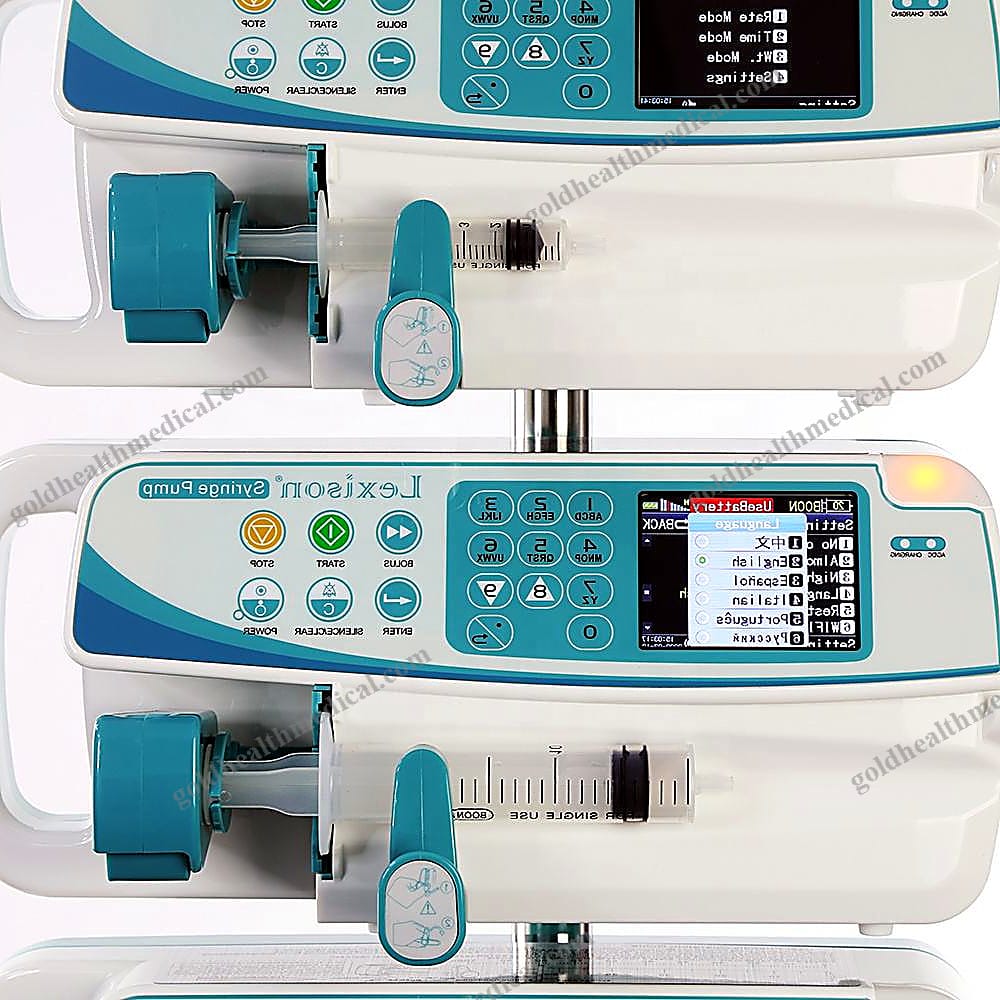

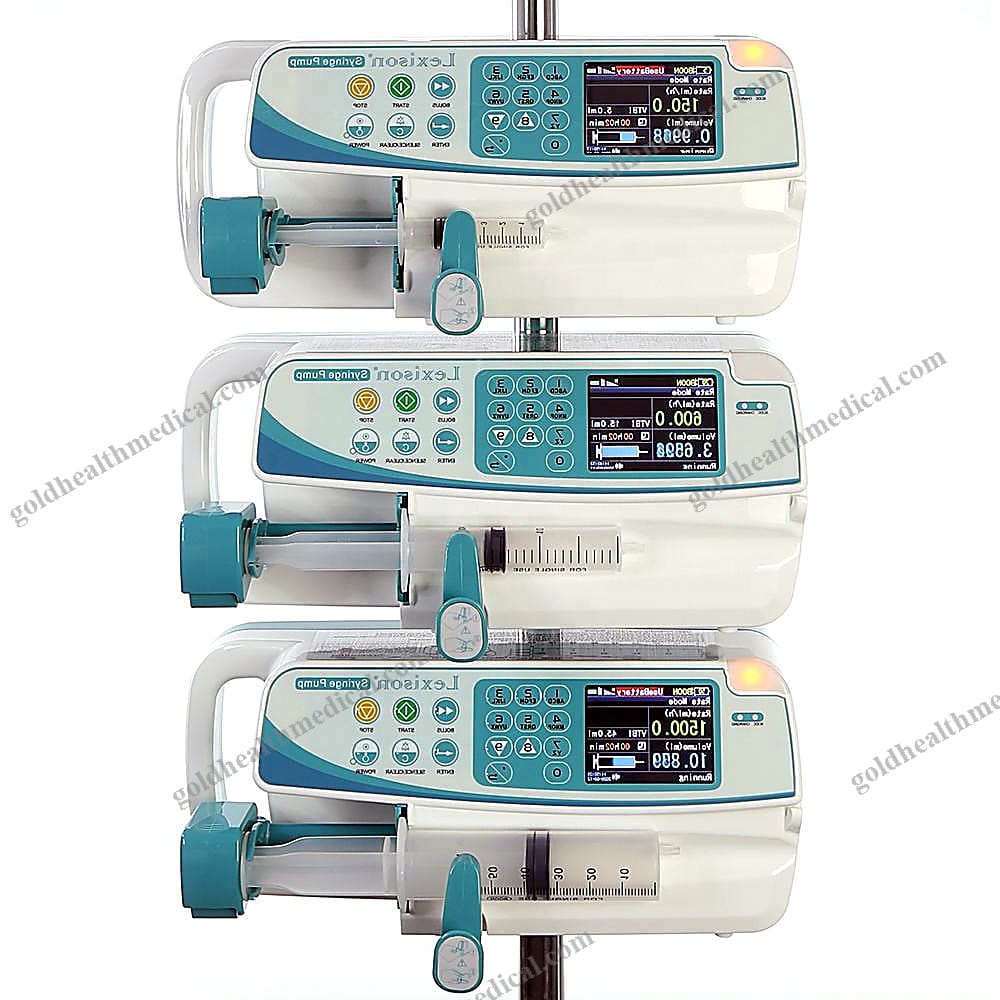

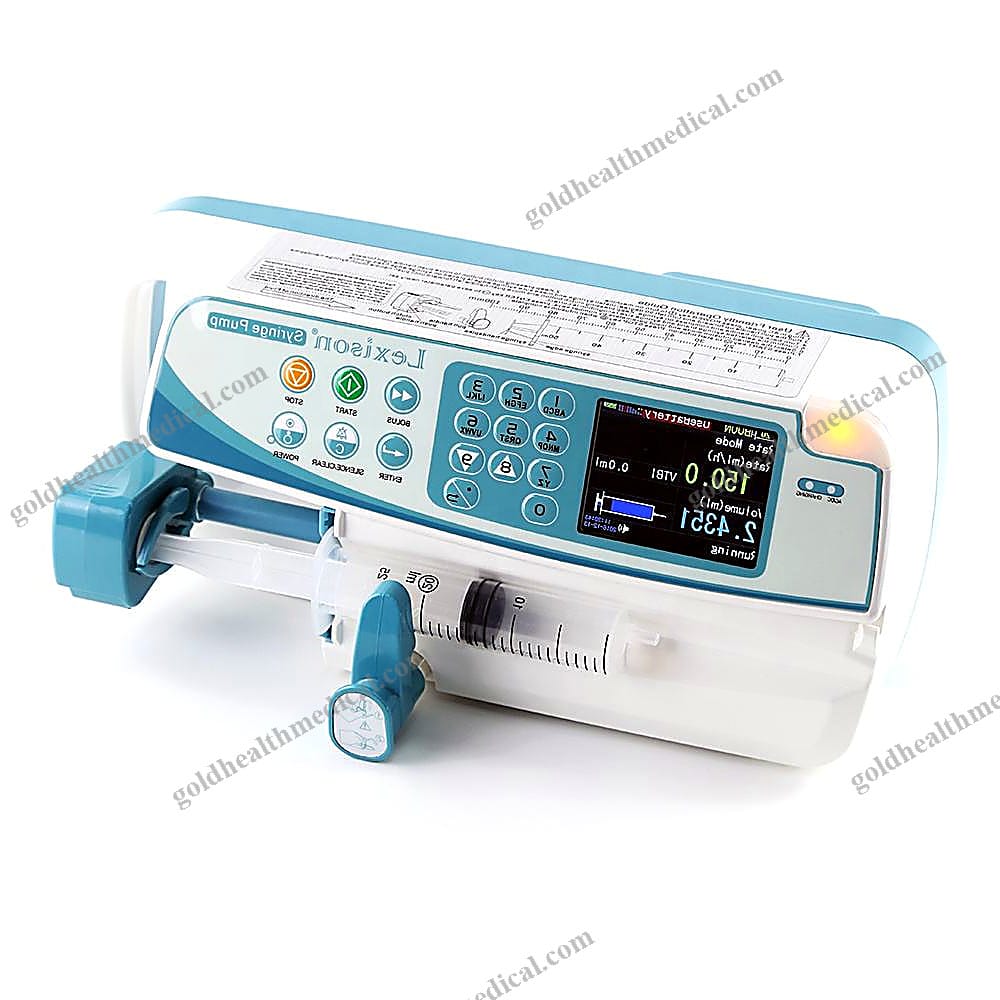

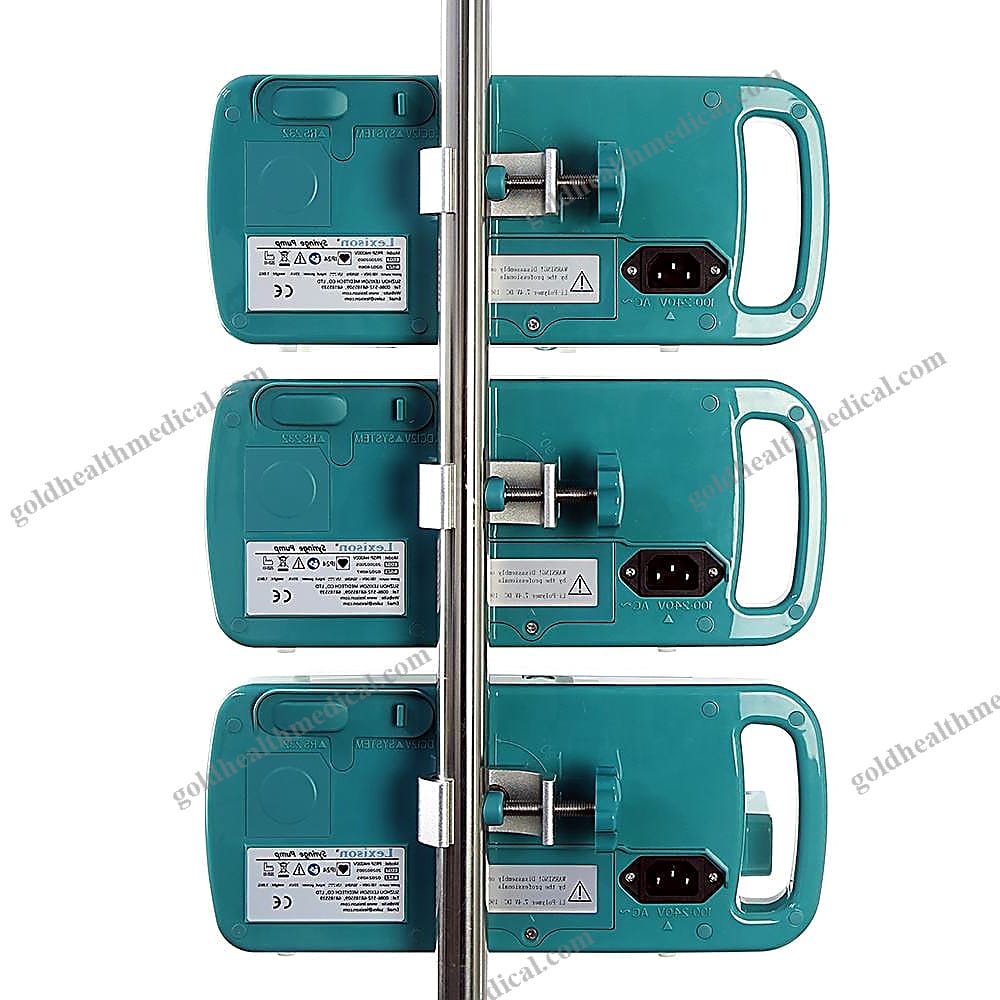

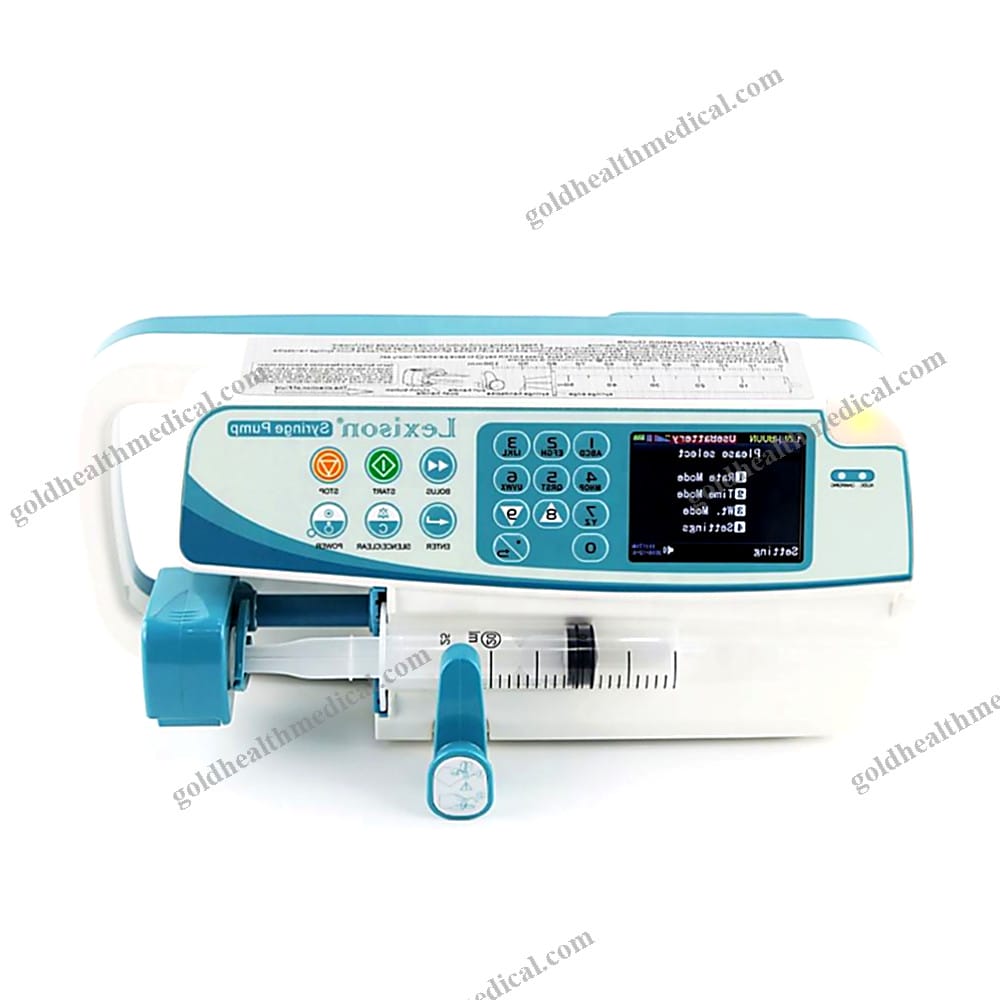

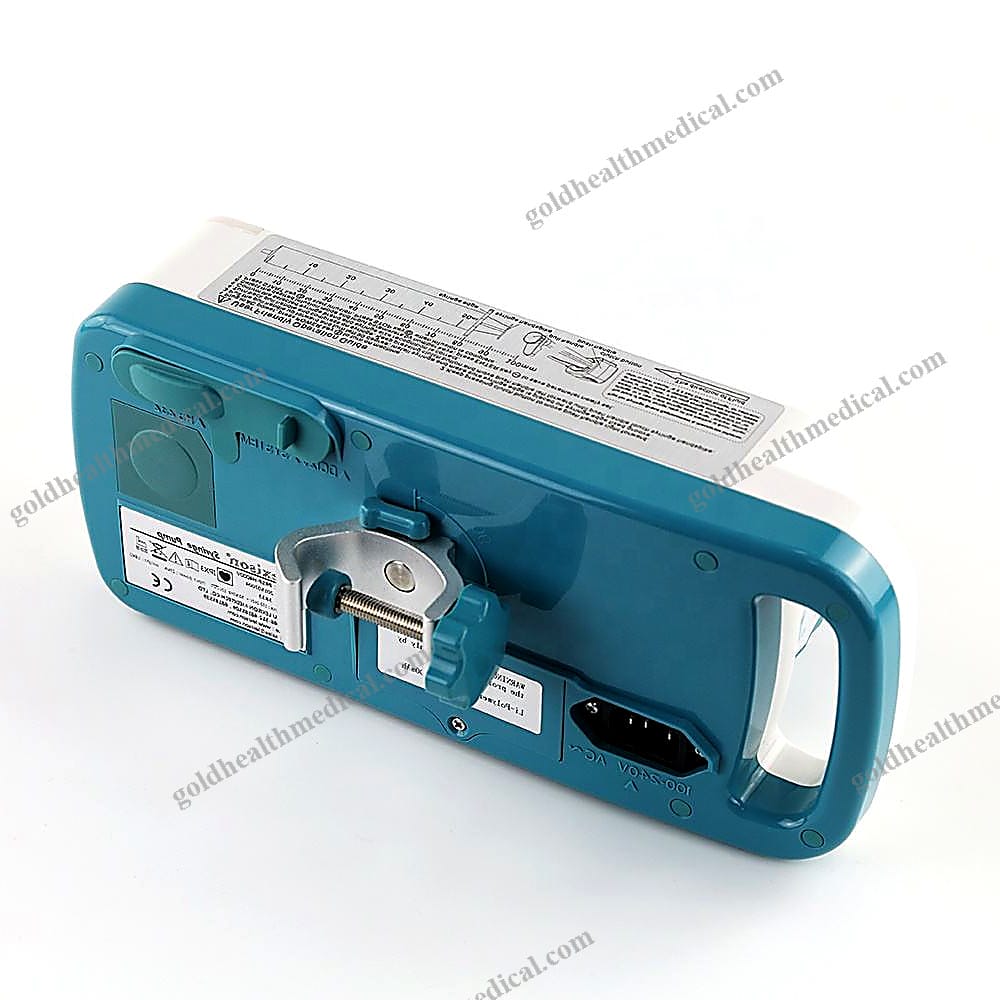

GoldHealth Medical Electric Syringe Infusion Pump for Veterinary Use
Advanced Features
- Intuitive Interface: Equipped with a vibrant TFT color display and tactile keyboard buttons for seamless operation.
- Automatic Syringe Recognition: Intelligent system detects syringe sizes of 5ml, 10ml, 20ml, 30ml, and 50ml/60ml automatically.
- Universal Compatibility: Works seamlessly with nearly all standard syringe brands.
- Multiple Infusion Modes: Offers Rate Mode, Time Mode, and Body Weight Mode for precise control.
- Enhanced Speed Control: Provides 25 adjustable infusion speed units to meet diverse treatment needs.
- KVO & Bolus Functionality: Ensures continuous low-flow infusion and rapid bolus delivery when required.
- Real-Time Monitoring: Displays critical data with visible and audible alarms for enhanced safety.
- Long-Lasting Battery: Rechargeable lithium battery supports over 5 hours of continuous operation.
- Advanced Data Management: Dual CPU architecture with an optional drug library and automatic storage of up to 1600 syringe records.
Technical Specifications
- Syringe Sizes Supported: 5ml, 10ml, 20ml, 30ml, 50ml/60ml
- Accuracy: ± 2%
- Infusion Modes:
- Rate Mode
- Time Mode
- Body Weight Mode
- Intermittent Infusion Mode (optional)
- Drug Library Mode (optional)
- Infusion Rate:
- 5ml Syringe: 0.1 ~ 150 ml/h
- 10ml Syringe: 0.1 ~ 300 ml/h
- 20ml Syringe: 0.1 ~ 600 ml/h
- 30ml Syringe: 0.1 ~ 900 ml/h
- 50/60ml Syringe: 0.1 ~ 1500 ml/h
- Volume to be Infused (VTBI): 0 ~ 1000 ml
- KVO Rate: Adjustable from 0.1 ~ 2 ml/h; default at 0.1 ml/h
- Bolus Rate:
- 5ml Syringe: 100 ~ 150 ml/h
- 10ml Syringe: 100 ~ 300 ml/h
- 20ml Syringe: 100 ~ 600 ml/h
- 30ml Syringe: 100 ~ 900 ml/h
- 50/60ml Syringe: 100 ~ 1500 ml/h
- Alarm System: Alerts for syringe disengagement, infusion completion, occlusion, low battery, and more.
- Battery Specifications:
- Type: Rechargeable Li-Polymer
- Voltage: 7.4V, 1900mAh
- Operating Time: Up to 7 hours at 25 ml/h
- Charging Time: 10 hours (powered on), 3 hours (powered off)
- Occlusion Pressure: Adjustable levels (Low, Medium, High) ranging from 40.0 ~ 160.0 KPa.
- Power Supply:
- DC: 12 ± 1.2V
- AC: 100 ~ 240V, 50/60Hz
- Waterproof Rating: IPX3
- Dimensions: 300x130x125 mm (LxWxH)
- Weight: 1.8 Kg
Unique Selling Points
- Precision and Reliability: Engineered for accuracy and consistent performance in veterinary care.
- User-Centric Design: Combines advanced technology with intuitive controls for ease of use.
- Versatility: Adaptable to various syringe sizes and brands, ensuring compatibility across different clinical settings.
- Safety First: Real-time monitoring and comprehensive alarm systems provide peace of mind during critical procedures.
- Portability: Lightweight and battery-powered, making it ideal for both stationary and mobile applications.
Related Products
- High-Quality Veterinary Infusion Pump for Diagnosis and Anesthesia
- Fluid Warmer for Blood Transfusion and IV Fluids
- Advanced Single-Channel Syringe Pump with Drug Library
- Portable Veterinary Anesthesia Machine
- Doppler Blood Pressure System
GoldHealth Medical
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Product Type: Electric Veterinary Syringe Pump
Key Features:
- Versatile Compatibility: Designed with an open system, this syringe pump supports nearly all brands of standard syringes, ensuring seamless integration into your existing medical workflows.
- Wide Range of Syringe Sizes: Accommodates syringe sizes of 5ml, 10ml, 20ml, 30ml, and 50/60ml, offering flexibility for various treatment protocols.
- Advanced Display Technology: Equipped with a 2.8-inch Colorful LCD screen, providing clear, real-time data visualization for enhanced precision and ease of use.
- Extensive Memory Capacity: Stores up to 1600 historical records, enabling comprehensive tracking and analysis of treatment sessions.
- Exceptional Accuracy: Achieves a syringe accuracy of ±2% after calibration, ensuring reliable and consistent performance.
- Intelligent Alerts: Features both audible and visual alarms to promptly notify users of any irregularities or critical events.
- Enhanced Connectivity: Includes an RS232 computer interface for streamlined data transfer and integration with external systems.
- Customizable KVO Rate: Offers a Keep Vein Open (KVO) rate ranging from 0.1 to 2 ml/h, allowing precise control over fluid delivery.
- Long-Lasting Power: Powered by a rechargeable Li-Polymer battery, ensuring uninterrupted operation during critical procedures.
Packaging Details:
- Packaging: Securely packed in durable cartons designed specifically for syringe pumps.
- Single Package Dimensions: 39 x 21 x 20 cm
- Single Package Weight: 5.000 kg
Ideal For:
Hospitals, clinics, veterinary practices, research laboratories, rehabilitation centers, and home healthcare settings seeking a reliable, high-performance syringe pump solution.
GoldHealth Medical’s Electric Veterinary Syringe Pump combines cutting-edge technology with user-centric design, delivering unparalleled precision, versatility, and reliability for modern medical and veterinary applications.
