Power Assist Handbike Attachment for Wheelchairs
Reference: 60801155934
Electric Wheelchair
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

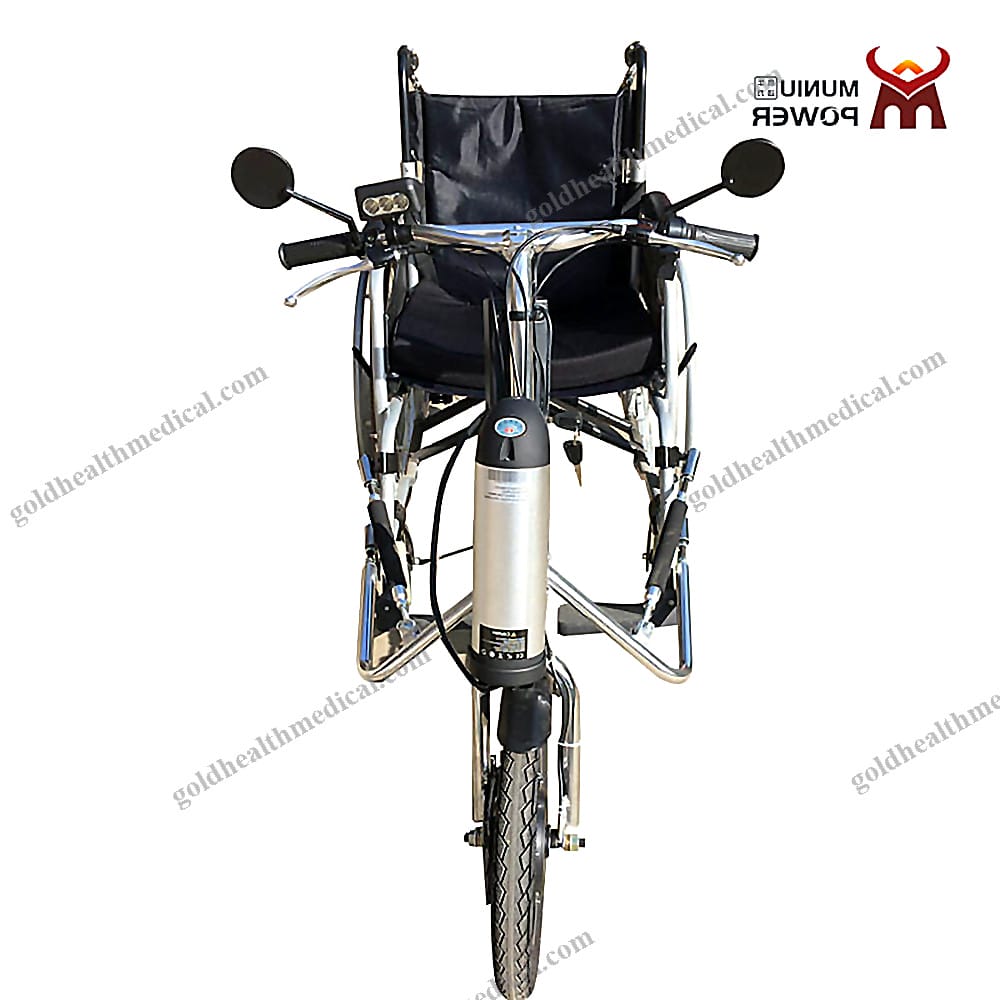

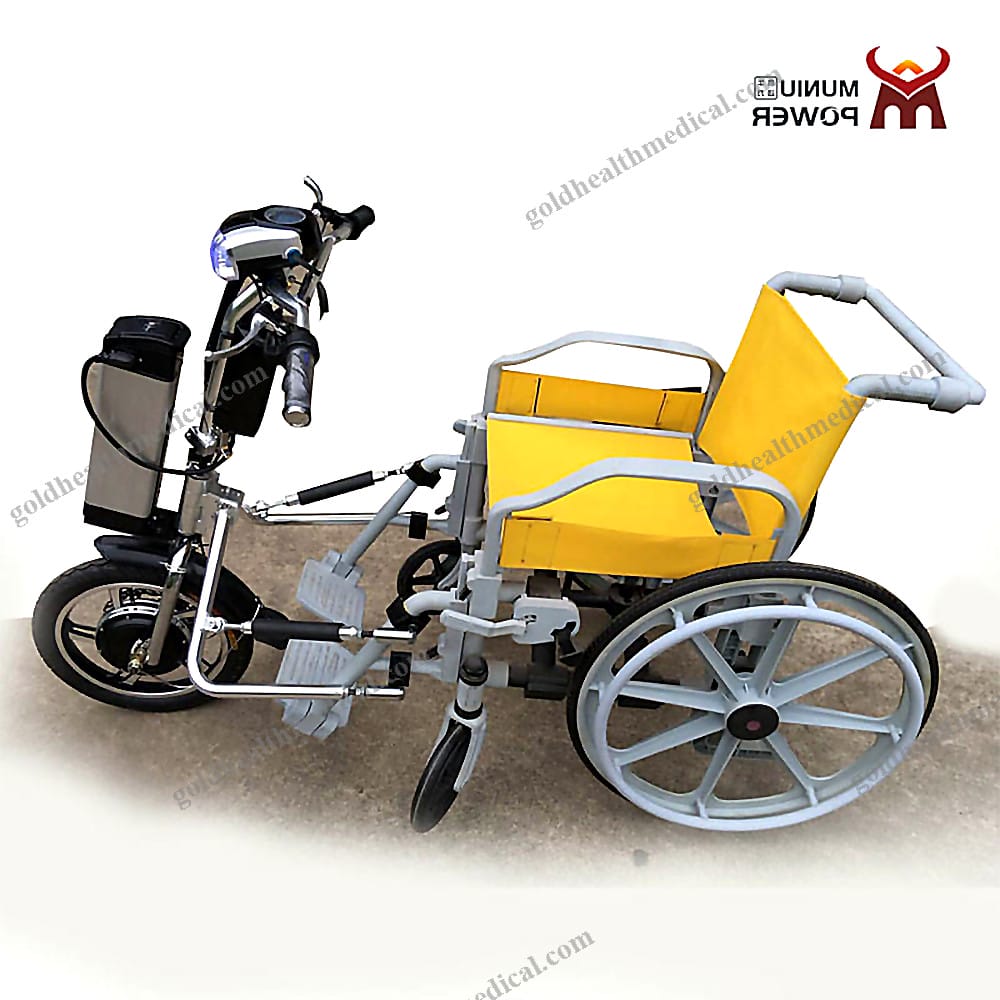

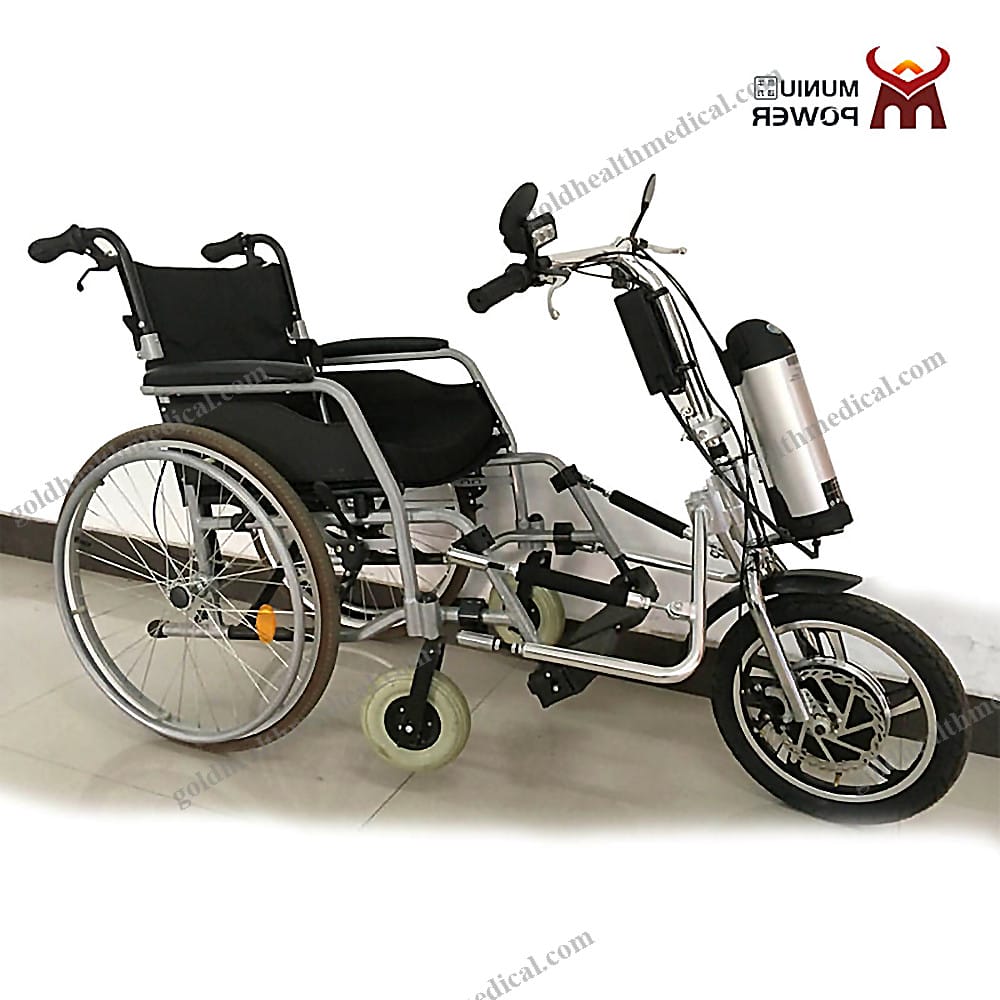

GoldHealth Medical Electric Handcycle
Transform manual wheelchairs into electric power-assisted mobility solutions with the GoldHealth Medical Electric Handcycle. Designed for stability, versatility, and effortless integration, this innovative attachment is a game-changer for users seeking enhanced mobility without compromising on convenience.
Key Features
- Enhanced Stability: Four-point support system ensures maximum stability during use.
- Universal Compatibility: Fits almost all wheelchairs without requiring special adapters.
- Detachable Design: Easily attach or detach the handcycle based on your need for power assistance.
- Adjustable Fit: Accommodates wheelchairs with seat widths ranging from 40 cm to 65 cm.
- Customizable Clamps: Compatible with common frame tube diameters including 1 inch (25.4mm), 1 1/8 inch (28.6mm), 1.2 inch (30.5mm), and 1.25 inch (32mm). Custom clamps available for unique requirements.

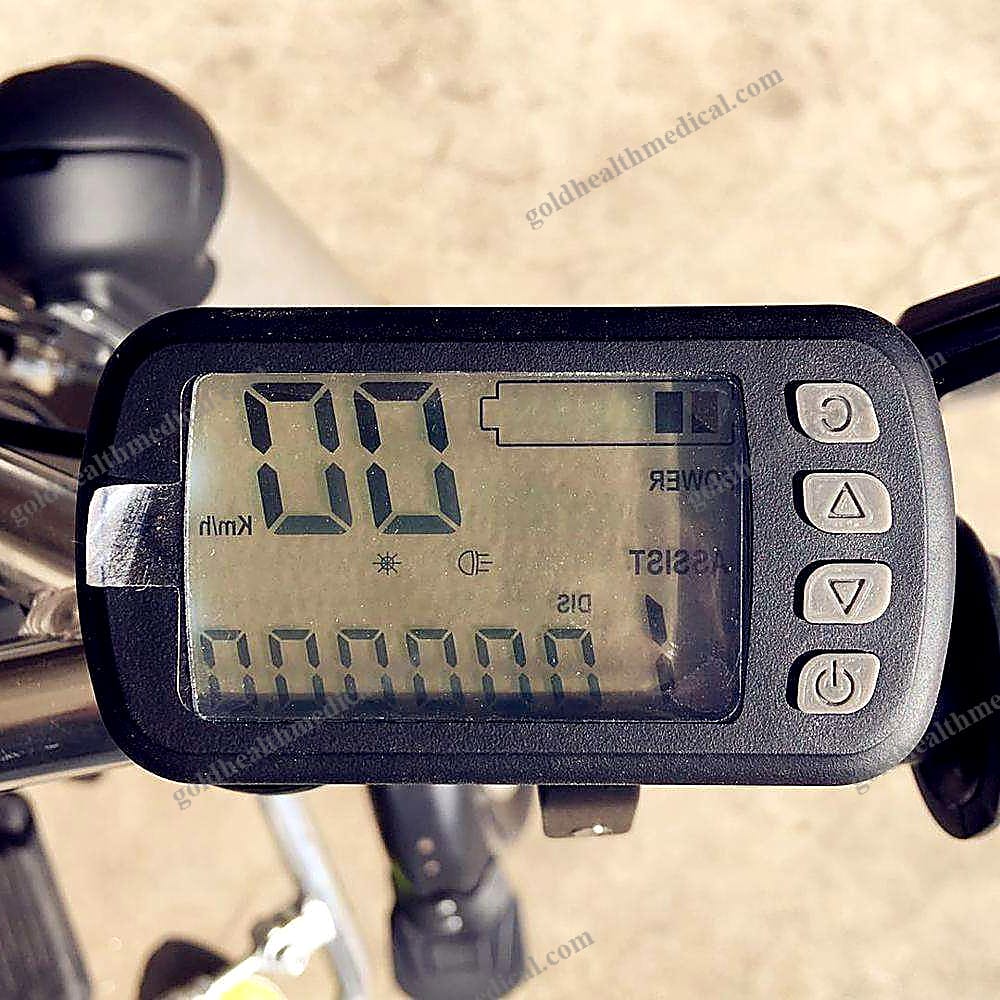

- Advanced Control Panel: Equipped with an LED headlight display showing current speed, battery power, and distance traveled.
- Dual-Side Braking: Ergonomic brake system connected to both left and right handles for enhanced safety.
- Front Caster Adjustment: Front casters can be lifted higher by rotating the upper wing for added versatility.

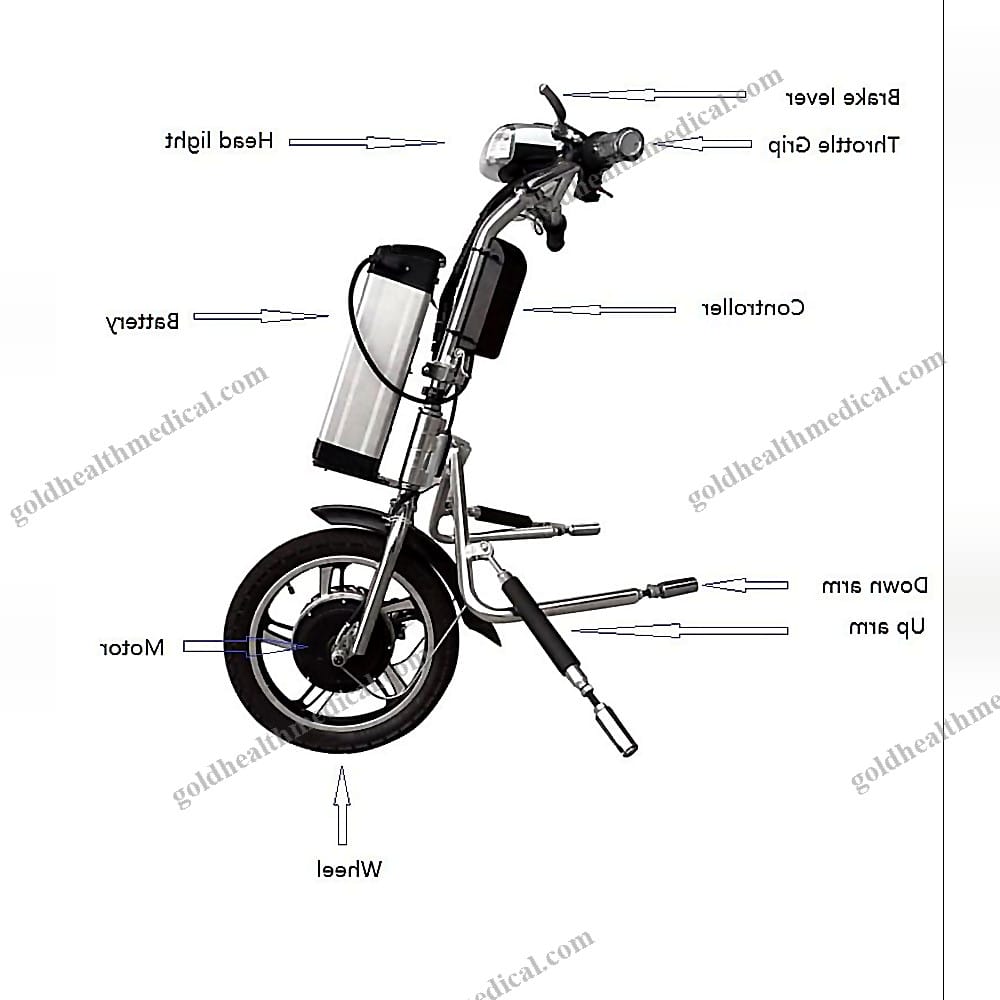

Technical Specifications
- Motor: 36V 350W gearless, brushless aluminum-alloy hub motor
- Tire: 16" x 2.125" pneumatic tire
- Fork: 16" steel
- Brake: Electronic and disc brake
- Handlebar: 6061 aluminum alloy
- Frame: 6061 aluminum alloy
- Max Speed: 25 km/h
- Max Reverse Speed: 8 km/h
- Battery: 36V, 12Ah lithium battery (weight: 4.4 kg)
- Range: ≥ 35 km (with 10% hills and 70 kg load; extended range with larger battery)
- Charger: AC 85V-240V, 50Hz/60Hz, 2A (CE, RoHS certified)
- Charging Time: 5-6 hours
- Max Loading Weight: 100 kg
- Hill-Holding Capability: 15°
- Obstacle Crossing: ≥ 80 mm
- Climbing Ability: ≤ 8°
- Min Turning Radius: 1200 mm
- Net Weight: 13 kg (without battery), 17 kg (with battery)
- Packing Weight: 17 kg (without battery), 21 kg (with battery)

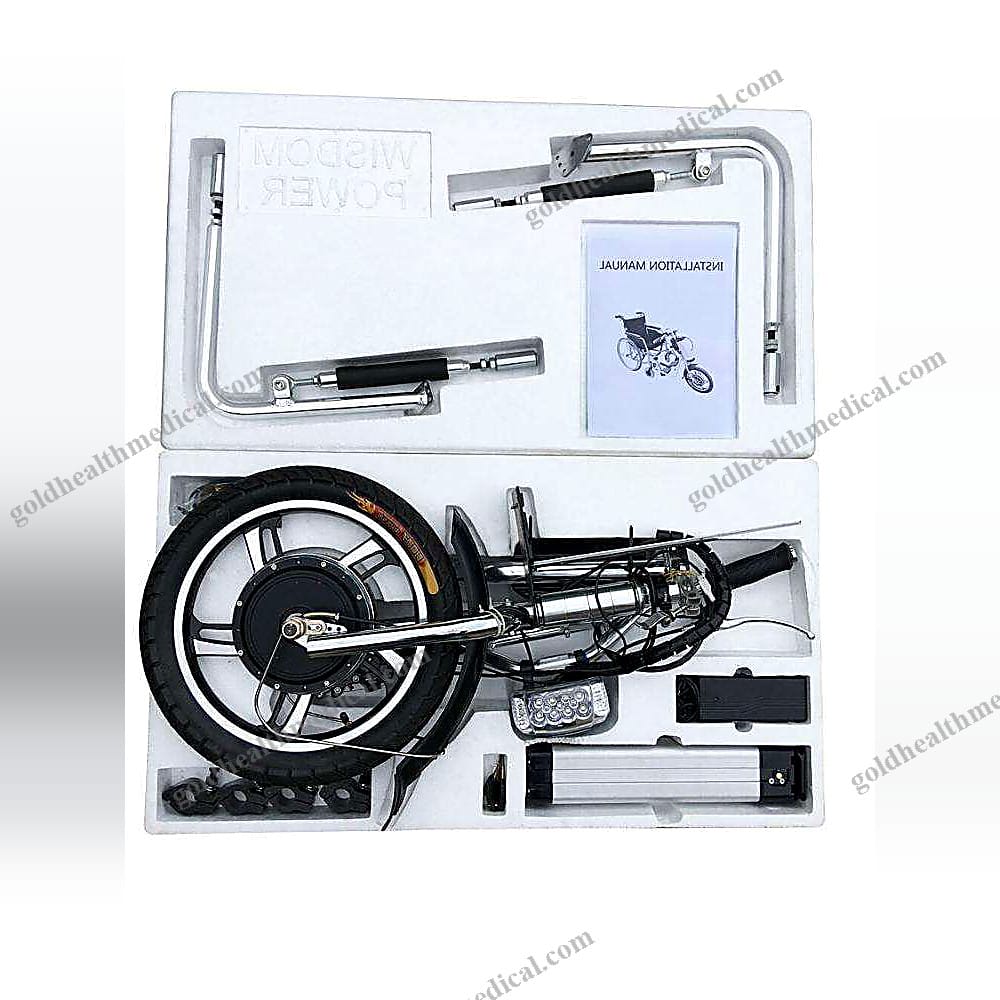

- Packing Size: 92x52x30 cm (carton, 80% CKD)
Installation Process
- Charge the battery.
- Install the clamps.
- Prepare the e-handcycle (assemble the handlebar).
- Position the wheel and adjust the upper and lower arms.
- Install the battery.
Certifications and Quality Assurance
- CE, EMC, RoHS certified with patented design.
- Rigorous testing in our state-of-the-art lab ensures reliability and performance.
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering cutting-edge mobility solutions tailored to meet the needs of hospitals, clinics, research institutions, and individual users. Our products are crafted with precision, using components sourced from trusted brand factories, ensuring durability and performance.
For inquiries or bulk orders, contact us to explore exclusive distributor benefits, including custom branding, technical support, and after-sales service.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Company Name: GoldHealth Medical
Product Name: Electric Wheelchair Trailer / Handcycle with Advanced LCD Display
Product Highlights
- Innovative Design: Combines the functionality of an electric wheelchair trailer and a handcycle, offering unparalleled mobility and convenience for users.
- Smart LCD Display: Equipped with an intuitive LCD screen to monitor speed, battery life, and distance traveled in real-time.
- Powerful Performance: Driven by a high-efficiency brushless hub motor, ensuring smooth and reliable operation.
- Extended Range: Achieves a running range of up to 35 kilometers on a single charge, making it ideal for both short commutes and extended use.
- Lightweight Lithium Battery: Powered by a 36V 12Ah lithium battery, providing long-lasting energy with quick recharge capabilities.
- Comfortable and Durable: Features 16-inch wheels for enhanced stability and a comfortable ride across various terrains.
Technical Specifications
- Motor: Brushless Hub Motor
- Voltage: 36V
- Speed: Up to 25 km/h
- Battery: 36V 12Ah Lithium Battery
- Running Range: 35 km per charge
- Wheel Size: 16 inches
- Warranty: Comprehensive 2-year warranty for peace of mind
Packaging and Delivery
- Packaging Details: Securely packed with bubble wrap and protective paper box to ensure safe transit.
- Port of Delivery: Shanghai
Supply Capacity
- Monthly Supply Ability: Up to 1,000 units per month, ensuring timely delivery for bulk orders.
GoldHealth Medical is committed to delivering cutting-edge mobility solutions that empower individuals and enhance their quality of life. Our Electric Wheelchair Trailer / Handcycle is meticulously engineered to meet the needs of hospitals, clinics, rehabilitation centers, and home users alike. Experience the perfect blend of innovation, durability, and performance.
