Portable Ultrasound Scanner for Pets
Reference: 1601251417007
Veterinary Instrument
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

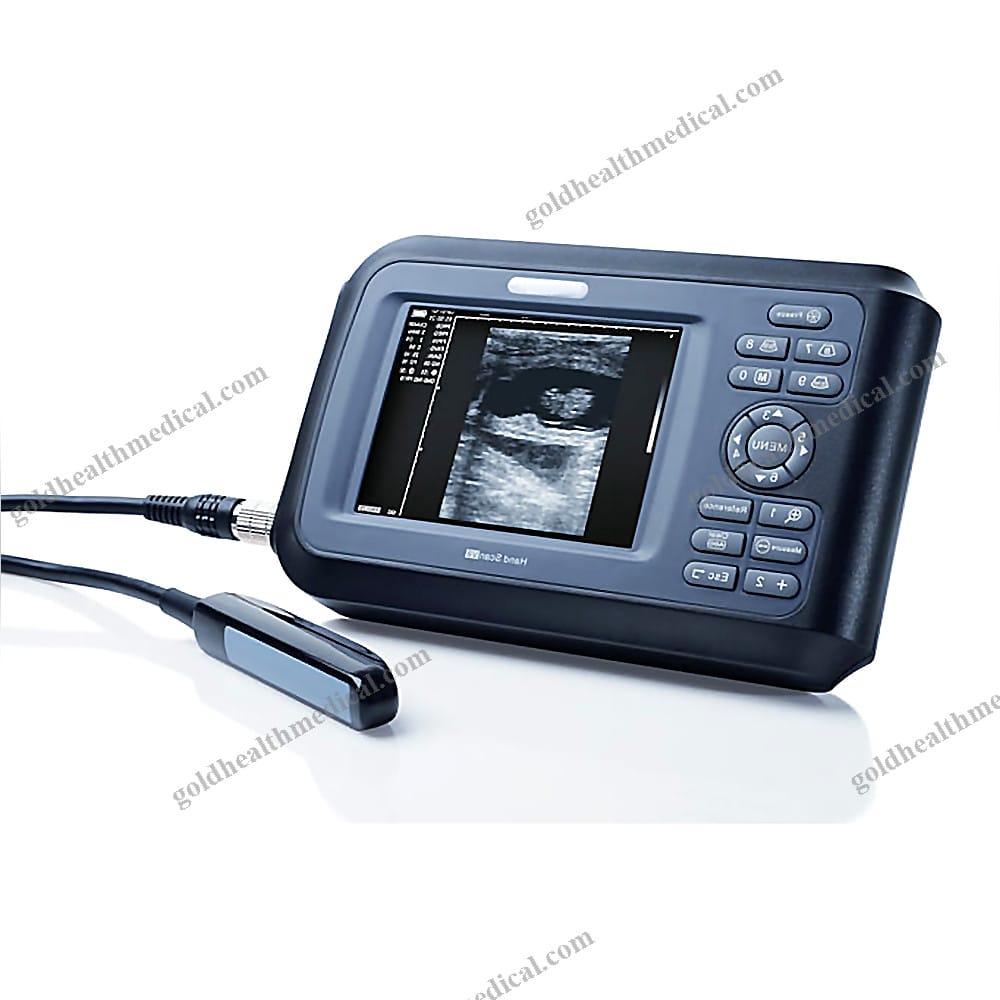

GoldHealth Medical presents the Veterinary Ultrasound Scanner
A revolutionary handheld ultrasound imaging system designed to deliver exceptional image quality in a compact, portable form. Engineered for versatility and precision, this device is the ultimate solution for animal breeding facilities, pet hospitals, and field applications.
Key Features
- Compact & Lightweight Design: Effortlessly portable with shoulder and waist belts for hands-free operation.
- Rugged Durability: Equipped with a rubber protector to shield against dirt and external impacts, plus splash-water resistance for demanding environments.
- Dual Power Options: Operates on both battery and AC power, ensuring uninterrupted performance wherever you are.
- Unmatched Image Quality: Delivers sharp, detailed images with advanced processing capabilities for accurate diagnostics.
Technical Specifications
- Monitor: 5.5-inch TFT color LCD
- Display Modes: B, B+B, B+M, M, 4B
- Gray Scale: 256 levels
- Scan Depth: Adjustable from 70mm to 140mm
- Cine Loop: Stores up to 400 frames
- Built-in Memory: Saves up to 64 images
- Focus Positions: 2 adjustable points
- Annotation: Full-screen editor for date, clock, name, sex, ID, and age
- Image Adjustment: Up/down, left/right orientation, coded color, GAMA, histogram, and image smoothing
- OB Measurements:
- EQUINE: GSD
- BOVINE: BL/SU/HL
- SWINE: HL
- SHEEP: USD
- CAT: HD/BD
- DOG: GSD/CRU/HD/BD
- General Measurements: Distance, circumference, area, volume, and heart rate
- Language Support: Switchable between English and Chinese
- Gain Control: Adjustable near gain (N.G.), far gain (F.G.), and overall gain (O.G.)
- Battery Life: Minimum 3 hours of continuous use
- Charging Time: Approximately 2 hours
- Weight: Just 700g for effortless handling
Standard Configuration
- Main unit
- 6.5MHz Veterinary Rectal Linear Probe
- AC Adaptor
- Rubber Protector
- Rechargeable Battery
- Shoulder and Waist Belts
- All items securely packed in a durable metallic case
Optional Accessories
- Probes:
- R50/3.5MHz Convex Probe
- L40/7.5MHz Linear Probe
- R20/5.0MHz Micro-convex Probe
- Car Lighter Adapter
- Additional Rechargeable Battery
- Video Goggles
- Scanner Bracket
Why Choose GoldHealth Medical?
- Proven Reliability: Rigorous pre-production sampling and final inspections ensure consistent quality.
- Custom Solutions: With a dedicated R&D team and skilled workforce, we excel in delivering tailored ODM/OEM services.
- Comprehensive Support: Backed by a 1-year warranty and responsive customer service, we’re committed to your success.
GoldHealth Medical’s Veterinary Ultrasound Scanner is more than a diagnostic tool—it’s a gateway to precision, portability, and peace of mind. Elevate your practice with technology that’s built to perform.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical presents the HandScan Veterinary Ultrasound Scanner
- Display Modes: Offers multiple advanced imaging modes including B, B+B, B+M, M, and 4B for comprehensive diagnostic flexibility.
- Screen Specifications: Equipped with a high-resolution 5.5-inch TFT color LCD screen, delivering 256 levels of grayscale for exceptional image clarity.
- Scan Depth: Adjustable scanning depth ranging from 70mm to 140mm, ensuring precision across various diagnostic needs.
- Cine Loop: Supports playback of up to 400 frames, enabling detailed review of dynamic imaging sequences.
- Built-in Memory: Stores up to 64 images, allowing for efficient documentation and comparison during examinations.
- Focus Position: Features 2 adjustable focus points for enhanced image sharpness and accuracy.
- Measurement Capabilities: Provides precise measurements for distance, circumference, and area, empowering accurate diagnostics.
- Battery Performance: Delivers a battery life of 3+ hours, ensuring uninterrupted operation during critical procedures.
Packaging Details:
- Selling Unit: Single item
- Package Dimensions: 50 x 40 x 15 cm
- Gross Weight: 5.000 kg
GoldHealth Medical’s HandScan Veterinary Ultrasound Scanner combines portability, advanced imaging technology, and user-friendly features, making it an indispensable tool for veterinary professionals and healthcare providers. Designed for accuracy, durability, and ease of use, it sets a new standard in veterinary diagnostics.
