Portable Incentive Spirometer for Lung Function Testing
Reference: 1600870270373
Reflector Apparatus
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

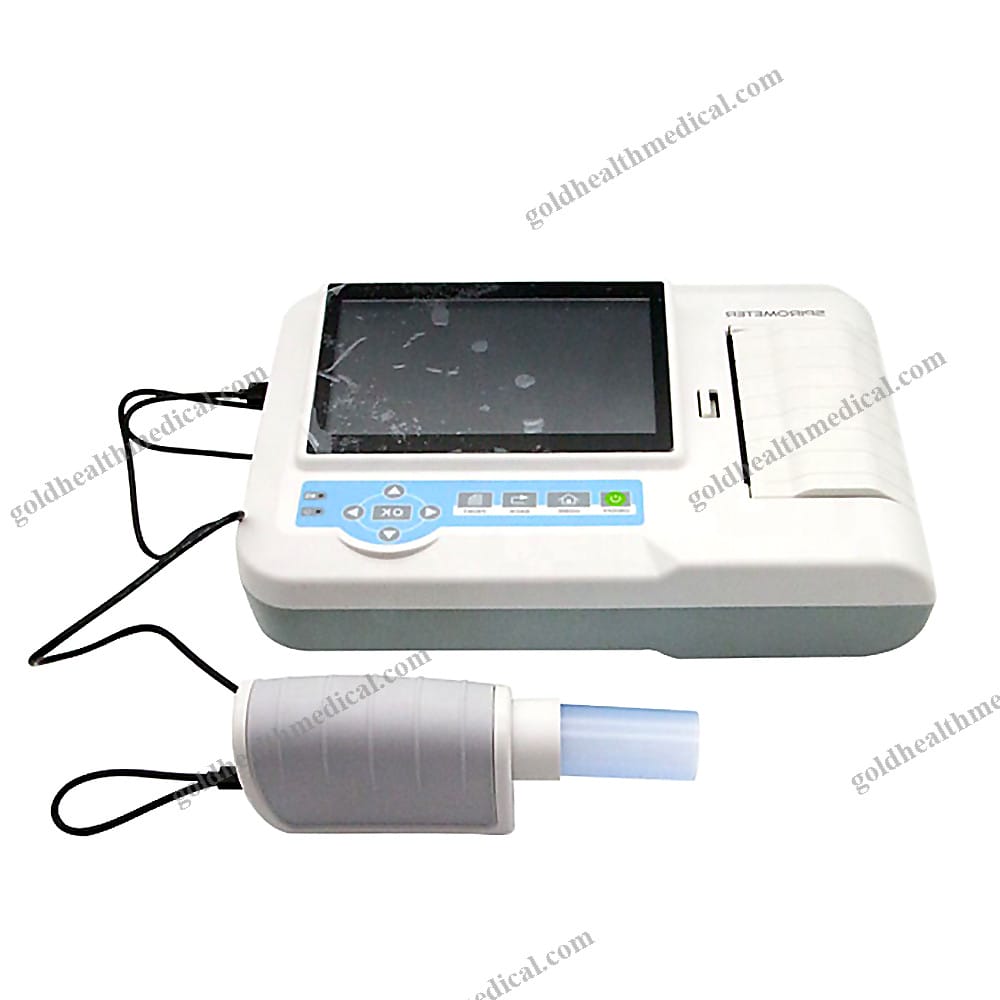

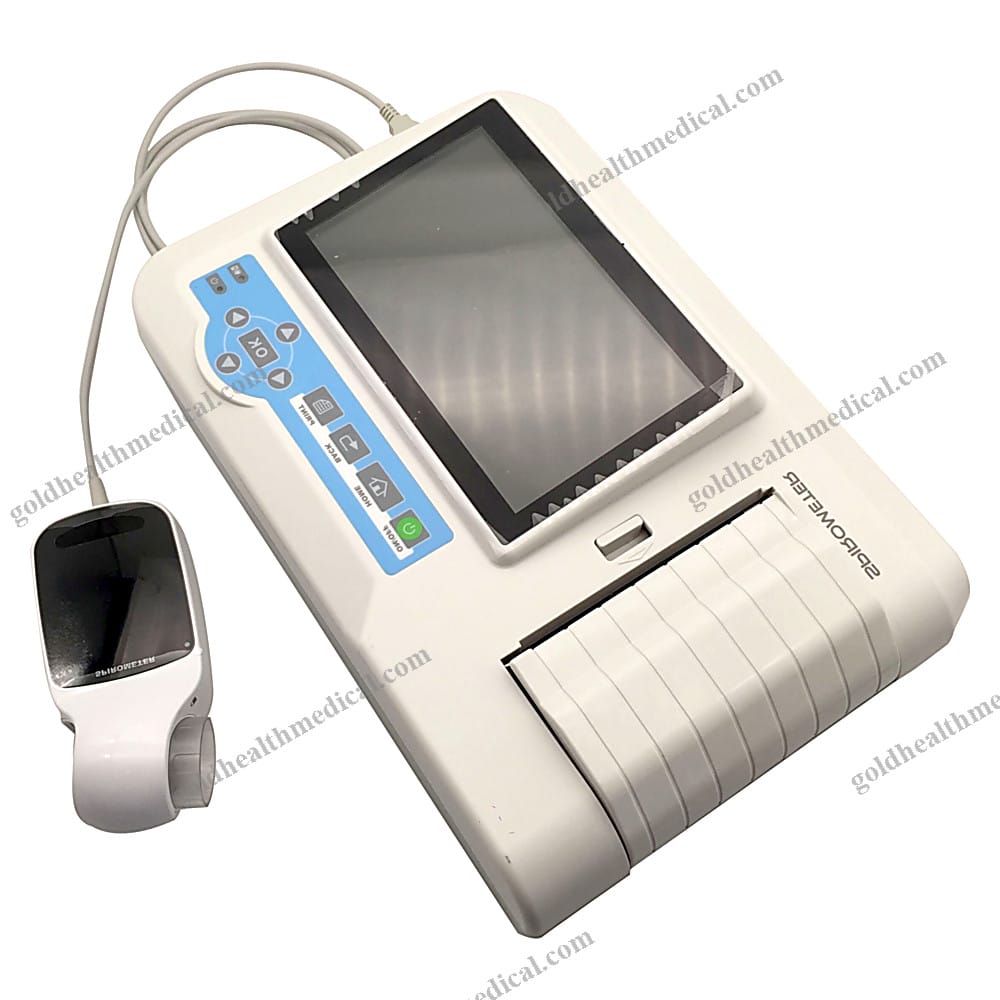

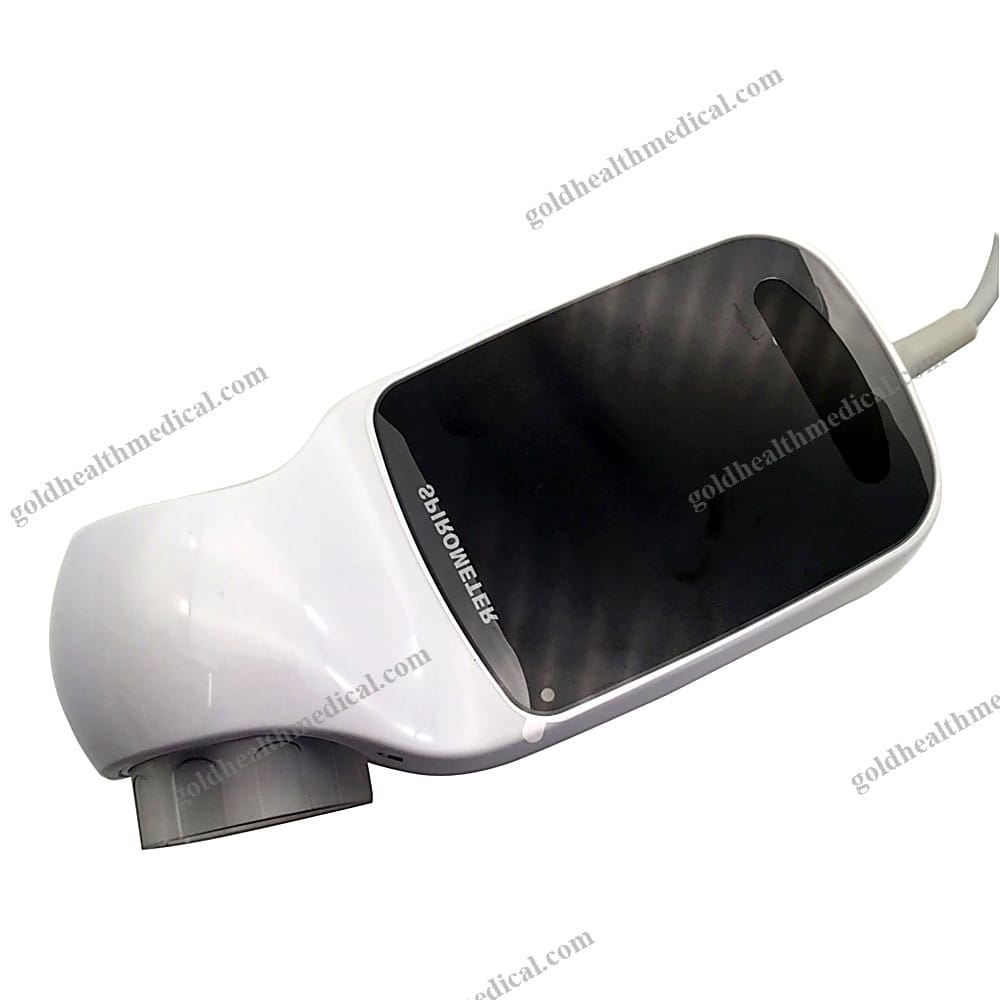

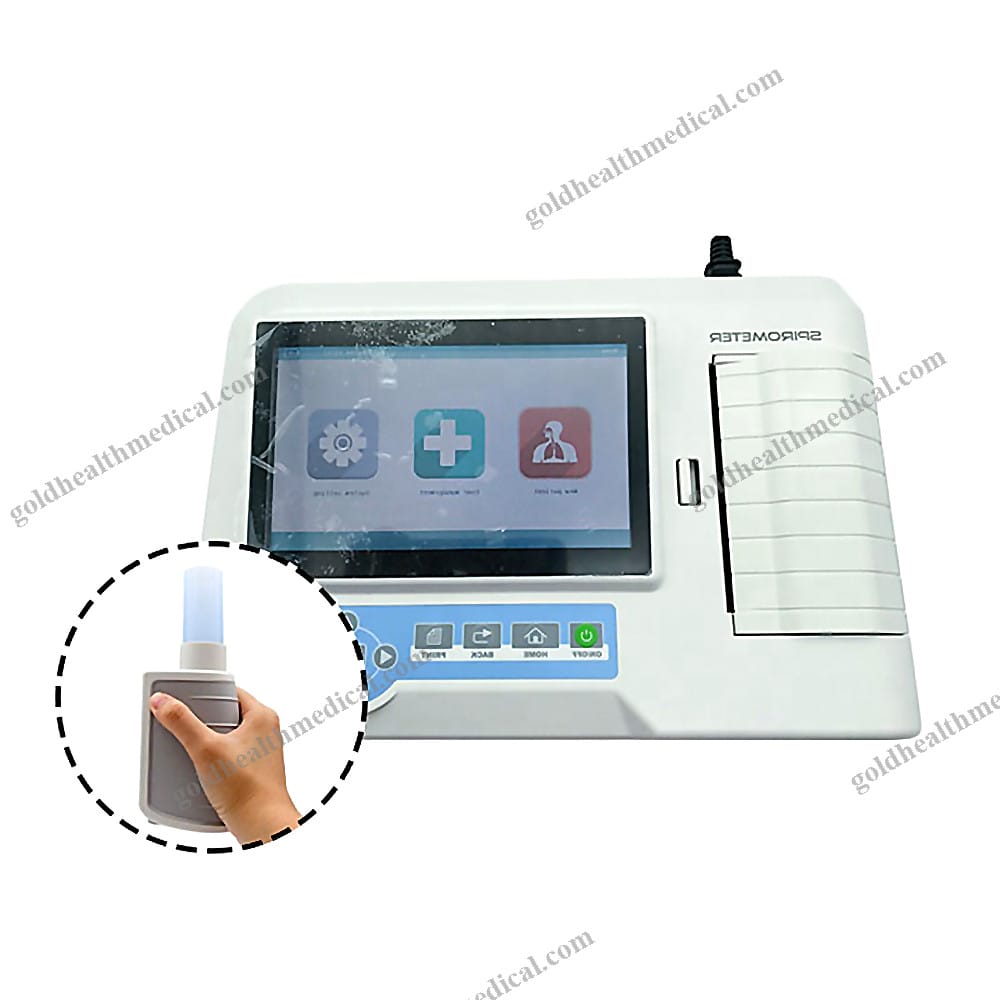

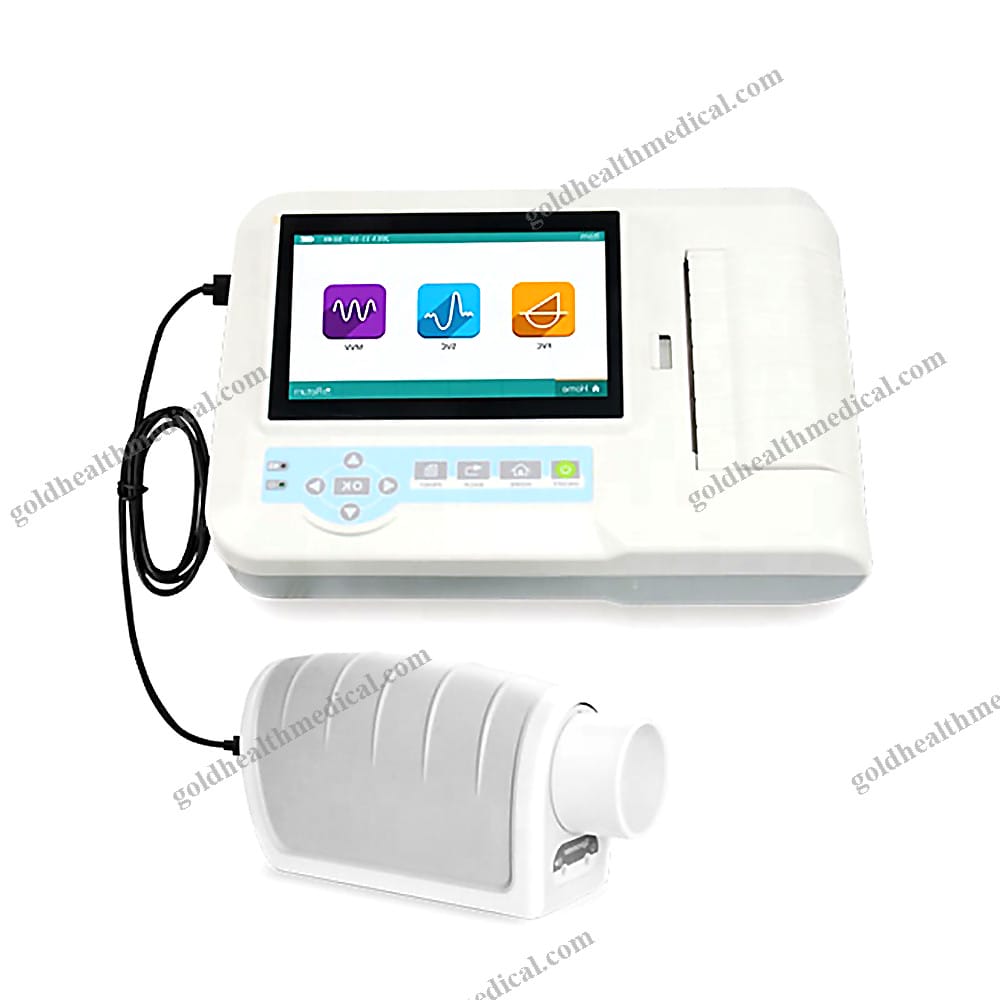

GoldHealth Medical Spirometer
Product Overview
GoldHealth Medical presents a cutting-edge spirometer designed to deliver precise pulmonary function measurements. This device is engineered for versatility, accuracy, and ease of use, making it an indispensable tool for healthcare professionals across various settings.
Key Features
- Comprehensive Measurement Capabilities: Measures Forced Vital Capacity (FVC), Vital Capacity (VC/SVC), Maximum Voluntary Ventilation (MVV), and over 30 additional parameters. Automatically selects the optimal result from multiple measurements and compares measured values to predicted norms.
- Extensive Parameter List:
- Forced Vital Capacity (FVC): FVC, FEV1, PEF, (FEV1/FVC), FEF25, FEF50, FEF75, FEF2575, FEV1/VC, FEV6, FEV1/FEV6, ELA, FET, EVOL, FIVC, FIV1, FIV1/FIVC, PIF, MVV
- Vital Capacity (VC/SVC): VC, IC, ERV, IRV, EVC, IVC, TV, VE, RR, tI, tE, TV/tI, tI/ttot
- Maximum Ventilatory Volume (MVV): MVV
- Real-Time Visualization: Displays flow-volume loops and volume-time curves for immediate analysis.
- Intuitive Interface: Equipped with a 7" color LCD touch screen and physical buttons for seamless operation.
- User-Friendly Guidance: Features incentive animation to assist users, including children and the elderly, in performing tests accurately.
- Integrated Thermal Printer: Enables instant printing of test results for convenience.
- Advanced Correction Technology: Includes BTPS automatic correction to adjust for environmental variations.
- Precision Calibration: Ensures consistent measurement accuracy.
- Customizable Predicted Values: Offers multiple prediction models tailored to diverse populations.
- Extensive Data Storage: Stores over 10,000 data sets for comprehensive patient tracking.
- Lung Age Estimation: Provides an innovative lung age estimation feature for enhanced patient engagement.
- Dual Power Options: Powered by a built-in lithium battery, supporting both AC and DC power sources.
Performance Specifications
- Volume Range: ±10 L
- Volume Accuracy: ±3% or ±0.05 L (whichever is greater)
- Flow Range: ±16 L/s
- Flow Accuracy: ±5% or ±0.2 L/s (whichever is greater)
- Power Supply: 100 V-240 V~ 50 Hz/60 Hz
- Input Power: 60 VA
- Safety Classification: Class I equipment, type BF applied part
- LCD Screen: 7" color TFT touch screen
- Printing Paper: 112 mm(W) × 20 m(L) high-speed thermal paper
Physical Characteristics
- Dimensions: 315 mm(L) × 215 mm(W) × 92 mm(H)
- Weight: 1.8 kg

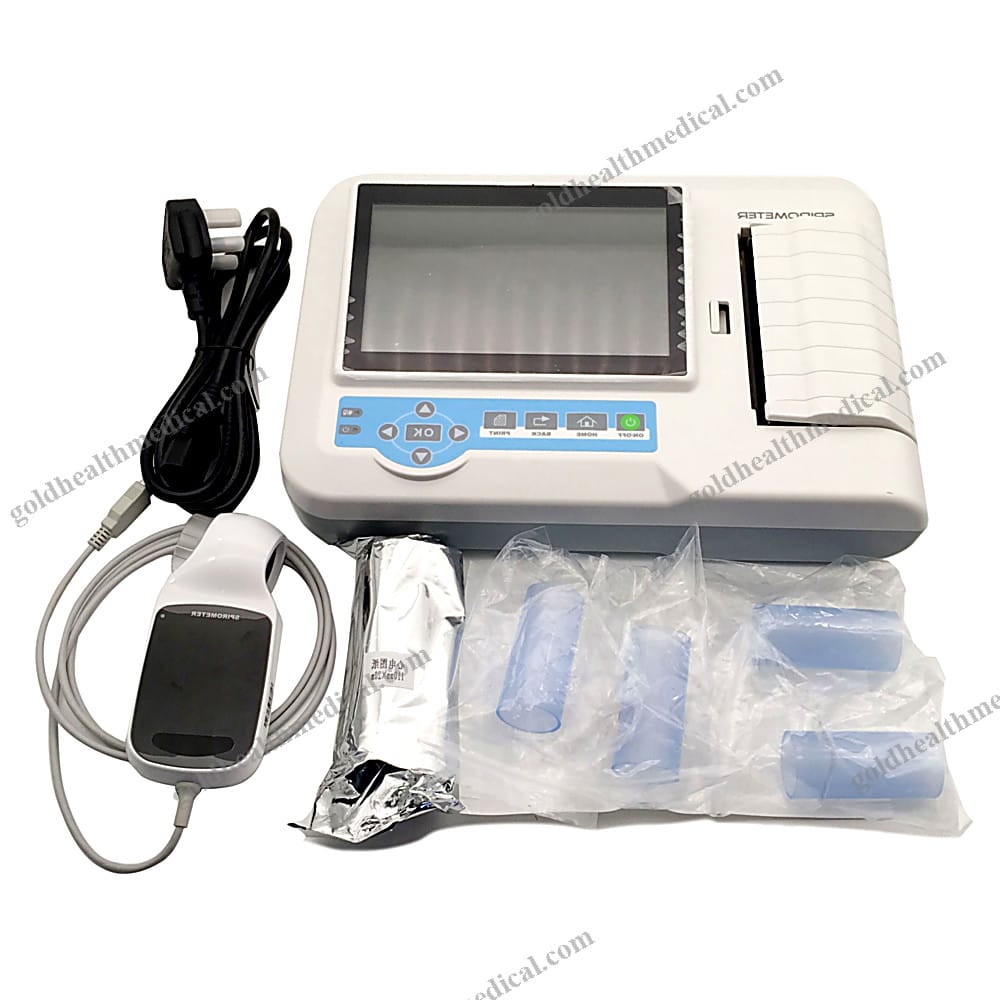

Accessories
- Spirometer unit
- Mouthpieces (4 pcs)
- Nose clip
- USB cable
- Recording paper
- Power cord
- User Manual
Unique Selling Points
GoldHealth Medical’s spirometer stands out with its advanced BTPS correction, user-friendly interface, and dual power flexibility. Its ability to store extensive data and provide lung age estimation makes it a versatile tool for both clinical and home use. Designed with precision and ease in mind, this device ensures reliable pulmonary function testing for all users.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical proudly presents the Spirometer, a cutting-edge device designed to deliver precision and reliability in respiratory diagnostics. Engineered for medical professionals and healthcare facilities, this Class II medical instrument combines advanced technology with user-friendly functionality, ensuring accurate measurements and seamless integration into any clinical or research environment.
Key Features and Specifications
- Material: Constructed with high-grade metal and durable plastic for long-lasting performance.
- Power Source: Electrically powered with an input power of 60 VA, ensuring consistent operation.
- Volume Range: ±10 L, offering exceptional accuracy for diverse respiratory assessments.
- Flow Range: ±16 L/s, enabling precise measurement of rapid airflow dynamics.
- Weight: Lightweight at just 1.8 kg, making it portable and easy to transport.
- Dimensions: Compact design measuring 15 mm (L) x 215 mm (W) x 92 mm (H).
- Printing Paper: Utilizes 112 mm (W) x 20 m (L) high-speed thermal paper for efficient data recording.
Certifications and Compliance
- Safety Standard: Compliant with MOL regulations, ensuring the highest safety standards.
- Quality Certifications: CE and ISO certified, guaranteeing reliability and global acceptance.
Performance and Usability
- Shelf Life: 1 year, ensuring long-term usability and reliability.
- Warranty: Backed by a comprehensive 1-year warranty for peace of mind.
- After-Sale Service: Access to online technical support, ensuring uninterrupted performance.
Packaging and Delivery
- Packaging Details: Securely packaged in durable cartons or wooden cases to protect against transit damage.
- Port of Origin: Guangzhou, China, facilitating efficient global shipping.
- Supply Ability: Capable of delivering 500 sets per month, ensuring timely availability for bulk orders.
Why Choose GoldHealth Medical's Spirometer?
The Spirometer stands out with its robust construction, precise measurement capabilities, and compliance with international safety standards. Designed for both professional and home use, it is the ideal solution for hospitals, clinics, research institutions, and rehabilitation centers. With GoldHealth Medical, you are investing in a device that combines innovation, durability, and accuracy to meet the demands of modern healthcare.
Color Options: Available in the color shown in product images.
Experience the next level of respiratory diagnostics with GoldHealth Medical’s Spirometer – where precision meets reliability.
