Portable Digital Ophthalmic Slit Lamp
Reference: 1600353722467
Medical Optical Instruments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

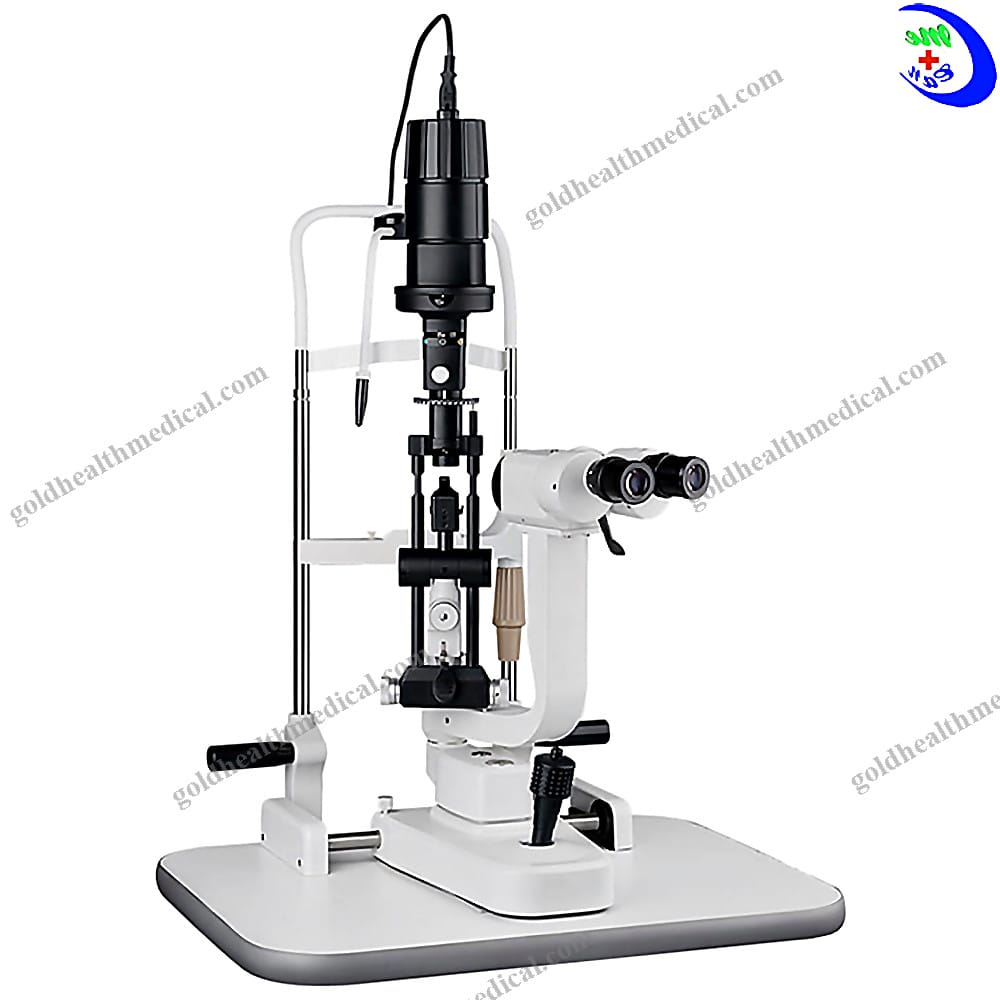

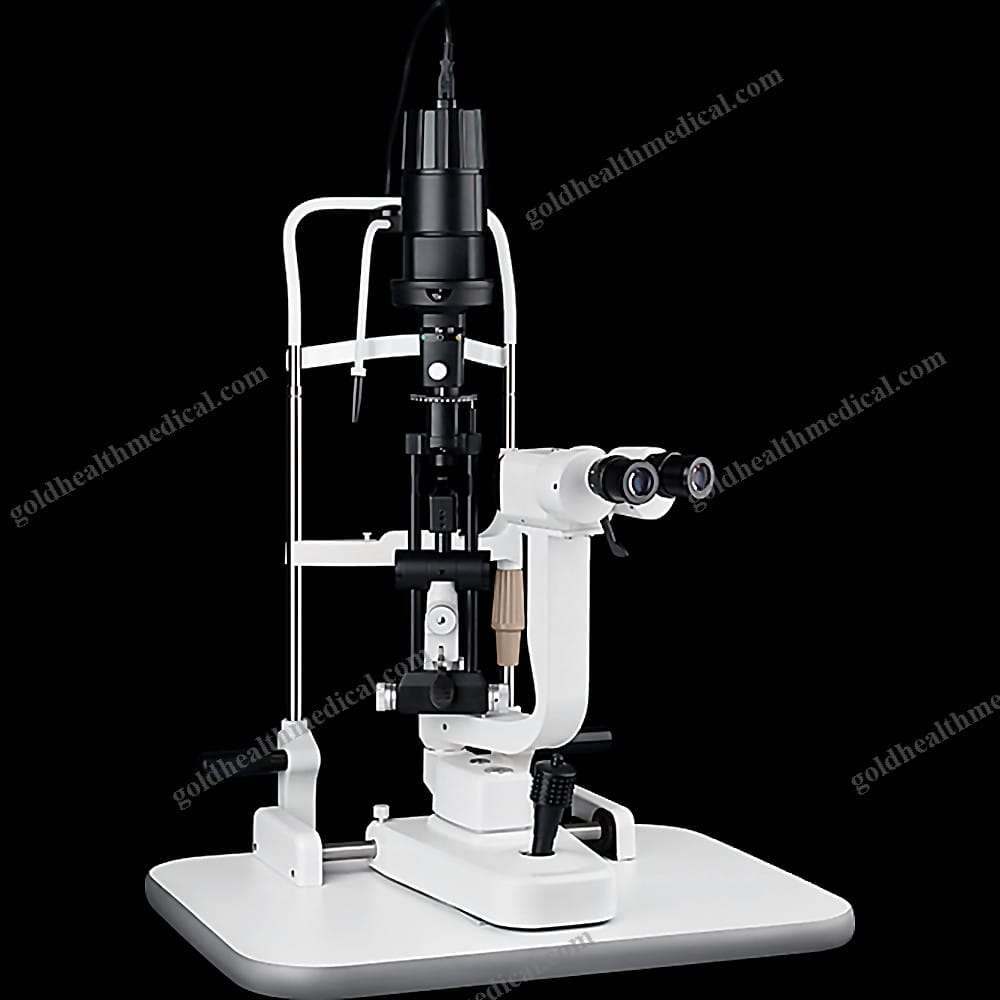

GoldHealth Medical Slit Lamp Microscope
Unparalleled Precision in Ophthalmic Examination
GoldHealth Medical presents a cutting-edge Slit Lamp Microscope designed to deliver exceptional clarity and precision for eye examinations. Featuring two magnification levels with fields of view at 10x (18mm) and 16x (14.5mm), this device ensures sharp, detailed imaging for accurate diagnostics. Its advanced illumination system boasts a larger light spot diameter and a slit width of up to 14mm, enabling comprehensive observation of ocular conditions.
Key Features
- Dual Magnification: Switch seamlessly between 10x and 16x magnifications for versatile diagnostic capabilities.
- Enhanced Illumination: A state-of-the-art lighting system with a 14mm maximum slit width and continuous adjustability ensures optimal visualization.
- Adjustable Slit Parameters: Customize slit height, width, angle, and inclination for precise examination.
- Multiple Light Spot Sizes: Choose from diameters ranging from Ø0.2mm to Ø14mm, including continuous adjustments, for tailored illumination.
- Advanced Filters: Includes heat absorption, grey, red-free, and cobalt blue filters for specialized diagnostic applications.
- Ergonomic Design: Adjustable components, including pupillary distance (50mm–82mm), diopter adjustment (±5D), and chin rest height (80mm), ensure comfort for both practitioner and patient.
Technical Specifications
- Microscope Type: Converging stereoscope microscope
- Magnification Selection: Two-step magnification (10x, 16x)

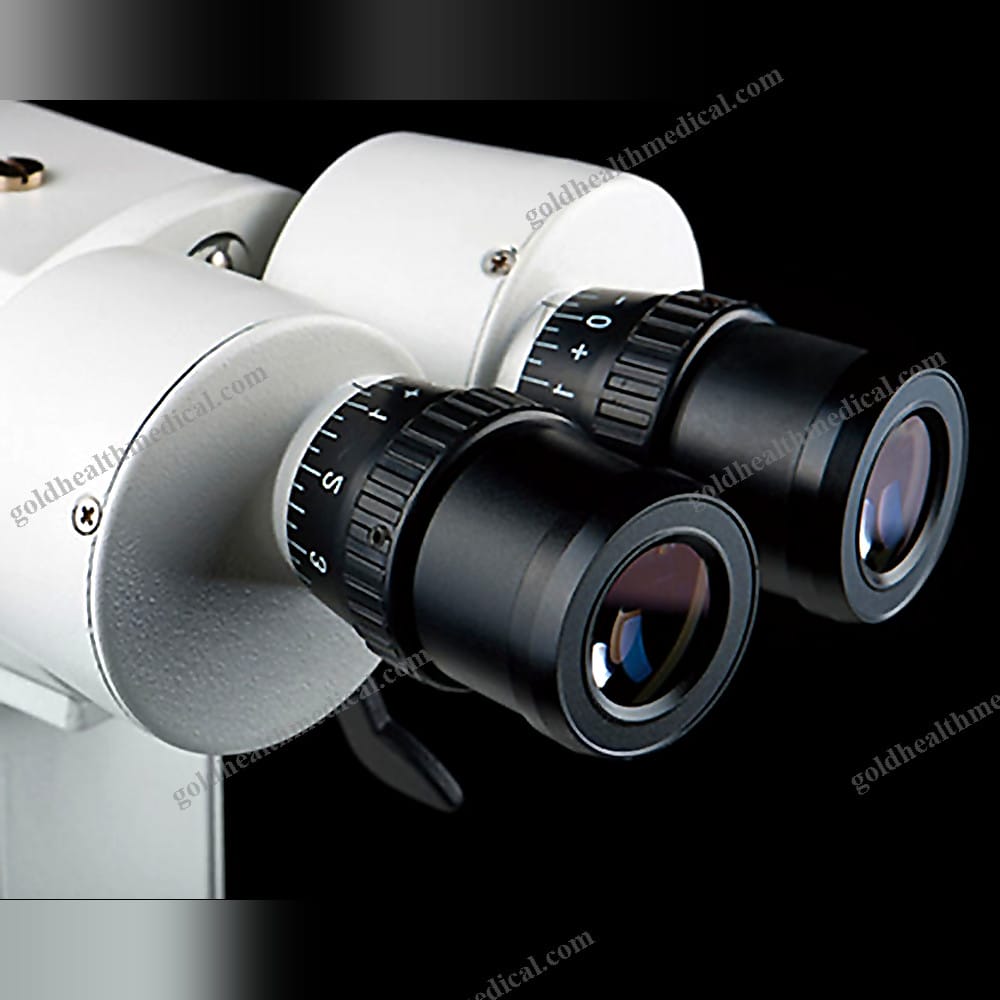

- Eyepiece: 10x
- Field of View: 10x (18mm), 16x (14.5mm)
- Pupillary Adjustment: 50mm–82mm
- Diopter Adjustment: ±5D
- Base Adjustments:
- Side shift: 110mm
- Depth shift: 90mm
- Height shift: 30mm
- Chin Rest Height Adjustment: 80mm
- Fixation Target: Red LED
- Slit Width: 0–14mm continuous (circular at 14mm)
- Slit Height: 0–14mm continuous
- Slit Angle: 0°–180° adjustable
- Slit Inclination: 0°–23°
- Light Spot Diameters: Ø14mm, Ø10mm, Ø5mm, Ø3mm, Ø2mm, Ø1mm, Ø0.2mm, and 1–14mm continuous
- Filters: Heat absorption, grey, red-free, cobalt blue
- Illumination Bulb: 12V, 50W halogen lamp
- Power Input: 110V/220V AC, 50/60Hz
- Power Consumption: 68 VA
- Weight: 18kg
- Dimensions: 690mm (L) × 440mm (W) × 420mm (H)
Why Choose GoldHealth Medical?
GoldHealth Medical’s Slit Lamp Microscope is engineered to meet the rigorous demands of modern ophthalmic care. Its precision optics, versatile illumination, and ergonomic design make it an indispensable tool for hospitals, clinics, research labs, and home healthcare settings. Whether you’re diagnosing ocular conditions or conducting detailed examinations, this device ensures unparalleled accuracy and reliability.
Commitment to Excellence
GoldHealth Medical is dedicated to delivering innovative solutions that empower healthcare professionals. Our products are backed by a one-year warranty and comprehensive technical support, ensuring your operations remain seamless and efficient.
Experience the future of ophthalmic diagnostics with GoldHealth Medical.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Slit Lamp Microscope by GoldHealth Medical
Type: Ophthalmic Optical Equipment
Key Features and Benefits
- Precision Optics: Equipped with a converging stereoscope design, this slit lamp microscope delivers unparalleled clarity and precision for detailed eye examinations.
- Dual Magnification Options: Offers two-step magnification (16X with a 14.5mm field of view and 10X with an 18mm field of view) for versatile diagnostic capabilities.
- Customizable Viewing Experience: Features adjustable PD (52mm ~ 80mm) and diopter settings (+5D to -5D), ensuring comfort and accuracy for every user.
- Smooth Mobility: Designed with left-right movement of 110mm and forward-backward movement of 90mm, providing seamless navigation during procedures.
- Durable Construction: Crafted from high-quality metal and plastic materials, ensuring long-lasting performance in demanding medical environments.
Technical Specifications
- Eyepiece: 10x magnification
- Magnification Ratios:
- 16X (Field of View: 14.5mm)
- 10X (Field of View: 18mm)
- Adjustments:
- Pupillary Distance (PD): 52mm ~ 80mm
- Diopter Adjustment: +5D ~ -5D
- Movement Range:
- Left and Right: 110mm
- Forward and Backward: 90mm
- Instrument Classification: Class II
- Power Source: Electric
Packaging Details
- Standard Packaging Dimensions:
- Option 1: 42cm x 44cm x 69cm (0.64CBM)
- Option 2: 52cm x 27cm x 61cm (0.44CBM)
Warranty and Support
- Warranty Period: 1 Year
- After-Sales Service: Comprehensive online technical support to ensure uninterrupted performance and reliability.
Additional Information
- Shelf Life: 1 Year
- Place of Origin: Guangdong, China
- Quality Certification: Compliant with industry-specific standards
GoldHealth Medical’s Slit Lamp Microscope is engineered to meet the rigorous demands of modern ophthalmic care, combining cutting-edge technology with user-centric design to deliver exceptional diagnostic accuracy and operational ease.
