Pana Max Dental Handpieces Kit
Reference: 1601373250322
Oral Therapy Equipments & Accessories
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

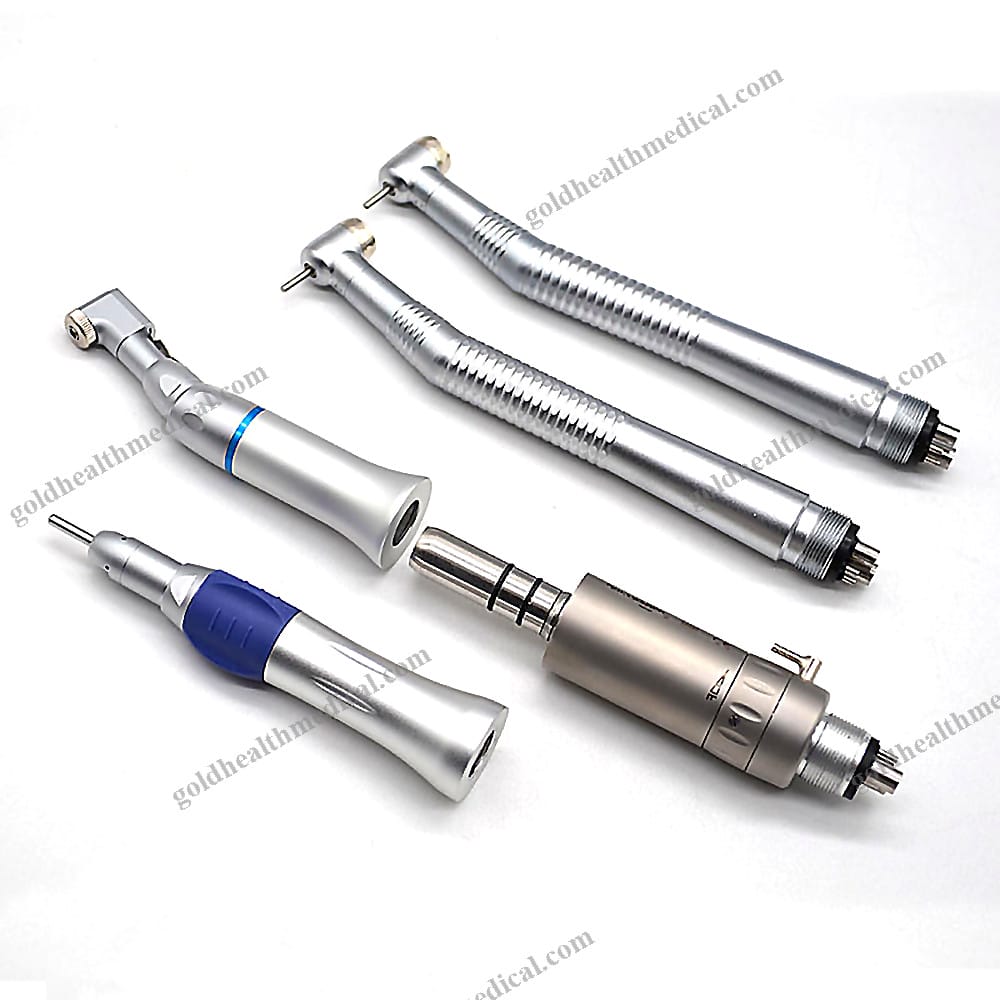

GoldHealth Medical High-Performance Dental Handpieces
GoldHealth Medical presents a meticulously engineered range of dental handpieces designed to elevate the standards of oral therapy equipment. Our products combine cutting-edge technology with user-centric design, ensuring precision, durability, and comfort for both practitioners and patients.

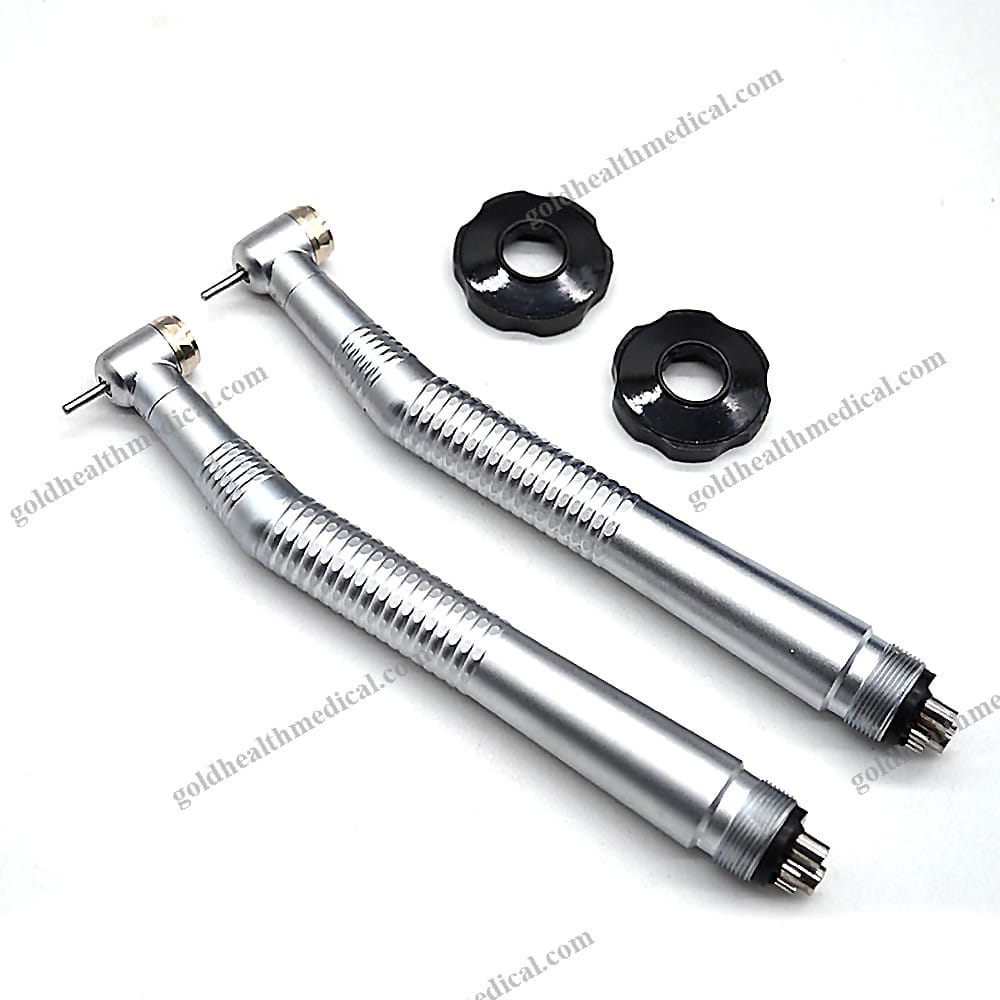

High-Speed Handpiece Features
- Unique Design: A sleek, ergonomic outline ensures smooth handling and an exceptional tactile experience.
- Optimized Performance: Equipped with a high-quality cartridge for effortless maintenance and cleaning.
- Powerful Turbine: Delivers high-speed rotation for superior performance during dental procedures.
- Chucking Power: Ranges between 20N-45N for secure bur retention.
- Quiet Operation: Engineered for minimal noise (<70dB) and maximum stability.
- ISO-Compliant Bur Compatibility: Accepts burs with a diameter of 1.6mm and length of 21mm-23mm.
- Impressive Speed: Achieves an idling speed of no less than 370,000 RPM under optimal air pressure (25-30 PSI).
Technical Specifications
- Air Pressure: 180-250 KPa (1.8-2.5 kgf/cmΒ²)
- Water Pressure: 198 KPa (2 kg)
- Rotation Speed: 370,000-420,000 RPM
- Head Dimensions: Height - 13.14 mm, Diameter - Ο11.2 mm
- Bur Applicable: Ο1.59mm-Ο1.6mm Γ 21mm-23mm (diameter Γ length)

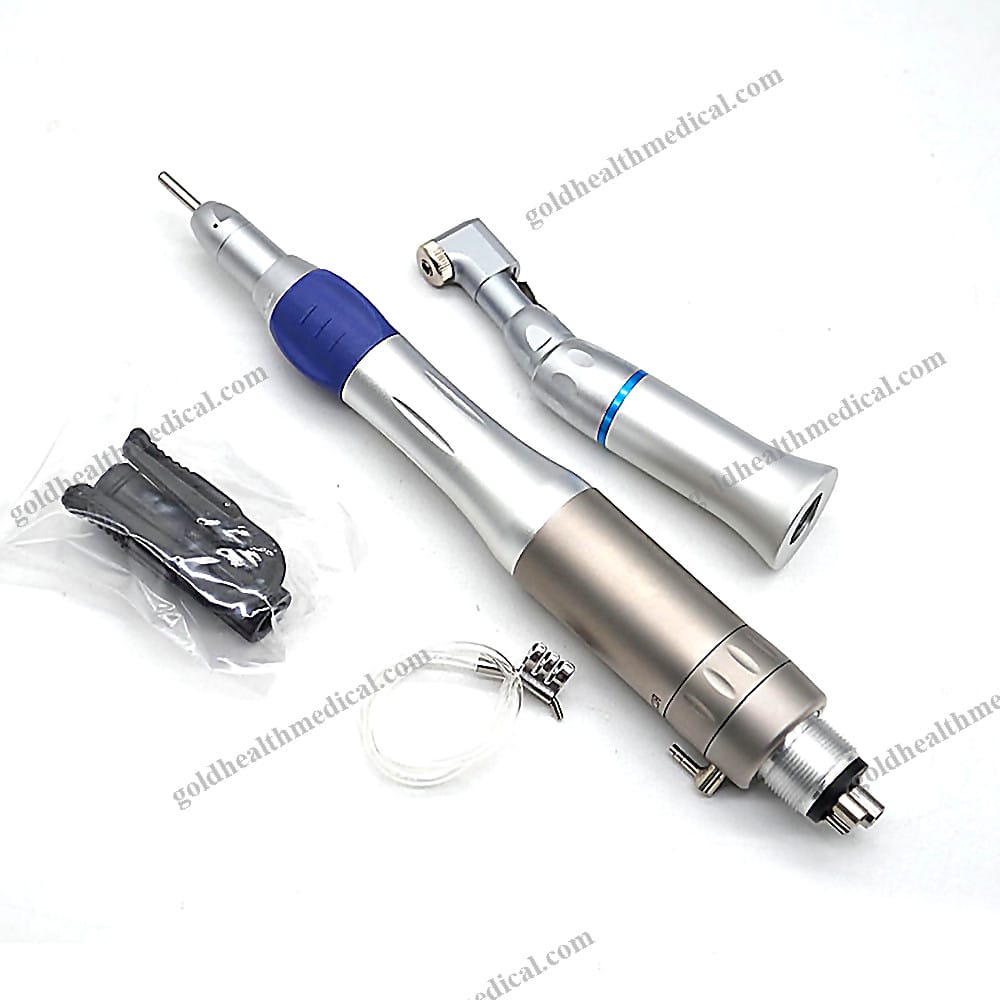

Low-Speed Handpiece Features
- E-Type Connector: Ensures compatibility with ISO-standard handpieces.
- Precision Engineering: Provides steady, vibration-free operation for consistent results.
- Autoclavable: Withstands temperatures up to 135Β°C, suitable for both steam and chemical sterilization.
- Contra Angle Handpiece:
- Speed: 22,000-27,000 RPM
- Shank Size: 2.35 mm
- Secure Instrument Fastening via Turning Latch
- Straight Nosecone:
- Working Pressure: 0.3 MPa (measured at the air motor end)
- Speed: Adjustable between 22,000-27,000 RPM
- Noise Level: β€68dB
- Air Consumption: ~56L/min
- Max Speed: 25,000 RPM
Air Motor Specifications
- Supply Air Pressure: 245-392 KPa (2.5-4 kgf/cmΒ²)
- Direct Drive: 1:1 ratio for optimal efficiency
- Max Speed: 20,000 RPM
- Air Wastage:
- 2.5 kg/cγ‘: 42 N1/min
- 3 kg/cγ‘: 51 N1/min
- 4 kg/cγ‘: 72 N1/min
Why Choose GoldHealth Medical?
Our dental handpieces are crafted for professionals who demand excellence. Whether you're performing intricate dental procedures in a clinic or conducting research in a laboratory, our tools are designed to meet the highest standards of precision and reliability. With a focus on innovation and user experience, GoldHealth Medical is committed to delivering equipment that enhances productivity and patient care.
Applications
- Ideal for high-speed drilling and grinding in dental procedures.
- Suitable for use in hospitals, clinics, laboratories, and educational institutions.
- Designed exclusively for qualified dental professionals.
GoldHealth Medical is dedicated to advancing healthcare through superior engineering and unwavering commitment to quality. Explore our range of dental handpieces and experience the difference in performance and precision.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes

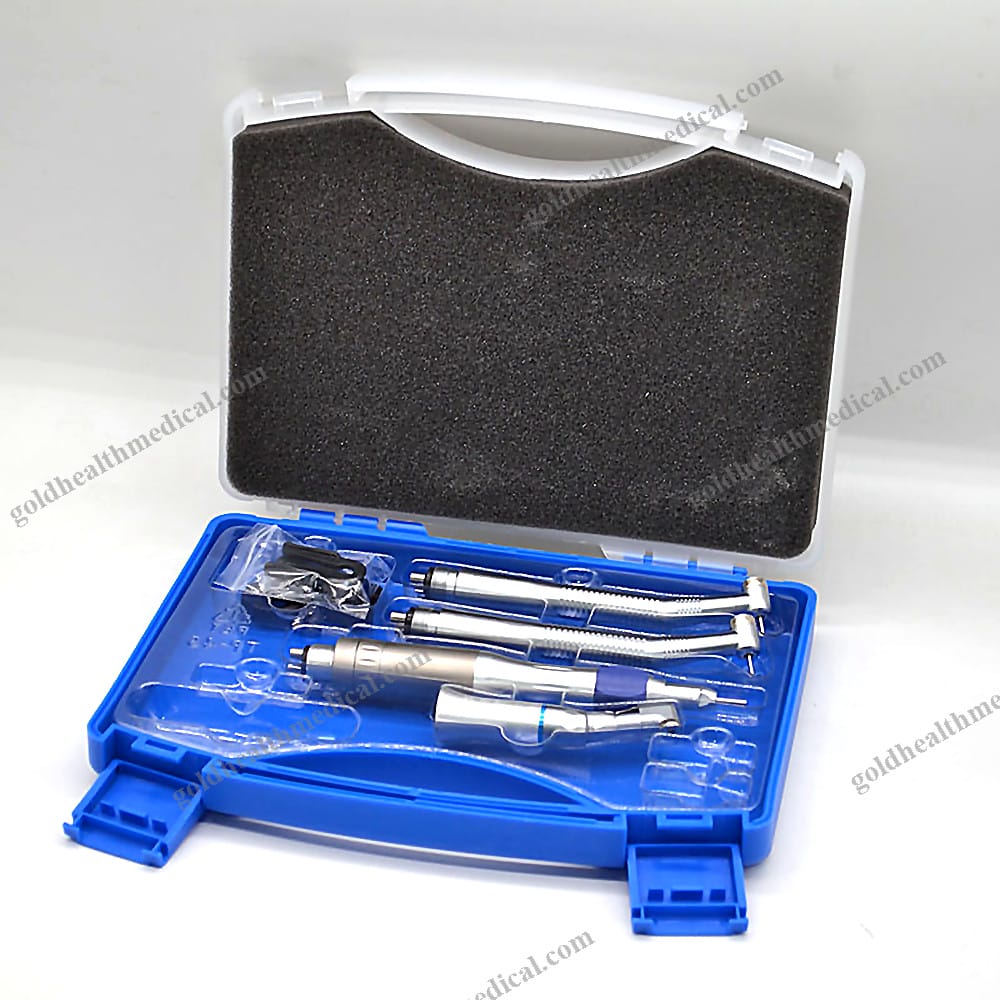

Product Name: Dental Handpiece Kits by GoldHealth Medical
Key Features and Benefits:
- Precision and Performance: Designed for exceptional control and reliability, the GoldHealth Medical Dental Handpiece Kits deliver outstanding performance with a rotor speed of 350β400 krpm and a torque range of 0.35β0.4 N.
- Optimized Air and Water Flow: Operates efficiently with an air pressure range of 0.22β0.25 Mpa and water pressure of 0.2β0.23 Mpa, ensuring consistent cooling and comfort during procedures. Water flow is precisely regulated at 90β110 ml/min.
- Quiet Operation: Engineered for a noise level of β€65dB, providing a calm and professional environment for both practitioners and patients.
- Durable and Reliable: Built to last with a pneumatic/air power source and latch-type chuck system, ensuring secure bur retention and long-lasting use.
- Ergonomic Design: Featuring a contra-angle handpiece design for enhanced maneuverability and patient comfort during treatment.
Technical Specifications:
- Instrument Classification: Class II medical device
- Air Pressure Range: 0.22β0.25 Mpa
- Rotor Speed: 350β400 krpm
- Torque Range: 0.35β0.4 N
- Water Pressure Range: 0.2β0.23 Mpa
- Water Flow Rate: 90β110 ml/min
- Noise Level: β€65dB
- Chuck Type: Latch type
- Handpiece Angle: Contra angle
- Power Source: Pneumatic/Air
Quality Assurance:
- Certifications: CE-approved for safety and performance
- Shelf Life: 1 year from date of manufacture
- Warranty: Comprehensive 2-year warranty for peace of mind
After-Sale Support:
- Free Spare Parts: Complimentary replacement components included to ensure uninterrupted operation
Packaging Details:
- Selling Unit: Single item
- Package Dimensions: XX cm
- Gross Weight: XX kg
GoldHealth Medicalβs Dental Handpiece Kits are meticulously crafted to meet the demands of modern dental practices, offering precision, durability, and ease of use. Whether in hospitals, clinics, or research labs, these handpieces are designed to elevate your practice with cutting-edge technology and superior craftsmanship.
