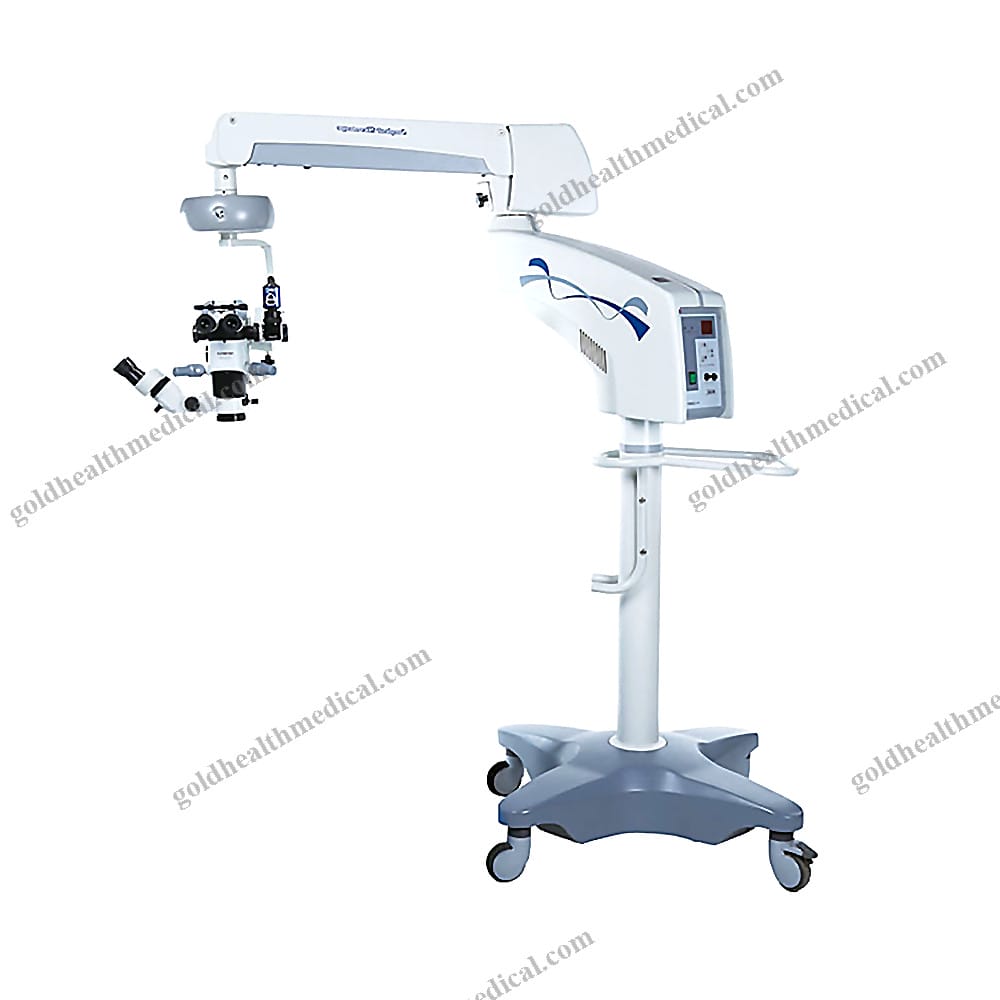

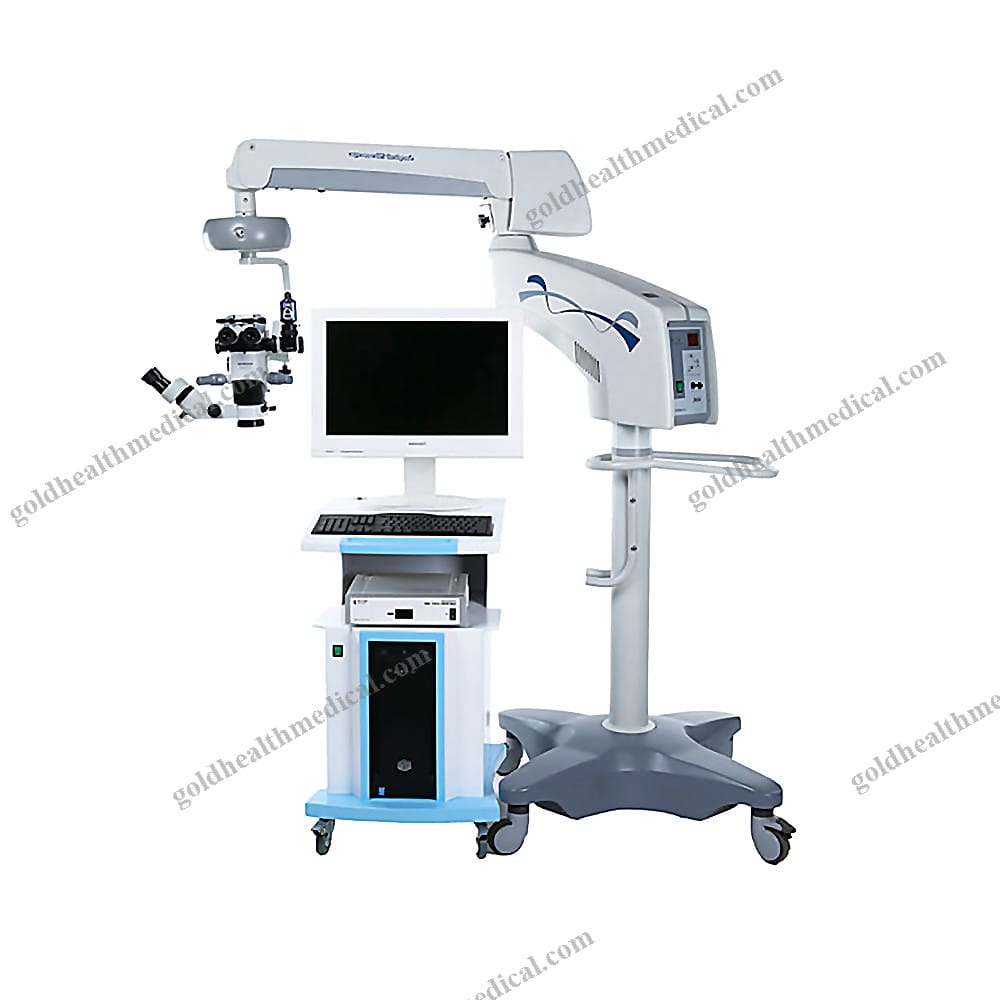

Ophthalmic Operating Microscope Coaxial
Reference: 1600779823592
Medical Optical Instruments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
Advanced Medical Optical System by GoldHealth Medical
GoldHealth Medical presents a cutting-edge optical system designed for precision and adaptability in medical environments. This state-of-the-art device combines advanced optics with user-friendly features, making it ideal for a wide range of medical applications.
Key Features and Technical Specifications:
- Eyepiece: Equipped with a 10X wide-field eyepiece for enhanced clarity and an expansive field of view.
- Observation Angle: Adjustable from 0Β° to 60Β°, providing flexibility for various procedural needs.
- Pupil Distance: Adjustable between 50mm and 76mm, ensuring comfort for multiple users.
- Diopter Adjustment: Β±5D for binocular alignment, offering precise focus customization.
- Depth of Field: Manually adjustable for optimal visualization during procedures.
- X-Y Speed: Smooth movement at 2.2mm/sec, controlled via a foot pedal for hands-free operation.
- Objective Lens: A Ο 60mm apochromatic lens ensures exceptional color correction and sharpness.
- Magnification: Continuously variable from β₯4X to 20X with motorized zoom functionality for seamless transitions.
- Field of View: Ranges from 8mm to 50mm, accommodating both detailed and broad observations.
- Working Distance: β₯180mm, allowing ample space for tools and instruments.
- Fine Adjustment: Β±20mm controlled via foot pedal for precise positioning.
- Light Source: Features an aspheric design with dual 15V/150W halogen lights, delivering consistent illumination.
- Brightness Control: 8-level intensity adjustment with a maximum output of β₯60000Lux.
- Red Reflex: Enhanced with double-focus multilayer reflection technology for superior retinal imaging.
- Power Supply: Operates on ~220V, 50Hz for reliable performance.
- Retinal Protection: Integrated safeguards to minimize eye strain during prolonged use.
- Up and Down Adjustment: Β±200mm for versatile positioning.
- Base Size: Compact 720mm x 720mm footprint, maximizing workspace efficiency.
- Foot Switch: Offers 11 functions, including X-Y focus, motorized zoom, brightness control, and light source activation.
- Arm Extension: Extends up to 1260mm, providing extensive reach and maneuverability.
Product Highlights:
- Motorized Zoom: Effortlessly adjust magnification with precision, enhancing workflow efficiency.
- Advanced Illumination: Dual halogen lights with 8-level brightness control ensure optimal visibility in any procedure.
- Ergonomic Design: Foot-controlled adjustments and a wide range of motion reduce operator fatigue.
- Customizable Solutions: Tailored configurations available to meet specific medical requirements.
GoldHealth Medicalβs optical system is engineered to deliver unparalleled performance, making it an indispensable tool for hospitals, clinics, research labs, and rehabilitation centers. Its innovative design and robust functionality set a new standard in medical optics.
Frequently Asked Questions:
-
Q: How can I obtain a sample?
A: For your first order, kindly cover the sample cost and shipping fees. The sample cost will be refunded upon placing your initial order. -
Q: Can you customize the product with our brand?
A: Yes, we offer branding options, including logo printing on products and packaging, subject to meeting our minimum order quantity (MOQ). -
Q: Is it possible to customize the product color?
A: Absolutely. Custom colors are available if the MOQ is met. -
Q: How do you ensure product quality?
A: - Rigorous quality checks are conducted during production.
- Comprehensive sampling inspections and secure packaging are performed before shipment.
GoldHealth Medical is committed to delivering excellence in every product, ensuring reliability and precision for your most critical applications.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Instrument Classification: Class I
Material: High-grade metal and durable plastic
Product Highlights
- Advanced Optical System: Equipped with OLYMPUS SZX7 optics for unparalleled clarity and precision.
- Versatile Magnification: Continuously motorized zoom with a magnification range of β₯4X to 20X, ensuring detailed observation across various applications.
- Wide Field of View: Adjustable from 8mm to 50mm, providing comprehensive visibility for intricate tasks.
- Ergonomic Design: Features a 10X wide-field eyepiece, adjustable observation angle (0Β° - 60Β°), and a pupil distance range of 50-76mm for maximum comfort during prolonged use.
- Precision Control: Β±5D diopter adjustment (binocular) and Β±20mm fine adjustment via foot control for enhanced accuracy.
- Extended Working Distance: β₯180mm, offering flexibility for complex procedures and research applications.
Lighting System
- Aspheric Design: Dual 15V/150W halogen lights ensure consistent, bright illumination with minimal distortion.
Quality Assurance
- Certifications: ISO and CE approved, guaranteeing compliance with international safety and performance standards.
- Shelf Life: 5 years, ensuring long-term reliability and performance.
- Warranty: Comprehensive 5-year coverage for peace of mind.
- After-Sale Service: Includes free spare parts to minimize downtime and maintain operational efficiency.
Place of Origin
- Proudly manufactured in Shanghai, China, combining cutting-edge technology with meticulous craftsmanship.
Applications
Ideal for hospitals, clinics, research laboratories, rehabilitation centers, and home healthcare settings, this instrument is designed to meet the diverse needs of medical professionals and researchers.
Packaging and Delivery
- Securely packaged in robust cartons for safe transportation.
- Ships from Shanghai Port, ensuring timely and reliable delivery worldwide.
Experience the precision, durability, and innovation of GoldHealth Medicalβs advanced optical solutions, engineered to elevate your professional standards.
