Ophthalmic OCT Scanner Machine
Reference: 1600951478344
Medical Optical Instruments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
Advanced OCT Technology by GoldHealth Medical
Product Overview

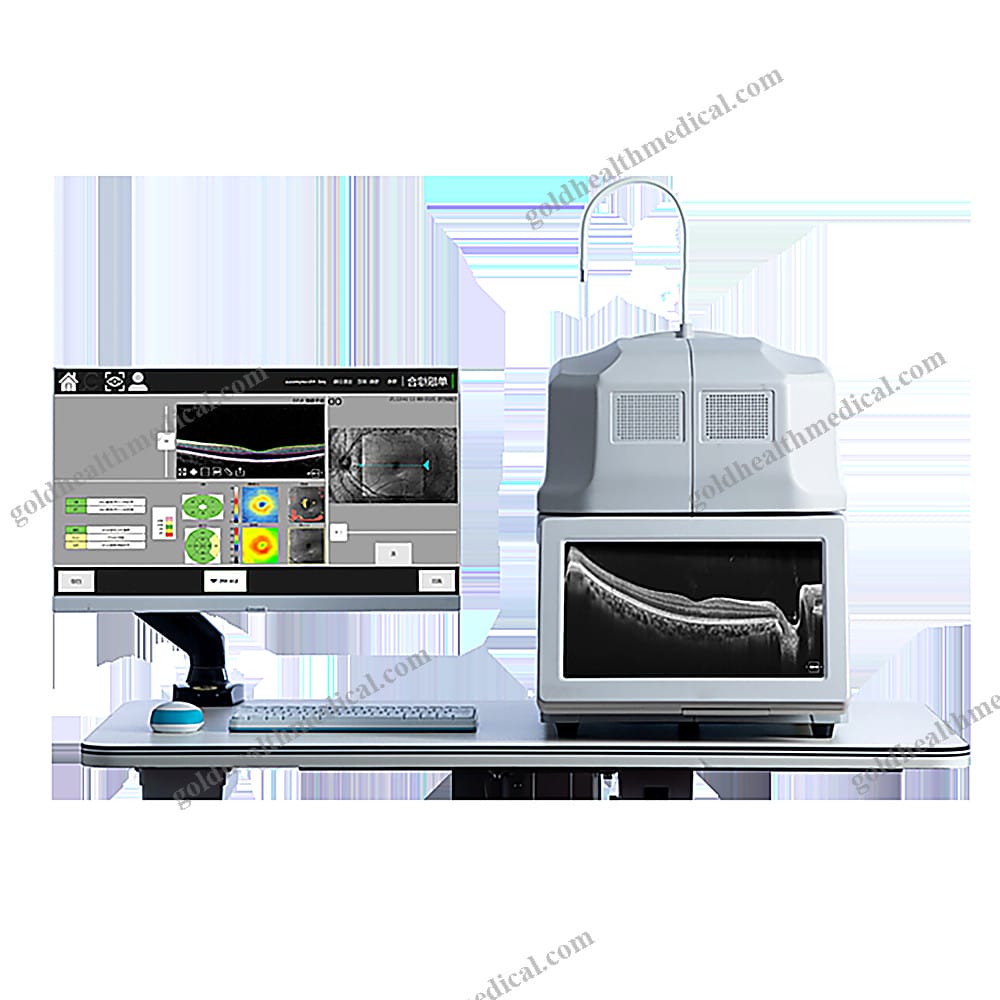

GoldHealth Medical introduces a cutting-edge Spectral Domain Optical Coherence Tomography (OCT) system, designed to deliver unparalleled precision and versatility for medical imaging. This state-of-the-art device is engineered to meet the needs of hospitals, clinics, research institutions, and more, offering advanced diagnostic capabilities with a sleek, compact design.
Key Features
- Compact Design: All essential components are seamlessly integrated into a single, compact unit. No external computer is required—simply plug in the power cable, and the system is ready for operation.
- Built-In PC: Equipped with an internal computer for data acquisition and processing. Data can be transferred via Ethernet or external hard drive. Peripheral devices such as keyboards or printers can be connected through available ports.
- Effortless Installation: Designed for simplicity, the system requires no complex setup or connections, making it ideal for even the smallest spaces.
Technical Specifications
- Axial Resolution: ≤ 6 µm (in tissue)
- Transverse Resolution: ≤ 20 µm (in tissue)
- Scan Depth: ≥ 2.5 mm (in air)
- Scan Range: ≥ 6 mm
- Scan Speed: ≥ 24,000 A-scans/sec, up to 36,000 A-scans/sec
- Scan Modes: 30, including Raster, Circle, Fundus image, and OCT en face
- Focus Adjustment: -150 to +150
- Pupil Diameter: ≥ 3 mm
- OCT Light Source: 840 nm SLD
- Optical Power: 750 µW (at cornea)
- Operation Interface: 13.3-inch touch screen with optional external mouse or keyboard
- Power Supply: 100-240 V, 50/60 Hz
- Dimensions: 497 mm × 395 mm × 490 mm (L × W × H)
- Weight: 34 kg (75 lbs)
Why Choose GoldHealth Medical?
- Advanced Medical Equipment: Our products are designed with the latest technology to ensure superior performance and reliability.
- Extensive Medical Expertise: Backed by over a decade of experience in the medical device industry, we understand the unique needs of healthcare providers.
- Professional Support: A dedicated team of experts ensures seamless integration and ongoing support for your equipment.
- Rigorous Quality Control: Every product undergoes comprehensive inspection to meet the highest standards of quality and safety.
- Customization Options: Tailored solutions, including OEM/ODM services, to meet specific requirements.
- Responsive Service: Immediate and accurate responses to inquiries and technical support requests.
Mission and Vision
GoldHealth Medical is committed to providing high-standard medical products at accessible prices, particularly for developing regions and underserved areas. Our mission is to bridge the gap between global medical needs and innovative solutions, empowering healthcare providers worldwide. With a proven track record of successful projects supported by organizations like the World Bank and WHO, we continue to deliver impactful solutions globally.
Product Highlights
- Precision and Versatility: Achieve exceptional imaging quality with advanced axial and transverse resolutions.
- High-Speed Scanning: Capture detailed scans rapidly, enhancing efficiency without compromising accuracy.
- User-Friendly Interface: The intuitive 13.3-inch touch screen simplifies operation, ensuring ease of use for medical professionals.
- Compact and Portable: Designed for flexibility, the system fits seamlessly into any workspace, from large hospitals to small clinics.
GoldHealth Medical’s OCT system is more than just a diagnostic tool—it’s a gateway to better patient outcomes and enhanced medical capabilities.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: OCT Machine by GoldHealth Medical
Type: Ophthalmic Optical Equipment
Key Features and Benefits
- Advanced Imaging Technology: Utilizes Spectral Domain OCT for unparalleled precision in capturing detailed cross-sectional images of the retina and optic nerve.
- Versatile Scan Modes: Includes 3D (Macular & Optic Disk), HD, Raster, Circle, and Cross scans, ensuring comprehensive diagnostic capabilities.
- Integrated Fundus Imaging: Provides OCT en face and fundus image integration for enhanced clinical insights.
- Optimized Light Source: Equipped with an 840nm SLD light source for superior image clarity and patient comfort.
- Durable Construction: Crafted from high-quality materials, including acrylic, metal, plastic, and steel, ensuring long-lasting performance.
Applications
- Hospitals
- Clinics
- Research Institutions
- Laboratories
- Rehabilitation Centers
- Home Healthcare
Technical Specifications
- Instrument Classification: Class II
- Safety Standard Compliance: GB15979-2002
- Power Supply: AC220V 50Hz / 110V 60Hz
- Shelf Life: 3 years
- Quality Certifications: CE Approved
Packaging and Delivery
- Packaging Options: Carton Box, Wooden Case, or Customized Solutions
- Single Package Dimensions: 50 x 40 x 60 cm
- Single Gross Weight: 40.000 kg
After-Sale Support
- Warranty: More than 5 years of coverage for peace of mind
- Technical Assistance: Online technical support available to ensure seamless operation
Customization and OEM Services
- GoldHealth Medical offers OEM services to meet specific requirements, ensuring tailored solutions for your needs.
GoldHealth Medical’s OCT Machine is designed to deliver exceptional accuracy, reliability, and ease of use, empowering healthcare professionals with cutting-edge diagnostic tools.
