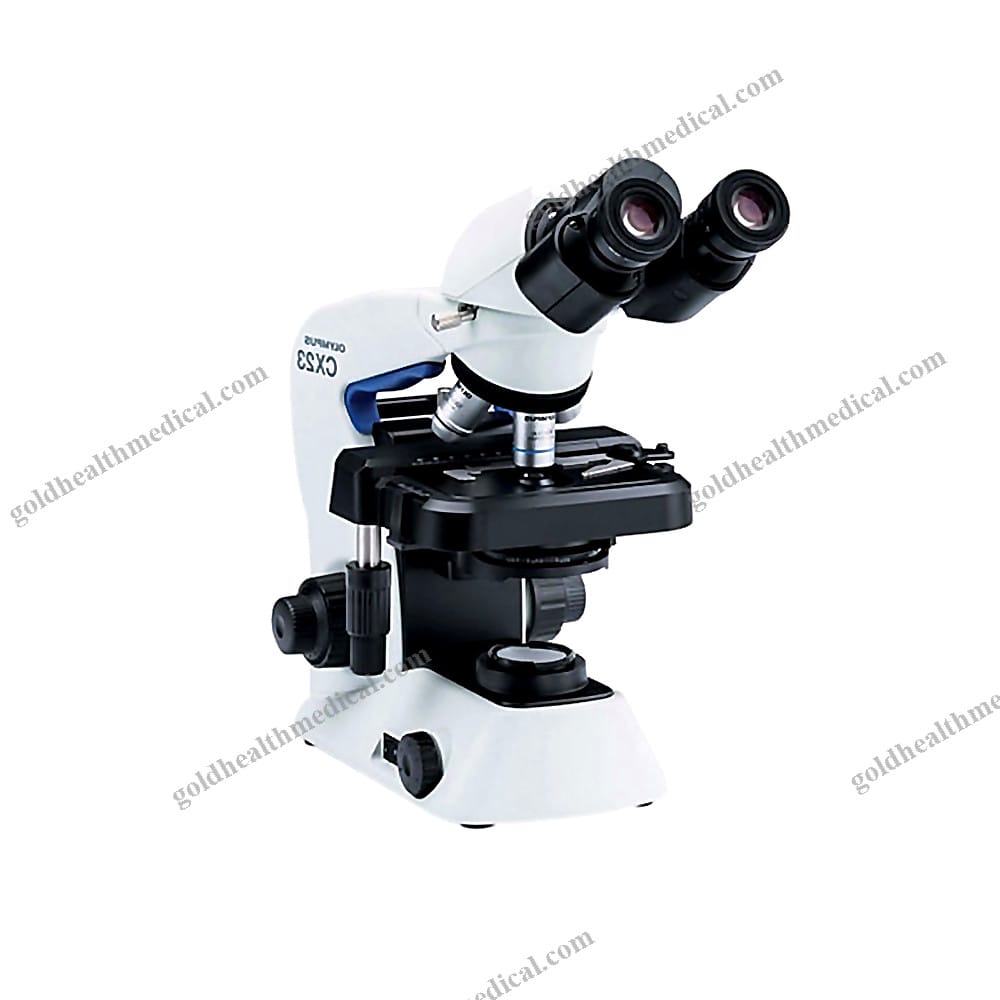

Olympus CX23 Dental Microscope Lab Equipment Professional
Reference: 1600457288414
Medical Optical Instruments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical Microscope
Experience precision and clarity with the GoldHealth Medical Microscope, designed to elevate diagnostic accuracy and research capabilities. Engineered with cutting-edge optical technology, this microscope is an indispensable tool for medical professionals, researchers, and educators.
Key Features and Specifications
-
Optical System
Equipped with an advanced UIS2 optical system featuring Infinity Correction technology, delivering unparalleled image sharpness and contrast. -
Illumination
A built-in transparent LED lighting system with 0.5W power ensures consistent, energy-efficient illumination. Kohler lighting enhances uniform brightness for precise observations. -
Focusing System
The vertical movement stage offers a thickening stroke of 15mm per rotation, with a fine adjustment of 2.5 microns in the Z-axis, enabling meticulous focusing for detailed analysis. -
Revolving Nosepiece
A fixed 4-hole objective lens turntable allows seamless switching between magnifications, ensuring efficiency during examinations. -
Observation Tube
- Binocular design with a 30-degree inclination for ergonomic comfort.
- Interpupillary distance adjustable from 48mm to 75mm.
-
Eyepoint height adjustable between 377.8mm and 427.7mm for optimal viewing.
-
Stage and Movement
Wire transmission mechanism with a motion range of 76mm (X-axis) x 30mm (Y-axis), paired with a single specimen clip for secure sample placement. -
Condenser
An Abbe condenser with a numerical aperture of 1.25 (immersion type) and a built-in aperture diaphragm ensures superior light control and clarity. -
Objective Lenses
Flat field achromatic lenses provide exceptional image quality: - 4x: N.A. 0.1, Working Distance (W.D.) 27.8mm
- 10x: N.A. 0.25, W.D. 8.0mm
- 40x: N.A. 0.65, W.D. 0.6mm
-
100x: N.A. 1.25, W.D. 0.13mm
-
Eyepiece
10x magnification with a field number (F.N.) of 20, treated for mold resistance to ensure durability. -
Weight and Dimensions
Compact and lightweight at 5.9kg, with dimensions of 198mm (W) x 258mm (D) x 384mm (H), making it ideal for various settings. -
Electrical Specifications
Operates on AC 100-240V, 50/60Hz, with a power consumption of just 1.7W, ensuring energy efficiency.
Optional Accessories
Enhance functionality with additional components:
- Retroreflector
- 15x eyepiece (F.N. 12, mold-resistant)
- Cable bearer
- Wooden storage box (264mm x 305mm x 474mm)
- Micrometer and arrow indicator
- Filter tray and dark field aperture
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative, high-quality medical equipment tailored to meet the needs of healthcare professionals and institutions. Our microscopes combine precision engineering with user-centric design, ensuring reliability and performance in every application.
With a focus on excellence, we provide:
- OEM/ODM customization options
- Flexible order quantities
- Rapid delivery and factory-direct pricing
- Comprehensive after-sales support
GoldHealth Medical: Your trusted partner in advancing healthcare diagnostics and research.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical proudly presents the Olympus Microscope, a precision-engineered instrument designed to deliver unparalleled clarity and reliability for medical, research, and diagnostic applications. With its advanced optical system and ergonomic design, this microscope is ideal for use in hospitals, clinics, laboratories, and even home settings.
Key Features and Specifications
- Optical Excellence: Equipped with a 10x eyepiece featuring a field number (F.N.) of 20 and mildewproof treatment, ensuring long-lasting performance and crystal-clear imaging.
- Compact and Lightweight Design: Weighing just 5.9 kg with dimensions of 198(W) x 258(D) x 384(H) mm, it offers portability without compromising stability.
- Power Source: Electric, providing consistent and reliable operation.
- Instrument Classification: Class I, guaranteeing safety and precision for professional use.
- Shelf Life: Up to 5 years, ensuring durability and sustained performance.
- Quality Certification: CE-certified, meeting international standards for safety and quality.

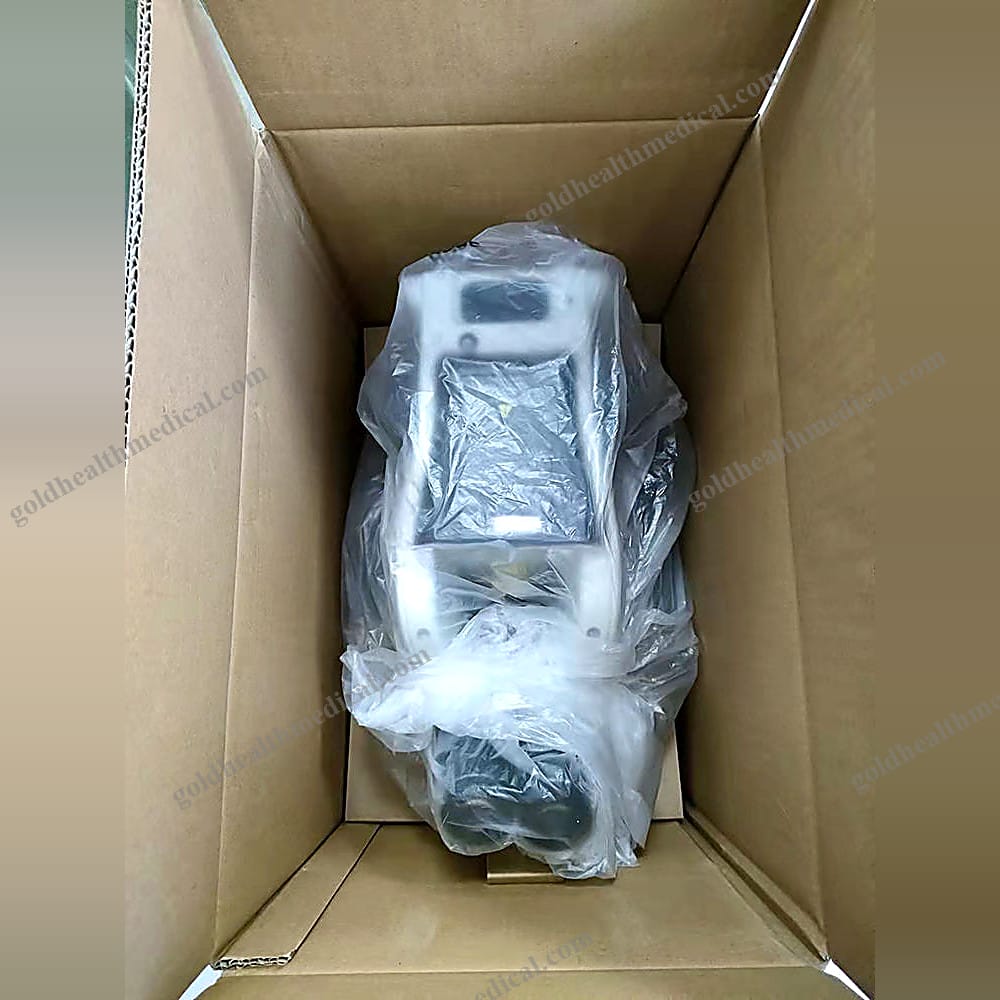

Packaging Details
- Selling Units: Single item
- Single Package Size: 40 x 36 x 30 cm
- Single Gross Weight: 7.500 kg
After-Sales Support
GoldHealth Medical is committed to customer satisfaction. Benefit from:
- 1-Year Warranty: Peace of mind with comprehensive coverage.
- Online Technical Support: Expert assistance available at your fingertips.
Why Choose GoldHealth Medical?
Our Olympus Microscope combines cutting-edge technology with user-centric design, making it an indispensable tool for professionals across industries. Whether you're conducting intricate laboratory research or performing routine diagnostics, this microscope delivers precision, reliability, and ease of use.
Experience the GoldHealth Medical difference today.
