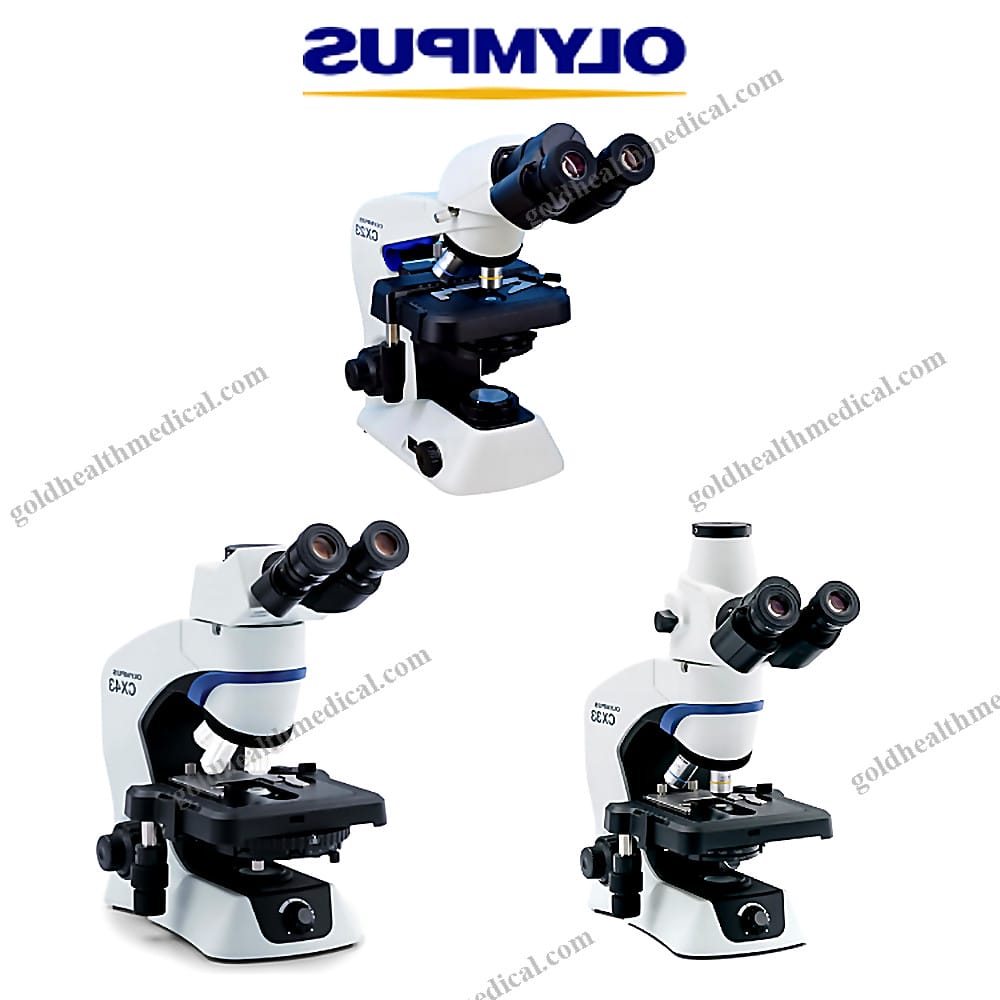

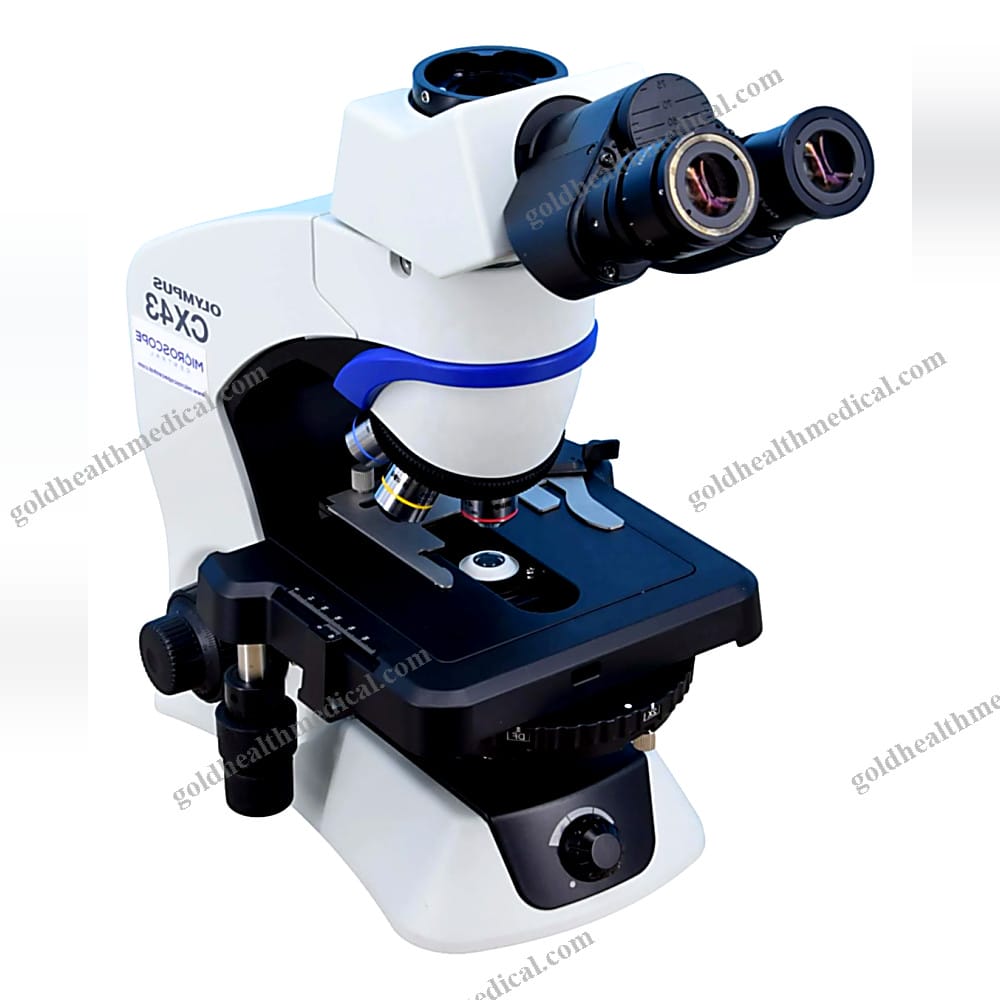

Olympus CX Series Upright Microscope
Reference: 1601192059448
Medical Optical Instruments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical Microscope Solutions
Advanced Optical Performance
GoldHealth Medical introduces a cutting-edge microscope system featuring: - UIS2 Infinity-Corrected Optical System for superior imaging clarity - Köhler Illumination with fixed field diaphragm for optimal light control - Energy-efficient LED Illumination consuming only 2.4W (nominal)
Precision Focusing Mechanism
- 15mm stage height movement with coarse adjustment
- Fine focus control with minimal gradations of 2.5μm
- Adjustable torque for personalized operation
- Integrated focusing stopper for safety
Professional Observation System
- Ergonomic Viewing Options:
- Binocular tube with 30° inclination
- Trinocular tube with 30°-60° adjustable inclination
- Tilting binocular configuration
- Wide Field Eyepieces:
- 10X eyepiece with Field Number (FN) 20
- Optional 15X eyepiece with FN 16
- Interpupillary distance adjustable from 48-75mm
Versatile Stage Design
- Fixed mechanical stage dimensions: 211mm × 154mm
- XY traveling range: 76mm × 52mm
- Integrated specimen position scale
- Multiple specimen holder options available
Superior Optical Components
- Plan Achromat Objectives with Anti-fungal Treatment:
- 4X (NA 0.1, W.D. 27.8mm)
- 10X (NA 0.25, W.D. 8.0mm)
- 40X (NA 0.65, W.D. 0.6mm)
- 100X (NA 1.25, W.D. 0.13mm)
- Universal Condenser:
- NA 1.25 with oil immersion capability
- 7-position turret for multiple observation methods
- Built-in aperture iris diaphragm
Multiple Observation Methods
- Brightfield illumination
- Darkfield microscopy
- Phase contrast observation
- Simple polarization
- Fluorescence imaging with optional LED illuminator (470nm peak excitation)
Technical Specifications
- Universal voltage compatibility: AC 100-240V, 50/60Hz
- Robust mechanical construction with anti-fungal components
- Quintuple nosepiece with inward tilt for enhanced stability
Unique Advantages
- Modular design allows easy upgrades and maintenance
- Anti-fungal treatment ensures long-term reliability in various environments
- Precise optical alignment maintained through pre-centered components
- Energy-efficient LED illumination reduces operating costs
Applications
Ideal for: - Clinical diagnostics - Research laboratories - Educational institutions - Veterinary practices - Industrial quality control
GoldHealth Medical's microscope systems deliver exceptional optical performance combined with ergonomic design, making them the preferred choice for professionals across various medical and scientific fields.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Trinocular Microscope
Brand: GoldHealth Medical
Product Overview
Experience unparalleled precision and reliability with the GoldHealth Medical Trinocular Microscope. Designed for professionals across medical, research, and educational fields, this microscope combines cutting-edge technology with an ergonomic design to deliver exceptional performance. Whether you're conducting detailed laboratory analysis or performing clinical diagnostics, this microscope is engineered to meet the highest standards of accuracy and durability.
Key Features
- Advanced Optical System: Equipped with an Infinity Optical System for crystal-clear imaging and enhanced depth of field.
- Anti-Fungal Components: Eyepieces and objectives are treated with anti-fungal coatings, ensuring longevity even in humid environments.
- Ergonomic Design: Adjustable interpupillary distance (48-75 mm) and a wide field number (FN: 20) for comfortable, fatigue-free operation.
- Bright, Energy-Efficient Illumination: Powered by a 0.5W LED light source, providing consistent, natural illumination while reducing energy consumption.
- Versatile Objectives: Includes Infinity Plan Achromat anti-fungal lenses (4X, 10X, 40X, 100X) for a wide range of magnification needs.
Technical Specifications
- Eyepiece: 10X/20mm with anti-fungal treatment
- Interpupillary Distance: Adjustable from 48-75 mm
- Power Source: AC 100-240 V, 50/60 Hz, 0.4 A
- Illumination: 0.5W LED
- Instrument Classification: Class II
- Safety Standard Compliance: GB2626-2006
- Quality Certifications: CE
Materials
- Constructed with high-grade acrylic, metal, and durable plastic for a robust yet lightweight design.
Packaging Details
- Package Dimensions: 50 x 45 x 30 cm
- Gross Weight: 9.000 kg
Warranty & Support
- Warranty Period: 1 Year
- After-Sale Service: Comprehensive online technical support to ensure seamless operation and troubleshooting.
Applications
Ideal for hospitals, clinics, research laboratories, educational institutions, and rehabilitation centers. Its versatility and reliability make it suitable for both professional and home-use environments.
Elevate your microscopy experience with GoldHealth Medical’s Trinocular Microscope – where innovation meets precision.
