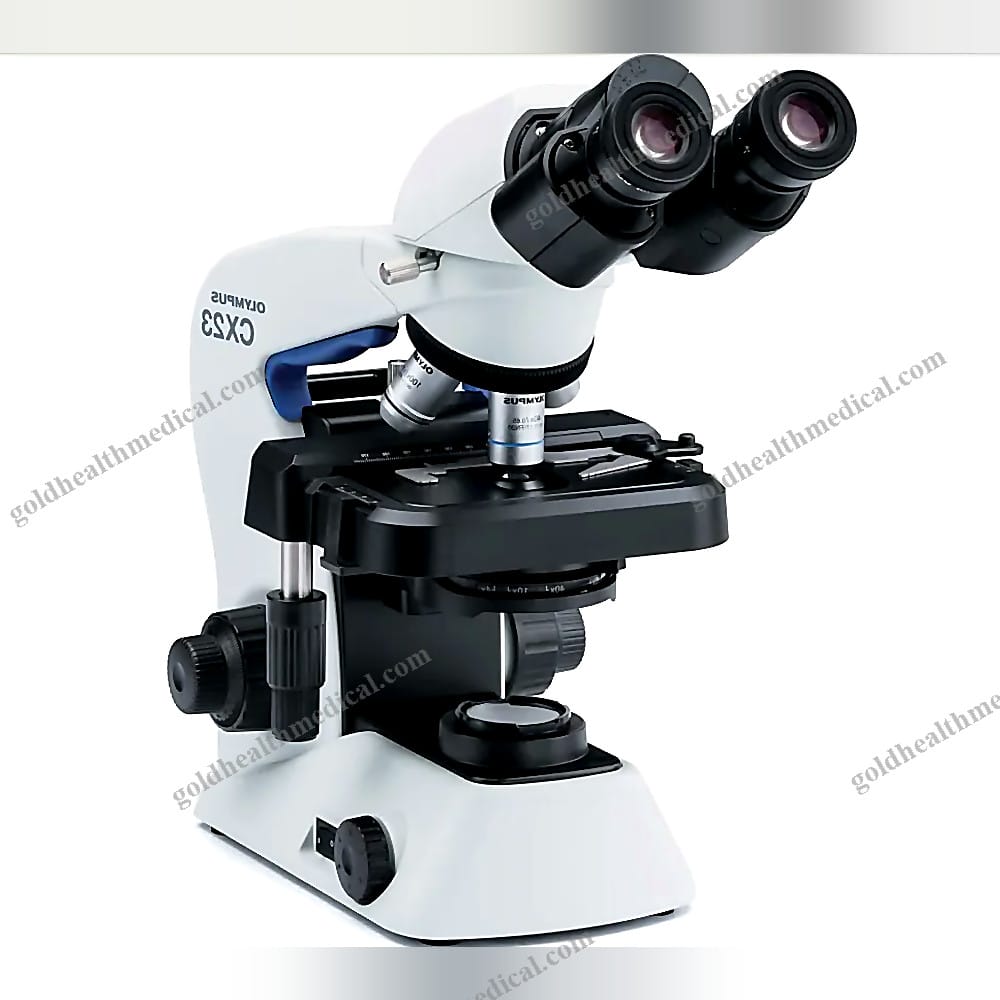

Olympus CX Series Digital Laboratory Microscopes
Reference: 1601237508676
Medical Optical Instruments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical presents a cutting-edge microscope designed for precision, durability, and versatility in medical and laboratory environments. Engineered with meticulous attention to detail, this instrument is crafted to meet the demands of professionals across hospitals, clinics, research institutions, and more.
Key Features and Specifications
-
Robust Build:
Constructed with an aluminum die-casting metal frame and protective covering, ensuring exceptional durability and stability during operation. -
Advanced Optical System:
Equipped with an infinity optical system for unparalleled clarity and precision in specimen observation. -
Efficient Illumination:
Built-in transmitted illumination system powered by energy-efficient LED technology, consuming only 0.5W (nominal values), providing consistent and reliable lighting. -
Precision Focusing Mechanism:
- Coarse movement stroke of 15mm with a limit stopper to prevent damage to slides.
- Adjustable torque for coarse adjustment knob, offering customizable resistance.
-
Fine focus knob with minimum adjustment gradations of 2.5μm for exacting detail work.
-

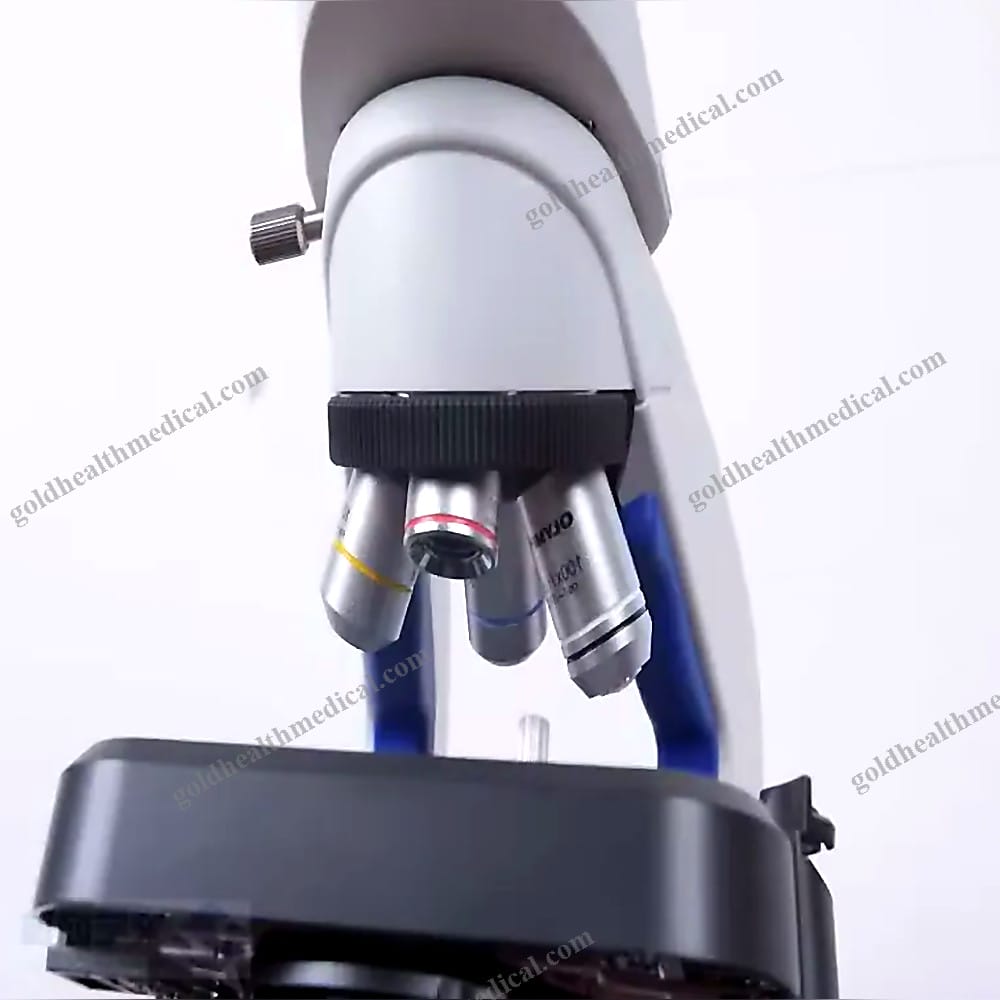

Revolving Nosepiece:
Fixed quadruple nosepiece ensures seamless transitions between objectives for uninterrupted workflow. -

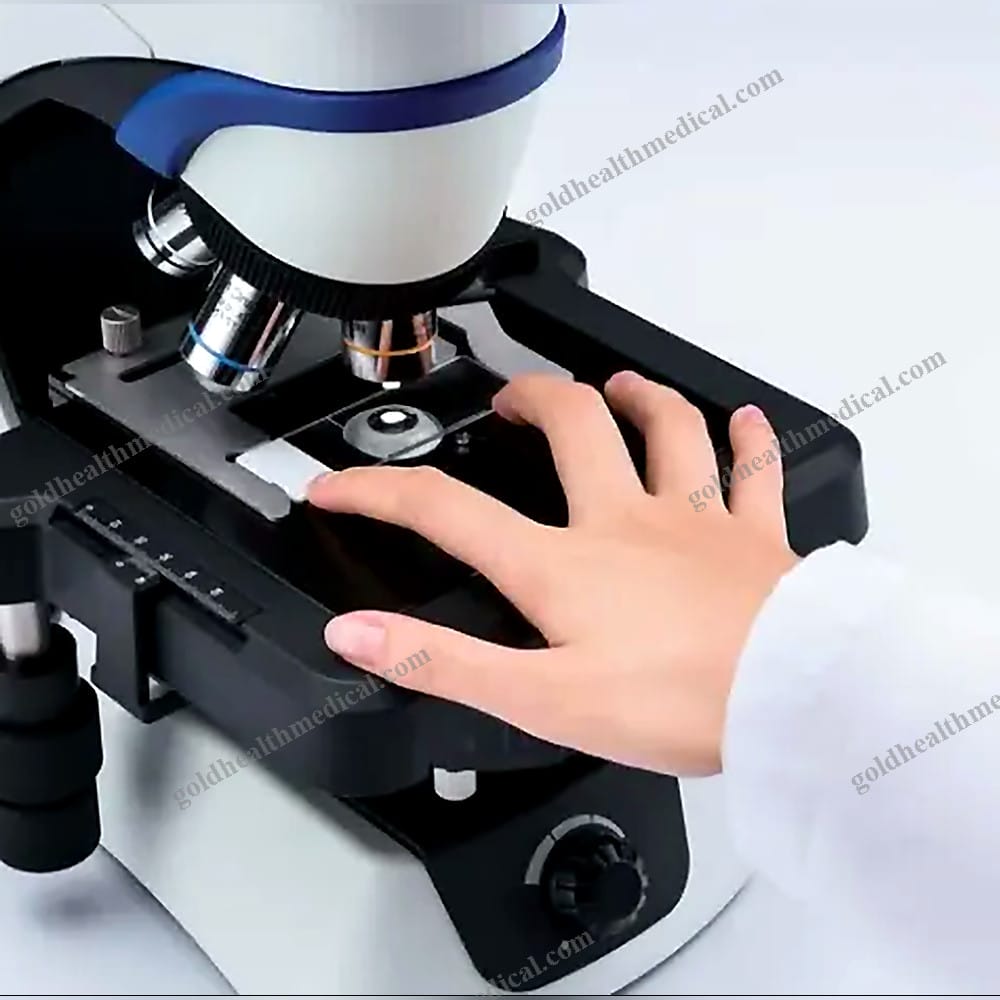

Mechanical Stage:
Wire movement mechanical fixed stage with a traveling range of 76mm (X) x 30mm (Y), allowing precise positioning of specimens. Includes a specimen holder and position scale for accurate tracking. -
Ergonomic Observation Tube:
30° inclined binocular tube with an interpupillary distance adjustment range of 48-75mm and eyepoint adjustment from 370.0mm to 432.9mm, ensuring comfort during extended use. -
High-Performance Objectives:
Plan achromat lenses with anti-fungus coating for long-lasting clarity: - 4x (NA: 0.10, W.D: 27.8mm)
- 10x (NA: 0.25, W.D: 8.0mm)
- 40x (NA: 0.65, W.D: 0.6mm)
-
100x oil immersion (NA: 1.25, W.D: 0.13mm)
-

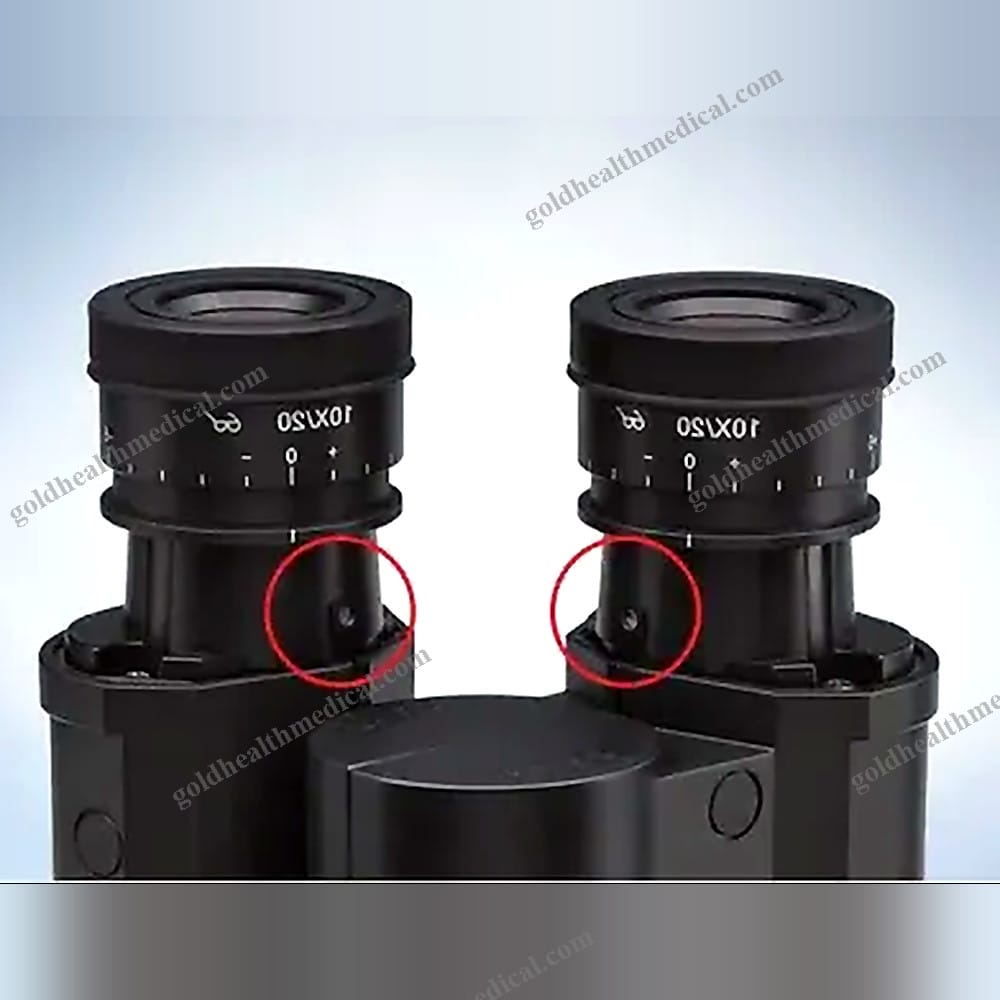

Wide-Field Eyepiece:
10x eyepiece with a field number (FN) of 20 and anti-fungus coating for enhanced visibility and reliability. -
Optional Accessories:
- 20mm reflection mirror
- 15x eyepiece (FN 12, anti-fungus)
- Dedicated wooden case for secure storage and transport
- Eyepiece micrometer for precise measurements
-
Darkfield and stop accessories for specialized applications
-
Compact and Lightweight Design:
Weighing approximately 5.9kg, this microscope is easy to move and set up without compromising stability. -
Energy Efficiency:
Rated for AC 100-240V, 50/60Hz, with a power consumption of less than 2W, making it an eco-friendly choice for modern laboratories.
GoldHealth Medical’s microscope combines innovative engineering with user-centric design, delivering unmatched performance and reliability. Whether for clinical diagnostics, research, or educational purposes, this instrument is a trusted companion for achieving accurate and repeatable results.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical presents the CX23 Microscope – Precision Redefined for Every Lab
- Application: Designed for versatile laboratory use, this microscope is ideal for research, diagnostics, and educational purposes.
- Optical System: Equipped with an advanced Infinity Optical System, delivering unparalleled clarity and precision for every observation.
- Eyepiece: Features a 10x eyepiece with a Field Number (FN) of 20, treated with anti-fungal protection to ensure long-lasting performance in any environment.
- Observation Tube: A 30° inclined binocular tube enhances ergonomic viewing, reducing strain during extended use.
- Power Consumption: Energy-efficient design consumes less than 2W, making it an eco-friendly choice without compromising performance.
- Instrument Classification: Certified as a Class II medical device, ensuring reliability and safety for professional applications.
- Material: Constructed from high-grade metal, offering exceptional durability and stability.
- Types Available: Supports multiple configurations, including X-ray Microscope, Binocular Microscope, and Trinocular Microscope, catering to diverse needs.
- Warranty: Backed by a comprehensive 1-year warranty, reflecting our confidence in its quality and craftsmanship.
- After-Sale Service: Access to online technical support ensures seamless assistance whenever you need it.
- Quality Certification: Meets CE standards, guaranteeing compliance with international safety and performance benchmarks.
- Place of Origin: Proudly crafted in China with global standards in mind.
Why Choose the CX23 Microscope?
The CX23 stands out with its robust build, energy efficiency, and cutting-edge optical technology. Whether you're conducting intricate lab work or teaching the next generation of scientists, this microscope delivers consistent, high-quality results. Its ergonomic design and anti-fungal protection make it a reliable companion for any professional setting.
GoldHealth Medical – Empowering Innovation, One Microscope at a Time.
