NonInvasive BiPAPAPAPCPAP Machine with CE Certification
Reference: 1600229659878
Breathing Apparatus
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

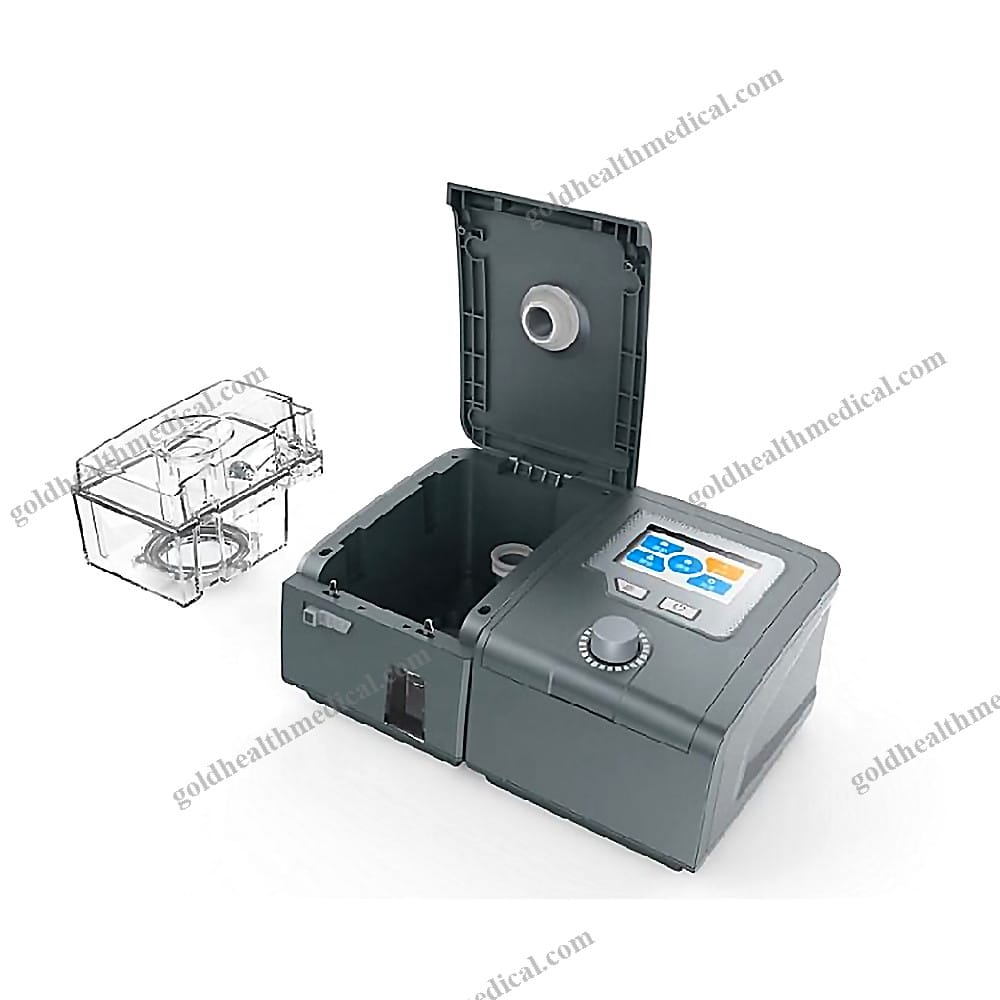

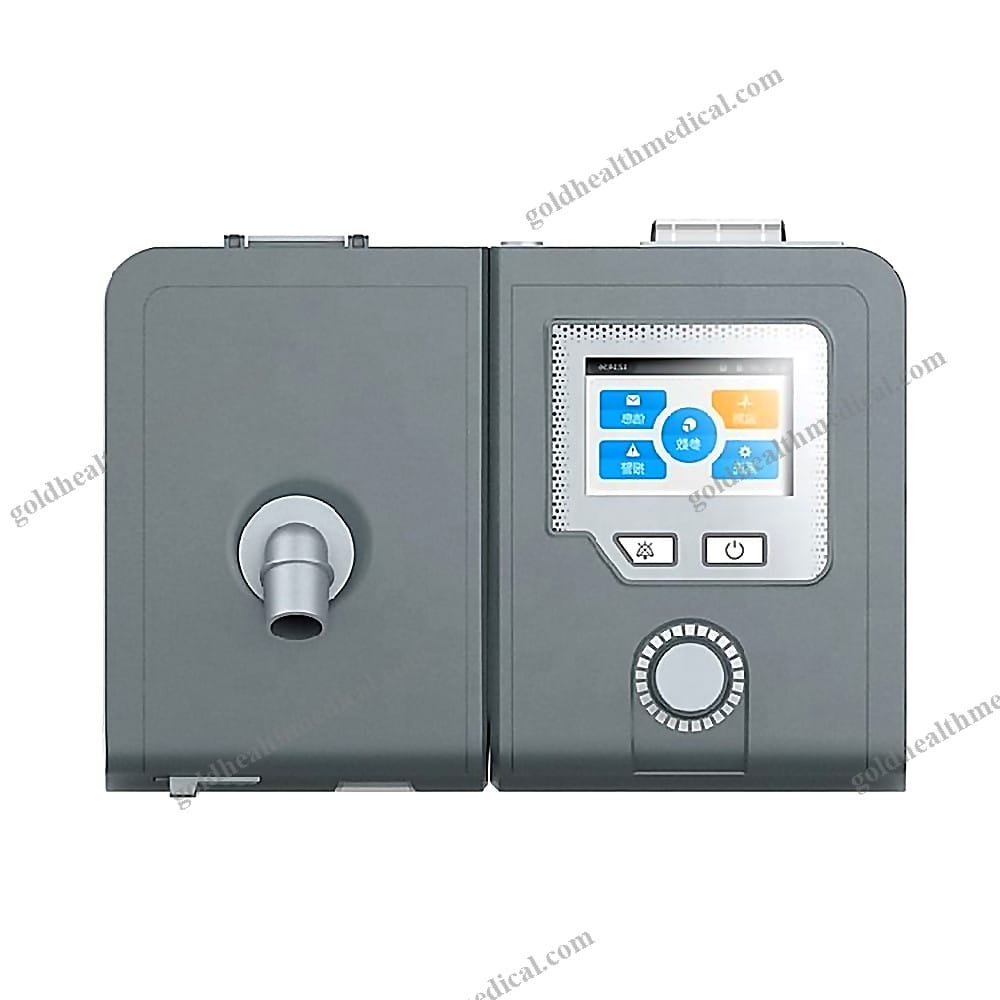

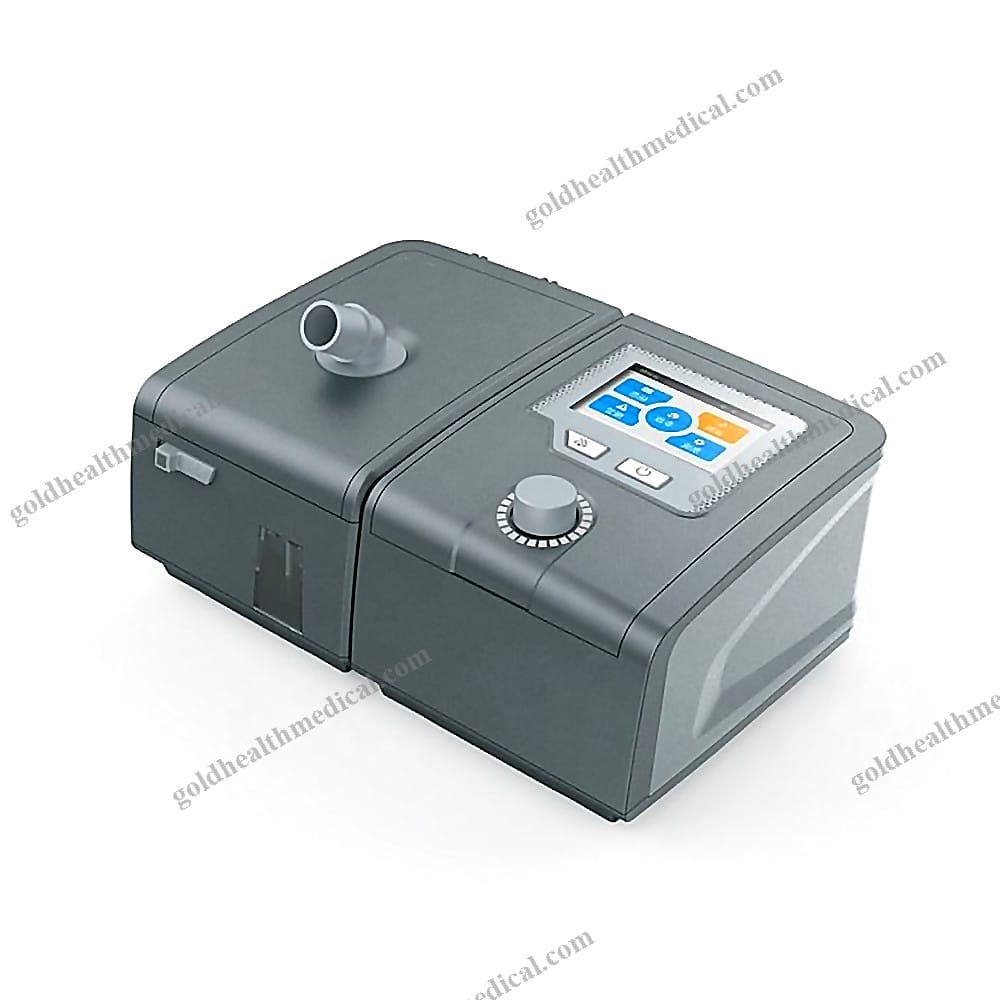

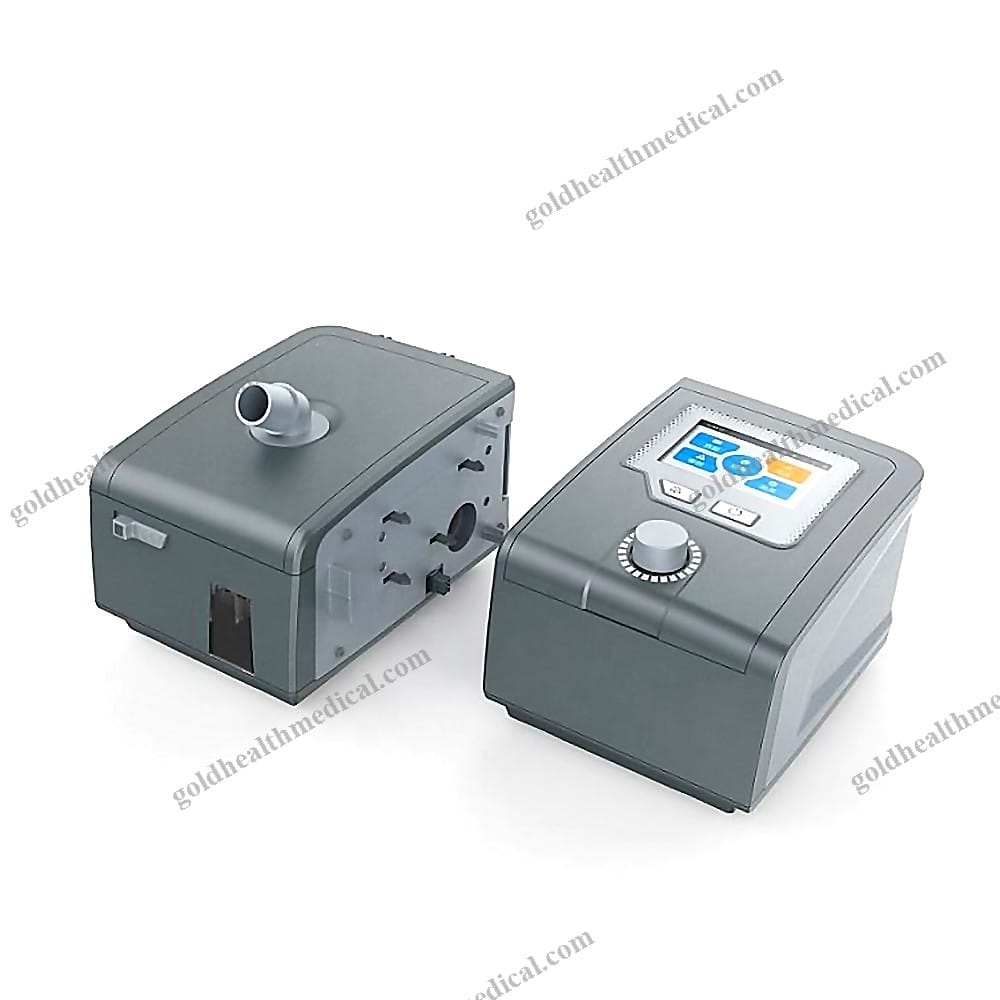

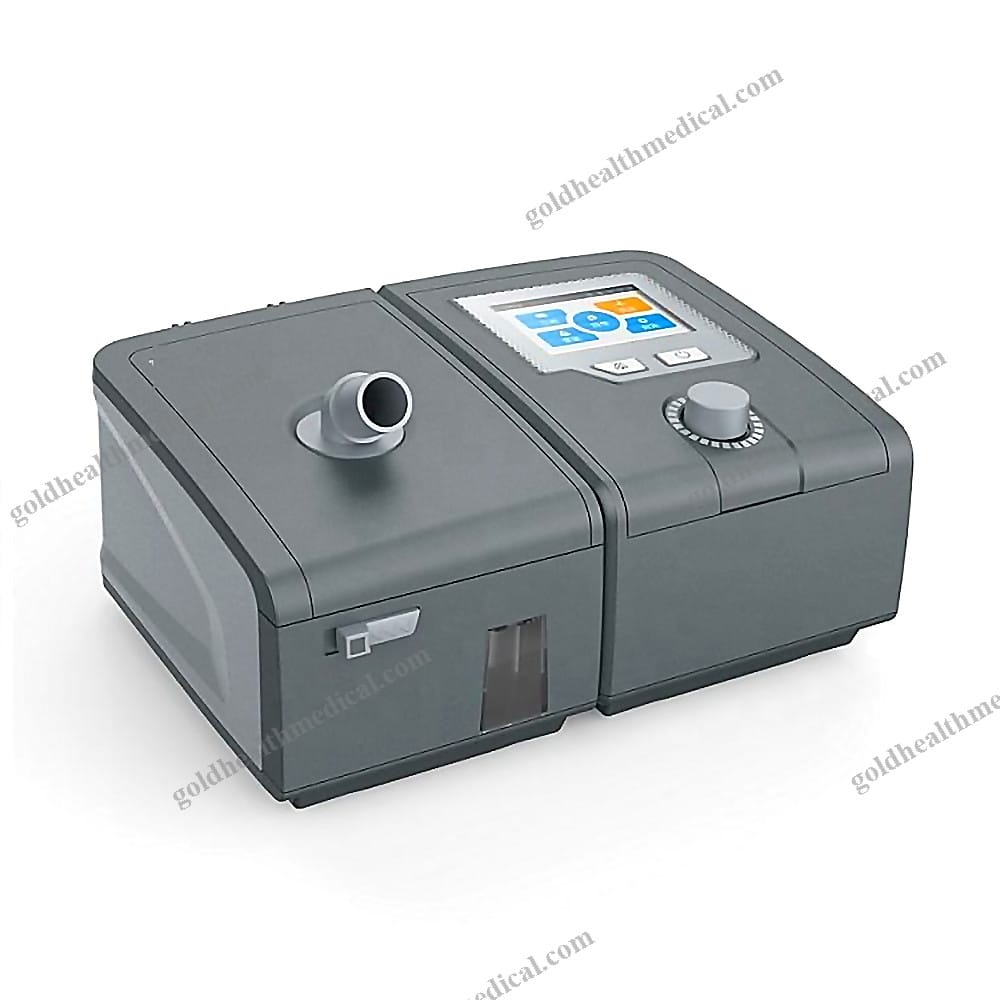

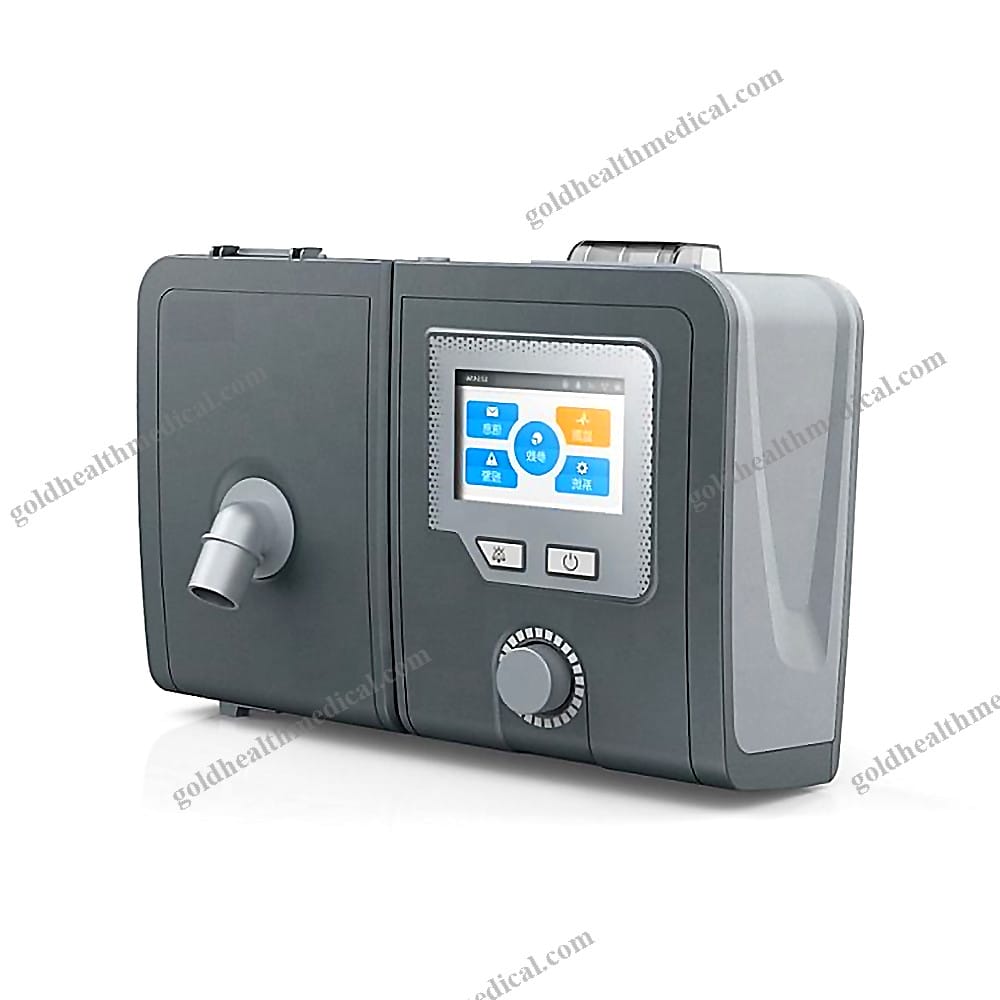

GoldHealth Medical BiPAP Oxygen Machine
Product Overview
GoldHealth Medical presents an advanced BiPAP oxygen machine designed to assist in the therapy of respiratory diseases, including Pulmonary Heart Disease (PHD), Chronic Obstructive Pulmonary Disease (COPD), and Motor Neuron Diseases. This cutting-edge device offers unparalleled support for patients requiring respiratory assistance.
Key Features
- Multiple Work Modes: CPAP, S, T, S/T, APCV
- APCV Mode: Advanced Assist Pressure Control Ventilation
- Dynamic Monitoring: Continuously assess treatment effectiveness
- Real-Time Alerts: Immediate notifications in case of operational failures
- Lightweight Design: Only 2.0kg for easy portability
Specifications
- Screen: 3.5 Inch Color TFT
- Work Modes: CPAP, S/T, S, T, APCV
- User Interface: Simplified one-key operation
- Inspiration Pressure: 4-25cmH2O
- Inspiration Sensitivity: Auto, 1-6 levels
- Expiration Pressure: 4-23cmH2O
- VAF Function: Available
- Tidal Volume: 50~2000ml
- Accuracy: ±0.5cmH20
- Belex: 1-3 levels (2-4cm H2O) for enhanced expiration comfort
- Ramp: 0-60 minutes
- Islop: 1-6 Levels
- BPM: 3-40bpm
- Noise Level: <30dB (at 10cmH2O)
- Auto Switch Off: Activates when tube/mask is off; auto-on detects breath
- Leakage Compensation: Yes
- Altitude Compensation: Yes
- Humidifier: 0-5 levels, separable water chamber
- SPO2: Optional
- Parameter Monitor: Flow/Press/BPM/VT/MV/LK/InspT/SpO2(Optional)/PR(Optional)
- Real-Time Alarm: Power failure, low voltage, airway block, low MV, high leakage, humidifier failure, TF card full, high pressure, low pressure, replace filter
- Data Download: TF card 8G
- Data Report: Available
- Self-Diagnostic Questionnaire: Helps patients understand potential breathing apnea
- Net Weight: 2.2kg
- Dimensions: 280200112mm (Host+humidifier)
- Gross Weight: 4.6KG
- Packaging Dimensions: 375290235mm (Host+Humidifier+Handbag+Mask, Tube, Power adapter, Filter, Extension connector)
- Warranty: 2 years
Unique Selling Points
- Advanced Monitoring: Real-time data tracking and dynamic monitoring ensure optimal treatment outcomes.
- User-Friendly Design: Simplified one-key operation and lightweight build make it accessible for all users.
- Comprehensive Safety Features: Multiple alarms and automatic functions provide peace of mind for both patients and caregivers.
- Customizable Settings: Adjustable parameters cater to individual patient needs, enhancing comfort and efficacy.
Recommended Products
- Color Doppler Ultrasound: High-performance imaging for precise diagnostics.
- Oxygen Concentrator: High purity oxygen generation suitable for hospital use.
- Neonatal CPAP Device: Specialized respiratory support for neonatal care.
- Portable CPAP Machine: Compact and efficient for travel and home use.
Company Strengths
GoldHealth Medical boasts a full product system, professional R&D capabilities, and a robust sales and service team with over a decade of experience in the medical industry. We ensure quick responses, fast delivery, and comprehensive training support.
Packaging & Delivery
To ensure the utmost safety of your goods, we provide professional, environmentally friendly, convenient, and efficient packaging services.
Frequently Asked Questions
- Minimum Order Quantity (MOQ): Orders for even a single unit are welcome.
- OEM/Private Label: Custom branding options are available.
- Shipping Options: Flexible shipping methods by sea, air, or express.
- Payment Terms: Multiple payment options including T/T, LC, Western Union, Escrow, and PayPal.
- After-Sale Service: Comprehensive support with a 15-month warranty and long-term technical assistance.
GoldHealth Medical is committed to delivering innovative and reliable respiratory solutions tailored to meet the diverse needs of healthcare providers and patients alike.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical: Revolutionizing Respiratory Care
- Product Name: Bipap/APAP/CPAP Machine
- Display System: 3.5-inch vibrant color TFT screen for clear, real-time monitoring
- User Interface: Intuitive one-key operation designed for simplicity and precision
- Pressure Range: 4-20cmH2O with auto-adjusting capabilities for personalized therapy
- Accuracy: ±0.5cmH2O ensuring consistent and reliable performance
- Ramp Feature: Adjustable 0-60 minute ramp time for gradual pressure adaptation
- Humidifier: 5-level adjustable humidification with a separable water chamber for easy cleaning and maintenance
- SPO2 Monitoring: Optional integration for enhanced patient monitoring
- Material: Durable, medical-grade plastic construction
- Instrument Classification: Class II medical device for professional and home use
- Power Source: Electric, engineered for energy efficiency
- Shelf Life: 1 year from date of manufacture
- Quality Certification: CE-certified for safety and reliability
Dimensions and Specifications
- Machine Size: 280200112mm
- Packaging Dimensions: 375290235mm
- Weight: 4.6KG including packaging
Supply and Delivery
- Supply Capacity: 1000 sets per month to meet high demand
- Ports: Shanghai, Shenzhen, or other major ports for global accessibility
Warranty and Support
- Warranty: Comprehensive 1-year warranty for peace of mind
- After-Sale Service: Dedicated online technical support to ensure seamless operation
Unique Selling Points
- Advanced auto-adjusting pressure technology tailored to individual needs
- Optional SPO2 monitoring for comprehensive respiratory care
- Compact, lightweight design with a focus on portability and ease of use
- Ideal for hospitals, clinics, research labs, and home healthcare environments
GoldHealth Medical is committed to delivering cutting-edge respiratory solutions that empower healthcare providers and enhance patient outcomes.
