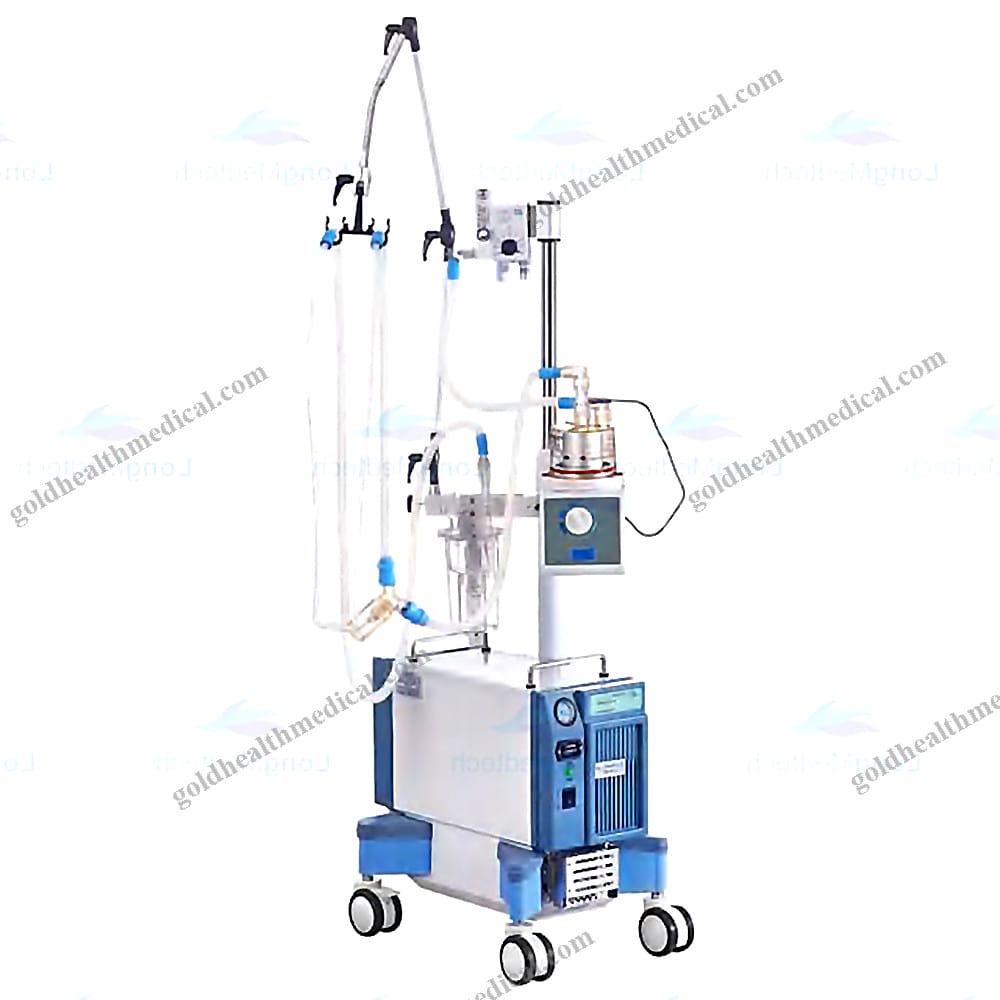

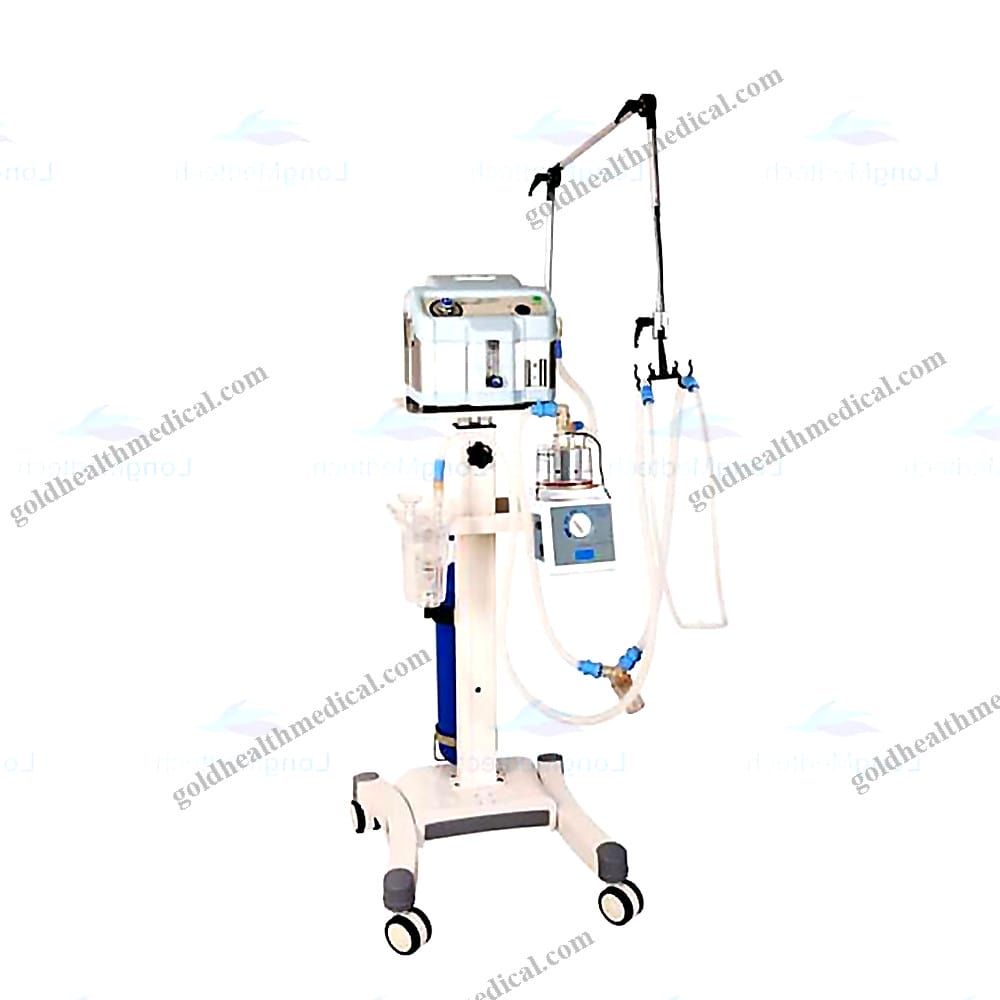

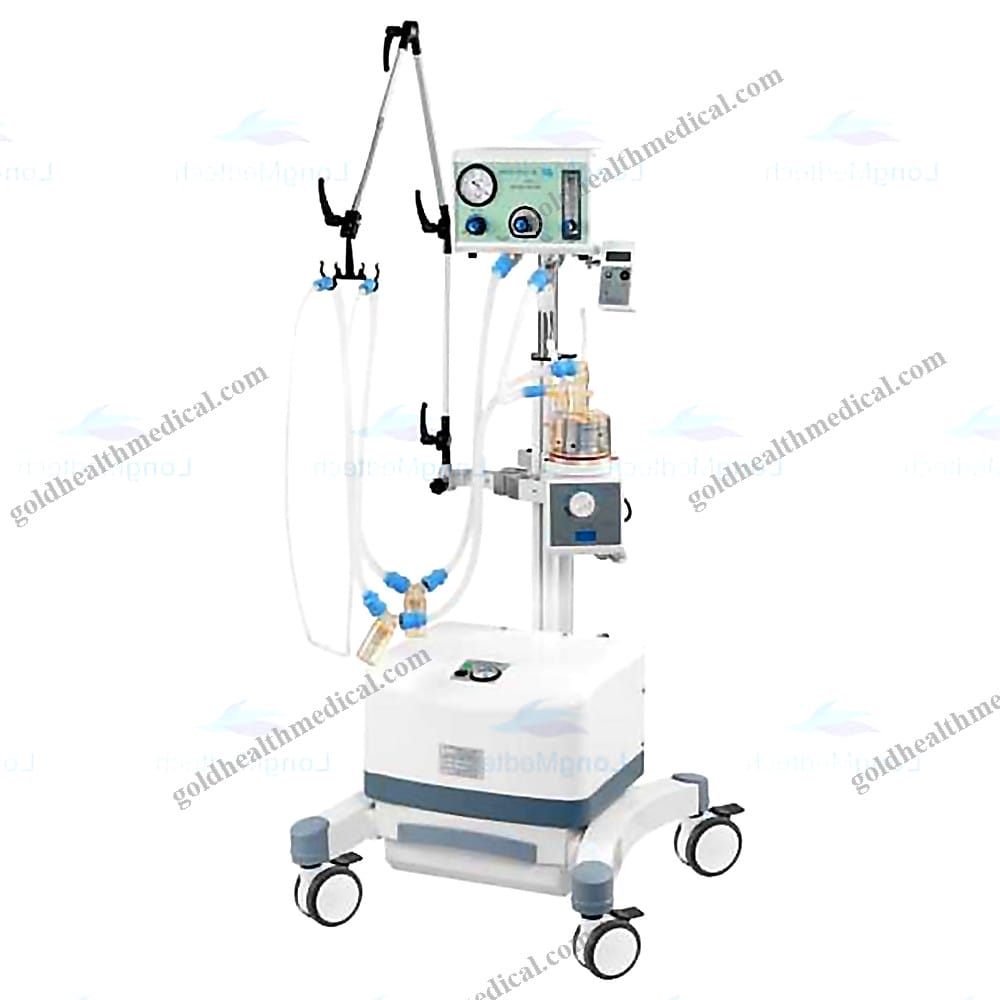

NCPAP Bubble CPAP System with Air Compressor for Neonatal Care
Reference: 1601135117677
Breathing Apparatus
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Revolutionizing Patient Care with Advanced Medical Solutions
Pediatric Respiratory Support System
GoldHealth Medical presents an innovative CPAP Continuous Positive Airway Pressure System, meticulously designed for pediatric respiratory support. Tailored for premature infants, newborns, infants, and children up to 14 years old, this system facilitates nasal congestion CPAP ventilation treatment. By maintaining spontaneous breathing, it effectively reduces the work of breathing and minimizes the need for invasive mechanical ventilation.
Key Advantages: - Provides a controllable oxygen concentration for infants - Maintains functional residual capacity - Reduces the work of breathing for babies - Lowers the necessity for invasive mechanical ventilation - Delivers warm and humid air to infants - Decreases the incidence of chronic lung disease (CLD) - Enhances lung physiological indicators such as height and weight
Performance Parameters: - Oxygen Concentration Adjustment: 21%~100% - Flow Adjustment: 0~18LPM - CPAP Pressure: 0.3~1.0kPa (3~10cmH2O) - Generator Water Capacity: 500ml or more - Differential Pressure Alarm: Audible alert when air supply pressure difference exceeds 0.1MPa - Oscillating Gas Pressure: Adjustable from 3 to 10 cmH2O via CPAP pressure rod - Automatic Water Level Adjustment Mechanism: Ensures constant CPAP pressure level - Detachable Water Tank: Prevents CPAP interruption by draining excess condensate
General Parameters: - Oxygen and Air Pressure: 0.3MPa~0.4MPa - Power Supply: 220V AC 50Hz - Certification: ISO 13485
Optional Features: - Medical Air Compressor: - Exhaust Pressure: ≤ 0.7MPa - Output Pressure: 0.25MPa~0.40MPa - Flow Rate: ≥25L/min - Noise Level: ≤55 dB(A) - Medical Electric Heating Humidifier: - Working Temperature: 30℃~37℃ - Heating Plate Temperature: ≤ 85℃ - Humidification Tank Capacity: 280ml (F- Adult Type), 230ml (FA- Child Type) - Maximum Flow: 180L/min - Maximum Working Pressure: 2kPa
GoldHealth Medical is dedicated to delivering high-quality medical equipment with competitive pricing and exceptional after-sales service. Our products are trusted globally, spanning across Africa, Latin America, the Middle East, Southeast Asia, Europe, and the United States. Partner with us to experience unparalleled quality and service, ensuring a mutually beneficial collaboration.
Explore our range of advanced medical solutions and elevate your healthcare services with GoldHealth Medical.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Air Compressor for Ventilator by GoldHealth Medical
Key Features and Benefits:
- Advanced Engineering: Designed with precision to deliver reliable performance, making it an essential component for ventilators in critical care environments.
- Durable Construction: Crafted from high-quality plastic and steel, ensuring longevity and resistance to wear and tear even in demanding medical settings.
- Power Source: Fully electric, offering consistent and efficient operation without interruptions.
- Safety Assurance: Compliant with GB15979-2002 safety standards, guaranteeing the highest level of protection for both patients and healthcare providers.
- Certified Quality: Backed by CE certification, ensuring global standards of safety and performance.
Technical Specifications:
- Weight: 50KG, designed for stability and ease of integration into existing systems.
- Shelf Life: 3 years, ensuring long-term usability and reliability.
- Instrument Classification: Class II, reflecting its advanced functionality and suitability for professional medical use.
Warranty and Support:
- 1-Year Warranty: GoldHealth Medical stands behind the quality and durability of this product, offering peace of mind to our customers.
Applications:
- Ideal for hospitals, clinics, research laboratories, rehabilitation centers, and home healthcare setups, providing versatile support for respiratory care needs.
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering cutting-edge medical equipment that combines innovation, safety, and reliability. Our Air Compressor for Ventilator is a testament to our dedication to improving patient outcomes and supporting healthcare professionals with tools they can trust.
Additional Details:
- Place of Origin: Jiangsu, China – a hub for advanced manufacturing and medical technology innovation.
- Materials: High-grade plastic and steel for enhanced durability and performance.
Invest in GoldHealth Medical’s Air Compressor for Ventilator – where precision meets reliability.
