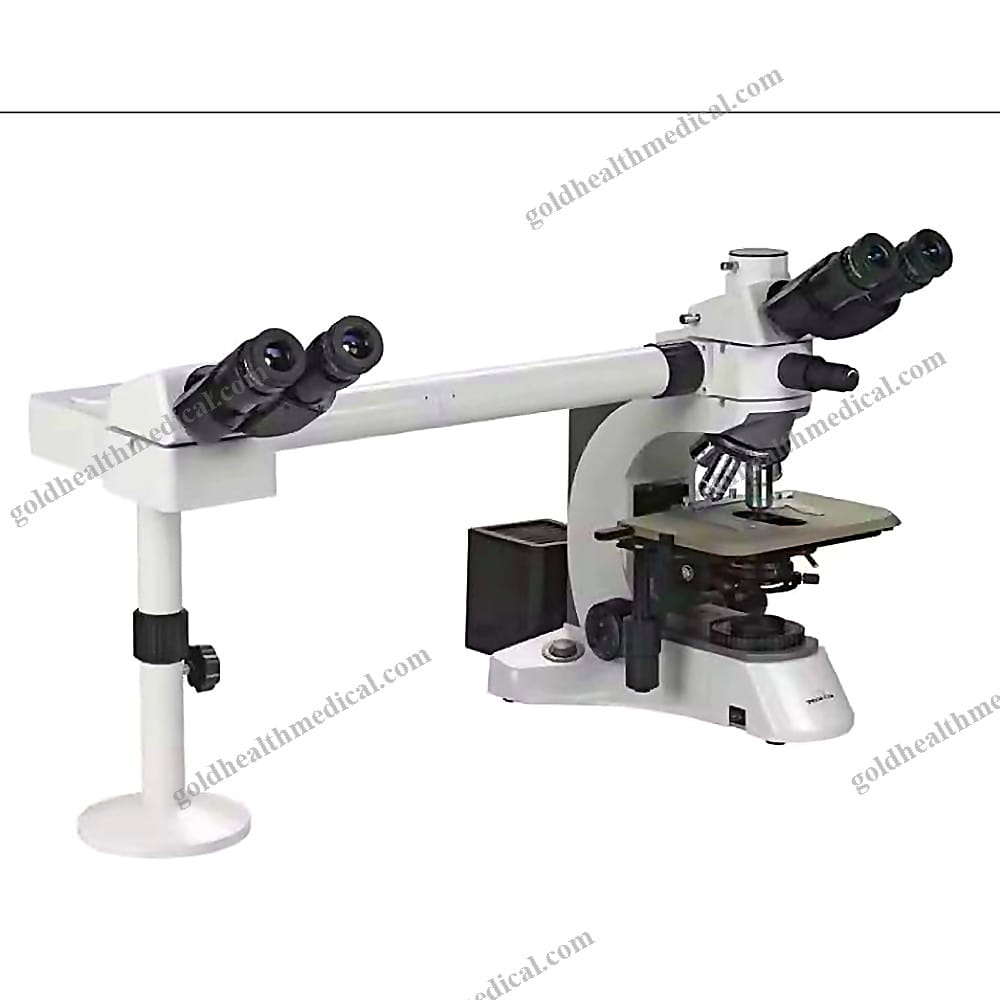

N510 MultiView Microscope 40x1
Reference: 1601272722117
Medical Optical Instruments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical Advanced Laboratory Microscope
Experience the pinnacle of optical precision with GoldHealth Medical's advanced routine laboratory microscope, designed for brightfield observations. Engineered with IOS W-PLAN objectives and a rackless stage, this trinocular discussion microscope is tailored for collaborative environments, allowing up to five users to observe simultaneously. Whether for teaching purposes or discussion groups, this microscope elevates multi-viewing capabilities to new heights.
A standout feature is the three-color LED pointer, which simplifies the identification and indication of observed objects. Coupled with the high-efficiency X-LED3 illumination, it ensures exceptional clarity, rich detail, and a high-quality view for all transmitted light observations.
Key Features and Specifications
- Viewing Head:
- Sliding binocular head inclined at 45° (2 units available)
- Monocular head inclined at 45° (2 units available)
-
Five-head configuration for simultaneous multi-user observation
-
Eyepiece:
-
WF10X wide-field eyepiece (4 units included)
-
Objective Lenses:
-
Achromatic objectives: 4X, 10X, 40X, 100X
-
Condenser:
-
NA1.25 Abbe condenser for superior light control
-
Focusing System:
- Coaxial coarse and fine adjustment
- Fine division: 0.002mm
- Coarse stroke: 37.7mm per rotation
- Fine stroke: 0.2mm per rotation
-
Moving range: 28mm
-
Stage:
-
Double-layer mechanical stage: 140x140mm / 75x50mm
-
Illumination:
- S-LED illumination with adjustable brightness
-
Optional halogen lamps: 6V/20W or 24V/100W
-
Pointer:
- Green LED pointer with adjustable brightness
Why Choose GoldHealth Medical?
GoldHealth Medical is dedicated to delivering cutting-edge medical equipment that meets the highest standards of quality and performance. Our advanced laboratory microscope is designed to enhance productivity and precision in medical, research, and educational settings. With a focus on innovation and reliability, we provide tools that empower professionals to achieve exceptional results.
Whether you're equipping a hospital, clinic, research lab, or educational facility, our microscope is the ideal choice for collaborative observation and detailed analysis.
For more information, contact GoldHealth Medical today.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Multi-Viewing Microscope
Brand: GoldHealth Medical
Product Overview
The Multi-Viewing Microscope by GoldHealth Medical is a cutting-edge optical instrument designed for precision, versatility, and reliability in professional environments. Whether used in research laboratories, medical diagnostics, or educational settings, this microscope delivers unparalleled clarity and adaptability. Featuring an advanced infinite optical system and a magnification range of 40X to 1000X, it ensures exceptional detail and accuracy for every application.
Key Features
- Optical Excellence: Equipped with an infinite plan achromatic objective and an extra-wide field eyepiece (WF10X/20), providing sharp, distortion-free imaging.
- Versatile Magnification: Offers a broad magnification range from 40X to 1000X, suitable for biological and detailed specimen analysis.
- Inverse Quintuple Nosepiece: Allows seamless switching between objectives for efficient multi-viewing capabilities.
- Durable Construction: Crafted with high-quality materials, including acrylic, metal, and robust plastics, ensuring long-lasting performance.
- Advanced Design: Ergonomic and user-friendly, tailored for both professional and educational use.
Technical Specifications
- Instrument Classification: Class II
- Safety Standard Compliance: GB2626-2006
- Power Source: Electricity
- Eyepiece: Extra Wide Field Eyepiece WF10X/20
- Objective: Infinite Plan Achromatic Objective
- Magnification Range: 40X-1000X
- Optical System: Infinite Optical System
- Nosepiece: Inverse Quintuple Nosepiece
Packaging Details
- Single Package Size: 70 x 50 x 35 cm
- Gross Weight: 45 kg
- Carton Dimensions: 125 x 18 x 48 cm
- Gross Weight (Carton): 48 kg
Quality Assurance
- Warranty: 1 Year
- Certifications: CE
- Shelf Life: 1 Year
- After-Sales Service: Comprehensive online technical support to ensure uninterrupted performance.
Applications
Ideal for hospitals, clinics, research institutions, laboratories, and educational facilities, the Multi-Viewing Microscope is engineered to meet the rigorous demands of modern science and medicine. Its precision and reliability make it an indispensable tool for professionals seeking superior imaging capabilities.
GoldHealth Medical is committed to delivering innovative solutions that empower healthcare and scientific advancements worldwide.
