MSLEDP02 Electric Dermatome for Skin Grafting
Reference: 1600585090328
Burns Surgery Instruments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical Electric Dermatome
Product Overview
GoldHealth Medical introduces a cutting-edge Electric Dermatome designed for precision and reliability in skin graft procedures. Engineered to deliver consistent results, this dermatome is an essential tool for medical professionals seeking efficiency and safety.
Key Features
- Uniform Skin Thickness: Achieve precise and consistent skin thickness with every use.
- Simple Operation: Handheld control ensures ease of use, even in demanding clinical environments.
- Sterilization Compatibility: The entire unit can be sterilized under high temperature and pressure, ensuring maximum hygiene.
- Smooth Handle Design: Ergonomic and easy to clean, reducing maintenance needs.
- Safe and Reliable: Designed with safety mechanisms to protect both the user and the patient.
Technical Specifications
- Power Supply: AC220V ± 10%; 50Hz ± 1Hz
- Skin Thickness Range: 0-0.75 mm with incremental intervals of 0.05 mm
- Skin Width Options: 2.5 cm, 3.8 cm, 5.1 cm, 7.6 cm, 10.2 cm
- Removable Handle Connection Line: Ensures flexibility and ease of use
- Control Mode: Handheld control for intuitive operation
Operational Guidance
- Connect Cords: Point-to-point connection between the handpiece and power supply.

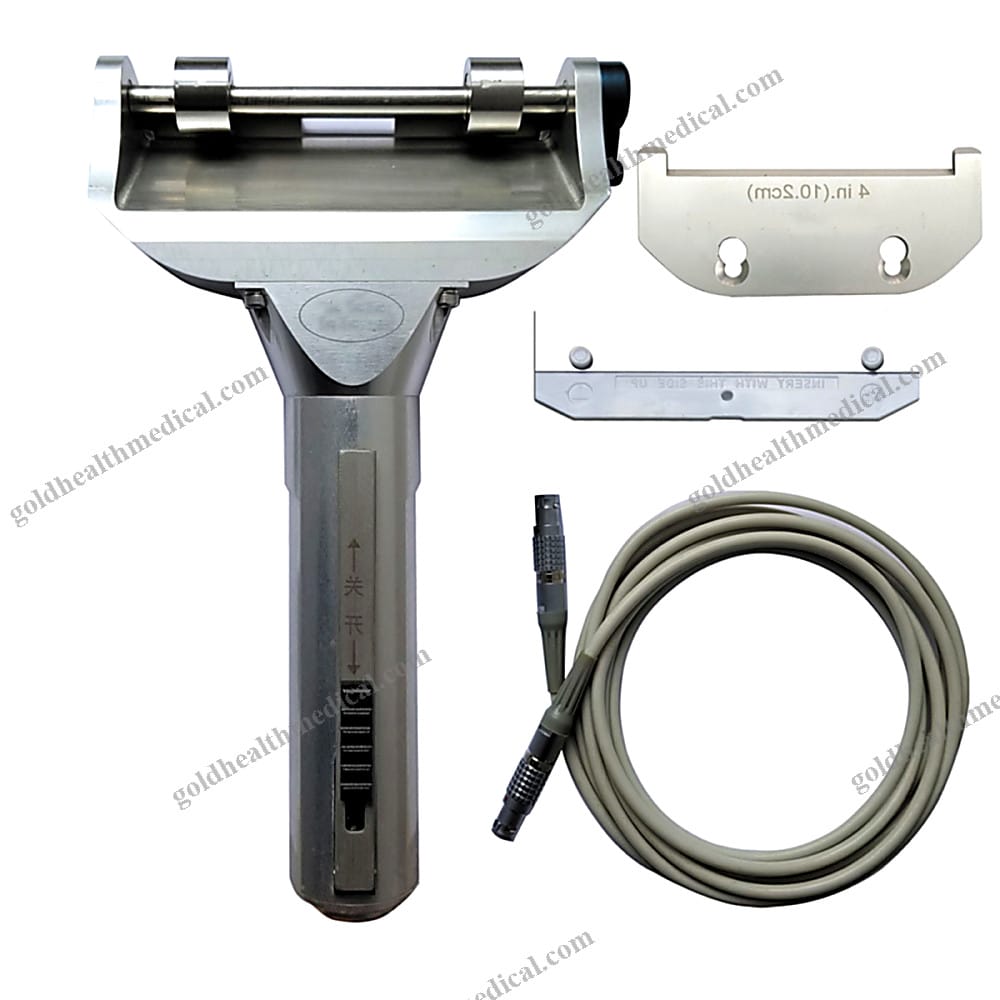

- Install the Blade:
- Set the switch button on the power supply to the "off" position.
- Use a screwdriver to loosen the two screws on the handpiece (about 2 turns).
- Align the blade's center hole with the driving sheath, avoiding contact with the sharp edge.
- Ensure the blade orientation is correct, with the indication "INSERT WITH THIS SIDE UP" facing upward.

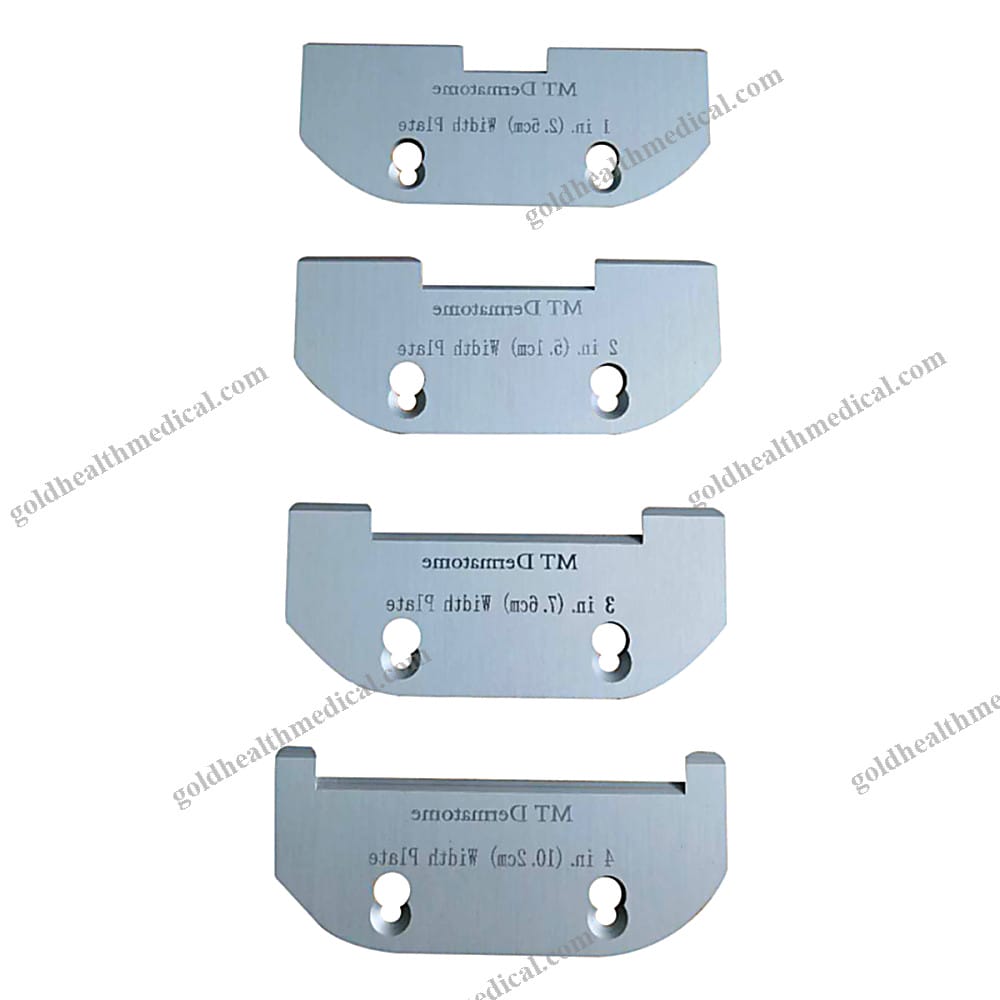

- Install the Width Plate: Choose the appropriate size, cover it on the blade, and secure with a screwdriver.
- Adjust Thickness: Use the adjustment pointer on the handpiece to set the desired thickness (typically 0.25mm).
- Power On: Press the "on" button, lift the touchpoint switch, and gently push the handpiece forward at a 30-50° angle for harvesting.
Maintenance and Safety
- Sterilization: Handpiece, width plates, screwdriver, and connection cord must be sterilized. Avoid sterilizing the power supply and cord.
- Blade Replacement: Always use a new blade; handle with care due to sharp edges.
- Cleaning: Do not use automatic decontamination cleaners, ultrasonic cleaners, or abrasive materials. Avoid soaking in chemical solutions.
- Storage: Store all components in a dry environment at room temperature.
Why Choose GoldHealth Medical?
- Competitive Pricing: Offers cost advantages of 8%-30% compared to competitors.
- Comprehensive Solutions: One-stop shopping for all medical equipment needs.
- After-Sales Service: Comprehensive warranty ranging from 12 to 36 months.
Certifications and Quality Assurance
GoldHealth Medical guarantees quality through rigorous pre-production samples and final inspections before shipment. Our certifications and commitment to excellence ensure you receive only the best products.
Applications
Ideal for hospitals, clinics, research institutions, laboratories, nursing homes, rehabilitation centers, and home healthcare settings.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Electric Dermatome by GoldHealth Medical
Application: Precision Skin Graft Mashing for Surgical Procedures
Key Features and Benefits
- Unmatched Precision: Achieve consistent skin graft thickness with adjustable settings ranging from 0 to 0.75 mm.
- Versatile Width Options: Select from multiple cutting widths (2.5 cm, 3.8 cm, 5.1 cm, 7.6 cm, 10.2 cm) to suit diverse surgical needs.
- Durable Construction: Crafted with high-quality materials including metal, steel, and medical-grade plastic for long-lasting performance.
- Advanced Power Supply: Operates on AC220V + 10%; 50Hz + 1Hz, ensuring reliable functionality in any professional setting.
- Safety and Compliance: Meets rigorous safety standards (GB15979-2002) and holds certifications such as CE and ISO13485 for assured quality.
Technical Specifications
- Instrument Classification: Class II medical device
- Skin Thickness Range: 0–0.75 mm
- Skin Width Options:
- 2.5 cm
- 3.8 cm
- 5.1 cm
- 7.6 cm
- 10.2 cm
- Power Source: Electric (AC220V + 10%; 50Hz + 1Hz)
- Shelf Life: 1 year
- Warranty: 12 months
Support and Service
- Comprehensive Warranty: Enjoy peace of mind with a 12-month warranty covering manufacturing defects.
- Dedicated Support: Access online technical support to resolve queries and ensure uninterrupted operation.
Applications
- Designed for use in surgical rooms, this dermatome is ideal for hospitals, clinics, research institutions, and rehabilitation centers.
Supply and Delivery
- Minimum Order Quantity (MOQ): 1 unit
- Supply Capacity: Up to 1,000 sets per month
- Packaging: Standard export packaging ensures safe and secure delivery
GoldHealth Medical’s Electric Dermatome combines precision engineering with user-focused design, empowering medical professionals to achieve exceptional outcomes in skin grafting procedures.
