MS100 Separated EKG Pulse Oximeter Spo2 Simulator
Reference: 1600738531618
Pulse Oximeters
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

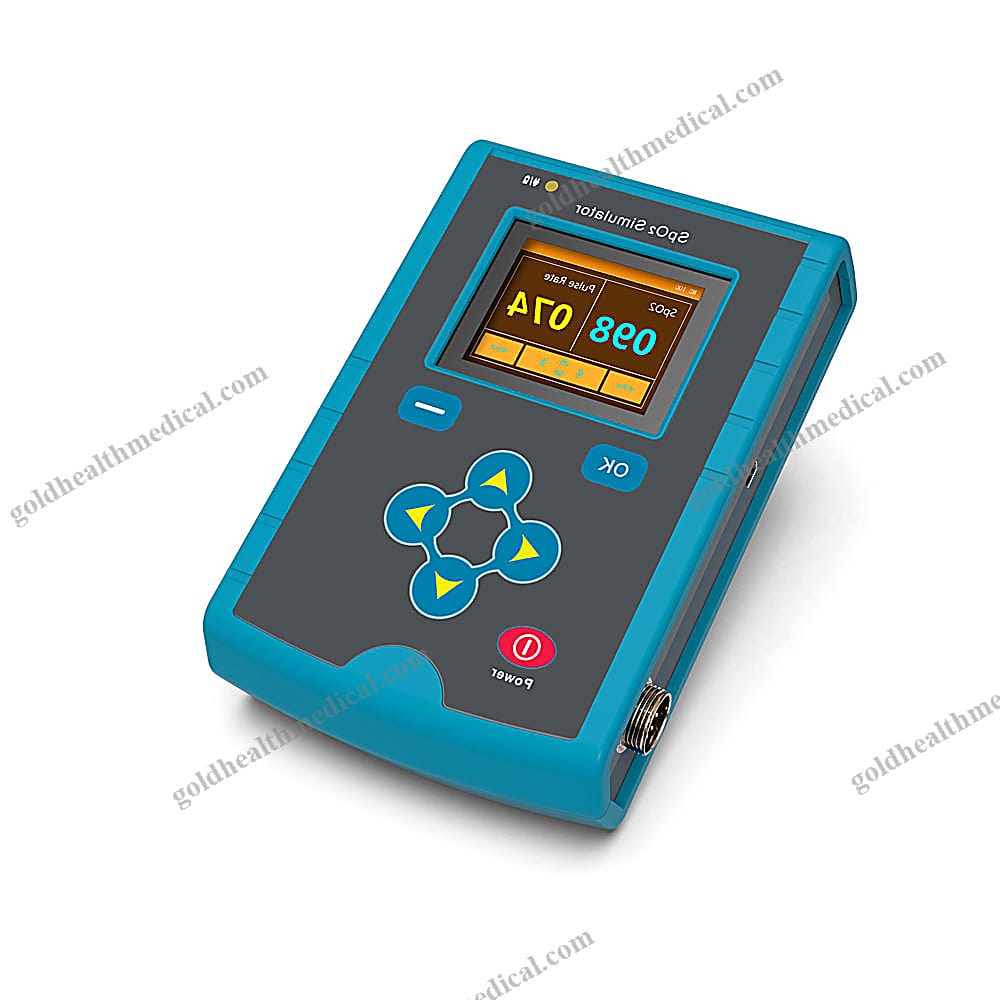

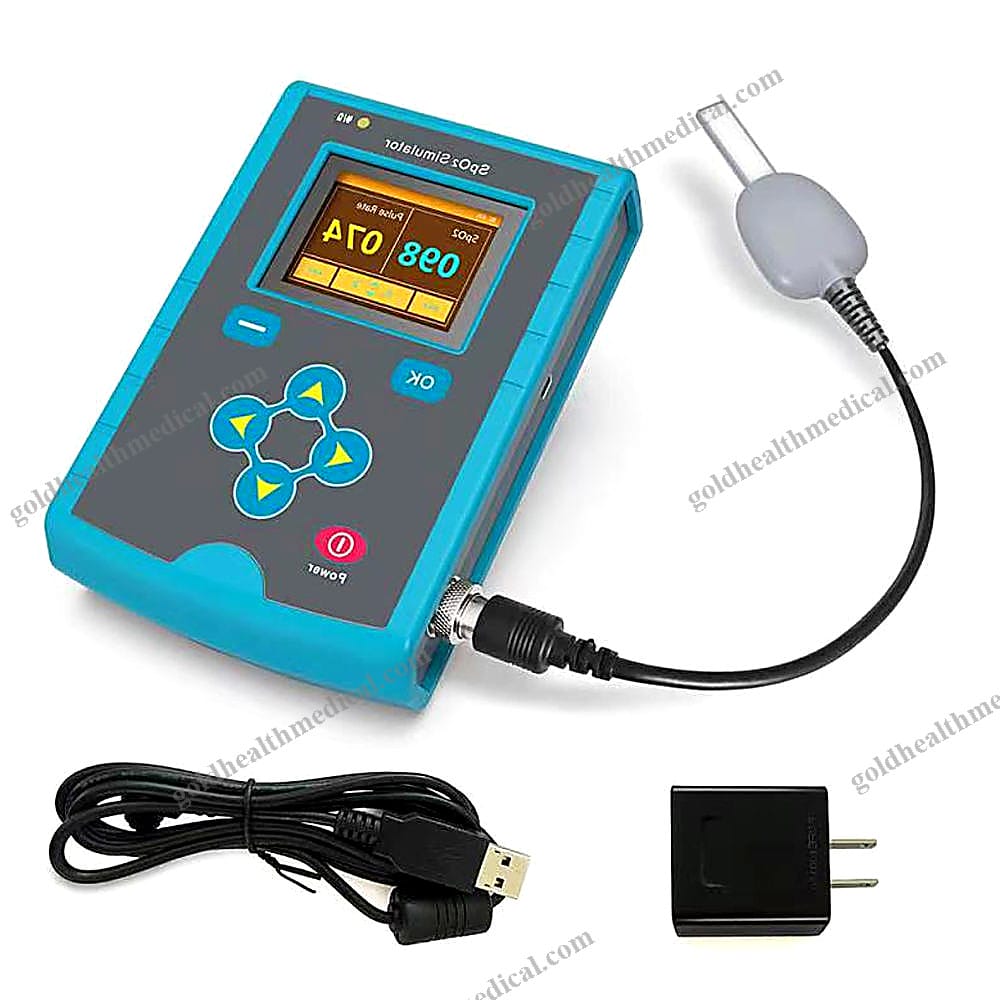

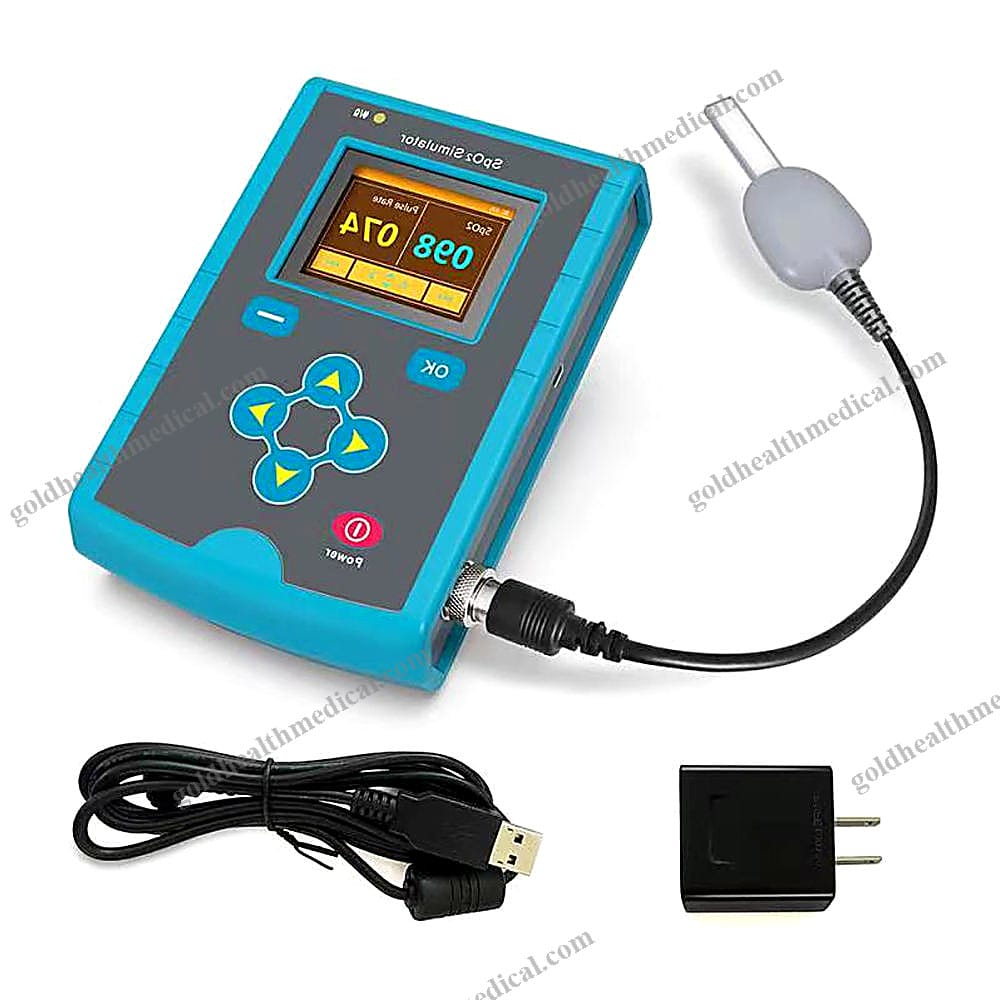

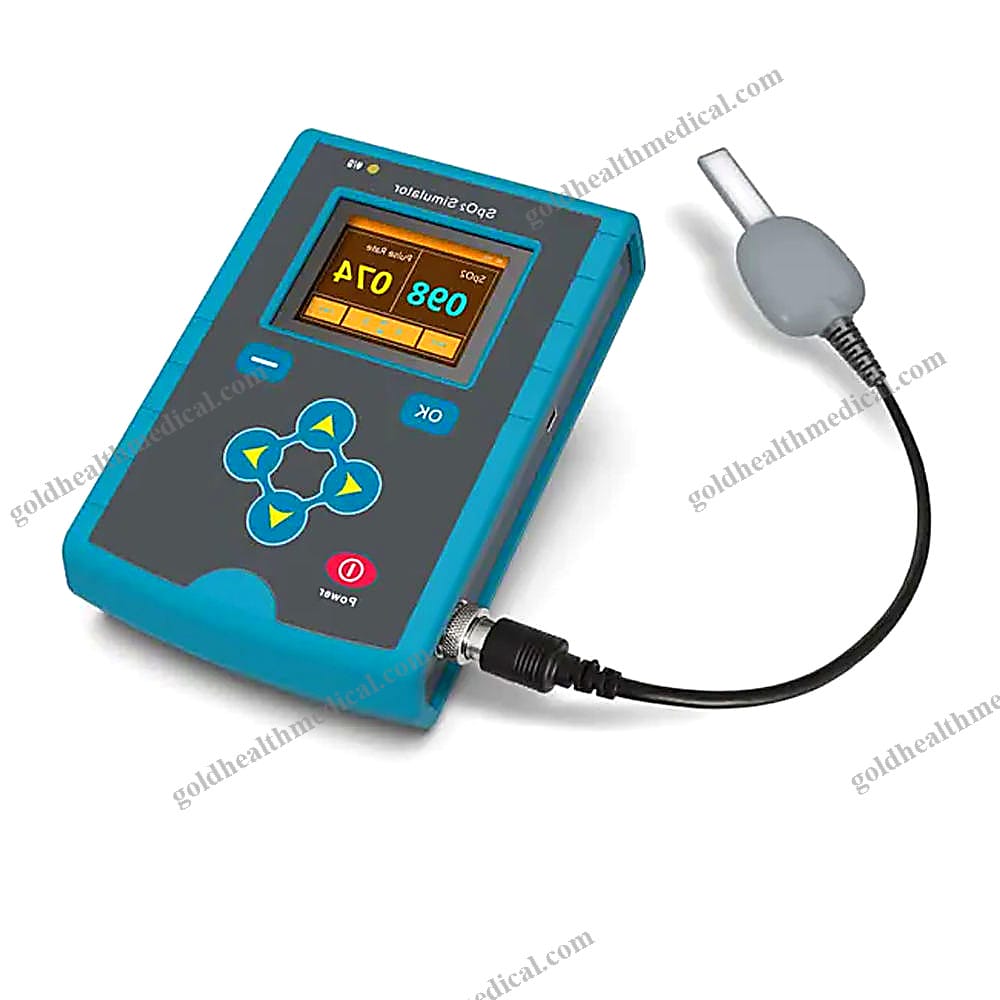

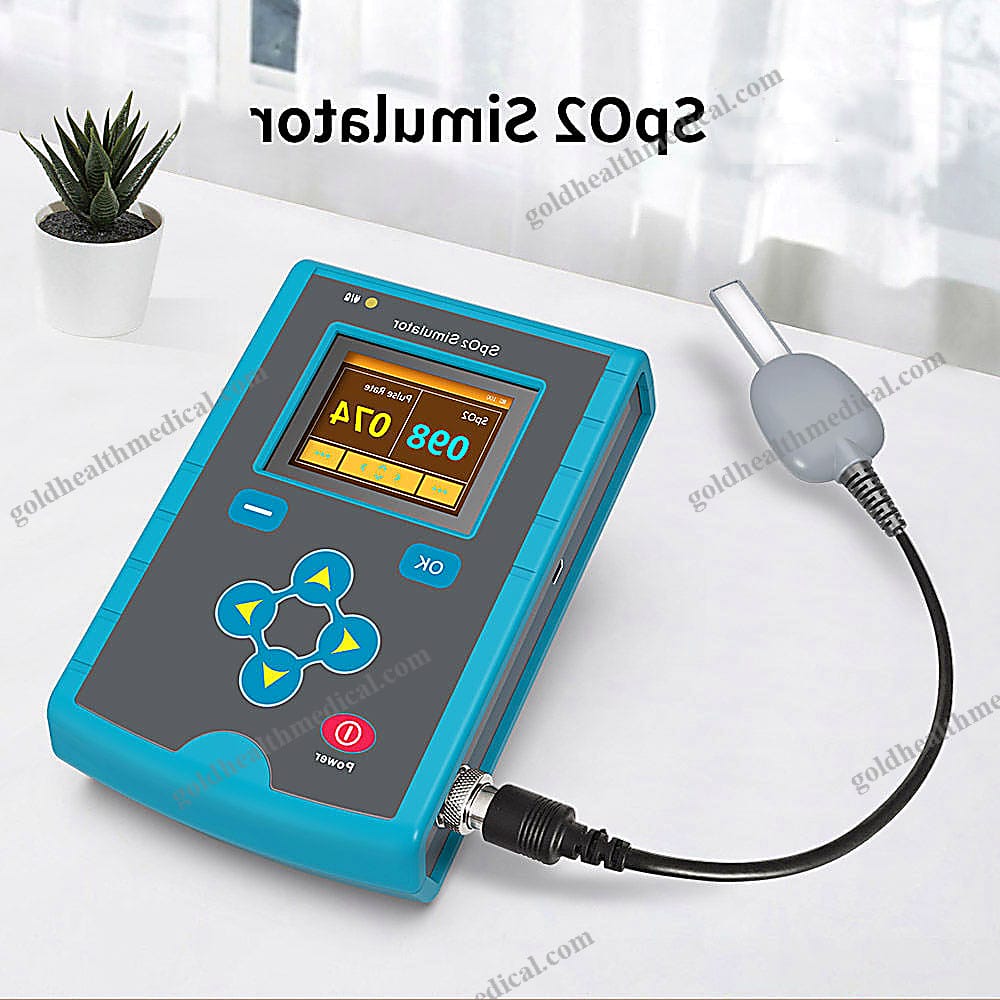

GoldHealth Medical SpO2 Simulator
Product Overview
The GoldHealth Medical SpO2 Simulator is a compact, lightweight, and highly versatile device designed to test and validate the accuracy of pulse oximeters. Engineered with precision, this simulator replicates real-world conditions to ensure reliable performance of oximeters under various scenarios. It incorporates multiple R-curves commonly used globally, making it adaptable to a wide range of devices.
Whether you're in a hospital, research lab, or home healthcare setting, this simulator offers unparalleled convenience and accuracy for testing pulse oximeters.
Key Features

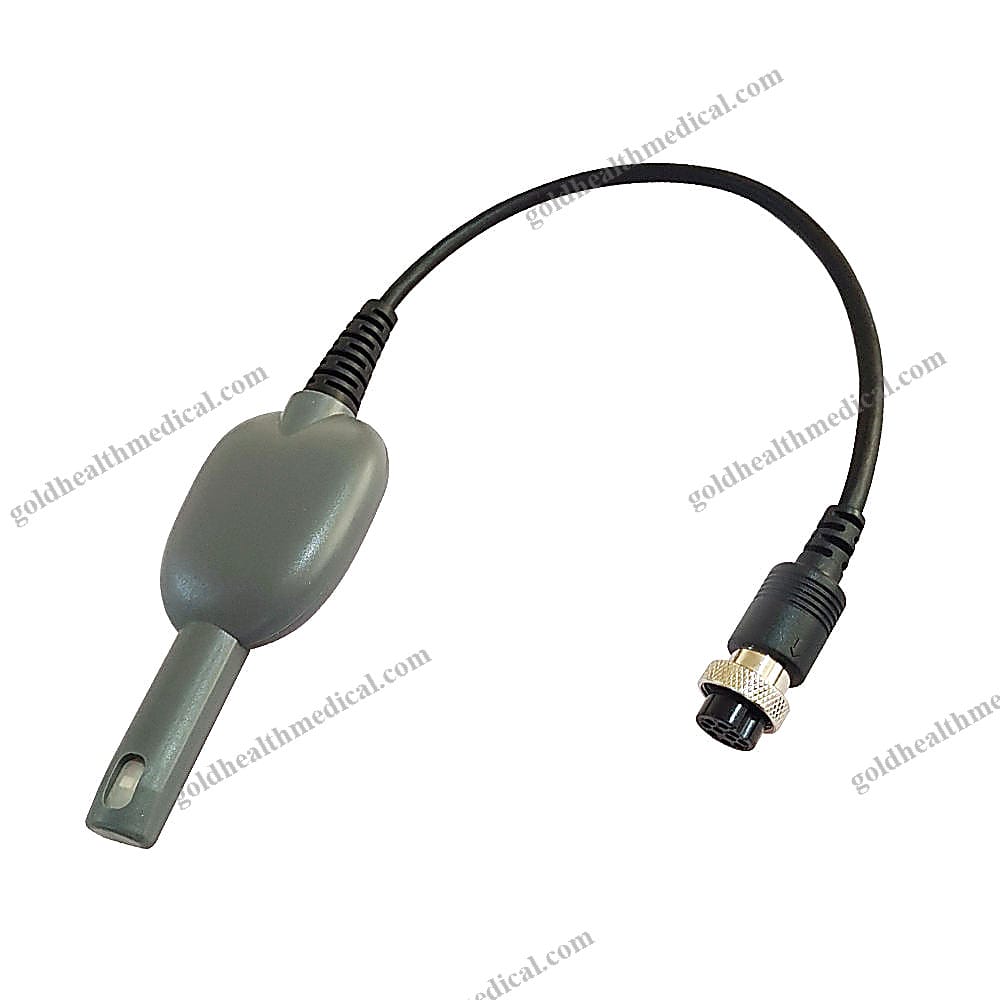

- Detachable Design: The simulator probe connects separately from the main unit, enabling effortless operation and testing.
- High-Resolution Display: Equipped with a 262K-color, 320x240 TFT screen and adjustable brightness for clear visibility in any environment.
- Intuitive Controls: Features film key-press technology for smooth and comfortable operation.
- Rechargeable Battery: Powered by a lithium-ion battery with real-time charge status display, ensuring uninterrupted performance.
- Customizable Audio: Adjustable key volume allows users to enable or disable sound based on preference.
Technical Specifications
Oxygen Saturation (SpO2)
- Measuring Range: 35% to 100%
- Resolution: 1%
- Accuracy:
- ±2% or ±P (whichever is larger) when SpO2 is between 75% and 100%.
- ±2% or ±P (whichever is larger) when SpO2 is between 50% and 74%.
- Undefined for SpO2 below 50%.
Pulse Rate
- Measuring Range: 25 bpm to 250 bpm
- Resolution: 5 bpm
- Accuracy: ±1% ±1 bpm
Amplitude
- Measuring Range: 0.000% to 20.000%
- Resolution:
- 1% for 1.000% to 20.000%
- 0.1% for 0.100% to 0.900%
- 0.025% for 0.000% to 0.075%
Patient State Simulation
- Presets: 24 patient conditions available, with 8 default conditions upon startup.
- Adjustability: Motion level settings allow customization of condition parameters.
Power Supply
- Voltage: DC 3.6V to 4.2V
- Battery: Single 3.7V rechargeable lithium battery
- Battery Life: Supports over 500 charge cycles
Functional Highlights
- Simulates oxygen saturation levels for comprehensive testing.
- Replicates pulse rates under varying conditions.
- Presets patient states to mimic real-life scenarios.
- Measures device reaction times for enhanced performance evaluation.
- Simulates SpO2 and pulse rate under different amplitudes.
- Tests device performance under diverse interference sources.
- Offers selectable R-curves for compatibility with various oximeters.
Why Choose GoldHealth Medical?
GoldHealth Medical’s SpO2 Simulator is engineered to meet the rigorous demands of modern healthcare. Its precision, adaptability, and user-friendly design make it an indispensable tool for ensuring the reliability of pulse oximeters. Whether you're conducting routine tests or advanced simulations, this device delivers consistent and accurate results every time.
Choose GoldHealth Medical for innovation, precision, and reliability in medical testing equipment.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Multiparameter Simulator by GoldHealth Medical
Overview:
The Multiparameter Simulator is a cutting-edge device designed for precision and reliability in the medical field. Engineered to meet the demands of modern healthcare, this simulator delivers exceptional accuracy and versatility for a wide range of diagnostic applications. Whether used in hospitals, clinics, laboratories, or home care settings, it ensures consistent performance and trusted results.
Key Features:
- Unmatched Accuracy: Provides precise readings with an accuracy range of 70%~100%, ±2%.
- Advanced Functionality: Equipped with ECG Recorder capabilities for comprehensive medical testing.
- Digital Display: Clear and intuitive digital interface for effortless operation and real-time monitoring.
- Durable Construction: Crafted from high-quality metal and plastic materials for long-lasting use.
- Plug-and-Play Convenience: Powered by an electric source with a plug-in power supply mode for seamless operation.
Technical Specifications:
- Instrument Classification: Class II medical device
- Safety Standard Compliance: EN 149-2001+A1-2009
- Quality Certifications: CE, ISO
- Application: Ideal for pathological analysis and medical testing in diverse healthcare environments
- Color: Professional brown finish
- Shelf Life: 1 year
Packaging Details:
- Single Package Size: 27.8 x 18 x 10.8 cm
- Single Gross Weight: 1.080 kg
After-Sale Support:
- Warranty: Comprehensive 12-month warranty for peace of mind
- Technical Assistance: Access to online technical support for prompt resolution of queries
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative, high-quality medical equipment that empowers healthcare professionals and enhances patient care. The Multiparameter Simulator exemplifies our dedication to precision, durability, and user-centric design, making it an indispensable tool for modern medical practices.
Applications:
- Hospitals and clinics
- Research institutions and laboratories
- Rehabilitation centers and nursing homes
- Home healthcare settings
Experience the next level of diagnostic excellence with the Multiparameter Simulator – where precision meets reliability.
