LTSP27 Neonate Emergency Monitor with ETCO2 Sensor
Reference: 1601290891253
Examination Therapy Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

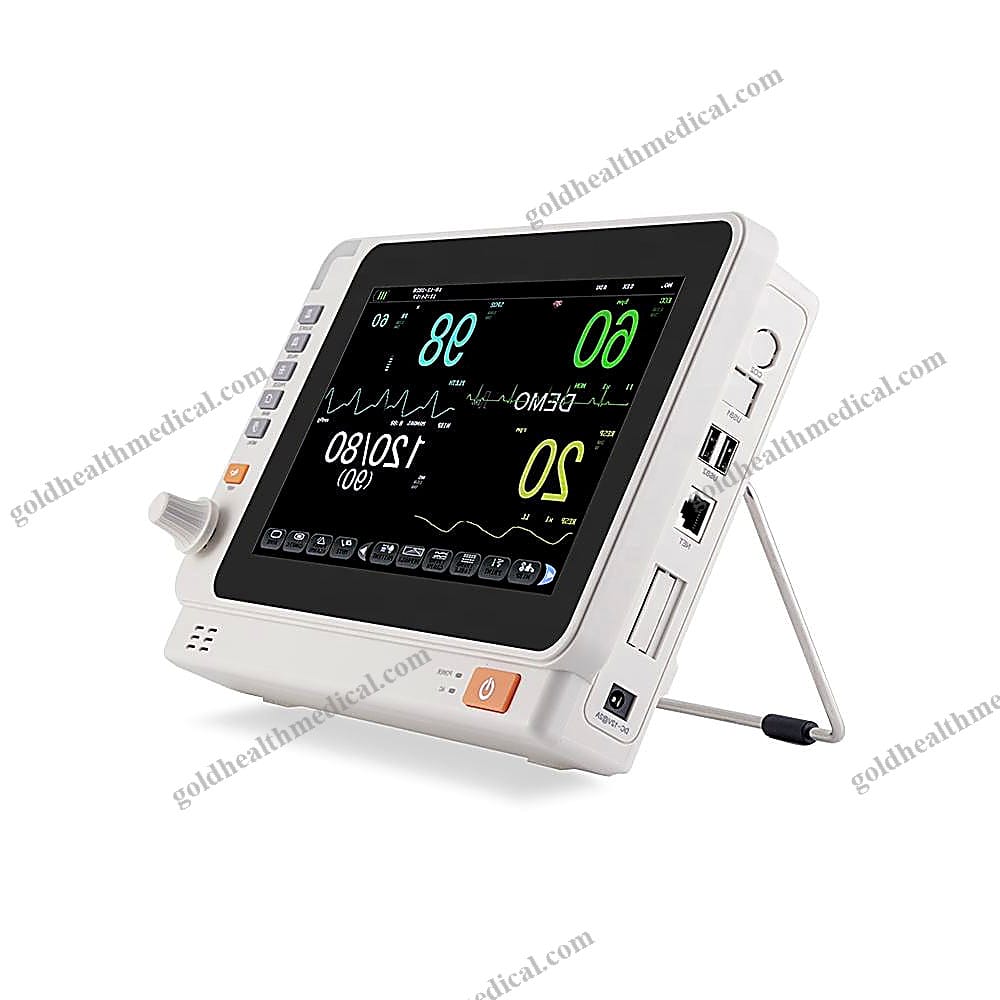

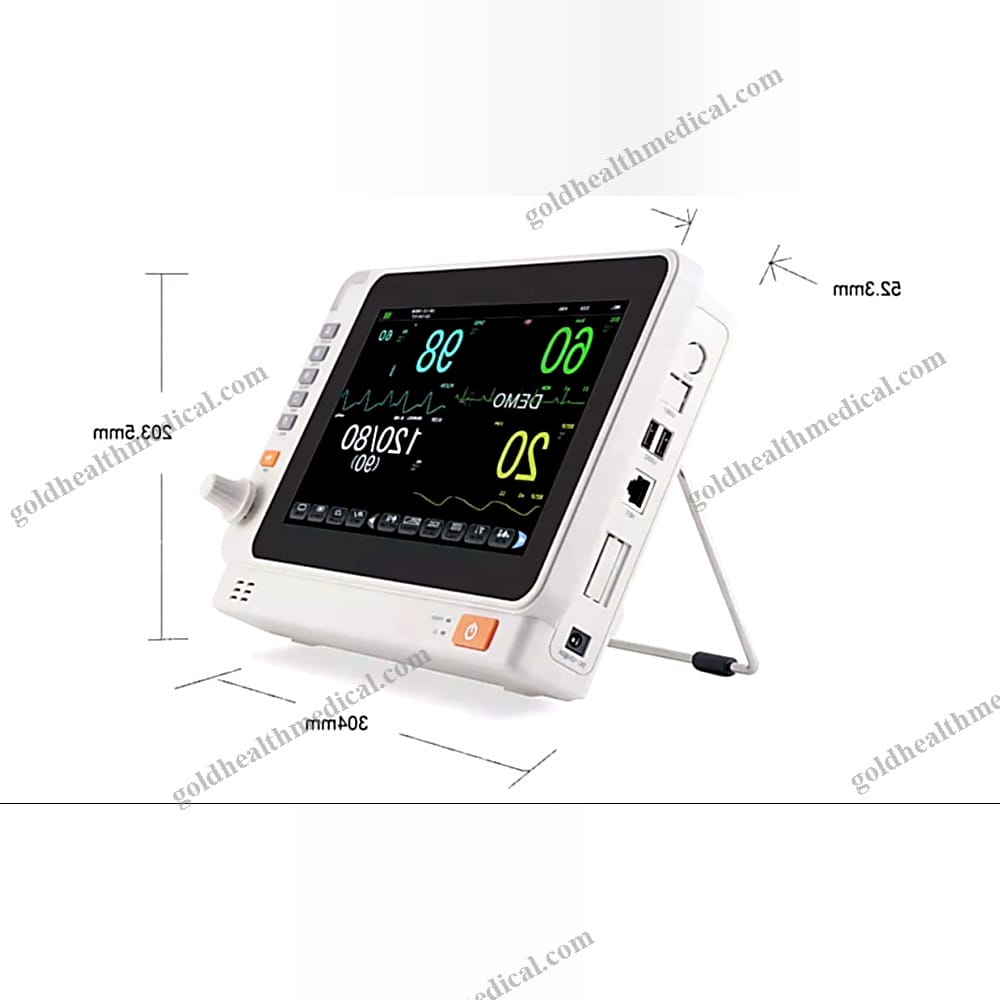

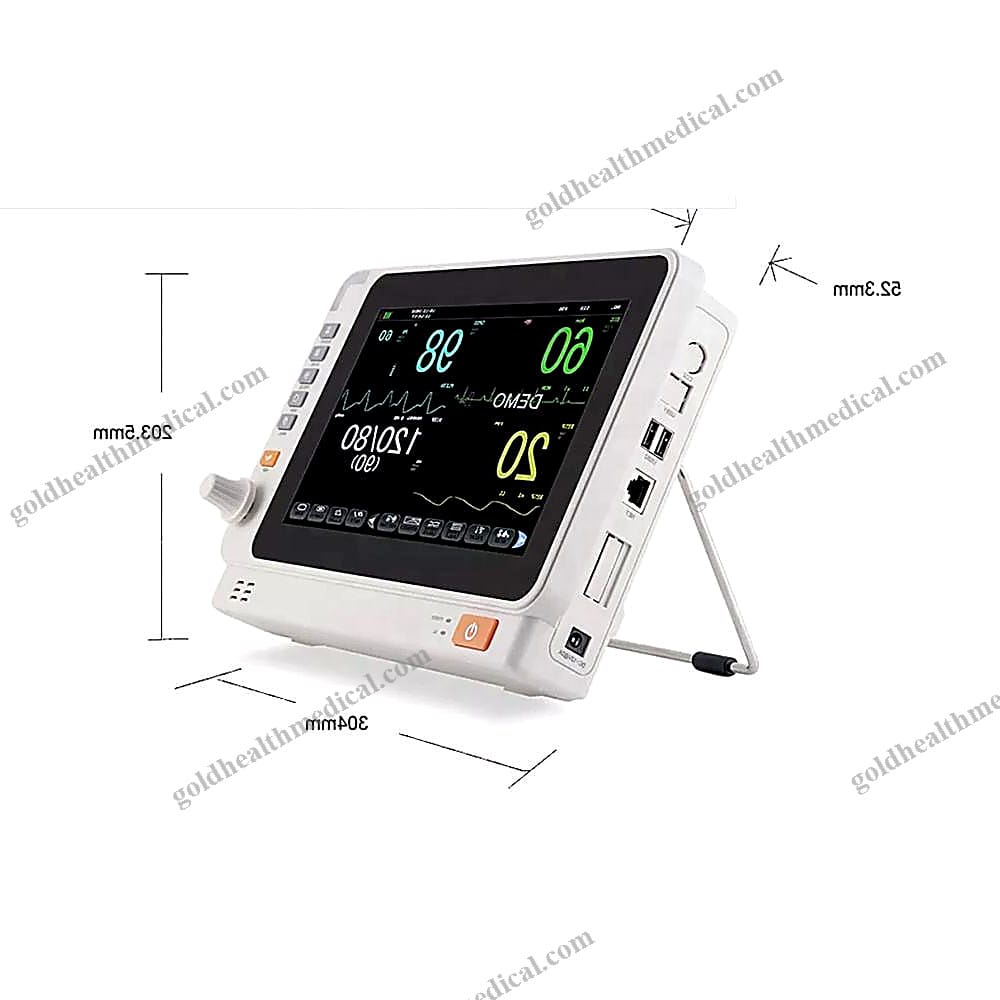

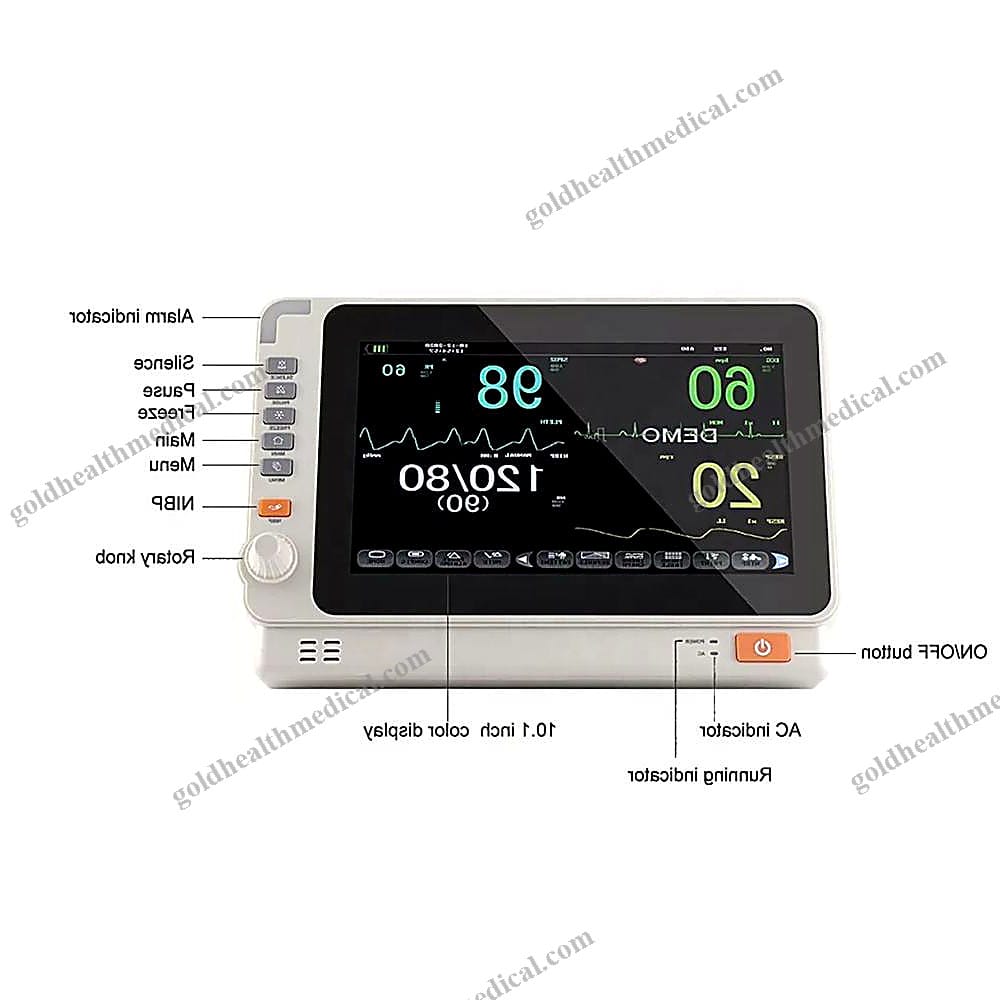

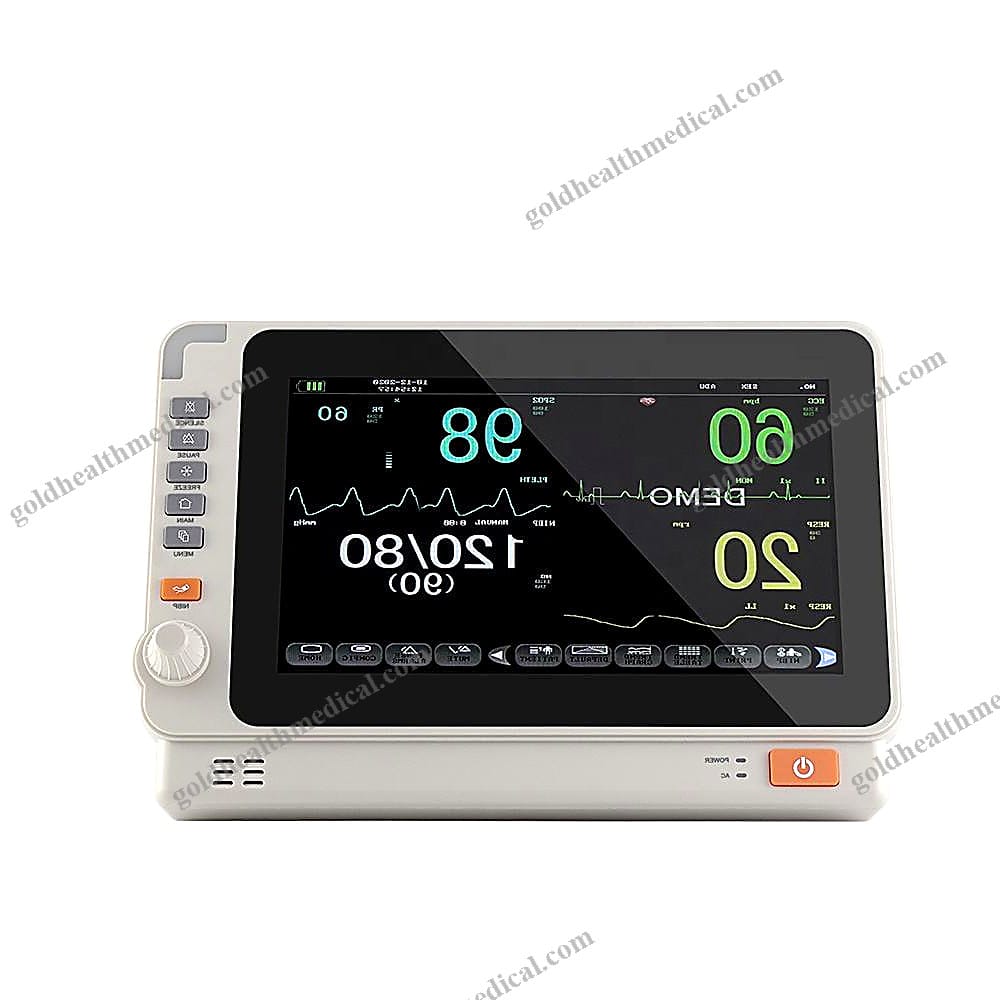

GoldHealth Medical Portable Emergency Patient Monitor
Product Overview
GoldHealth Medical presents a state-of-the-art portable patient monitor designed for emergency and transport scenarios. Featuring a 10.1-inch high-resolution color TFT display, this lightweight and portable device is ideal for ambulances, emergency transport, and various medical environments. The intuitive operating interface ensures ease of use, while multiple display modes cater to diverse applications.
Key Features
- Three Working Modes: Monitoring, Surgery, and Diagnosis.
- Multi-display Modes: Standard Interface, Large Font, ECG Full Display, OXY, Trend Table, BP Trend.
- Built-in Battery: High-capacity battery supports up to 2 hours of continuous operation.
Technical Specifications
ECG - Lead Mode: 5 Leads (I, II, III, AVR, AVL, AVF, V) - Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV - Heart Rate: - Adult: 15-300BPM - Neonatal: 15-350BPM - Resolution: 1 BPM - Accuracy: Β±1% - Sensitivity: >200ΞΌV P-P - ST Segment Range: -2.0mV~+2.0mV - Accuracy: -0.8mV~+0.8mV; Β±0.02mV or Β±10%, whichever is greater - Sweep Speed: 12.5mm/s, 25mm/s, 50mm/s - Bandwidth: - Surgery: 1~20Hz - Monitor: 0.5~40Hz - Diagnostic: 0.05~130Hz
SpO2 - Measuring Range: 0~100% - Resolution: 1% - Accuracy: 70%~100% (Β±2%) - Pulse Rate: 20-250BPM - Resolution: 1BPM - Accuracy: Β±3BPM
NIBP - Method: Oscillometry - Measure Modes: Manual, Auto, STAT - Units: mmHg, kPa - Measure and Alarm Range: - Adult Mode: - SYS: 40~280mmHg - DIA: 10~225mmHg - MEAN: 20~240mmHg - Pediatric Mode: - SYS: 40~220mmHg - DIA: 10~160mmHg - MEAN: 20~170mmHg - Neonatal Mode: - SYS: 40~135mmHg - DIA: 10~100mmHg - MEAN: 20~110mmHg - Resolution: 1mmHg - Accuracy: Β±5mmHg
TEMP - Measure and Alarm Range: 0~50ΒΊC - Resolution: 0.1ΒΊC - Accuracy: Β±1ΒΊC
RESP - Method: Impedance between RA-LL or RALA - Measurement Range: - Adult: 10~120BrPM - Neonatal/Pediatric: 7~150BrPM - Resolution: 1 BrPM - Accuracy: Β±2 BrPM
Standard Parameters
- ECG, RESP, TEMP, NIBP, SpO2, PR
Package Details
- Single Package Size: 34.720.727.7cm
- Single Gross Weight: 2.8 KG
- Carton Details: 6 units per carton
- Package Size: 6536.259cm
- Gross Weight: 18 KG
Included Items
- Main Unit: 1
- 5-lead ECG Cable: 1
- Disposable ECG Electrode: 5
- Adult SpO2 Probe: 1
- Adult NIBP Cuff: 1
- NIBP Extension Tube: 1
- Temperature Probe: 1
-
Power Cable: 1
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical Patient Monitor
A cutting-edge, lightweight, and portable patient monitoring solution designed for modern healthcare environments. Engineered to deliver precision, reliability, and versatility, this device is ideal for ambulances, emergency transport, surgeries, and diagnostic applications.
Key Features
- 10.1-inch High-Resolution Color TFT Display: Crystal-clear visuals for accurate monitoring of vital signs.
- Three Working Modes: Seamlessly switch between monitoring, surgery, and diagnostic modes to suit diverse clinical needs.
- Up to 2 Hours of Battery Life: Ensures uninterrupted performance during critical procedures and transport.
- Multi-Display Modes: Customizable views for enhanced usability and efficiency.
Standard Parameters
- ECG
- RESP (Respiration Rate)
- TEMP (Body Temperature)
- NIBP (Non-Invasive Blood Pressure)
- SPO2 (Oxygen Saturation)
- PR (Pulse Rate)
Product Specifications
- Instrument Classification: Class II medical device
- Power Source: Electric
- Shelf Life: 1 year
- Materials: Durable metal and high-quality plastic construction
- Lightweight and Portable Design: Optimized for mobility and ease of use in dynamic healthcare settings.
Certifications and Compliance
- Quality Certification: CE-certified for safety and performance
Packaging Details
- Single Package Size: 35 x 25 x 30 cm
- Single Gross Weight: 6.000 kg
Customization and Support
- OEM/ODM Services Available: Tailor the product to meet your specific requirements.
- After-Sale Service: Comprehensive online technical support to ensure seamless operation.
- Warranty: 1-year coverage for peace of mind.
Applications
- Ambulance and emergency transport
- Operating rooms and surgical procedures
- Diagnostic centers and clinics
- Long-term care facilities and home healthcare
GoldHealth Medicalβs Patient Monitor is the ultimate tool for healthcare professionals seeking precision, portability, and performance in patient monitoring. Elevate your practice with a device that combines advanced technology with user-centric design.
