LTSE23 Portable ECG Machine 7 Touch
Reference: 1600584977926
Emergency & Clinics Apparatuses
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

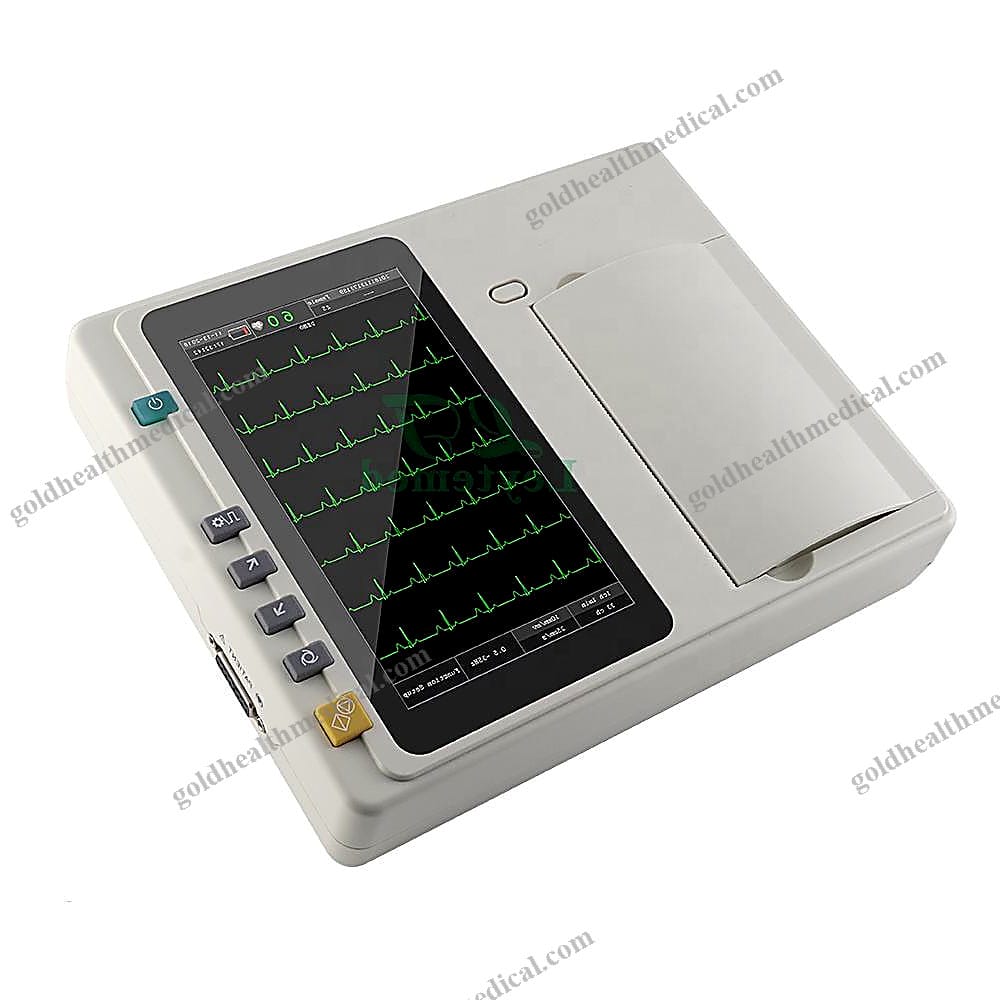

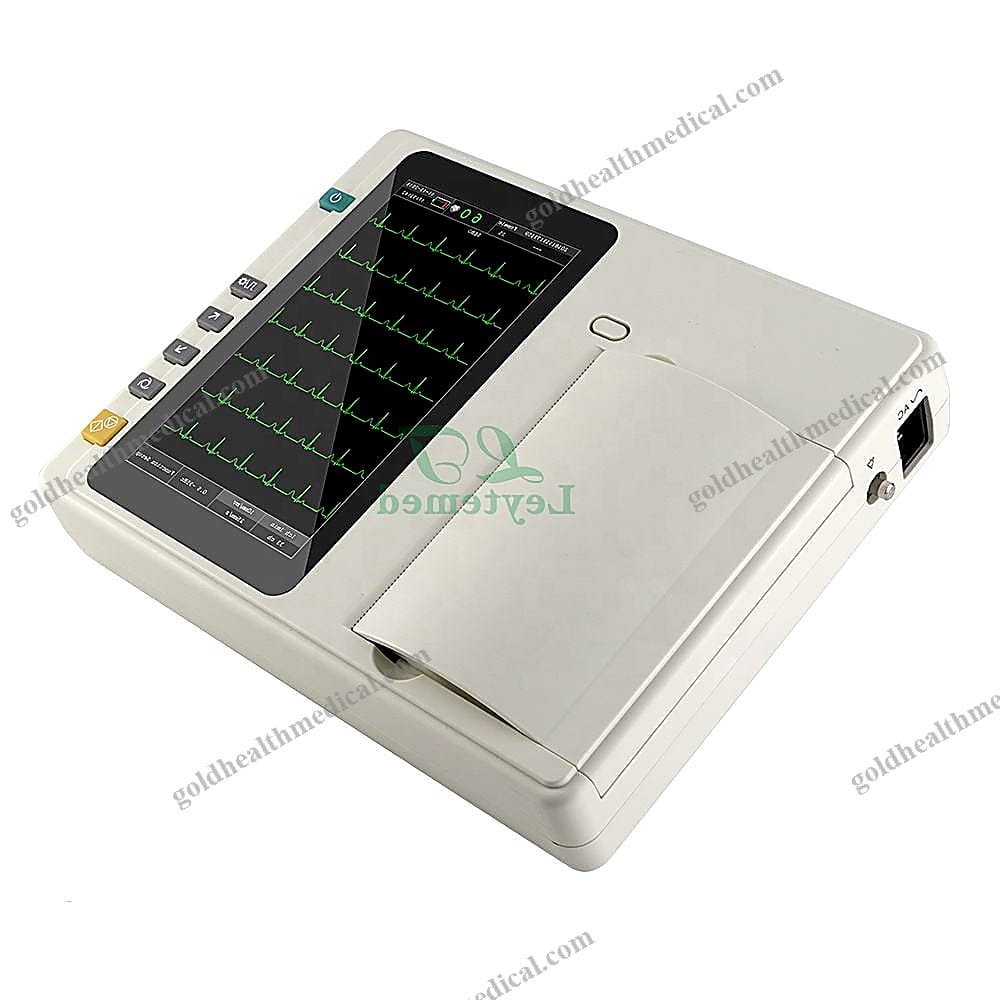

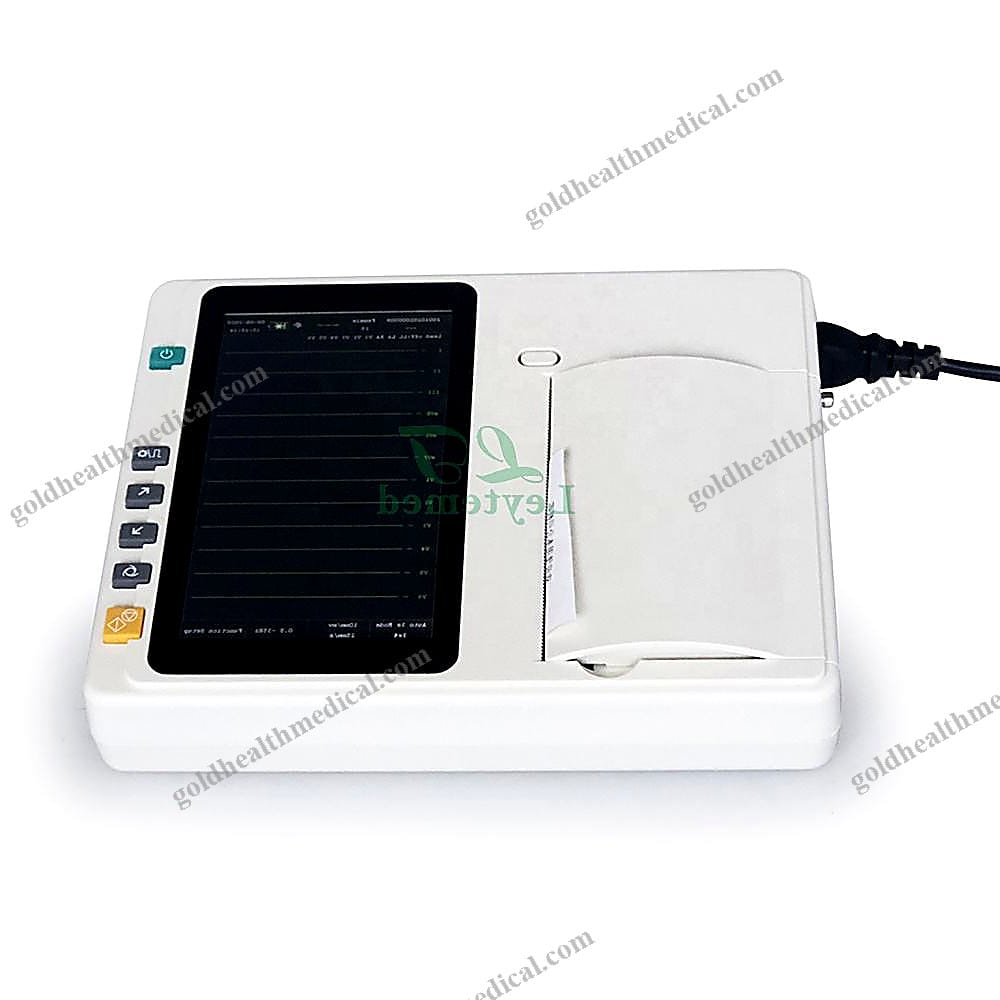

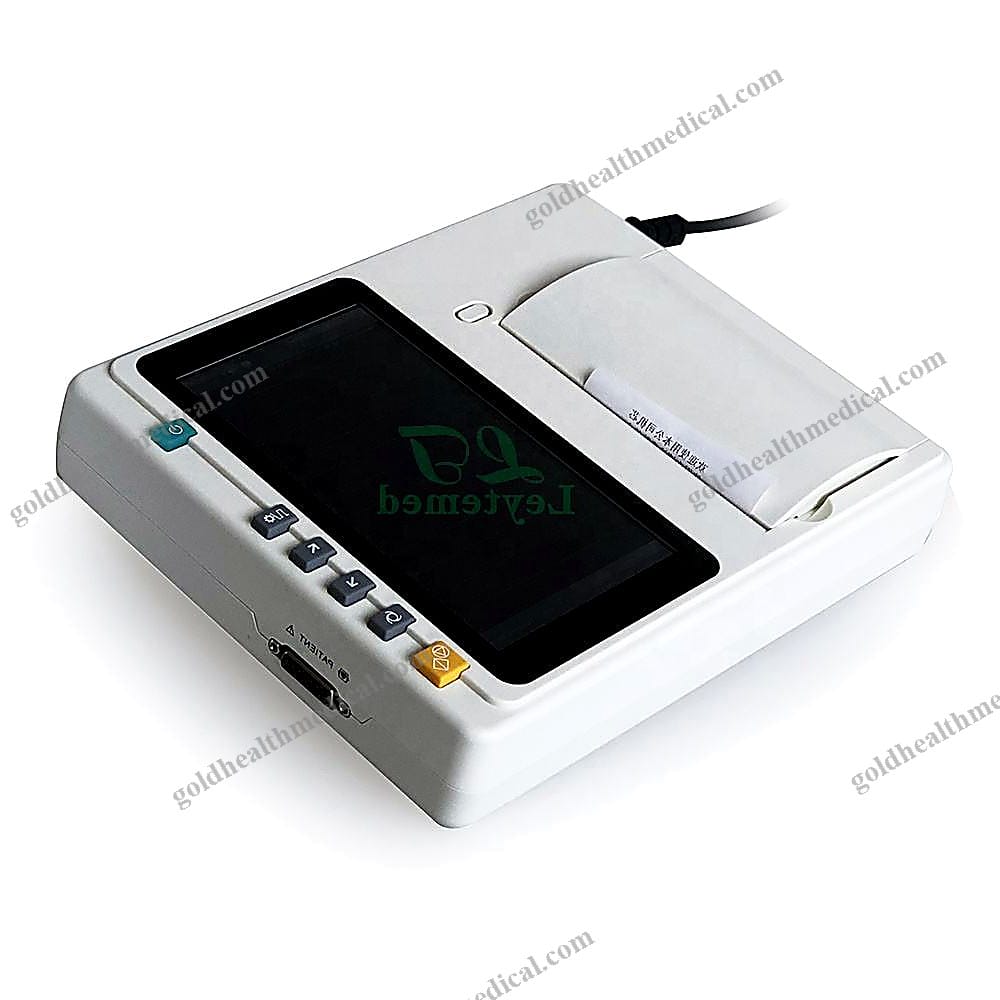

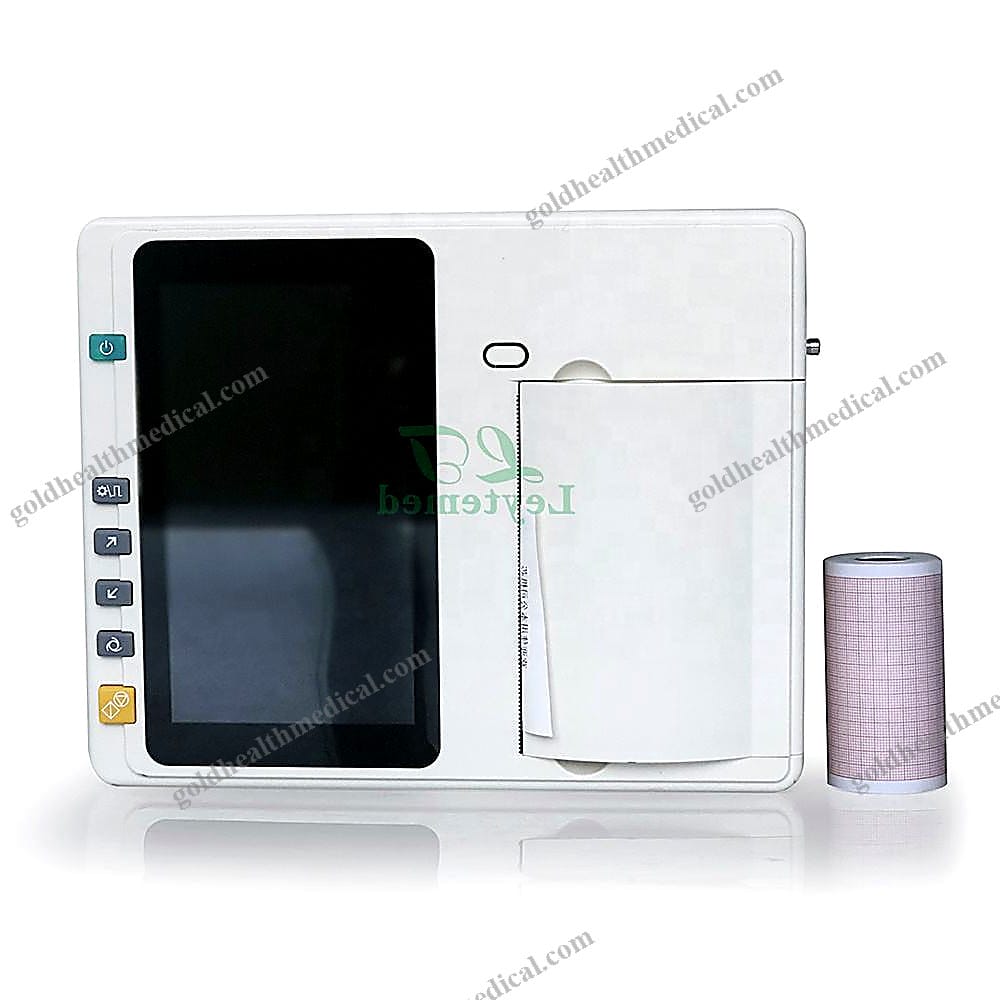

Revolutionary Portable ECG Machine by GoldHealth Medical
Experience the future of cardiac diagnostics with GoldHealth Medical’s state-of-the-art portable ECG machine. Designed for precision, portability, and ease of use, this device is tailored to meet the needs of modern healthcare environments.
Key Features:
- 7-inch High-Resolution Touch Screen: A vibrant, intuitive interface ensures effortless operation and crystal-clear visualization of ECG waveforms.
- 12-Lead Simultaneous Acquisition & Display: Capture and analyze all 12 leads at once for comprehensive and accurate cardiac assessments.
- Advanced ECG Analysis: Equipped with automatic measurement, interpretation, and complete digital filtering to resist baseline drift, AC, and EMG interference.
- Compact & Lightweight Design: Engineered for portability without compromising performance, making it ideal for diverse clinical settings.
- Expandable Memory: Supports USB flash drives and micro memory cards to store extensive patient data.
- Seamless Software Upgrades: Effortlessly update the system via USB or memory card to ensure you always have the latest features.
- Long-Lasting Battery: Built-in rechargeable Li-ion battery for uninterrupted use during critical procedures.
Technical Specifications:
- Display: 7-inch high-resolution touch screen.
- Leads: Standard 12 leads with synchronous acquisition.
- Input Circuit: Floating design with defibrillator protection.
- Input Impedance: ≥50MΩ.
- Input Circuit Current: ≤0.05μA.
- Recording Modes:
- Automatic: 3CH×4+1R, 3CH×4, 3CHx2+2CHx3, 3CHx2+2CHx3+1R, 6CHX2.
- Manual: 3CH, 2CH, 3CH+1R, 2CH+1R.
- Rhythm: Any lead selectable.
- Filters:
- EMG Filter: 25 Hz / 30 Hz / 40Hz / 75 Hz / 100 Hz / 150Hz.
- DFT Filter: 0.05 Hz / 0.15 Hz.
- AC Filter: 50 Hz / 60Hz.
- CMRR: >100dB.
- Patient Current Leakage: <10μA.
- Frequency Response: 0.05Hz~150Hz (-3dB).
- Sensitivity: 2.5mm/mV, 5mm/mV, 10mm/mV, 20mm/mV.
- Anti-Baseline Drift: Automatic adjustment.
- Time Constant: ≥3.2s.
- Noise Level: <15μVp-p.
- Paper Speed: 12.5 mm/s, 25 mm/s, 50 mm/s.
- Recording System: Thermal printing with 80mm x 20m paper roll.
What’s Included:
- Patient cable (1 set).
- Limb electrodes (4 sets).
- Chest electrodes (6 sets).
- Grounding cable (1 set).
- Paper axis (1 set).
- Thermal paper (1 set).
- Fuse (2 sets).
- 3-cord power cord (1 set).
- AC adaptor (1 set).
GoldHealth Medical’s portable ECG machine is designed to empower healthcare professionals with unparalleled accuracy, reliability, and convenience. Elevate your diagnostic capabilities with a device that combines cutting-edge technology with user-centric design.
Your satisfaction is our priority. Explore the future of cardiac care today.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Portable ECG Machine with Advanced Analyzer
Brand Name: GoldHealth Medical
Product Highlights
- Precision Redefined: Equipped with a standard 12-lead system and 3-channel output, this portable ECG machine delivers accurate and reliable cardiac diagnostics for daily checks in hospitals, clinics, and home care settings.
- Intuitive Interface: A vibrant 7-inch color touch screen ensures effortless operation, while the anti-baseline drift feature guarantees stable and clear readings.

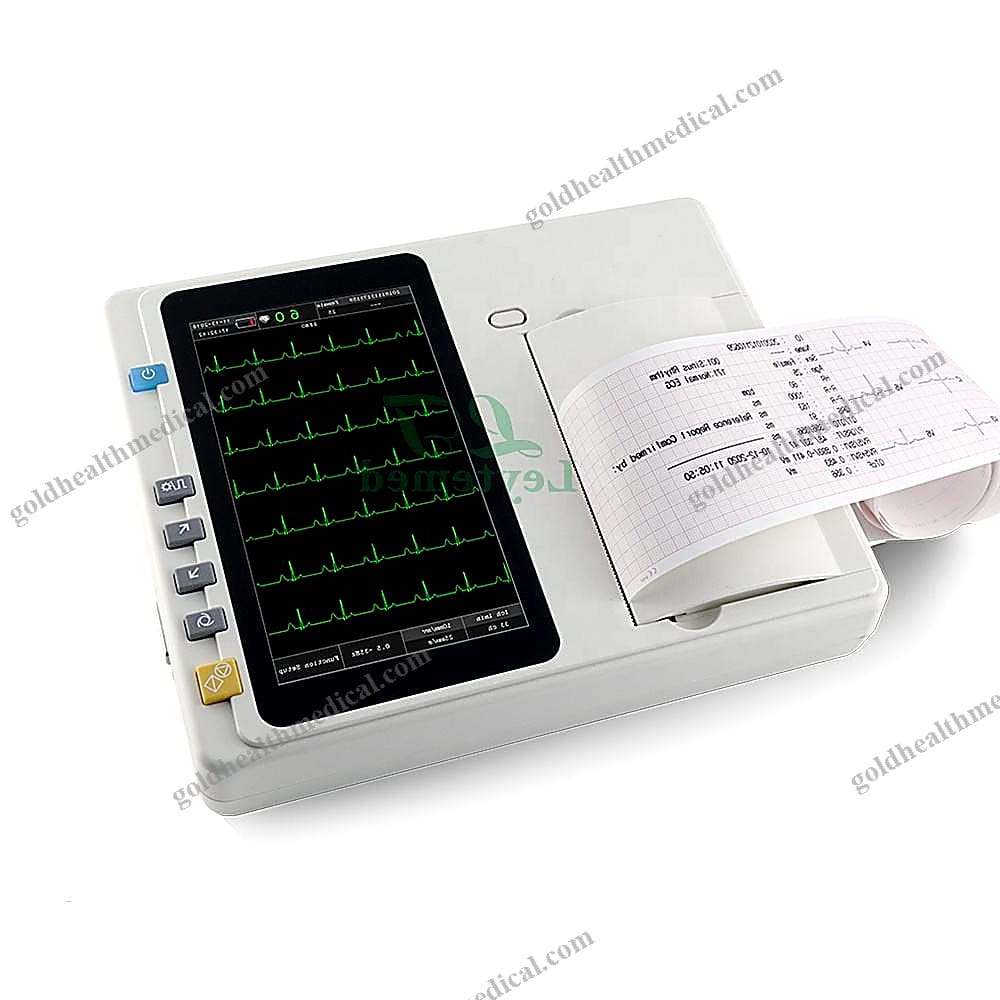

- Efficient Thermal Printing: The built-in thermal printing system provides high-quality ECG reports with adjustable sensitivity settings (2.5mm/mV, 5mm/mV, 10mm/mV, 20mm/mV) for tailored diagnostics.
Technical Specifications
- Instrument Classification: Class II medical device
- Power Source: Electric
- Shelf Life: 3 years
- Recording Mode: Thermal printing system
- Sensitivity Options: 2.5mm/mV, 5mm/mV, 10mm/mV, 20mm/mV
- Anti-baseline Drift: Automatic adjustment for enhanced accuracy
- Display: 7-inch color touch screen
- Material: Durable, medical-grade components
Packaging Details
- Single Package Size: 32 x 25 x 17 cm
- Single Gross Weight: 3.000 kg
Quality Assurance
- Certification: CE-approved for safety and reliability
- Warranty: 1-year comprehensive warranty
- After-Sale Service: Dedicated online technical support to ensure seamless performance
Applications
- Designed for versatile use in hospitals, clinics, research labs, rehabilitation centers, and home healthcare environments.
Why Choose GoldHealth Medical?
GoldHealth Medical combines cutting-edge technology with user-centric design to deliver medical devices that empower healthcare professionals and improve patient outcomes. Our portable ECG machine is engineered for precision, portability, and ease of use, making it an indispensable tool for modern cardiac care.
Minimum Order Quantity (MOQ): 1 Unit
