LHBDDF HighRes Handheld Laryngoscope
Reference: 1600074825174
Medical Optical Instruments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

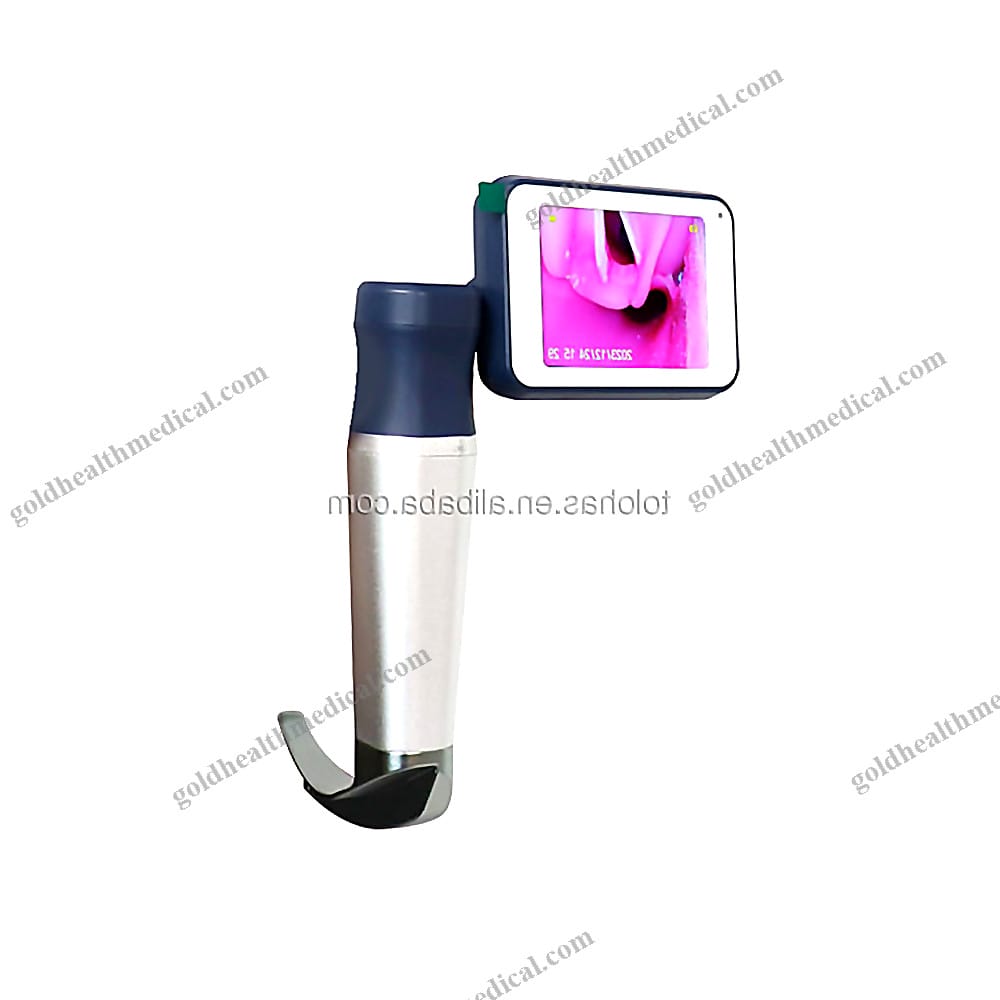

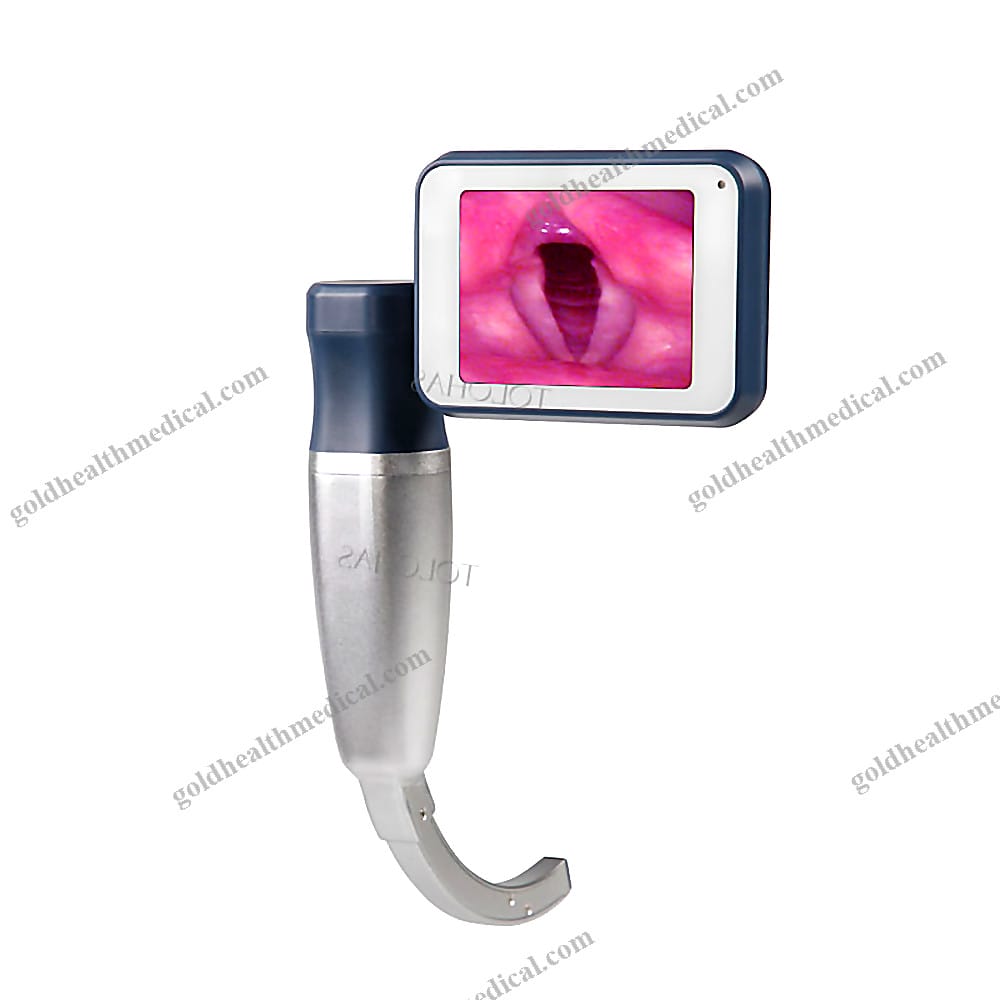

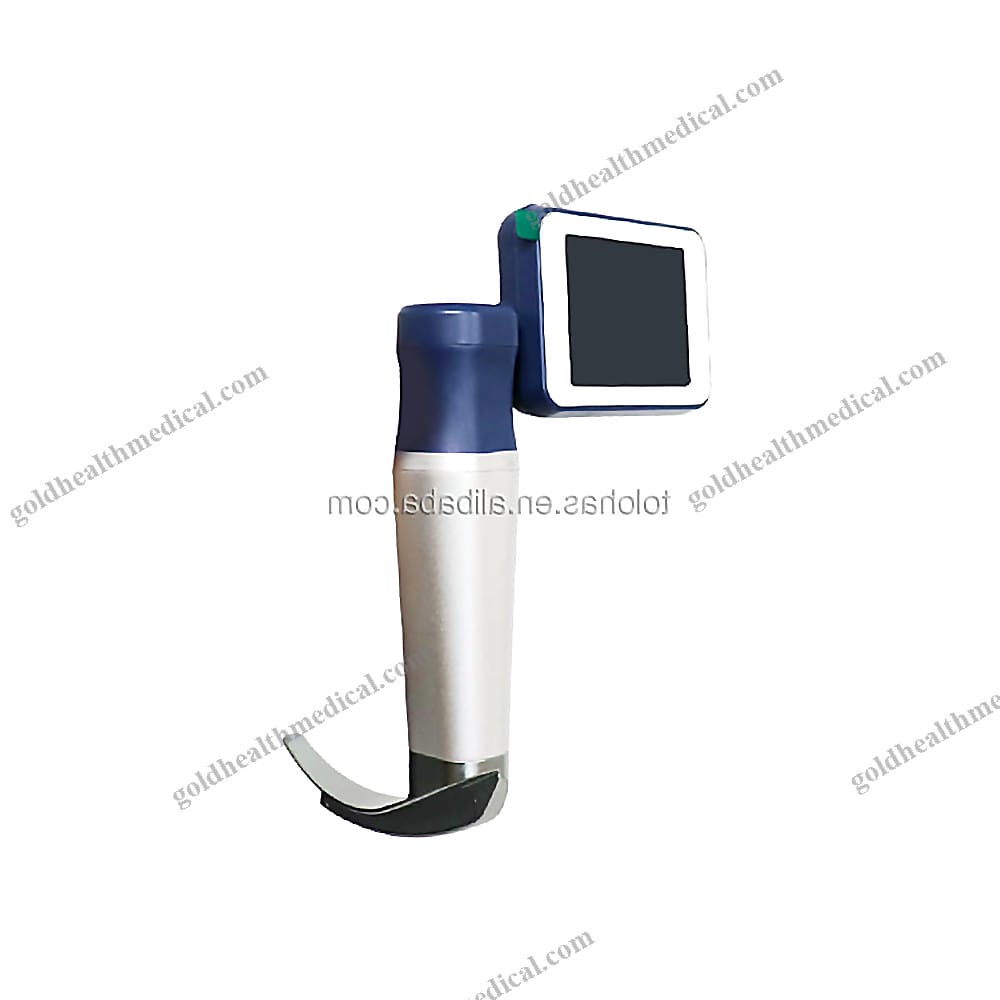

GoldHealth Medical High Resolution Handheld Video Laryngoscope
Experience the future of airway management with GoldHealth Medical's High Resolution Handheld Video Laryngoscope. Designed for both adult and pediatric use, this portable device redefines precision and ease in medical procedures.

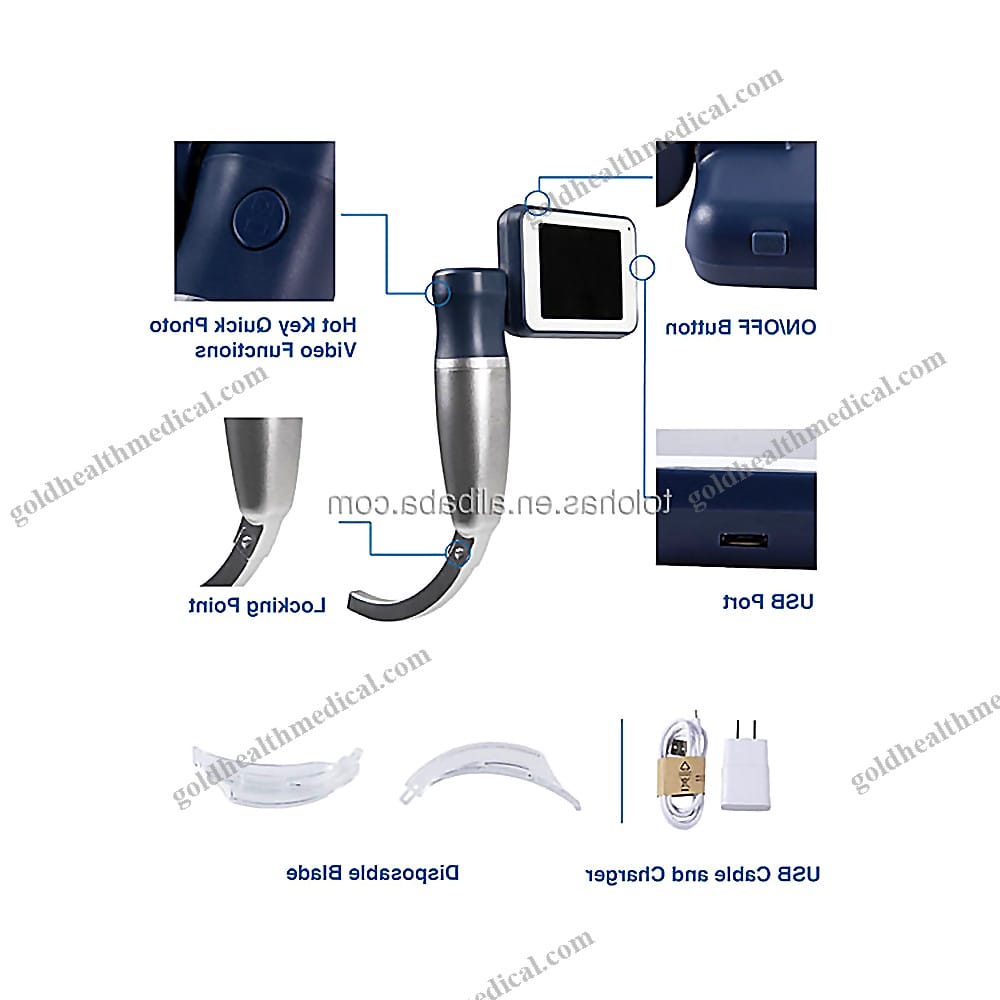

Key Features
- Advanced Anti-Fog Coating: Ensures crystal-clear visuals by preventing fog on the distal lens.
- Integrated Video/Photo Functionality: Capture critical moments with a single button press.
- Rechargeable Battery: Reliable power for uninterrupted performance.
- 360° All-Sight LCD Display: Eliminates blind spots for comprehensive visualization.
- Intuitive One-Button Operation: Simplifies complex procedures with fast and straightforward controls.
Applications
- Routine and difficult tracheal intubation
- Essential tool for Anesthesiologists, ICU/NICU/CCU, Operating Rooms, Emergency, Rescue, Ambulances, and ENT specialists
- Ideal for clinical training and teaching of tracheal intubation techniques
Product Specifications
- Display: 3.0" LCD
- Field of View: ≥60º
- Battery Recharge Cycles: Over 300 times
- Resolution: 1280*720p
- Power Consumption: Less than 2W
- Illumination: ≥150 LUX
- Monitor Rotation: 0º to 130º
- Weight: 220g
- Image/Video Output: USB
- Memory: Micro SD card (8GB)
- Charger Specifications:
- Input: 110V~220V, 50Hz
- Output: 4.2V, 500mA
- Charging Time: Less than 4 hours
- Operating Environment:
- Temperature: -5℃ to +50℃
- Humidity: 10% to 90%
- Atmospheric Pressure: 860 to 1060hpa
- Storage Conditions:
- Temperature: -40℃ to +50℃
- Humidity: ≤93%
- Atmospheric Pressure: 500 to 1060hpa

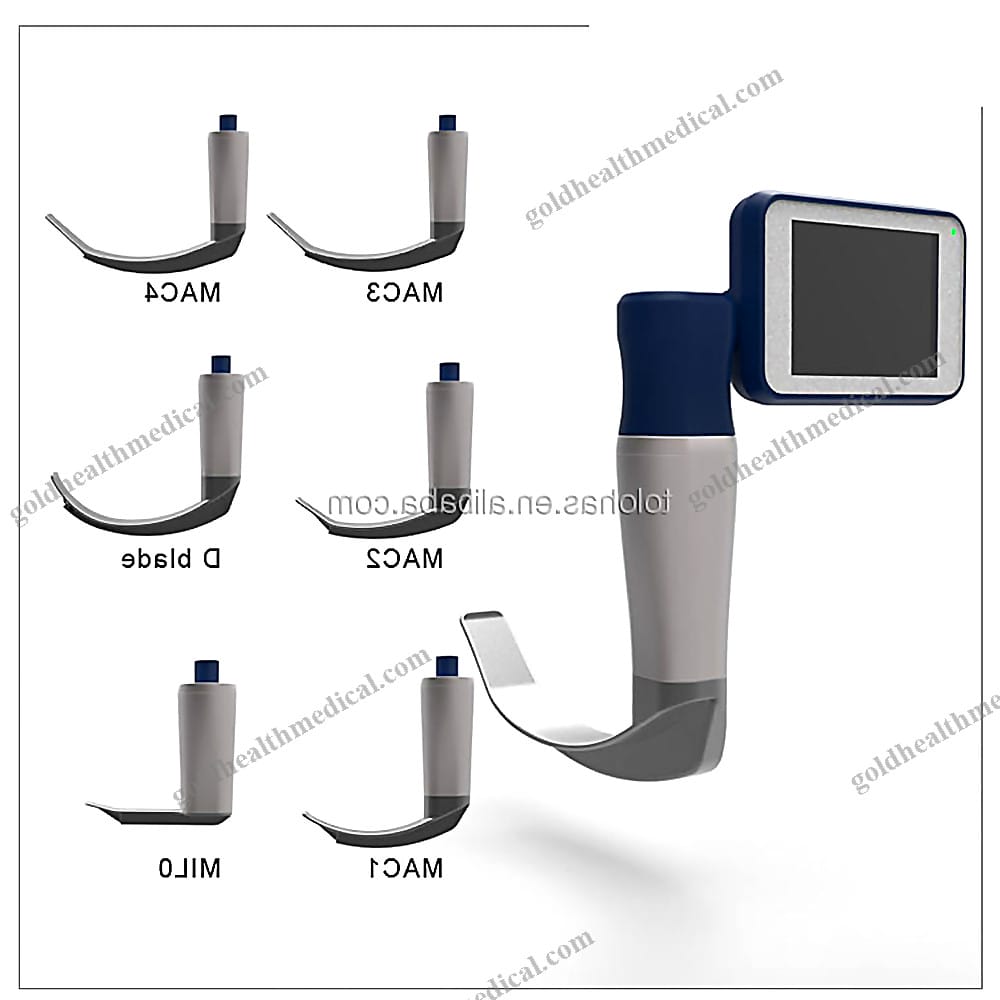

Blade Specifications
- Blade Types: Mil0, Mac1, Mac2, Mac3, Mac4, D-blade
- Patient Groups: Neonate, Pediatric, Small Adult, Adult, Large Adult, Difficult Airway
- Tracheal Tube ID (mm):
- Neonate: 2.5-4.0
- Pediatric: 4.0-6.0
- Small Adult: 5.0-6.0
- Adult: 6.0-9.0
- Large Adult/Difficult Airway: 7.5-10.0
- Length (cm):
- Neonate: 8.2
- Pediatric: 10.45
- Small Adult: 12.11
- Adult: 14.25
- Large Adult: 16.08
- Difficult Airway: 13.27
- Sterilization Methods:
- Soaking in 2% glutaraldehyde or 0.5%-0.6% Cidex OPA for 10 minutes
- Hydrogen peroxide low-temperature plasma disinfection
GoldHealth Medical's Video Laryngoscope stands out with its robust design, versatile functionality, and user-centric features, making it an indispensable tool for modern medical professionals.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical presents the Flexible Laryngoscope – a cutting-edge solution designed for precision and reliability in ENT applications.
- Application: Specifically engineered for ENT (Ear, Nose, and Throat) procedures, offering unparalleled clarity and control.
- Vision and Illumination:
- Angle of Vision: ≥60° for comprehensive field coverage.
- Illuminance: ≥150 LUX, ensuring optimal visibility in all conditions.
- Display: Equipped with a 3-inch LCD screen, delivering sharp 1280*720p resolution for detailed imaging.
- Power and Battery:
- Powered by a robust 2W electric system with a long-lasting built-in battery.
- Supports over 300 charging cycles, ensuring extended usability.
- Design and Build:
- Crafted from high-quality metal and durable plastic for maximum reliability.
- Lightweight and ergonomic design for ease of use during extended procedures.
- Technical Specifications:
- Instrument Classification: Class II medical device, meeting stringent safety and performance standards.
- Quality Certification: CE-certified, guaranteeing compliance with international healthcare regulations.
- Color: A professional and modern blue finish.
- Shelf Life: 1 year, ensuring consistent performance over time.
- Warranty and Support: Backed by a 1-year warranty and access to online technical support for seamless after-sales service.
- Place of Origin: Proudly manufactured in Guangdong, China, with a commitment to excellence in every unit.
Flexible Laryngoscope – Empowering medical professionals with advanced technology and precision for superior patient care.
