Lexison ECGR3312G 12Lead
Reference: 60269091957
Examination Therapy Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Revolutionizing Cardiac Care with Advanced ECG Technology
Product Overview

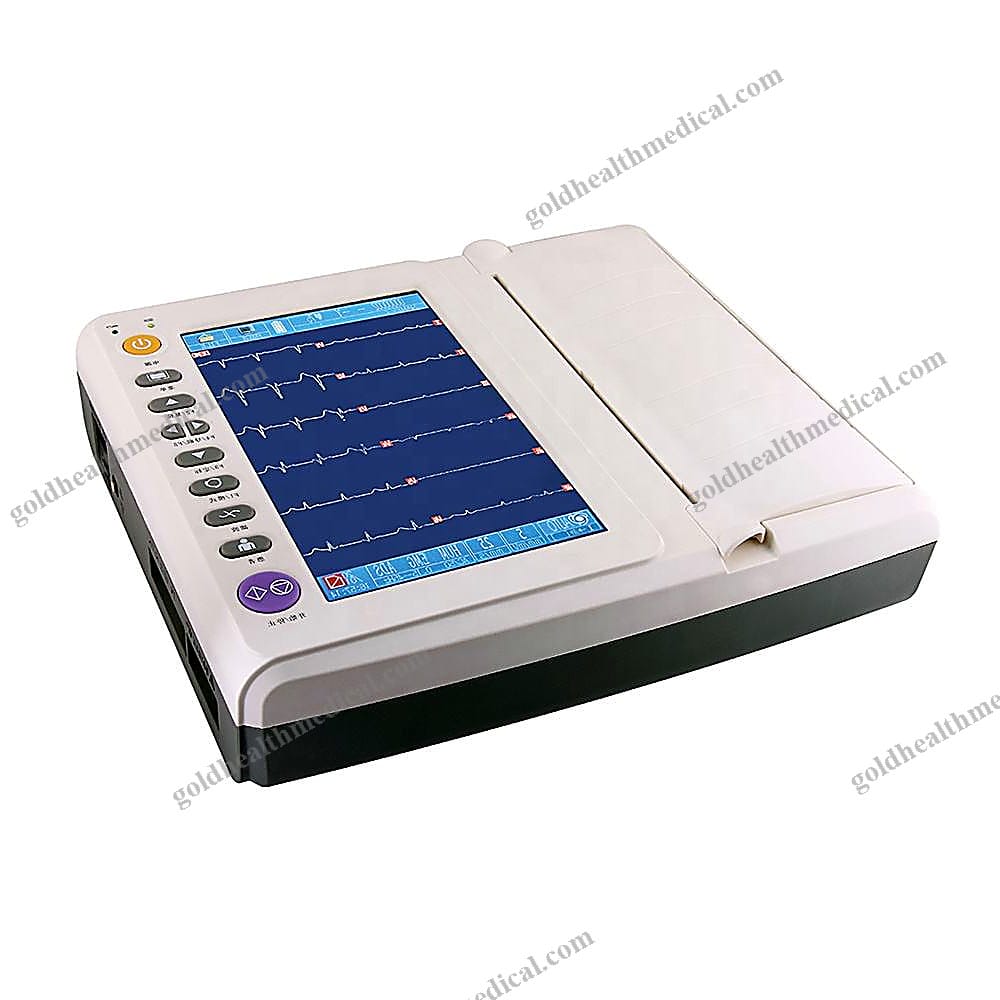

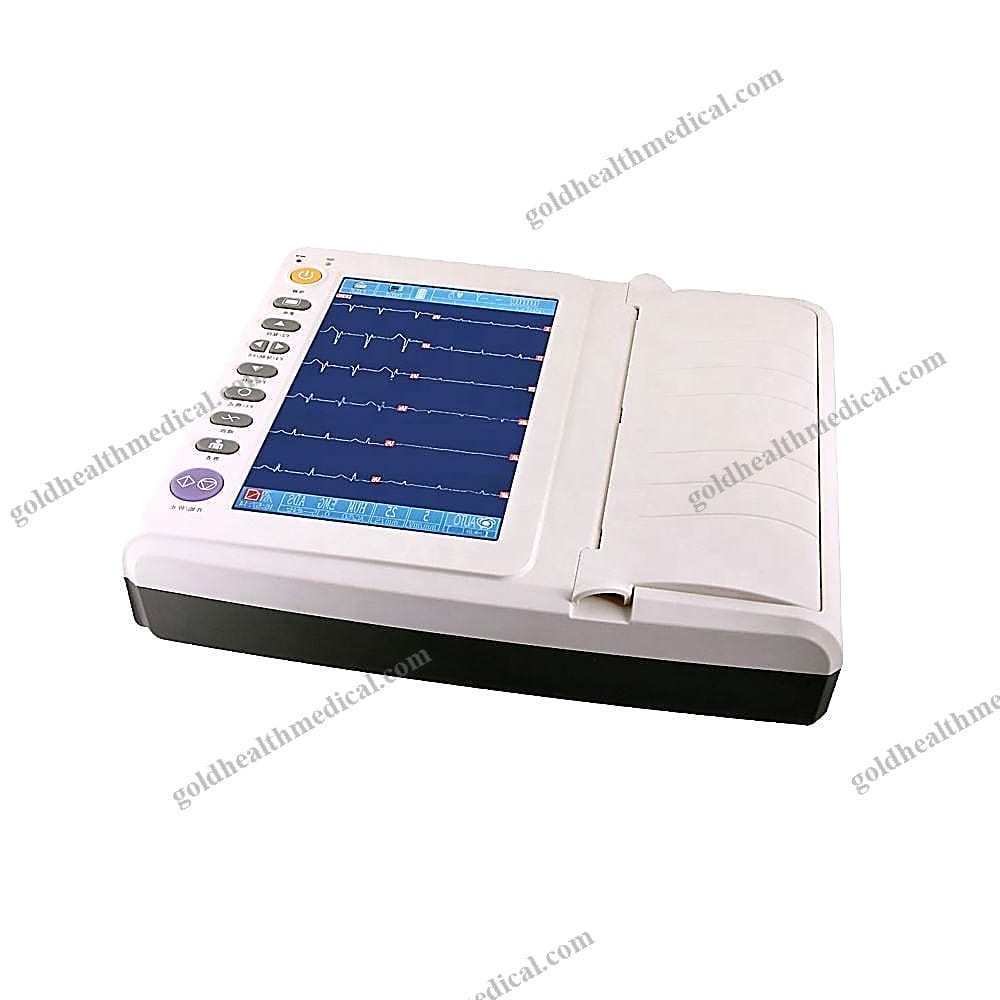

GoldHealth Medical presents a cutting-edge 12-lead, 12-channel portable electrocardiograph (ECG) machine designed for precision, portability, and ease of use. This state-of-the-art device combines advanced engineering with an intuitive interface, making it the ideal choice for healthcare professionals in hospitals, clinics, research labs, and even home care environments.
Key Features
- Sleek and Portable Design: Compact and lightweight, featuring a 10-inch high-resolution color touch screen with an 800×480 display for simultaneous ECG visualization.
- Advanced Signal Processing: Equipped with a high-accuracy digital filter and automatic baseline adjustment for unparalleled signal clarity.
- Comprehensive Analysis Modes: Supports manual, automatic, and arrhythmia analysis modes, ensuring versatility in diagnostic applications.
- Superior Recording Capabilities: Delivers 12-channel format recordings on 215mm paper with exceptional automatic interpretation.
- Extended Storage: Stores up to 250 patient cases, with optional SD card expansion for additional capacity.
- Robust Power Options: Operates on a built-in rechargeable lithium-ion battery, providing up to 4 hours of continuous use, and adapts to a wide range of power supplies (110–230V, 50/60Hz).
- Seamless Connectivity: Includes USB and RS232 ports for data transfer, external printing, and optional PC-based ECG software integration.
Technical Specifications
- Leads: Standard 12 leads with synchronous acquisition at 12-bit/1000Hz.
- Filters:
- AC Filter: 50Hz/60Hz.
- EMG Filter: 25Hz/45Hz.
- Anti-Drift Filter: 0.15Hz (adaptive).
- Common Mode Rejection Ratio (CMRR): ≥ 120dB with AC filter.
- Input Circuit: Floating design with defibrillator protection.
- Input Impedance: ≥ 50MΩ.
- Patient Safety: Leakage current < 10μA.
- Calibration Voltage: 1mV ± 2%.
- Frequency Response: 0.05Hz to 160Hz (-3dB).
- Noise Level: < 15μVp-p.
- Sensitivity Settings: Auto, 2.5, 5, 10, 20, 40mm/mV (±3%).
- Recording Modes: 3-channel, 6-channel, and 12-channel formats.
- Paper Speeds: 6.25, 12.5, 25, 50mm/s (±3%).
- Environmental Tolerance: Operates in temperatures of 5–40°C and humidity levels of 25–95%.
- Dimensions and Weight: Compact at 347mm x 293mm x 83mm and lightweight at 5.8kg.
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative, high-quality medical devices that empower healthcare providers to deliver exceptional patient care. Our products are engineered with precision and designed to meet the rigorous demands of modern medical environments.
Unique Selling Points
- Unmatched Accuracy: Advanced digital filtering and adaptive baseline adjustment ensure precise ECG readings.
- User-Centric Design: Intuitive touch screen interface and portable form factor make operation effortless.
- Reliability and Durability: Built to withstand demanding clinical environments while maintaining consistent performance.
- Comprehensive Support: Backed by a 24-month warranty and lifetime technical support, ensuring peace of mind for every user.
Applications
This ECG machine is perfect for: - Hospitals and clinics requiring accurate cardiac diagnostics. - Research institutions conducting cardiovascular studies. - Home healthcare providers monitoring patients with chronic conditions. - Emergency response teams needing portable and reliable equipment.
GoldHealth Medical is dedicated to advancing healthcare through innovation. Experience the difference with our premium ECG solutions.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical presents the cutting-edge 12-Channel Portable EKG Machine
A revolutionary device designed for precision, portability, and ease of use in diverse medical environments.
Product Highlights
- Advanced Lead Acquisition: Equipped with 12-bit/1000Hz synchronous lead acquisition for unparalleled accuracy across all 12 standard leads.
- Versatile Recording Modes: Offers multiple recording options including 3ch+++, 6ch, 6ch+, and 12ch to suit various diagnostic needs.
- Intuitive Display: Features a 10-inch vibrant touch screen LCD for clear visualization and effortless operation.
- Compact and Lightweight Design: With dimensions of 347mm x 293mm x 83mm and weighing just 5.8kg, it’s perfect for both stationary and mobile use.
- Durable Construction: Crafted from high-quality plastic materials, ensuring reliability and longevity.
Technical Specifications
- Instrument Classification: Class II medical device
- Power Source: Electric
- Working Modes: Manual, Auto, and R-R Analysis
- Shelf Life: 3 years
- Quality Certification: CE approved
What Sets Us Apart
- Unmatched Precision: Delivers accurate 12-lead ECG readings with advanced signal processing technology.
- User-Centric Design: Combines portability, intuitive controls, and a vibrant display for seamless operation.
- Comprehensive Support: Backed by a 1-year warranty and free spare parts for无忧售后体验.
Applications
Ideal for hospitals, clinics, research labs, rehabilitation centers, and home healthcare settings.
Ordering Information
- Minimum Order Quantity (MOQ): 1 unit
- Supply Capacity: 300 units per month
- Packaging: Securely packed in durable cartons for safe delivery
Experience the future of cardiac diagnostics with GoldHealth Medical’s 12-Channel Portable EKG Machine.
