JQV5 43 Touch Screen Infusion Pump with
Reference: 1600996016072
Emergency & Clinics Apparatuses
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

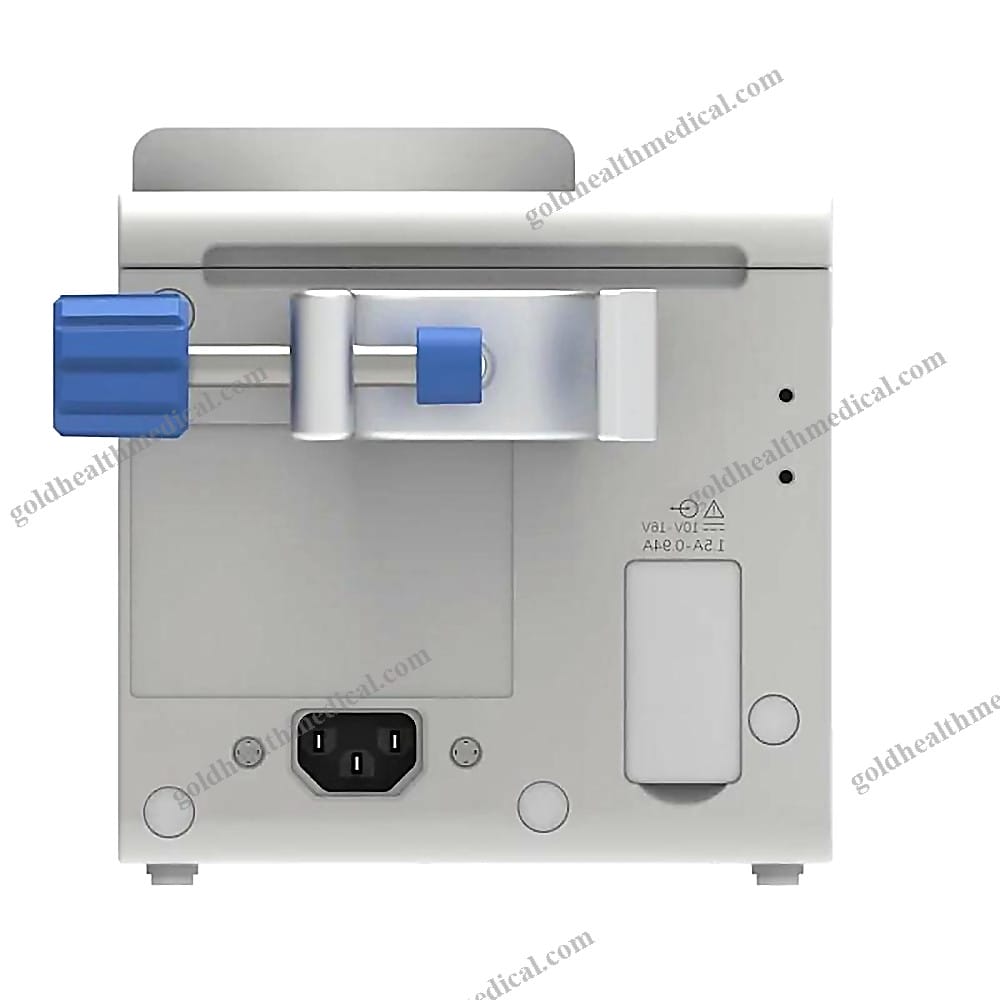

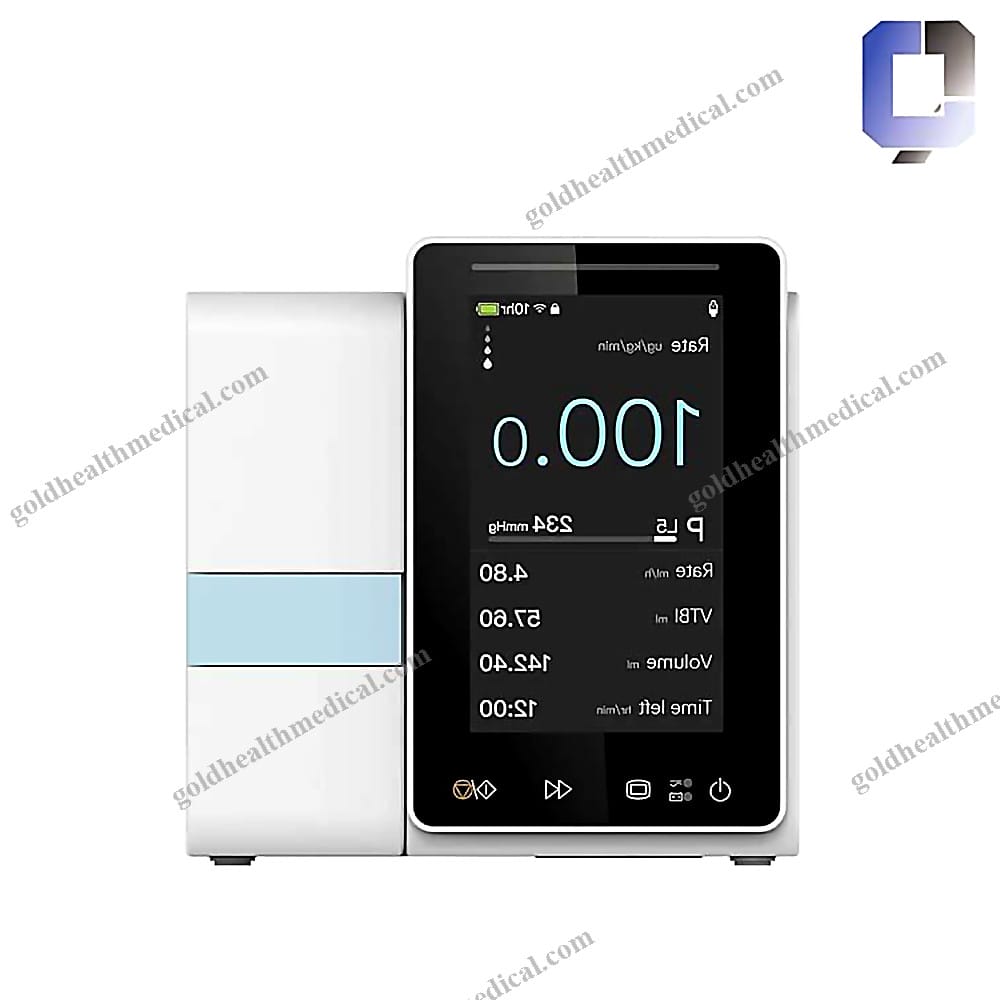

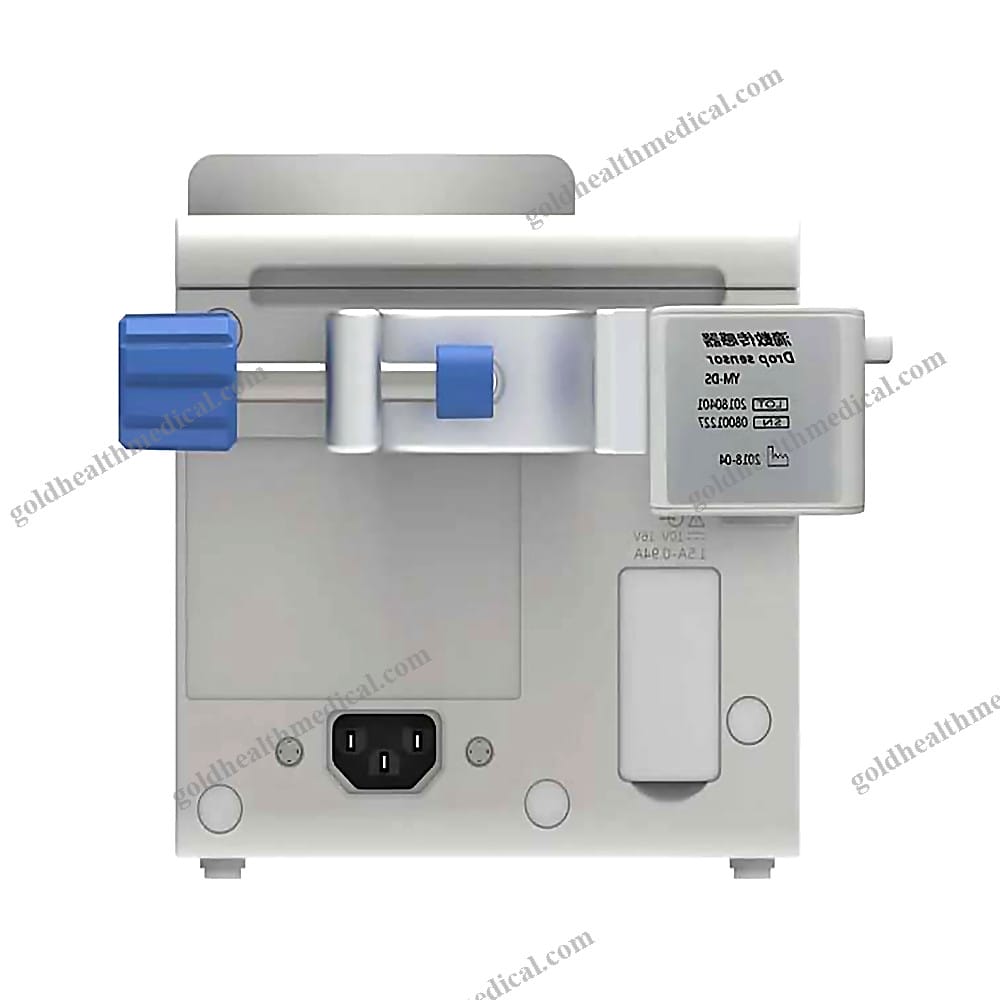

GoldHealth Medical Infusion Pump
Product Description
GoldHealth Medical presents an advanced touch screen infusion pump designed to redefine precision and flexibility in medical fluid delivery. Featuring a vibrant 4.3-inch LCD color touch screen, this device supports a wide range of applications, including blood transfusion, surgical operations, and scenarios requiring negative pressure suction. Engineered for compatibility with any standard IV sets, it stores up to 200 customizable brands, ensuring seamless integration into diverse clinical environments.
Key Features
- Intuitive Touch Screen Interface: Directly set and edit parameters without interrupting the infusion process.
- Versatile Infusion Modes: Offers five standard modes plus a specialized micro mode for precise control.
- Wide Flow Rate Range: Adjustable from 0.1mL/h to 2000mL/h with a minimum increment of 0.01mL/h.
- Keep Vein Open (KVO) Functionality: Supports rates from 0.1mL/h to 2000mL/h with both automatic and manual bolus options.
- Advanced Safety Features: Includes occlusion pressure adjustment, air bubble detection, and reset functions without stopping infusion.
- Last Therapy Memory: Rapidly restarts previous therapies for enhanced efficiency.
- Optional Wireless Connectivity: Seamlessly integrates with central monitoring systems via Wi-Fi.
- Comprehensive Drug Library: Stores data for over 2000 medications, ensuring accurate dosing and administration.
Technical Specifications
- Screen: 4.3-inch LCD color touch screen
- Infusion Modes: Rate mode, Time mode, Body weight, Drip, Sequence, Drug Library, Micro
- Accuracy: ±5%
- Flow Rate Range: 0.1-2000mL/h (minimum increment 0.01mL/h)
- VTBI: 0-5mL/h adjustable (minimum increment 0.01mL/h)
- Bolus Rate: 5 selectable levels (50mmHg - 900mmHg)
- Interface: DB15 multi-functional interface
- Alarm System: Comprehensive alerts including VTBI infused, occlusion, pressure drop, battery status, air bubble detection, and more
- Special Functions: Titration, flow rate adjustment without stopping, purge function, screen lock, standby mode, and real-time pressure display
- Bubble Detection: Adjustable single and accumulated bubble detection over 15 minutes
- History Records: Stores over 5000 entries for traceability
- Power Source: AC Power (110V-240V, 50/60Hz), External DC Power (10-16V), Lithium Polymer battery (2600mAh x 2) with over 10 hours of operation at 25mL/h
- Waterproof Rating: IP44
- Dimensions: 138(L) x 131.5(W) x 90(H) mm
- Weight: Approximately 1.5kg (including pole clamp)
Applications
This infusion pump is ideal for surgical operations requiring precise fluid management, such as phlegm aspiration and thick liquid drainage. Its adaptability makes it suitable for hospitals, clinics, research labs, and home care settings.
Why Choose GoldHealth Medical?
GoldHealth Medical’s infusion pump combines cutting-edge technology with user-centric design, ensuring unparalleled accuracy, safety, and ease of use. Its ability to integrate with standard IV sets and store extensive drug libraries makes it a versatile solution for modern healthcare environments. With optional Wi-Fi connectivity and advanced alarm systems, this device ensures real-time monitoring and rapid response to critical situations.
Related Products
- Electric Syringe Pump: Compatible with any brand of syringe, featuring purge, bolus, anti-bolus, and KVO functions.
- Enteral Feeding Pump: Portable and designed for medical nutrition with multiple infusion modes.
- Multi-Function Syringe Pump: Equipped with anti-reverse detection and dual CPU for ICU use.
- Portable Fluid Warmer: Double-groove heating for infusion and blood transfusion.
- Height-Adjustable Saline Infusion Stand: Mobile and durable for versatile applications.
GoldHealth Medical is committed to delivering innovative solutions that empower healthcare professionals and enhance patient outcomes. Explore our range of products to meet your medical equipment needs.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical Blood Infusion Pump
Experience precision and reliability with the GoldHealth Medical Blood Infusion Pump, designed to meet the demands of modern healthcare environments. Engineered with advanced technology and user-centric features, this infusion pump ensures accurate delivery and enhanced patient safety.
Key Features
- Flow Rate: Adjustable range of 0.1-2000 ml/h for precise control.
- Work Modes: 5 versatile modes to accommodate diverse clinical needs.
- Anti-Bolus Function: Ensures safe and controlled delivery, preventing sudden surges.
- VTBI (Volume to be Infused): Configurable range of 0-9999.99 ml for tailored treatment plans.
- Infusion Volume: Supports up to 36000 ml for extended use.
- History Record: Stores over 5000 entries for comprehensive data tracking and analysis.
Optional Functions
- Built-in WIFI for seamless connectivity and remote monitoring.
- Internal rechargeable lithium battery providing up to 10 hours of operation, ensuring uninterrupted performance during critical procedures.
Technical Specifications
- Material: Durable metal, high-grade plastic, and steel construction for long-lasting reliability.
- Instrument Classification: Class I medical device.
- Safety Standard: Compliant with ISO13485 for quality assurance.
- Power Source: Electricity-driven with battery backup.
- Shelf Life: 1 year from manufacturing.
- Quality Certification: CE-certified for global standards.
- Dimensions: Compact design at 13813290mm, ideal for space-constrained settings.
Packaging Details
- Unit Weight: 2.1KG per carton.
- Packaging Dimensions: 181921cm.
Supply Capability
- Weekly production capacity of 1000 sets to meet high-volume demands.
GoldHealth Medical’s Blood Infusion Pump combines cutting-edge technology with a robust design, making it the ideal choice for hospitals, clinics, research labs, and home care settings. Elevate your medical practice with a device that prioritizes precision, safety, and efficiency.
