INSP100 Portable Pulmonary Analyzer with Touch Screen Spi
Reference: 1600155485861
Reflector Apparatus
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

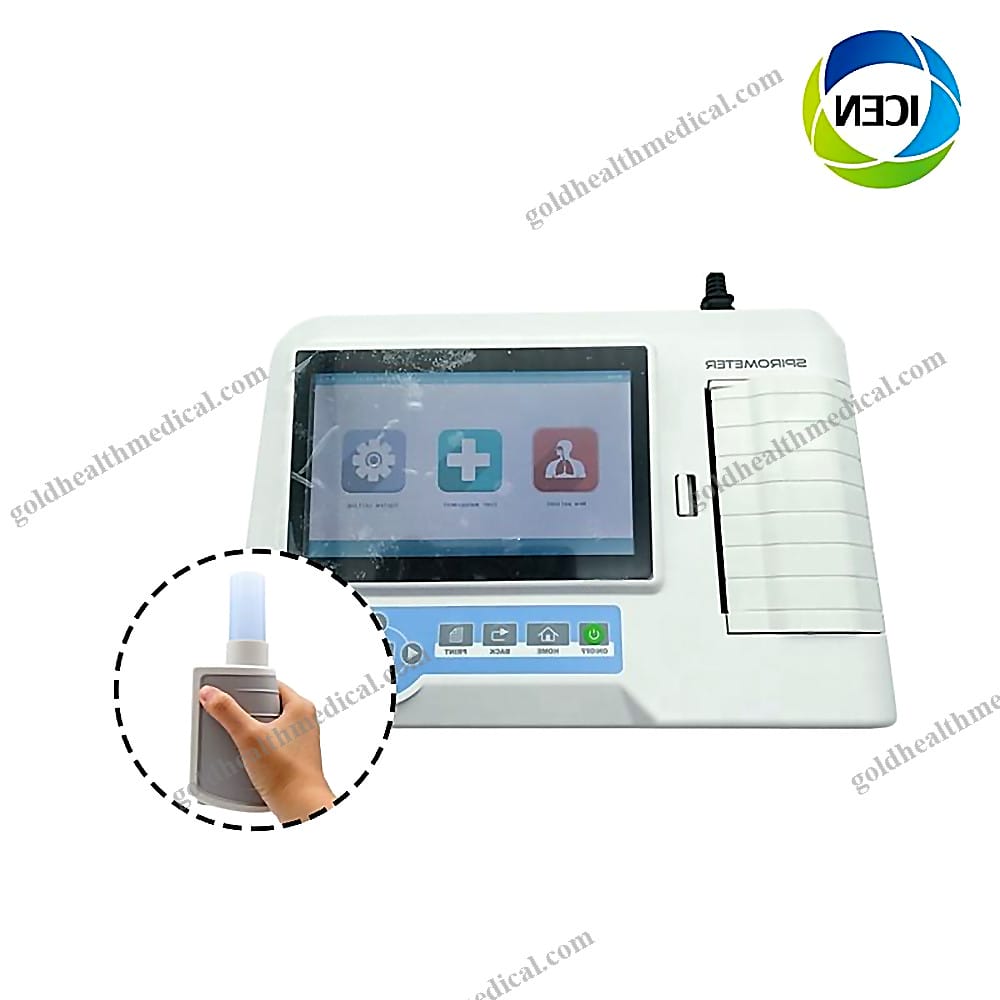

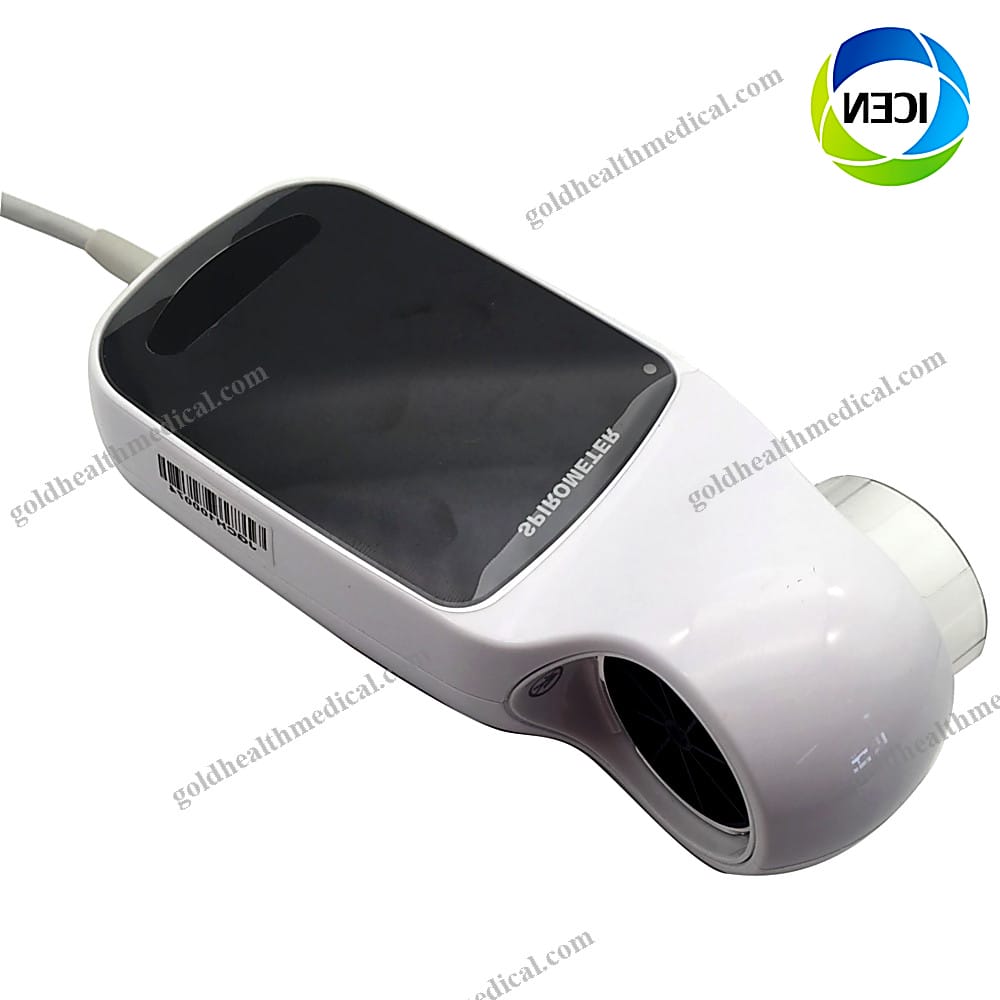

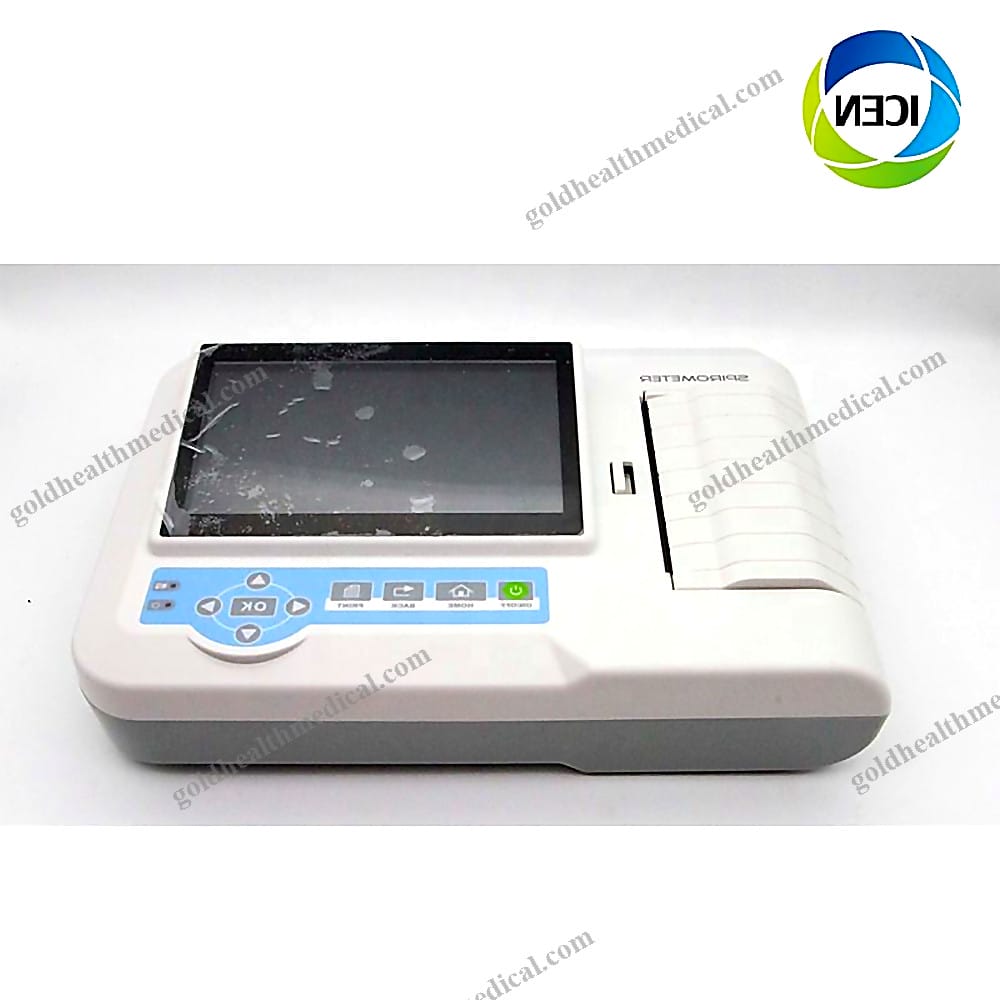

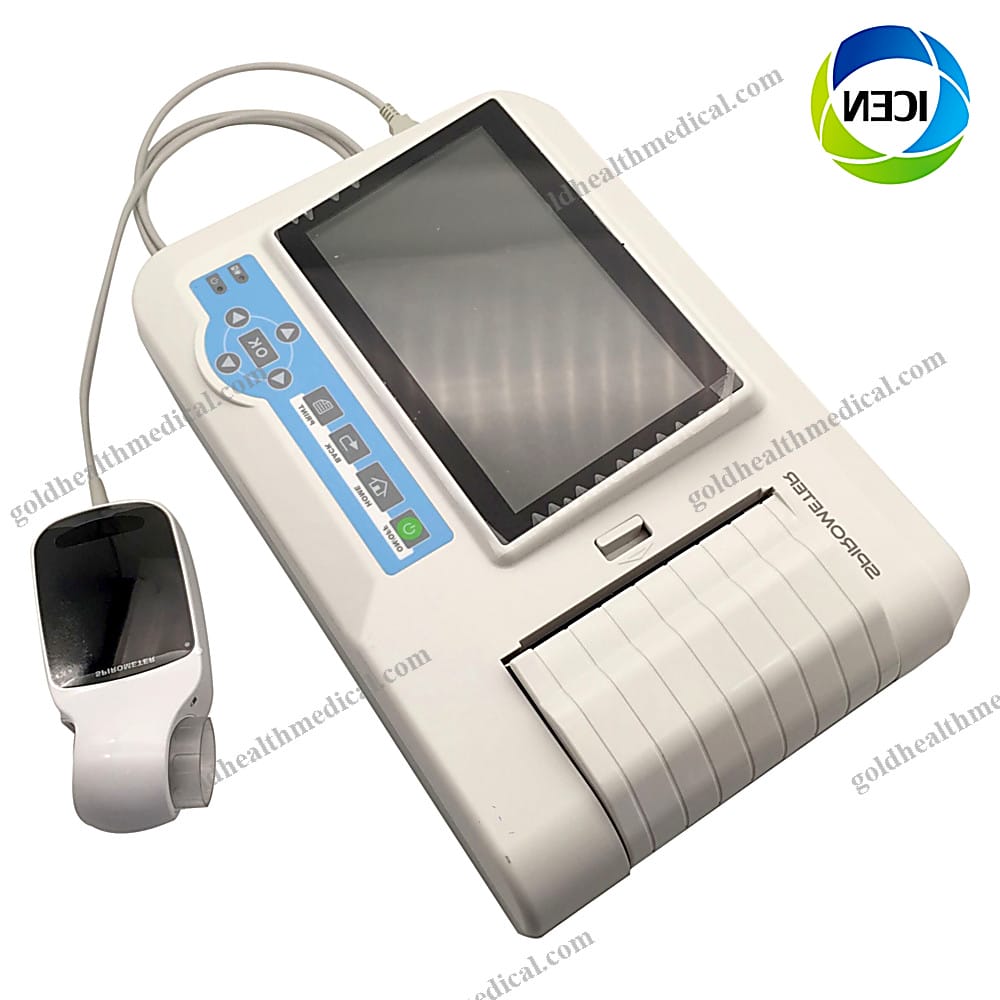

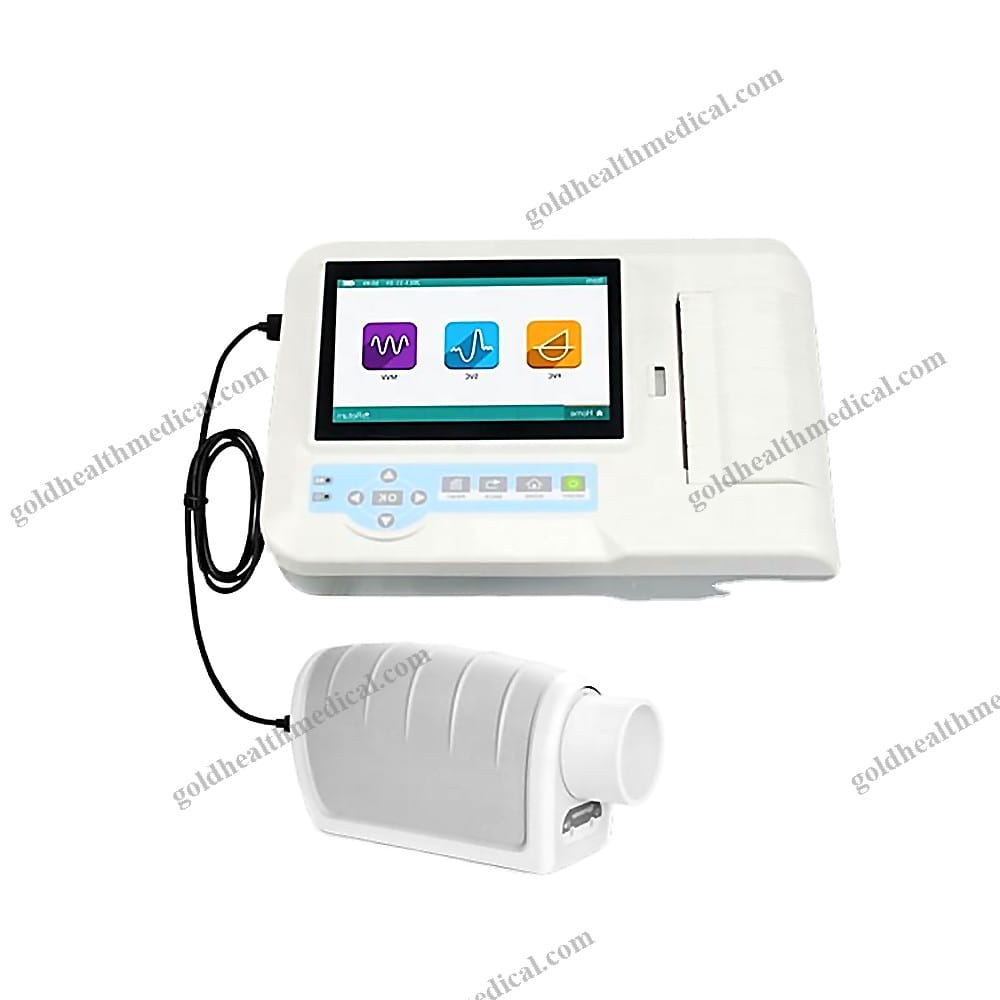

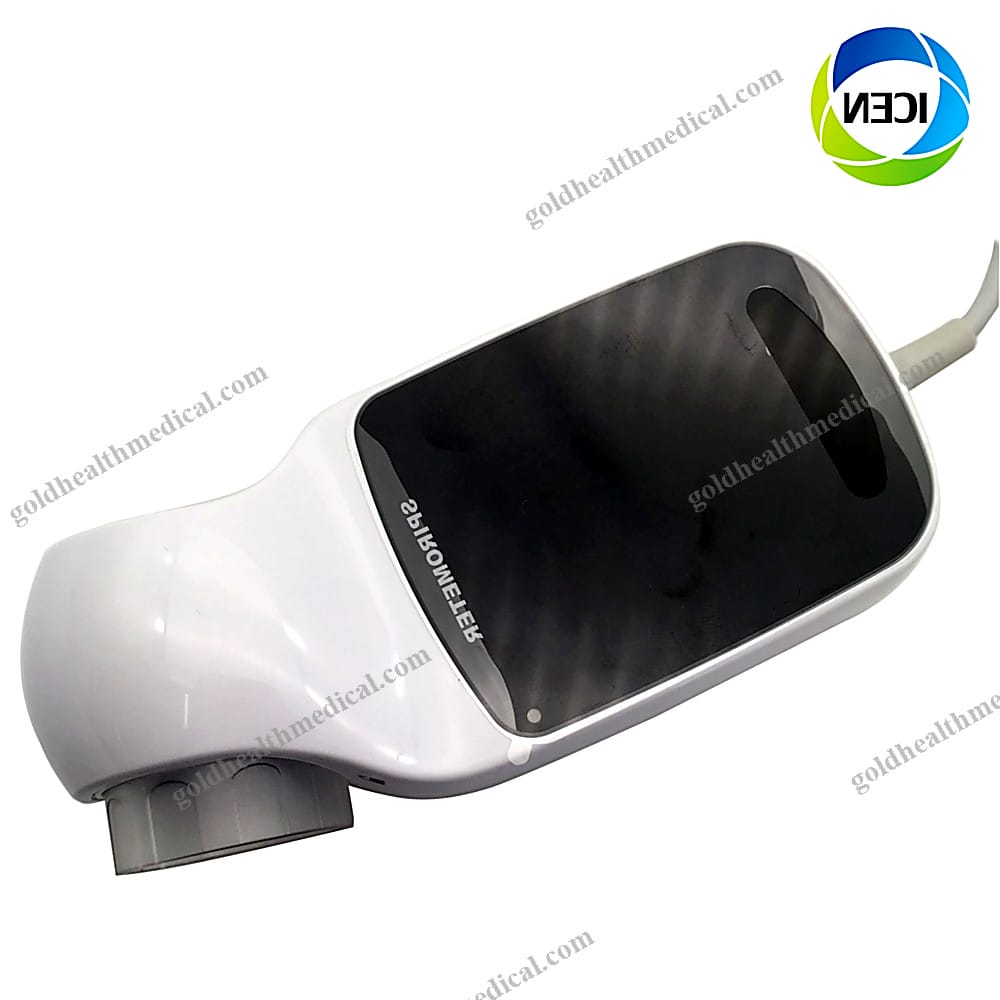

GoldHealth Medical Spirometer
Engineered for precision and ease of use, the GoldHealth Medical Spirometer is a state-of-the-art diagnostic tool designed to elevate respiratory care. Trusted by medical professionals worldwide, this device combines advanced measurement capabilities with an intuitive interface, making it indispensable for hospitals, clinics, and home healthcare.
Key Features
-
Comprehensive Measurement Capabilities:
Measures Forced Vital Capacity (FVC), Vital Capacity (VC/SVC), Maximum Voluntary Ventilation (MVV), and over 30 additional parameters. Automatically selects and displays the optimal result from multiple measurements, providing a clear comparison between measured and predicted values for accurate patient assessment. -
Advanced Parameters:
- Forced Vital Capacity (FVC): Includes FVC, FEV1, PEF, FEV1/FVC, FEF25, FEF50, FEF75, FEF2575, FEV1/VC, FEV6, FEV1/FEV6, ELA, FET, EVOL, FIVC, FIV1, FIV1/FIVC, PIF, MVV.
- Vital Capacity (VC/SVC): Covers VC, IC, ERV, IRV, EVC, IVC, TV, VE, RR, tI, tE, TV/tI, tI/ttot.
-
Maximum Ventilatory Volume (MVV): Precise MVV measurement.
-
Real-Time Visualization:
Features real-time respiratory waveform displays, including Flow-Volume loops and Volume-Time curves, enabling immediate insights into lung function. -
Intuitive Interface:
Equipped with a 7" color LCD touch screen and tactile buttons for seamless operation. Includes incentive animation guides to simplify use for children and elderly patients. -
Built-In Thermal Printer:
Instantly print detailed reports with the integrated high-speed thermal printer. -
BTPS Automatic Correction:
Ensures accurate results by compensating for environmental variations, delivering consistent performance across diverse settings. -
Enhanced Usability:
Displays test time and environmental temperature, includes a calibration function for sustained accuracy, and offers multiple predicted value options tailored to different populations. -
Data Storage and Lung Age Estimation:
Stores over 10,000 data sets and features a unique lung age estimation function for patient education and motivation. -
Portable and Reliable:
Powered by a built-in lithium battery with AC/DC support, ensuring uninterrupted operation in any environment.
Technical Specifications
- Volume Range: ±10 L
- Volume Accuracy: ±3% or ±0.05 L (whichever is greater)
- Flow Range: ±16 L/s
- Flow Accuracy: ±5% or ±0.2 L/s (whichever is greater)
- Power Supply: 100 V-240 V~ 50 Hz/60 Hz
- Input Power: 60 VA
- Safety Type: Class I equipment, type BF applied part
- LCD Screen: 7" color TFT touch screen
- Printing Paper: 112 mm(W) × 20 m(L) high-speed thermal paper
Physical Characteristics
- Dimensions: 315 mm(L) × 215 mm(W) × 92 mm(H)
- Weight: 1.8 kg
Accessories
- Spirometer unit
- Mouthpieces (4 pcs)
- Nose clip
- USB cable
- Recording paper
- Power cord
- User Manual
GoldHealth Medical is committed to delivering innovative solutions that empower healthcare providers to deliver exceptional patient care. The Spirometer exemplifies our dedication to precision, reliability, and user-centric design.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical proudly presents the Spirometer, a cutting-edge solution designed for precision and reliability in respiratory diagnostics. Engineered to meet the demands of healthcare professionals, this device delivers unparalleled accuracy and ease of use, making it an indispensable tool for hospitals, clinics, research institutions, and home care environments.
Key Features
- Advanced Measurement Capabilities: Equipped with a volume range of ±10 liters and a flow range of ±16 liters per second, ensuring precise and consistent readings for every patient.
- Compact and Portable Design: With dimensions of 15 mm (L) x 215 mm (W) x 92 mm (H) and weighing just 1.8 kg, this spirometer is highly portable and easy to integrate into any medical setting.
- High-Speed Thermal Printing: Utilizes 112 mm (W) x 20 m (L) high-speed thermal paper for quick and clear documentation of results.
- Energy Efficient: Operates on a power input of 60 VA, ensuring reliable performance with minimal energy consumption.
Technical Specifications
- Instrument Classification: Class II medical device, ensuring safety and compliance with rigorous industry standards.
- Certifications: CE and ISO certified, guaranteeing adherence to global quality benchmarks.
- Shelf Life: 1 year from the date of manufacture.
- Warranty: Comprehensive 1-year warranty for peace of mind.
- After-Sales Support: Access to online technical support, ensuring uninterrupted performance and assistance whenever needed.
Packaging Details
- Single Package Size: 50 x 50 x 50 cm
- Single Gross Weight: 20.000 kg
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative, high-quality medical devices that empower healthcare providers to deliver exceptional patient care. Our Spirometer combines advanced technology, user-friendly design, and robust performance, making it the ideal choice for professionals who demand accuracy and reliability.
Experience the GoldHealth Medical difference today and elevate your respiratory diagnostics to the next level.
