INSP100 Portable Digital SpirometerPeak Flow Meter
Reference: 1600155520439
Reflector Apparatus
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

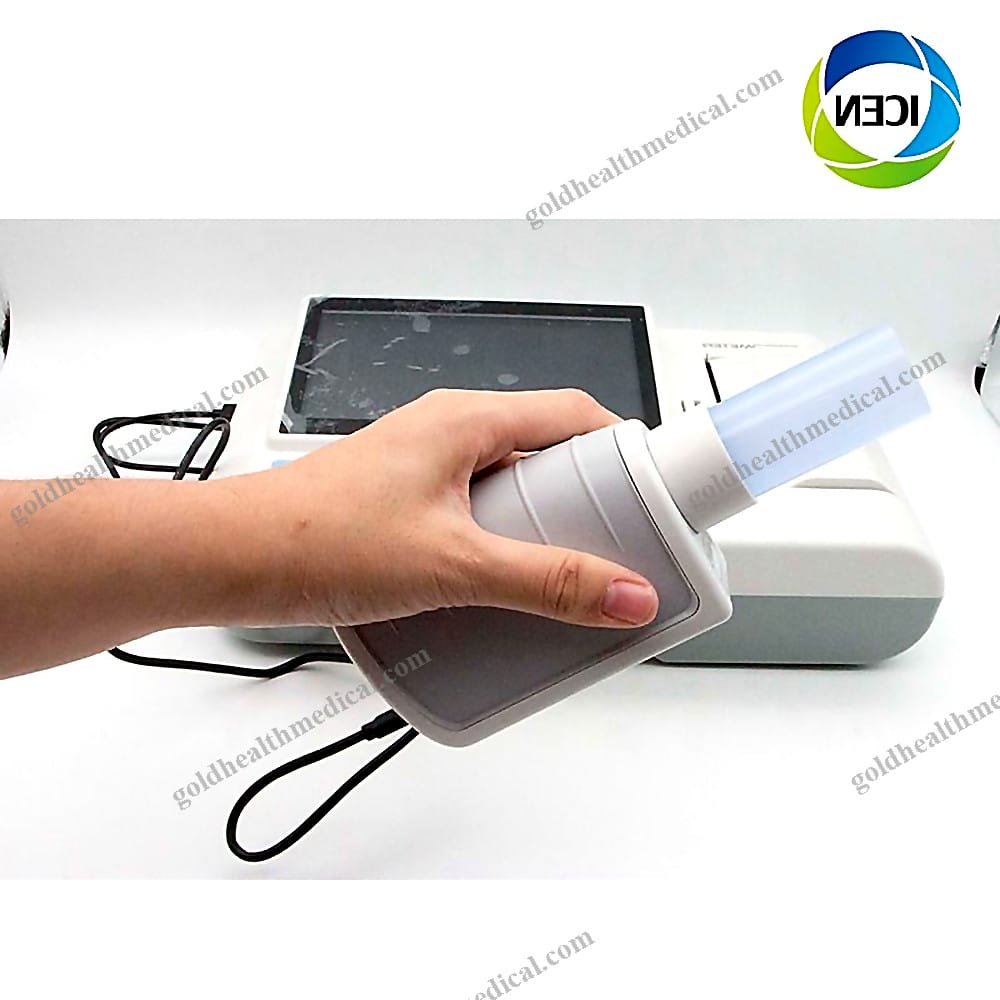

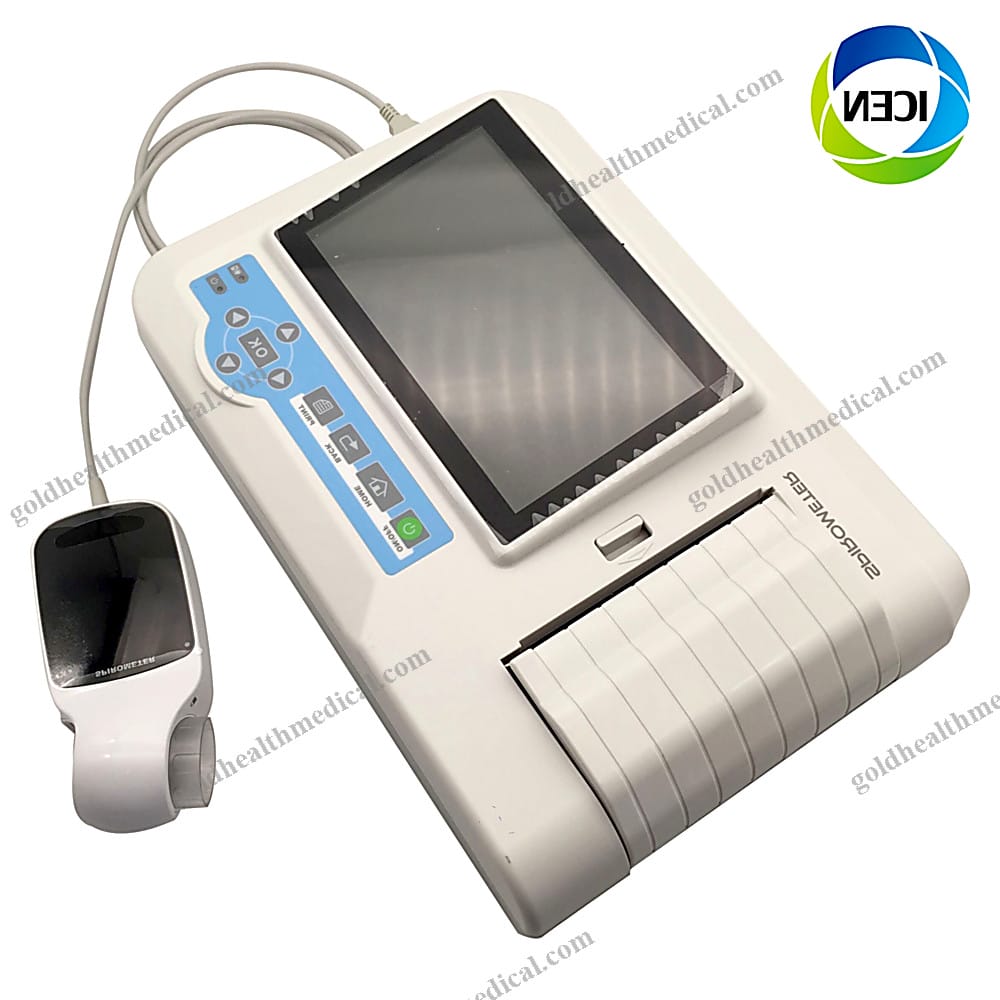

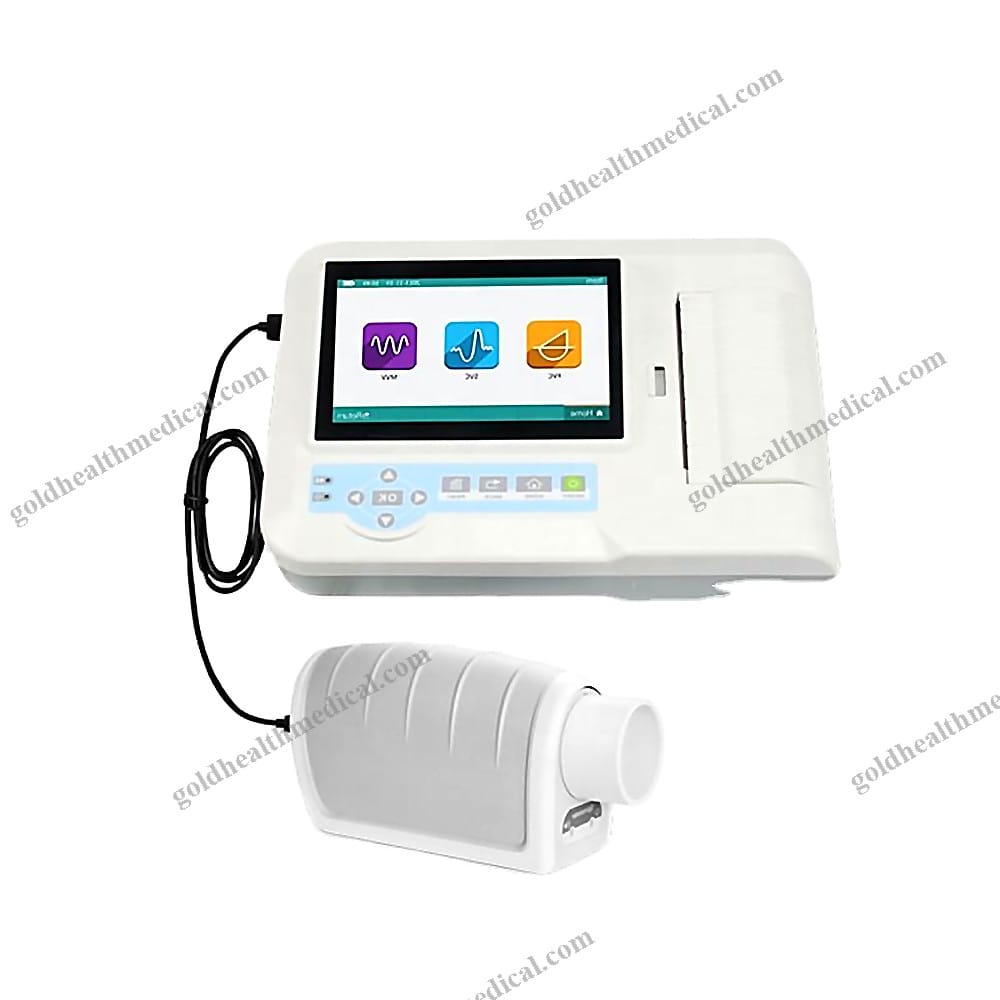

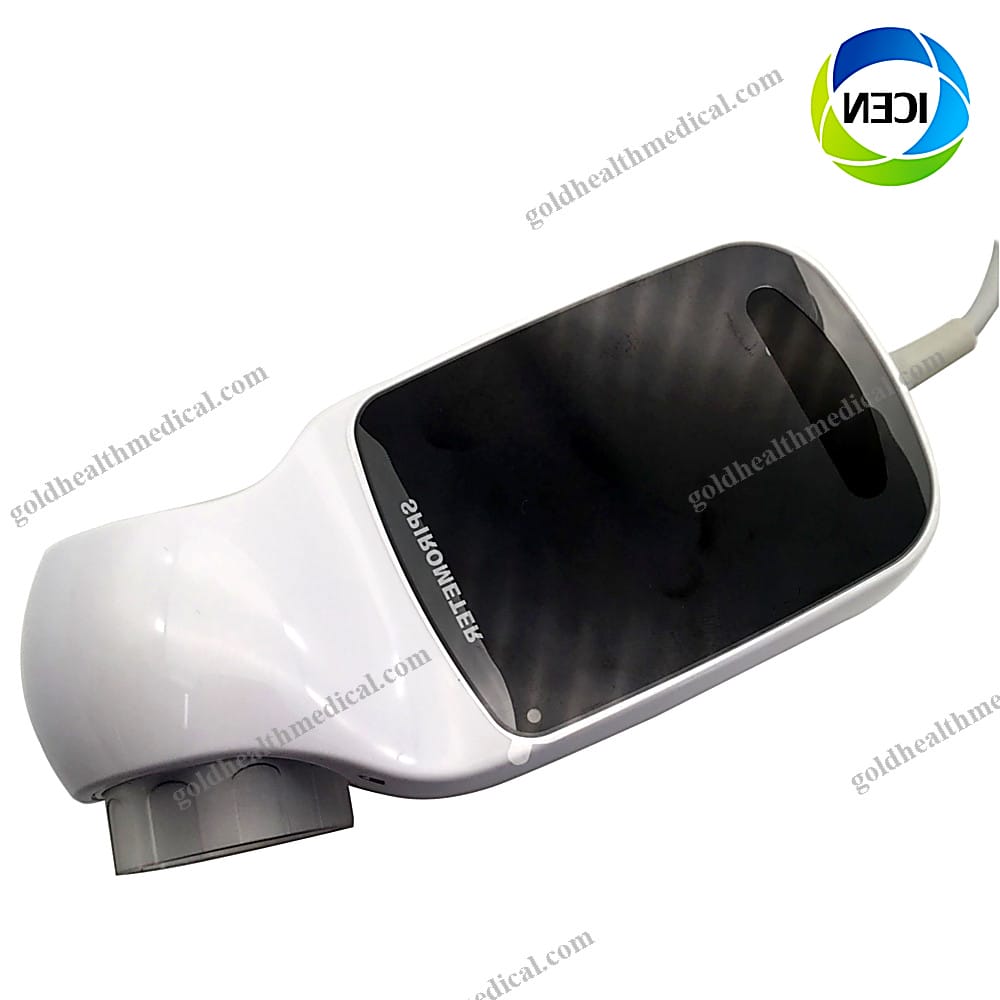

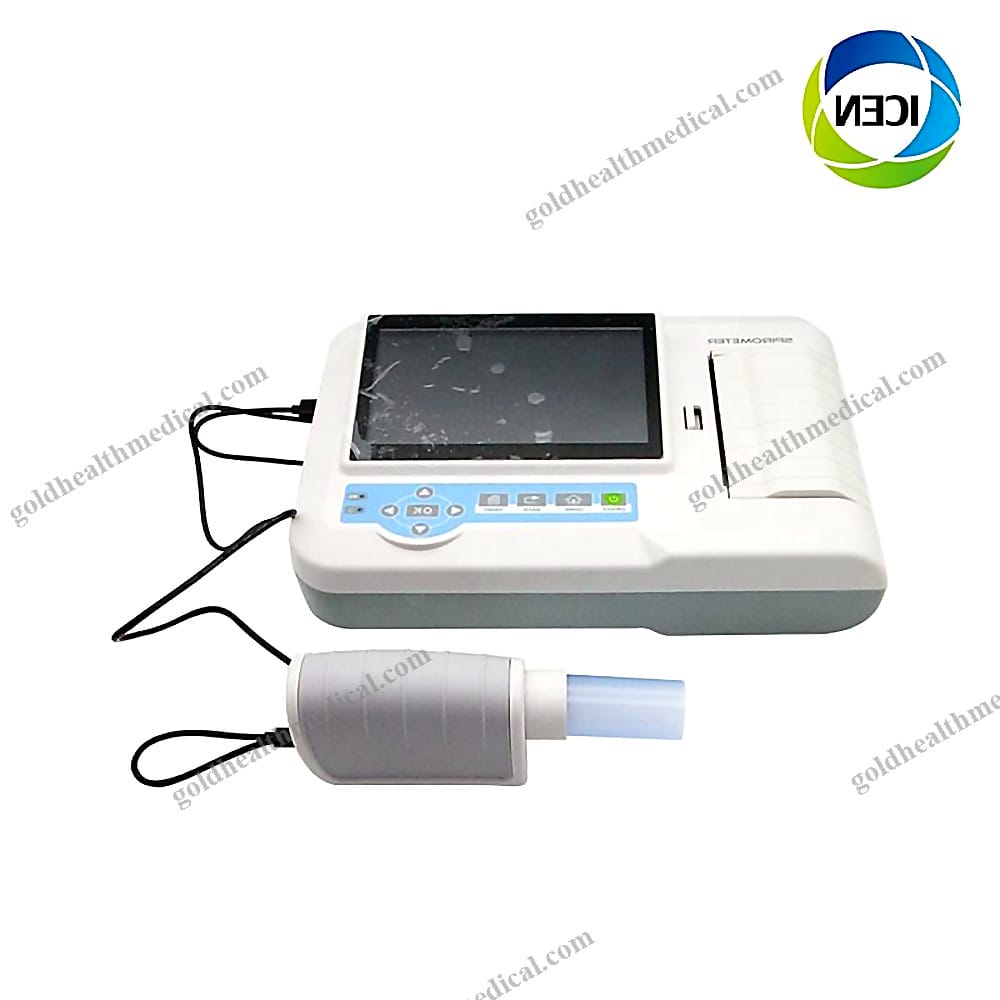

GoldHealth Medical Portable Digital Electronic Spirometer
Product Description
The GoldHealth Medical Spirometer is a state-of-the-art portable lung function testing device designed to assess critical respiratory parameters with precision and ease. Engineered for versatility, it is ideal for use in hospitals, clinics, research institutions, and even non-traditional settings such as schools, factories, and community health programs. Whether for routine diagnostics, epidemiological studies, or occupational health screenings, this device delivers unparalleled accuracy and reliability.
Key Features
- Comprehensive Parameter Measurement:
Measures over 30 parameters including Forced Vital Capacity (FVC), Vital Capacity (VC/SVC), Maximum Voluntary Ventilation (MVV), and more. Key metrics include FVC, FEV1, PEF, FEV1/FVC, FEF25, FEF50, FEF75, FEF2575, FEV1/VC, FEV6, FEV1/FEV6, ELA, FET, EVOL, FIVC, FIV1, FIV1/FIVC, PIF, MVV, VC, IC, ERV, IRV, EVC, IVC, TV, VE, RR, tI, tE, TV/tI, tI/ttot.
Displays the optimal result from multiple measurements and compares measured values to predicted norms for a clear assessment of respiratory health.
-
Real-Time Respiratory Waveforms:
Features Flow-Volume loop and Volume-Time curve charts for dynamic visualization of respiratory performance. -
Intuitive Interface:
Equipped with a 7" color LCD touch screen and physical buttons for seamless operation. Includes incentive animation guidance, making it user-friendly for both children and elderly patients. -
Built-In Thermal Printer:
Instantly print detailed reports for immediate analysis and record-keeping. -
Advanced Correction and Calibration:
BTPS automatic correction compensates for environmental variations, ensuring consistent accuracy. Includes a calibration function to maintain precision over time. -
Enhanced Data Management:
Stores over 10,000 data sets, supports multiple predictive value options for diverse populations, and includes a unique lung age estimation feature. -
Portable and Reliable Power:
Powered by a built-in lithium battery with support for both AC and DC, ensuring uninterrupted performance in any setting.
Performance Specifications
- Volume Range: ±10 L
- Volume Accuracy: ±3% or ±0.05 L (whichever is greater)
- Flow Range: ±16 L/s
- Flow Accuracy: ±5% or ±0.2 L/s (whichever is greater)
- Power Supply: 100 V-240 V~ 50 Hz/60 Hz
- Input Power: 60 VA
- Safety Type: Class I equipment, type BF applied part
- LCD Screen: 7" color TFT touch screen
- Printing Paper: 112 mm(W) × 20 m(L) high-speed thermal paper
Physical Characteristics
- Dimensions: 315 mm(L) × 215 mm(W) × 92 mm(H)
- Weight: 1.8 kg

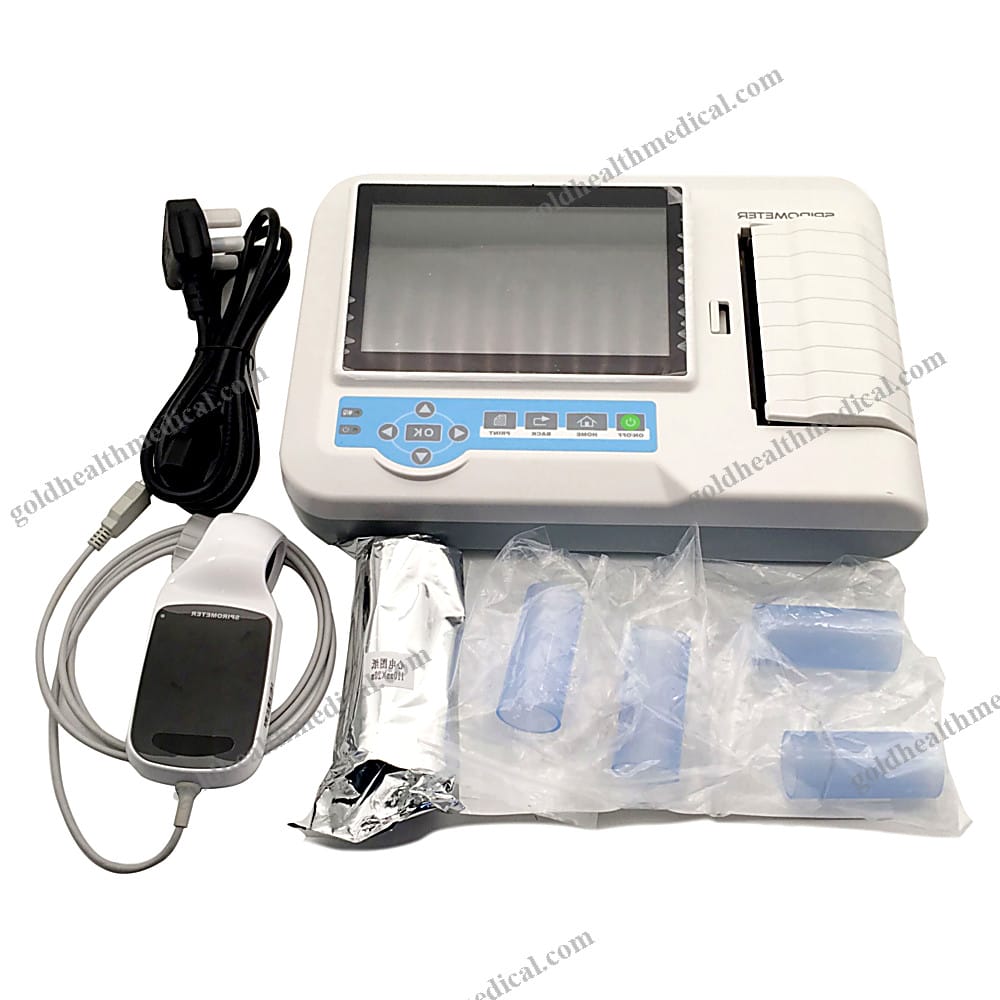

Included Accessories
- Spirometer unit
- Mouthpieces (4 pcs)
- Nose clip (1 pc)
- USB cable (1 pc)
- Recording paper (1 pc)
- Power cord (1 pc)
- User Manual (1 pc)
Why Choose GoldHealth Medical?
GoldHealth Medical is a trusted innovator in the medical device industry, renowned for delivering cutting-edge solutions that empower healthcare professionals worldwide. Our commitment to quality, precision, and user-centric design ensures that every product meets the highest standards of performance and reliability.
With a focus on advancing respiratory health diagnostics, our spirometer stands out as a versatile, accurate, and easy-to-use tool designed to meet the needs of modern healthcare environments. Partner with GoldHealth Medical to elevate your diagnostic capabilities and improve patient outcomes.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical proudly presents the Spirometer, a cutting-edge solution designed for precision and reliability in respiratory diagnostics. Engineered to meet the demands of healthcare professionals, this device delivers exceptional accuracy and ease of use, making it an indispensable tool for hospitals, clinics, research institutions, and home care environments.
Key Features and Specifications
- Instrument Classification: Class II medical device, ensuring safety and compliance with stringent industry standards.
- Power Source: Electrically powered with an input power of 60 VA for consistent performance.
- Volume Range: ±10 L, offering a wide measurement range to accommodate diverse patient needs.
- Flow Range: ±16 L/s, enabling precise detection of rapid airflow changes.
- Weight: Lightweight at just 1.8 kg, ensuring portability and convenience.
- Dimensions: Compact design measuring 15 mm (L) x 215 mm (W) x 92 mm (H), ideal for both clinical and mobile use.
- Printing Paper: High-speed thermal paper (112 mm width x 20 m length) for efficient and clear reporting.
Certifications and Compliance
- Certified with CE and ISO standards, guaranteeing quality, safety, and reliability.
Packaging Details
- Single Package Size: 22 cm (L) x 15 cm (W) x 5 cm (H).
- Single Gross Weight: 2.000 kg, ensuring secure and damage-free transportation.
Warranty and Support
- Backed by a 1-year warranty for peace of mind.
- Comprehensive online technical support to assist with any operational or technical queries.
Why Choose GoldHealth Medical's Spirometer?
The Spirometer stands out with its advanced engineering, user-friendly design, and commitment to precision. Whether for professional diagnostics or personal health monitoring, this device is crafted to deliver unparalleled performance and reliability. Elevate your respiratory care capabilities with GoldHealth Medical’s Spirometer – where innovation meets excellence.
