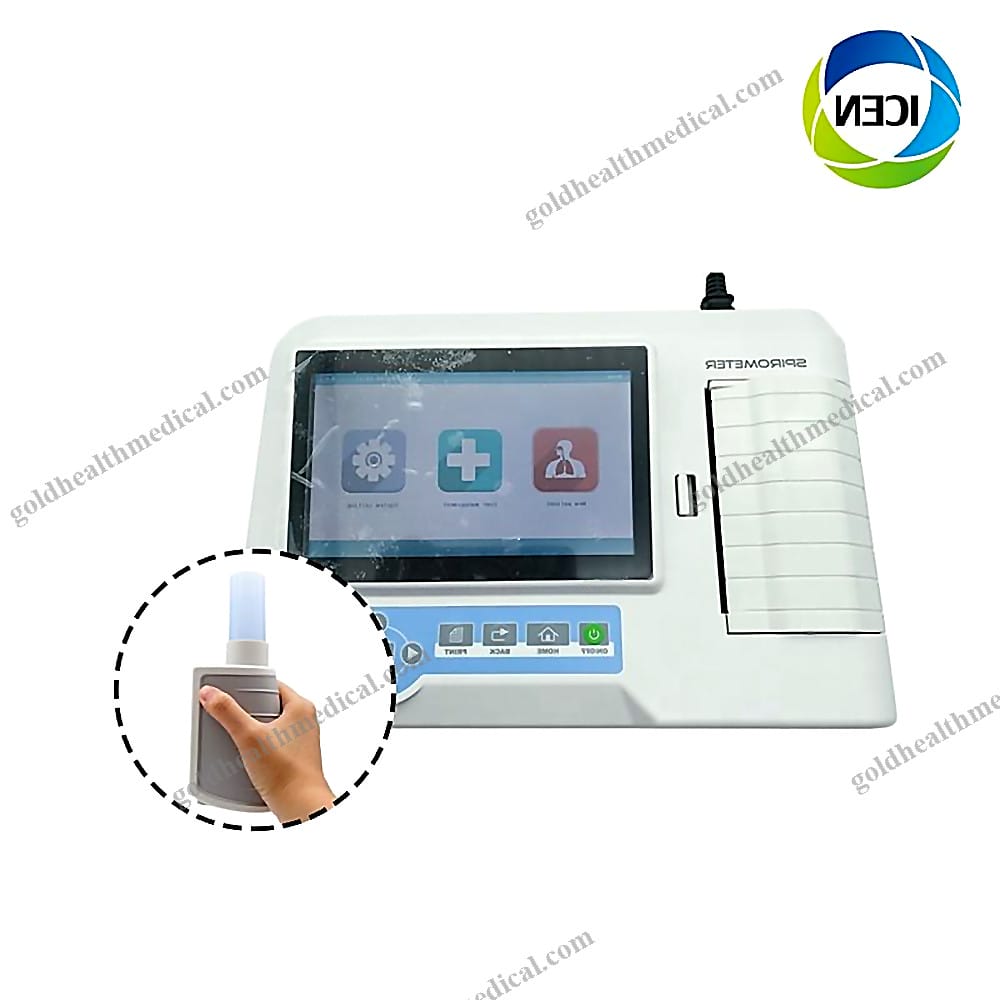

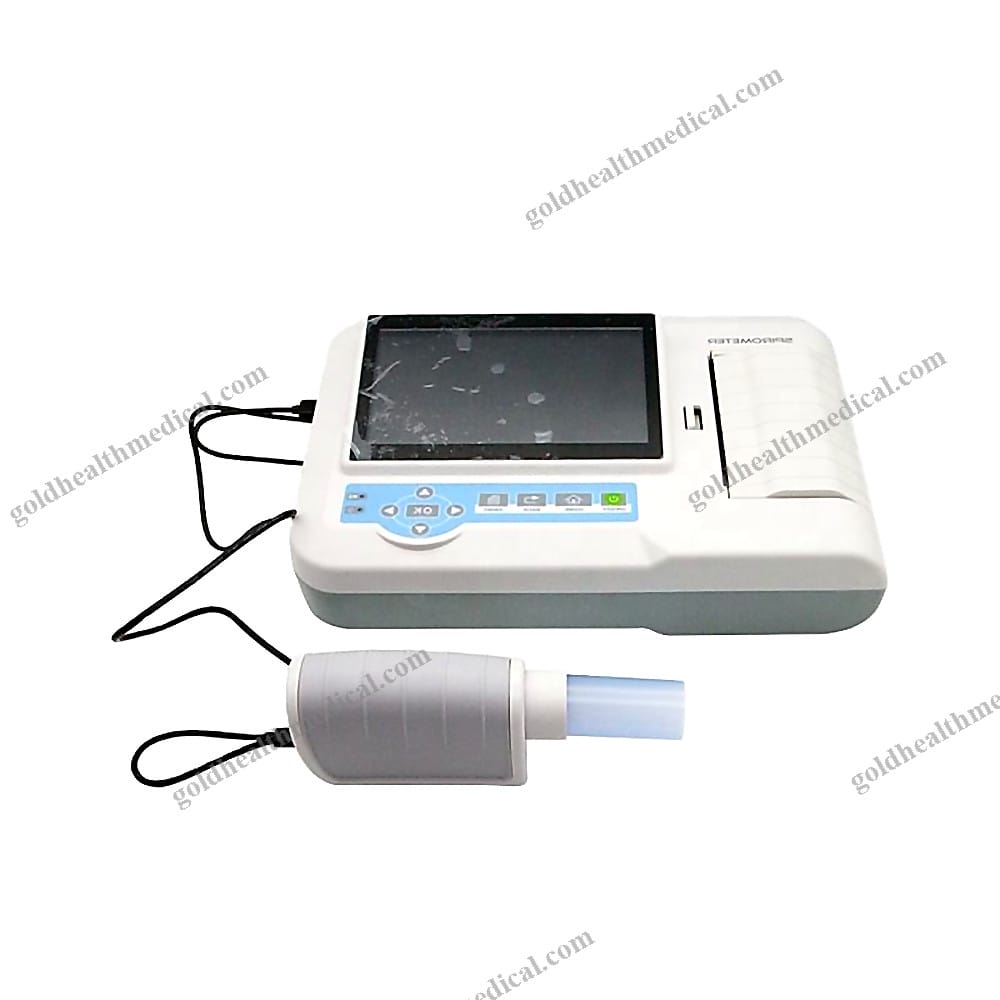

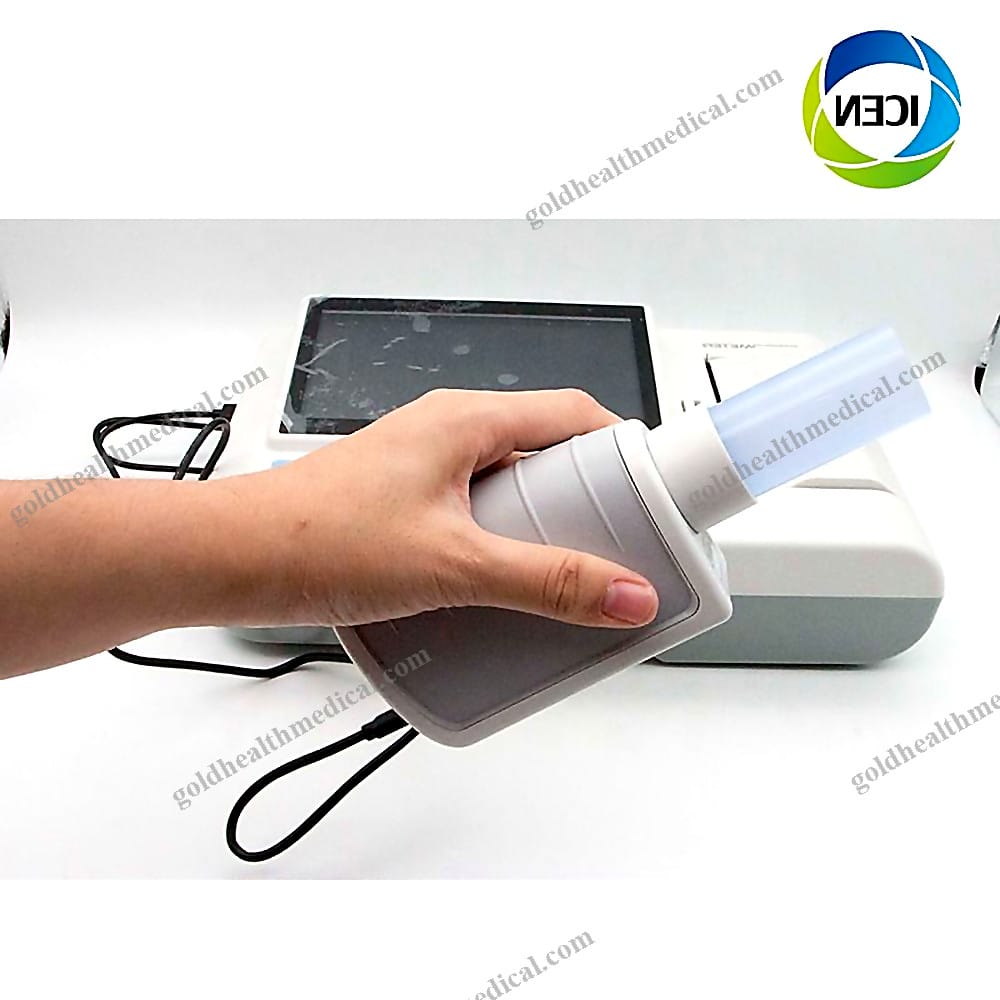

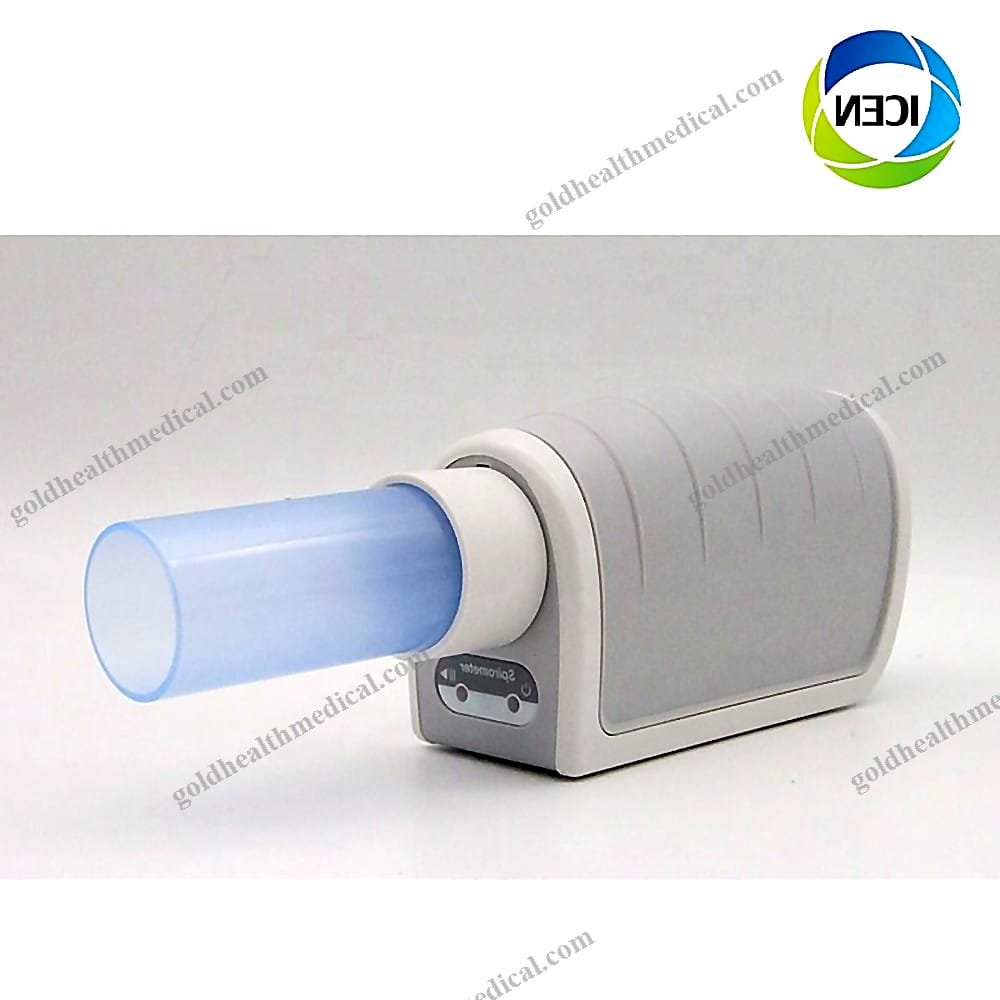

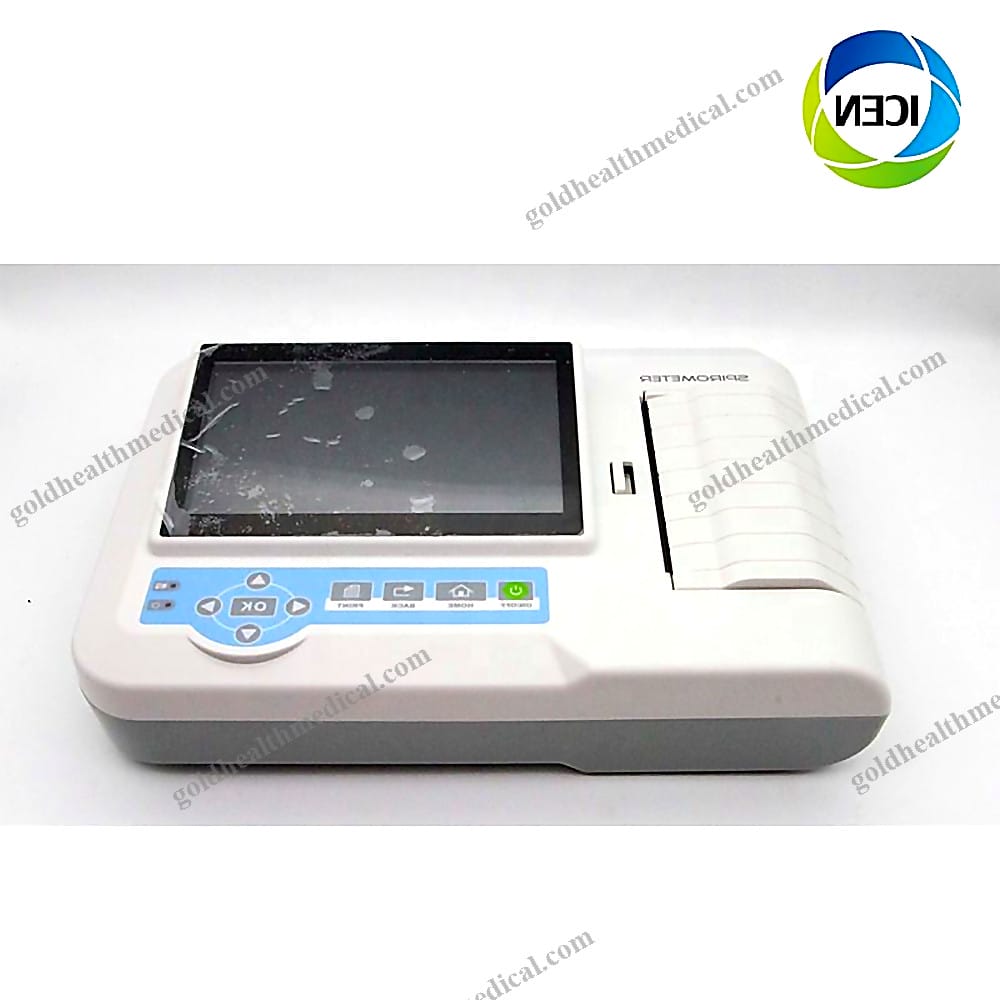

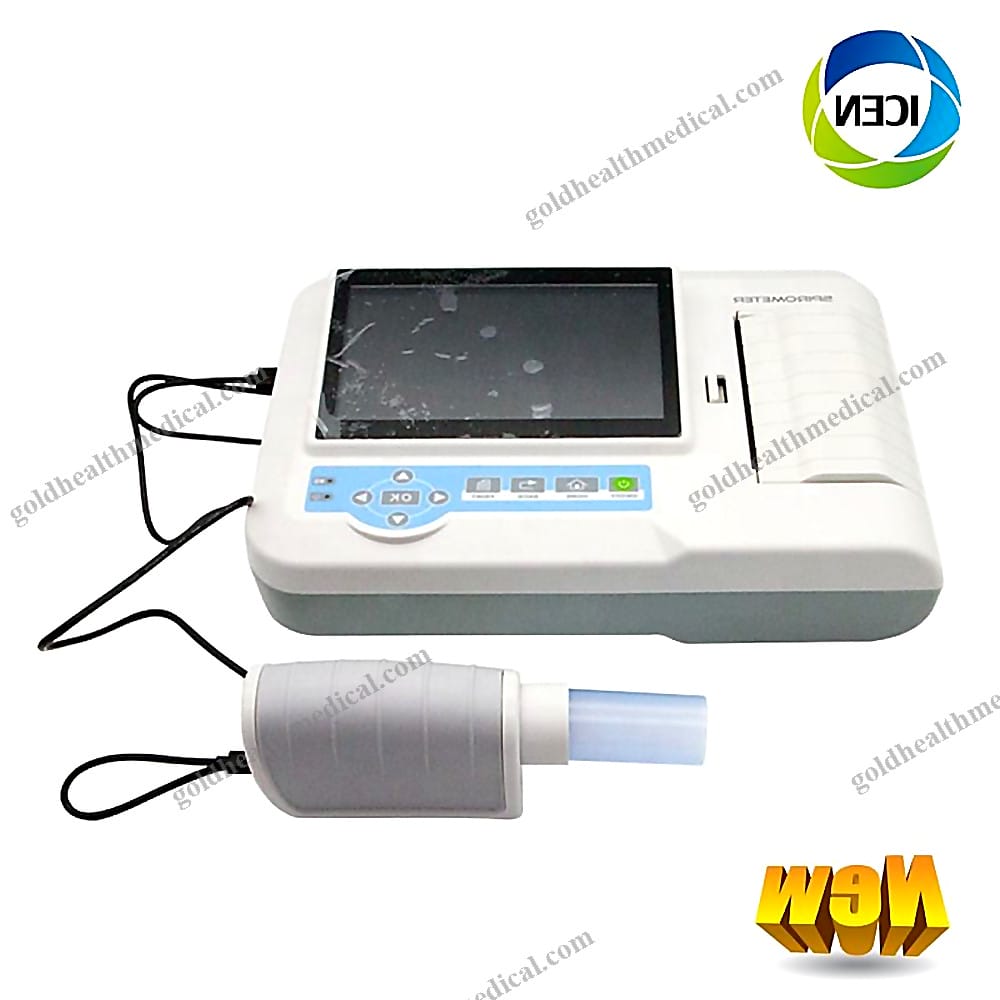

INSP100 Digital Spirometer for Lung Function Testing
Reference: 1600155494826
Reflector Apparatus
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Digital Electronic Lung Function Test Analyzer Spirometer
Product Description
The GoldHealth Medical Spirometer is a state-of-the-art portable lung function testing device designed to examine a comprehensive range of lung function parameters. This versatile device is ideal for use in hospitals, clinics, and other healthcare settings. Additionally, it is well-suited for community health screenings, school examinations, occupational health assessments, and more.
Features
- Comprehensive Parameter Measurement: Measures Forced Vital Capacity (FVC), Vital Capacity (VC/SVC), Maximum Voluntary Ventilation (MVV), and over 30 additional parameters. Displays the optimal result from multiple measurements and provides a ratio of measured to predicted values.
- Real-Time Waveform Display: Features Flow-Volume loop and Volume-Time curve charts for real-time respiratory waveform visualization.
- User-Friendly Interface: Equipped with a 7" color LCD touch screen and physical buttons for ease of operation.
- Incentive Animation: Guides users through the testing process with animations, making it suitable for both children and the elderly.
- Built-In Thermal Printer: Allows for direct printing of test reports.
- BTPS Automatic Correction: Compensates for environmental differences to ensure accurate results.
- Environmental and Time Display: Shows test time and ambient temperature.
- Calibration Function: Ensures measurement accuracy.
- Multiple Predicted Values: Offers various predicted values suitable for different populations.
- Data Storage: Capable of storing over 10,000 data groups.
- Lung Age Estimation: Provides an estimation of lung age.
- Power Options: Built-in lithium battery supports both AC and DC power sources.
Performance
- Volume Range: ±10 L
- Volume Accuracy: ±3% or ±0.05 L (whichever is greater)
- Flow Range: ±16 L/s
- Flow Accuracy: ±5% or ±0.2 L/s (whichever is greater)
- Power Supply: 100 V-240 V~ 50 Hz/60 Hz
- Input Power: 60 VA
- Safety Type: Class I equipment, type BF applied part
- LCD Screen: 7" color TFT touch screen
- Printing Paper: 112 mm(W)×20 m(L) high-speed thermal paper
Physical Characteristics
- Dimensions: 315 mm(L)×215 mm(W)×92 mm(H)
- Weight: 1.8 kg
Accessories
- Spirometer
- Mouthpiece (4 pcs)
- Nose clip
- USB cable
- Recording paper
- Power cord
- User Manual
Product Categories
- Ultrasound Scanner
- ECG/EEG/EMG
- Ordinary Diagnosis Instrument
- Patient Monitor
- X Ray Machine
- Dental Equipment
- Anesthesia and Ventilator
- Laboratory Machine
- Physical and Beauty Equipment
- Hospital Furniture
- Dialysis Machine
- Medical Consumables
- Emergency Equipment
- Veterinary Equipment
- Gynecology Equipment and Obstetrics
- Autoclave
- Ophthalmology
- Operation Room Equipment
- Endoscope
- Human Model
Company Information
GoldHealth Medical is a premier provider of medical equipment with over 8 years of experience. Our product portfolio includes X-ray machines, B ultrasound scanners, ECGs, patient monitors, ICU equipment, lab equipment, and related medical disposables. We have successfully exported our products to more than 50 countries, establishing long-term partnerships with clients globally.
Our Services
- Top Quality: Rigorous quality control systems ensure our products are reliable and reputable.
- Excellent Service: We treat clients as partners, aiming to build enduring business relationships.
- OEM Accepted: Customize products with your logo.
- Unbeatable Price: High price-performance ratio for customer benefit.
- Timely Delivery: Orders are shipped promptly upon completion.
- After-Sale Service: Comprehensive one-year warranty on all products.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical proudly presents the Spirometer, a cutting-edge solution designed for precise respiratory diagnostics. Engineered with advanced technology, this device delivers unparalleled accuracy and reliability, making it an indispensable tool for healthcare professionals and institutions.
Key Features and Specifications
- Instrument Classification: Class II medical device, ensuring safety and precision in clinical environments.
- Power Source: Electrically powered with an input power of 60 VA for consistent performance.
- Volume Range: ±10 L, enabling comprehensive measurement of lung capacity.
- Flow Range: ±16 L/s, capturing rapid and subtle changes in airflow with exceptional sensitivity.
- Weight: Lightweight at just 1.8 kg, ensuring portability and ease of use across various settings.
- Dimensions: Compact design measuring 15 mm (L) x 215 mm (W) x 92 mm (H), ideal for space-constrained environments.
- Printing Paper: Utilizes high-speed thermal paper (112 mm width x 20 m length) for efficient and clear printouts.
- Shelf Life: 1 year, ensuring long-term usability and reliability.
Certifications and Compliance
- Backed by CE and ISO certifications, guaranteeing adherence to international quality and safety standards.
Warranty and Support
- 1-Year Warranty: Demonstrates our commitment to quality and customer satisfaction.
- Online Technical Support: Access to expert assistance ensures seamless operation and troubleshooting.
Design and Usability
- Color: Professionally designed with a sleek aesthetic as shown in product visuals.
- Place of Origin: Crafted with precision in Guangdong, China, leveraging state-of-the-art manufacturing processes.
Unique Selling Points
- Combines portability, precision, and compliance with global standards, making it suitable for hospitals, clinics, research labs, and home healthcare.
- Delivers accurate diagnostics with its wide volume and flow range, empowering healthcare providers to make informed decisions.
Choose GoldHealth Medical’s Spirometer for a blend of innovation, reliability, and professional-grade performance.
