HighEfficiency Compressed Air Refrigeration Dryer
Reference: 1600980182530
Medical Gas Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

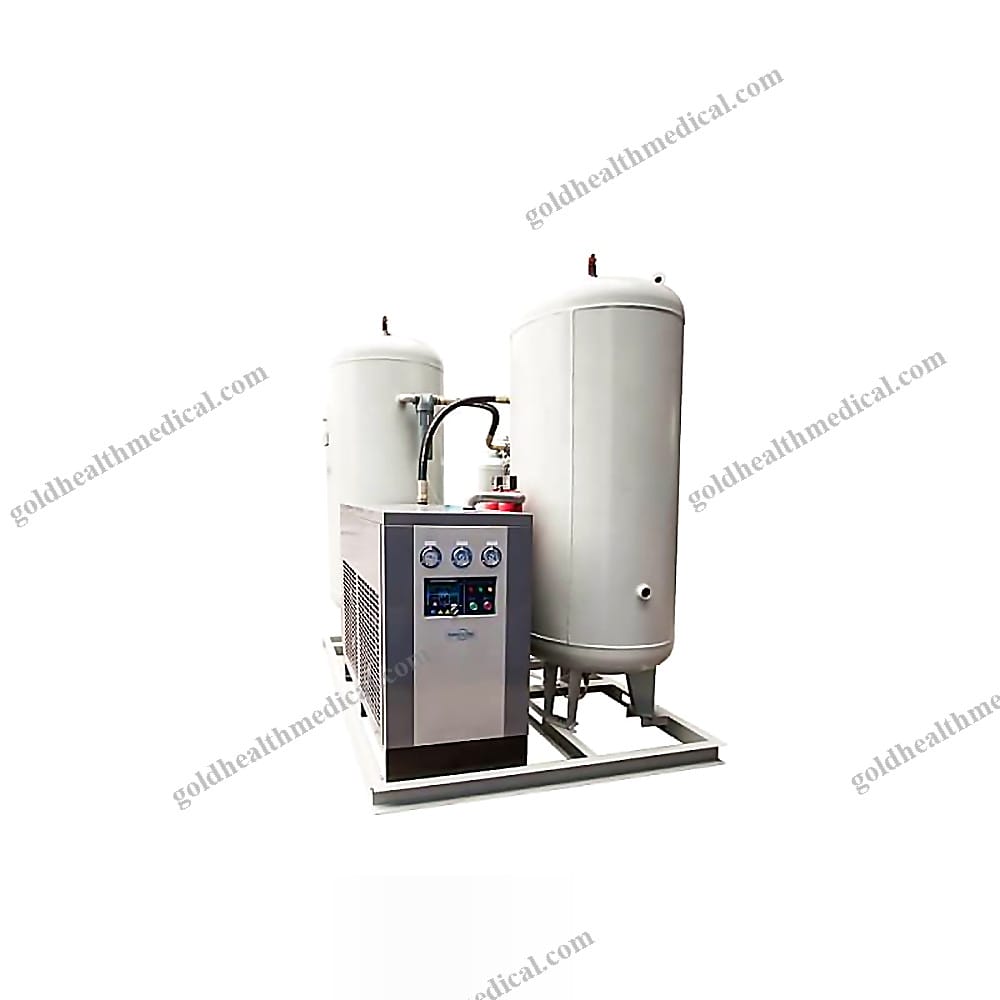

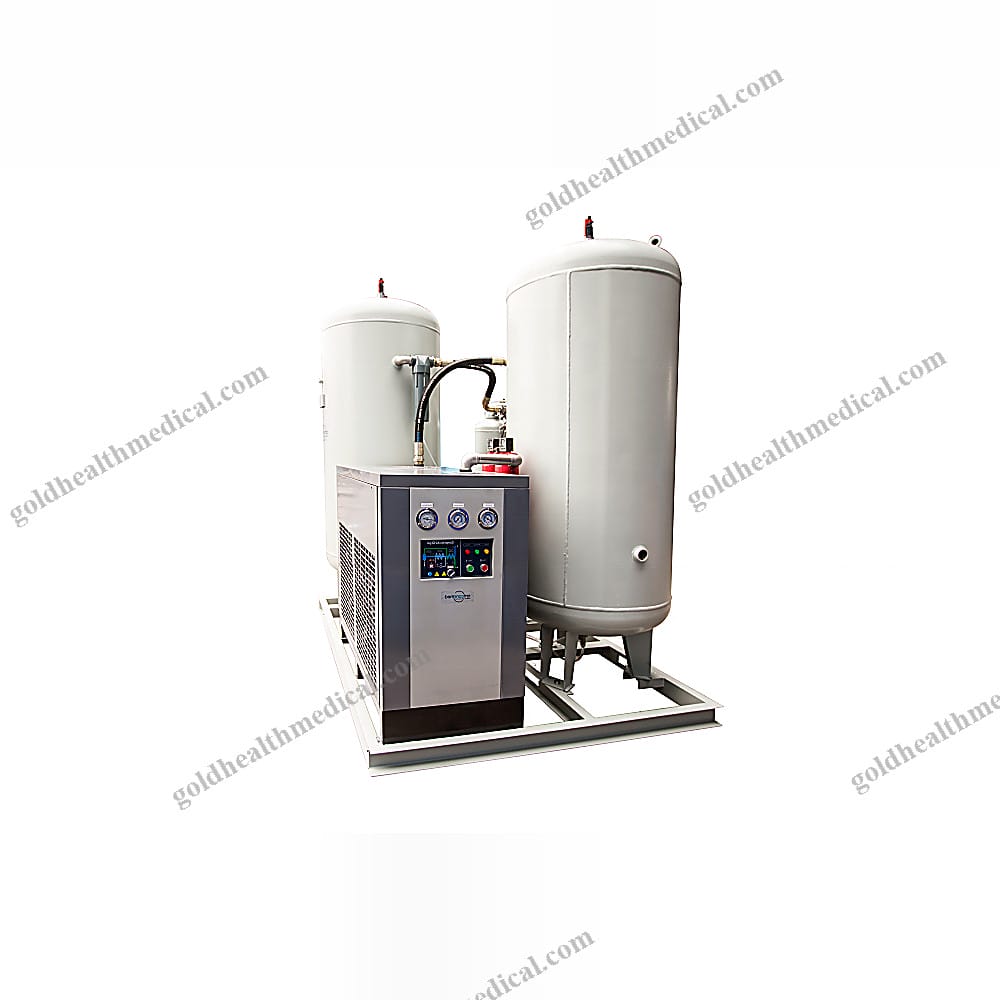

GoldHealth Medical Air Dryers
GoldHealth Medical air dryers are engineered to remove oil-water mixtures, impurities, and moisture from air, ensuring compliance with international standards for residual oil content. Our advanced air adsorption dryers utilize a cycle of adsorption and regeneration to effectively eliminate moisture from compressed air.
The GoldHealth Medical dryer employs cutting-edge adsorption drying and molecular sieve filling technologies. This ensures stable operation, minimal failures, an elegant design, and the ability to dry compressed air to a pressure dew point of -40°C to -70°C while reducing energy consumption.
Features
- Air inlet temperature: 20-45°C
- Air inlet pressure: 0.6-1.0MPa
- Regeneration air consumption: ≤14%
- Pressure loss: ≤3% of the inlet pressure
- Inlet air oil content: ≤0.01PPM
- Pressure dew point: -40°C (standard type)
- Dual-cylinder alternating and continuous operation
- Micro-heating regeneration
Specifications
- Flow: 9 m³/h (150 l/min) - 255.6 m³/h (4260 l/min)
- Dimensions: 250x250x600 mm - 590x240x1340 mm
- Weight: 26 kg - 113 kg

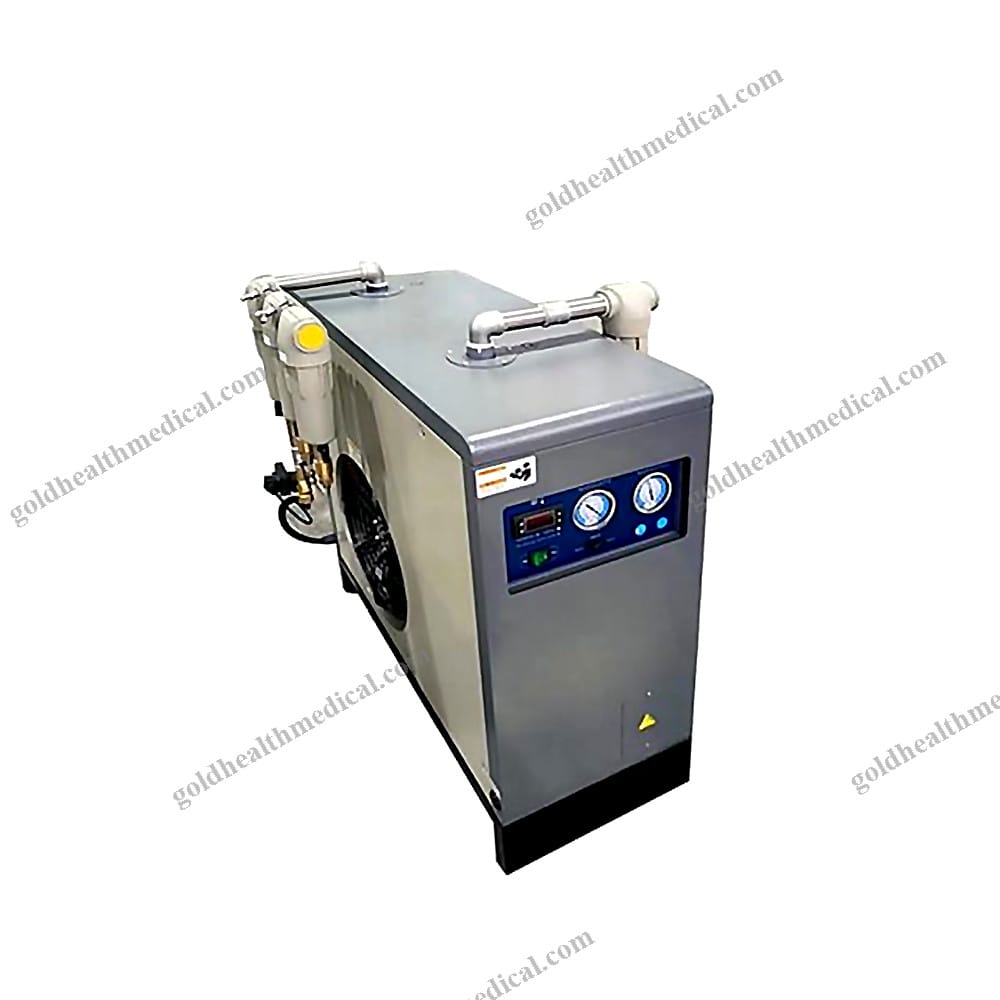

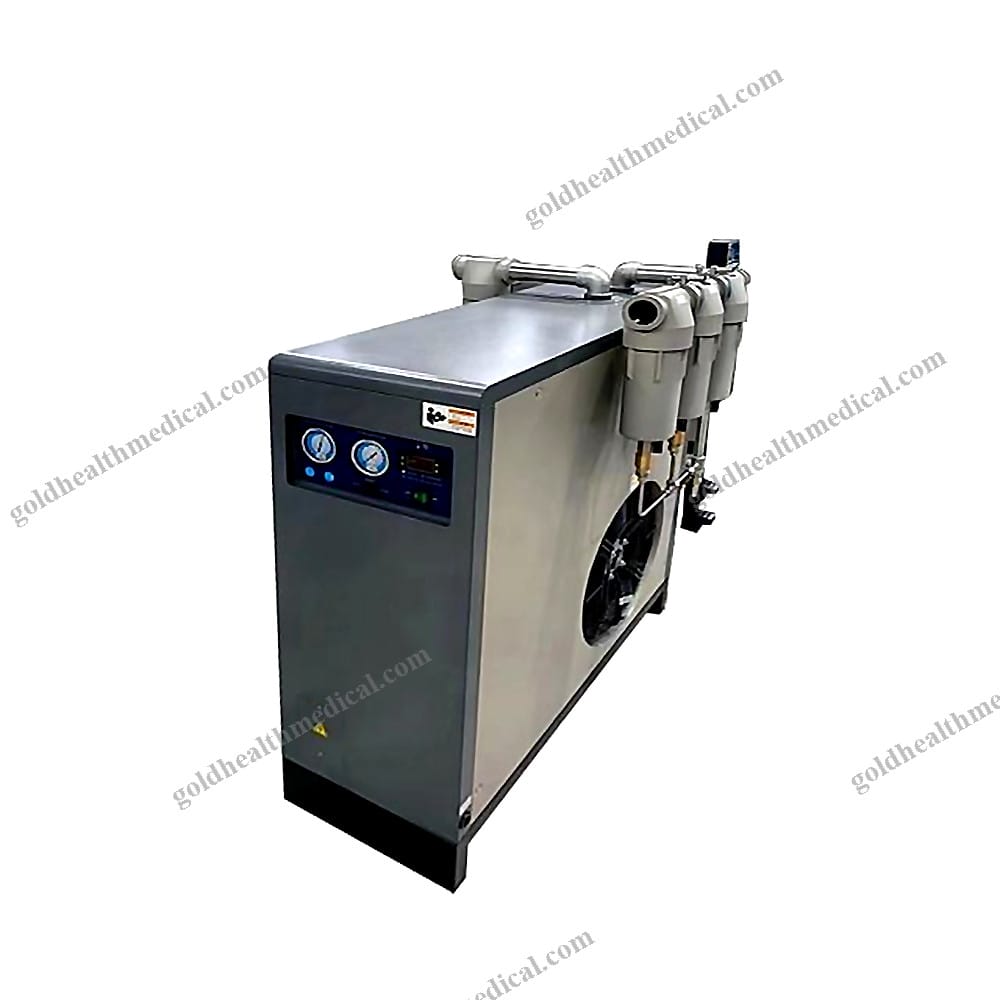

GoldHealth Medical Refrigeration Air Dryers
GoldHealth Medical refrigeration dryers reduce compressed air temperature using refrigerants. The water vapor in the compressed air becomes supersaturated at low temperatures, condensing into liquid droplets. These droplets are then separated from the compressed air through an air-water separation device. The air is cooled, condensed, separated, dried, and reheated by an energy-saving heater before exiting the dryer.
Features
- Inlet temperature: Maximum 45°C
- Working pressure: 0.7-10Mpa (Usage scope 0.7Mpa-1Mpa)
- Temperature difference between inlet and outlet: 5-10°C
- Ambient temperature: 2°C~38°C
- Low-pressure dew point: 3°C (-22°C atmospheric pressure dew point)
- High-efficiency aluminum plate heat exchanger unit with excellent heat dissipation and minimal pressure drop (pressure drop to 0.2bar)
- User-friendly multi-function control panel displaying dew point, operational status, drainage, alarms, and equipped with high and low-temperature alarm devices
- Energy-efficient, with compressor power consumption 50-200% less than conventional refrigeration dryers
Specifications
- Flow: 30 m³/h (500 l/min) - 240 m³/h (4000 l/min)
- Dimensions: 305x373x440 mm - 396x462x536 mm
- Weight: 18 kg - 41 kg
GoldHealth Medical is dedicated to providing comprehensive and innovative medical gas solutions, including gas pipeline engineering, ward care products, operating room equipment, and supporting installation and after-sales services. Our commitment to quality ensures customer loyalty and satisfaction.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Company Name: GoldHealth Medical
Product Name: Medical Air Dryer
Product Overview:
The GoldHealth Medical Air Dryer is a cutting-edge solution designed to deliver consistent, high-quality air for medical applications. Engineered with precision and reliability in mind, this device ensures optimal performance in critical healthcare environments. Whether in hospitals, clinics, or research labs, the Medical Air Dryer guarantees dry, contaminant-free air to support patient care and advanced medical procedures.
Key Features and Specifications:
- Material: Durable, high-grade metal construction for long-lasting performance
- Instrument Classification: Class I medical device, ensuring safety and reliability
- Power Source: Electric, offering efficient and stable operation
- Shelf Life: 1 year from the date of manufacture
- Quality Certification: ISO-certified, meeting international standards for medical equipment
- Type: Specialized medical gas equipment, tailored for healthcare applications
- Place of Origin: Anhui, China, reflecting our commitment to quality craftsmanship
Warranty and Support:
- Warranty: Comprehensive 5-year warranty, underscoring our confidence in product durability
- After-Sale Service: Includes free spare parts to minimize downtime and ensure uninterrupted service
Packaging and Delivery:
- Packaging Details: Securely packed in robust wooden cases to protect against transit damage
- Port Options: Shanghai or Ningbo for flexible shipping arrangements
- Supply Ability: Capable of delivering 1000 sets per month to meet high-volume demands
Why Choose GoldHealth Medical Air Dryer?
- Engineered for precision and reliability in demanding medical environments
- Backed by a 5-year warranty and exceptional after-sale support
- ISO-certified quality assurance for peace of mind
- Designed to integrate seamlessly into existing medical gas systems
Elevate your facility’s performance with the GoldHealth Medical Air Dryer – where innovation meets dependability.
