Handheld 8MHz Vascular Doppler Ultrasound for Fetal and
Reference: 1601059099816
Fetal heart rate monitor
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical Vascular Doppler
GoldHealth Medical presents a state-of-the-art Vascular Doppler designed for precision and ease of use in monitoring arteries and veins. This device is engineered to meet the needs of medical professionals and caregivers alike, providing unparalleled performance in vascular assessment.
Key Features
- Elegant and Portable Design: Combining aesthetics with functionality, this device is easy to carry and operate.
- Ergonomic Probe: Featuring a unique bending structure, the probe enhances ease of use and comfort, particularly for pregnant women, reflecting our commitment to humane design.
- Battery Status Indicator: Ensures you are always aware of the remaining power.

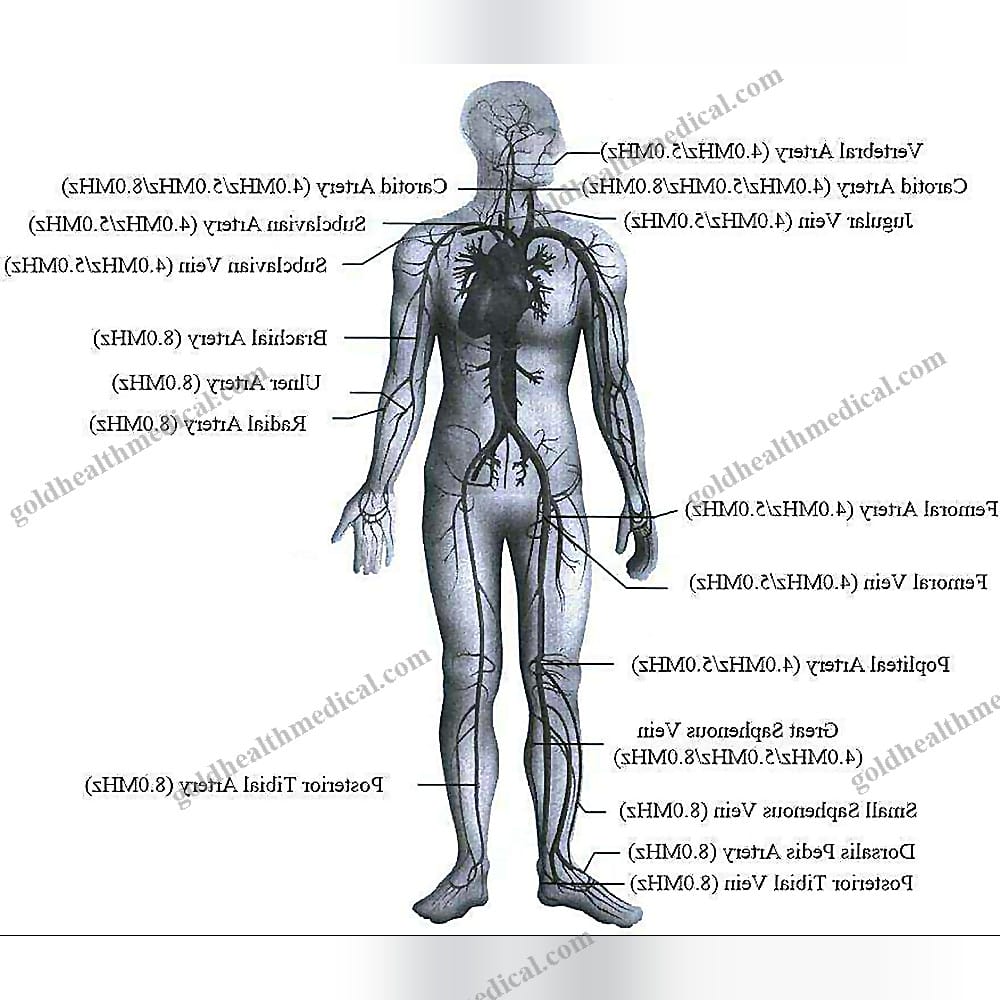

- Interchangeable Probes: Choose from 4.0MHz, 5.0MHz, or 8.0MHz probes to suit specific diagnostic needs.
- Probe Inspection Capability: Ensures optimal performance and reliability.
- Built-in Speaker and Headphone Output: Offers flexibility in audio monitoring.
- Backlit Display: Provides clear visibility in all lighting conditions.
- Auto Shut-off Function: Preserves battery life by automatically powering down when not in use.
- Extended Battery Life: Powered by two standard 1.5V alkaline batteries, providing no less than 8 hours of continuous operation.
Technical Specifications
- Ultrasound Nominal Frequency: 4.0MHz, 5.0MHz, 8.0MHz
- Working Frequency: 4.0MHz, 5.0MHz, 8.0MHz ±10%
- Acoustic Power Parameters:
- P_<1MPa
- Iob<20 mW/cm²
- Isata<10 mW/cm²
- Ispta<100 mW/cm²
- Effective Area for Transmitter:
- 32mm² ±15% (4.0MHz/5.0MHz)
- 14mm² ±15% (8.0MHz)
- Water Ingress Protection: Designed to withstand continuous immersion in water at a depth of 1 meter for 24 hours.
- Safety in Flammable Environments: Not suitable for use in the presence of flammable gases.
- Operating System: Continuous running equipment.
- Operating Mode: Continuous wave Doppler.
Usage Instructions
- Connect the selected probe to the Vascular Doppler main unit.
- Apply a generous amount of gel to the examination site. Position the probe at a 45° angle to the skin surface over the vessel being examined.
- Adjust the probe position to obtain the loudest audio signal. Arteries emit high-pitched pulsatile sounds, while veins produce a non-pulsatile sound akin to rushing wind.
GoldHealth Medical is dedicated to delivering high-quality medical equipment designed to enhance patient care and streamline medical diagnostics. Our innovative solutions are trusted by healthcare providers worldwide, ensuring reliable and accurate results every time.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Vascular Doppler by GoldHealth Medical
Key Features:
- Advanced Blood Flow Detection: Precisely detects arteries and veins blood flow with an 8MHz waterproof probe (IPX4 rated).
- Portable and Reliable: Powered by 2 AA batteries (not included) with a removable battery design for uninterrupted performance.
- Clear Visualization: Equipped with an LCD display (38mm x 28mm) and backlight for enhanced visibility in any lighting condition.
- Audible Feedback: Built-in speaker provides real-time audio monitoring, with an optional output for headphones to ensure privacy and focus.
- Durable and Lightweight: Constructed with high-quality plastic materials, ensuring a robust yet lightweight design.
Technical Specifications:

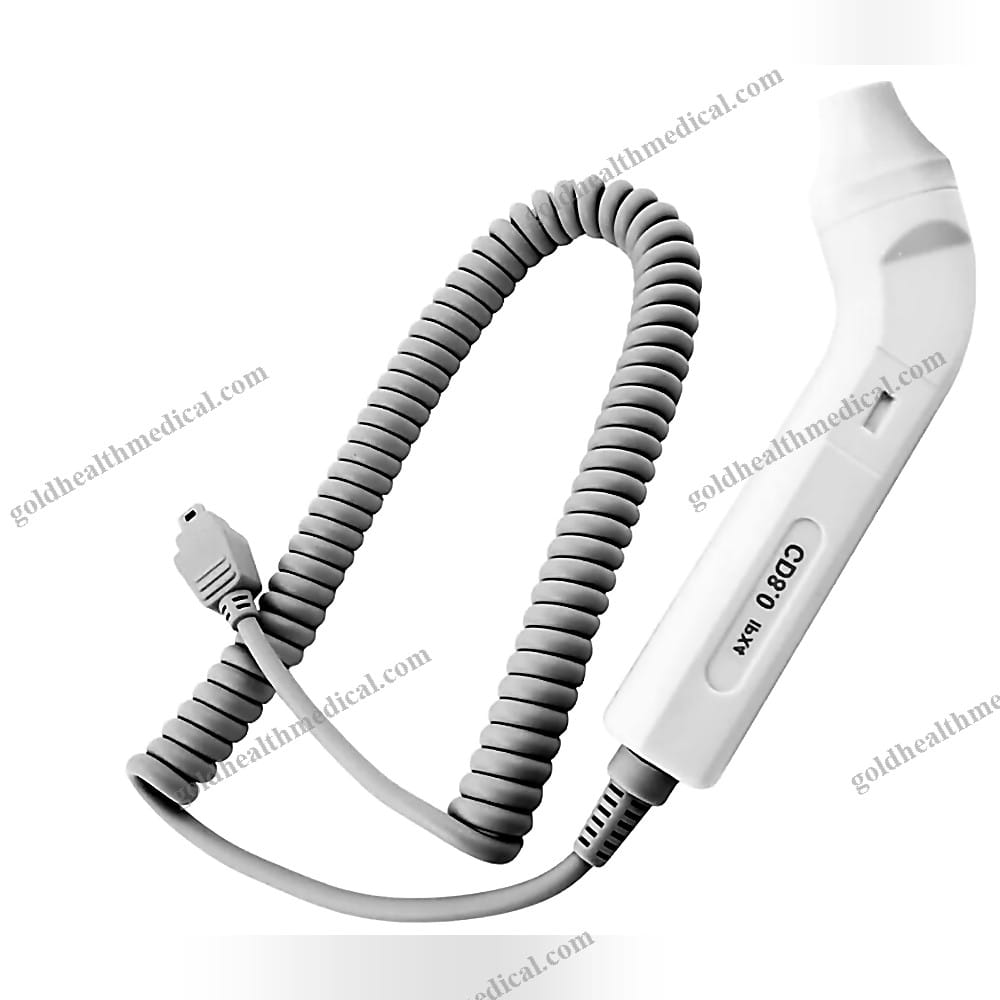

- Probe Frequency: 8MHz, waterproof (IPX4)
- Display: LCD Display (38mm x 28mm) with backlight

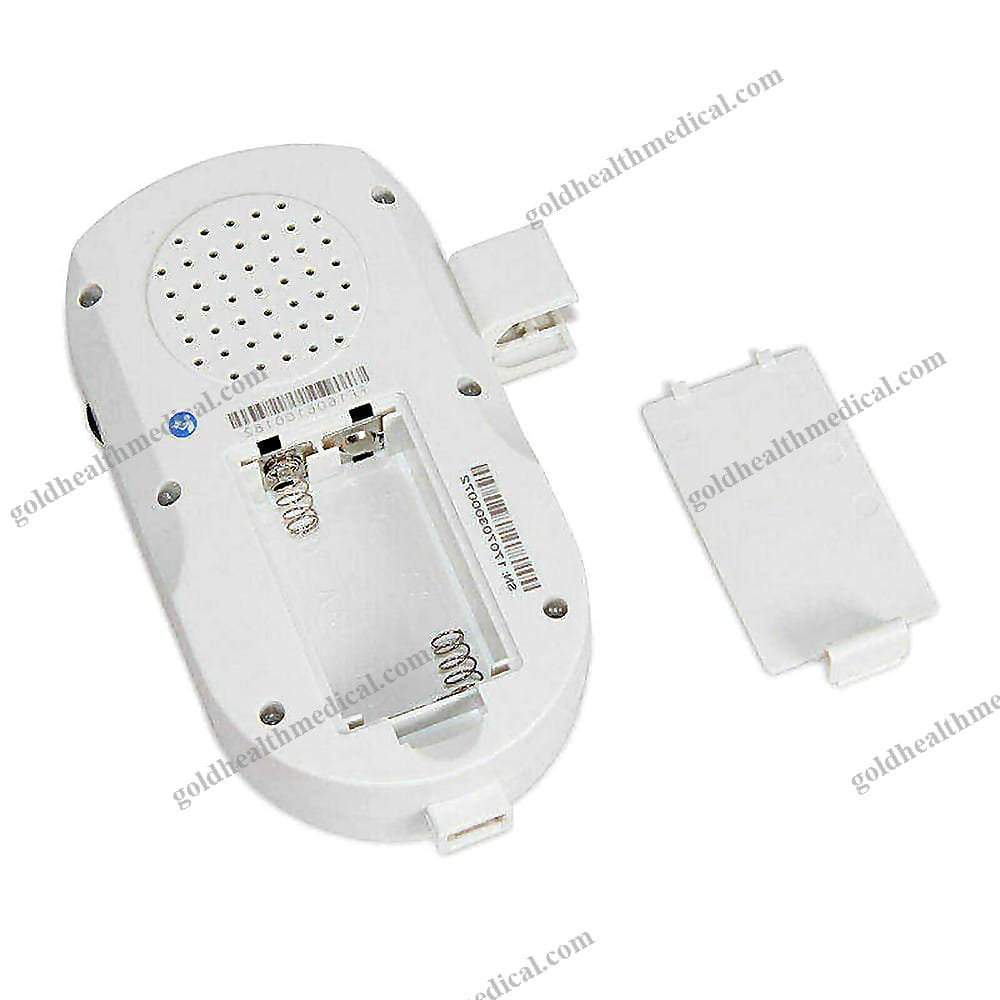

- Power Supply: 2 AA batteries (not included), Removable Battery
- Audio Output: Built-in speaker, Optional headphone output
- Colors Available: Blue, Purple
- Instrument Classification: Class II medical device
- Shelf Life: 3 years
Quality Assurance:
- Certifications: Compliant with ROHS standards
- Warranty: 1-year comprehensive warranty
- After-Sale Service: Hassle-free return and replacement policy

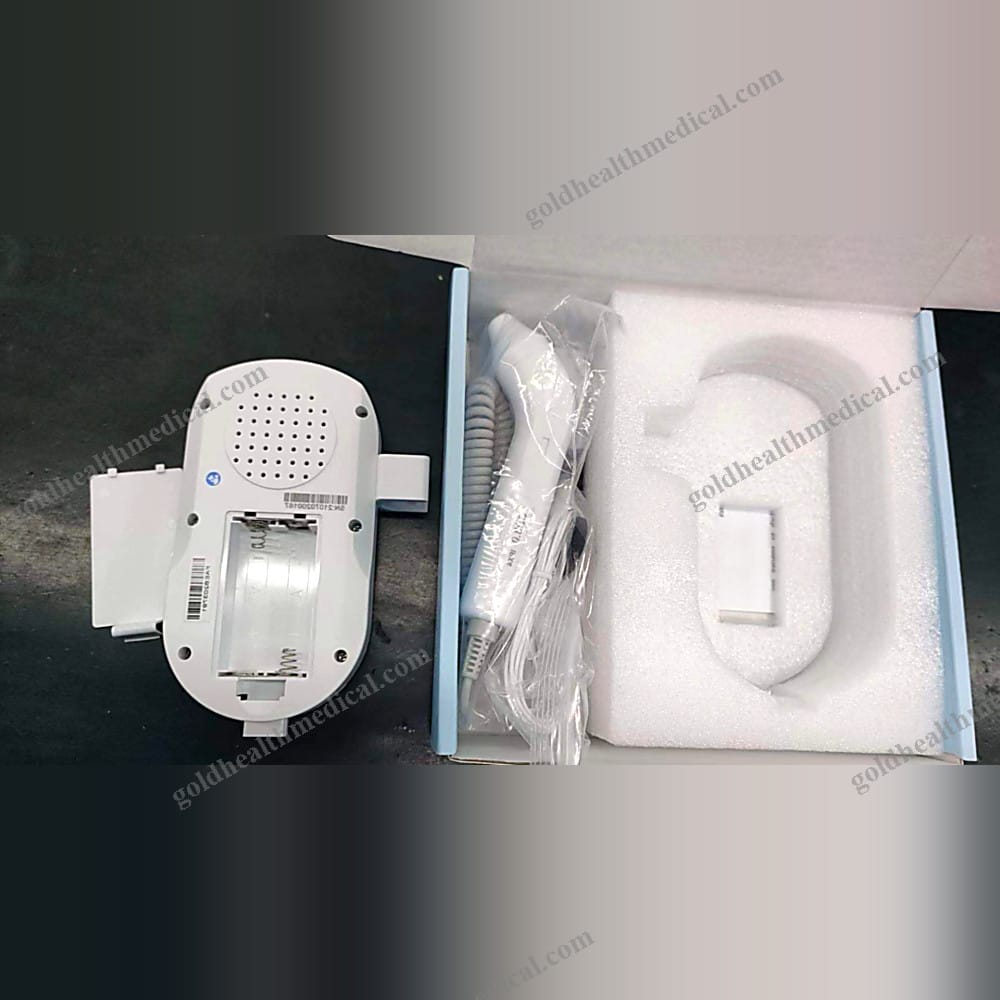

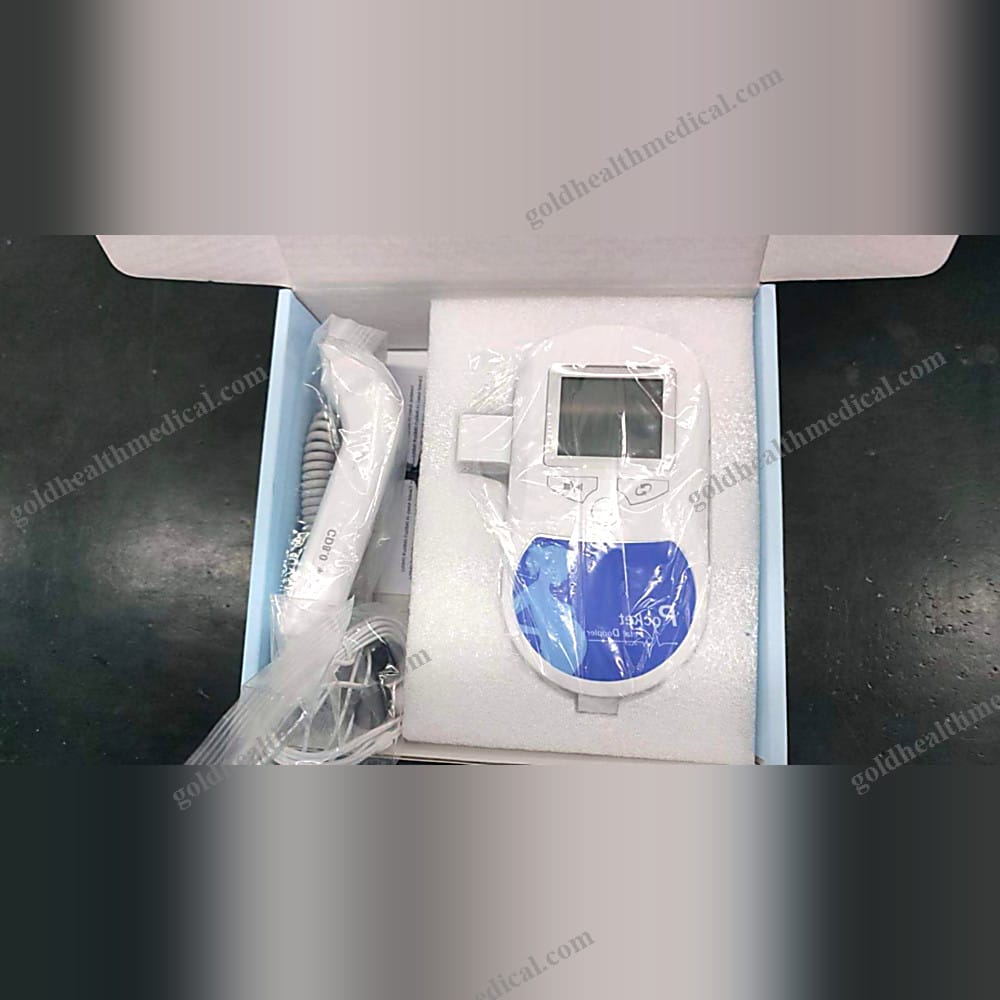

Packaging Details:
- Package Dimensions: 19.5cm x 17.5cm x 8cm
- Gross Weight: 0.680 kg
- Selling Unit: Single item
Applications:
- Designed for hospitals, clinics, research institutions, rehabilitation centers, and home healthcare use. Ideal for professionals seeking accurate vascular diagnostics in a compact and user-friendly device.
GoldHealth Medical’s Vascular Doppler combines precision engineering with intuitive design, empowering healthcare providers to deliver exceptional patient care.
