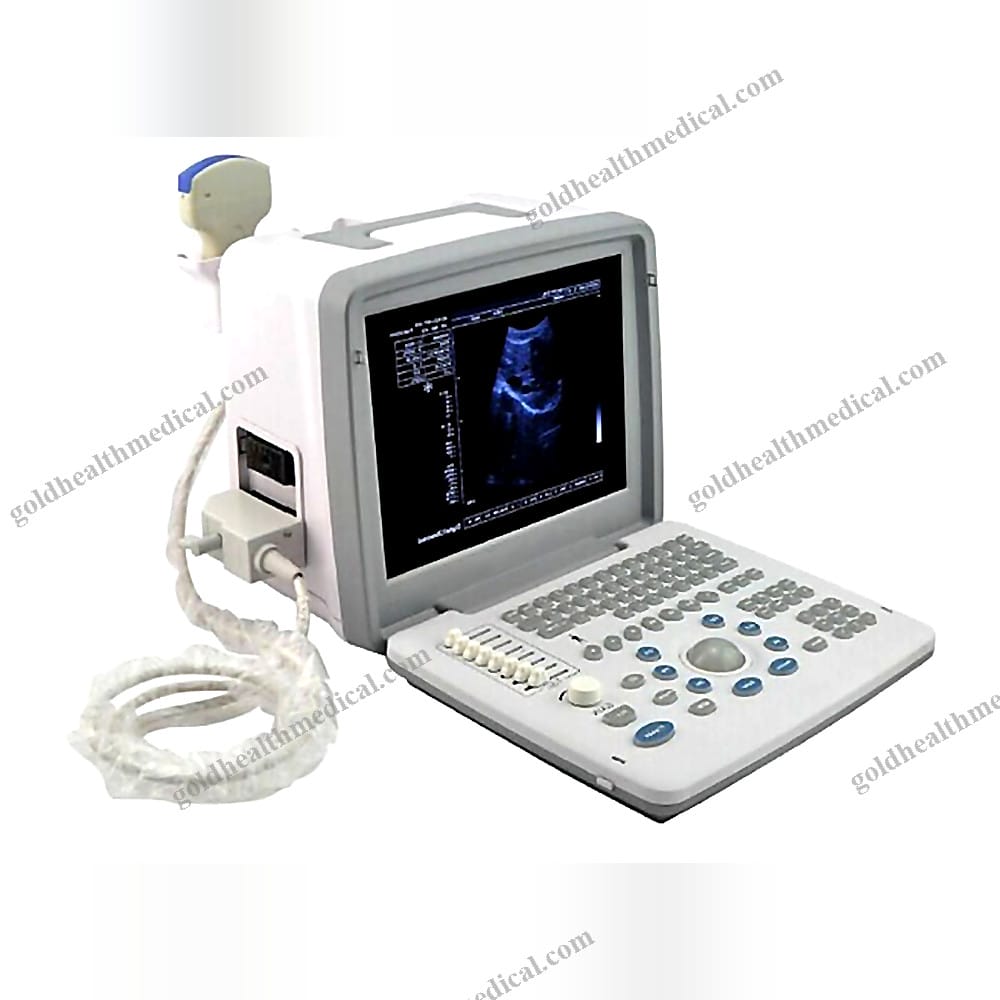

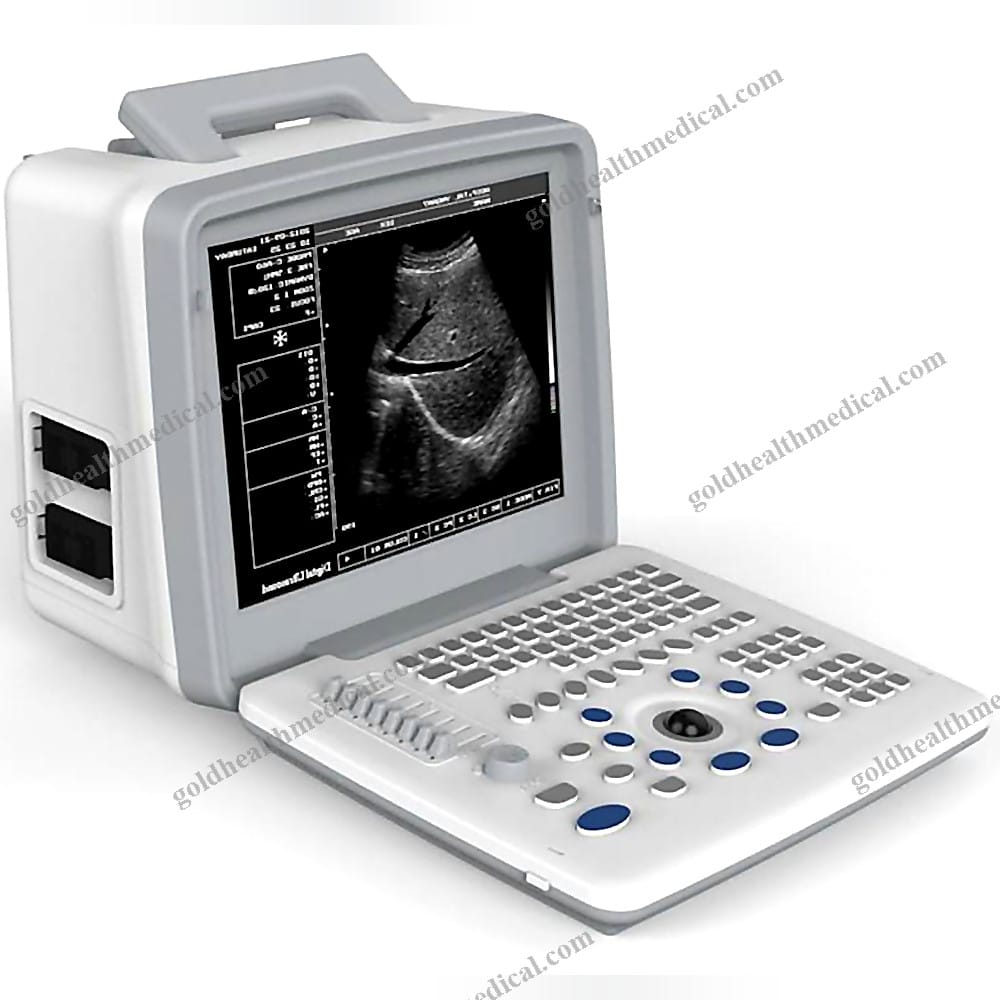

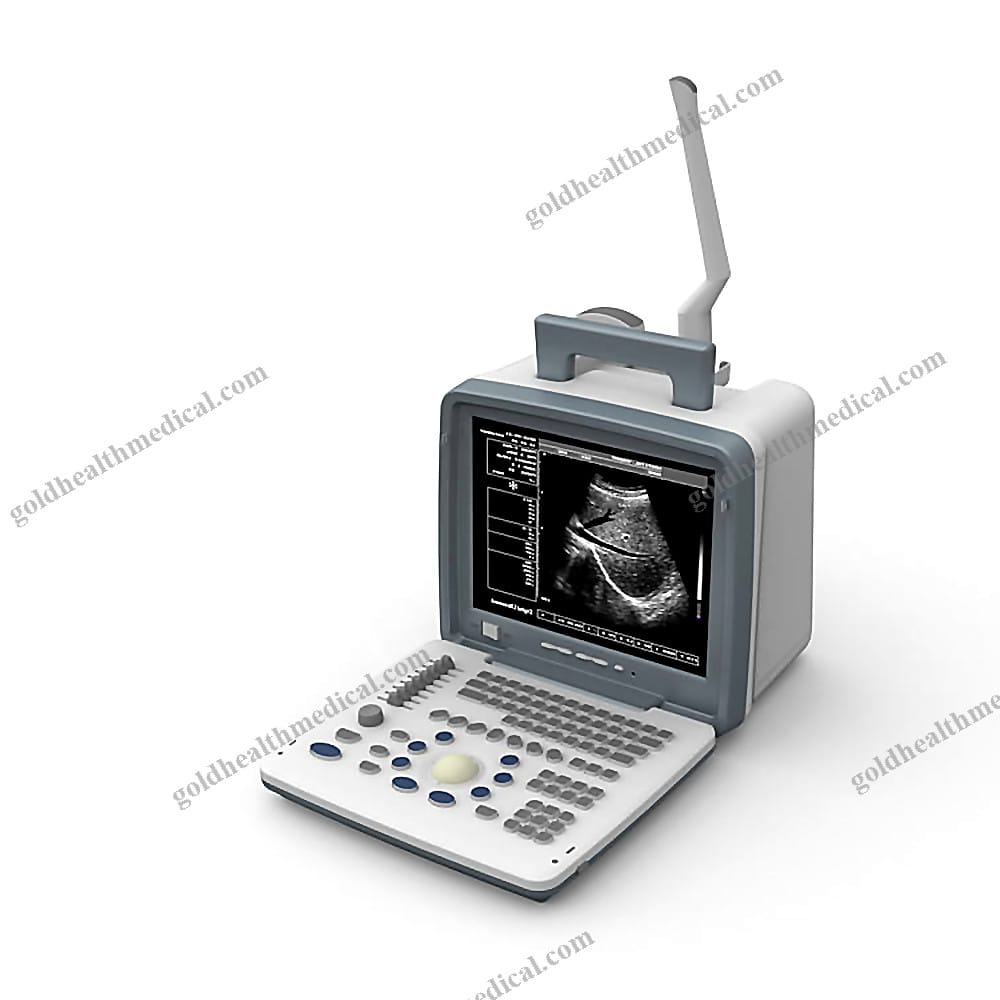

Full Digital Portable Veterinary Ultrasound Scanner Machine
Reference: 1601320714485
Veterinary Diagnostic Equipment
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Revolutionizing Veterinary Ultrasound Technology
GoldHealth Medical proudly presents a cutting-edge Full Digital Veterinary Ultrasound Instrument, designed to deliver unparalleled precision and portability for veterinary professionals. This advanced ultrasound scanner is engineered to meet the diverse needs of modern medical environments, from hospitals and clinics to research labs and home care settings.
Key Features and Technical Specifications
-
High-Definition Display:
Equipped with a 12-inch or 10-inch LCD screen, offering a resolution of 800 x 600 for crystal-clear imaging. -
Advanced Imaging Capabilities:
- Five-level frequency conversion for optimal adaptability.
- Eight-stage TGC (Time Gain Compensation) control for enhanced image clarity.
-
Encoder adjustment for precise parameter tuning.
-
Enhanced Visualization:
- 16 types of pseudo-color processing to highlight critical details.
-
64 positional markers for accurate anatomical reference.
-
Memory and Playback:
- Store up to 128 images permanently.
-
Support for 256-frame movie storage and playback, enabling detailed review and analysis.
-
Comprehensive Measurement Tools:
Measure distance, circumference, area, and volume using advanced methods such as ellipse and tracing techniques. Includes specialized obstetric and due-date measurement functions. -
Multilingual Support:
Available in English and Chinese, ensuring accessibility for a global audience. -

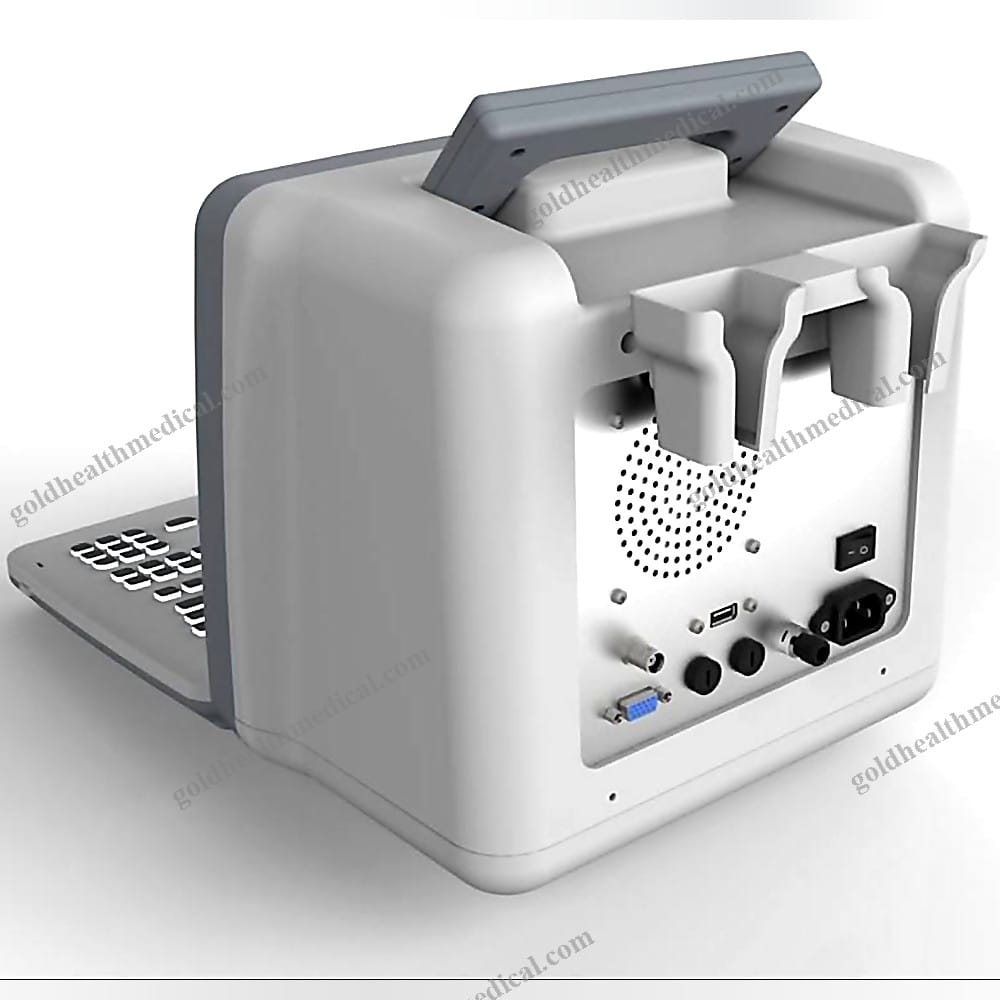

Versatile Connectivity:
- Dual probe sockets for seamless integration.
- PAL and SVGA video outputs for external displays.
-
USB connectivity for data transfer and compatibility with thermal printers like Sony and Mitsubishi.
-

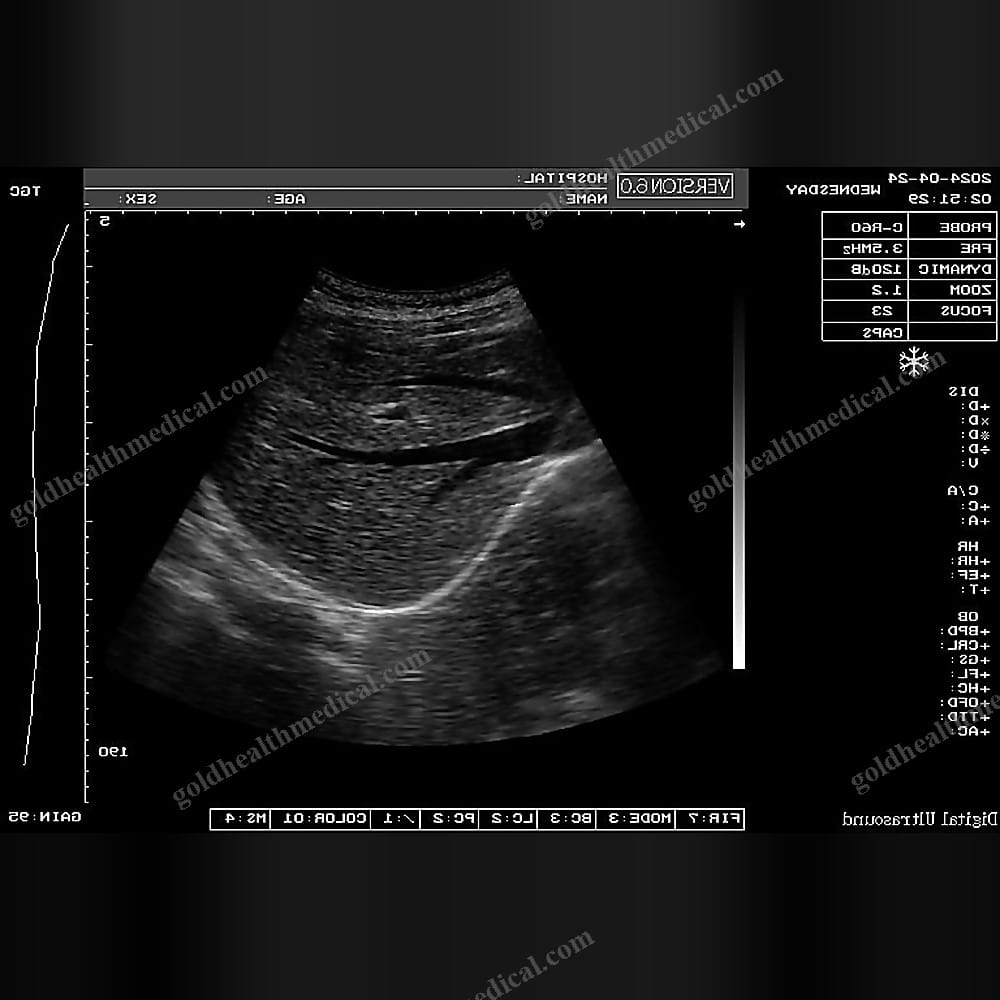

Multiple Display Modes:
Supports B, B/B, 4B, B/M, and M modes for versatile diagnostic applications. -
Wide Frequency Range:
Operates within a frequency range of 2.0–10.0 MHz, ensuring adaptability for various clinical scenarios. -
Optional Probes:
- 3.5 MHz convex (standard configuration).
- 6.5 MHz transvaginal.
-
7.5 MHz linear.
-

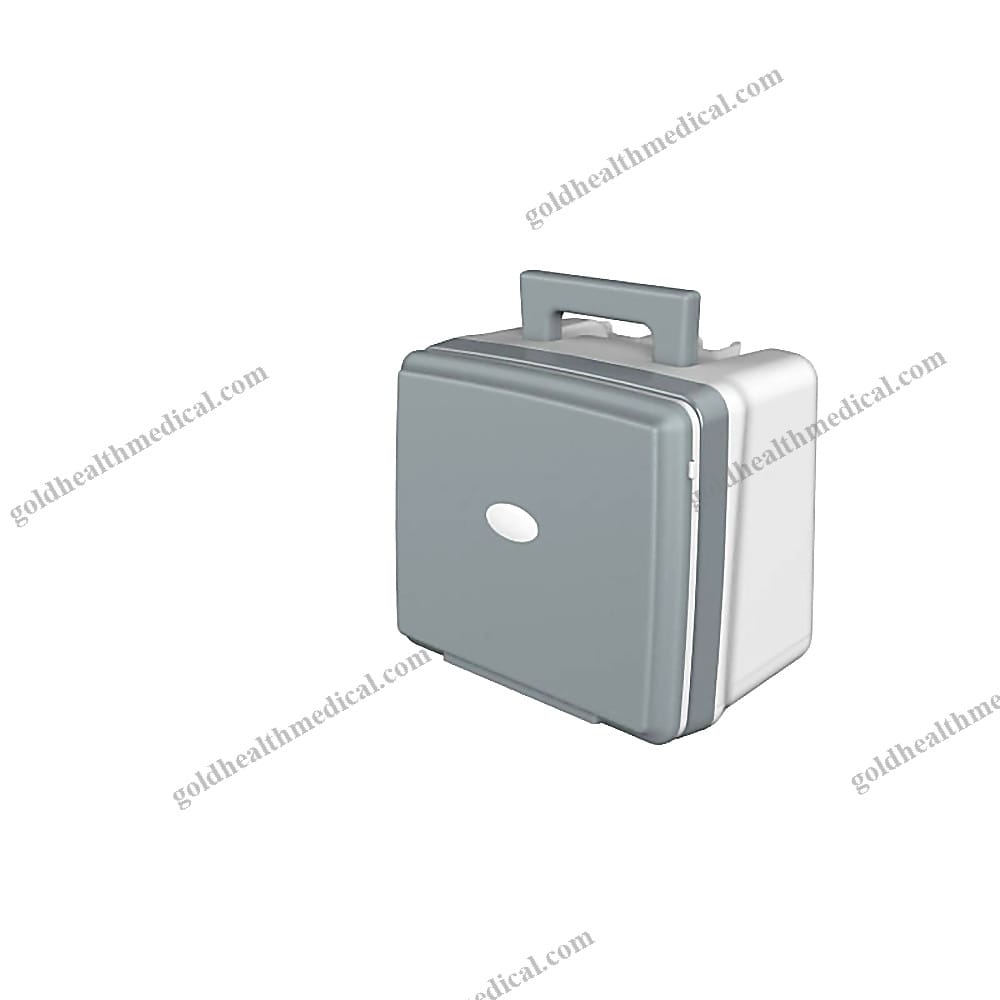

Compact and Durable Design:
- Gross weight: 13 kg; Net weight: 10 kg.
- Double-layer packaging dimensions: 450 x 350 x 450 mm, ensuring safe transport and storage.
Clinical Applications
This state-of-the-art ultrasound system is designed to enhance diagnostic accuracy and streamline workflows in veterinary care. Its intuitive interface and robust features make it an indispensable tool for veterinarians, researchers, and healthcare providers.
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering reliable, high-quality medical solutions that empower healthcare professionals to improve patient outcomes. Our mission is to become a trusted partner for long-term success in the global medical industry. With a focus on innovation, precision, and customer satisfaction, we serve clients across North America, Europe, the Middle East, and Asia.
Frequently Asked Questions
-
Do you support customization?
Yes, we offer OEM/ODM services, including packaging and label customization. -
What quality certifications do you provide?
Our products are backed by certifications such as CE and ISO, ensuring compliance with international standards. -
Do you provide samples?
Samples are available upon request, with shipping fees covered by the client. -
How do you ensure product quality?
We support sample testing, on-site factory inspections, third-party evaluations, and comprehensive product testing.
GoldHealth Medical is your trusted partner in advancing veterinary care through innovative ultrasound technology. Explore the possibilities today.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Portable Laptop Veterinary Ultrasound Scanner Machine by GoldHealth Medical
Key Features and Benefits:
- Compact and Portable Design: Lightweight at just 10KG, making it effortless to transport and ideal for on-the-go veterinary diagnostics.
- Versatile Display Options: Equipped with a high-resolution 10-inch or 12-inch screen, offering sharp imaging with a resolution of 800x600 for precise analysis.
- Advanced Imaging Modes: Supports multiple display modes including B, B/B, 4B, B/M, and M for comprehensive diagnostic capabilities.
- Wide Frequency Range: Operates within 2.0-10.0MHz, ensuring adaptability for various veterinary applications.
- Optional Probes Available: Includes choices like 3.5MHz convex, 6.5MHz transvaginal, and 7.5MHz linear probes to suit specific diagnostic needs.
Technical Specifications:
- Power Source: Electric, plug-in power supply mode for consistent performance.
- Material: Durable construction using high-quality plastic and metal components.
- External Interfaces: Dual probe connectivity, PAL and SVGA video outputs, and USB compatibility for seamless data transfer.
- Instrument Classification: Class II medical device, ensuring reliability and safety.
- Shelf Life: 3 years, providing long-term usability and value.
Applications:
- Designed specifically for veterinary diagnostics, this ultrasound scanner is a vital tool for assessing animal health in clinics, farms, research labs, and even home care settings.
Packaging Details:
- Single Package Size: 45 x 35 x 45 cm
- Single Gross Weight: 13.000 kg
Warranty and Support:
- Warranty Period: 1 year, ensuring peace of mind for your investment.
- After-Sale Service: Access to online technical support for troubleshooting and guidance.
Why Choose GoldHealth Medical?
GoldHealth Medical’s Portable Laptop Veterinary Ultrasound Scanner Machine combines cutting-edge technology with user-friendly features, empowering veterinarians and healthcare professionals to deliver accurate diagnoses with ease. Its robust design, versatile functionality, and exceptional portability make it an indispensable tool for modern veterinary practices.
