Foldable Electric Wheelchair with Brake System
Reference: 1600303887177
Electric Wheelchair
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

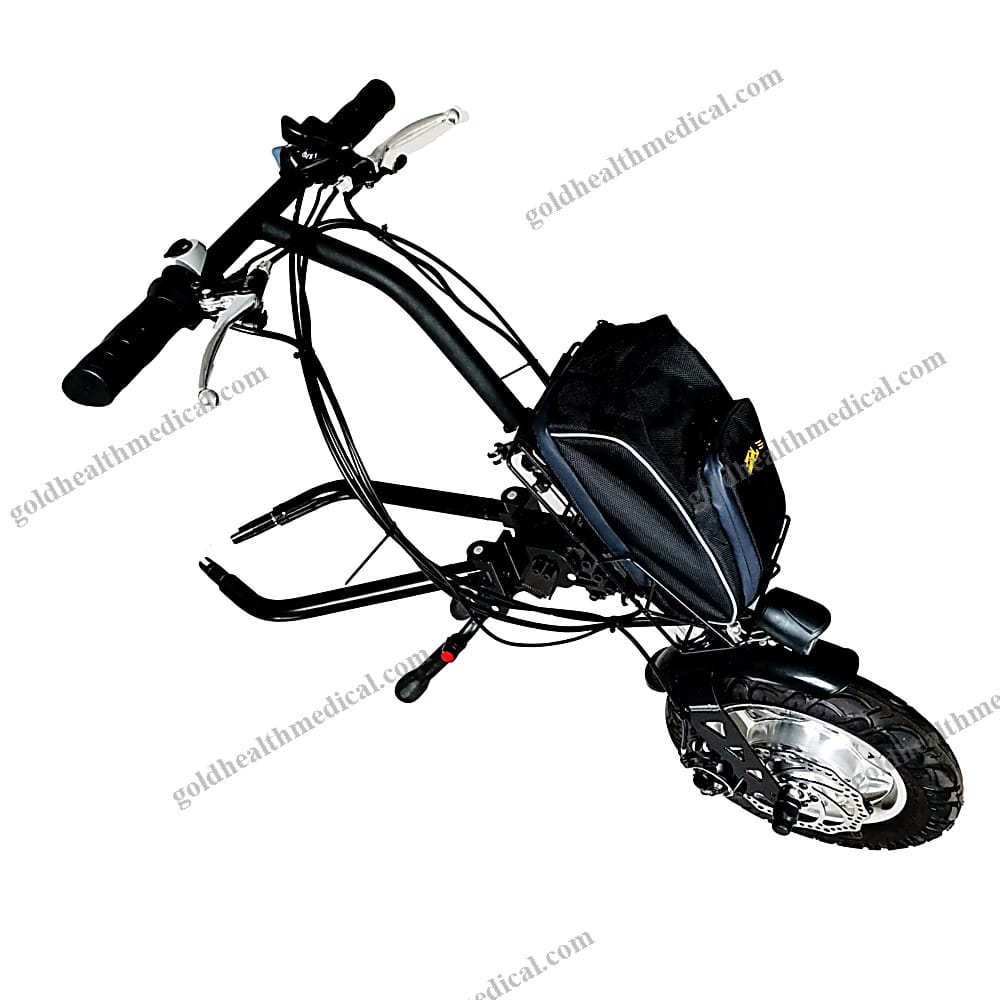

Revolutionize Mobility with GoldHealth Medical's Electric Wheelchair Handcycle Kit

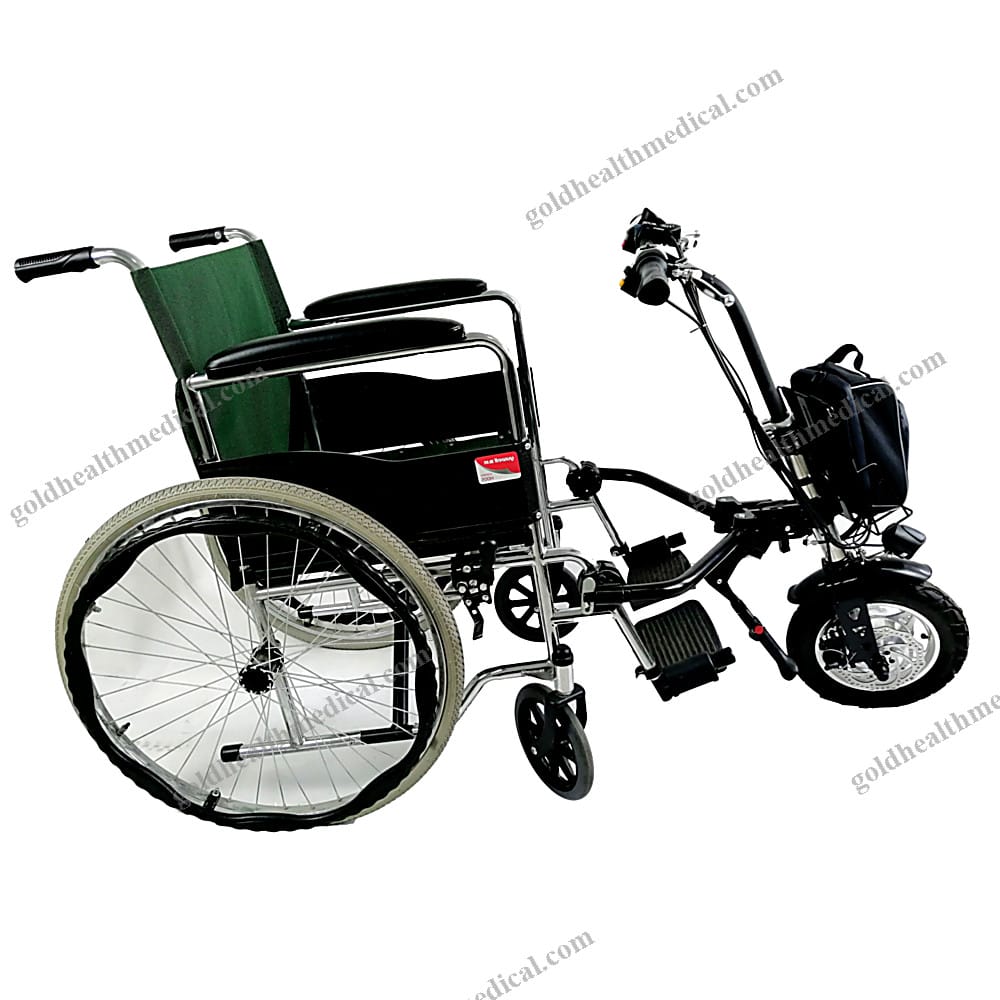

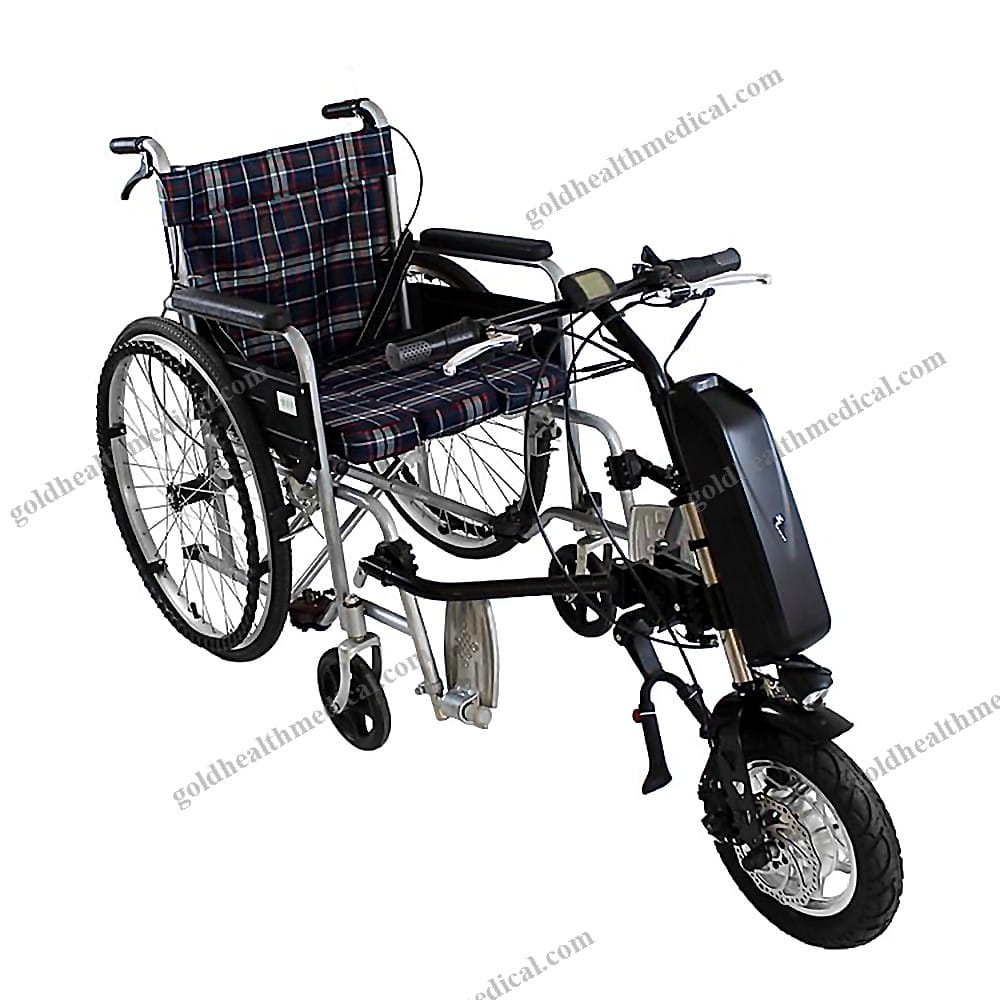

Transform any standard wheelchair into a high-performance electric mobility solution with GoldHealth Medical’s innovative Electric Wheelchair Handcycle Kit. Combining cutting-edge engineering with user-centric design, this handcycle kit offers an affordable, versatile, and efficient alternative to full electric wheelchairs.
Key Features and Specifications
- Motor Options:
- 12-inch: 36V/48V 250W or 350W geared motor
-
16-inch: 36V/48V 250W, 350W geared motor, or 500W gearless motor
-
Battery Options:
- Bare: 36V 8.8Ah, 36V 13Ah, 48V 10.4Ah
-
Hailong: 36V 13Ah, 48V 10.4Ah, 48V 13Ah
-
Performance Metrics:
- Range: Up to 25km on a single charge
- Max Speed: 20km/h
-
Max Load Capacity: 100kg
-
Weight and Dimensions:
- Gross Weight: 25kg
- Package Size: 810mm x 220mm x 460mm

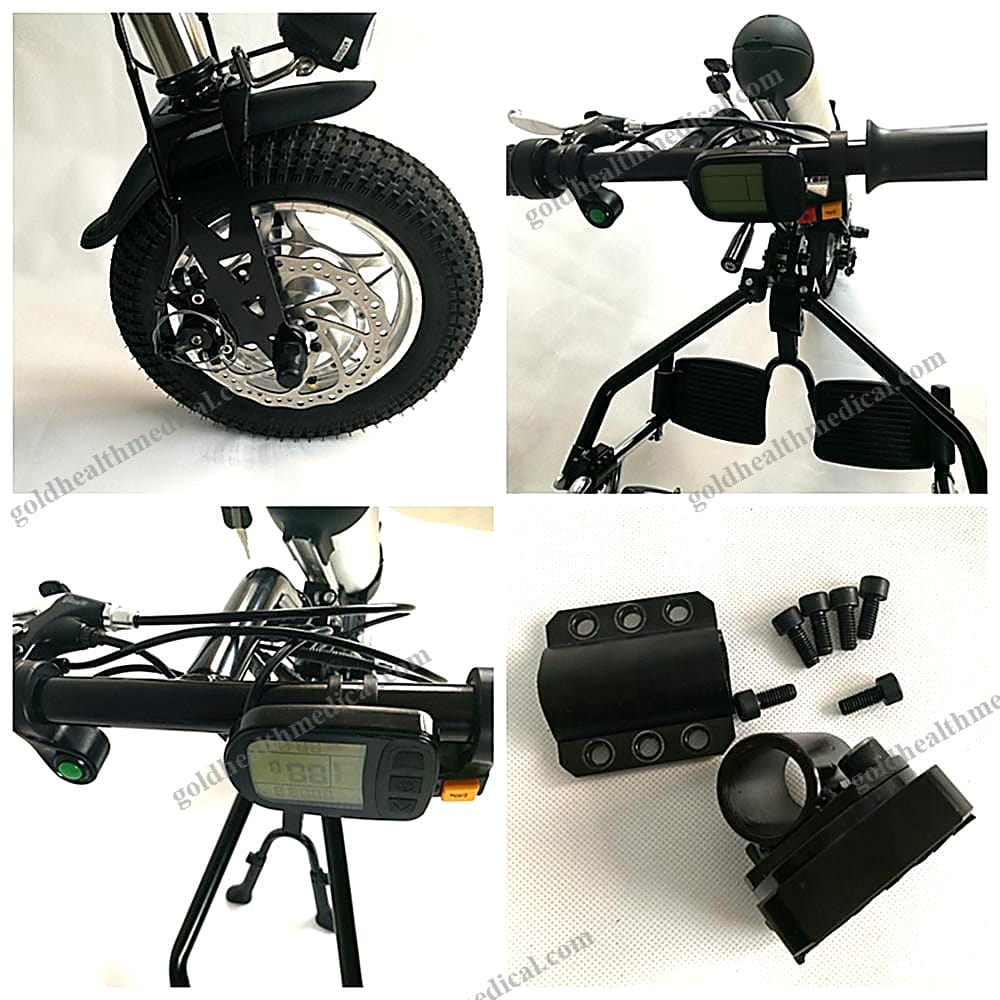

What’s Included in the Kit
- Frame: Durable stainless steel frame (1 set)
- Controller: Smart integrated controller (1 set)
- Motor: High-efficiency 36V/48V 250W/350W/500W brushless hub motor (1 set)
- Display: Intuitive LCD display (1 set)

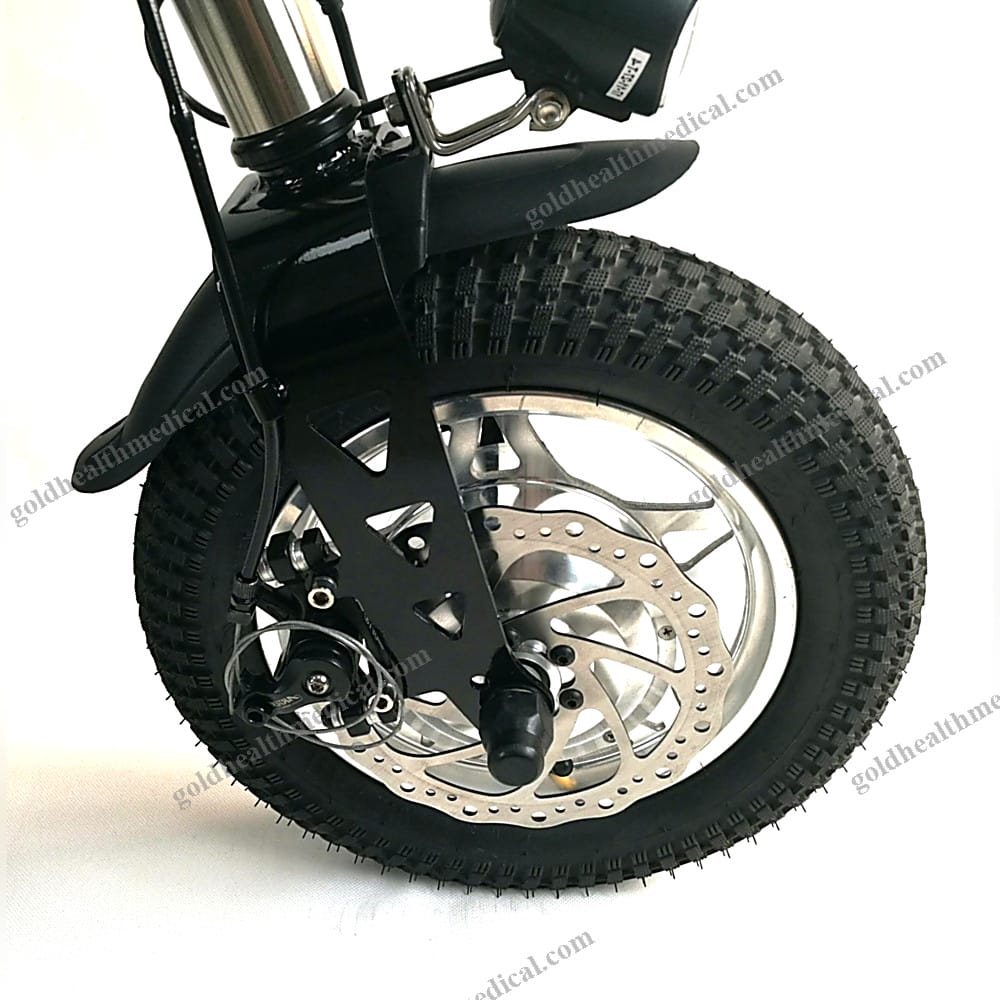

- Braking System: Reliable front disc brake (1 set)
- Lighting: Front LED light with integrated horn
- Throttle: Ergonomic half-twist throttle (1 set)
- Tires: 12-inch or 16-inch road tires (2.25 width, 1 set)
- Battery: Lithium-ion battery (36V/48V, 10.4Ah/13Ah, 1 set)
- Charger: Efficient 2A charger (1 set)
Advanced Electric Control System
- Half-twist throttle for smooth acceleration
- LCD display for real-time performance monitoring
- Integrated battery controller system for enhanced efficiency

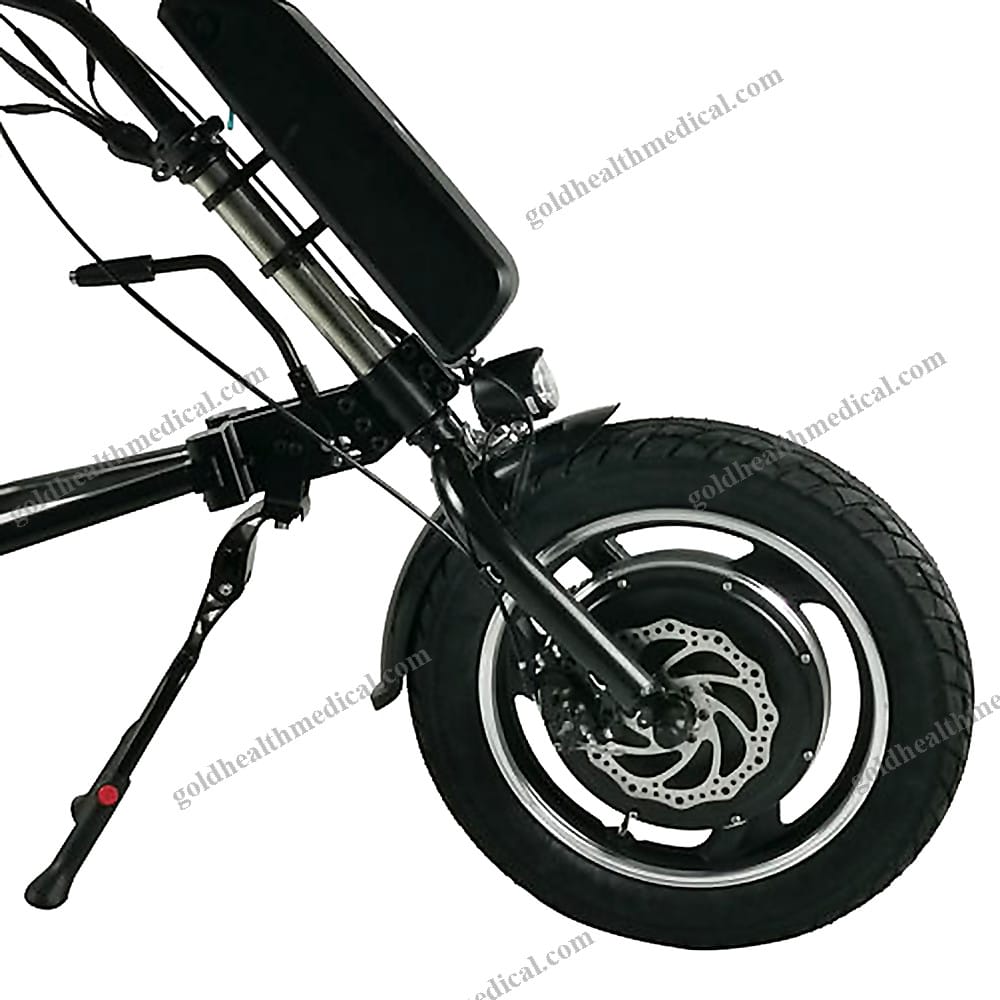

- Front motor wheel for superior power delivery
- Disc brake levers for responsive stopping
Mechanical Components
- Connect arm for seamless attachment
- Kickstand for stability during stops
- Clamping pieces for secure installation
- Fender to protect against debris
- Front fork with suspension for improved comfort
- Disc brake system for enhanced safety
Why Choose GoldHealth Medical?
- Superior Safety: Equipped with double disc brakes and a suspension front fork for unmatched riding comfort and reliability.
- Quick Installation: Thoughtfully designed for a 3-minute setup, ensuring minimal downtime.
- Durability: Waterproof components ensure longevity even in challenging conditions.
- Compatibility: Suitable for 90% of wheelchairs available in the market. Customizable tube sizes (7/9 inches standard).
Applications
Ideal for hospitals, clinics, rehabilitation centers, research labs, and home users seeking an adaptable and cost-effective mobility solution.
After-Sale Support
GoldHealth Medical is committed to delivering exceptional service and quality:
- Warranty Coverage:
- Motor, controller, and battery: 1 year
- Other parts: 6 months
- Risk-Free Assurance: Inspect goods upon delivery to ensure they meet your expectations.
- Customer-Centric Policies: Transparent return and exchange processes to ensure satisfaction.
Upgrade mobility with GoldHealth Medical’s Electric Wheelchair Handcycle Kit – where innovation meets accessibility.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Product Type: Wheelchair
Product Overview
Experience the next generation of mobility with GoldHealth Medical’s advanced wheelchair, designed to empower users with unparalleled comfort, durability, and intelligent control. Engineered for both medical professionals and individual users, this wheelchair is a perfect blend of innovation and reliability, making it ideal for hospitals, clinics, rehabilitation centers, and home care environments.
Key Features
- Frame Material: Robust steel frame ensures long-lasting durability and stability, supporting users in various environments.
- Power System: Equipped with a high-performance 36V 250W motor (upgradeable to 350W), delivering smooth and efficient mobility.
- Battery Technology: Advanced lithium battery with a capacity of 36V 8.8Ah, offering extended range and quick charging capabilities.
- Intelligent Control: Features a state-of-the-art 36V 15A intelligent controller for precise handling and enhanced user experience.
- Safety Braking: Dual braking system includes a reliable disc brake and an ergonomic hand brake, ensuring maximum safety during operation.
Additional Specifications
- Application: Rehabilitation therapy and daily mobility assistance.
- Packaging Dimensions: Compact and secure packaging (810mm x 220mm x 460mm) for easy transport and storage.
- Port of Delivery: Shanghai, ensuring efficient global shipping.
Supply Capability
GoldHealth Medical is committed to meeting the demands of healthcare providers worldwide, with a robust monthly supply capacity of 3000 sets.
Why Choose GoldHealth Medical?
Our wheelchairs are meticulously designed to provide superior performance, comfort, and safety. Whether for professional medical use or personal mobility needs, GoldHealth Medical is your trusted partner in enhancing the quality of life for users.
Ideal For
- Hospitals and clinics
- Rehabilitation centers and research labs
- Elderly care facilities and home users
- Medical equipment suppliers and distributors
Transform mobility with GoldHealth Medical’s innovative wheelchair solutions.
