Fetal Heart Rate Doppler Monitor Pro
Reference: 60732068558
Fetal heart rate monitor
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical Pocket Fetal Doppler
The GoldHealth Medical Pocket Fetal Doppler is a sophisticated hand-held device designed to detect fetal heart rates using advanced Doppler technology. This innovative tool is ideal for use in hospitals, clinics, and by expectant mothers for daily self-checks. Featuring a high-resolution color LCD screen, it displays fetal heartbeat waveforms and calculates the fetal heart rate (FHR) to assist healthcare professionals in timely diagnosis.
Key Features
- Elegant Design: Compact and portable with intuitive operation.
- Ergonomic Probe: Features a bendable structure for ease of use, enhancing comfort for pregnant women and reflecting thoughtful design.
- Comprehensive Display: Shows fetal heart rate values, bar graphs, and heartbeat waveforms on a vibrant color screen.
- Alert System: Notifies users with a red alarm when the fetal heart rate falls outside the normal range.
- Battery Indicator: Provides real-time battery status updates.
- Interchangeable Probe: Allows for easy replacement and inspection.
- Built-in Speaker: Ensures clear audio feedback.

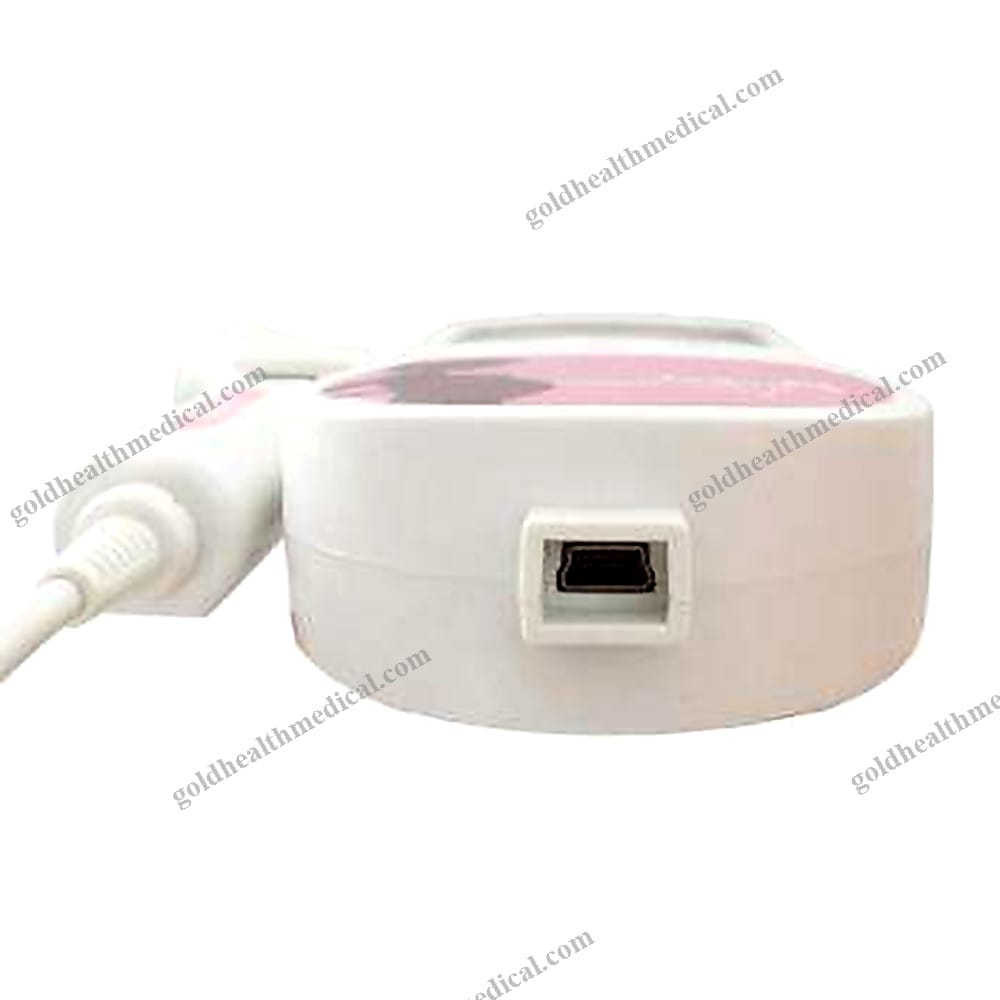

- Headphone Output: Offers private listening options.
- Auto Power Off: Automatically shuts off after 1 minute of inactivity to conserve battery life.
- Extended Battery Life: Operates for a minimum of 8 hours on two standard 1.5V alkaline batteries.
Performance Specifications
- Anti-Electroshock Type: Internally powered equipment.
- Anti-Electroshock Degree: Type B applied part.
- Display: 1.77" 262K TFT display.
- FHR Measuring Range: 50 BPM to 240 BPM (beats per minute).
- Resolution: 1 BPM.
- Accuracy: ±2 BPM.
- Power Consumption: Less than 0.8 W.
- Voltage: DC 3.0 V.

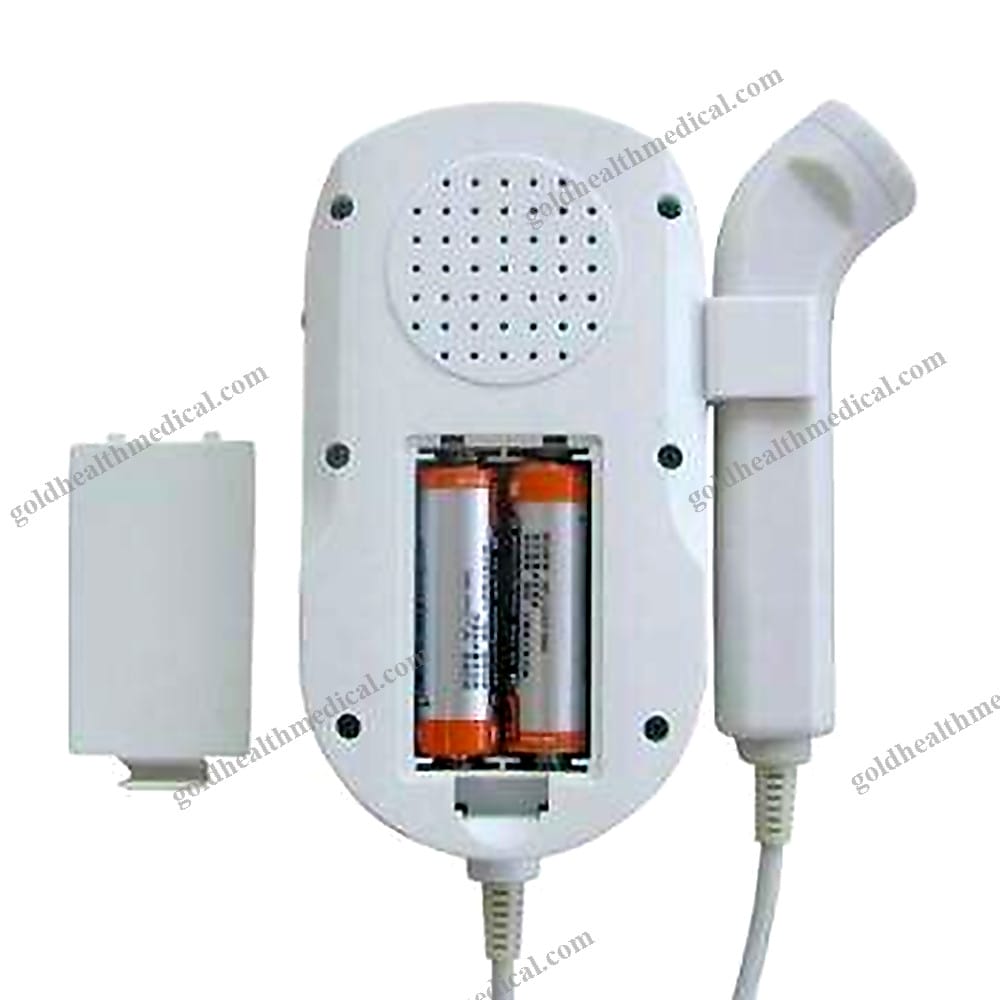

- Power Supply: Two 1.5V (AA size) alkaline batteries.
- Suitable Usage: Recommended for use after the 12th week of pregnancy.
- Auto Shut-Off: Powers off automatically after 1 minute without a signal.
Probe Specifications
- Nominal Frequency: 2.0 MHz.
- Working Frequency: 2.0 MHz ± 10%.
- Ultrasound Output Power: P < 10 mW.
- Ultrasonic Output Intensity: Isata < 5mW/cm².
- Negative Peak Sound Pressure: p_ < 0.5 MPa.
- Working Mode: Continuous wave Doppler.
- Effective Radiating Area of Transducer: 157 mm² ± 15%.
Dimensions and Weight
- Dimensions: (L) 135 mm × (W) 92 mm × (H) 29 mm.
- Weight: Approximately 245 g (including batteries).
GoldHealth Medical is dedicated to delivering cutting-edge medical solutions that prioritize patient care and comfort. Our Pocket Fetal Doppler exemplifies our commitment to innovation, precision, and reliability in healthcare diagnostics.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical Fetal Doppler – Precision Redefined for Every Stage of Care
- Power Source: Electric, powered by two 1.5V (AA size) alkaline batteries for reliable performance
- Battery Life: Built-in battery ensures portability and convenience during use
- Display: Equipped with a vibrant color LCD screen for clear and accurate readings
- Suitable Usage: Designed for safe use from the 12th week of pregnancy onward, ensuring early and consistent monitoring
- Auto Shut-Off Feature: Automatically powers off after 1 minute of no signal, conserving battery life
- Audio Output: Integrated speaker provides real-time audio feedback for an immersive experience
- Material: Durable, high-quality plastic construction for long-lasting use
- Voltage: Operates at DC 3.0V for safe and efficient performance
- Anti-Electroshock Protection: Internally powered equipment ensures user safety during operation
- Certifications: Compliant with CE and ISO standards, guaranteeing precision and reliability
- Instrument Classification: Class II medical device, engineered for professional and home use
- Shelf Life: 1 year, ensuring product integrity and performance
- Warranty: Backed by a 1-year warranty for peace of mind
- After-Sale Support: Access to online technical support for seamless assistance
Package Specifications:
- Selling Unit: Single item
- Package Dimensions: 13 x 9 x 3 cm
- Gross Weight: 0.300 kg
Unique Selling Points:
- Compact and portable design, ideal for clinics, hospitals, and home use
- Proven quality with CE and ISO certifications for fetal monitoring
- Factory located just 2 hours from Shanghai, ensuring efficient production and delivery
GoldHealth Medical’s Fetal Doppler combines cutting-edge technology with user-centric design, empowering healthcare professionals and families with accurate, reliable, and accessible fetal monitoring solutions.
