Emergency Oxygen Manifold for Medical Gas Systems
Reference: 1600377924670
Medical Gas Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
Introducing GoldHealth Medical's Advanced Gas Management System
Experience precision and reliability with GoldHealth Medical's cutting-edge gas management solution, designed to meet the demands of modern healthcare environments. Engineered for seamless integration into hospitals, clinics, laboratories, and more, this system ensures optimal performance and safety.
Key Features and Technical Specifications

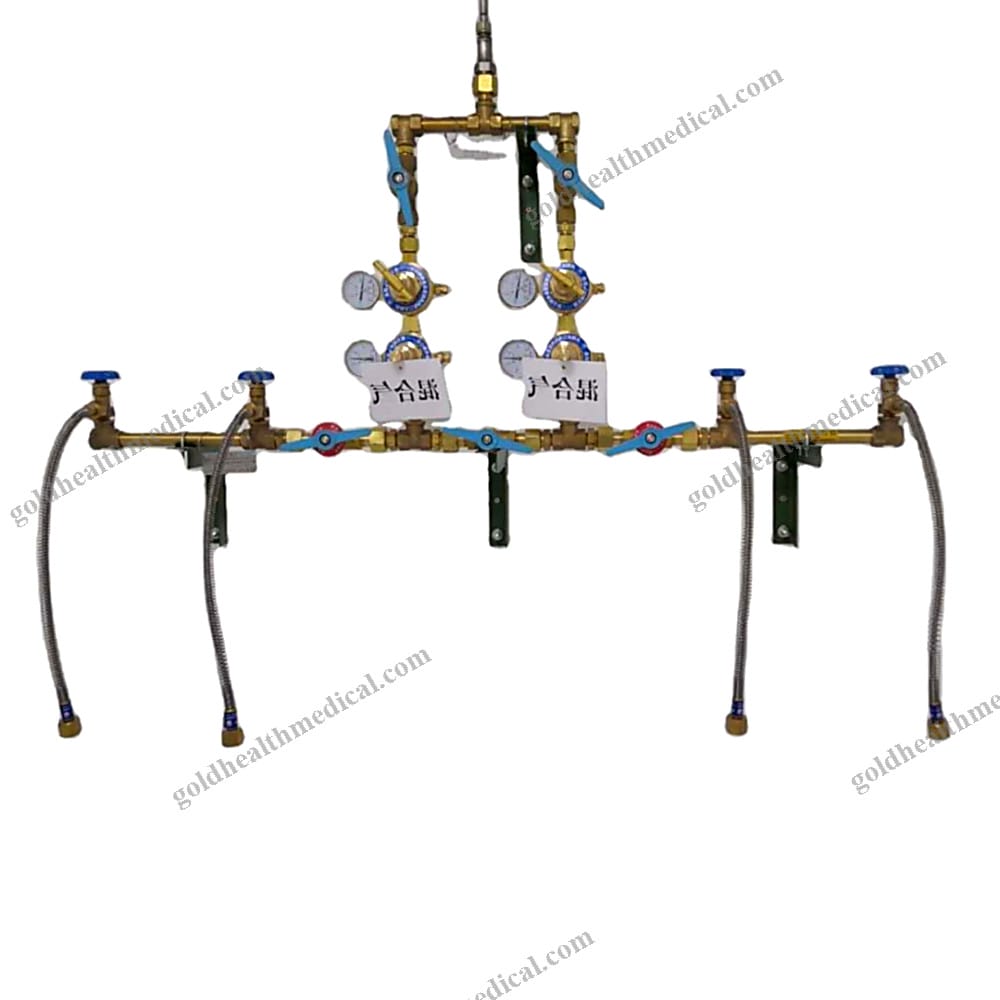

- Dual Input Design (Left & Right):
- Input Pressure Range: 0.4~15 MPa
- Outlet Pressure: Adjustable between 0.4~1.0 MPa
-
Nominal Flow Rate: Exceeds 100m³/h
-
Customizable Pipe Interface:
-
Standard Rib: M33×2 (custom configurations available upon request)
-
Intelligent Switching Mechanism:
- Switching Pressure: Adjustable between 0.6~1.0 MPa
-
Switching Time: As fast as 3 seconds
-
Electrical Specifications:
- Working Voltage: AC 24V
-
Working Current: 250 mA
-
Safety Features:
- Safety Valve Opening Pressure: 1.25 MPa
-
Cylinder Replacement Alert: Activates when remaining gas pressure drops below 0.8 MPa
-
Compact and Efficient Design:
- Dimensions: 600×500×200 mm
Controller Indicators for Enhanced Monitoring
The intuitive control panel provides real-time insights into system performance, ensuring maximum operational efficiency:
- Output Pressure Indicators:
- Overpressure Light: Alerts when output pressure exceeds the set upper limit.
- Normal Operation Light: Confirms output pressure is within the desired range.
-
Underpressure Light: Indicates when output pressure falls below the set lower limit.
-
Left Cylinder Input Monitoring:
- Normal Pressure Light: Signals that input pressure is above the lower limit.
- Underpressure Light: Notifies when input pressure is too low, prompting cylinder replacement.
-
Working Light: Confirms the left cylinder is actively supplying gas.
-
Right Cylinder Input Monitoring:
- Normal Pressure Light: Ensures input pressure is within acceptable limits.
- Underpressure Light: Alerts when the right cylinder requires replacement.
-
Working Light: Indicates the right cylinder is in use.
-
Nixie Tube Displays:
- Upper Display: Shows output status.
- Left Display: Monitors left cylinder input status.
- Right Display: Tracks right cylinder input status.
Why Choose GoldHealth Medical?
GoldHealth Medical’s gas management system stands out with its intelligent design, customizable features, and robust safety mechanisms. It is engineered to deliver unparalleled precision, ensuring uninterrupted gas supply while minimizing operational risks. Whether for critical medical applications or advanced research environments, this system is the ultimate choice for professionals who demand excellence.
Transform your facility’s gas management capabilities with GoldHealth Medical’s innovative solution.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Oxygen Manifold by GoldHealth Medical
Description:
The Oxygen Manifold from GoldHealth Medical is a precision-engineered solution designed to meet the demanding needs of oxygen delivery systems in medical, laboratory, and homecare environments. Built with durability and performance in mind, this hydraulic-powered manifold ensures consistent and reliable oxygen flow, making it an essential component for critical healthcare applications.
Key Features:
- Material: Constructed from high-grade steel for exceptional strength and longevity.
- Flow Rate: Delivers an impressive 100 m³/h, ensuring optimal oxygen supply for multiple users.
- Input Pressure: Supports a wide range of 0-15 MPa, accommodating diverse system requirements.
- Output Pressure: Adjustable output pressure of 0-2.5 MPa for precise control.

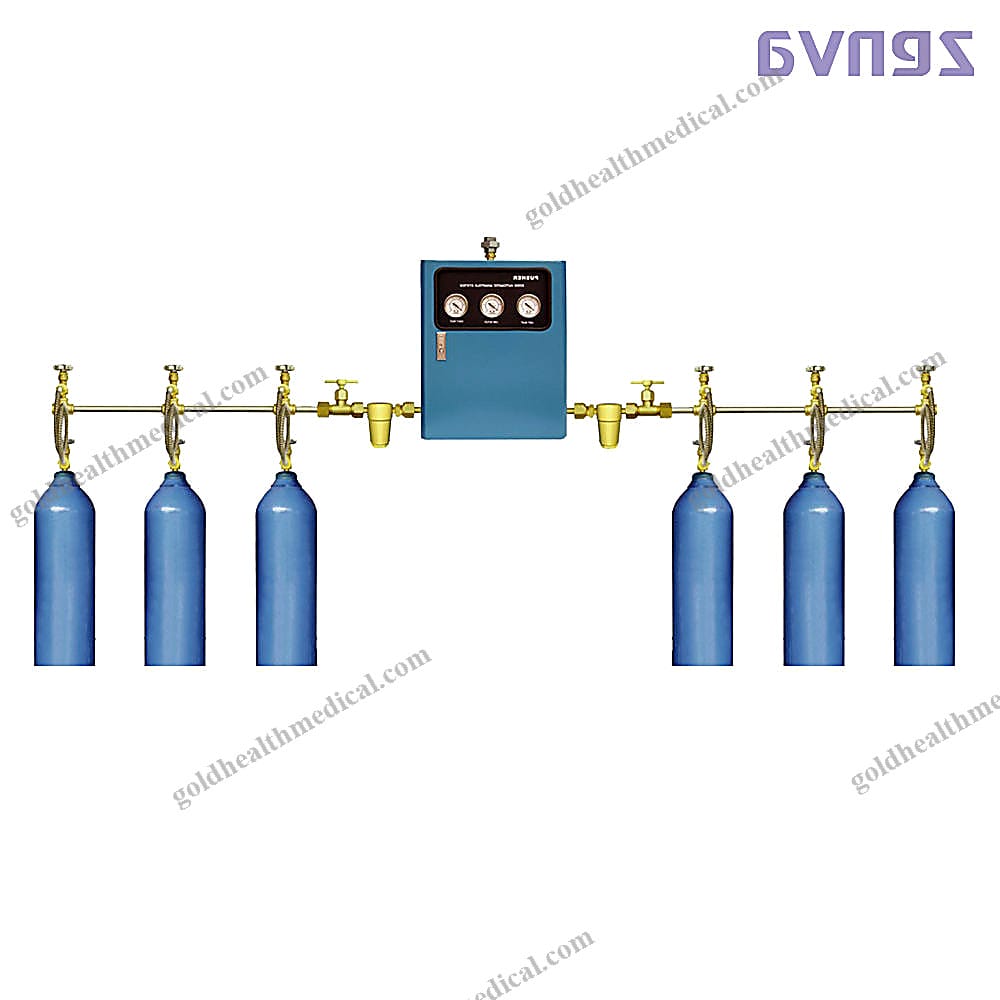

- Configurations: Available in flexible setups including 3+3, 4+4, 5+5, and 10+10 configurations to suit varying operational scales.
- Applications: Specifically designed for oxygen applications in hospitals, clinics, laboratories, and homecare settings.
Quality Assurance:
- Shelf Life: 1 year, ensuring long-term reliability.
- Warranty: Backed by a comprehensive 1-year warranty for peace of mind.
- Certifications: Meets Class I instrument classification standards, ensuring safety and compliance.
Service and Support:
- After-Sales Service: Includes onsite training to ensure seamless integration and operation.
- Customization: OEM/ODM services available to tailor solutions to your specific needs.
Packaging and Delivery:
- Packaging: Securely packed in robust wooden cases to prevent damage during transit.
- Port of Origin: Shanghai, China.
- Supply Ability: Capable of delivering 200 units per month to meet high-volume demands.
Why Choose GoldHealth Medical?
GoldHealth Medical combines cutting-edge engineering with meticulous craftsmanship to deliver products that redefine reliability and performance. Our Oxygen Manifold is a testament to our commitment to quality, offering unmatched precision and adaptability for modern healthcare needs.
Minimum Order Quantity (MOQ): 1 set, making it accessible for both small-scale and large-scale operations.
Elevate your oxygen delivery systems with GoldHealth Medical’s Oxygen Manifold – where innovation meets dependability.
