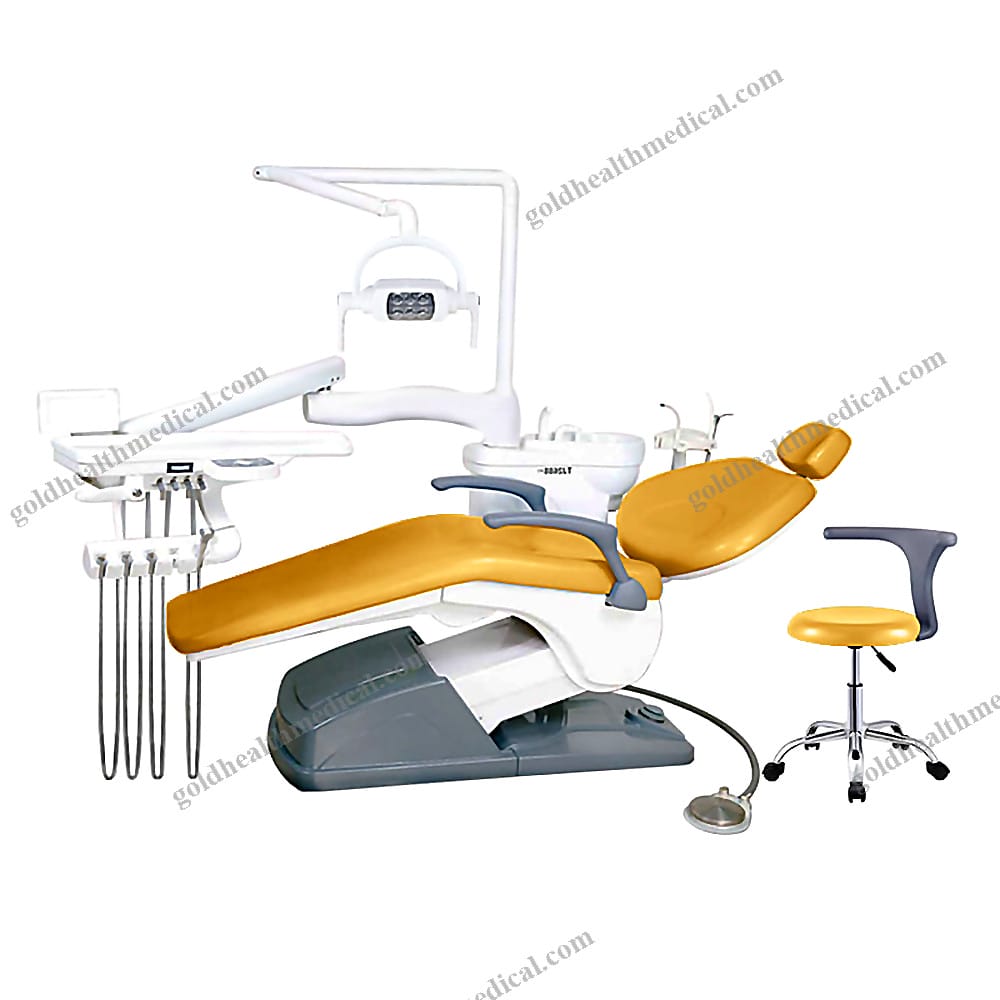

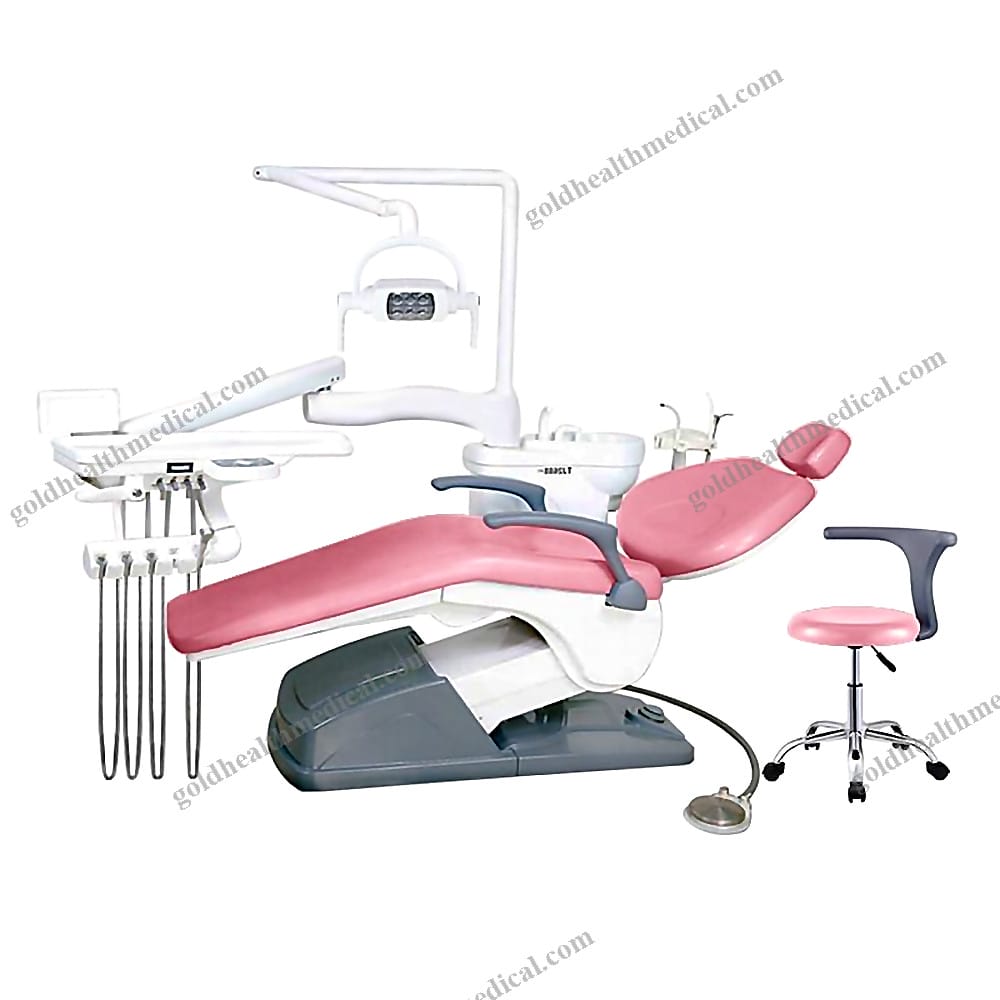

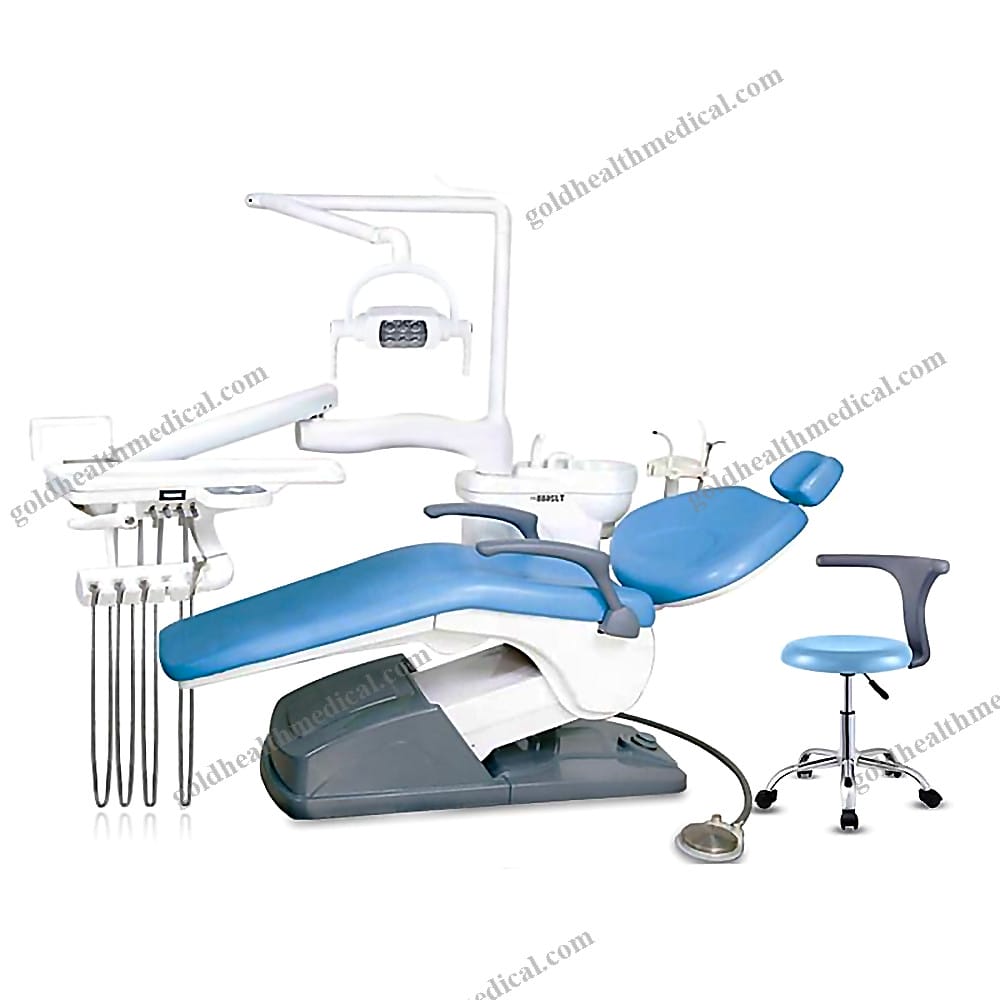

Economy Dental Unit Chair Set with Stool Scaler Curing
Reference: 1600887988137
Dental Chair
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical presents a cutting-edge dental unit designed to elevate the standards of modern dental care. Engineered with precision and crafted for versatility, this system combines advanced functionality with ergonomic design to meet the needs of both practitioners and patients.
Key Features and Specifications
- Revolutionary Armrest Design
- Constructed from high-grade cast aluminum, matching the premium quality of the leather pad.
-
Offers a smooth 180° rotation towards the water bottle for enhanced accessibility and convenience.
-
Advanced Saliva Suction System
- Fully detachable and easy to clean, breaking away from traditional fixed designs.
-
Optional integration with a centralized negative pressure saliva suction system for added flexibility.
-
Ergonomic Assistant Tray
- Compact and adaptable, the main instrument table ensures stability while allowing precise adjustments tailored to treatment types and operator preferences.
-
Equipped with a silicone pad to maintain hygiene and protect instruments.
-
Hygienic Ceramic Spitoon
- Rotatable and removable for effortless patient rinsing and simplified cleaning/disinfection processes.
Technical Parameters
- Power Supply: 220V, 50Hz
- Motor Voltage: 24V
- Water Source Pressure: 0.2-0.4MPa
-
Air Pressure: 0.55-0.8MPa
-
Oral Illumination
- Strong light: ≥ 15,000 lux
-
Weak light: ≥ 8,000 lux
-
LED Film Viewer
-
Powered at AC24V, 30VA
-
Electric Dental Chair
- Equipped with a 24V silent DC motor featuring safety protection.
-
Load capacity: ≥ 1,350N
-
Chair Height Adjustment
- Without leather pad:
- Maximum height: ≥ 760mm
- Minimum height: ≤ 460mm
-
With leather pad:
- Maximum height: ≥ 840mm
- Minimum height: ≤ 540mm
-
Backrest Tilt Range: 105° to 170°
-
Headrest Telescopic Range: ≥ 100mm
-
Quantitative Water Supply System
- Features adjustable mouthwash temperature control.
- Fixed ceramic spittoon cylinder for consistent performance and ease of maintenance.
GoldHealth Medical’s dental unit is a testament to innovation, combining durability, precision, and patient-centric design. It is the ideal solution for hospitals, clinics, research labs, and home care environments seeking unparalleled quality and reliability.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Dental Chair Unit by GoldHealth Medical
Overview:
The Dental Chair Unit by GoldHealth Medical is a state-of-the-art solution designed to elevate patient care and streamline dental procedures. Engineered with precision and durability in mind, this Class II medical instrument combines advanced automation, ergonomic design, and robust materials to deliver unparalleled performance in dental clinics.
Key Features and Specifications:
- System: Fully automatic operation for seamless functionality and enhanced efficiency.
- Power Source: Electric, ensuring reliable and consistent performance.
- Materials: Crafted from high-quality metal, steel, and durable plastic for long-lasting use.
- Usage: Specifically designed for dental clinics, offering versatility and comfort for both practitioners and patients.
- Safety Standard: Compliant with GB/T18830-2009, guaranteeing the highest safety standards.
- Quality Certification: CE-certified, ensuring global recognition of quality and reliability.
- Shelf Life: 1 year, maintaining optimal performance under recommended conditions.
Warranty and Support:
- Warranty: Comprehensive 1-year warranty for peace of mind.
- After-Sales Service: Includes free spare parts to ensure uninterrupted operation and long-term value.
Customization and Flexibility:
- OEM Available: Tailor the product to meet your specific requirements with our OEM services.
- MOQ: Flexible ordering with a minimum order quantity of just 1 unit.
Packaging and Delivery:
- Packaging Details: Securely packed in durable cartons to protect against transit damage.
- Place of Origin: Proudly manufactured in China, ensuring world-class quality and innovation.
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to redefining healthcare experiences through cutting-edge technology and meticulous design. Our Dental Chair Unit is more than just equipment—it’s a reliable partner in delivering exceptional patient care. With a focus on safety, durability, and user-centric features, this product is the ideal choice for modern dental practices.
Applications:
Perfect for hospitals, clinics, research institutions, laboratories, rehabilitation centers, and home healthcare settings, the Dental Chair Unit is a versatile addition to any professional environment.
Experience the GoldHealth Medical difference today and transform your practice with equipment that works as hard as you do.
