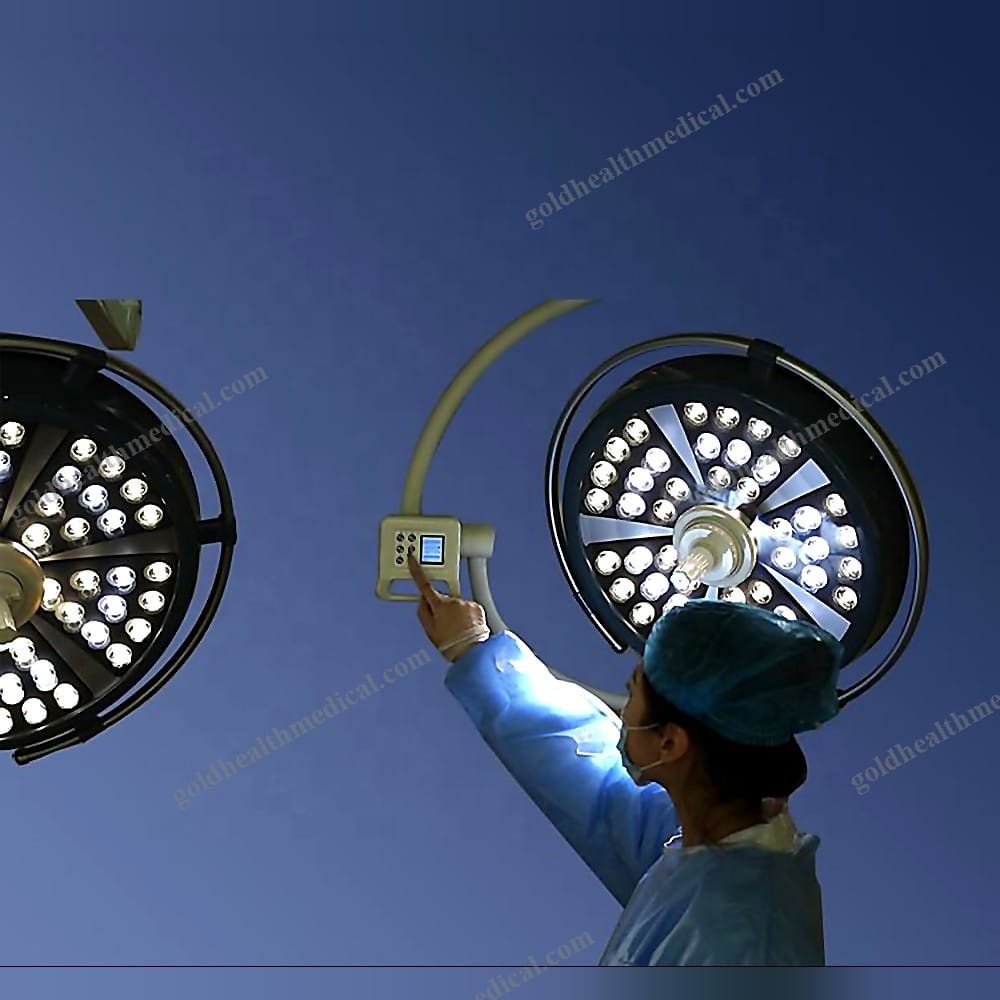

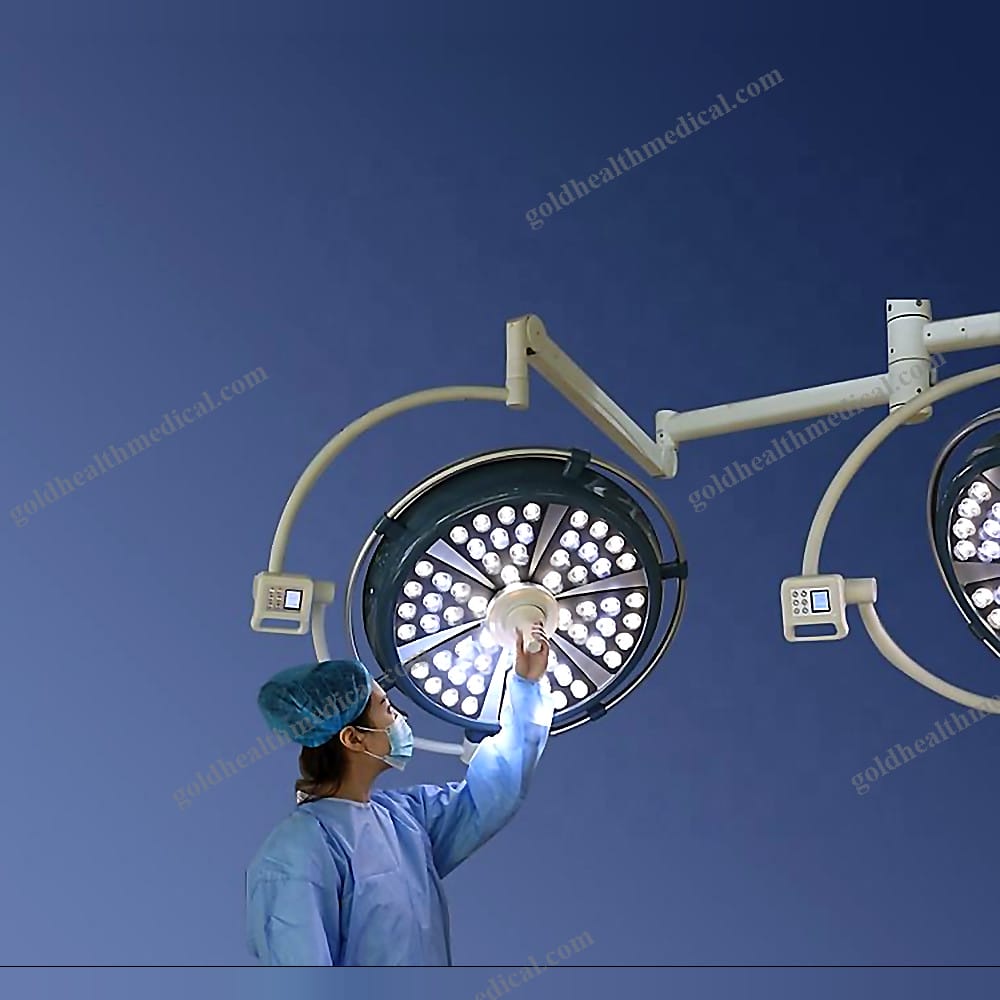

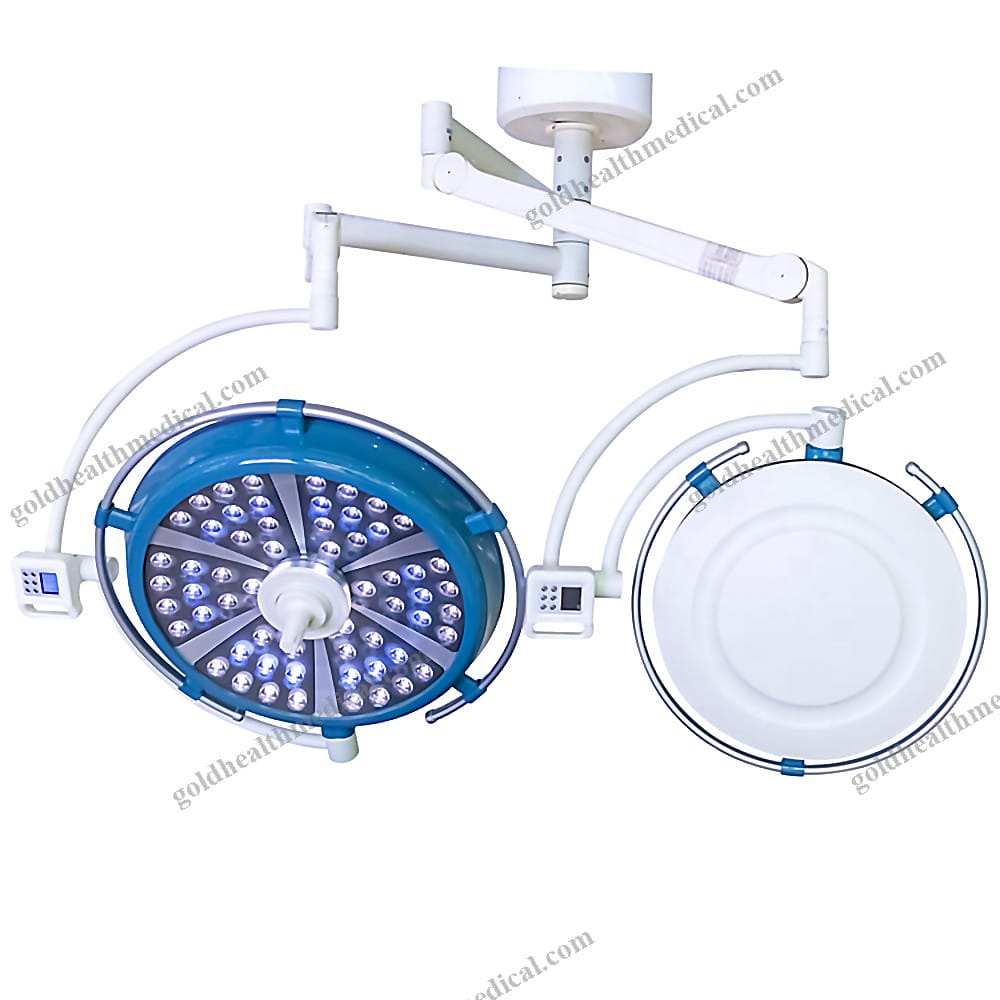

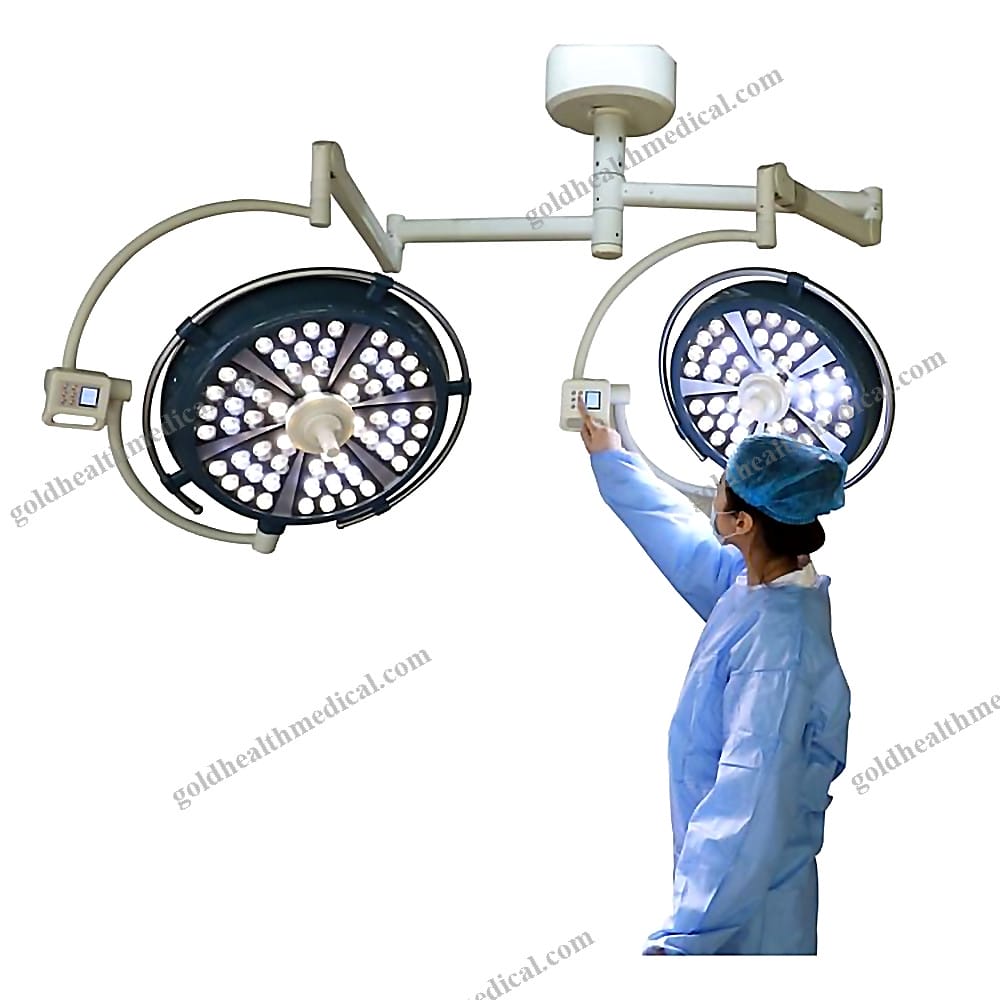

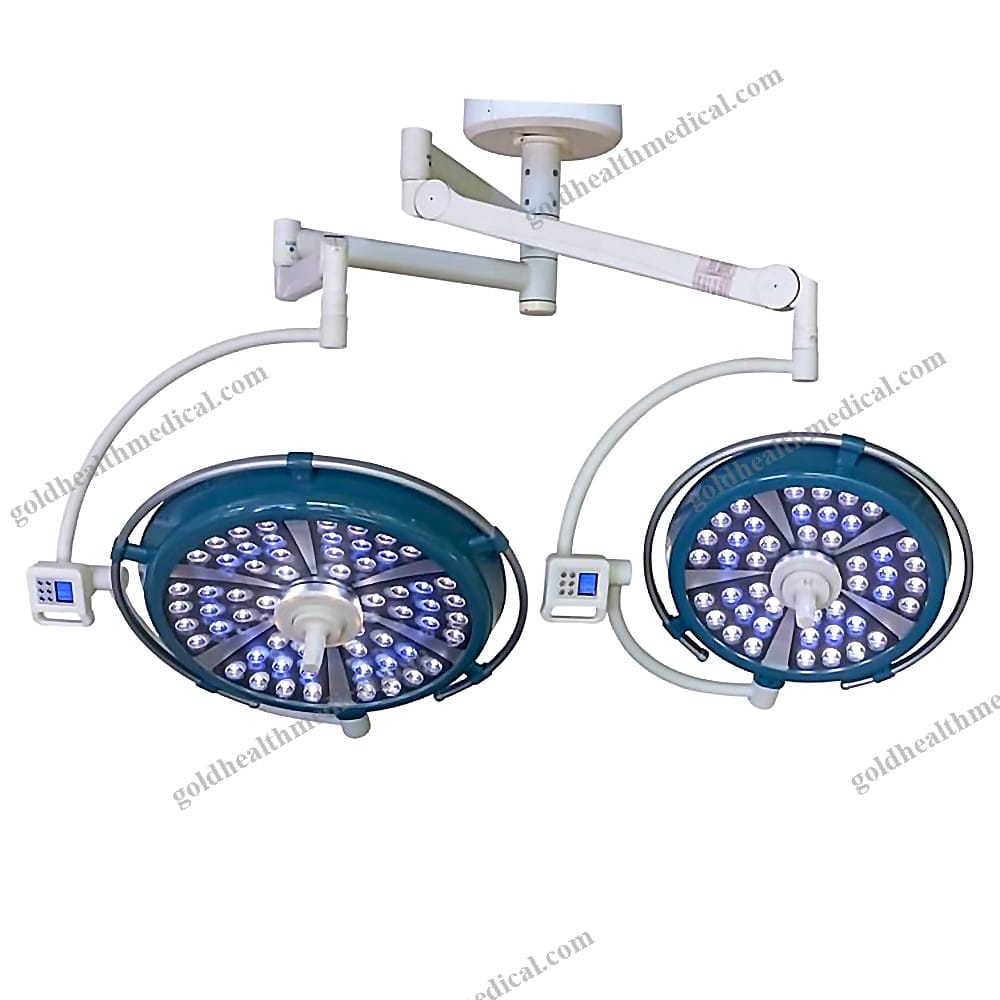

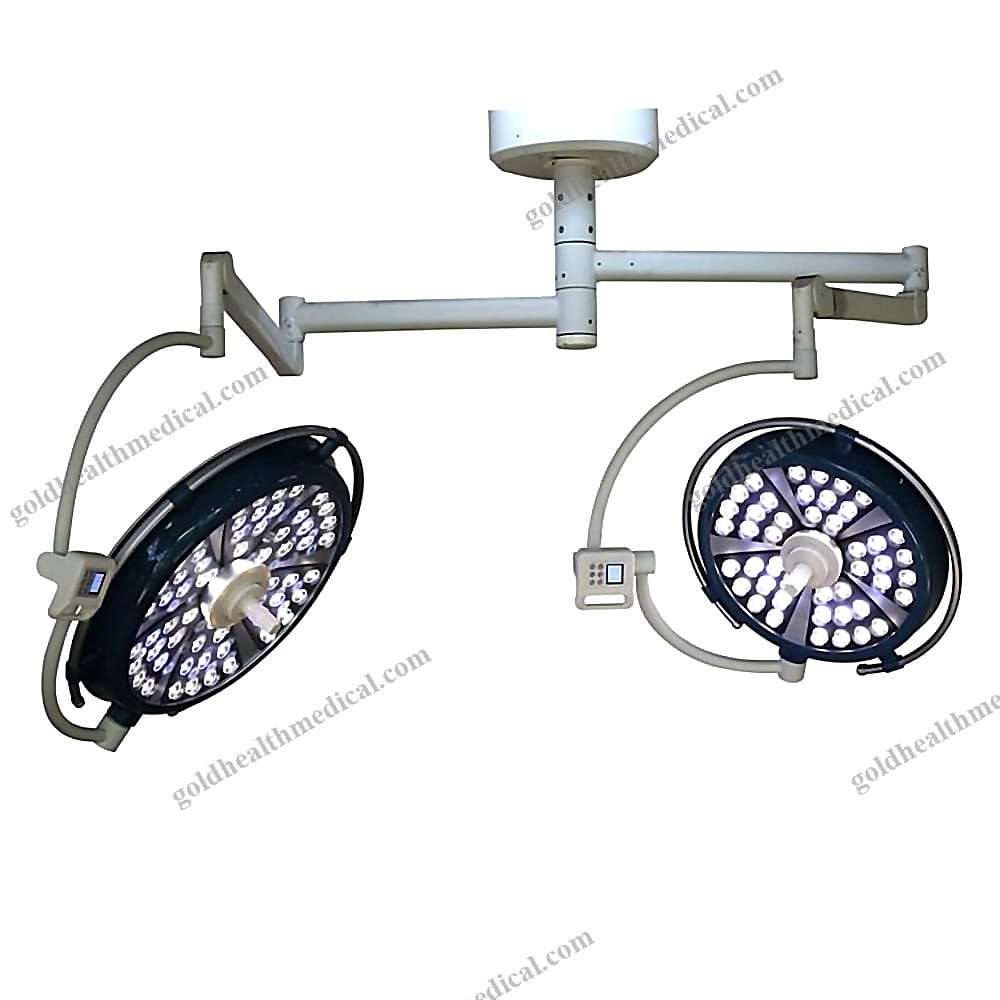

Double Dome LED Surgical Lamp
Reference: 1600305617013
Operation Lighting
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Precision in Every Ray
GoldHealth Medical introduces a cutting-edge LED surgical lamp designed to redefine illumination standards in medical environments. Engineered with precision, this state-of-the-art lighting solution delivers unparalleled performance and reliability for operating rooms, clinics, and research facilities.
Product Highlights
- True Cold Light Source:
Utilizes an advanced LED cold light source that is energy-efficient, eco-friendly, and boasts a lifespan of up to 60,000 hours. The physician’s head experiences a temperature rise of just 1°C. - No infrared or ultraviolet radiation, eliminating tissue damage and promoting faster post-operative healing.
-
Constant color temperature with no attenuation, offering soft, natural sunlight-like illumination that reduces eye strain.
-
Superior Shadow-Free Effect:
- Scientifically designed lamp head arc and multi-spot light source ensure uniform illumination, even when partially obstructed.
-
Lamp panel turning radius: ≥182cm, with the ability to position the lamp head nearly vertical to the ground for versatile lighting angles.
-
Exceptional Deep Lighting:
- Computer-aided modular design delivers focused illumination with light beams exceeding 1200mm in depth.
-
Central illuminance reaches up to 160,000 lux, with adjustable color temperatures ranging from 3500K to 5000K for true-to-life tissue color representation.
-
Advanced Control System:
- Intuitive LCD button control for seamless adjustment of power, illuminance, and color temperature.
- Digital memory function automatically recalls preferred settings, eliminating the need for repeated adjustments.
- Multi-channel LED group design ensures uninterrupted surgical lighting, even in the event of single-channel or single-LED failure.
Technical Specifications
- Spot Center Illumination (Color Temperature 5000K):
-
160,000 lux (700 lamp head), 120,000-180,000 lux (500 lamp head).
-
Color Temperature Range:
-
3500K-5500K (700 lamp head), 3500K-5000K (500 lamp head).
-
Color Rendering Index (Ra):
-
97 (both lamp heads).
-
Spot Diameter:
- 50% Spot Diameter: 150mm.
-
10% Spot Diameter: 300mm.
-
Lighting Adjustment:
-
1%-100% (both lamp heads).
-
Illuminance Depth:
-
130cm (both lamp heads).
-
Ultraviolet Irradiance (Wavelength <40nm):
-
≤0.002W (both lamp heads).
-
Focal Distance Adjustment:
-
Manual/electric (optional).
-
Beads Power:
-
1W × 60 beads (700 lamp head), 1W × 45 beads (500 lamp head).
-
Lamp Head Temperature:
-
Less than 2°C (both lamp heads).
-
Power Supply:
-
110V/220V, 50Hz/60Hz.
-
Input Power:
-
100W (both lamp heads).
-
LED Average Life:
-
≥100,000 hours (both lamp heads).
-
Installation Ceiling Height:
- 2.65m-3.2m.
GoldHealth Medical’s surgical lamps are engineered to meet the rigorous demands of modern medical environments. With their innovative design, exceptional performance, and user-centric features, these lamps are the ultimate choice for professionals seeking precision, reliability, and comfort in surgical lighting.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical presents an advanced medical lighting solution designed to elevate precision and performance in critical environments.
- Instrument Classification: Class I
- Place of Origin: Shandong, China
- Power Source: Electric
- Shelf Life: 2 years
- Quality Certification: CE
- Light Source: High-performance LED
- Factory Direct Supply: Yes
- Customization Options: OEM/ODM available
Key Features and Specifications
- Warranty: Comprehensive 2-year coverage
- Life Span: Exceptional durability with ≥100,000 operational hours
- Illumination: Superior brightness ranging from 120,000 to 190,000 lux
- Color Temperature: Adjustable between 3500K and 5500K for optimal visibility
- Color Rendering Index (Ra): Outstanding Ra 97 for true-to-life color representation
- Head Diameter Options: Available in 500mm and 700mm sizes to suit diverse needs
- Material: Durable resin construction for long-lasting reliability
Applications
- Operating rooms
- Laboratories
- Diagnostic centers
Packaging Details
- Selling Unit: Single item
- Package Dimensions: 1600 x 65 x 55 cm
- Gross Weight: 1200 kg
GoldHealth Medical’s lighting solutions are meticulously engineered to deliver unparalleled performance, precision, and adaptability, making them the ideal choice for medical professionals and institutions worldwide.
