DMXW03 LongDistance Zoom Microscope for Precision Solder
Reference: 1601089090063
Medical Imaging Equipment
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

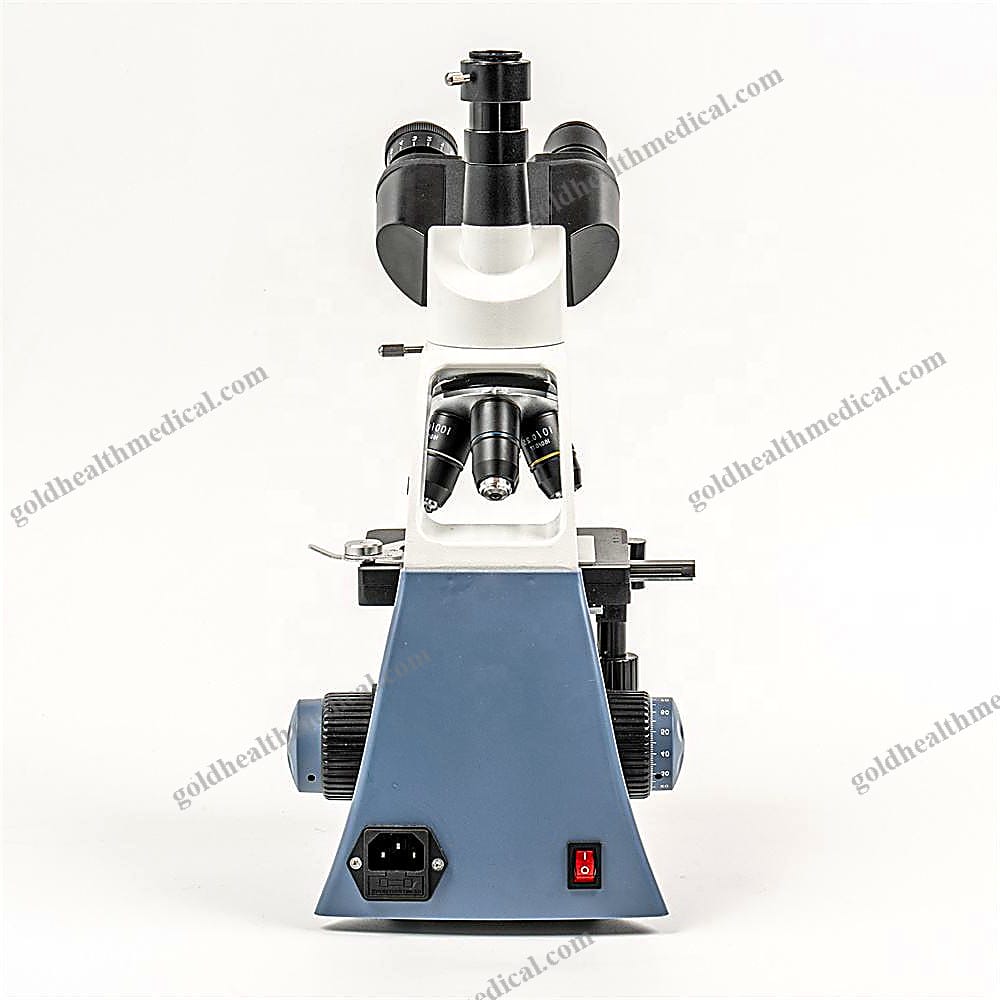

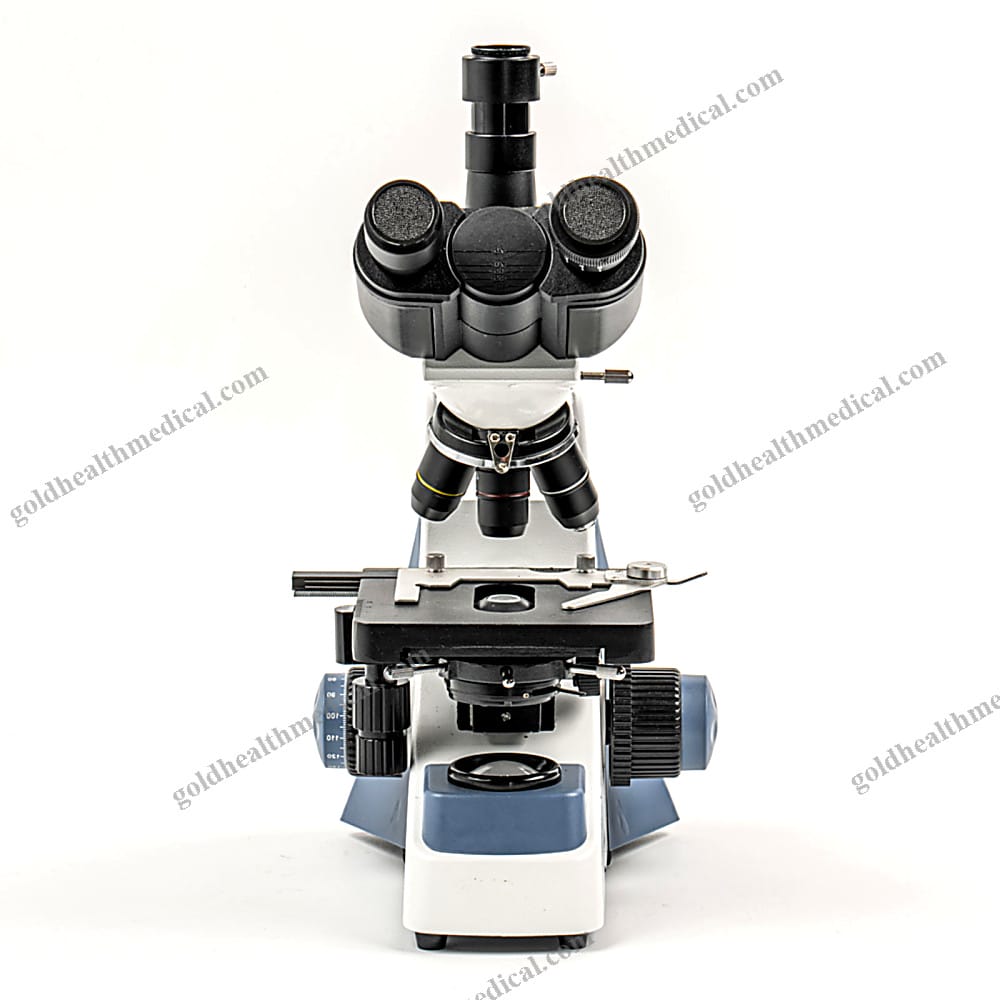

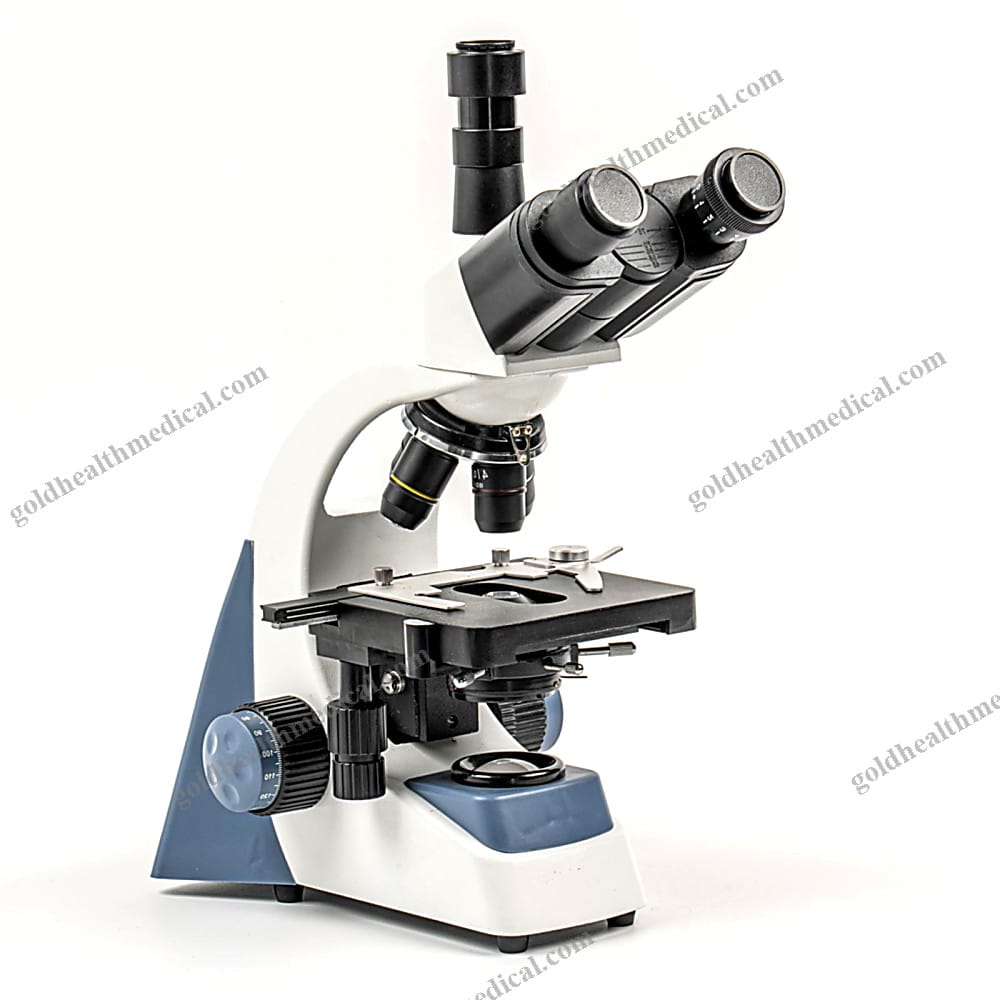

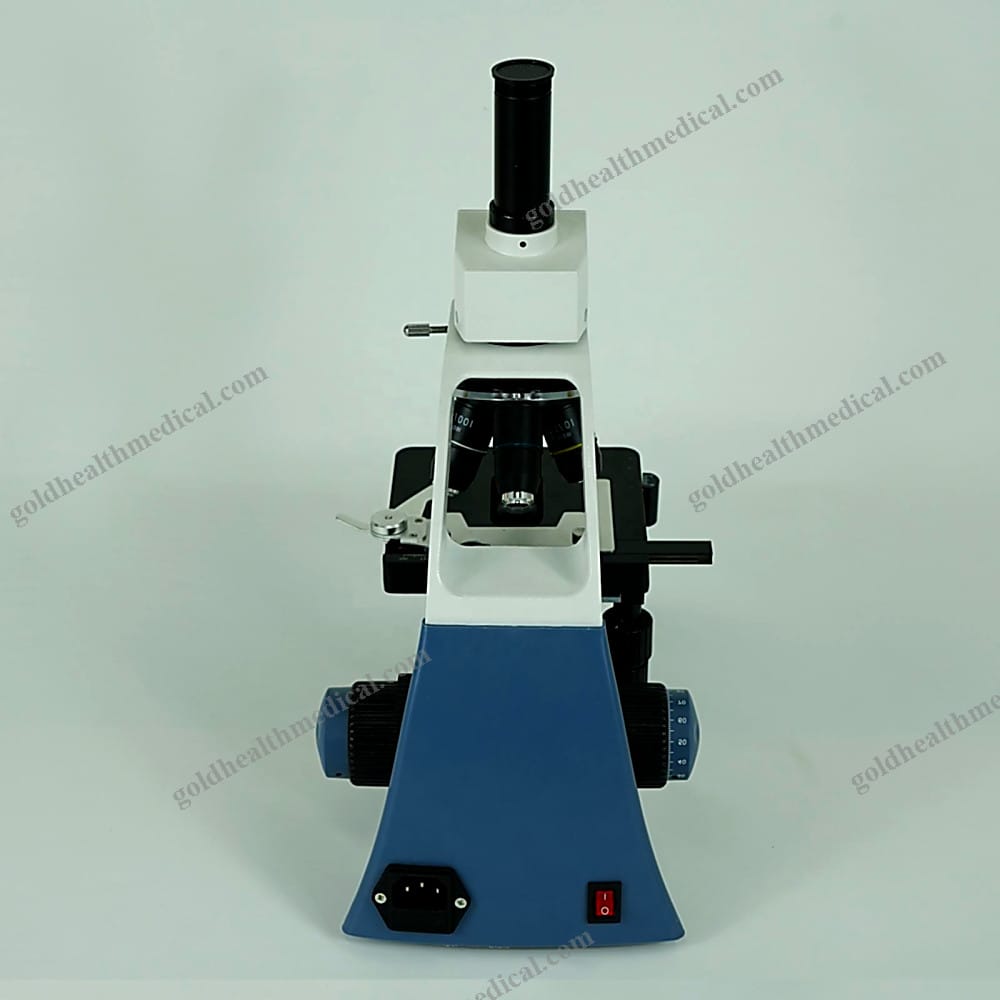

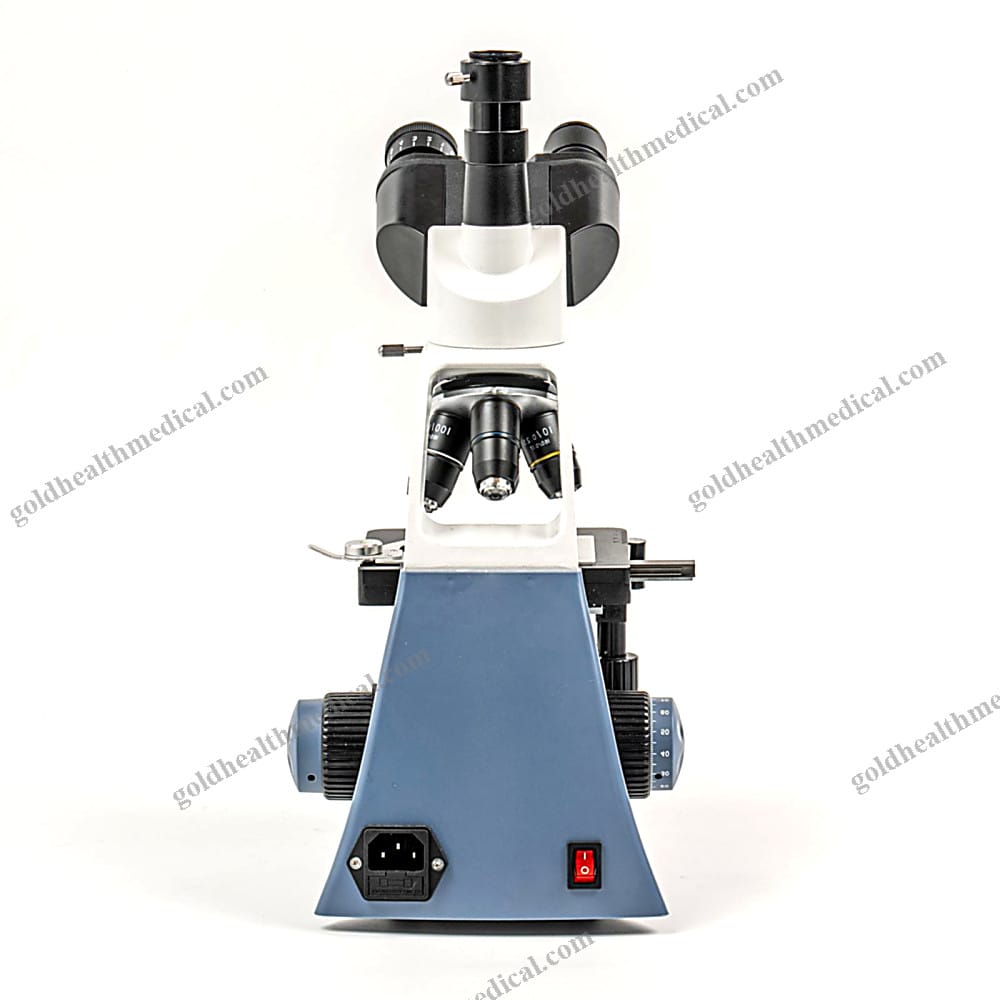

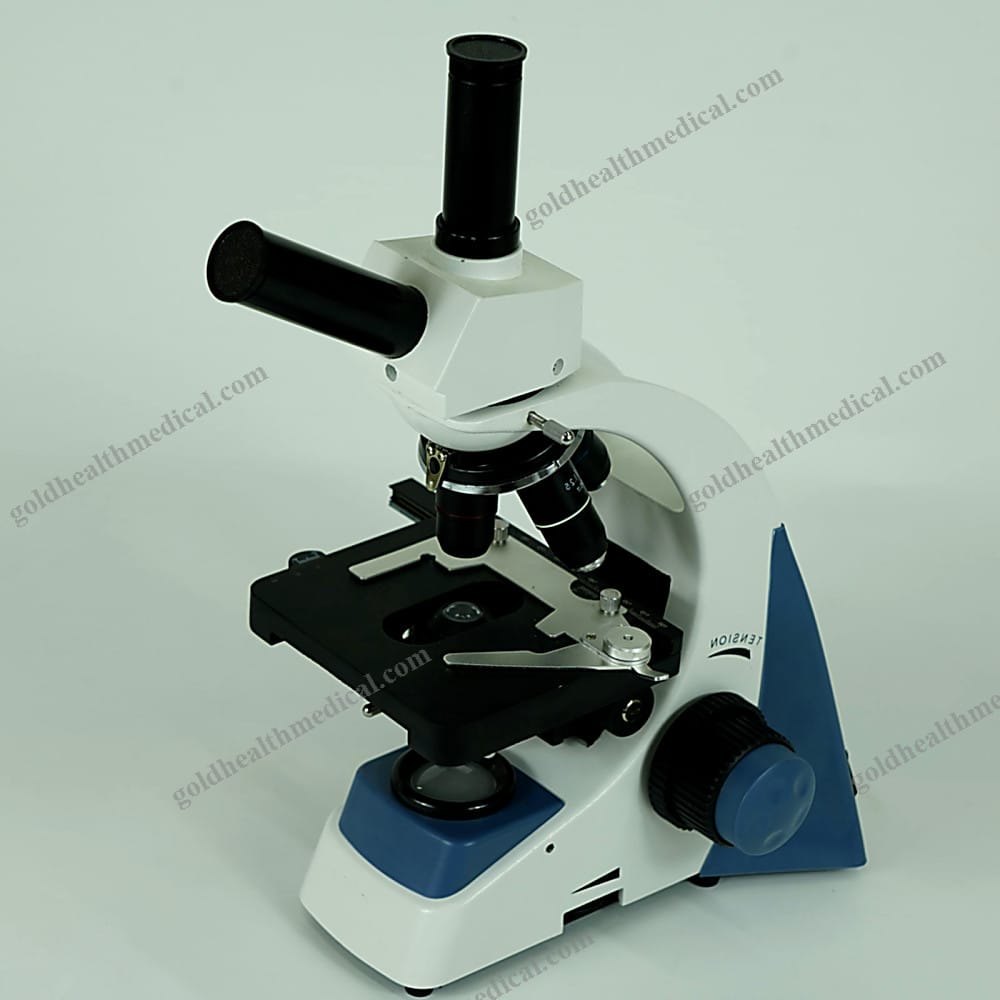

GoldHealth Medical Microscope
Eyepiece
- Wide Field Plan-scope Eyepiece: Experience exceptional clarity with a 10X magnification, offering a broad and detailed field of view.
Objectives
- 45mm DIN Achromatic Objectives:
- 4X Magnification: Ideal for scanning large areas.
- 10X Magnification: Perfect for general observation.
- 40X Magnification (Spring-loaded): Detailed examination with added lens protection.
- 100X Magnification (Spring-loaded, Oil-immersion): Unparalleled detail for high-resolution studies.
Head
- Articulated Free Trinocular Head:
- Interpupillary Distance: Adjustable from 55mm to 75mm for personalized comfort.
- 30Β° Inclined and 360Β° Rotatable: Ergonomic design reduces strain during prolonged use.
Stage
- Double Layers Mechanical Stage:
- Dimensions: 125mm x 125mm.
- Moving Range: X-Y axis travel of 60mm x 40mm for precise sample positioning.
Condenser
- ABBE Condenser:
- Numerical Aperture (N.A.): 1.25 for superior light collection.
- Iris Diaphragm: Adjustable aperture from Π€2mm to Π€30mm.
- Integrated Π€32mm Filter: Enhances contrast and clarity.
Focusing Adjustment
- Coaxial Coarse and Fine Focusing Mechanism:
- 14mm adjustable range ensures smooth and accurate focusing.
Illumination
- Built-in Adjustable Brightness LED Lamp:
- 1W LED provides consistent and energy-efficient illumination.
- Optional rechargeable batteries for enhanced portability.
Optional Accessories
- Additional Eyepieces: WF10X, WF16X.
- Enhanced Objectives: Semi Plan Objective, Plan Objective.
- Digital Imaging: Electronic cameras with 1.3Mp and 3.0Mp resolution.
Net Weight
- Lightweight at just 4.3kg, ensuring ease of transport and setup.
GoldHealth Medical Blood Analyzers
High-Quality Open System 3-Part Full Blood Count Machine
- Auto Animal Hematology Analyzer:
- Delivers precise and reliable blood analysis for veterinary applications.
- Advanced technology ensures accurate 3-part differential counts.
Portable Dog, Cat, Cow Healthcare 3-Part Blood Hematology Coulter Analyzer
- Blood Test Machine for Veterinary Use:
- Compact and portable design for on-the-go diagnostics.
- Provides comprehensive blood analysis with ease and efficiency.
GoldHealth Medical Safety and Laboratory Equipment
Bio-Safety Cabinet
- UV Sterilize Class II B2 Bio-Safety Cabinet:
- Designed for microbiological research with advanced UV sterilization.
- Ensures a sterile environment for sensitive experiments.
Steel Cupboard Air Duct Cleaning Equipment Fume Hood
- Chemistry Laboratory Fume Hood:
- Constructed from high-quality steel for durability.
- Efficient air duct cleaning system maintains a safe and clean workspace.
GoldHealth Medical is committed to delivering innovative and reliable medical equipment designed to meet the diverse needs of healthcare professionals and researchers. Our products combine cutting-edge technology with user-centric design to enhance diagnostic accuracy and operational efficiency.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Company: GoldHealth Medical
Product Overview:
Experience precision and reliability with our advanced medical instrument, designed to meet the rigorous demands of modern healthcare environments. This Class II medical device combines cutting-edge technology with user-centric design, ensuring exceptional performance for a wide range of applications.
Key Features and Specifications:
- Eyepiece: Equipped with a Wide Field Plan-scope Eyepiece (WF10X) for enhanced clarity and an expansive field of view, enabling accurate diagnostics and detailed observations.
- Illumination: Features a built-in adjustable brightness 1W LED lamp, providing consistent, energy-efficient lighting tailored to your specific needs.
- Net Weight: Lightweight at just 4.3kg, ensuring portability and ease of use across various settings.
- Package Dimensions: Compact and secure packaging with carton dimensions of 44x37x47cm, ensuring safe transportation and storage.
- Place of Origin: Proudly crafted in China with meticulous attention to quality and detail.
After-Sales Support:
- Warranty: Backed by a comprehensive 1-year warranty, offering peace of mind and long-term reliability.
- Service: Enjoy hassle-free return and replacement services, ensuring uninterrupted performance and customer satisfaction.
Applications:
Ideal for hospitals, clinics, research laboratories, rehabilitation centers, and home healthcare, this versatile instrument is engineered to deliver consistent accuracy and durability.
GoldHealth Medical is committed to empowering healthcare professionals with tools that redefine standards of care. Choose excellence, choose GoldHealth Medical.
