DIN Standard WallMounted Oxygen Outlet
Reference: 1600296846615
Medical Gas Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

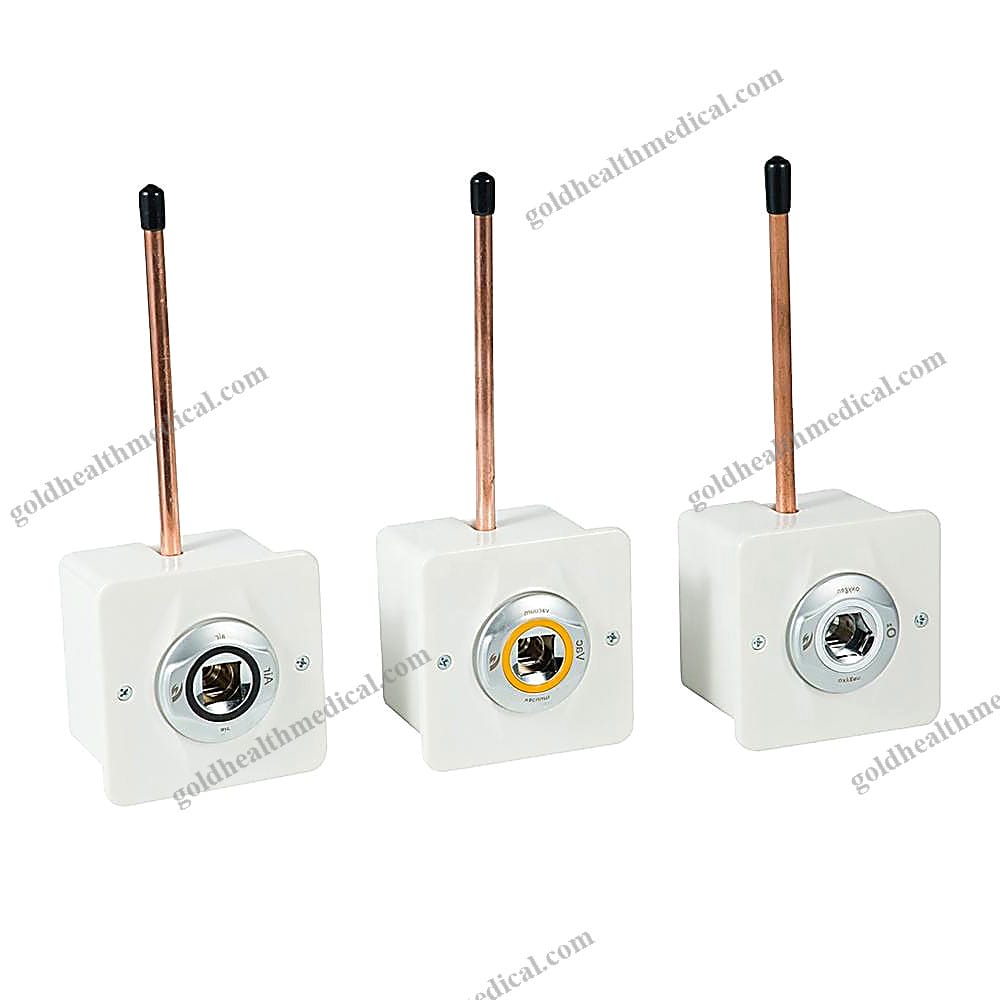

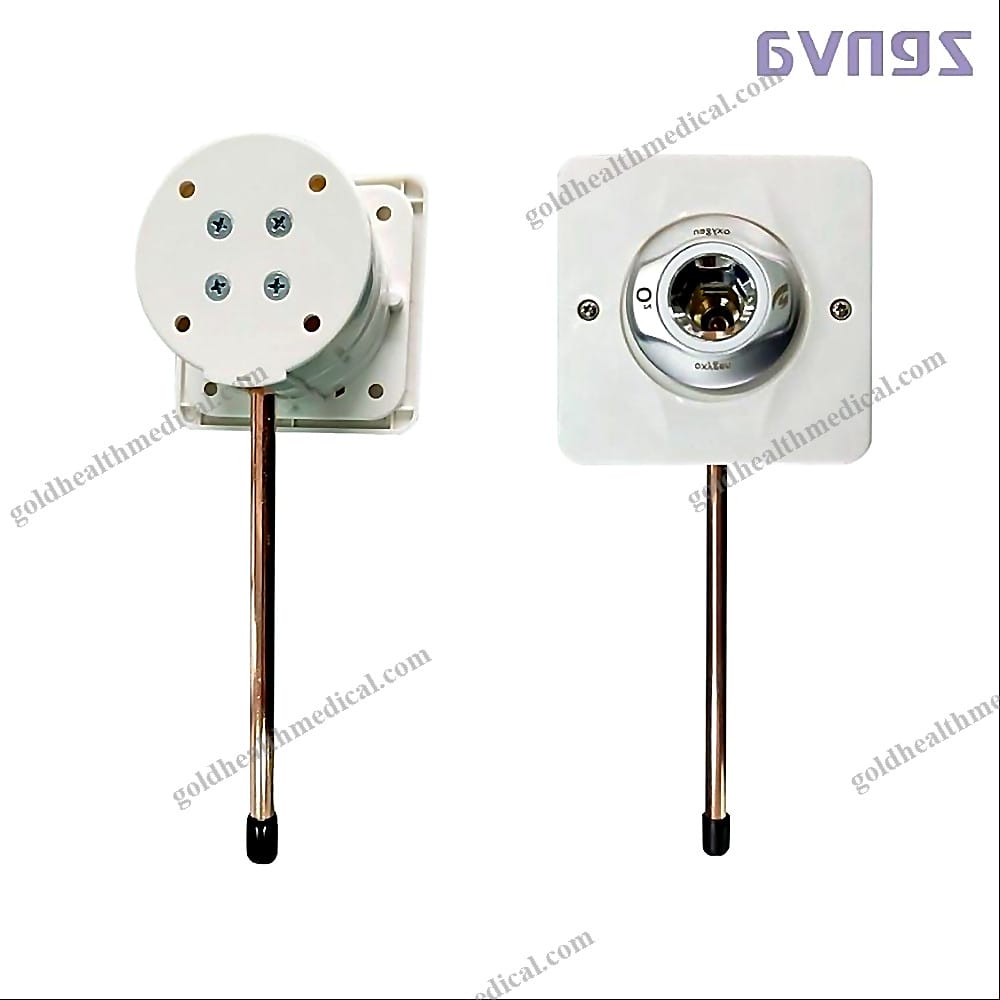

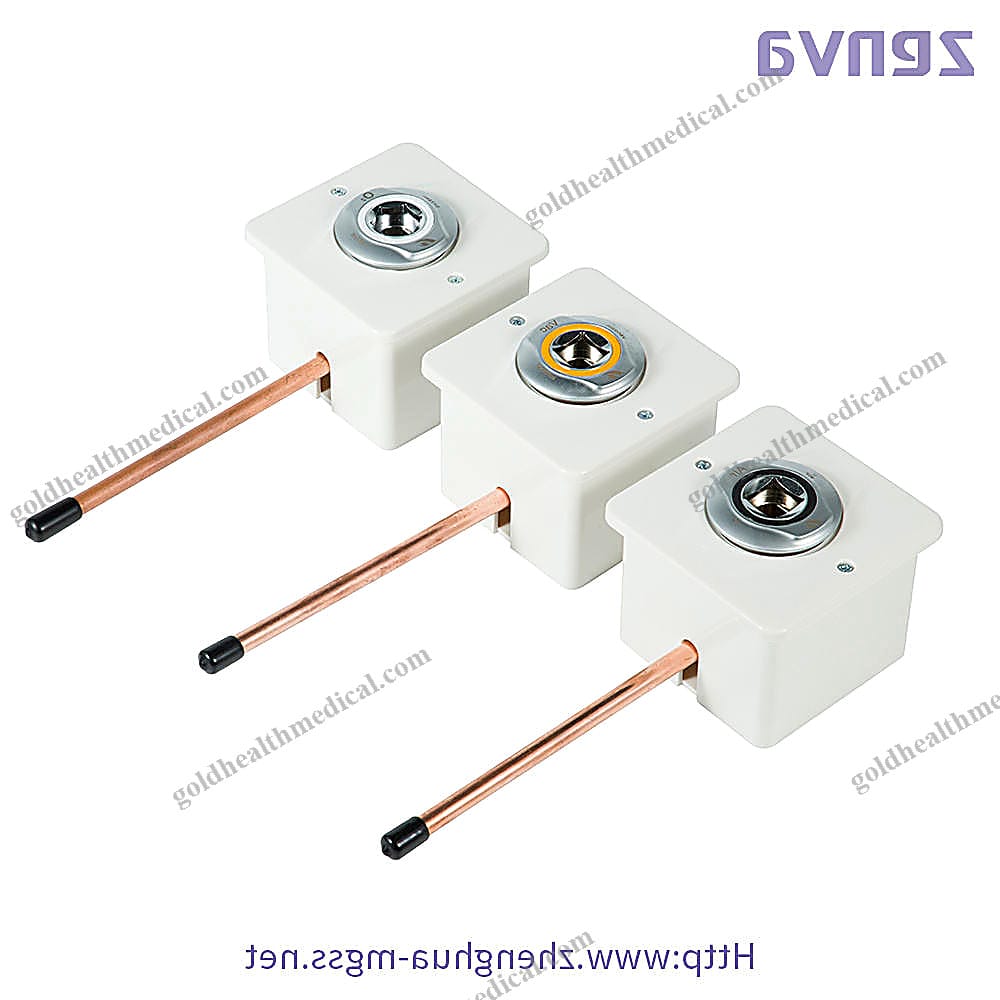

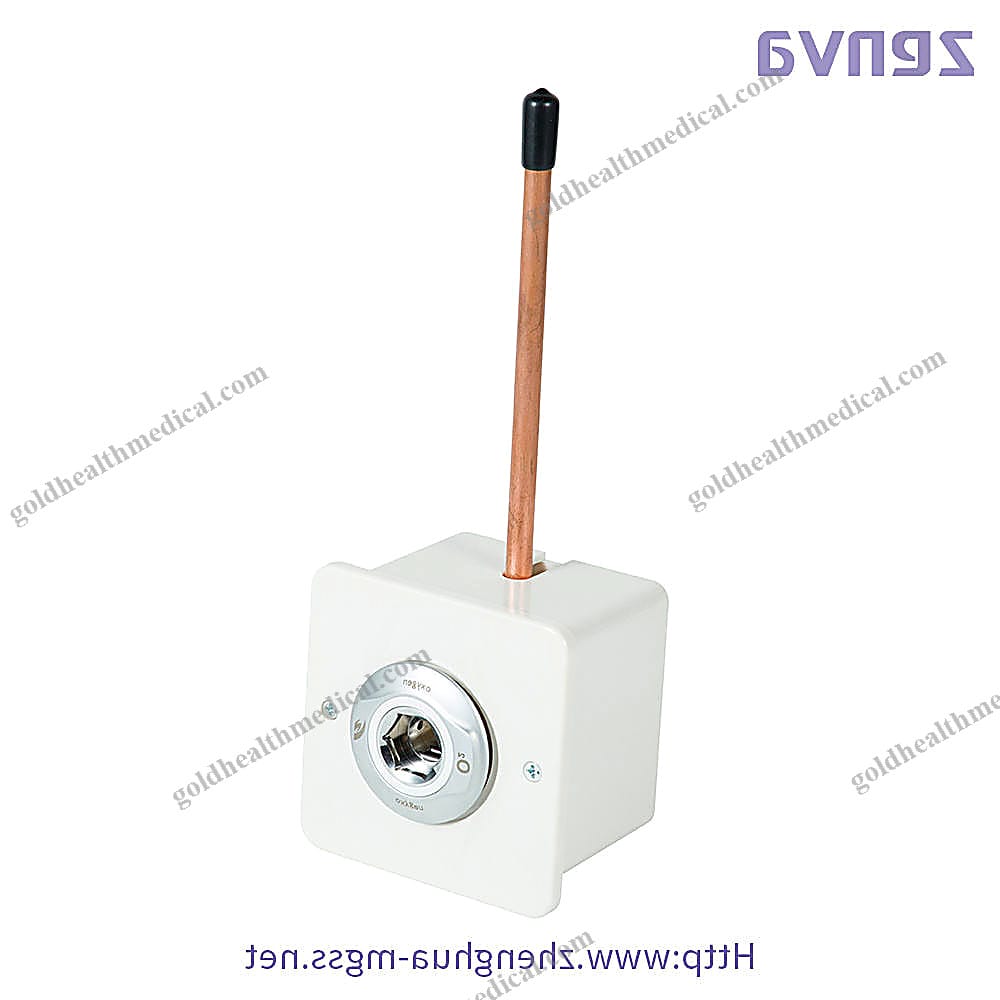

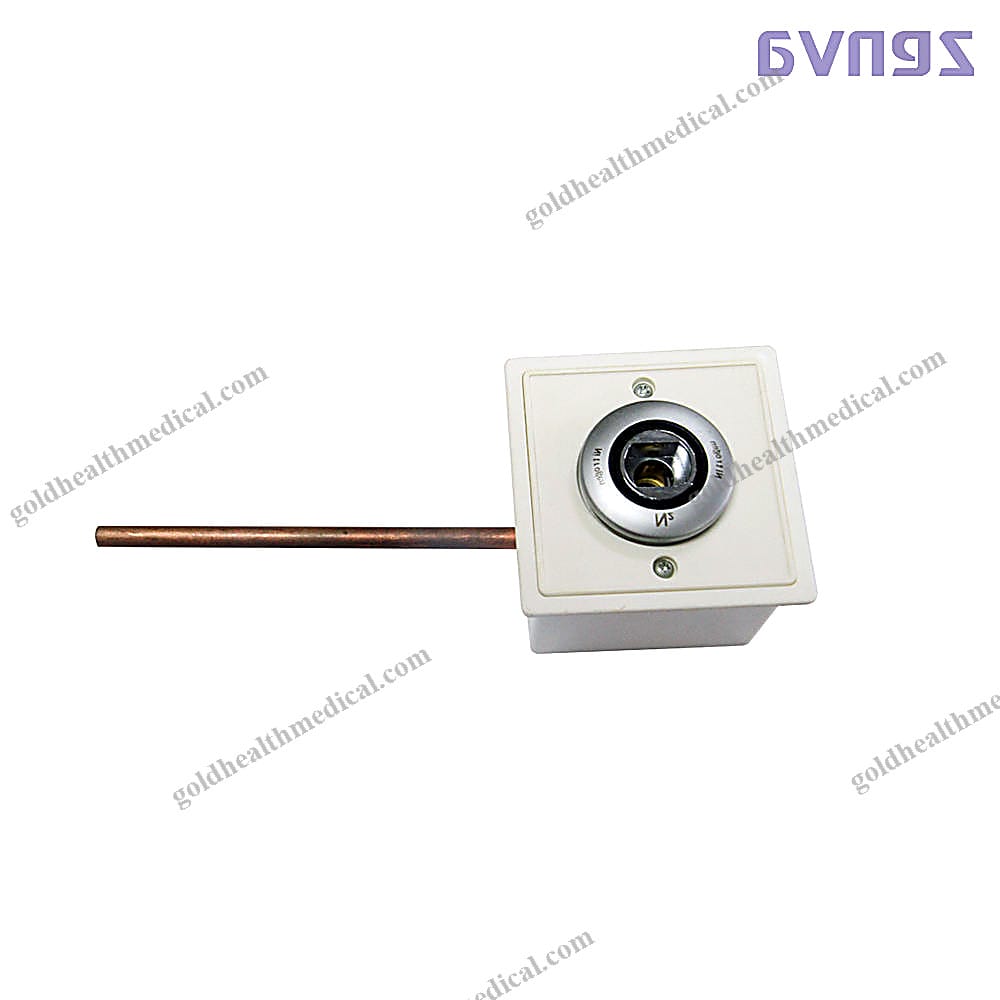

GoldHealth Medical: Revolutionizing Medical Gas Terminal Units
GoldHealth Medical presents an advanced range of medical gas terminal units designed to meet the diverse needs of healthcare facilities. Available in wall-mounted configurations with a box, console types for bed head units, and hose barb options, our units are crafted for seamless integration into any medical environment.
Key Features and Benefits:
- Effortless Maintenance: Equipped with a secondary isolating valve, allowing for easy maintenance without the need to shut down the entire pipeline system.
- Reliability Assured: Each unit undergoes rigorous 100% pressure and leak testing to ensure uncompromised safety and performance.
Technical Specifications:
- Gases Supported: Oxygen (O2), Medical Air, Nitrous Oxide (N2O), Carbon Dioxide (CO2), Vacuum (VAC)
- Additional Gases: Compressed Air (>6 bar), Air (6-10 bar), Nitrogen
- Operating Pressure:
- 5 bar
- 0.6 bar absolute
- Flow Rate:
- 40 U/min
- 25 L/min
- Locking Mechanism: Dual-level locking (standby and operating positions)
- Maintenance Valve: Enables the replacement of check valves and O-rings under pressure
- Connection to Piping System: Copper pipe with an 8 mm diameter for all couplings
- Plaster Compensation: Adjustable from 0 to 20 mm, extendable up to 40 mm with an adapter
Packaging and Delivery:
GoldHealth Medical prioritizes the safety of your equipment. We offer professional, eco-friendly, convenient, and efficient packaging services to ensure your products arrive in pristine condition.
About GoldHealth Medical:
With a legacy rooted in excellence, GoldHealth Medical has been a trusted name in the medical equipment industry since 1993. Our team of exceptional engineers and technicians ensures that each product is crafted with precision and care. Our products have earned recognition and trust globally, being exported to Europe, America, the Middle East, and beyond.
Our Commitment:
GoldHealth Medical is dedicated to delivering high-quality medical equipment at competitive prices. Our comprehensive range includes medical pendants, bed head units, LED/Halogen lamps, endoscopy trolleys, gas outlets, and more. Located in the vibrant city of Shanghai, we are strategically positioned to serve the global healthcare community with innovation and reliability.
Choose GoldHealth Medical for cutting-edge solutions that enhance patient care and streamline medical operations.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical presents the premium Medical Gas Outlet – a cornerstone of precision engineering designed for critical healthcare environments.
-
Product Overview:
The Medical Gas Outlet is a high-performance gas terminal unit, meticulously crafted to ensure seamless delivery of medical gases in demanding settings such as ICUs, bed head units, and pendants. Its robust design and versatile functionality make it indispensable for hospitals, clinics, laboratories, and home care environments. -
Key Features:
- Gas Compatibility: Supports Oxygen (O2), Vacuum (VAC), Carbon Dioxide (CO2), and compressed Air (AIR).
- Color-Coded Outlets: Available in Red, Yellow, and White for easy identification and error-free operation.
- Durable Material: Constructed from premium-grade Copper, ensuring longevity and resistance to wear and tear.
-
Global Standards Compliance: Meets international standards including DIN, BS, AFNOR, and more, guaranteeing universal adaptability.
-
Technical Specifications:
- Instrument Classification: Class I medical device.
- Power Source: Fully manual operation, eliminating dependency on external power.
- Shelf Life: 1 year from the date of manufacture.
-
Quality Assurance: ISO-certified production process, ensuring unparalleled reliability and safety.
-
Applications:
- Designed for critical care environments including ICUs, operating rooms, and emergency units.
-
Ideal for integration into bed head units, pendants, and other medical infrastructure.
-
After-Sales Support:
- Comprehensive 1-year warranty for peace of mind.
-
Access to online technical support, ensuring uninterrupted performance and quick resolution of queries.
-
Customization Options:
- OEM services available to meet specific institutional requirements.
GoldHealth Medical’s Medical Gas Outlet combines precision, durability, and compliance with global standards, making it the trusted choice for healthcare professionals worldwide. Elevate your facility’s infrastructure with a product that prioritizes safety, efficiency, and reliability.
