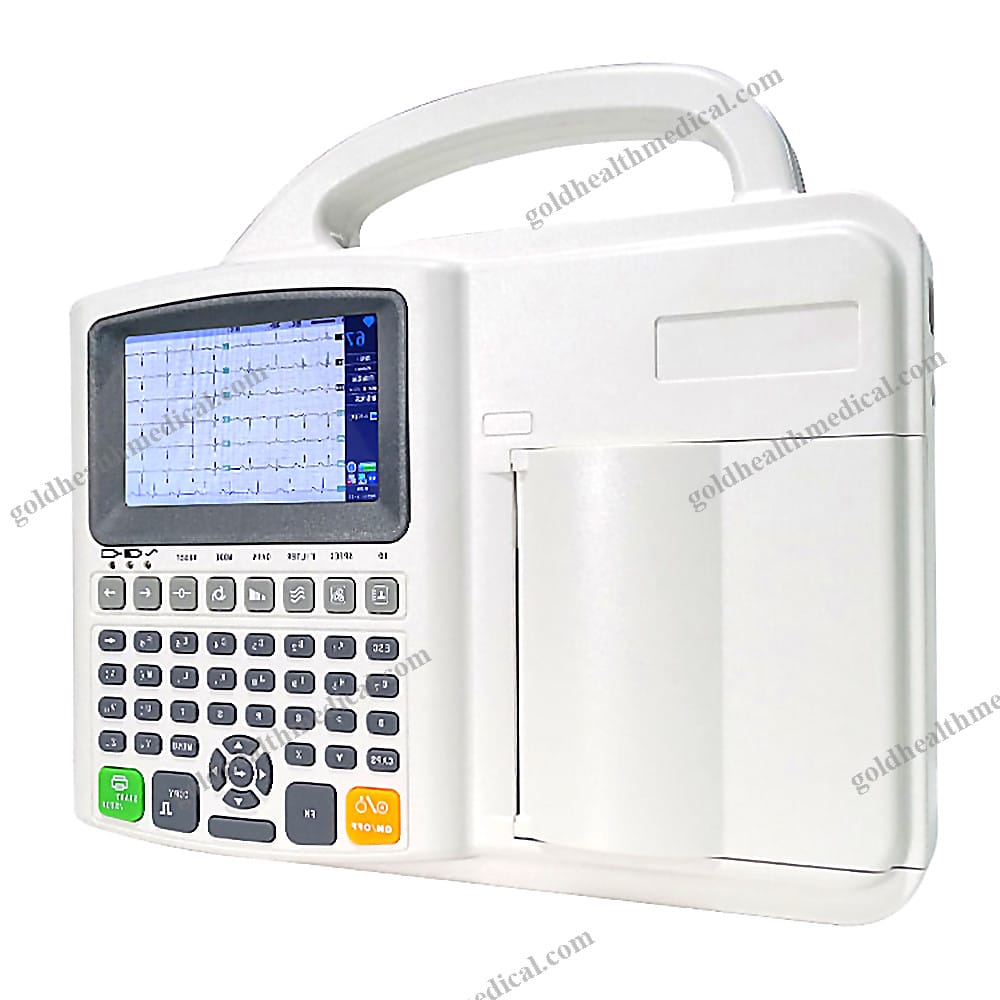

Digital 3Channel Veterinary ECG Machine with 5 LCD Keyboard
Reference: 1601001716208
Veterinary Instrument
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
Introducing the next-generation ECG solution from GoldHealth Medical, designed to elevate veterinary and animal research diagnostics to new heights. This state-of-the-art device combines precision engineering with intuitive design, ensuring unparalleled performance for professionals across hospitals, clinics, research labs, and rehabilitation centers.
Key Features
- Advanced Display: A vibrant 5" color TFT LCD screen provides crystal-clear visualization of ECG waveforms and critical data.
- Versatile Acquisition: Simultaneous 7-lead acquisition with real-time recording of rhythm and 3 waveforms, supporting both manual and automatic modes.
- Flexible Lead Options: Effortlessly switch to a 6-lead mode with a single button, tailored for various diagnostic needs.
- Specialized Software: Equipped with animal-specific ECG software and multifunctional electrode interfaces, compatible with electrode pads for small, medium, and large animals.
- Customizable Brightness: Screen brightness adjustable across 8 levels, ensuring optimal visibility in any environment.
- Comprehensive Data Display: View waveforms, menu settings (paper speed, gain, filter status), and animal information (ID, name, gender, age) all on one screen.
- Detailed Reporting: Measurement results include date, time, animal details, heart rate (HR), PR interval, QRS duration, QT/QTC, P/QRS/T segments, and more.

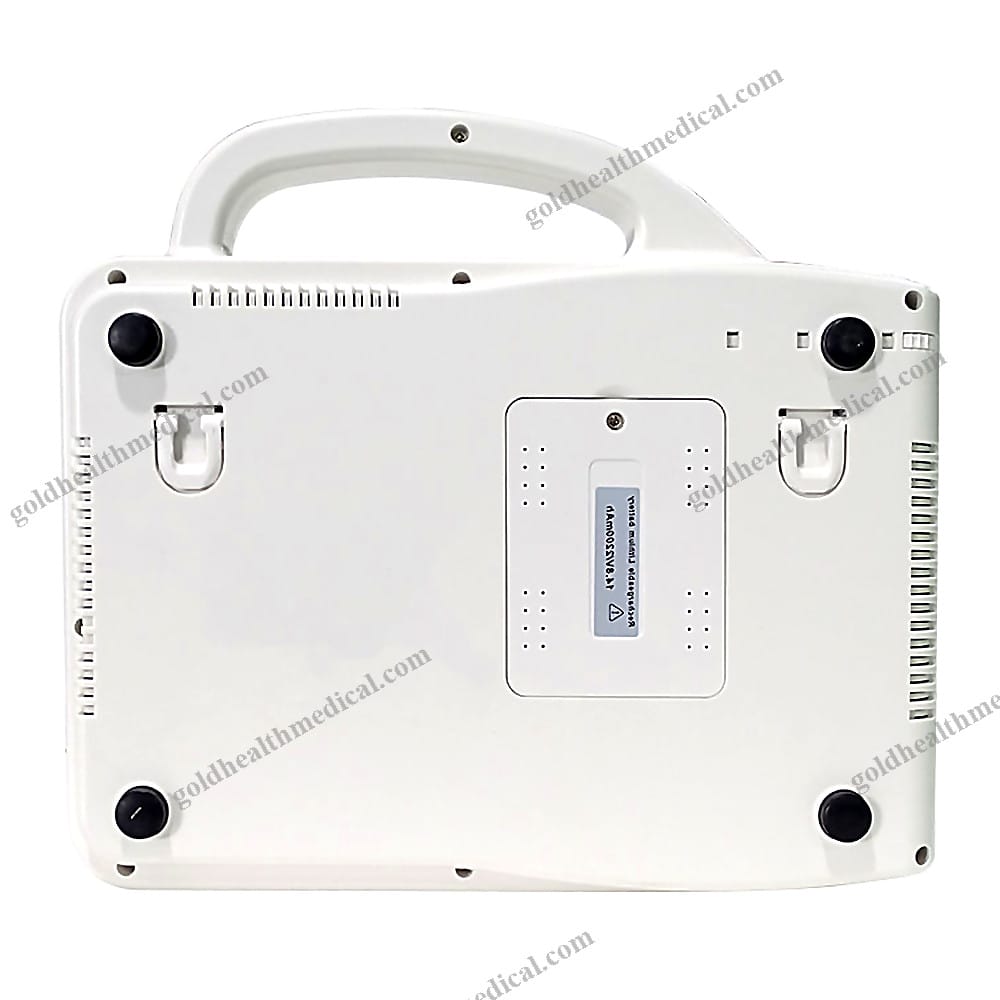

- Enhanced Usability: Thoughtfully designed with two keyboard feet for improved printing ergonomics during angled viewing.
- Customizable Waveform Views: Simultaneous display of up to 316 leads with adjustable grid and waveform sizes for precise analysis.
- Baseline Control: Adjustable baseline width across 4 levels, ensuring consistently clean and professional ECG outputs.
Technical Specifications
- Printing System: High-resolution thermal matrix printing.
- Recording Paper: 80mm x 20m roll format.
- Paper Speed Options: 6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s (±3% accuracy).
- Sensitivity Settings: 2.5mm/mV, 5mm/mV, 10mm/mV (default), 20mm/mV.
- Common Mode Rejection Ratio: ≥100dB (with AC filter enabled).
- Input Impedance: ≥50MΩ, ensuring minimal signal interference.
- Patient Safety: Input loop current ≤0.1μA, leakage current <10μA.
- Calibration Voltage: 1mV ±2%, guaranteeing accurate readings.
- Polarization Tolerance: ≥±500mV for reliable performance under varying conditions.
- Time Constant: ≥3.2s, supporting extended signal stability.
- Frequency Response: 0.05Hz–250Hz, capturing a wide range of physiological signals.
- Noise Level: <15μVp-p, ensuring clean and artifact-free recordings.
- Sensitive Threshold: ≤20μV, detecting even the faintest signals.
- Inter-Track Interference: ≤0.5mm, maintaining clarity across multiple waveforms.
Engineered for precision, durability, and ease of use, this ECG system from GoldHealth Medical is your ultimate partner in advancing animal healthcare diagnostics. Experience the perfect blend of innovation and reliability, empowering you to deliver exceptional care with confidence.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Company: GoldHealth Medical
Product Introduction:
Experience the next generation of medical technology with our state-of-the-art device, designed to deliver precision, reliability, and ease of use. Engineered for healthcare professionals and caregivers alike, this compact yet powerful solution is ideal for hospitals, clinics, laboratories, and home care environments.
Product Highlights:
- Sleek Design: A modern white finish with a durable plastic build ensures both aesthetics and longevity.
- Compact Size: Measuring just 5 inches, it fits seamlessly into any workspace without compromising functionality.
- Full Keyboard Integration: Equipped with a full keyboard for effortless data entry and enhanced operational efficiency.
- Comprehensive Warranty: Enjoy peace of mind with a 12-month warranty for the main unit and a 3-month warranty for accessories.
Technical Specifications:
- Place of Origin: Guangdong, China
- Color: White
- Size: 5 inches
- Material: High-quality plastic
- Keyboard: Full keyboard included
- Warranty:
- 12 months for the main unit
- 3 months for accessories
- Packaging Details:
- Selling Units: Single item
- Single package size: 37 x 34 x 25 cm
- Single gross weight: 4.000 kg
