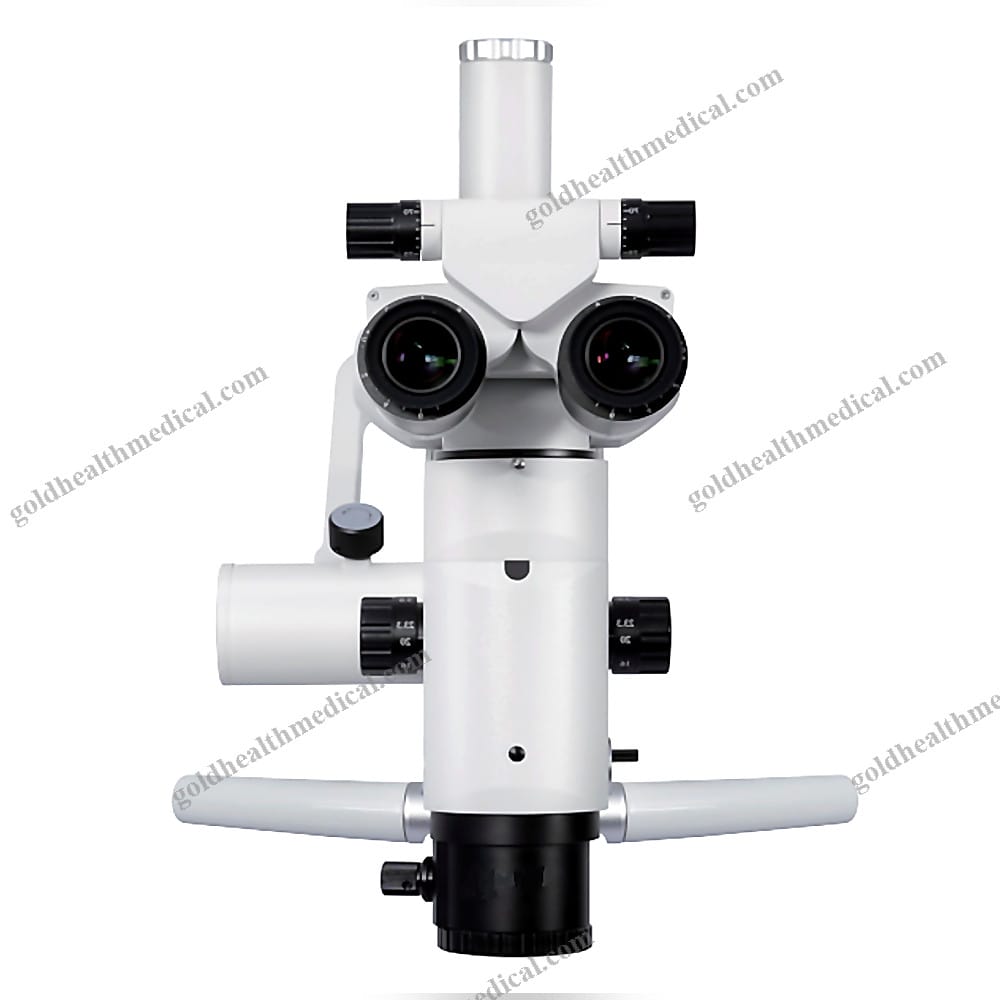

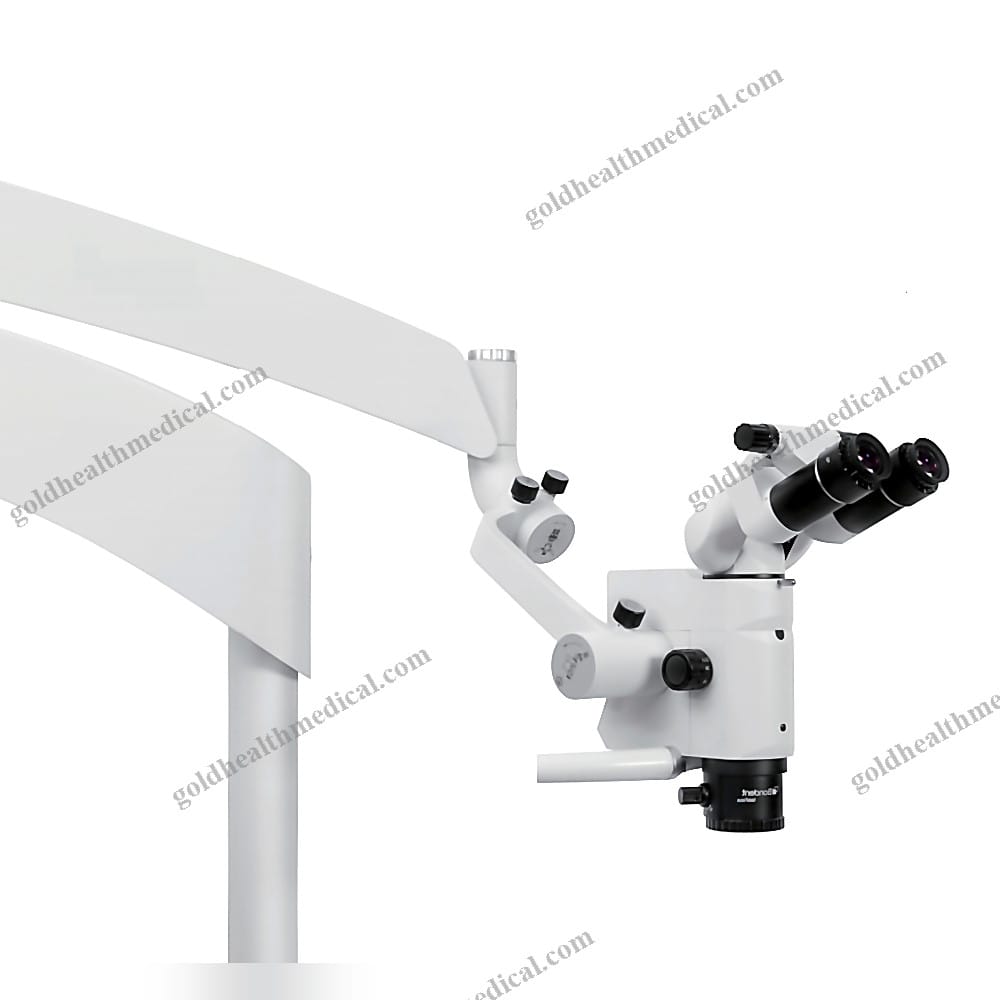

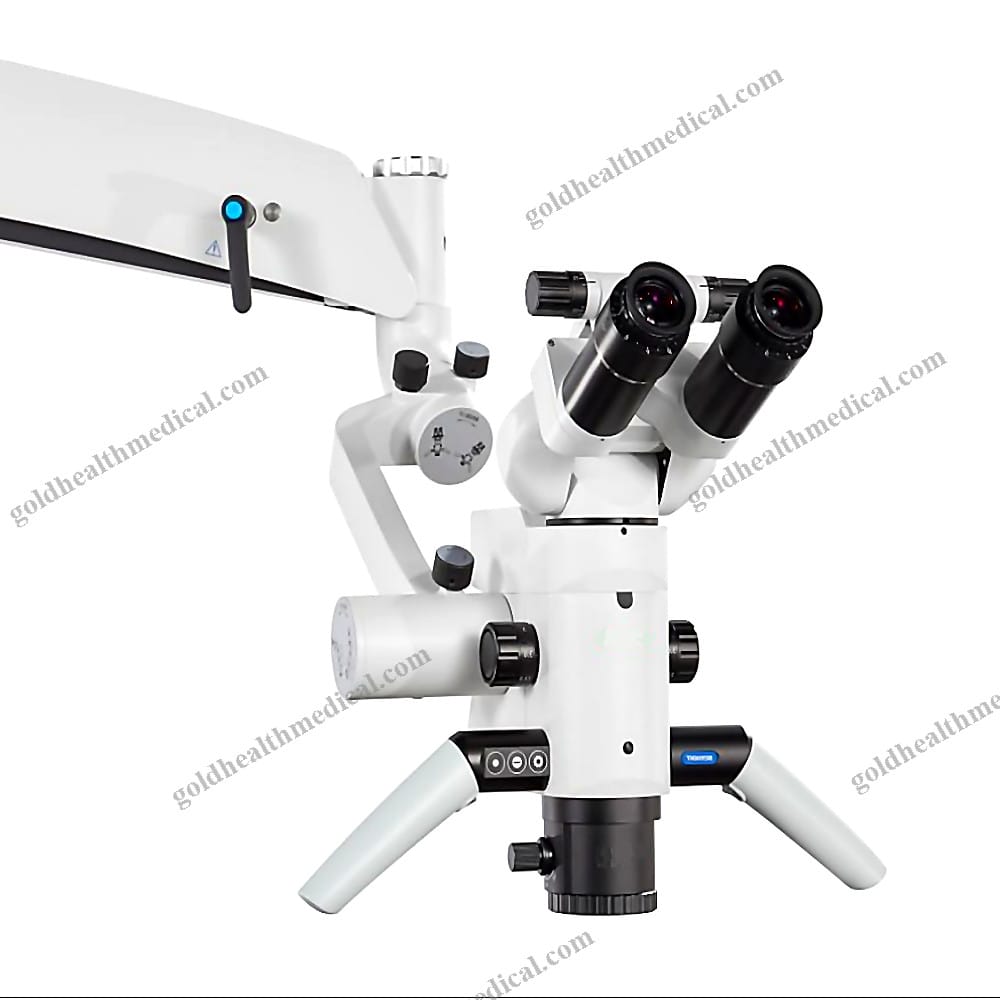

DentalPro HD Binocular Microscope with LED Illumination for Oral Surgery
Reference: 1601225640762
Microsurgery Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical Microscope System
Experience unparalleled precision and clarity with the GoldHealth Medical Microscope System, designed to elevate medical diagnostics and procedures. This state-of-the-art system combines advanced optical technology with user-centric features, ensuring optimal performance in any medical setting.
Key Features
- Zoom Magnification: Achieve exceptional detail with a zoom range of 3.6x to 23.3x, allowing for precise examination and diagnosis.
- Binocular Tube: The inclinable extended tube offers flexibility with a 0~210° range, accommodating various user preferences and ergonomic needs.
- Vario Focus: With a focus range of 180mm-460mm, this system ensures sharp and clear imaging across different working distances.
- LED Illumination: Equipped with a built-in high-reliability medical LED light source, providing natural lighting with a color temperature of 5700K. The illumination is continuously adjustable with a lifespan exceeding 60,000 hours.

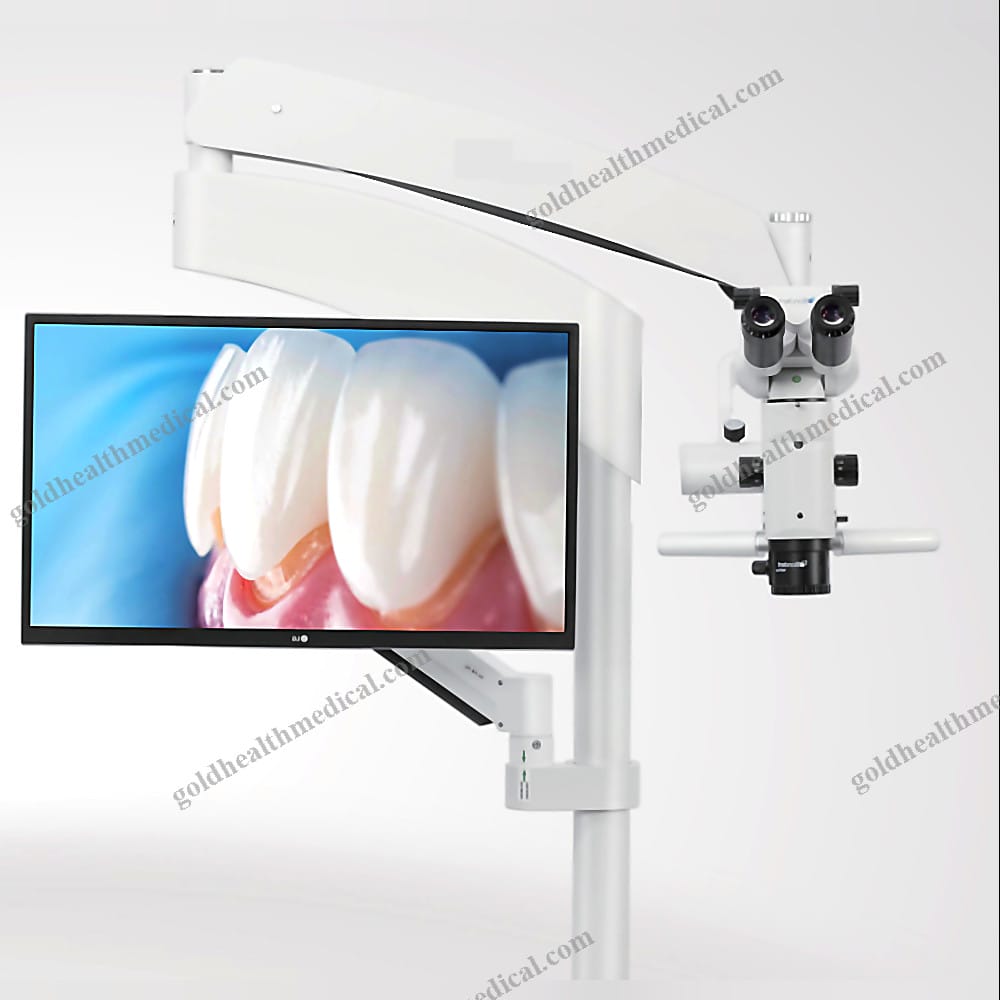

- Integrated 4K HD Camera: Capture every detail with the integrated 4K camera system, offering video resolutions up to 3840x2160 (4K) and switchable to lower resolutions as needed. The system supports multiple image and video formats, including JPG, RAW, and MP4.
Specifications
- Eyepieces: High eyepoint oculars with a 10/22B specification provide a larger field of view for enhanced observation.
- Pupil Distance Adjustment: Adjustable range from 180mm to 460mm ensures comfort for all users.
- Diopter Range: ±7 for precise focusing adjustments.
- Field of View: Diameter ranges from 132mm to 9.7mm, depending on magnification.
- Optional Pendulum: ±35° for added versatility in positioning.
- Illumination System:
- Minimum illumination intensity (f=250): ≥80,000lx
- Diameter of illumination spot: >60mm
- Color Filters: Yellow, Green
- Camera System:
- Video Frame Rate: 30fps@4K
- Storage Medium: External TF flash disk up to 128G
- Screencasting Program: Playback video and picture files
- Shooting Support Modes: JPG\RAW (image), MP4 (video)
- Control: Wireless remote control via mouse and foot pedal

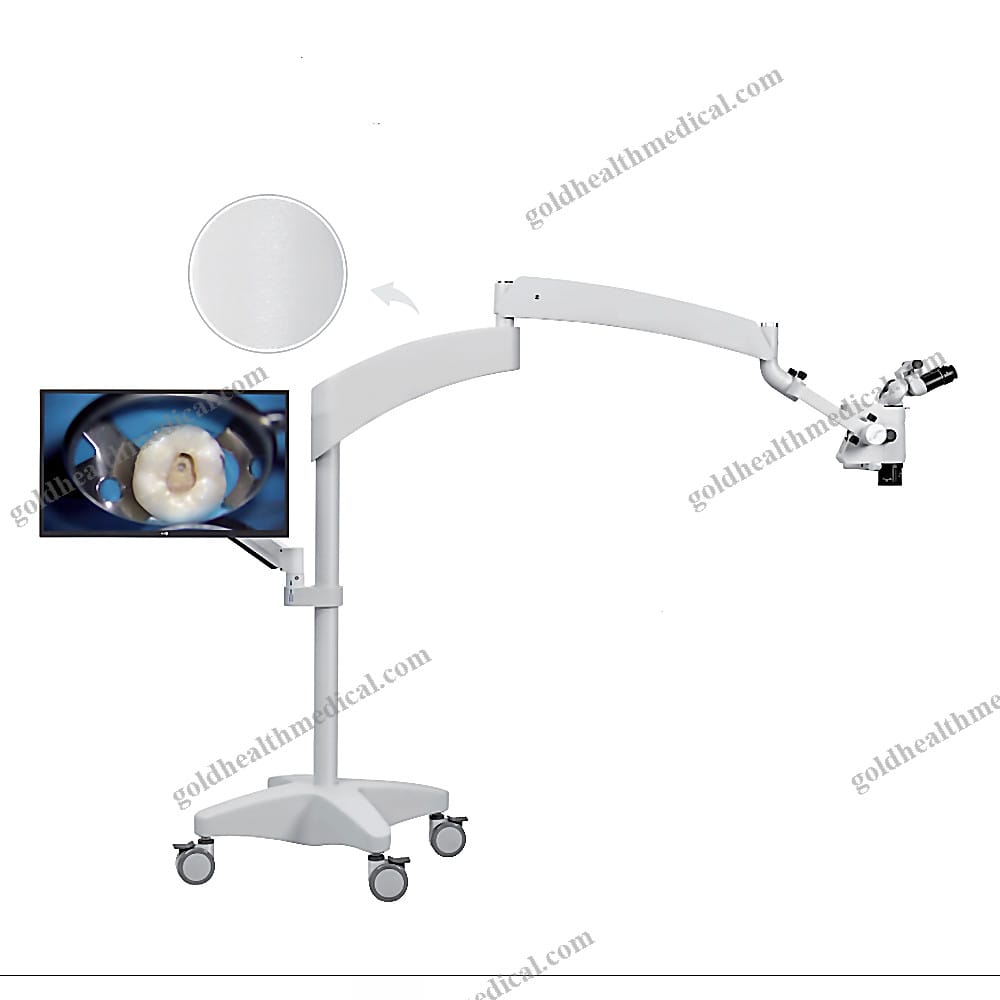

- Support System:
- Bracket Type: Suspension type bracket
- Big Arm: 460mm with 360° rotation
- Spring Arm: 700mm with +160° rotation and vertical displacement of +315mm
- Maximum Arm Spread: 1390mm
- Base Size: 516mm x 516mm
- Surface Material: Protected with an antibacterial nano silver ion coating to prevent cross-contamination.
Unique Selling Points
- Advanced Optical Performance: The combination of high eyepoint oculars and a wide zoom range ensures superior clarity and precision.
- Ergonomic Design: The inclinable binocular tube and adjustable focus cater to user comfort, reducing strain during prolonged use.
- Integrated Technology: The built-in 4K camera system and advanced LED illumination provide unmatched image quality and reliability.
- Versatile Applications: Suitable for hospitals, clinics, research labs, and more, this microscope system adapts to various medical and scientific needs.
- Antibacterial Coating: Ensures a hygienic environment, crucial for medical settings.
GoldHealth Medical is committed to delivering innovative solutions that enhance diagnostic accuracy and improve patient outcomes. Our microscope system is a testament to this commitment, offering cutting-edge technology and superior design to meet the demands of modern healthcare professionals.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical presents a cutting-edge medical instrument designed to deliver unparalleled precision and reliability. Engineered with advanced technology, this Class II medical device is crafted to meet the rigorous demands of modern healthcare environments. Whether in hospitals, clinics, or research labs, this product ensures optimal performance and safety.
Key Features
- Material: Constructed from high-grade metal for exceptional durability and hygiene.
- Power Source: Powered by electricity, ensuring consistent and reliable operation.
- Safety Standard: Compliant with GB/T18830-2009, guaranteeing adherence to stringent safety protocols.
- Quality Certification: CE-certified, reflecting our commitment to global quality standards.
Product Specifications
- Instrument Classification: Class II medical device, designed for professional and precise applications.
- Shelf Life: 2 years, ensuring long-term usability and reliability.
- Place of Origin: Jiangsu, China, renowned for its advanced manufacturing capabilities.
Packaging Details
- Package Dimensions: 210 x 80 x 80 cm, optimized for secure transportation.
- Gross Weight: 150.000 kg, ensuring robust protection during transit.
Warranty and Support
- Warranty Period: 1 year, providing peace of mind and assurance of quality.
- After-Sale Service: Access to online technical support, ensuring prompt resolution of any queries or issues.
GoldHealth Medical’s commitment to innovation and excellence ensures that this device stands out as a trusted solution for healthcare professionals and institutions worldwide.
