Dental Operating Microscope for Endodontic Procedures
Reference: 1601358871157
Medical Optical Instruments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

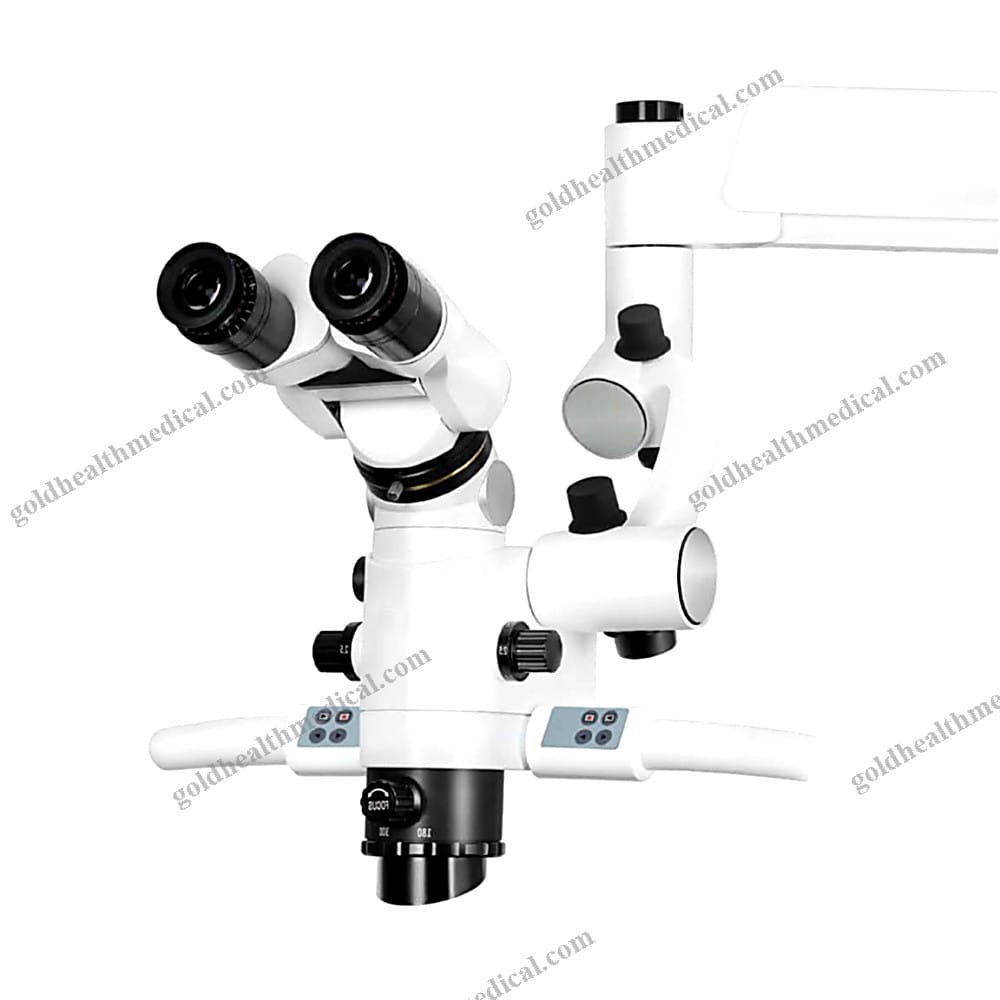

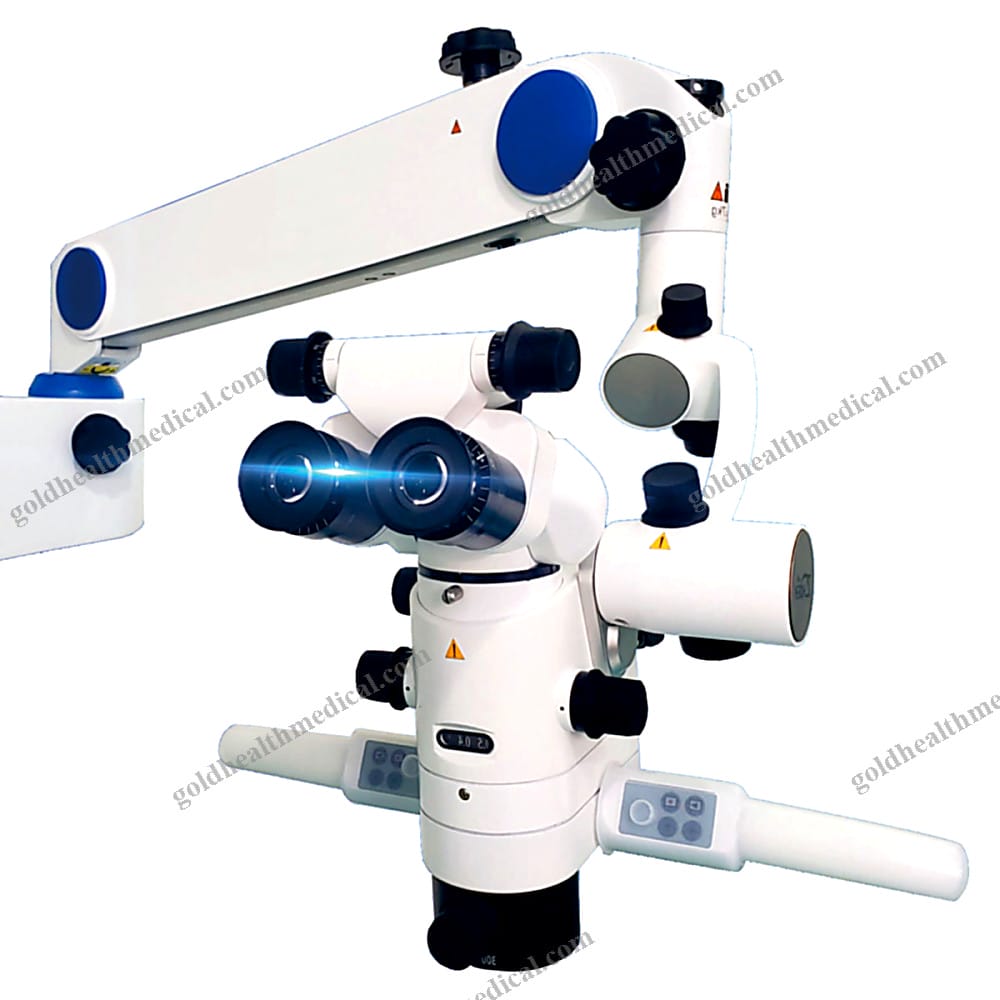

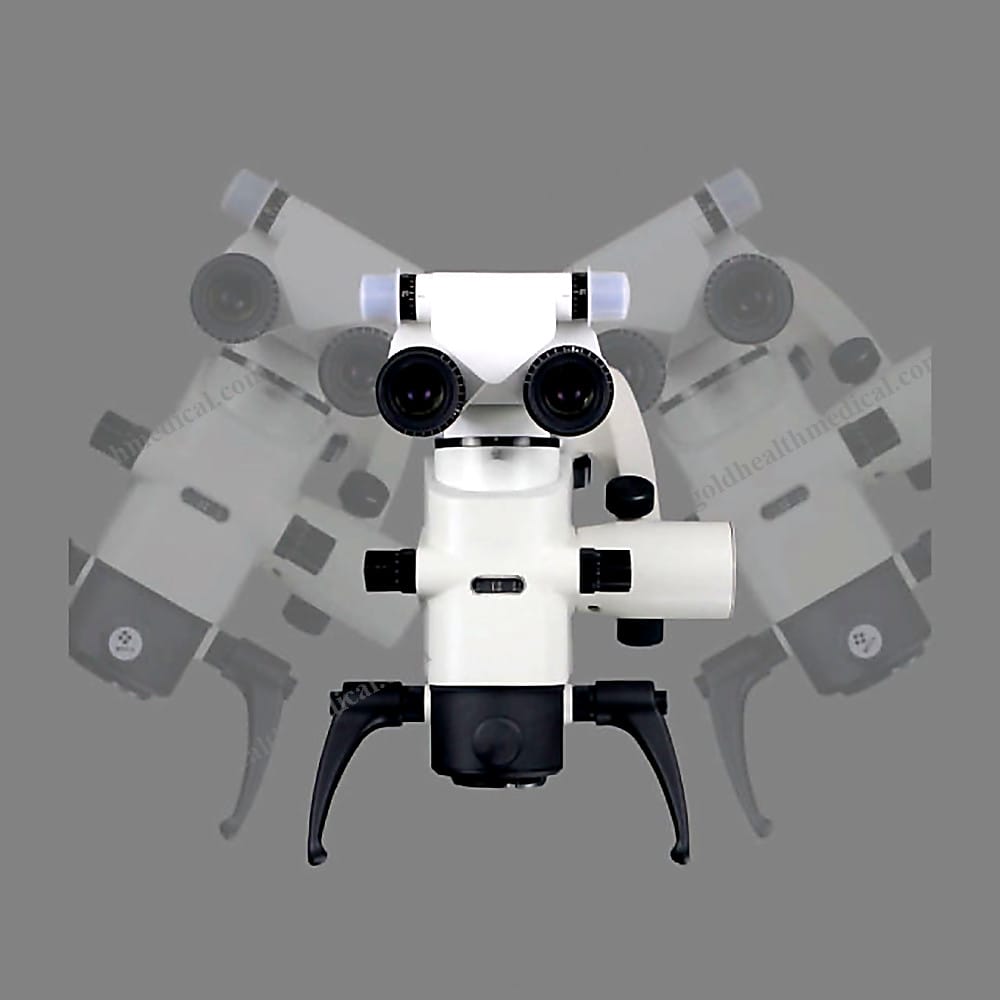

GoldHealth Medical Microscope
Product Overview
GoldHealth Medical presents a state-of-the-art microscope designed for precision and reliability in oral microsurgery. Engineered with cutting-edge technology, this microscope delivers unparalleled clarity, durability, and versatility, making it an indispensable tool for dental professionals.
Key Features
-
Apochromatic Lens (APO Lens)
Produces crystal-clear imaging with enhanced resolution, contrast, and depth of field. Reduces visual fatigue for extended use. -
Multi-coated Technology (MC Technology)
Minimizes light echo attenuation, maximizes light transmittance, and boosts luminance for superior visibility. -
Extended Service Life
Equipped with a secondary optical distribution light source, offering up to 100,000 hours of reliable performance—nearly two decades of uninterrupted service. -
Imported Damping Balance Arm
Features a high-quality pneumatic spring system that ensures smooth rotation of cantilever and crossarm under load. The external image attachment locks securely in place when adjusted, ensuring adaptability in any environment. -

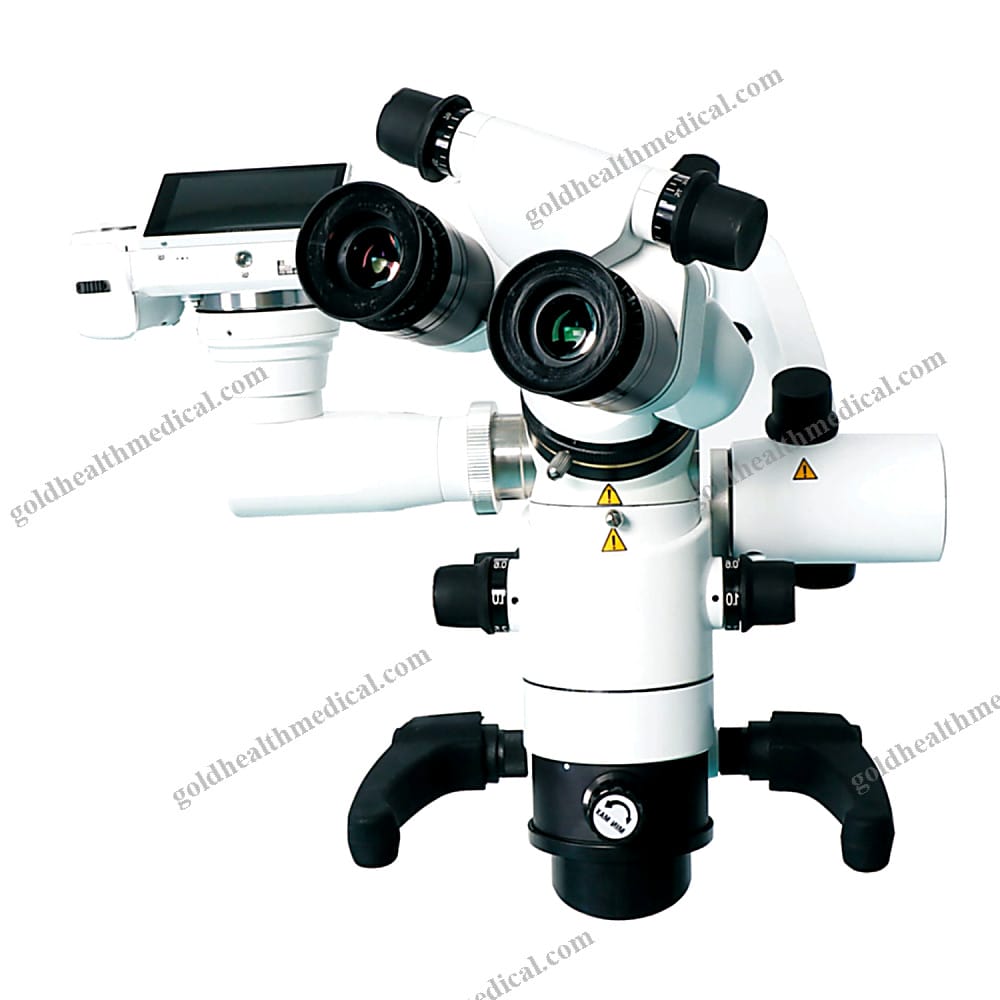

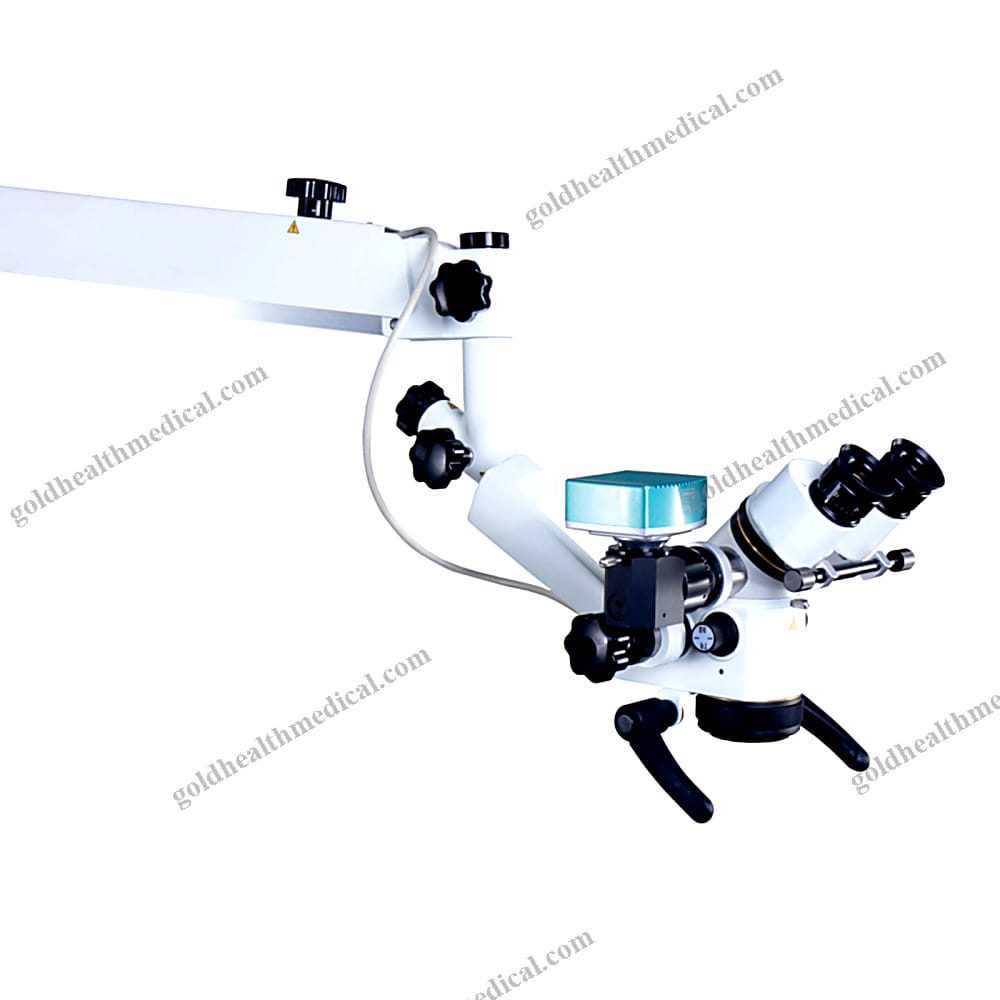

Built-in HD Camera Module
Integrated 1/1.8 HDMI 4K camera system captures ultra-HD videos and high-resolution images exceeding 12 million pixels, with simplified wiring for convenience.
Applications
This microscope is ideal for a wide range of clinical applications, including: - Root canal therapy and restoration - Locating missing root canals - Removing plasticization and calcified obstructions in root canals - Retrieving broken instruments from root canals - Repairing perforations and performing apical surgeries - Dental restorations and post-treatment evaluations
It ensures precise oral examinations, accurate analysis, and effective quality control during procedures such as inspecting shoulder margins, analyzing restoration failures, and verifying adhesive removal.
Technical Specifications
- Optical System: Wide Field WF12.5x/18B eyepiece, 45-degree binocular tube
- Magnification: Stepless adjustment with objective lens range of 180mm-300mm
- Light Source: Long-lasting LED cold light (>100,000 hours), color temperature 4000K
- Illumination: Minimum intensity >50,000 lux (f=250), illumination spot diameter Ф50mm
- Filters: Normal light, small spot, yellow, green
- Adjustments: PD range 55mm-75mm, diopter range ±6D

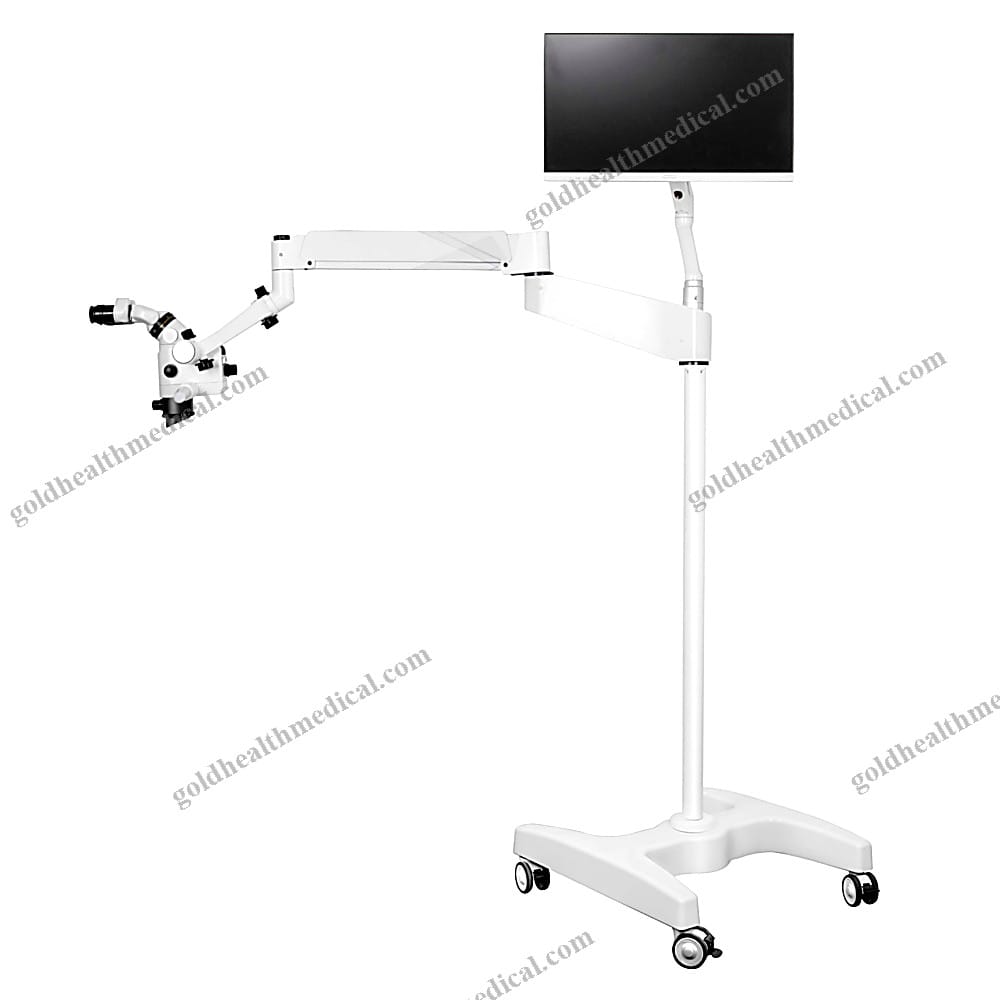

- Arm Reach: Maximum extension 1428mm
- Rotation Angles: Swing arm 270°, cross arm 360°
- Base Dimensions: 640mm x 640mm
- Weight: 110kg
- Video Output: 1080P HD resolution, 4K frame rate
- Power Input: AC220+22V, 40VA
Why Choose GoldHealth Medical?
Our microscope combines innovative design with robust engineering to deliver exceptional performance. Its advanced features, such as the APO lens and built-in 4K camera, set a new standard in dental microscopy. Backed by rigorous quality assurance processes, this product ensures precision, durability, and ease of use, empowering professionals to achieve outstanding results.
Experience the future of dental microscopy with GoldHealth Medical—a trusted partner in advancing healthcare excellence.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Company Name: GoldHealth Medical
Product Introduction:
The GoldHealth Medical Operation Microscope is a precision-engineered Class I medical instrument designed for unparalleled accuracy and reliability in dental endodontic procedures. This advanced microscope combines cutting-edge technology with user-centric design, empowering medical professionals to achieve superior outcomes in intricate dental treatments.
Key Features and Specifications:
- Application: Specifically optimized for dental endodontic procedures, offering enhanced visualization and precision.
- Power Source: Electric, ensuring consistent and reliable performance.
- Shelf Life: 2 years, maintaining optimal functionality and durability.
- Color: Sleek white finish for a professional and modern aesthetic.
- Instrument Classification: Class I medical device, meeting the highest standards of safety and efficacy.
- Place of Origin: Proudly manufactured in Chongqing, China, with meticulous attention to detail.
- Quality Certification: CE-certified, guaranteeing compliance with international safety and quality standards.
Warranty and Support:
- Warranty: Comprehensive 2-year warranty for peace of mind and long-term reliability.
- After-Sales Service: Access to online technical support, ensuring prompt assistance whenever needed.
Packaging Details:
- Selling Units: Single item per package.
- Package Dimensions: 99 x 99 x 99 cm, designed for secure and efficient transport.
- Gross Weight: 110.000 kg, ensuring stability and protection during shipping.
Why Choose GoldHealth Medical?
Our Operation Microscope stands out with its innovative design, robust build quality, and dedication to enhancing the precision of dental endodontic procedures. Engineered for both clinical and research environments, it is the ideal choice for hospitals, clinics, laboratories, and rehabilitation centers seeking excellence in medical instrumentation.
