CGA870 YokeStyle Oxygen Regulator for Large Tanks
Reference: 1600950361428
Breathing Apparatus
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Precision Oxygen Therapy Solutions
Experience the next level of oxygen therapy with GoldHealth Medical’s advanced oxygen flowmeter with an integrated humidifier bottle. Designed for reliability, precision, and ease of use, this device is engineered to meet the needs of medical professionals and patients alike.
Product Highlights
- Unmatched Precision: Adjustable flow range options include 0-10LPM, 0-15LPM, and 0-70LPM, ensuring accurate oxygen delivery tailored to individual patient requirements.
- Enhanced Comfort: The integrated humidifier bottle ensures optimal moisture levels, providing comfortable and effective oxygen therapy for patients of all conditions.
- Durability Meets Innovation: Constructed with a chromed brass body for the flowmeter and a high-quality polycarbonate humidifier bottle, this device is built to last while maintaining transparency for effortless monitoring.
- Safety First: Equipped with a safety valve control pressure of 0.35-0.05Mpa and a working pressure of 0.2-0.3Mpa, ensuring secure and reliable operation under varying input pressures (up to 15Mpa or 2200 PSI).
- Versatile Compatibility: Designed to fit oxygen outlets on gas supply equipment, surgical pendants, ICU pendants, or directly mount onto oxygen tanks with CGA870 or pin-index connectors.
- Sterilization Ready: The humidifier body is autoclavable, supporting high-pressure sterilization at a maximum temperature of 121°C and pressure of 0.142MPa.
Key Features
- Flow Adjustment: Effortlessly adjust oxygen flow rates such as 1L, 2L, 5L, 8L, 10L, or 15L, with consistent output accuracy even under variable input pressures.
- Crack-Resistant Design: Flow tubes are crafted from durable, transparent polycarbonate, offering resistance to cracks and ensuring clear visibility of flow levels.
- Ergonomic Design: A lengthened air inlet valve lever accommodates oxygen cylinders of varying capacities, meeting diverse clinical and homecare needs.
Technical Specifications
- Flow Range Options:
- 0-10LPM
- 0-15LPM
- 0-70LPM
- Humidifier Bottle Volume: 200ml
- Materials:
- Flowmeter: Chromed brass body with a steel ball
- Humidifier Bottle: Polycarbonate
- Input Pressure: 15Mpa (2200 PSI)
- Working Pressure: 0.2-0.3Mpa
- Safety Valve Control Pressure: 0.35-0.05Mpa
- Certifications: ISO 13485 compliant
Applications
- Hospitals and clinics
- ICUs and surgical suites
- Research laboratories
- Rehabilitation centers
- Homecare environments
GoldHealth Medical’s oxygen flowmeter with humidifier bottle is more than a device—it’s a commitment to delivering safe, precise, and comfortable oxygen therapy. Elevate your care standards with a product designed to meet the demands of modern healthcare.
Choose GoldHealth Medical for excellence in every breath.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes

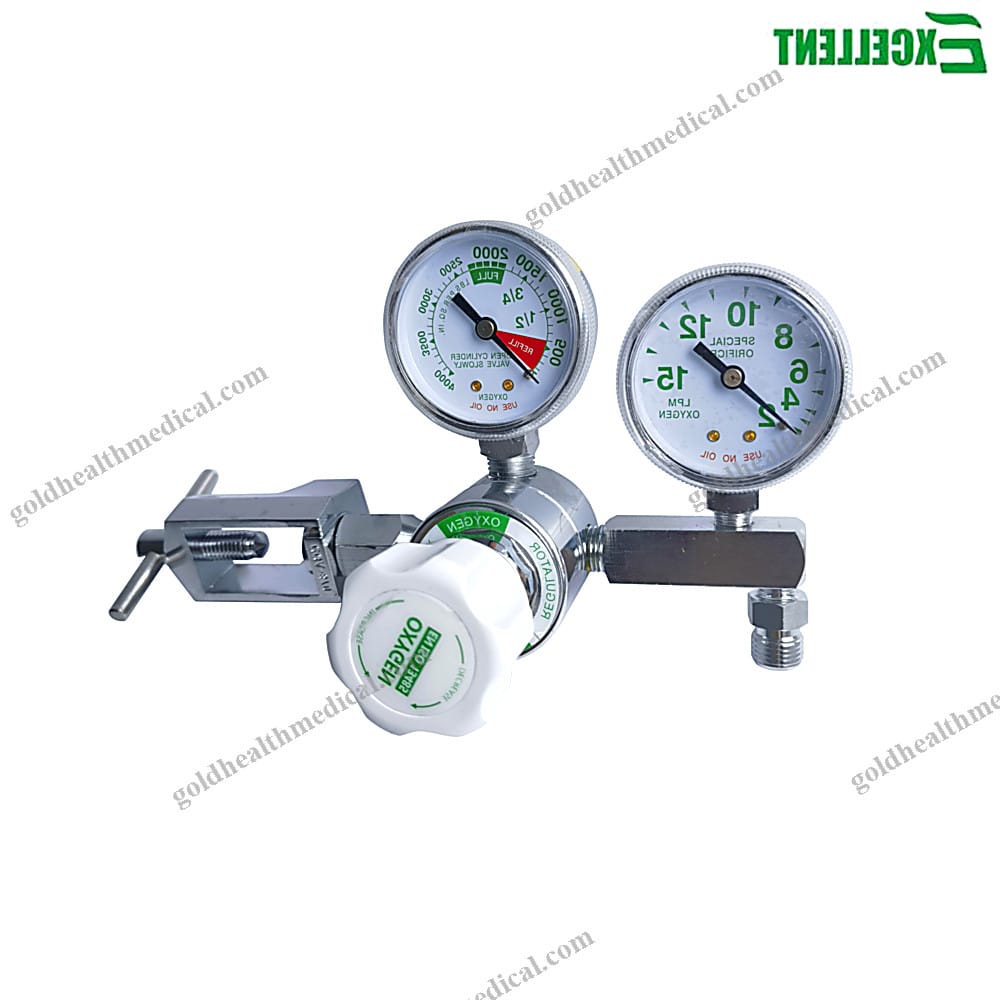

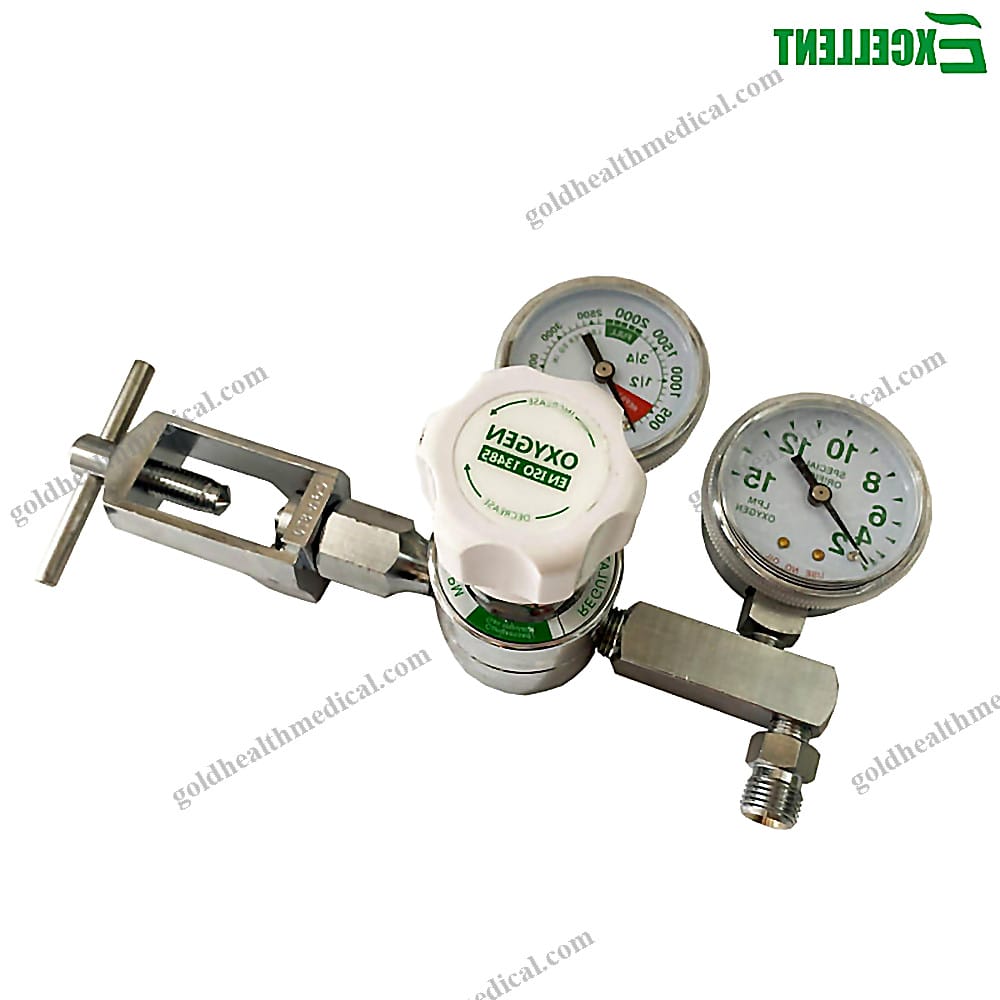

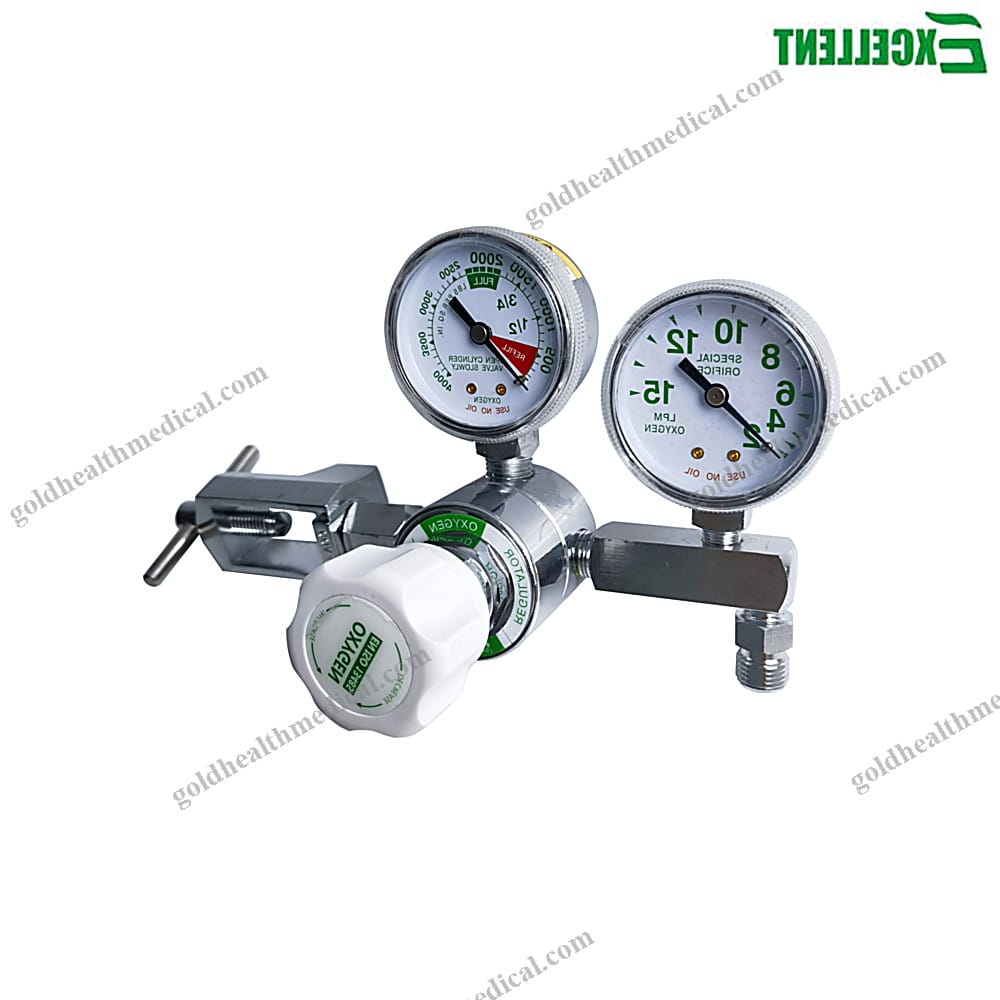

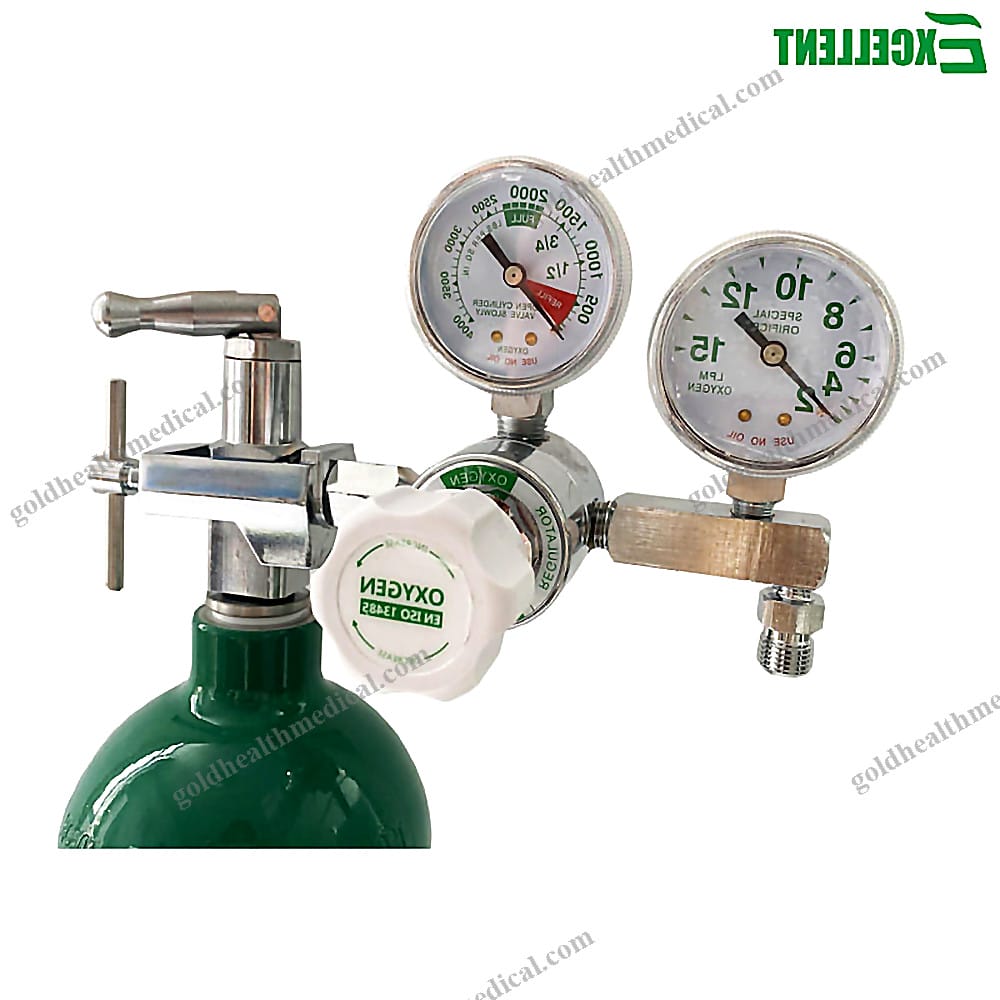

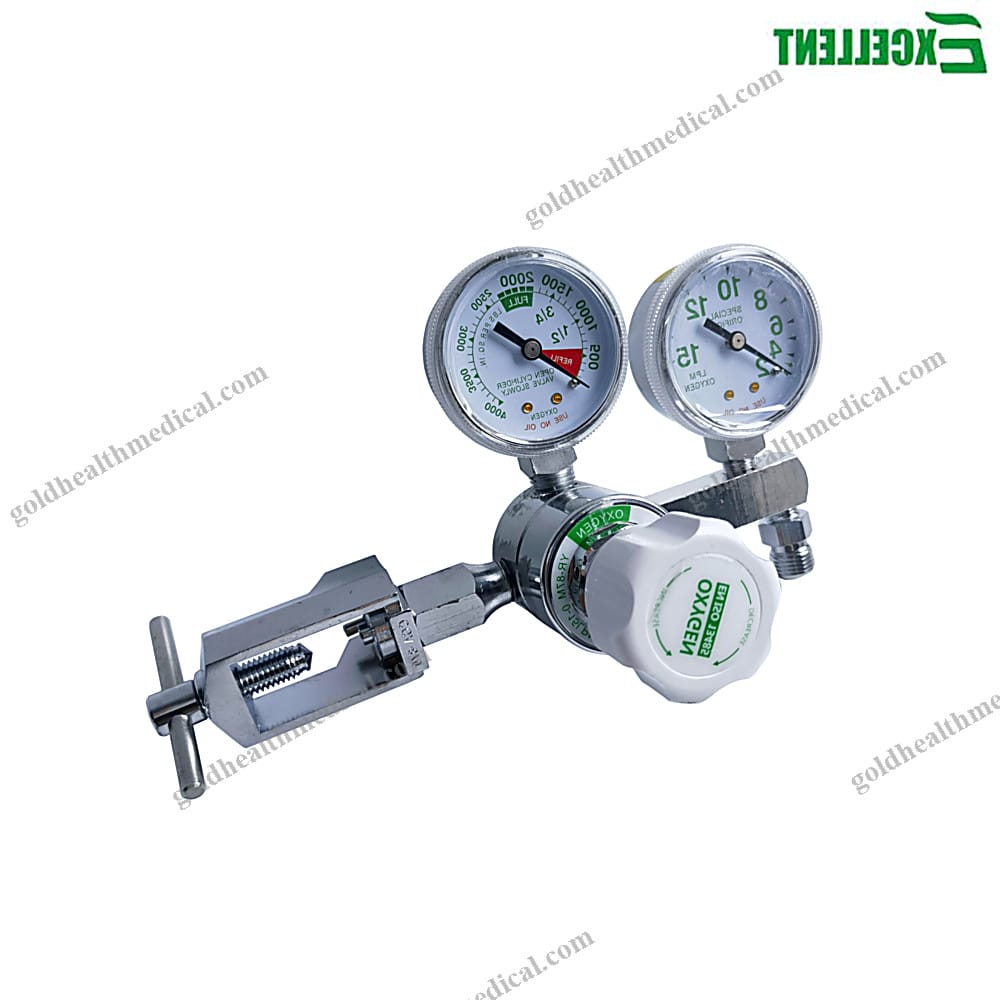

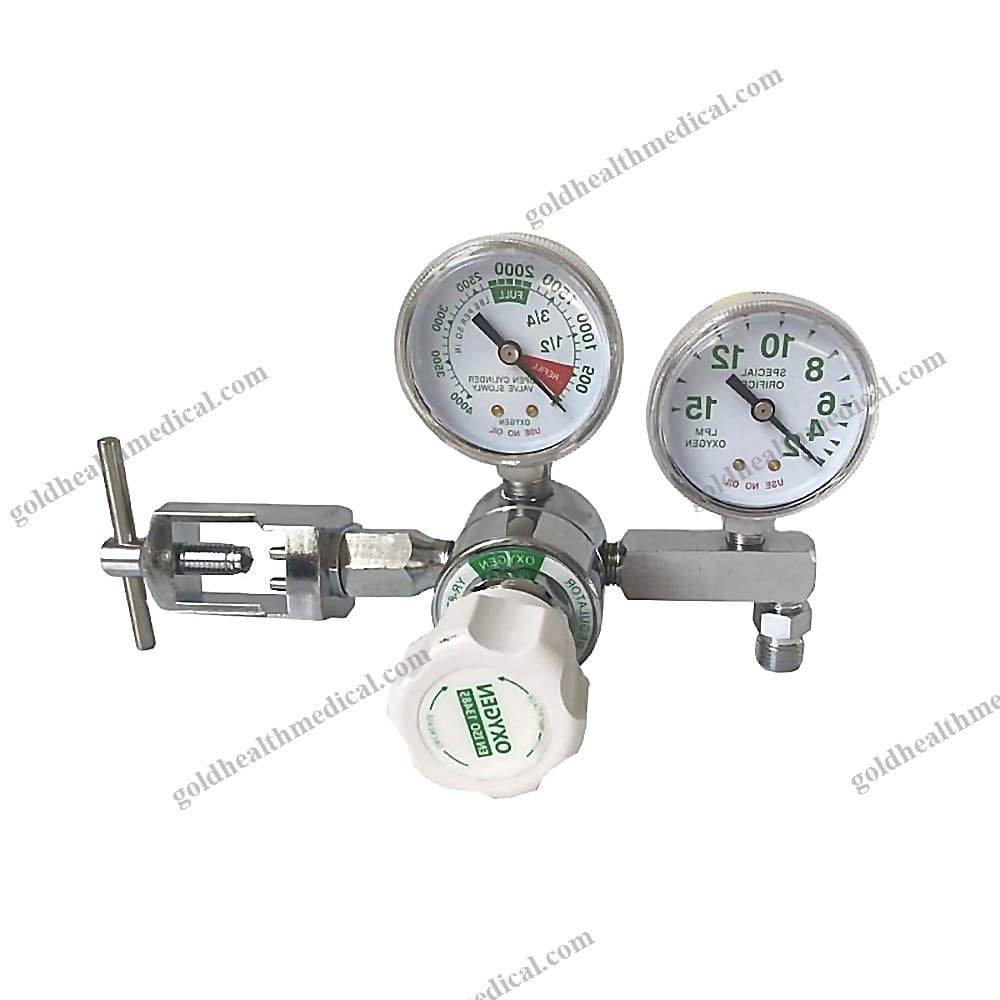

Product Name: Medical CGA870 Oxygen Regulator by GoldHealth Medical
Overview:
The GoldHealth Medical CGA870 Oxygen Regulator is a precision-engineered device designed to deliver reliable and accurate oxygen flow control for medical, laboratory, and homecare applications. Built with the highest standards of safety and performance, this regulator is an essential accessory for respiratory equipment, ensuring seamless integration with oxygen cylinders.
Key Features:
- Material: Constructed from premium brass for exceptional durability and corrosion resistance.
- Flow Range: Precise control with a flow range of 0-15 liters per minute, catering to diverse medical needs.
- Gauge Type: Equipped with a dual gauge system for simultaneous monitoring of cylinder pressure and flow rate.
- Inlet Connection: Pin-indexed CGA870 inlet ensures secure and leak-free attachment to oxygen cylinders.
- Outlet Connection: DISS outlet for safe and standardized gas delivery.
Technical Specifications:
- Instrument Classification: Class I medical device, ensuring high safety and reliability.
- Power Source: Fully manual operation, eliminating dependency on external power sources.
- Shelf Life: 2 years from the date of manufacture, maintaining optimal performance over time.
Certifications and Compliance:
- Safety Standard: Rigorously tested and certified by TUV for international safety compliance.
- Quality Certification: ISO 13485 certified, guaranteeing adherence to medical device quality management standards.
Applications:
- Ideal for use in hospitals, clinics, laboratories, rehabilitation centers, and homecare environments.
- Perfectly suited for oxygen therapy, emergency care, and respiratory support systems.
After-Sale Support:
GoldHealth Medical is committed to customer satisfaction, offering comprehensive online technical support and a 1-year warranty to ensure uninterrupted performance and peace of mind.
Place of Origin: Proudly manufactured in Jiangsu, China, combining advanced engineering with meticulous craftsmanship.
Why Choose GoldHealth Medical?
Our CGA870 Oxygen Regulator stands out with its robust design, precision engineering, and unwavering commitment to safety. Designed for professionals who demand excellence, this regulator is the trusted choice for reliable oxygen delivery in critical applications.
