Cansonic MSLCU28PLUS Portable 3D
Reference: 1600073432313
Medical Imaging Equipment
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Revolutionizing Ultrasound Technology
Product Overview

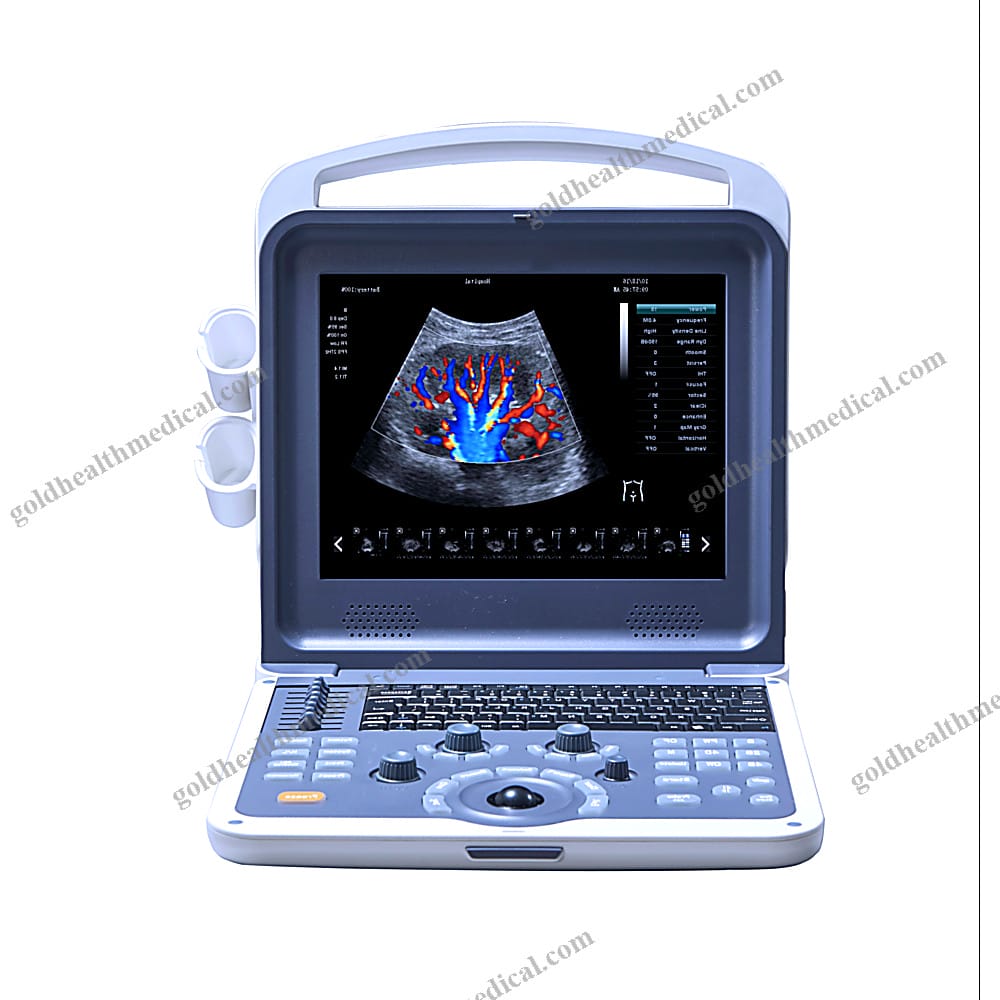

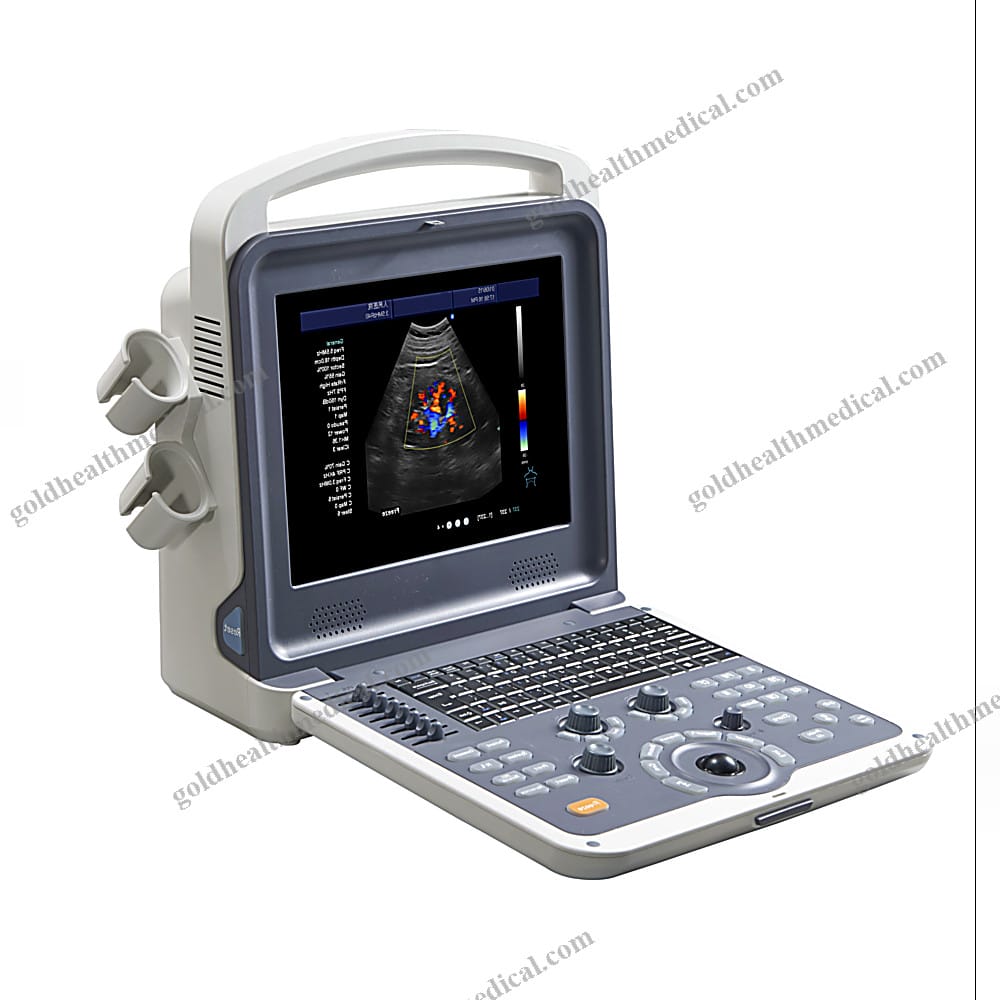

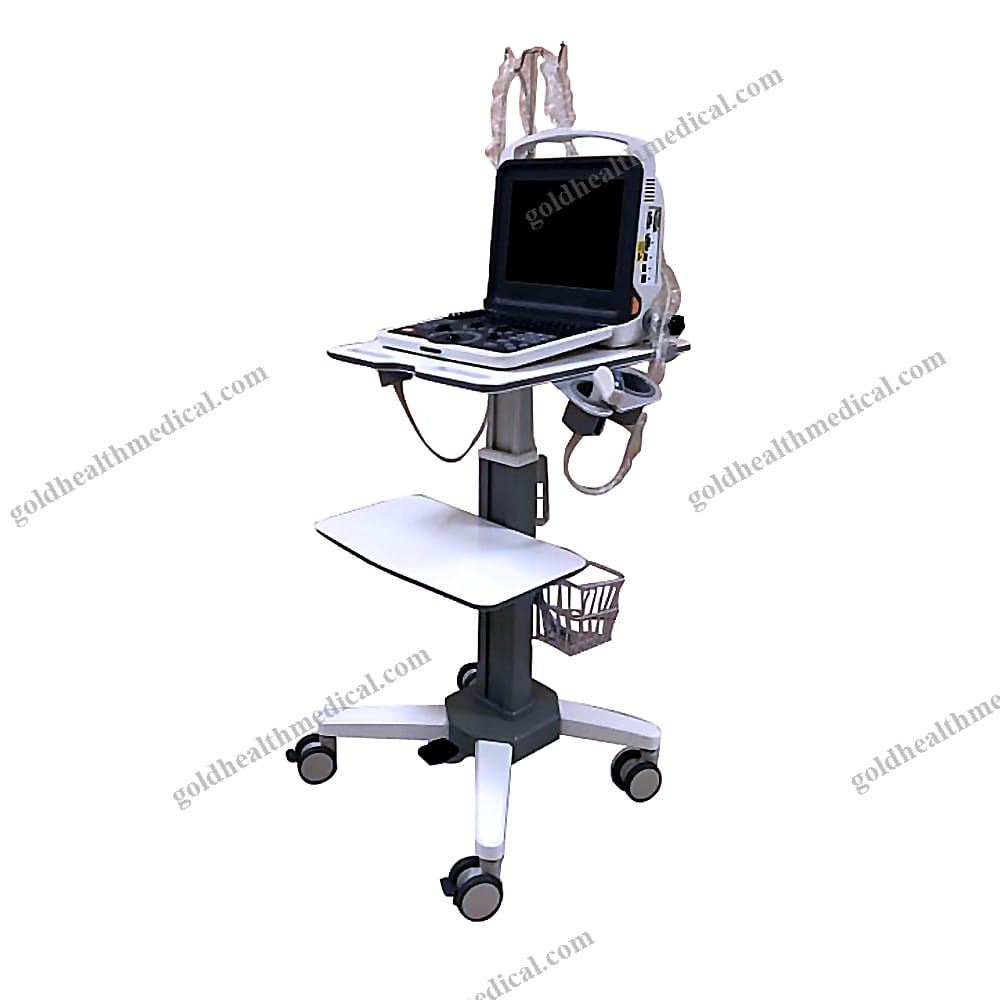

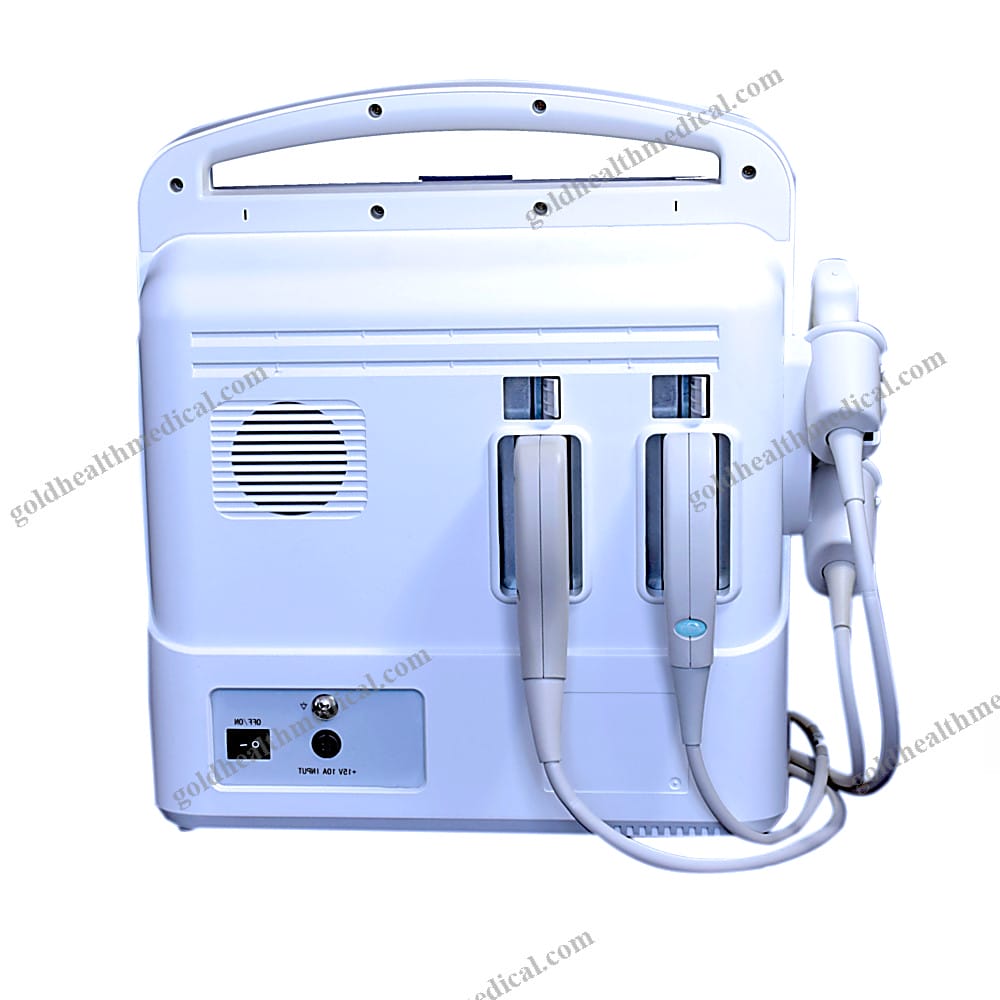

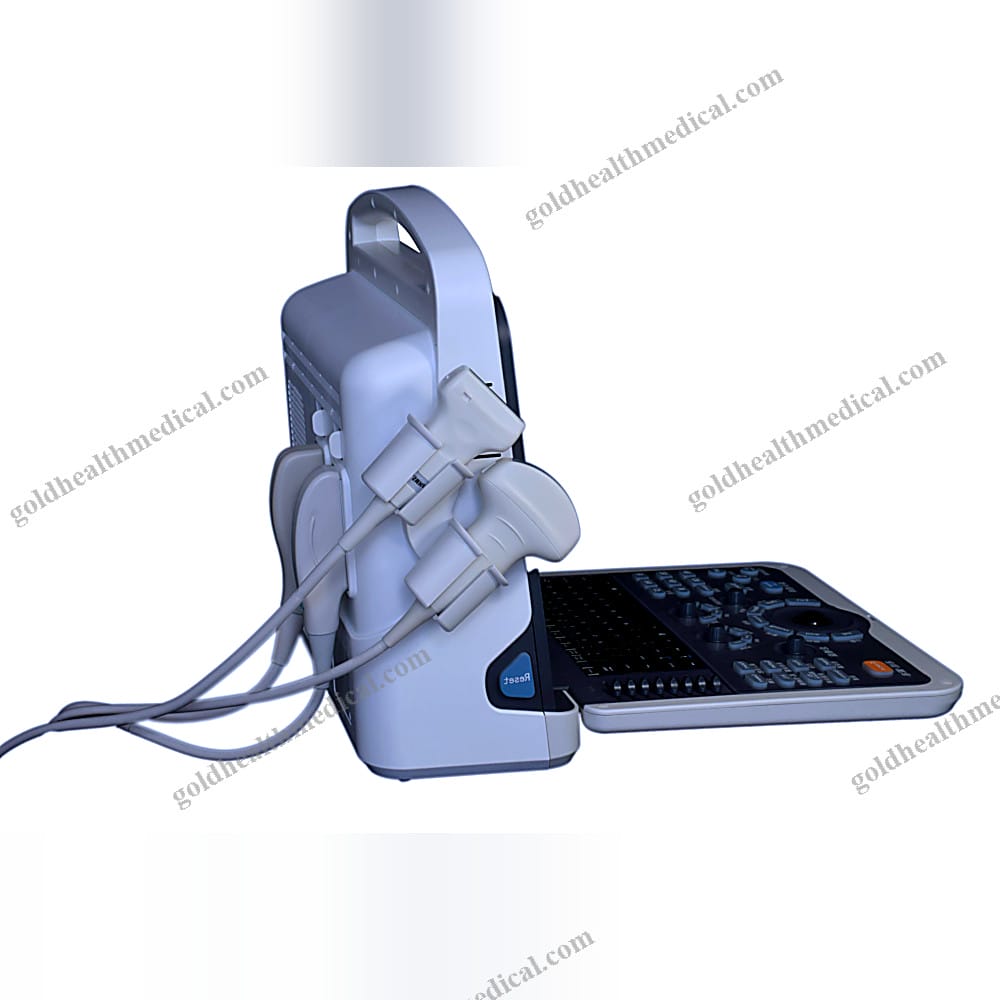

GoldHealth Medical introduces a groundbreaking portable color Doppler ultrasound scanner. Designed with a sleek clamshell form, this device combines smart engineering with compact portability, making it an ideal choice for diverse medical environments.
Key Features and Benefits
- Intuitive Interface: Powered by a familiar PC-based system, the interface is both intuitive and user-friendly. Its flexible design ensures seamless operation.
- High-Resolution Display: Equipped with a 12-inch high-resolution medical LED monitor, weighing only 6.5 kg, it offers exceptional portability.
- Innovative Design: Features a satellite-orbiting control panel and backlit keyboard, along with a built-in floating standard keyboard. The power and reset keys are uniquely designed for ease of use.
- Advanced Imaging: Delivers high-resolution 2D imaging and sensitive Color Doppler blood flow imaging. Intelligent one-touch optimization enhances image quality effortlessly.
- Versatile Probes: Compatible with various probes including convex, linear, transvaginal, and phased array options.

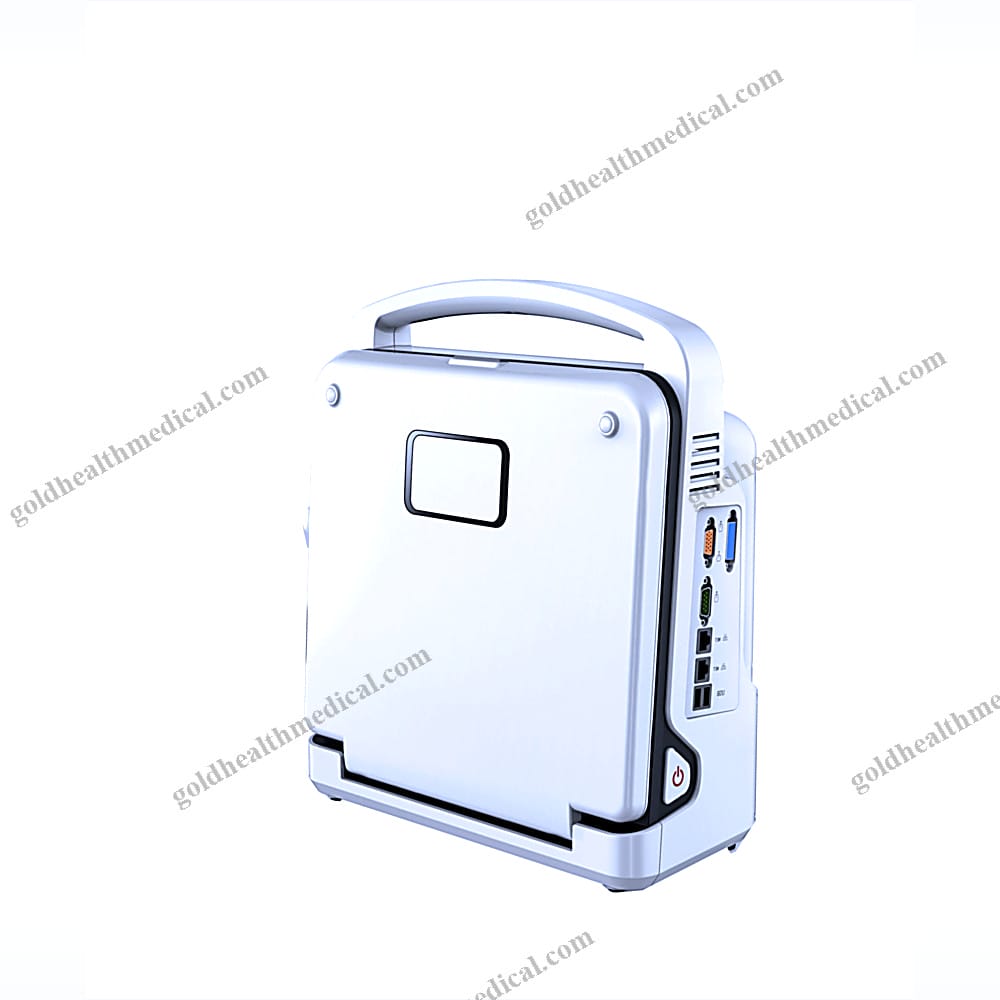

- Enhanced Connectivity: Offers abundant peripheral connections such as USB, DICOM 3.0, and VGA. The built-in SSD ensures stability and fast data retrieval.
- Long Battery Life: Includes a built-in rechargeable Li-ion battery with up to 2 hours of standby time (optional).
- 4D Upgrade Option: Can be upgraded to 4D imaging (optional).
- Customizable Software: Independent research capabilities allow software customization based on client needs, supporting OEM collaborations.
- Comprehensive After-Sales Support: Dedicated service engineers ensure prompt issue resolution.
Technical Specifications
- Monitor: 15" LCD Full Touchscreen
- Display Modes: B, B/B, 4B, B/M, M, PW, B/C, B/C/D, B/D, duplex, triplex, CFM, 4D
- Abdomen Measurement: Liver, GB, Aorta, GBWT, CBD, Portal Vein, Spleen
- OB Packages: EDD table includes GS, BPD, CRL, FL, YS, TAD, LV, OFD, NT, AC, HC, APAD, Cxlength
- Body Mark: Abdominal, Cardiology, Gynecology, Obstetrics, Small parts
Standard Configuration
- Main unit
- 12-inch LED monitor
- 3.5 MHz convex probe
- 7.5 MHz linear probe
- 2 probe connectors
- Hard disk
- Battery
- DICOM 3.0
Probe Specifications
- 3.5 MHz Abdominal Probe: 2.0, 3.0, 3.5, 4.0, 5.5 MHz
- 3.5 MHz Phased Array Probe: 2.0, 3.0, 3.5, 4.0, 5.5 MHz
- 3.5 MHz Micro-Convex Probe: 2.0, 2.5, 3.5, 4.5, 5.0 MHz
- 7.5 MHz Linear Probe: 6.0, 6.5, 7.5, 10.0, 12.0 MHz
- 6.5 MHz Transvaginal Probe: 5.0, 6.0, 6.5, 7.5, 9.0 MHz
- 4D Volume Probe: 2.0, 3.0, 3.5, 4.0, 5.5 MHz
Imaging Processing Capabilities
- THI, PSHI TM broadband multi-frequency harmonic imaging
- Speckle-reduction technology
- Power adjustable and smoothing function
- iBeam TM intelligent spatial imaging technology
- iZoom TM undistorted full-screen imaging
- Free Xros M, low power consumption engineering control technology
- Edge enhancement and image optimization
- One-key optimization and image conversion
- Doppler sound output volume, wall filter, baseline, sampling frame, spectrum sampling volume, angle, and PRF adjustable
GoldHealth Medical's portable ultrasound scanner stands out with its blend of advanced technology, user-centric design, and versatile functionality, making it an indispensable tool for modern healthcare professionals.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical presents the Color Doppler Ultrasound System
A cutting-edge imaging solution designed for precision, versatility, and ease of use across a wide range of medical applications.
Key Features
- Advanced Imaging Technology: Equipped with auto image optimization for unparalleled clarity and accuracy.
- Intuitive Interface: A 15-inch touch screen display ensures seamless operation and enhanced workflow efficiency.
- Comprehensive Cardiac Measurement Package: Includes detailed metrics such as heart rate, valve speed, LV, aortic, mitral, and ventricular assessments for precise diagnostics.
Applications
- General imaging
- OB/GYN
- Cardiology
- Urology
- Small organ examinations
Technical Specifications
- Imaging Modes: B, 2B, 4B, M, B/M, 4D
- Probe Elements: 128
- Peripheral Ports: USB 2.0, Video, S-video, RS-232, DICOM 3.0 compatibility
- Language Support: English
Design and Build
- Compact and Durable: Packaging size of 54 x 50 x 27 cm, housed in a robust aluminum box for secure transport.
- Instrument Classification: Class I medical device
Service and Support
- Warranty: 5-year comprehensive coverage for peace of mind.
- After-Sale Service: Free spare parts to ensure uninterrupted performance.
Supply and Delivery
- Origin: China
- Port of Delivery: Guangzhou
- Supply Capacity: Up to 10,000 units per month
GoldHealth Medical’s Color Doppler Ultrasound System is engineered to meet the demands of modern healthcare, offering exceptional performance and reliability for hospitals, clinics, research institutions, and home care environments. Elevate your diagnostic capabilities with this state-of-the-art imaging solution.
