ASOM6C Ophthalmic Surgical Microscope
Reference: 203494308
Microsurgery Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

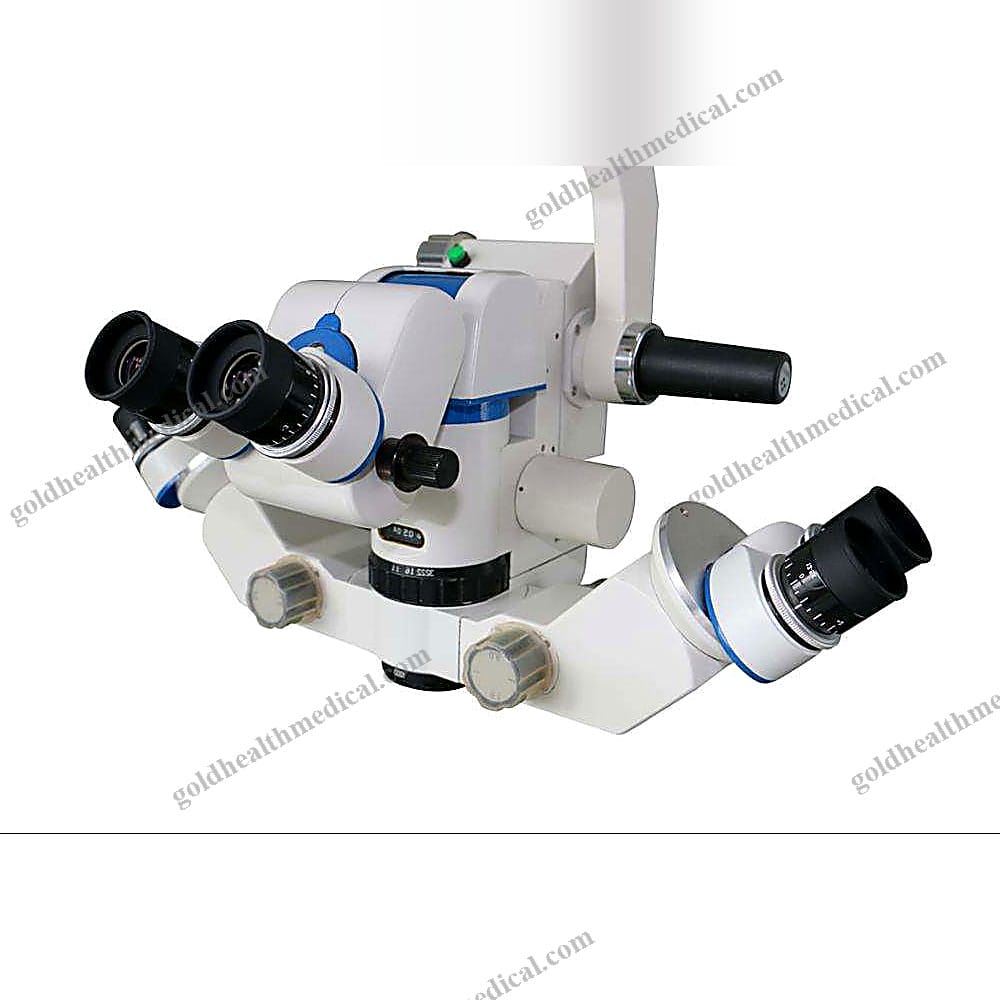

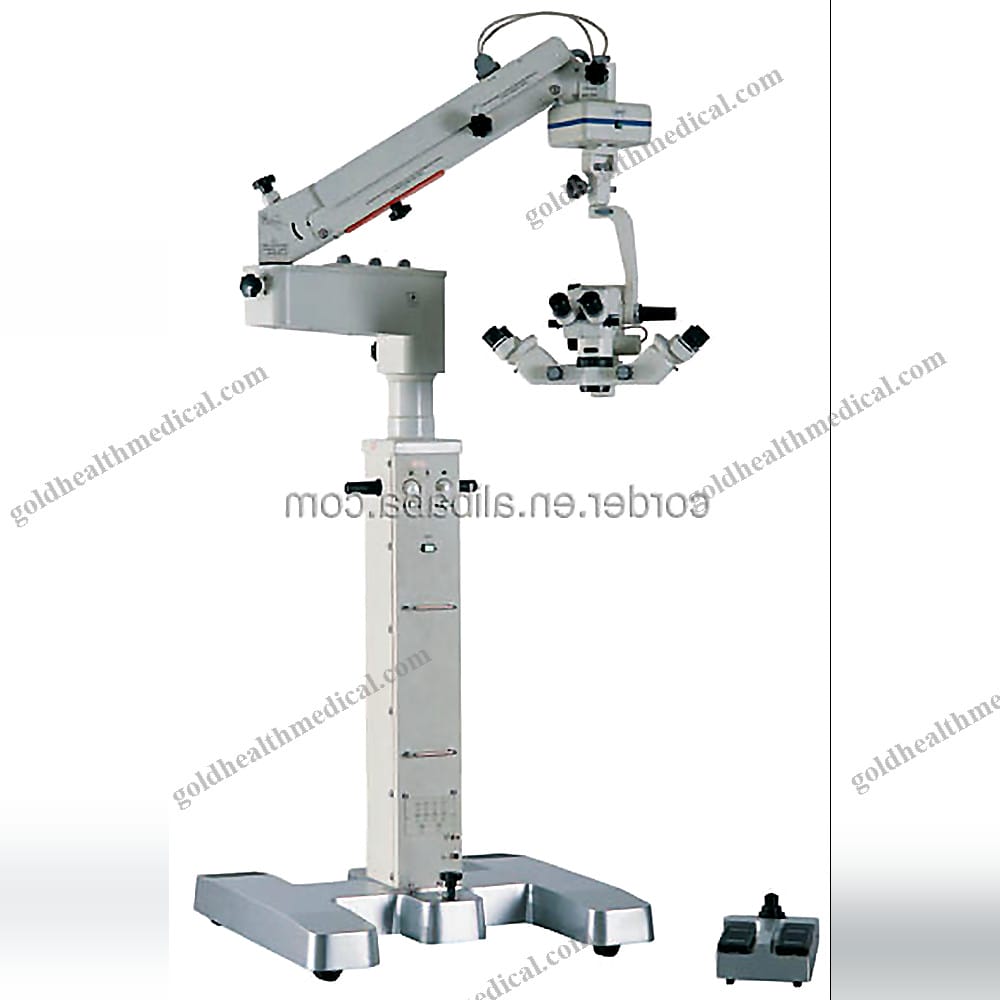

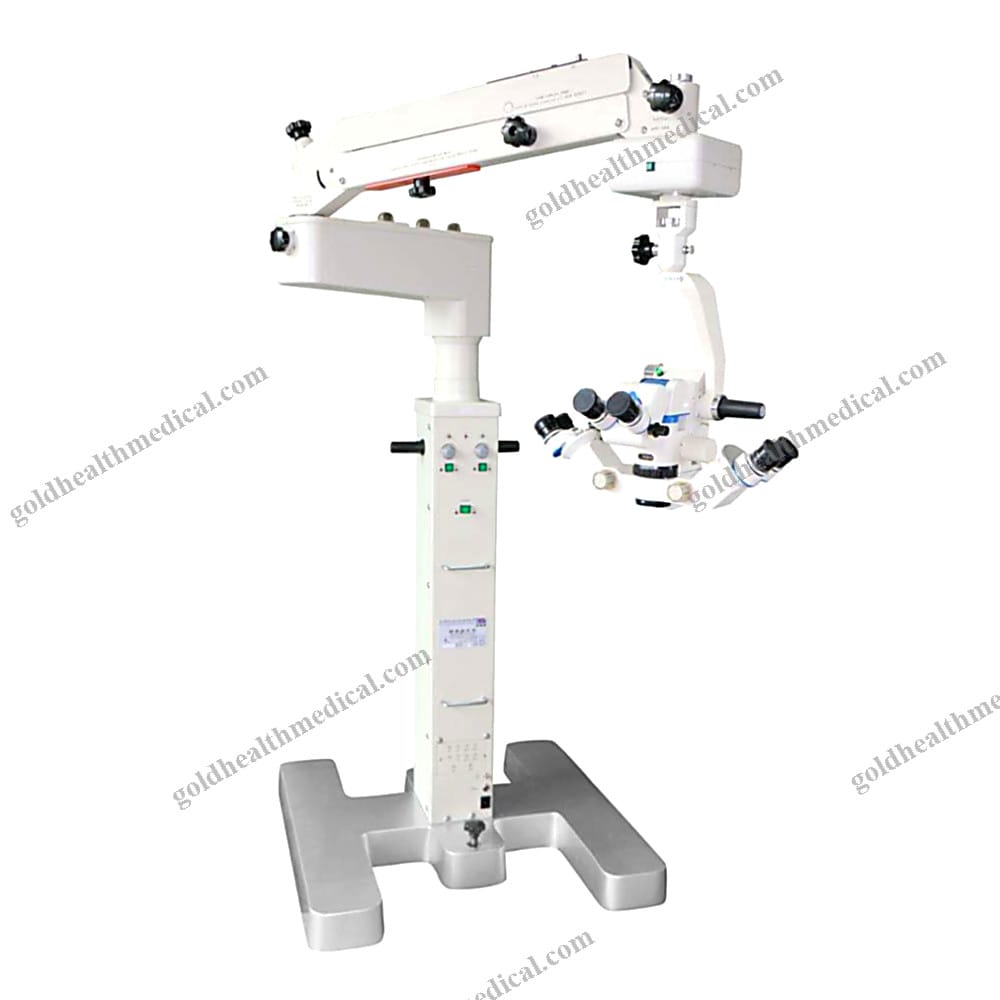

GoldHealth Medical Ophthalmic Operating Microscope
The GoldHealth Medical ophthalmic operating microscope is a groundbreaking surgical instrument featuring a unique double assistant binocular system. Designed for unparalleled precision, it boasts an advanced optical system and the largest depth of field in its class. This versatile microscope is ideal for neurosurgery, ophthalmology, dentistry, and other specialized medical procedures.
Key Features and Specifications
- Double Assistant Binocular System
- Equipped with a new diaphragm system for enhanced depth of field.
-
Provides exceptional clarity and precision during complex procedures.
-
Eyepieces
- Magnification: 12.5x.
- Pupil distance adjustable range: 55mm to 75mm.
- Diopter adjustment range: +6D to -6D.
-
Focus of the second objective lens: 180mm.
-
Binocular Tube
- Variable angle: 30° to 90° for ergonomic positioning.
-
Includes an advanced pupil distance adjustment mechanism.
-
Magnification System
- 6:1 zoom ratio, motorized.
- Magnification range: 4.5x to 27x.
-
Field of view: Φ45mm to Φ7.5mm.
-
Coaxial Assistant Binocular Tube
- Manual 3-step magnification changer.
- Total magnification: 6.4x, 10.8x, 17.3x.
-
Field of view: Φ31mm, Φ19mm, Φ12mm.
-
Coaxial Illumination
- Light spot diameter: Φ50mm.
-
Illumination intensity: 100,000 lux for superior visibility.
-
Objectives
-
Focal lengths available: 200mm (optional: 175mm, 250mm, 300mm, 350mm, 400mm).
-
Focusing Mechanism
- Motorized with a range of +/-25mm.
-
Adjustment speed: 33 seconds for the full distance.
-
X-Y Translator
- Motorized movement in X-Y directions.
-
Range: +/-30mm.
-
Maximum Arm Length
-
Extended reach: 1200mm for optimal positioning.
-
Oblique Illumination
- Illumination range: 50mm.
-
Intensity: 30,000 lux for enhanced visibility in challenging angles.
-
Stand
- Swing angle of the carrier arm: 0° to 300°.
-
Height from objective to floor: Adjustable between 800mm and 1250mm.
-

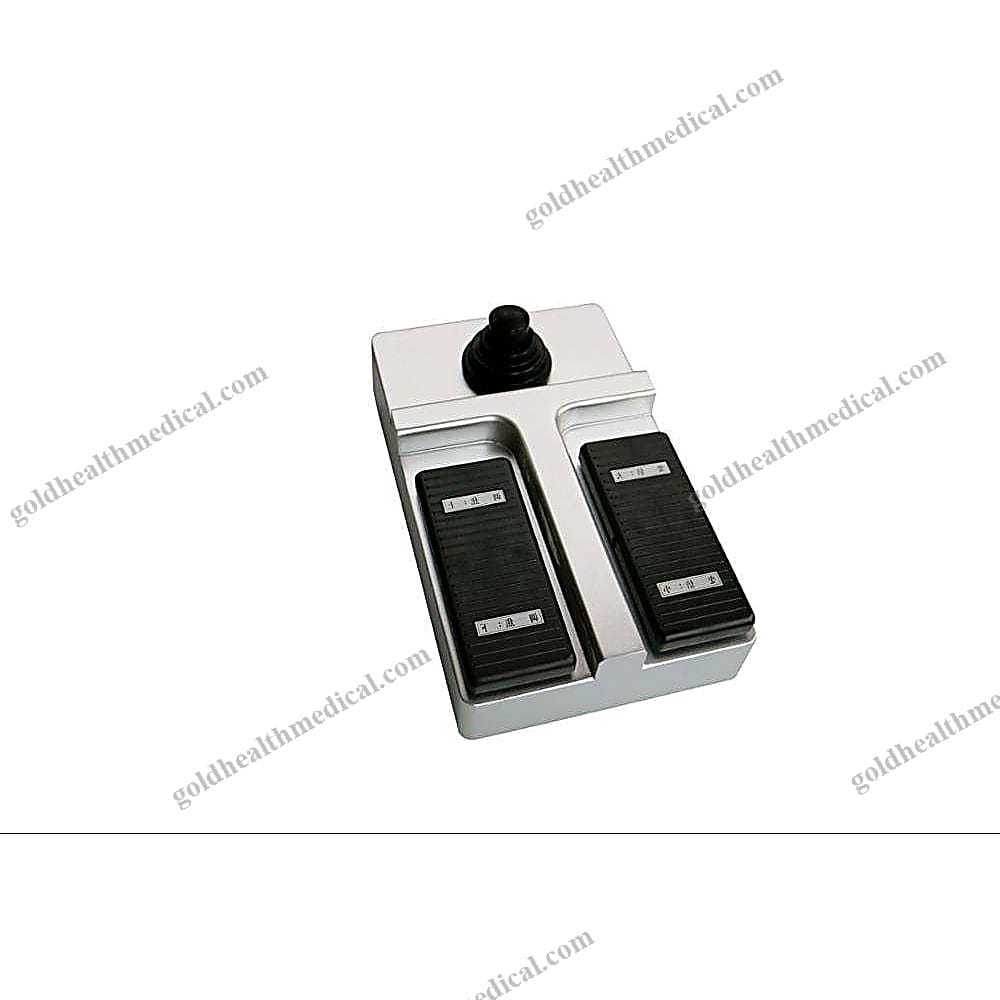

Foot Switch
-
Waterproof design with 8 functional steps for seamless operation.
-
Weight
- Total weight: 164kg for stability and precision.
Advanced Design and Innovation
GoldHealth Medical is a trusted innovator in medical optics, with decades of experience in developing cutting-edge surgical microscopes. Our commitment to research and development ensures that every product meets the highest standards of quality and performance.
Applications
This microscope is engineered for versatility, supporting a wide range of medical disciplines:
- Neurosurgery
- Ophthalmology
- Dentistry
Why Choose GoldHealth Medical?
- Unmatched optical clarity and depth of field.
- Ergonomic design for surgeon comfort during long procedures.
- Advanced motorized features for precision and ease of use.
- Backed by decades of expertise in optical engineering.
GoldHealth Medical is dedicated to advancing medical technology, empowering healthcare professionals to achieve exceptional outcomes.
Packaging Details
- Gross weight: 170kg.
- Net weight: 156kg.
- Packaged in four cartons with dimensions:
- 885x860x195mm.
- 890x640x250mm.
- 1020x260x297mm.
- 594x460x230mm.
Certifications
- ISO certified.
- Patented design for reliability and innovation.
GoldHealth Medical sets a new standard in surgical microscopy, delivering precision, durability, and innovation to meet the demands of modern healthcare.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical presents the PrecisionView Eye Operating Microscope
A cutting-edge solution designed for ophthalmic microsurgery, offering unparalleled precision and reliability for medical professionals.
Product Highlights
- Magnification Range: 4.5x to 27x, ensuring exceptional clarity and adaptability for intricate surgical procedures.
- Optical Design: Equipped with a 3-head configuration, enabling collaborative workflows and enhanced training opportunities.
- Material: Constructed from premium-grade metal for durability and stability during operations.
- Instrument Classification: Class I medical device, adhering to the highest standards of safety and performance.
- Safety Compliance: Meets IEC 60601 standards, guaranteeing safe operation in clinical environments.
Technical Specifications
- Power Source: Electrically powered for consistent performance.
- Shelf Life: 1 year, ensuring long-term usability and reliability.
- Quality Certifications: ISO and CE certified, reflecting our commitment to global quality benchmarks.
- Functionality: Specifically engineered as an ophthalmic surgical instrument, tailored for microsurgical excellence.
Packaging Details
- Protective Design: Four cartons with specialized protective foam to safeguard the microscope during transit.
- Dimensions and Weight:
- Carton 1: 885x860x195mm, 78kg
- Carton 2: 890x640x250mm, 41kg
- Carton 3: 1020x260x297mm, 31kg
- Carton 4: 14kg
- Port of Dispatch: Chengdu, China
Supply and Support
- Supply Capacity: 25 sets per month, ensuring timely delivery for bulk orders.
- Warranty: 1-year comprehensive warranty for peace of mind.
- After-Sale Service: Dedicated online technical support to address any operational queries or concerns.
Why Choose PrecisionView?
The PrecisionView Eye Operating Microscope is more than a tool—it’s a partner in precision. Designed for hospitals, clinics, research institutions, and rehabilitation centers, it combines advanced engineering with user-centric features to deliver unmatched performance. Whether for professional use or advanced training, this microscope sets a new standard in ophthalmic care.
Experience the GoldHealth Medical difference today.
