Advanced Veterinary XRay System for Diagnostics
Reference: 1601205349508
Veterinary Diagnostic Equipment
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Revolutionizing Veterinary Imaging

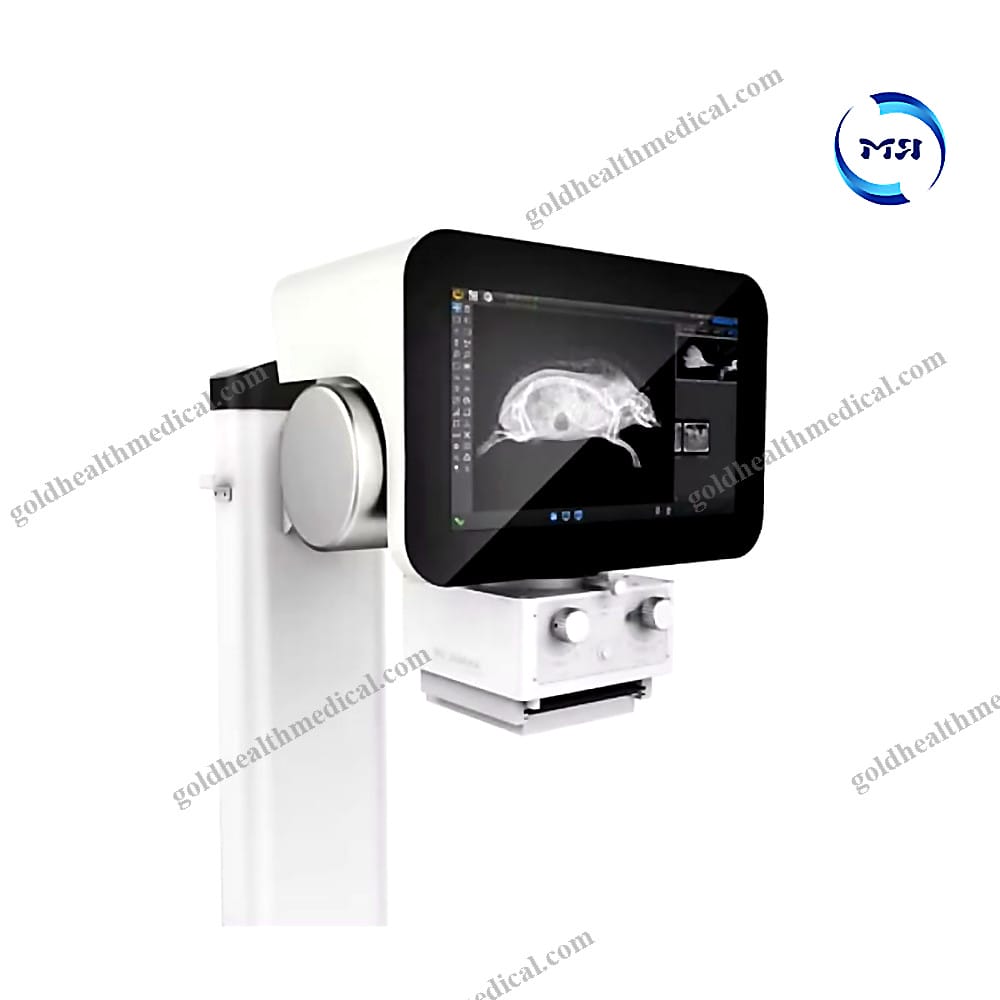

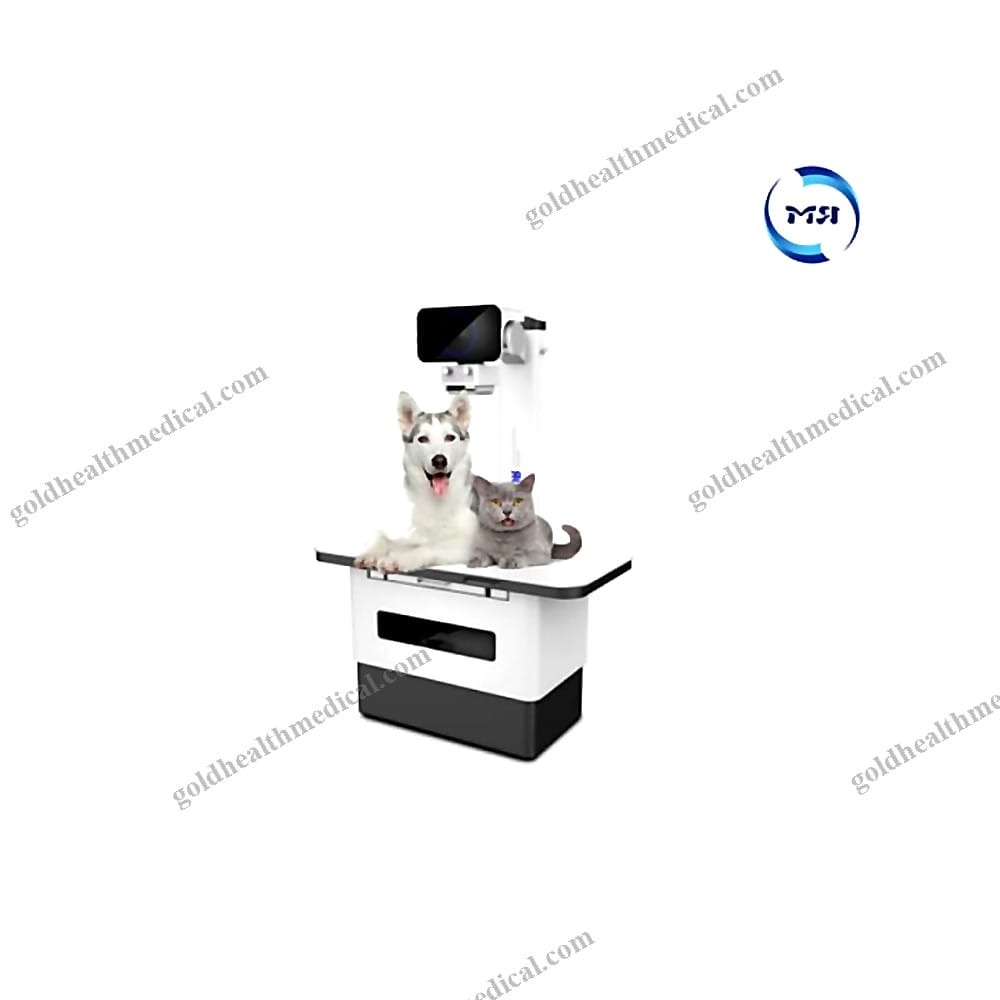

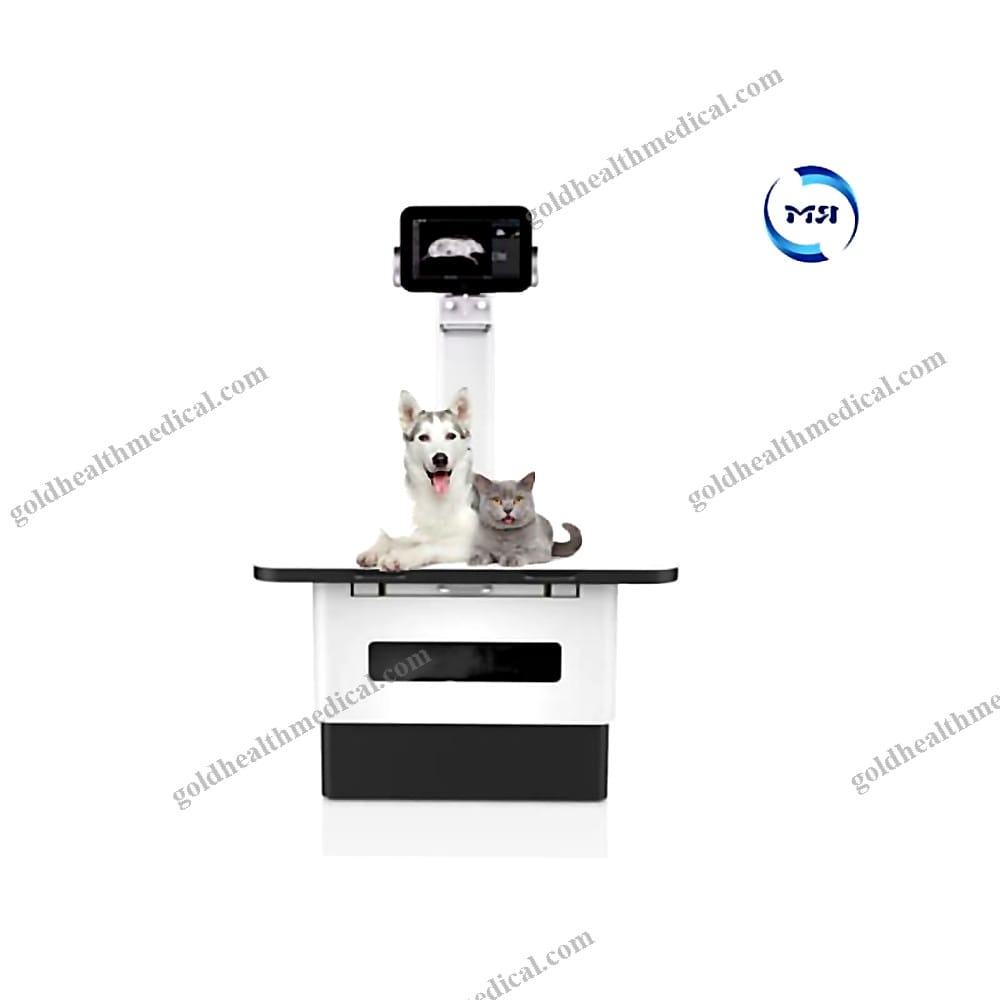

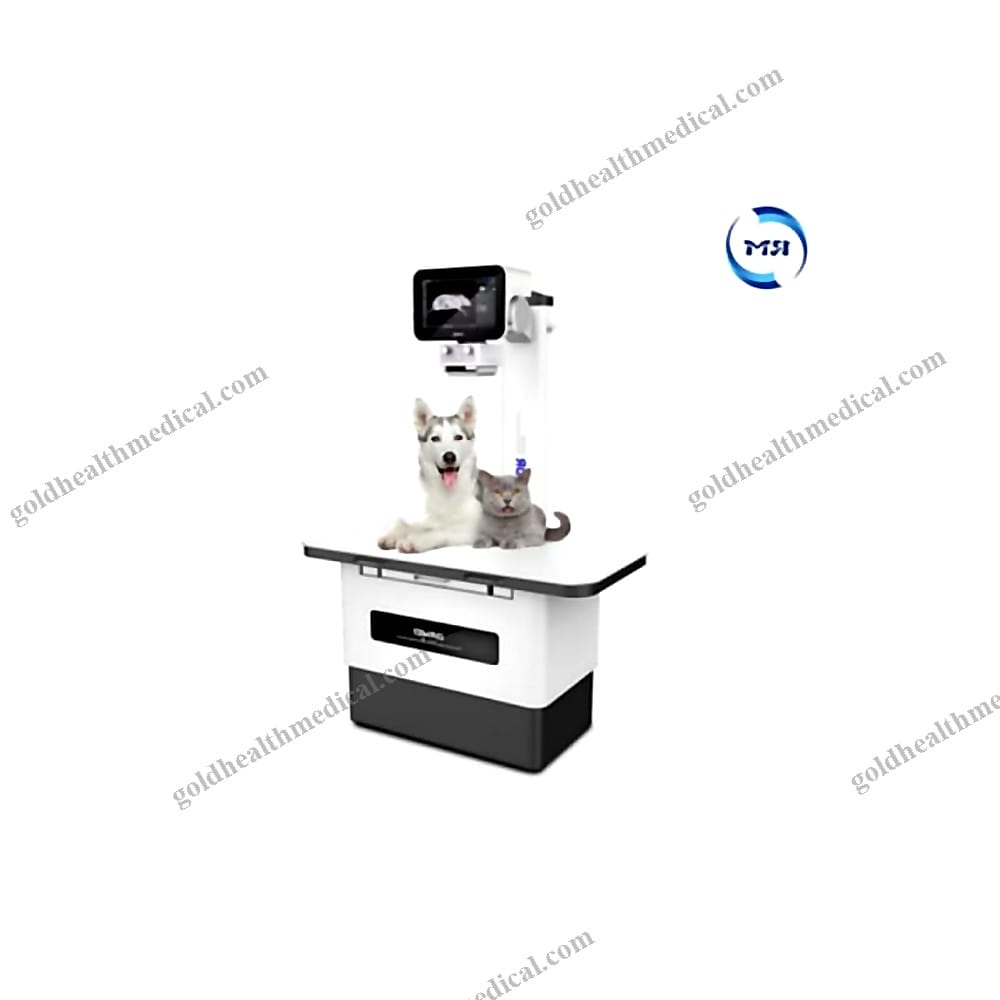

Digital Veterinary X-ray Radiography System (DR)
The GoldHealth Medical Digital X-ray Radiography System is a fully functional, secure, and efficient digital X-ray image acquisition system designed to meet the needs of modern veterinary practices. Engineered with cutting-edge technology, this system delivers exceptional image quality, minimal radiation exposure, and unmatched operational efficiency.
Key Features

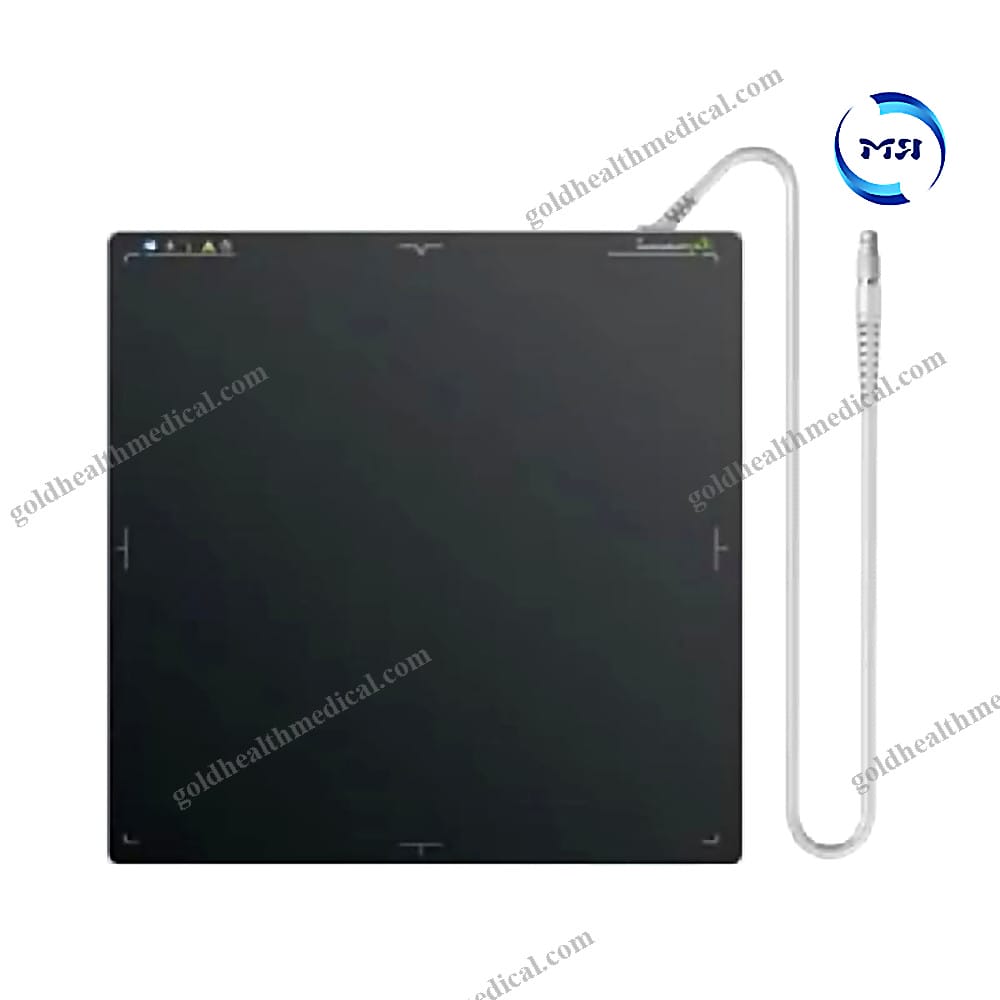

- 17’’×17’’ Amorphous Silicon Cesium Iodide Flat Panel Detector:
- Image quality that sets a new benchmark in the industry.
- 139µm pixel size, spatial resolution of 3.6 lp/mm, and a pixel matrix of 3072 × 3072 px for megapixel imaging.
- Automatic Exposure Detection (AED) function ensures no loss of image due to weak exposure, detecting even faint signals for comprehensive signal conversion.
-
High X-ray conversion efficiency, faster imaging speed, and lower radiation doses without compromising image quality.
-
High-Frequency High-Voltage Generator:
- Ultra-wide millisecond-level control with three exposure modes: kV-mA, kV-mAs, and kV-mA-ms.
- Self-diagnostic fault detection for precise error identification and modular design for easy maintenance.
-
Industry-leading automatic tube calibration for consistent accuracy.
-
X-Ray Tube Assembly:
- Dual focus: 1.0mm (small focus) and 2.0mm (large focus) for optimal balance between image resolution and loading power.
-
High anode heat content of 140 kHU ensures stable continuous exposure performance, ideal for demanding clinical environments.
-

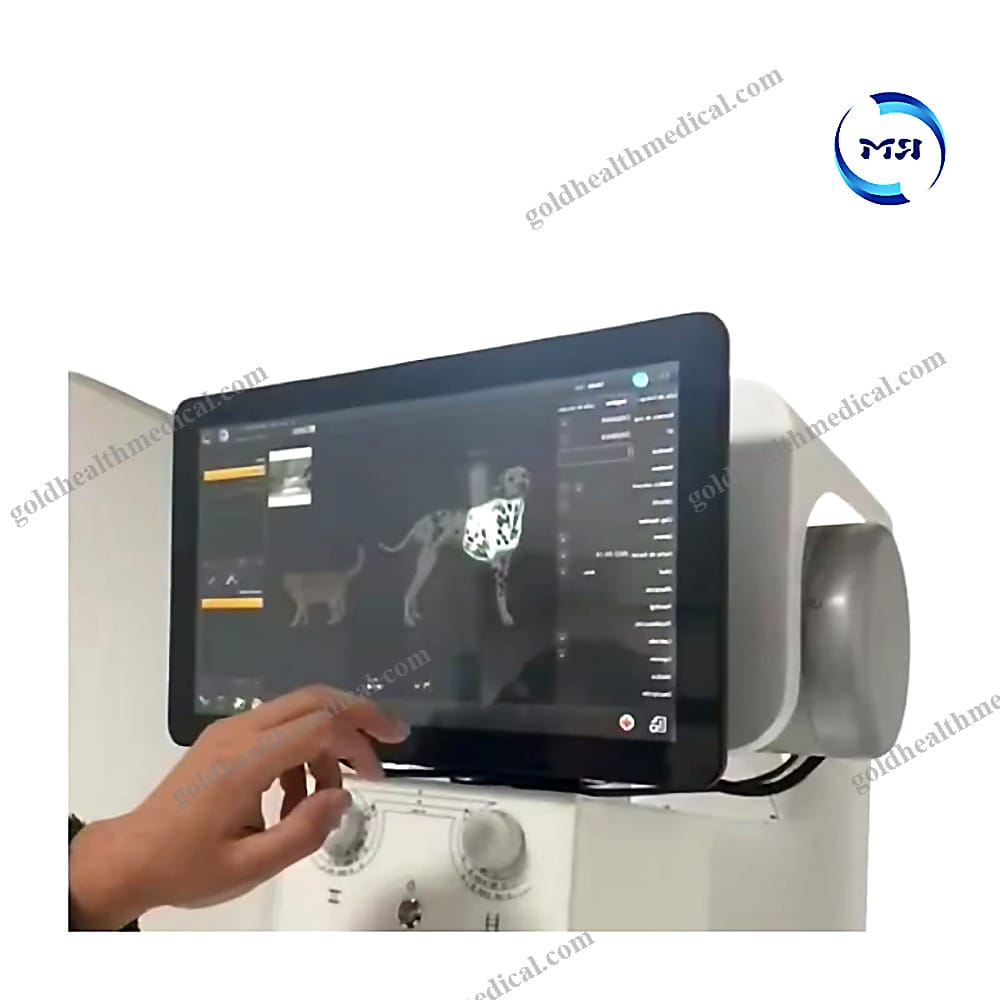

Software Suite:
- DICOM image format support for seamless integration with PACS systems.
- Optimized for 8 typical animal species and up to 75 photographic positions, each tailored for specific imaging needs.
- Advanced image processing tools enhance diagnostic accuracy and speed.
- Comprehensive patient management, including registration, image storage, and report generation.
Technical Specifications
- Tabletop Size: 1400 × 720mm (±50mm)
- Source-to-Image Distance (SID): 1000mm
- Output Power: 32kW
- Imaging Time: ≤3 seconds
- Dynamic Output Range: 16-bit for enhanced grayscale reproduction and low-contrast density resolution.
Unique Advantages
- Unmatched Speed: Complete imaging in just 3 seconds, ensuring real-time diagnosis and improved workflow efficiency.
- Superior Stability: Operates reliably across a wide range of environmental conditions (temperature: 5°C–35°C, humidity: 10%–75%).
- Lower Maintenance Costs: Designed for durability and minimal downtime, reducing long-term operational expenses.
- Dustproof and Waterproof High-Voltage Generator: Built to withstand challenging clinical environments.
Why Choose GoldHealth Medical?
GoldHealth Medical is a trusted name in veterinary diagnostic equipment, offering innovative solutions that combine precision, efficiency, and affordability. Our commitment to quality ensures that every product meets the highest standards of performance and reliability.
Applications
- Hospitals and clinics
- Veterinary practices
- Research institutions and laboratories
- Rehabilitation centers and home care settings
GoldHealth Medical’s Digital Veterinary X-ray System is more than just equipment—it’s a tool designed to empower veterinarians, enhance diagnostic capabilities, and improve animal healthcare outcomes.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Product Name: Veterinary X-Ray Machine
Product Overview
The Veterinary X-Ray Machine by GoldHealth Medical is a state-of-the-art diagnostic tool designed specifically for pets and animal care. Engineered with precision and reliability in mind, this advanced system delivers high-quality imaging to support accurate body detection and diagnosis. Whether in a veterinary clinic, research lab, or rehabilitation center, this machine is your trusted partner in ensuring the health and well-being of animals.
Key Features
- High-Resolution Imaging: Equipped with an LCD digital display, this machine provides crystal-clear X-ray images for precise diagnostics.
- Durable Construction: Built with high-quality materials, including robust plastic components, ensuring long-lasting performance.
- Compact and Efficient Design: Optimized for both small and large veterinary facilities, offering ease of use without compromising on functionality.
- Versatile Application: Ideal for detecting fractures, internal injuries, and other health conditions in pets of all sizes.
Technical Specifications
- Usage: Pets body detection
- Display: LCD digital display for enhanced image clarity
- Material: High-grade plastic and durable components
- Minimum Order Quantity (MOQ): 1 unit
- Packing Dimensions: 230 x 170 x 103 cm
- Gross Weight: 280 kg
- Selling Unit: Single item
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering cutting-edge veterinary solutions that empower healthcare professionals to provide the best care possible. Our Veterinary X-Ray Machine combines innovative technology with user-friendly design, making it an indispensable tool for modern animal healthcare.
Experience the difference with GoldHealth Medical – where precision meets compassion.
